As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

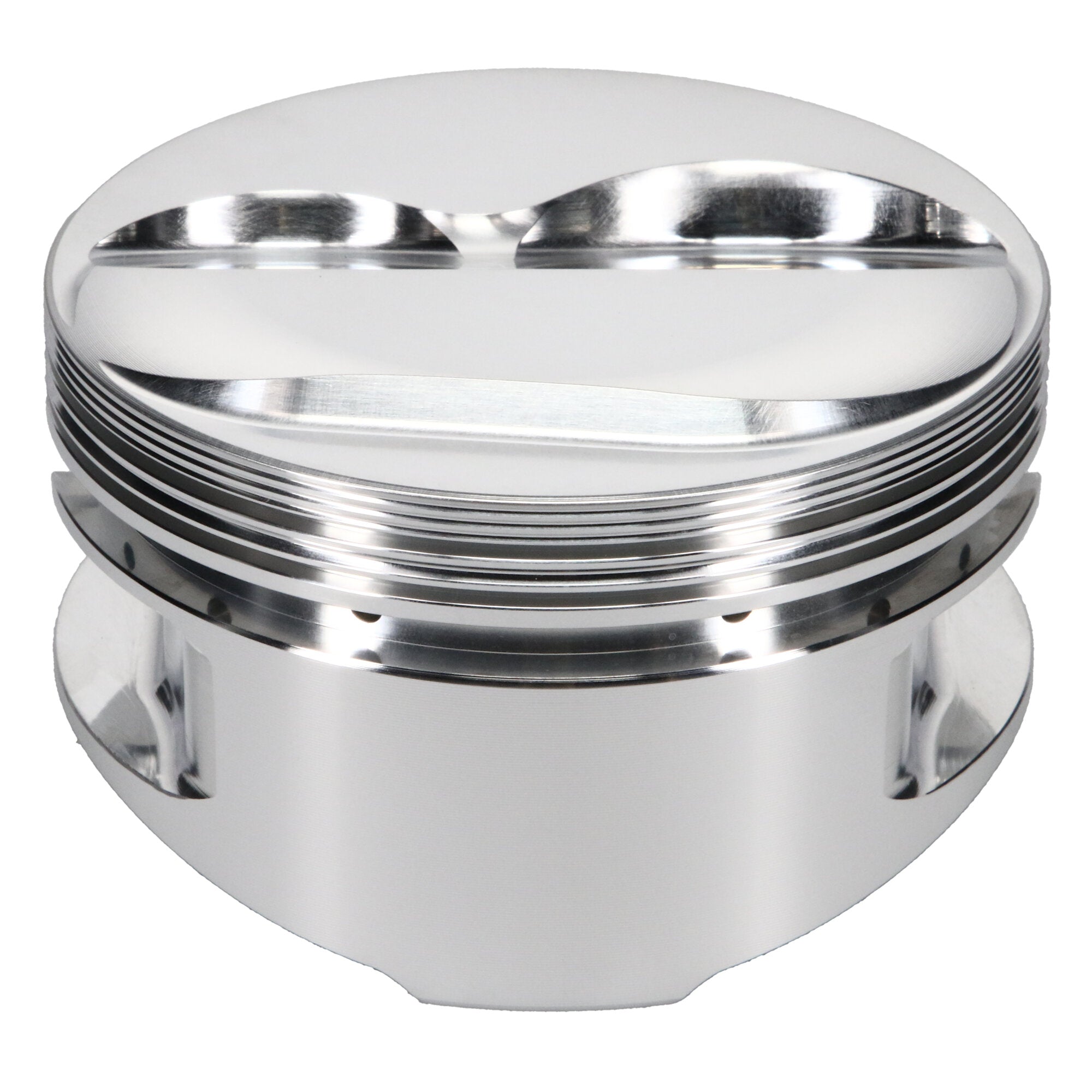

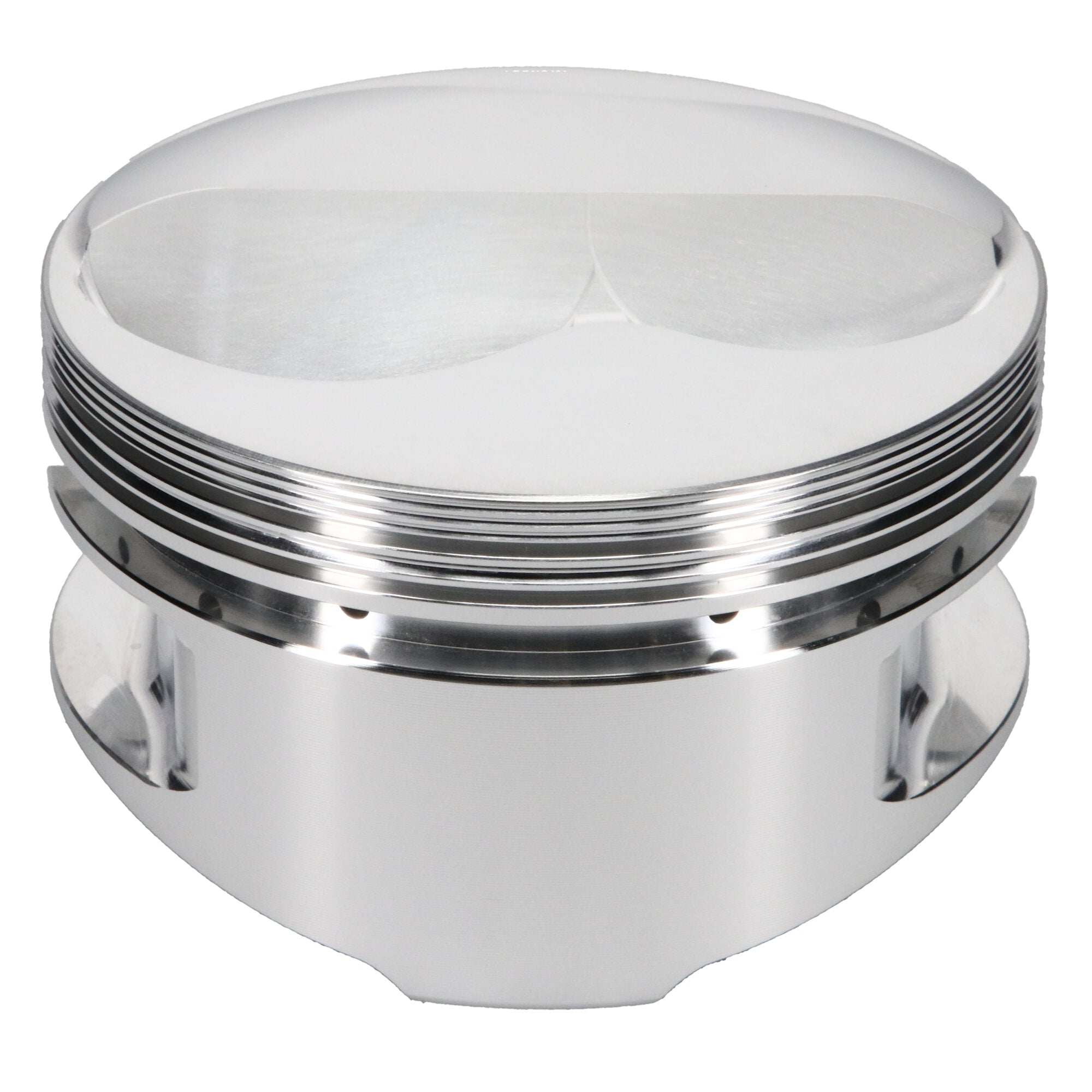

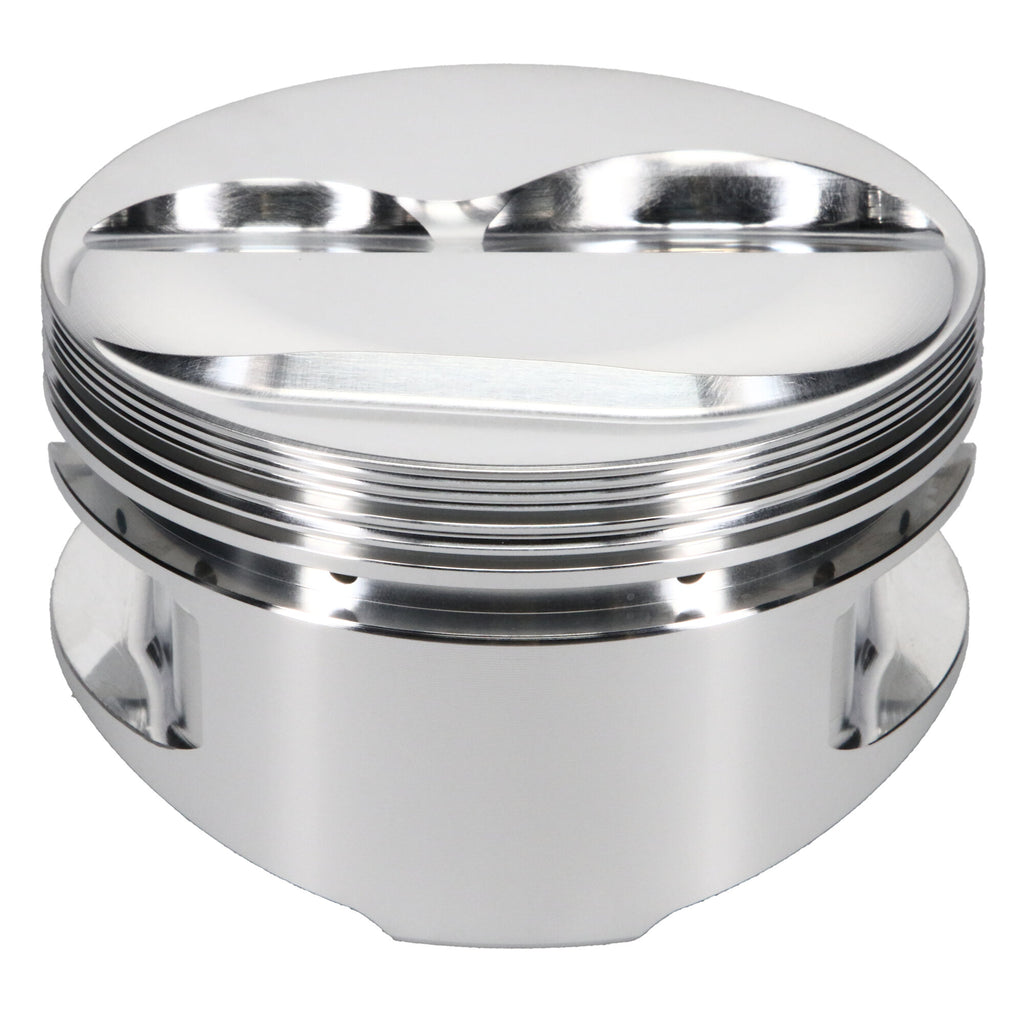

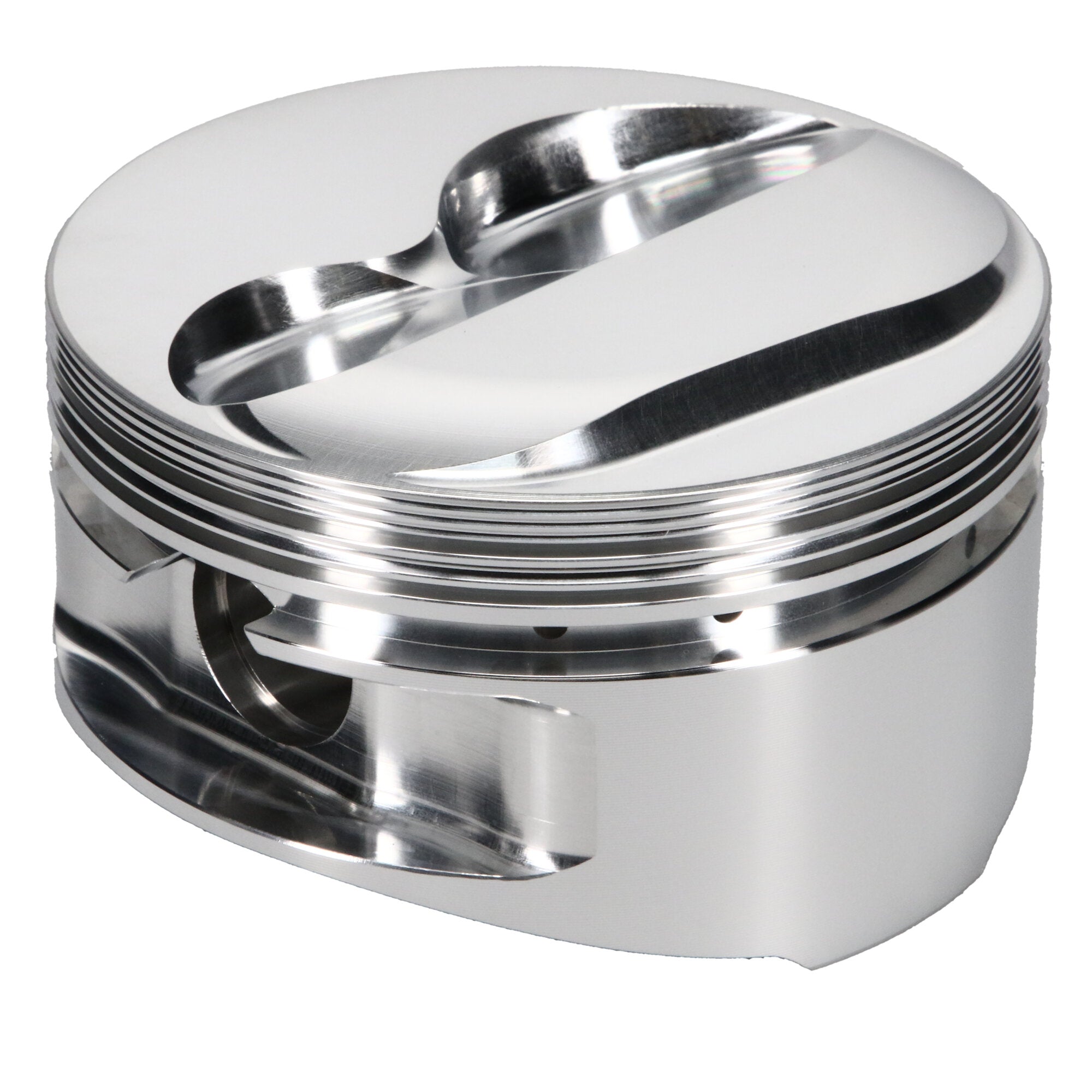

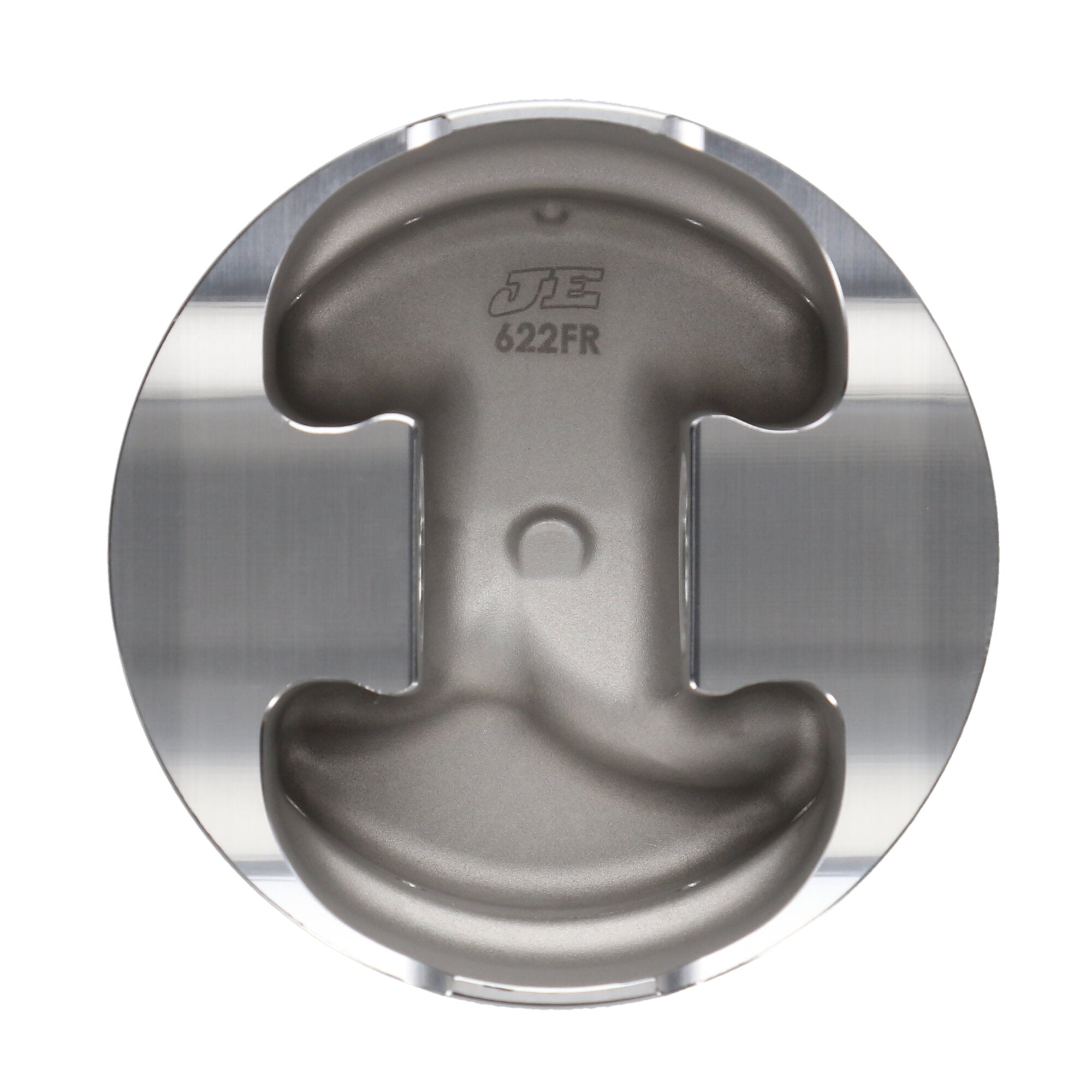

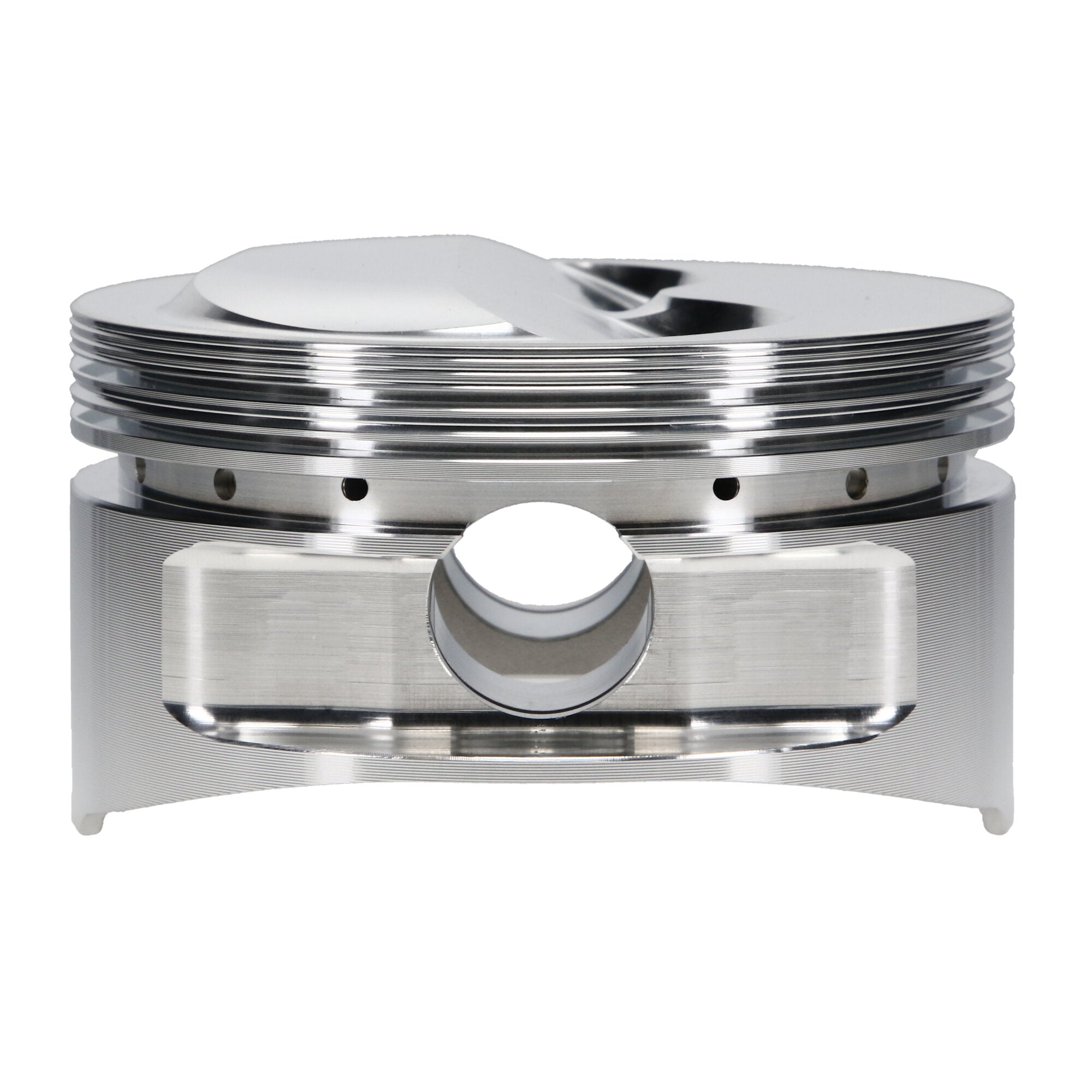

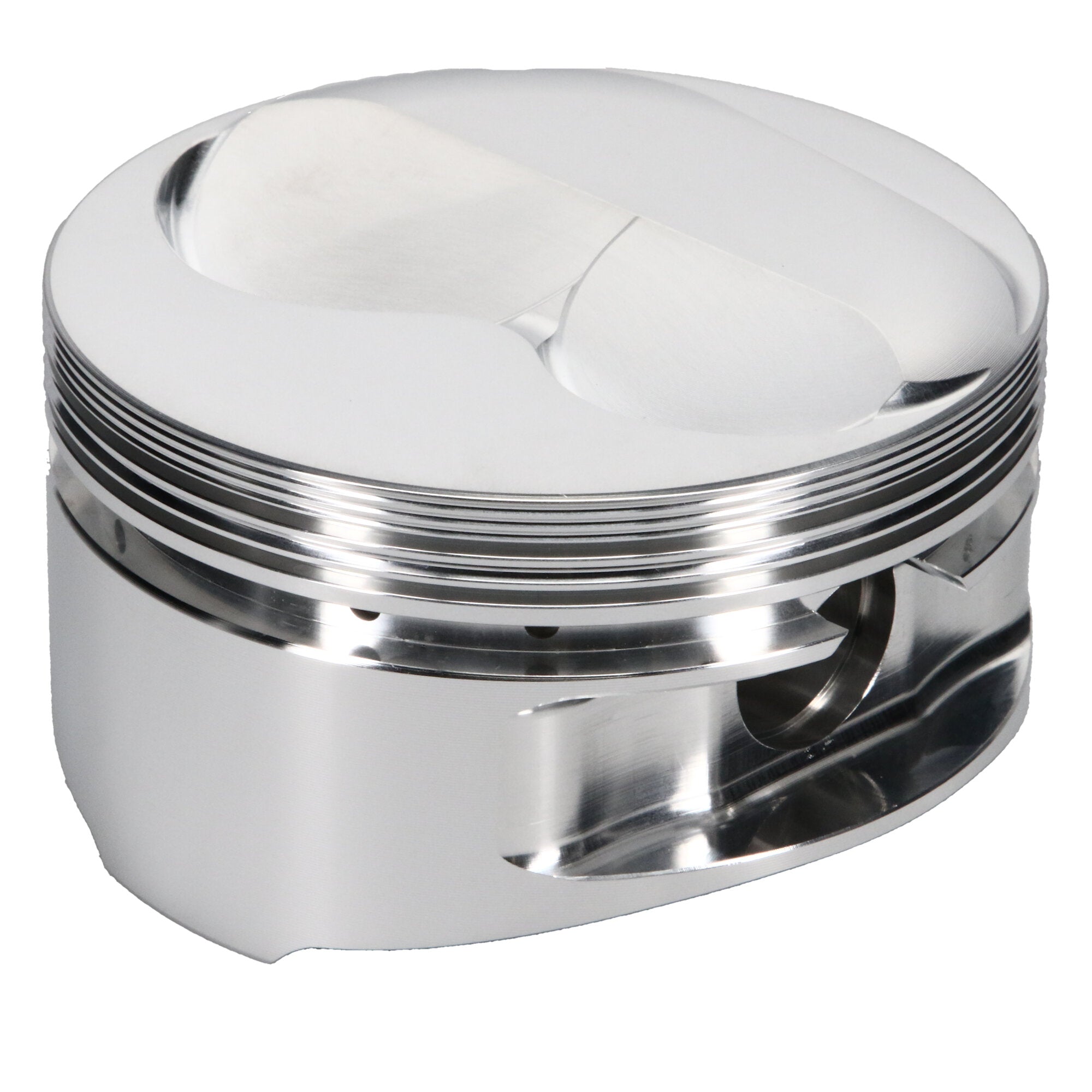

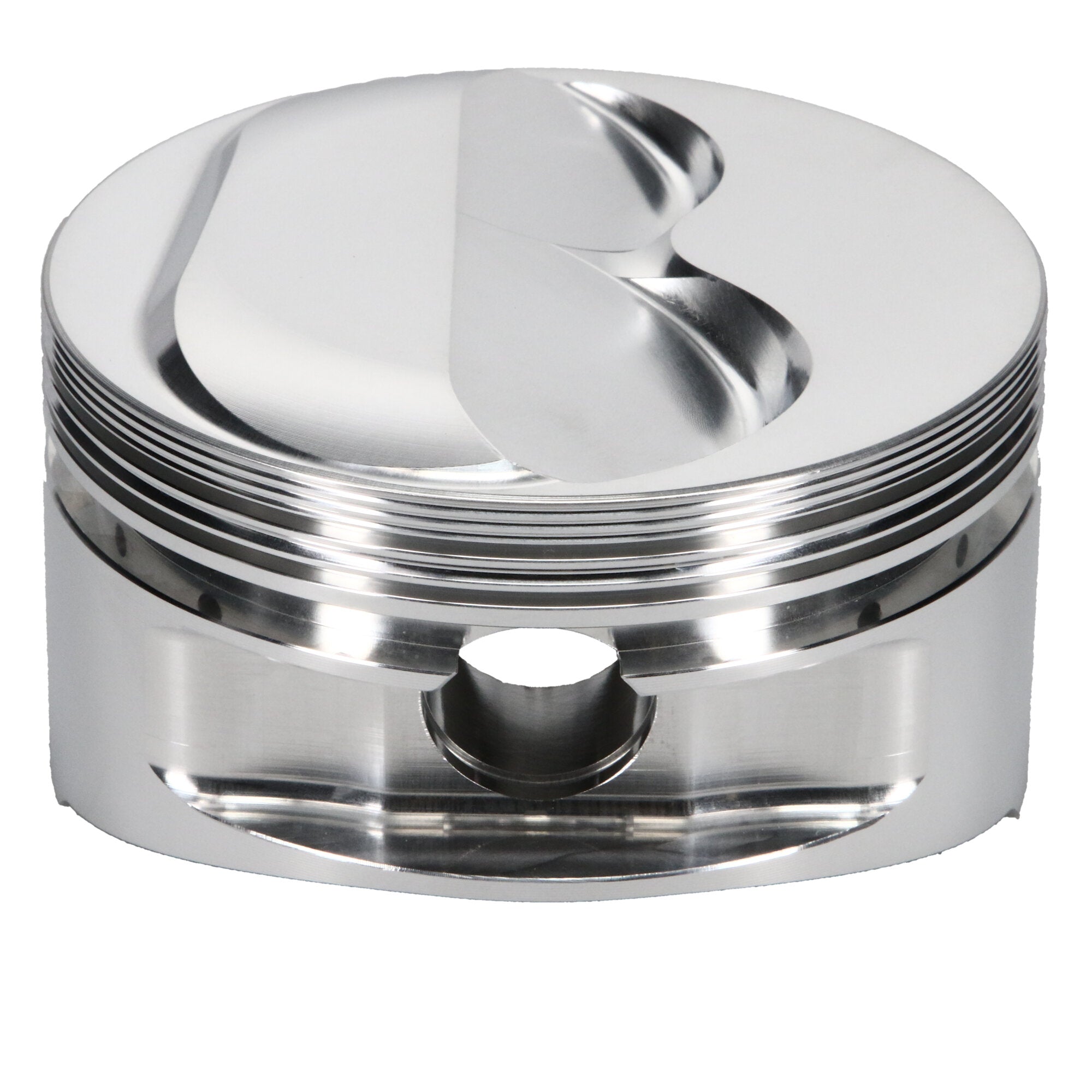

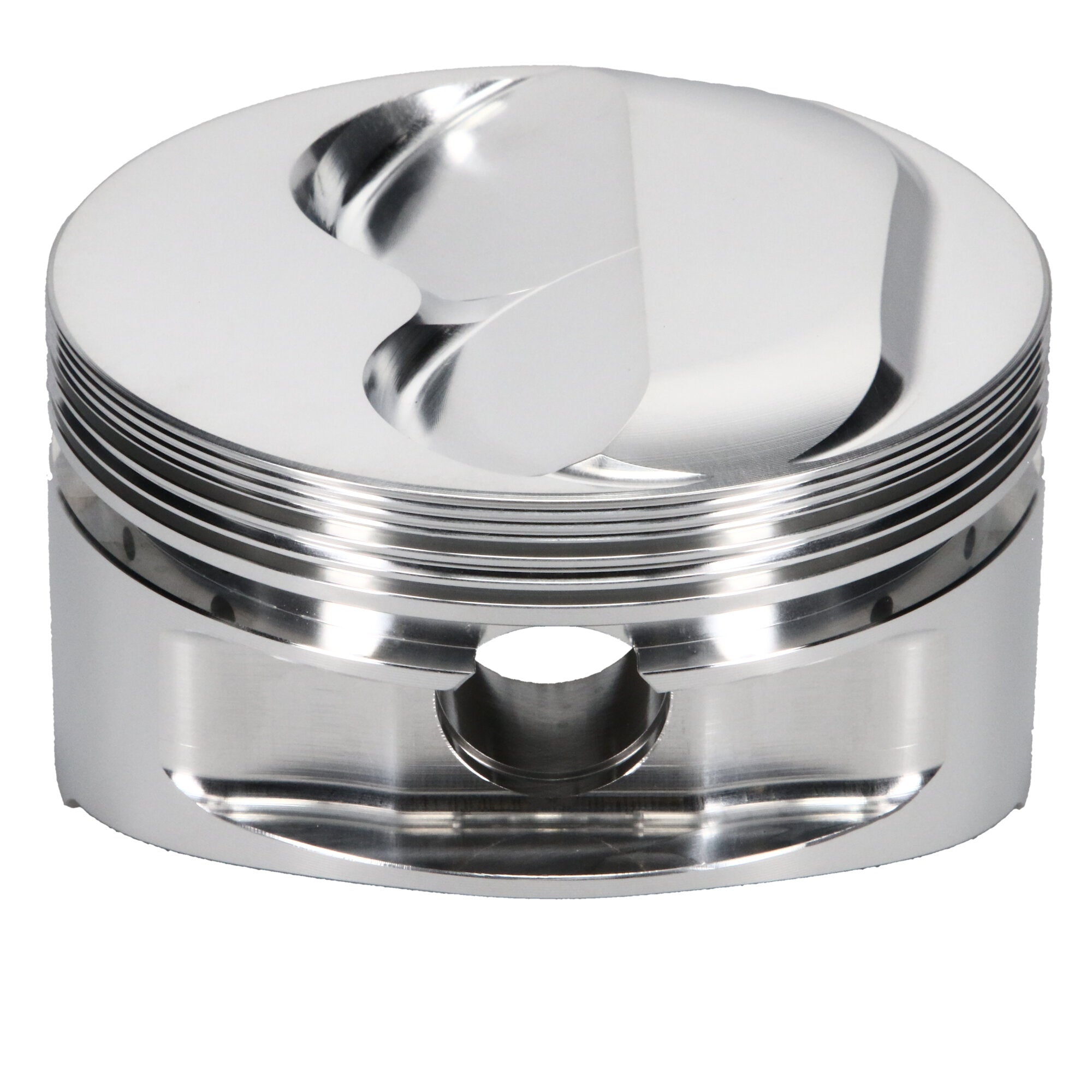

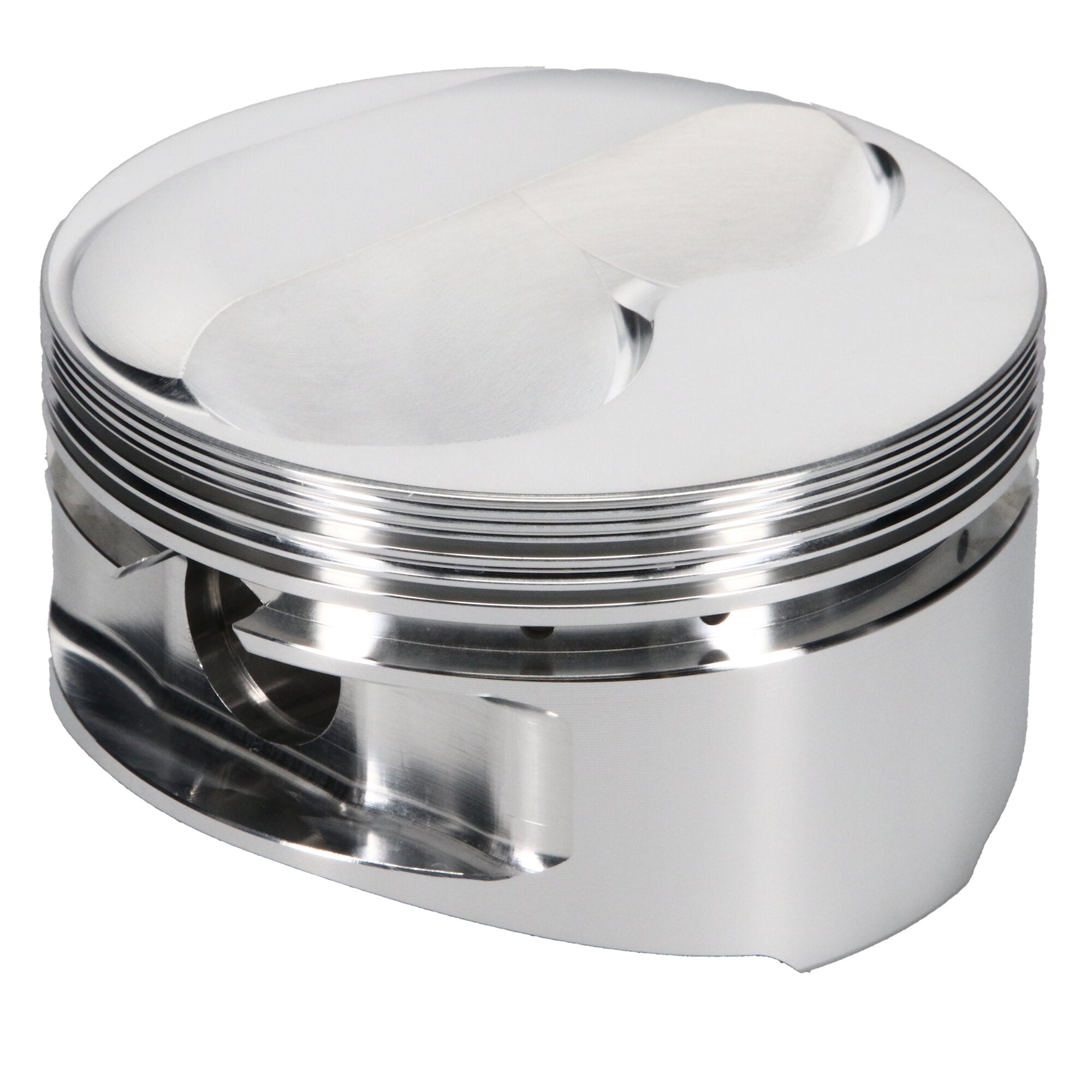

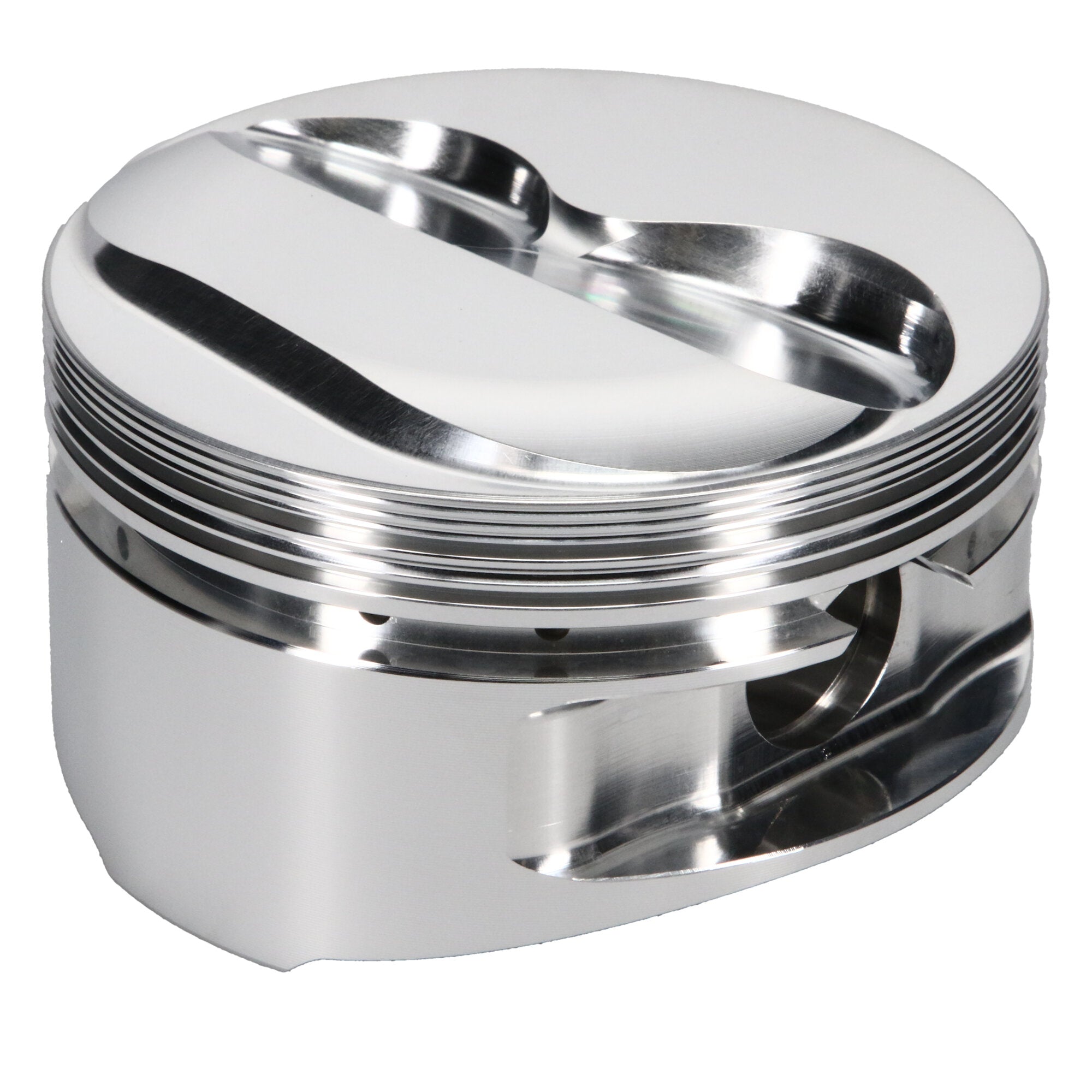

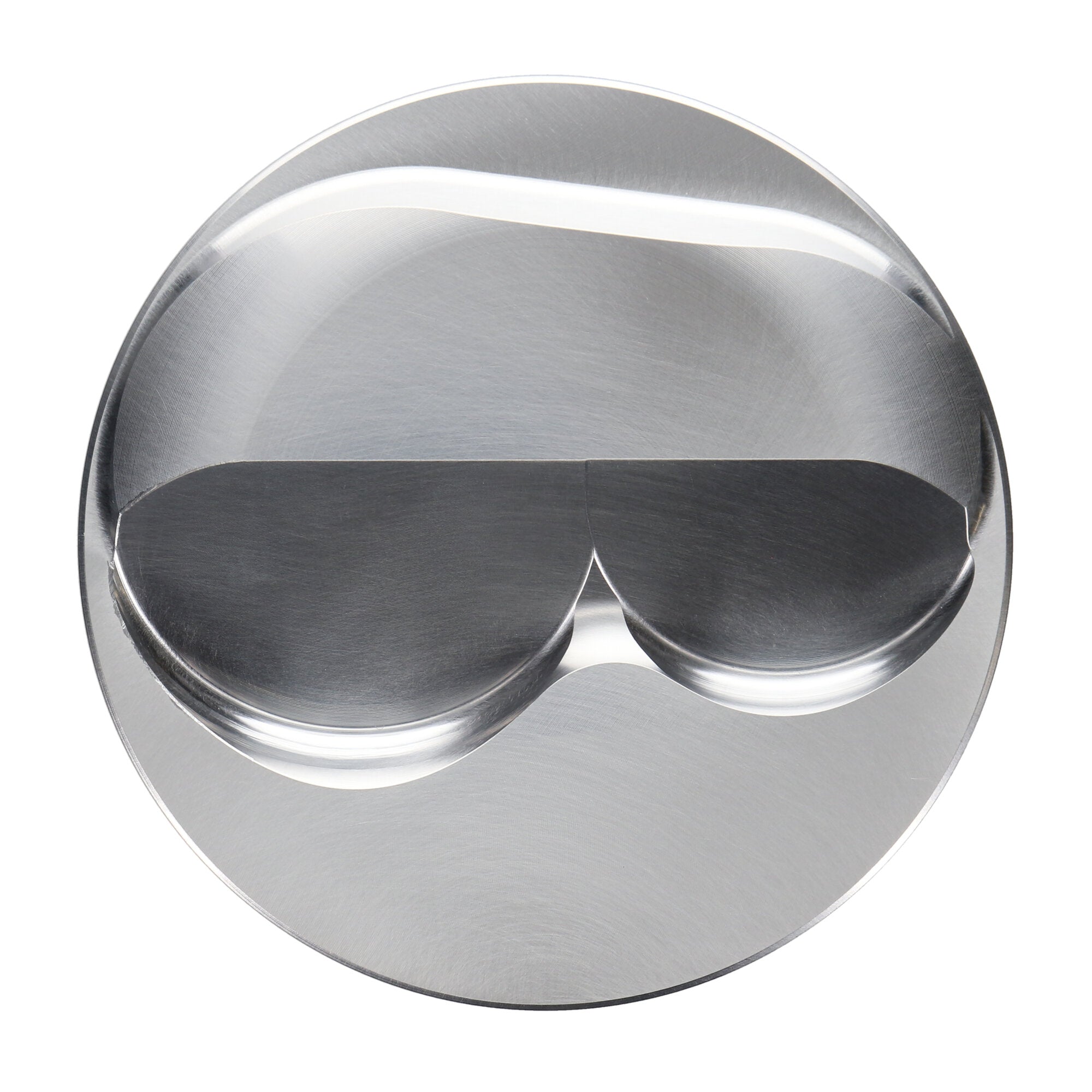

Piston Set, 2618, Dome, 4.165 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.165 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.165 Bore, Dome, Set of 8 |
| Piston Head Type |
Dome |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Oil Ring Thickness |
0.218 |
| Piston Volume |
10.80 |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Pistons |
| Make |
CHEVROLET |
| Ring Set Included |
No |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.165 |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
J10008-4165-5 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.165 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Piston Average Weight |
460 |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.125 |
| Industry |
Automotive |
| Engine |
Small Block |
| Add-On |
927-042-CS |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
927-2750-15-51S |
| Wrist Pin Length |
2.750 |
| Engine - Web |
Small Block |
| Ringset Included |
No |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.165 in. Bore - 1.125 in. CH, 10.80 CC |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
