As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

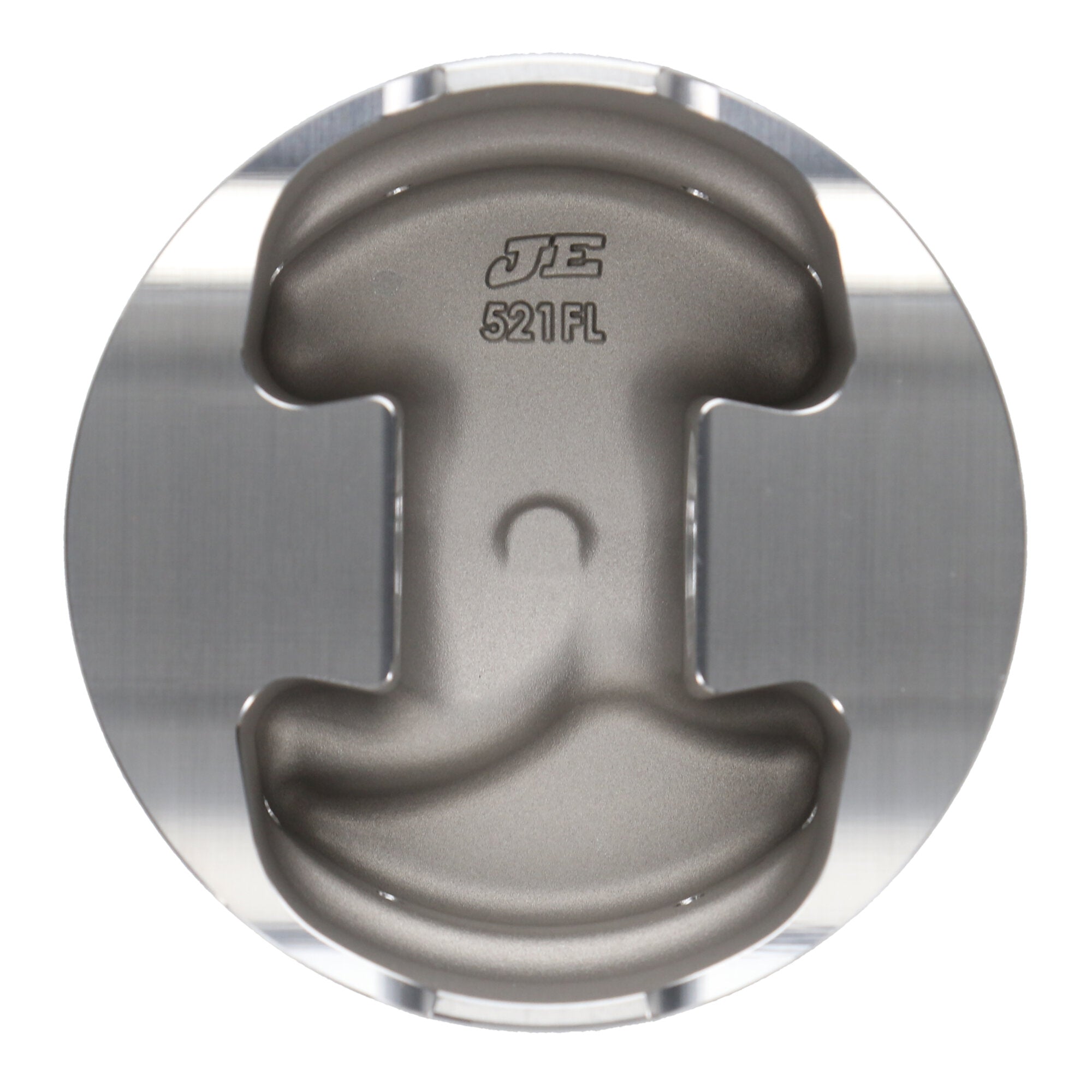

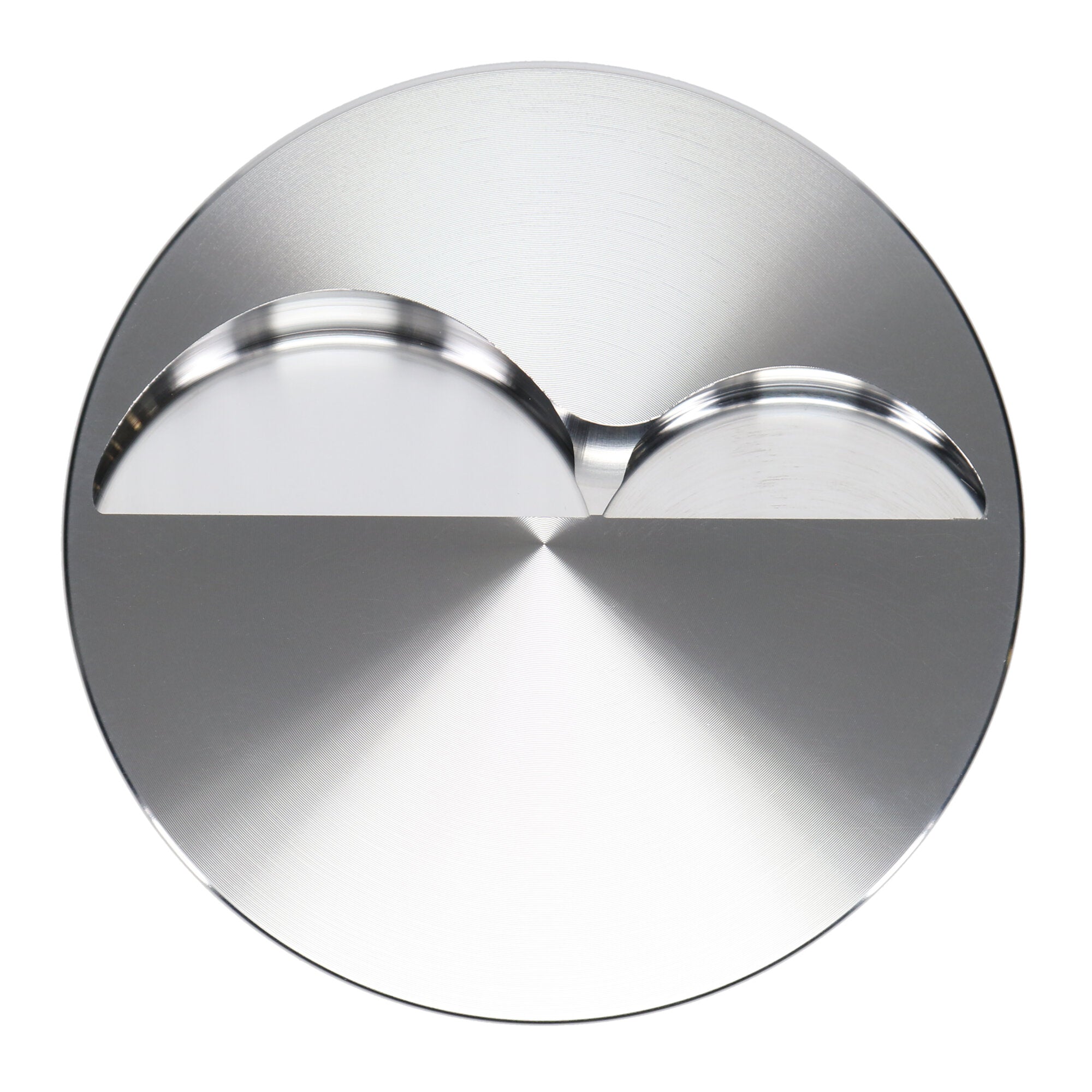

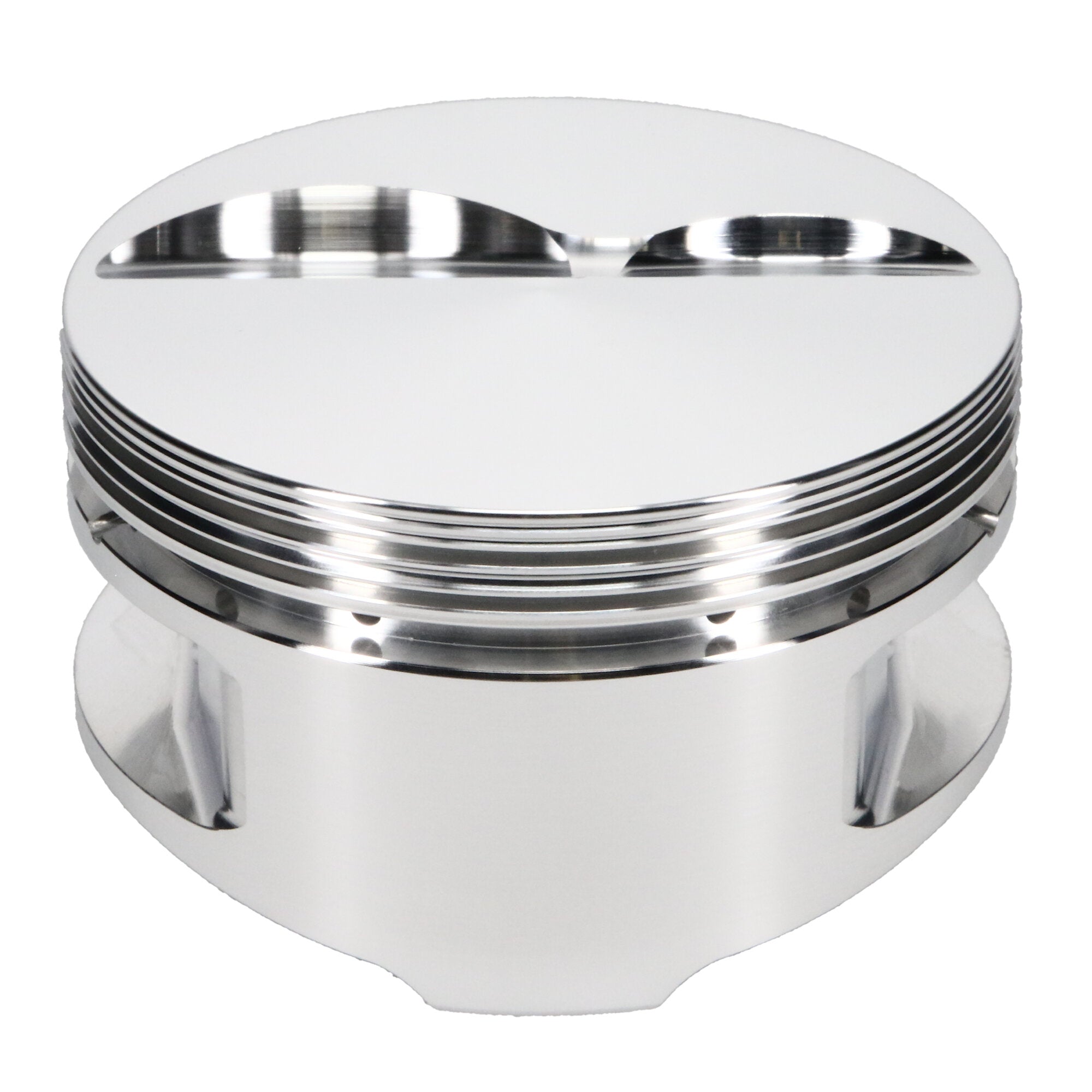

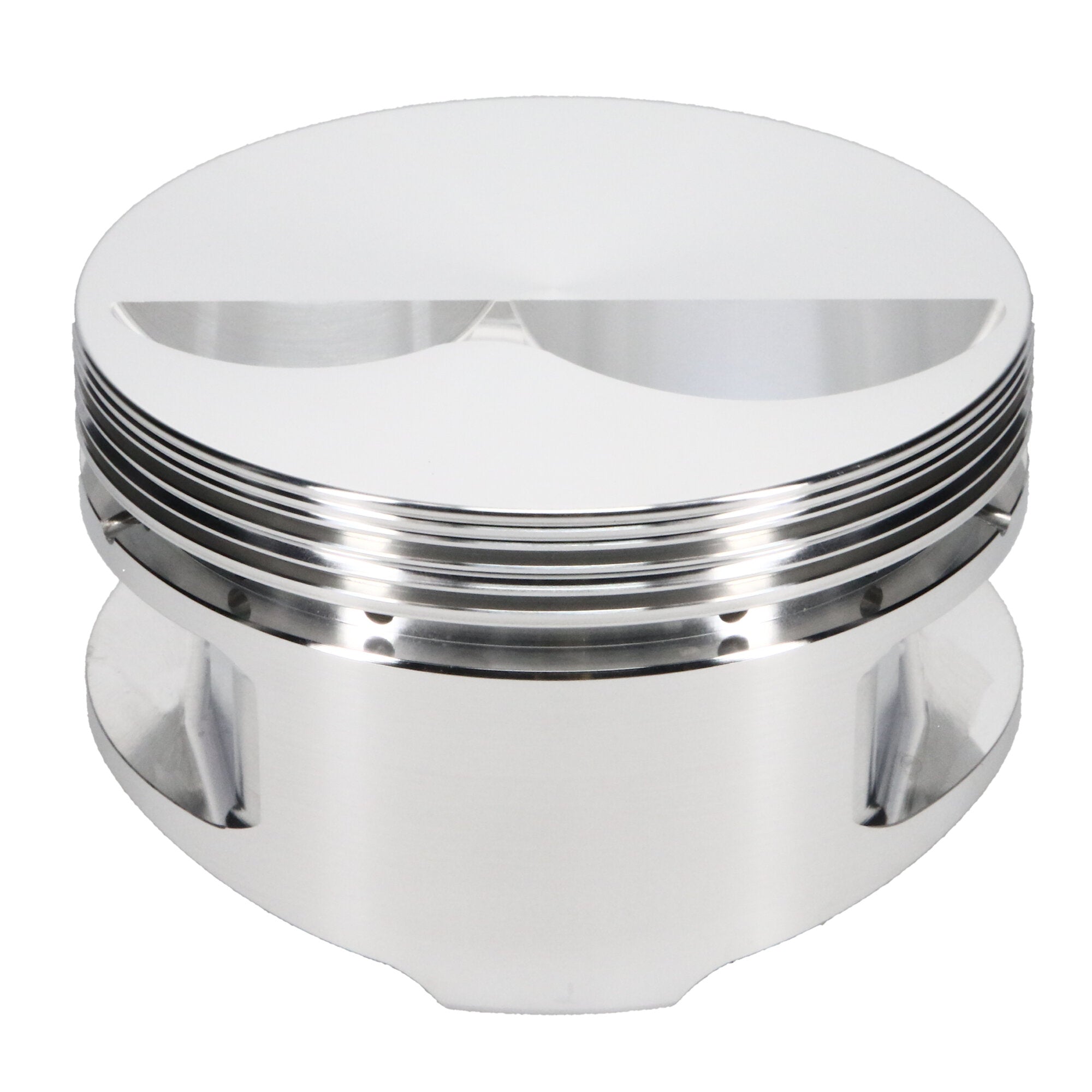

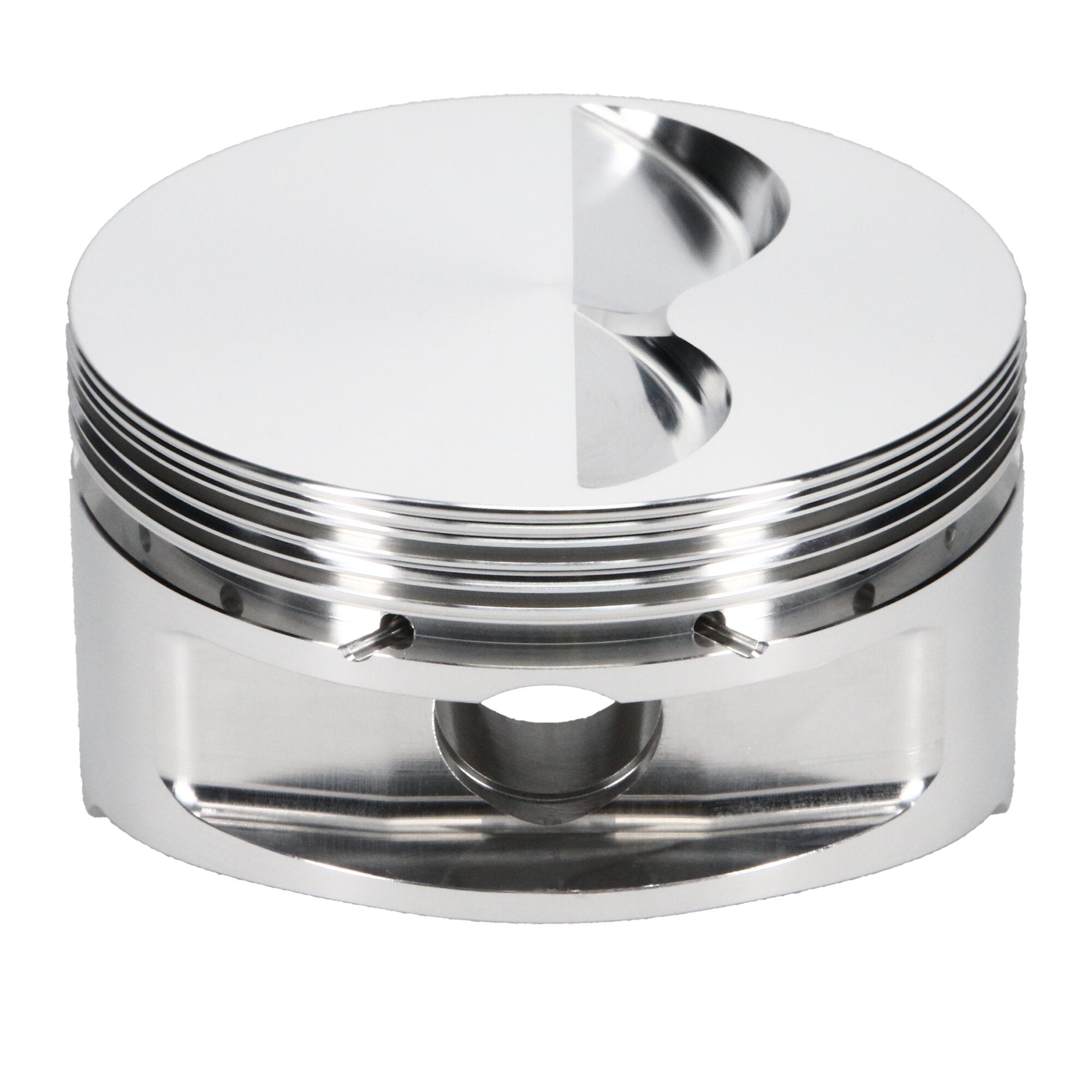

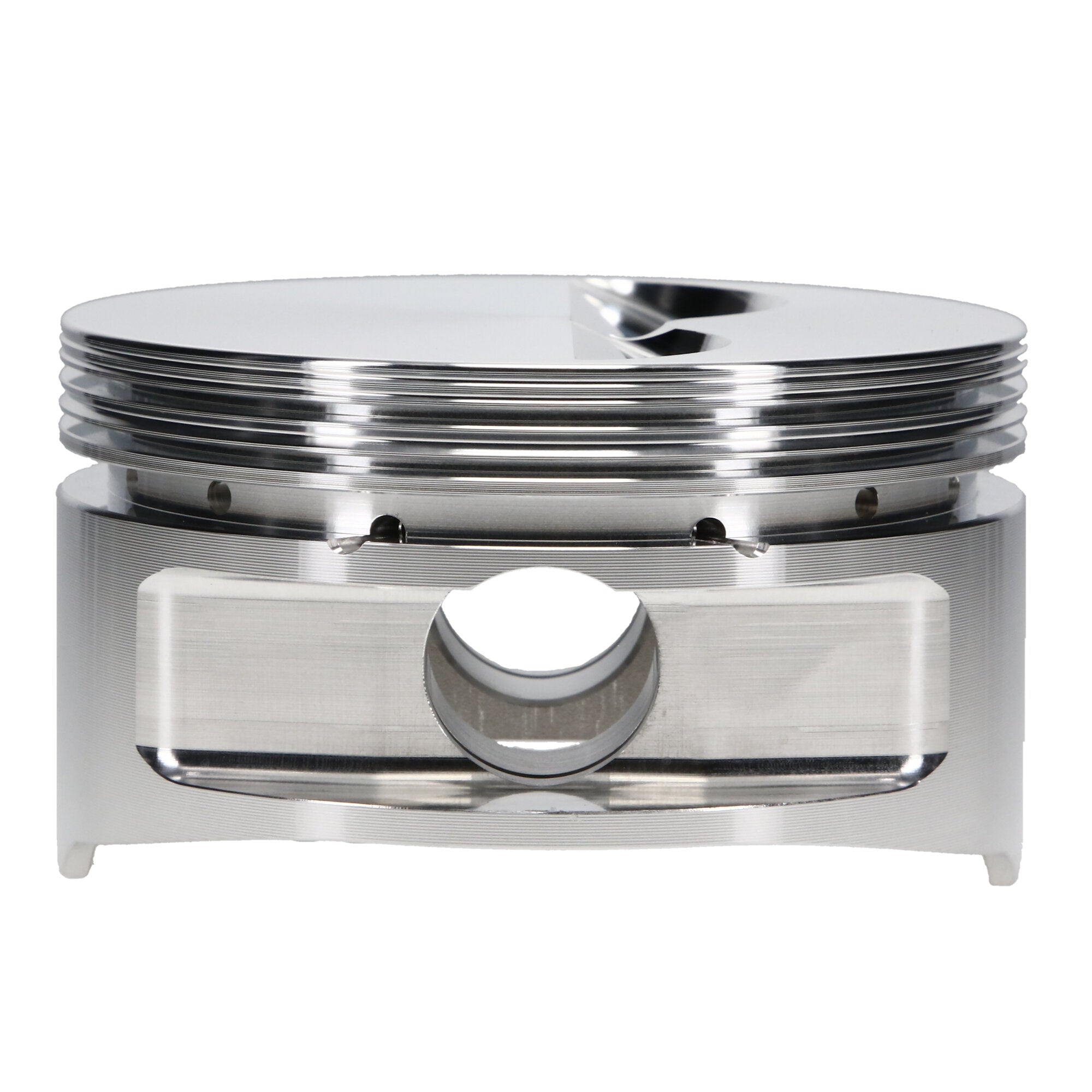

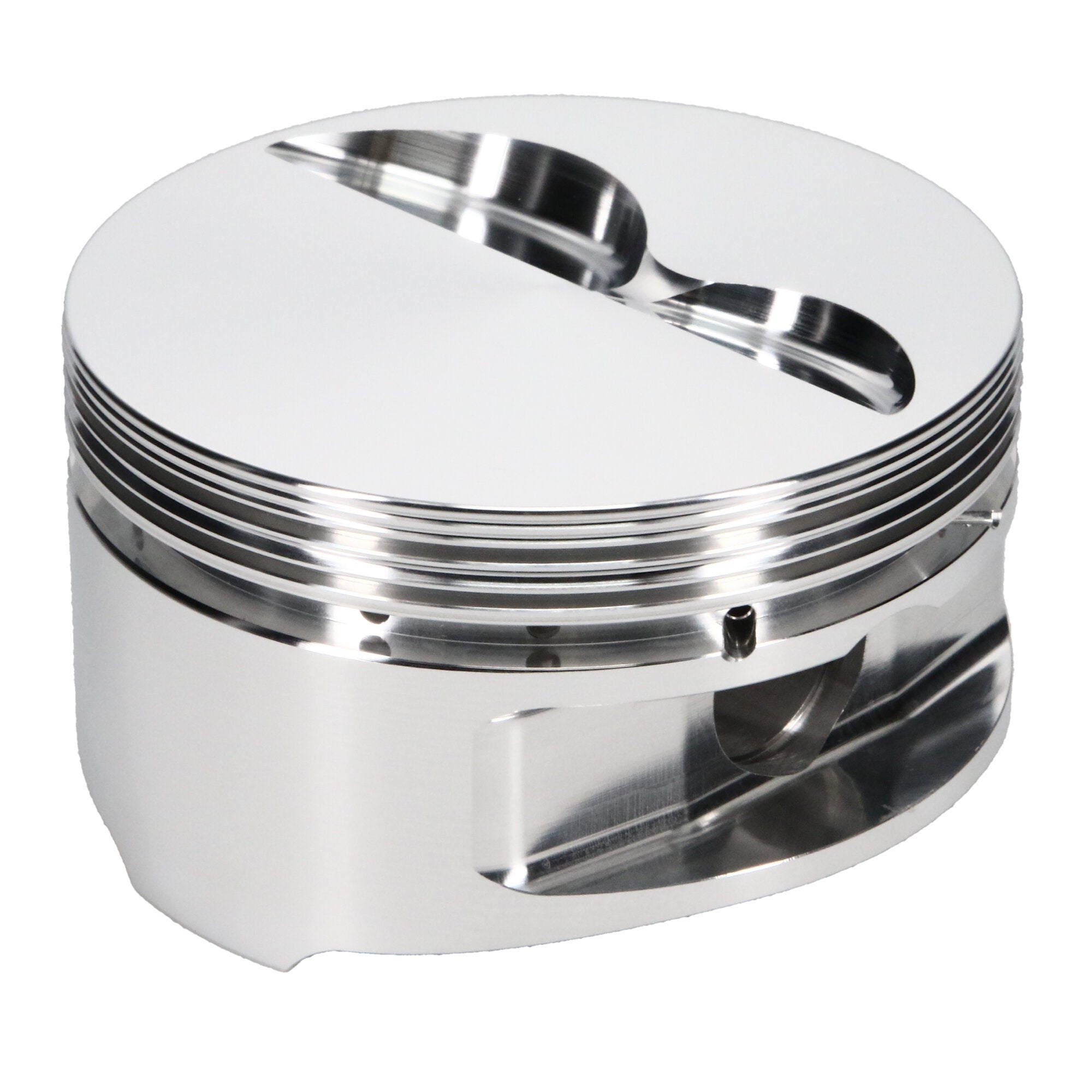

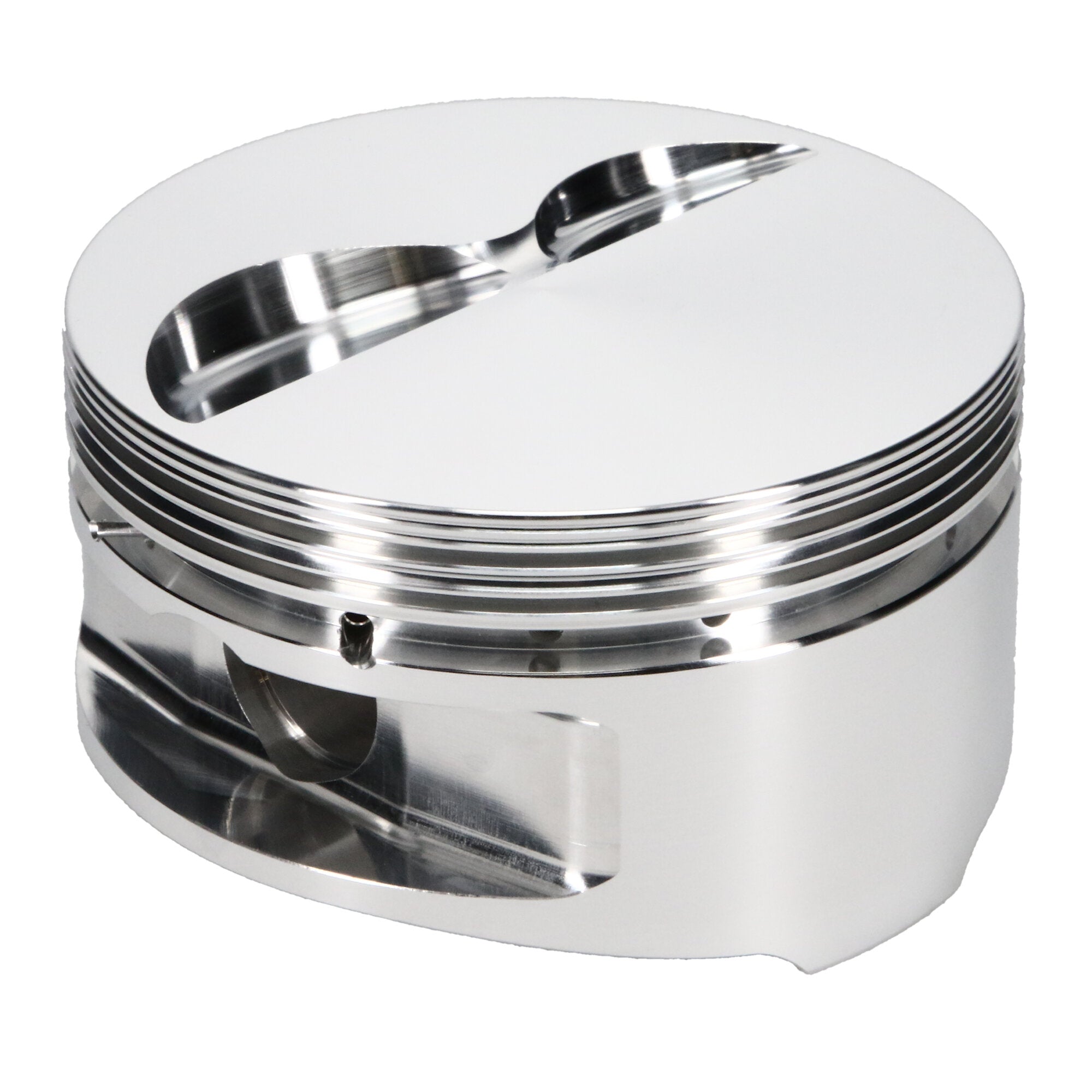

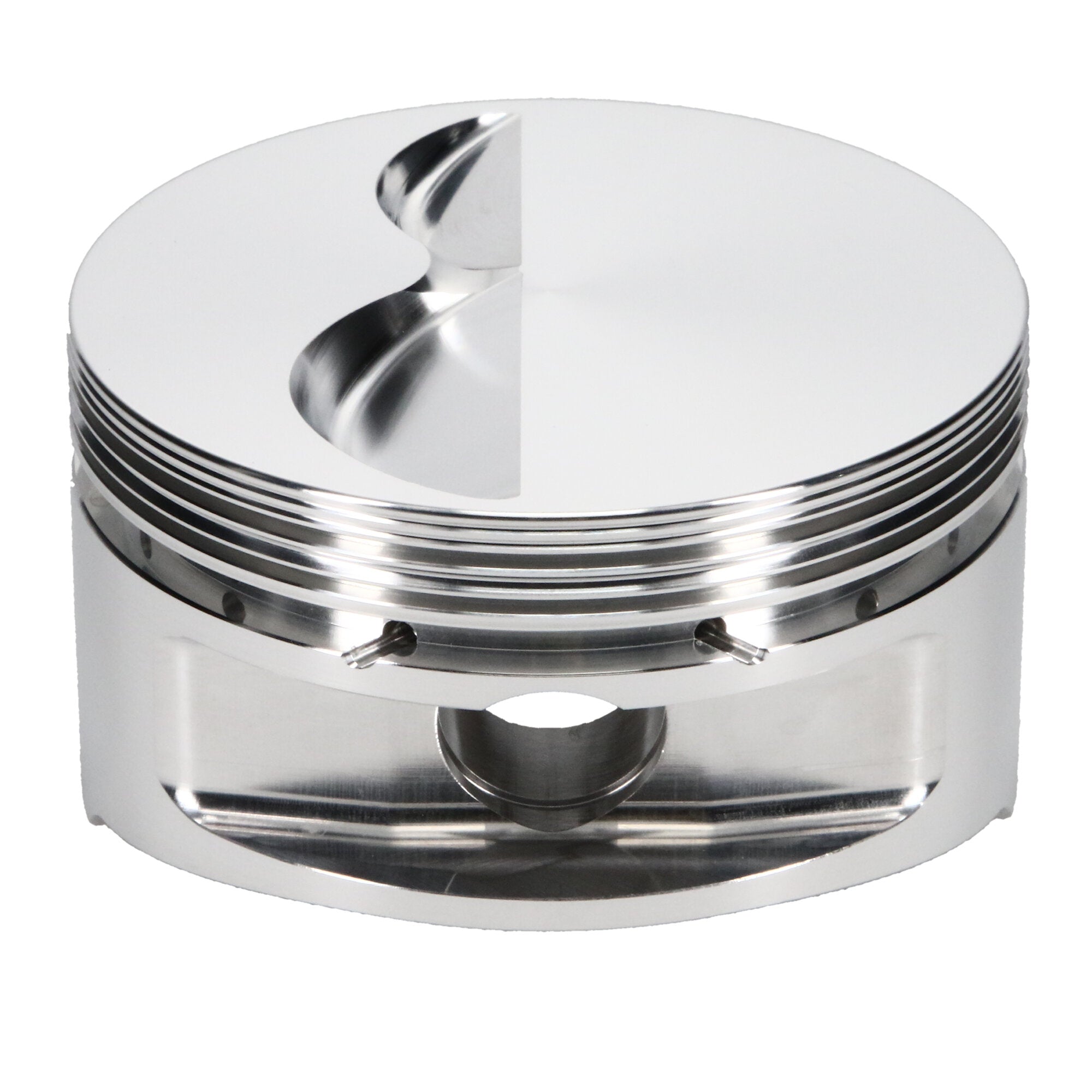

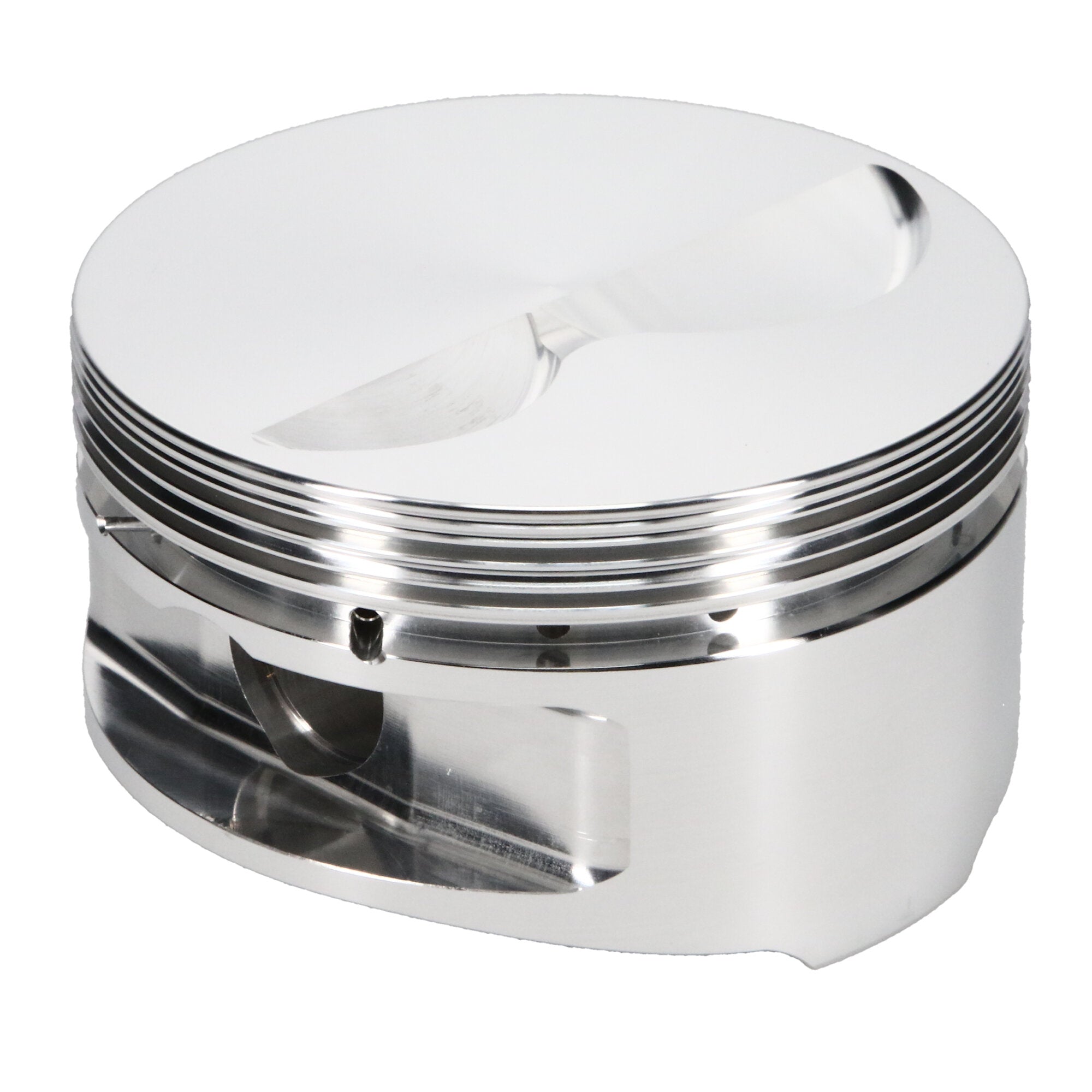

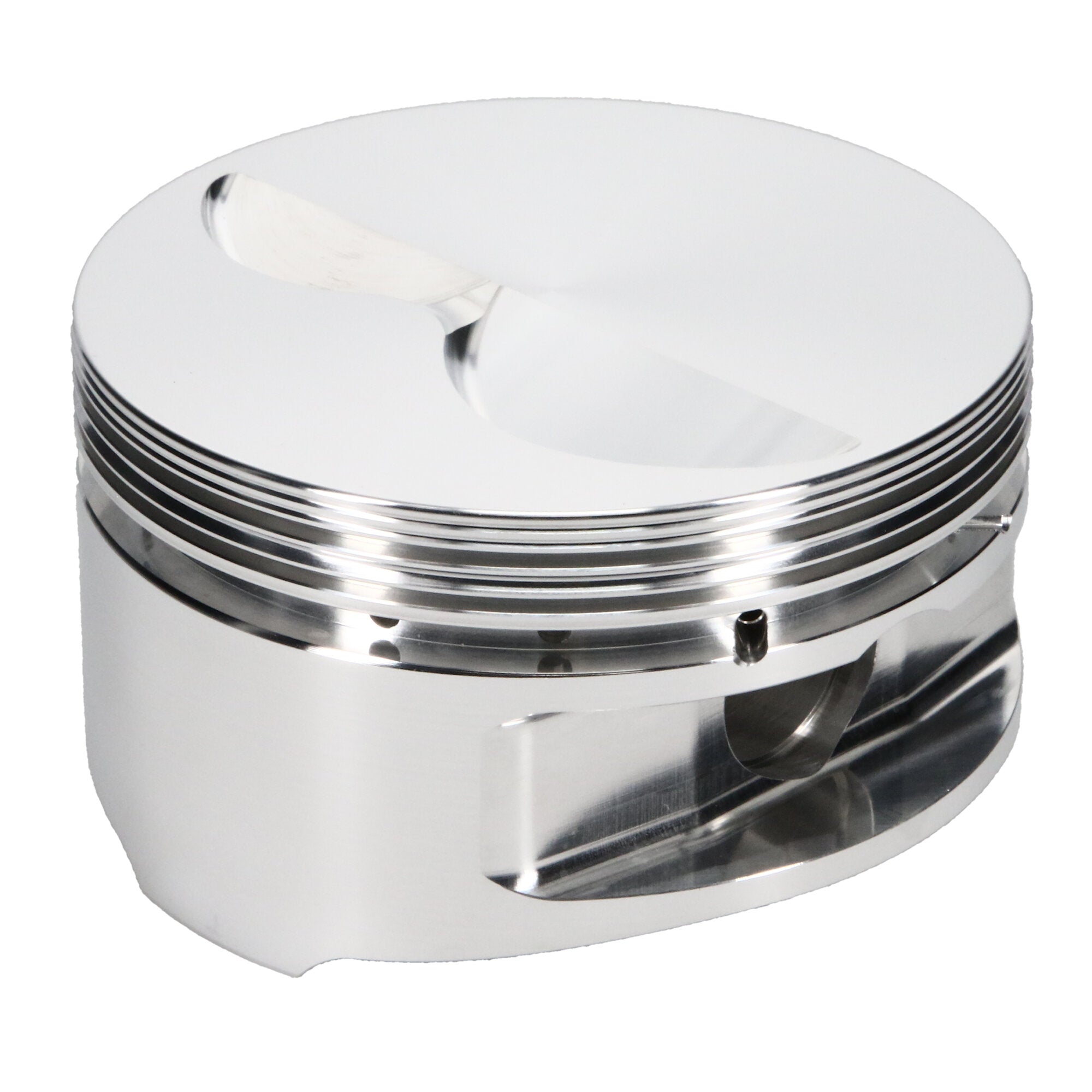

Piston Set, 2618, Flat Top, 4.060 Bore, 1.550 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.550 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 350, 4.060 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Ringset Included |
No |
| Make - Web |
Chevrolet |
| Piston Series |
JE Pistons |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |
Flat |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.550 in. CH, -4.30 CC |
| Engine |
Small Block |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
454 |
| Piston Volume |
-4.30 |
| Piston Quantity |
8 |
| Bore Diameter |
4.060 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Compression Height |
1.550 |
| Piston Pin Length |
2.500 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Oil Ring Thickness |
0.188 |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Wrist Pin Length |
2.500 |
| Engine - Web |
Small Block |
| Ring Set Included |
No |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Add-On |
J10008-4060-5 |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-2500-15-51S |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
