As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

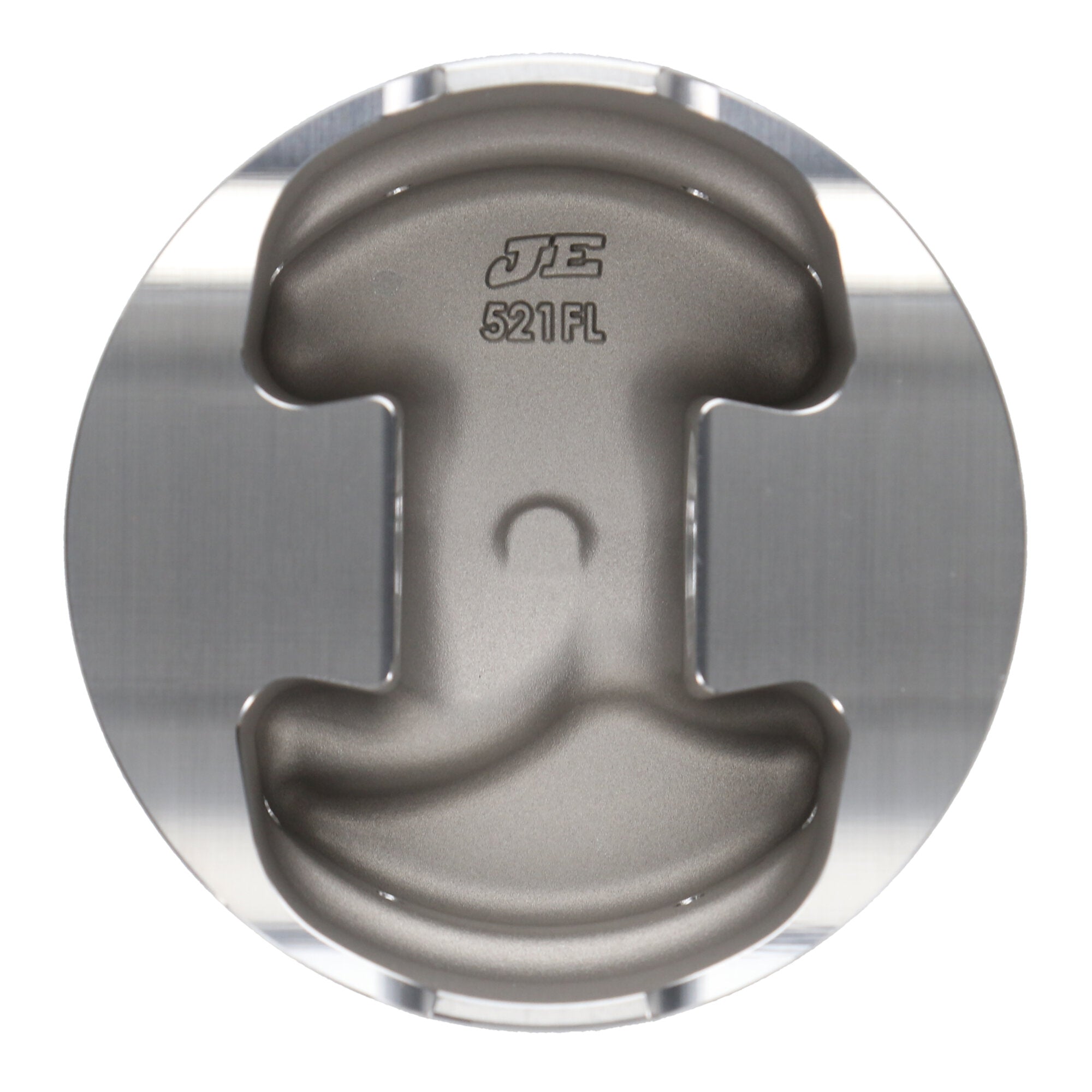

Piston Set, 2618, Flat Top, 4.035 Bore, 1.550 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.035 in. Bore, 1.550 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.035 Bore, Flat, Set of 8 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.035 in. Bore, Piston Kit |
| Piston Average Weight |
442 |
| Compression Height |
1.550 |
| Engine - Web |
Small Block |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.927 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.500 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Add-On |
927-042-CS |
| Add-On |
927-2500-15-51S |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Quantity |
8 |
| Bore Diameter |
4.035 |
| Add-On |
J10008-4030-5 |
| Wrist Pin Outer Diameter |
0.927 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Volume |
-4.30 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.500 |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Piston Head Type |
Flat |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.035 in. Bore - 1.550 in. CH, -4.30 CC |
| Ring Set Included |
No |
| Ringset Included |
No |
| Forging Type |
Round |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.188 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
