As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

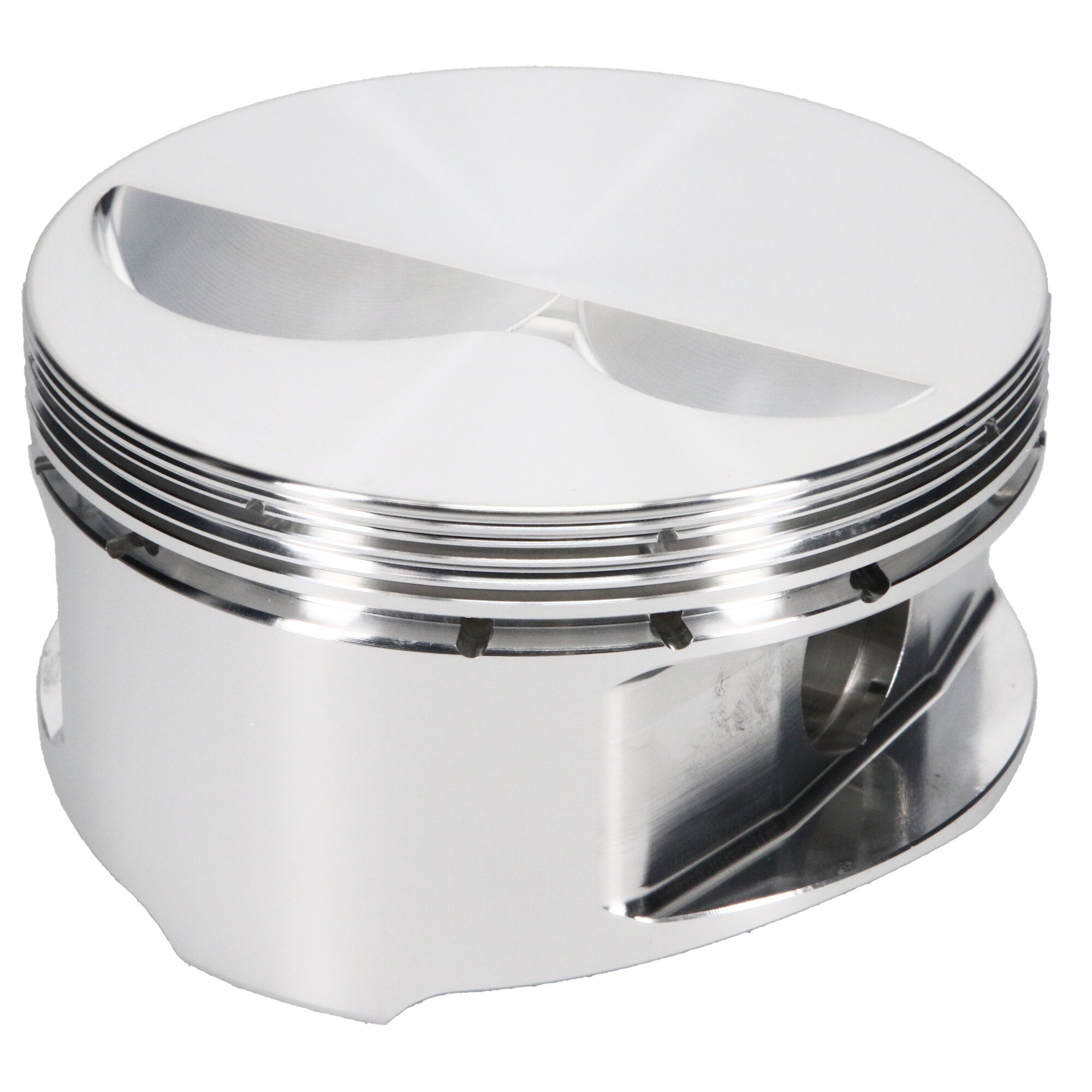

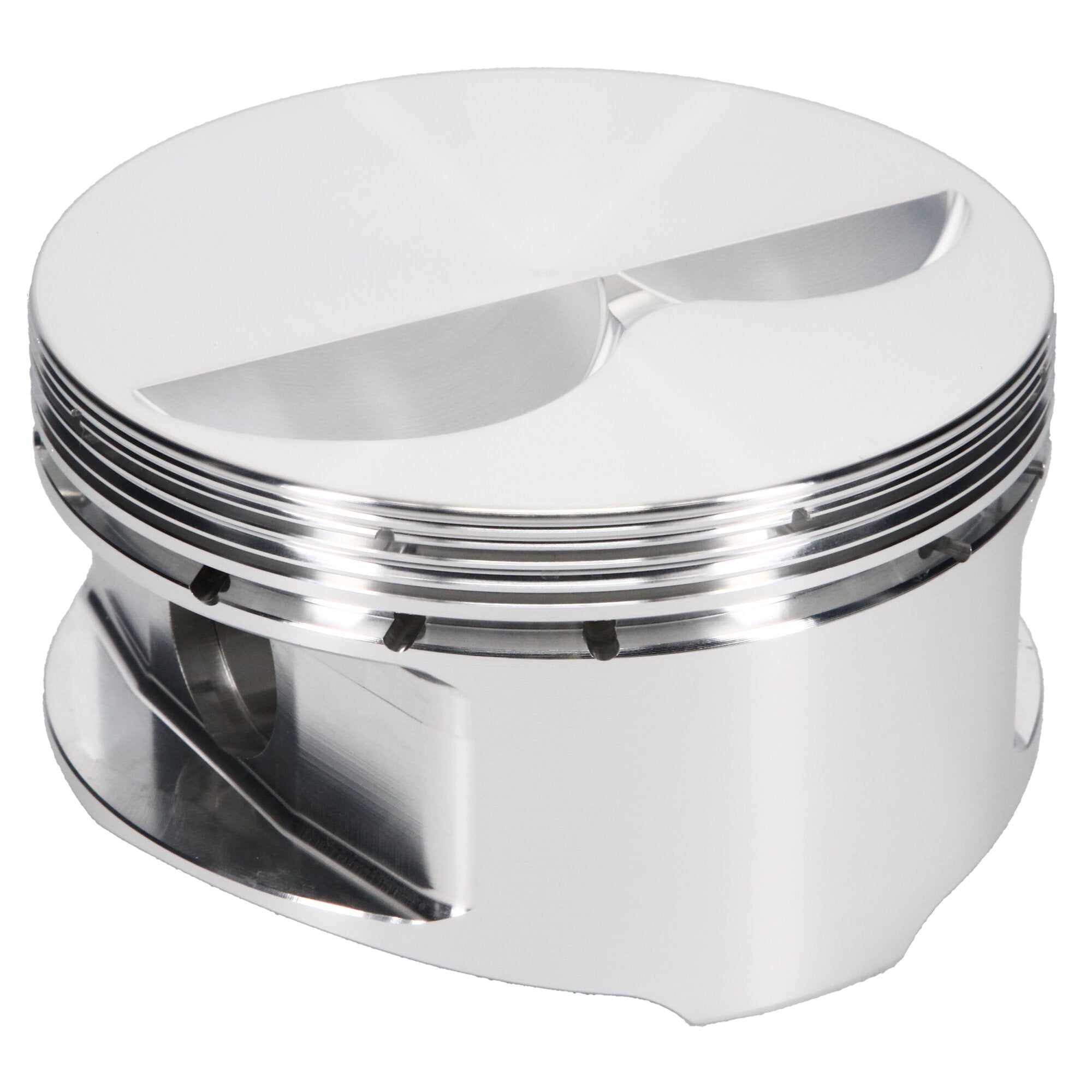

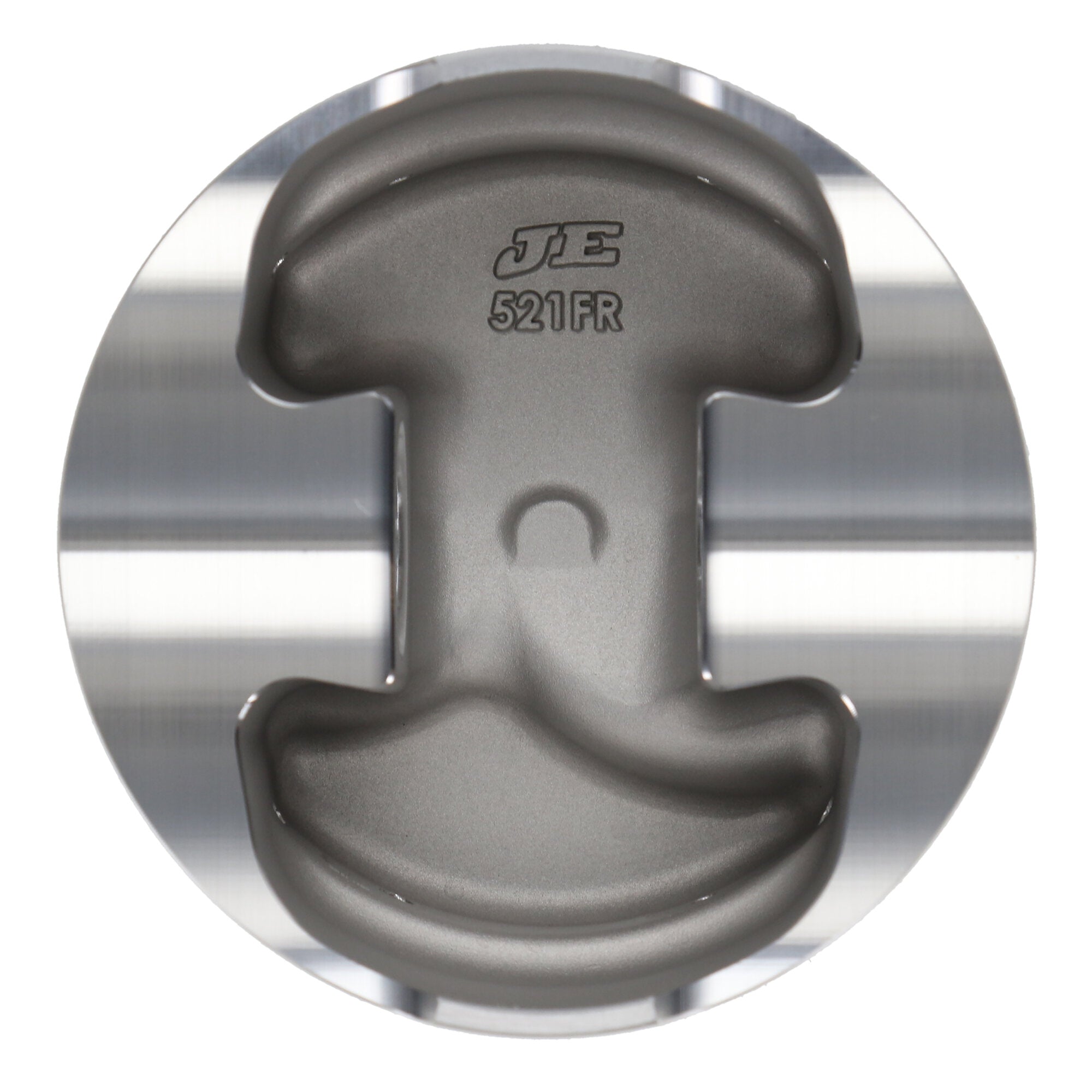

JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.000 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |

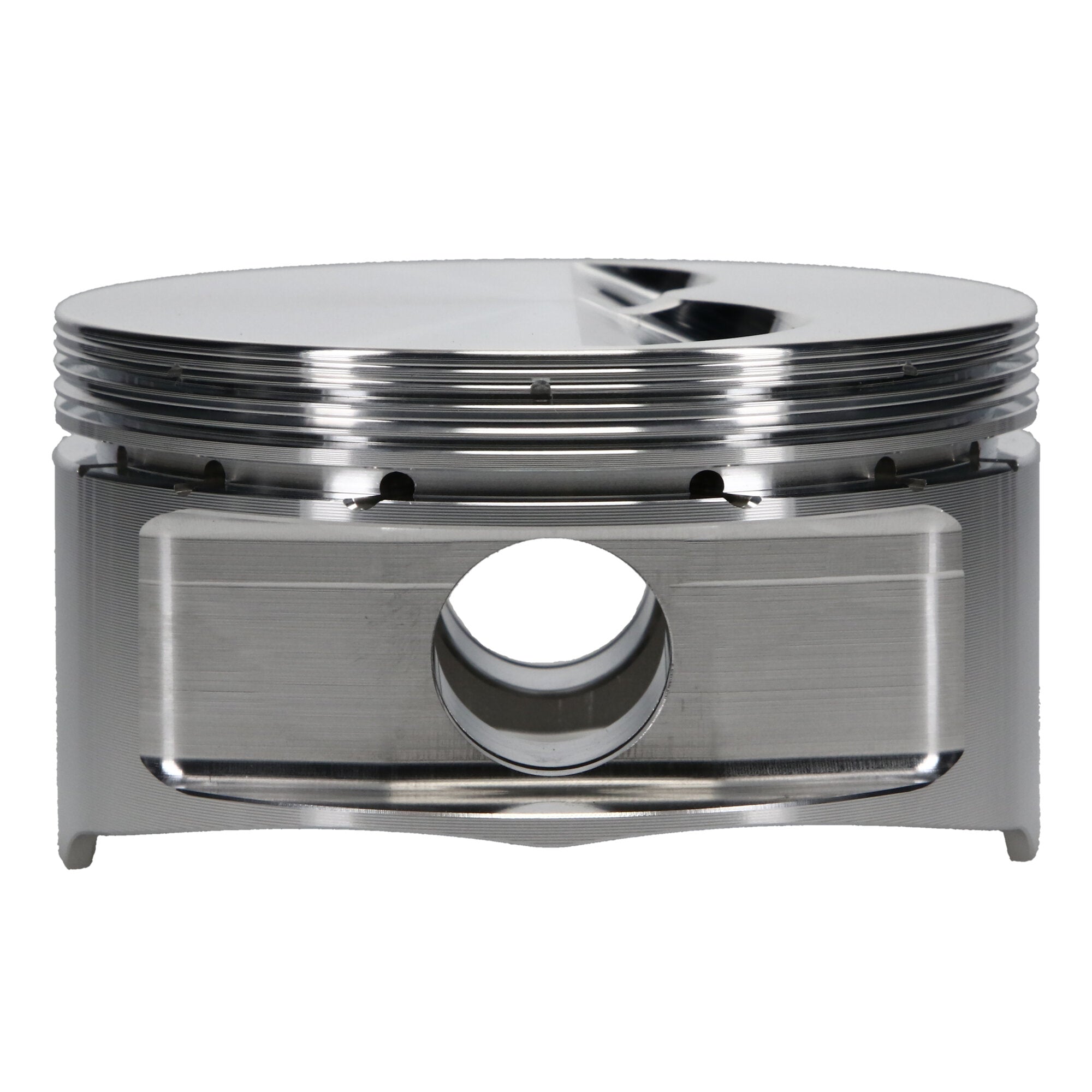

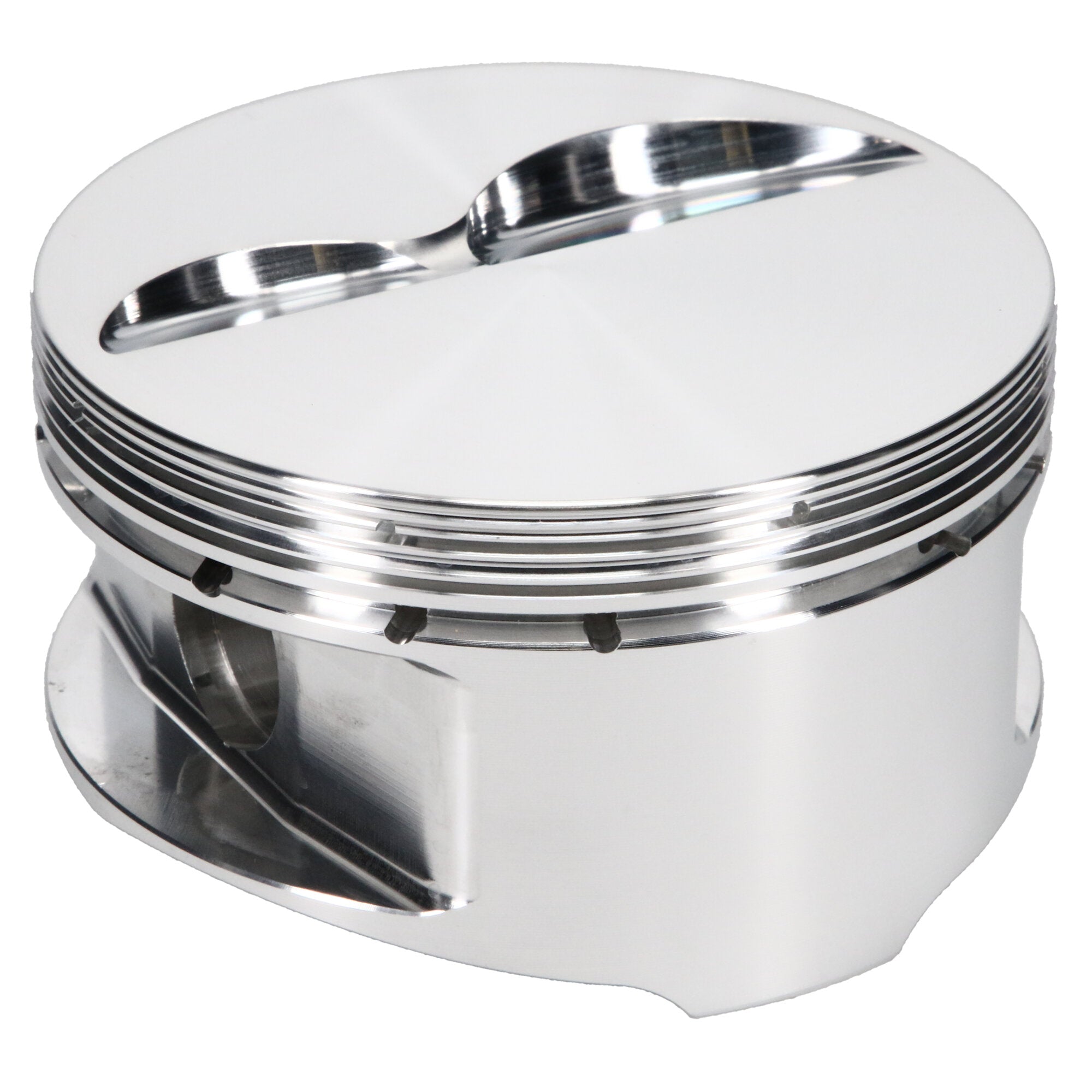

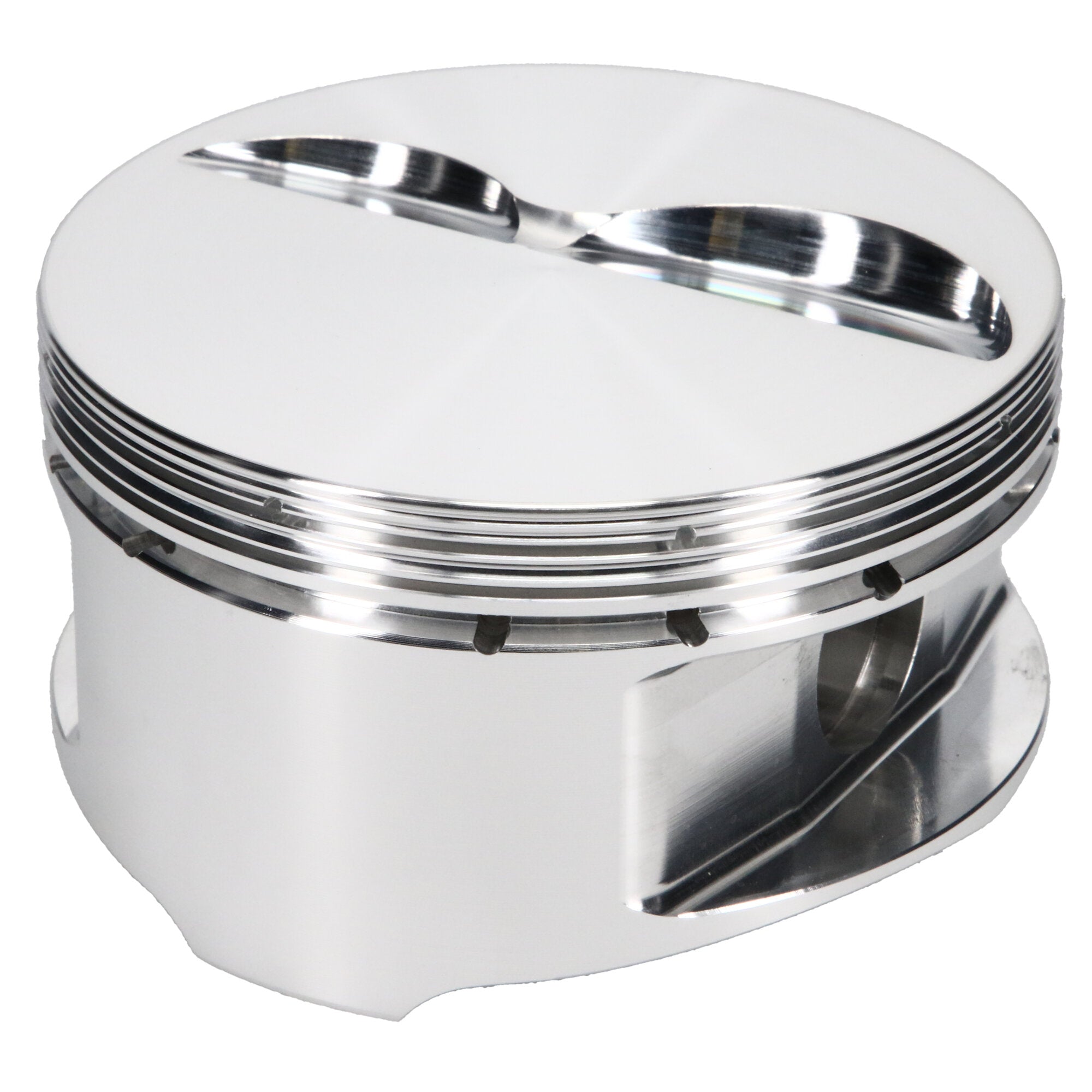

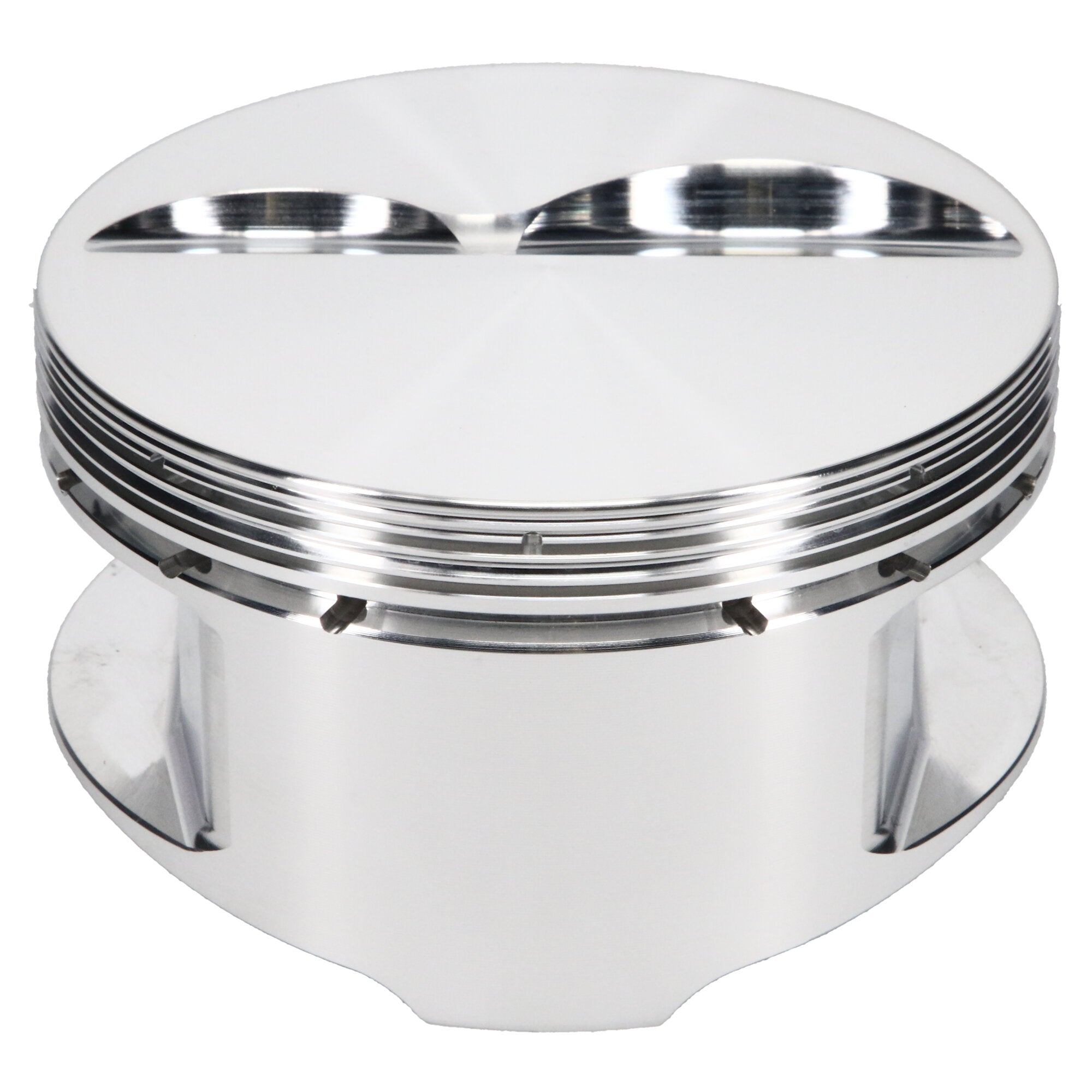

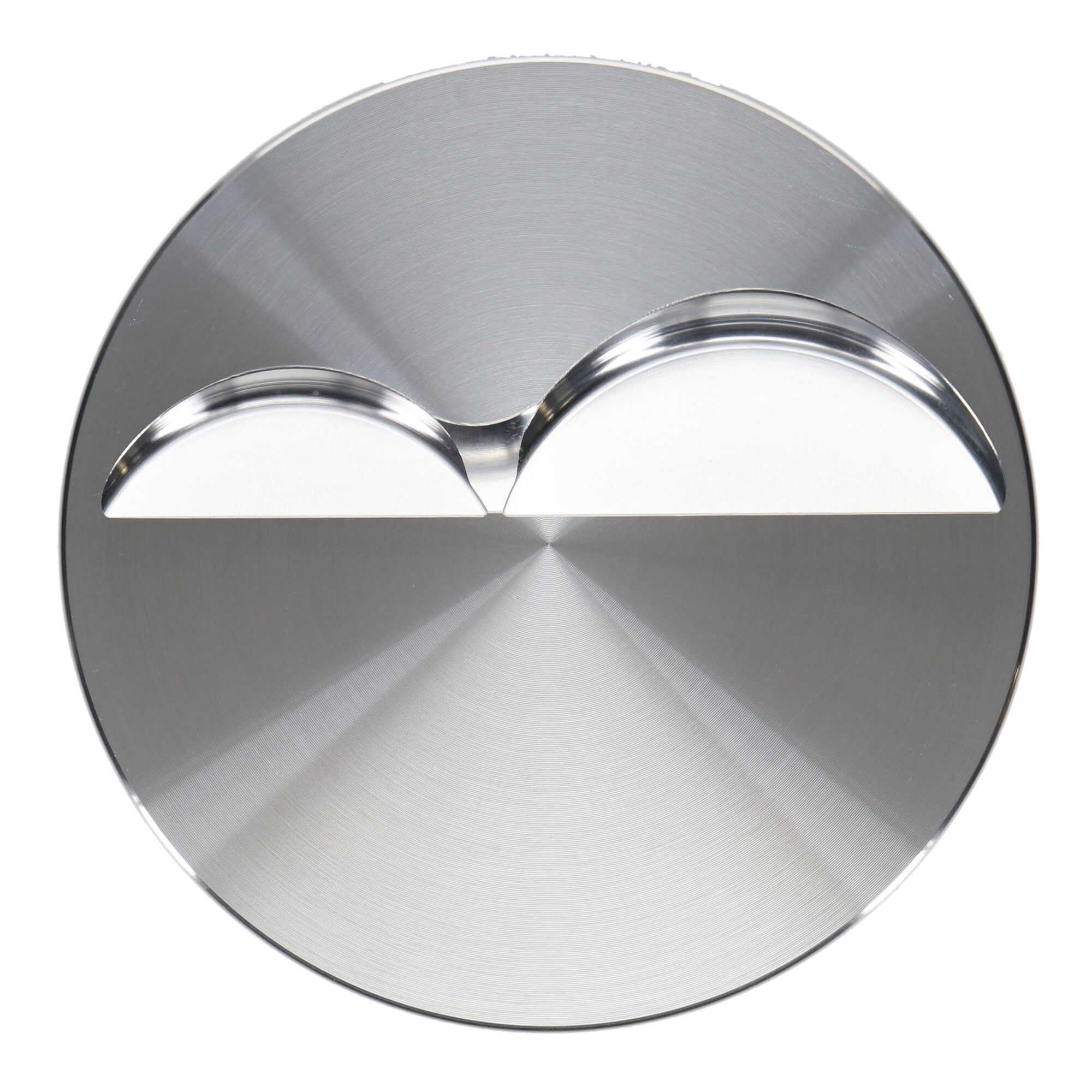

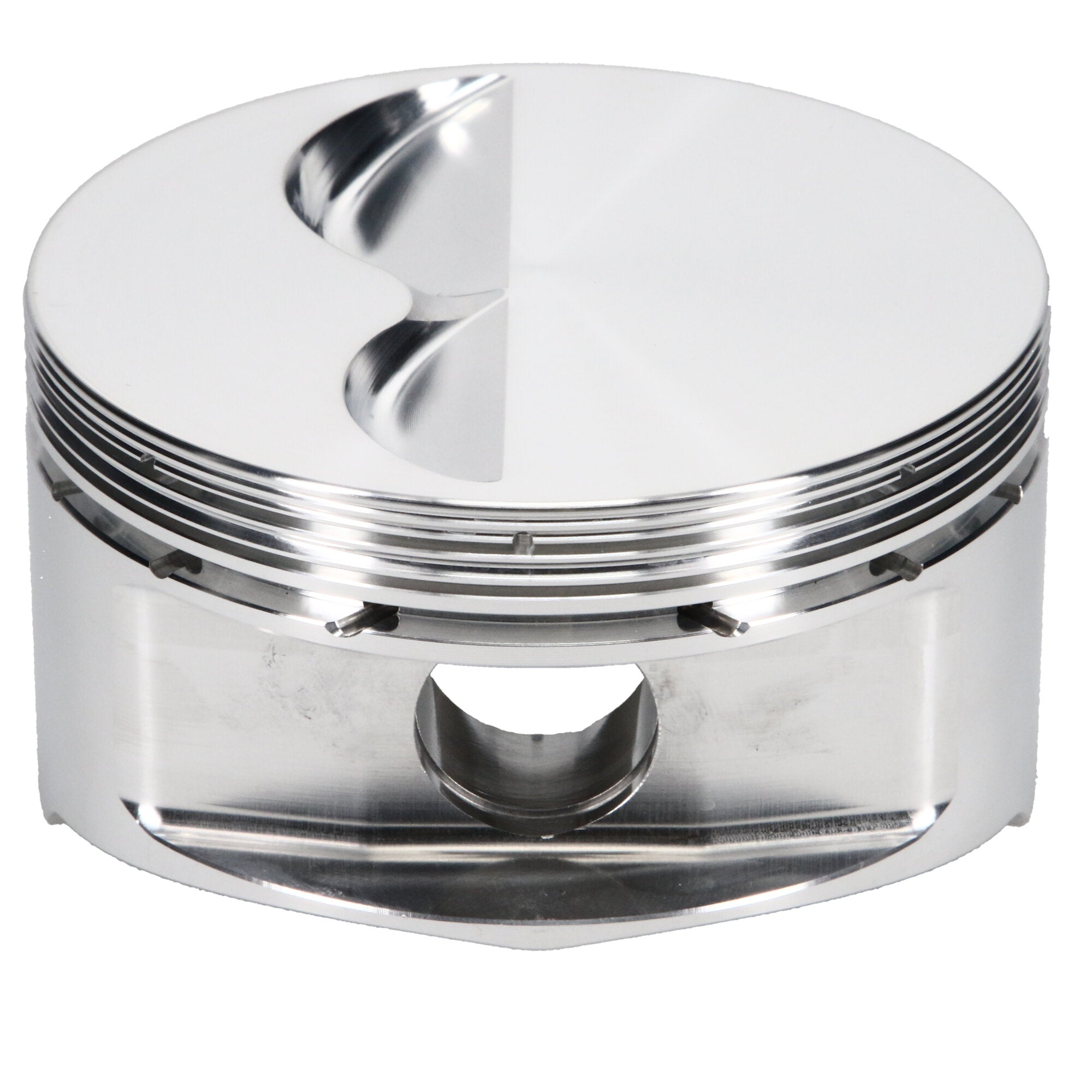

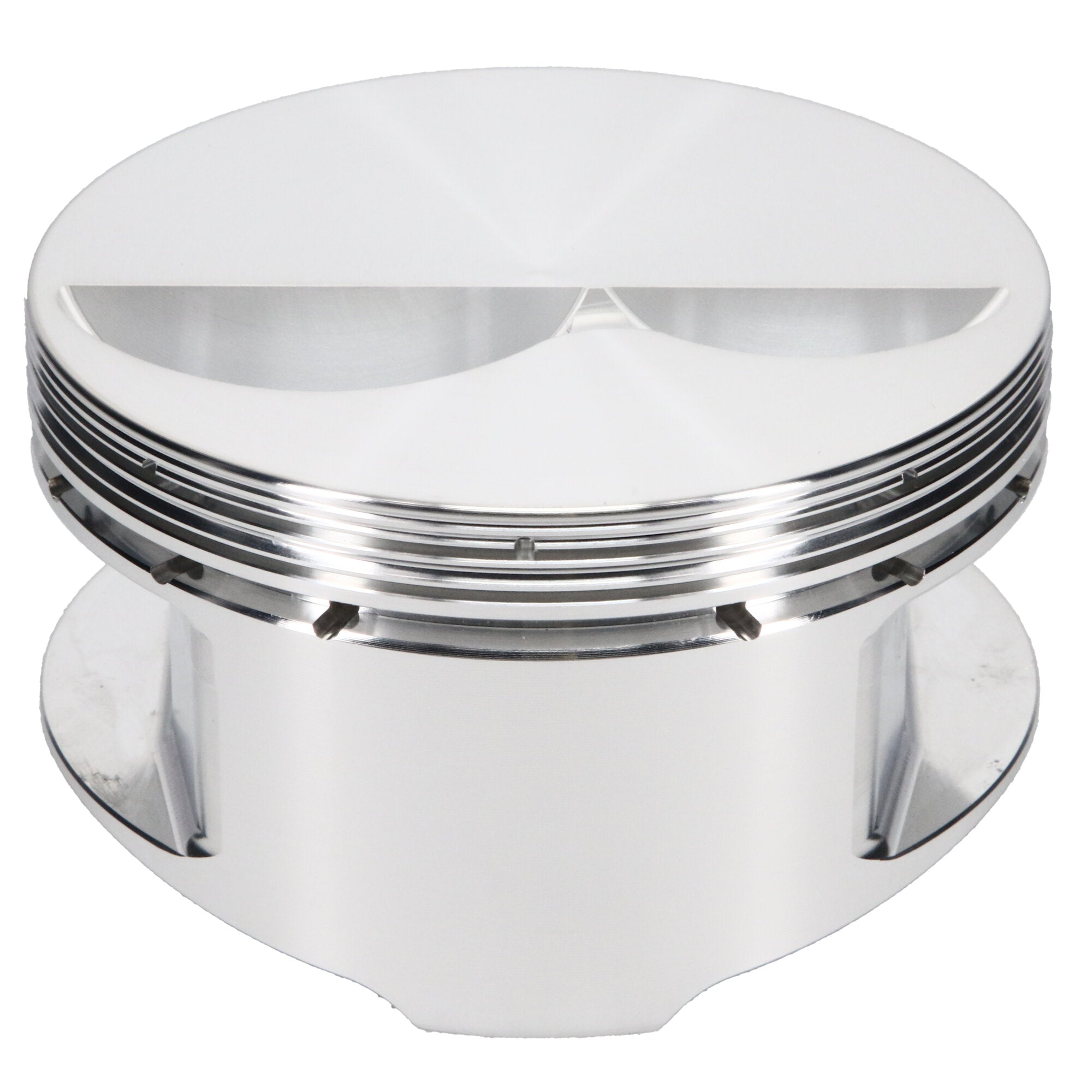

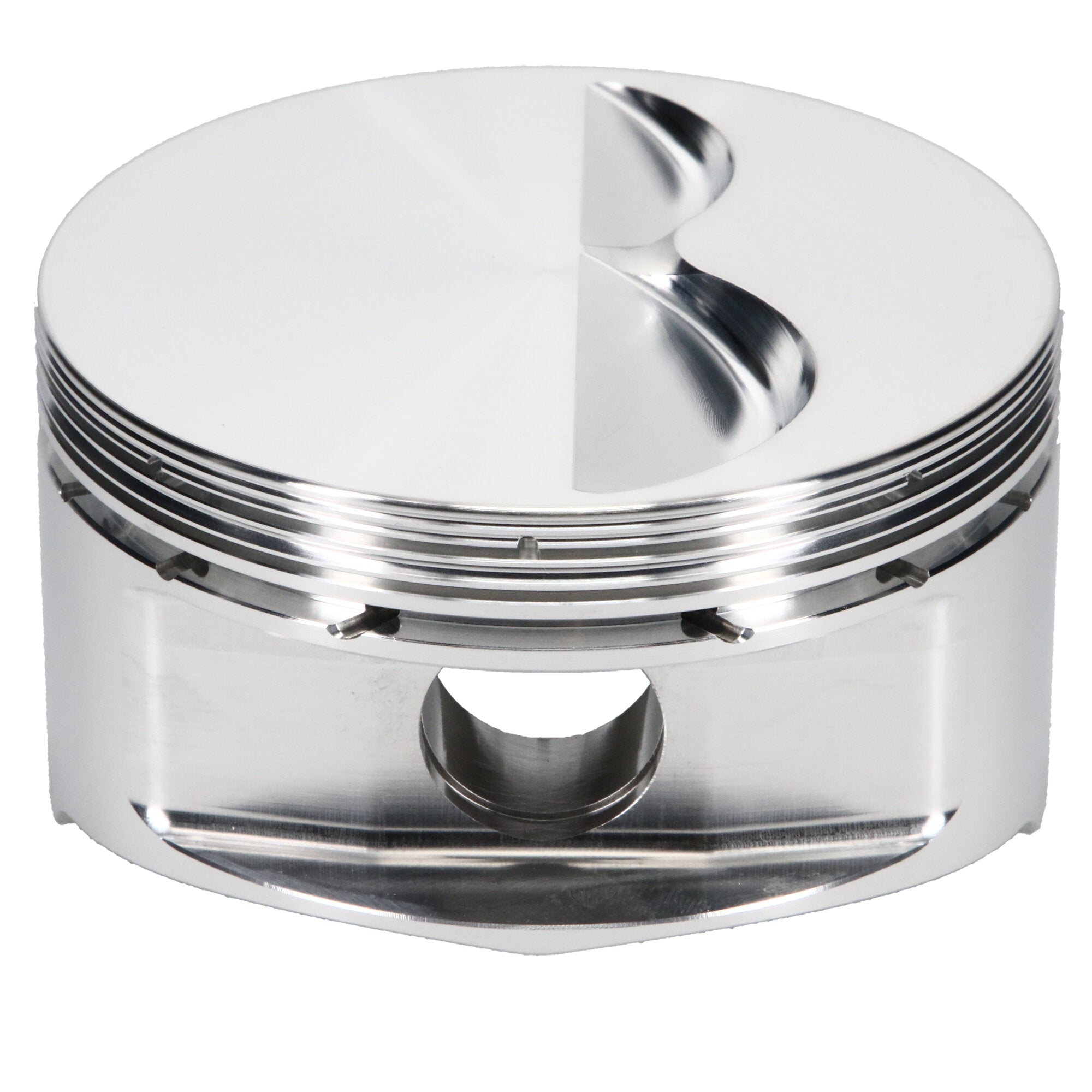

Piston Set, 2618, Flat Top, 4.040 Bore, 1.000 CD, 0.927 Pin, Set of 8. |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.040 Bore, Flat, Set of 8 |
| Piston Material |
2618 |
| Piston Volume |
-4.10 |
| Industry |
Automotive |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.000 in. CH, -4.10 CC |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
No |
| Wrist Pin Length |
2.500 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.500 |
| Product Type |
Engine Piston Kit |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
927-042-CS |
| Second Compression Ring Thickness |
0.0440 |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
J71408-4040-5 |
| Bore Diameter |
4.040 |
| Top Compression Ring Thickness |
0.0436 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.149 |
| Piston Quantity |
8 |
| Add-On |
927-2500-15-51S |
| Piston Head Type |
Flat |
| Compression Height |
1.000 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Engine |
Small Block |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Piston Average Weight |
374 |
| Engine Type |
ICE |
| Forging Type |
Round |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
