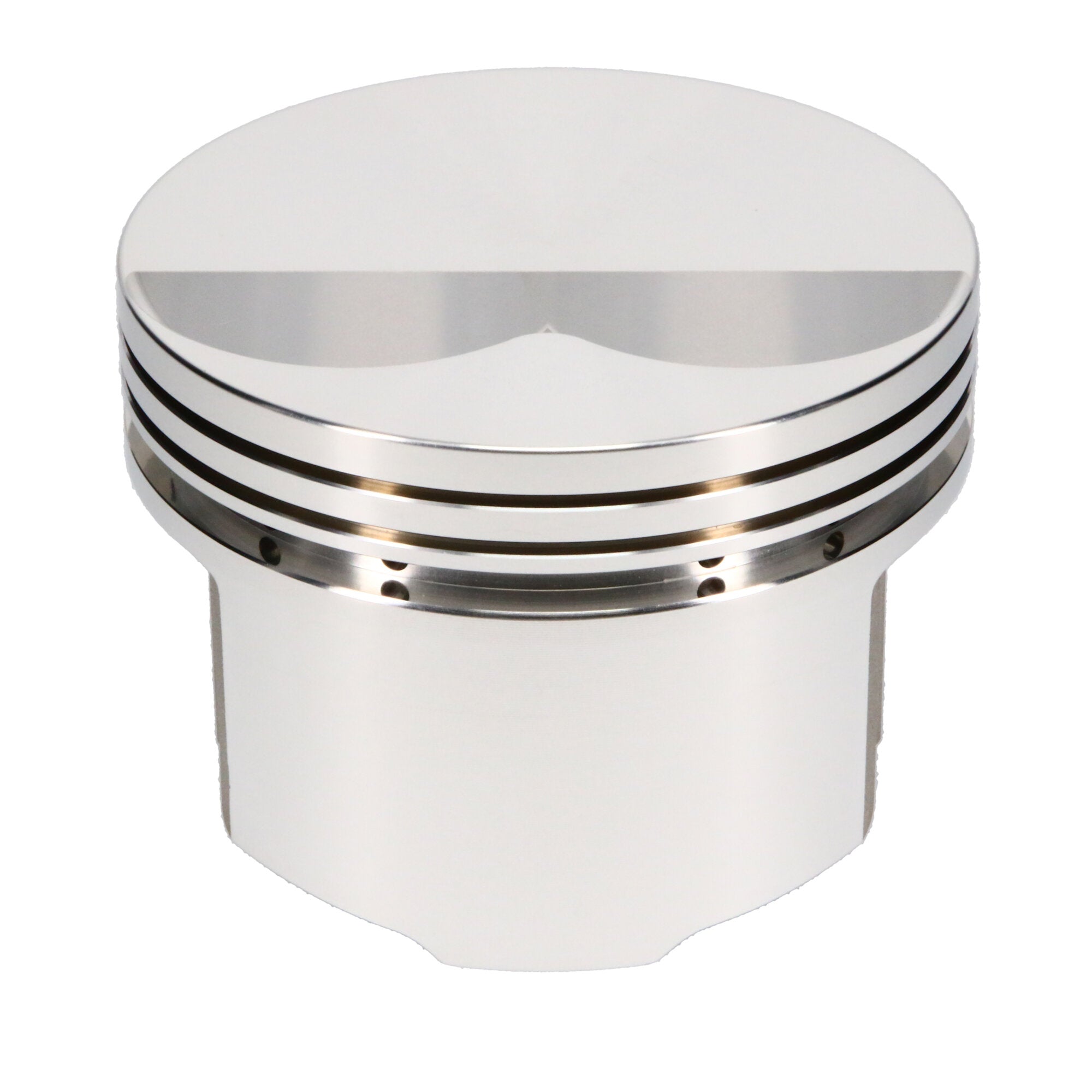

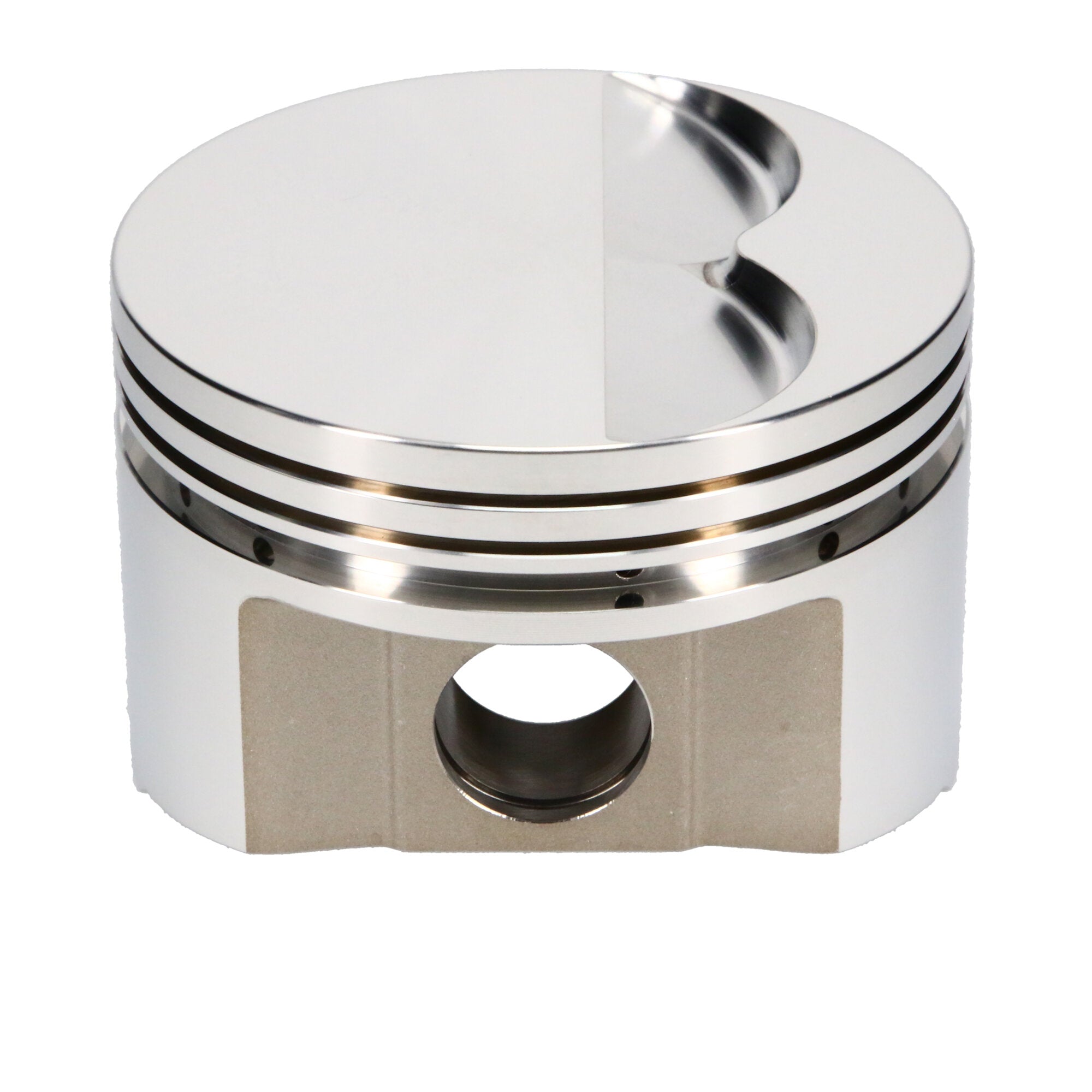

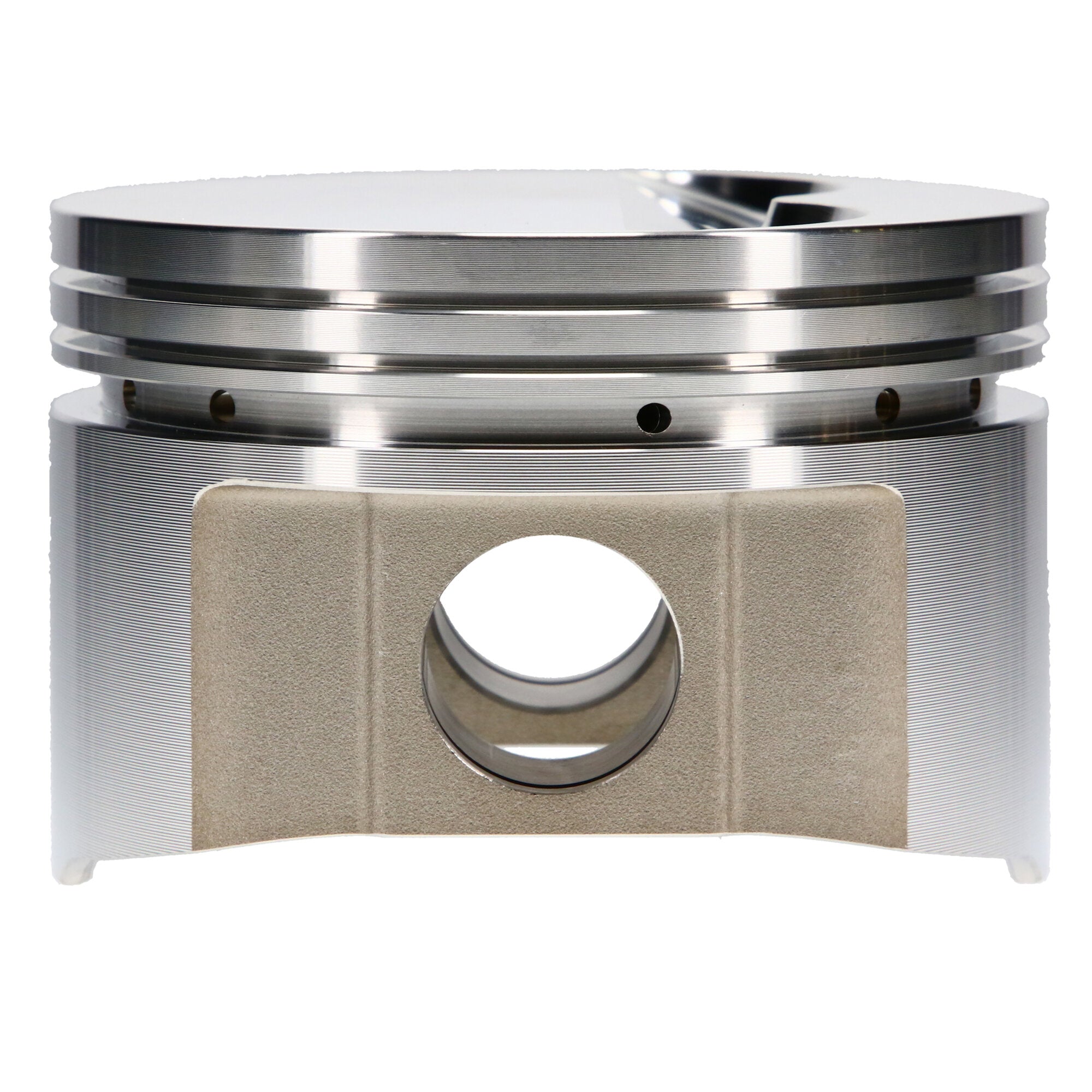

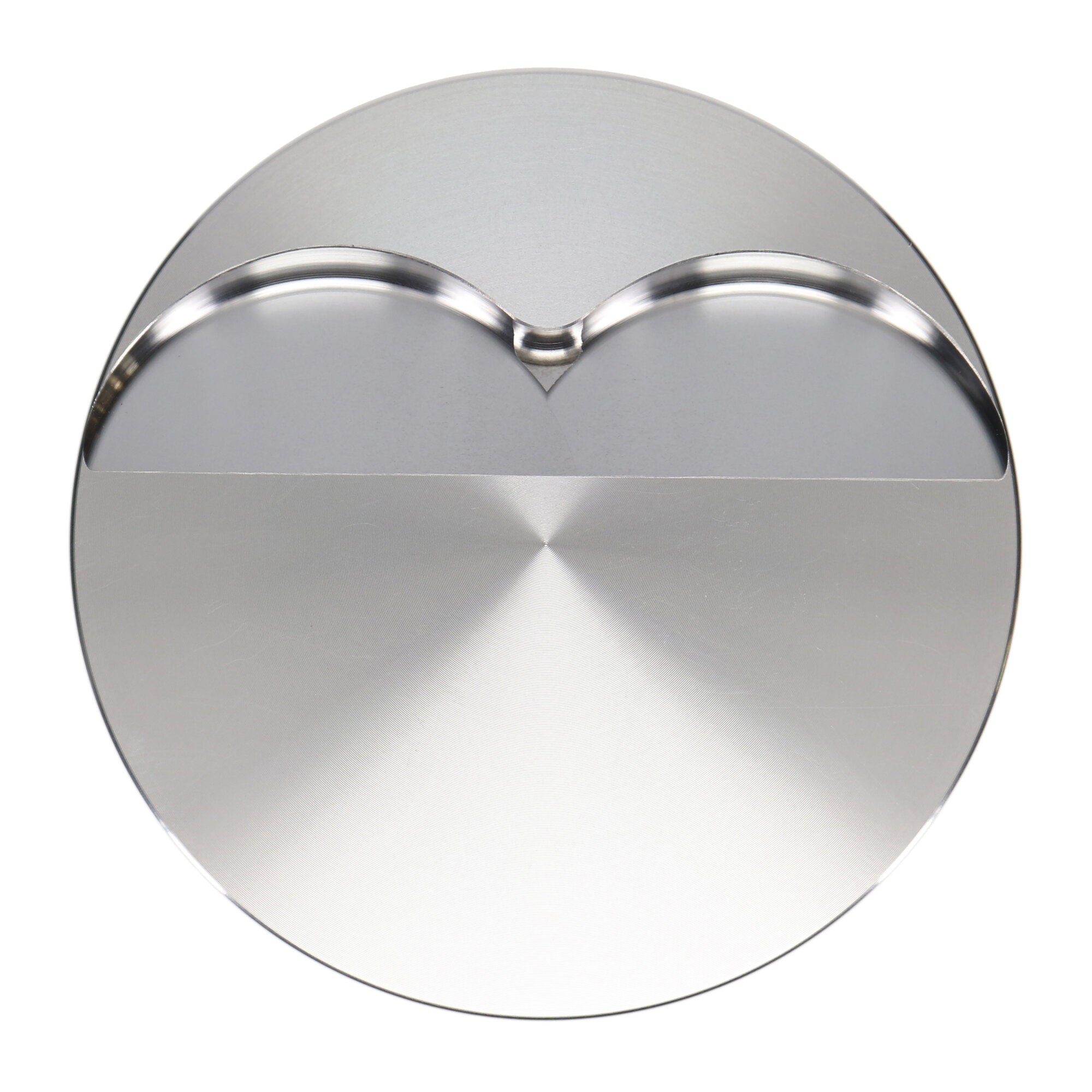

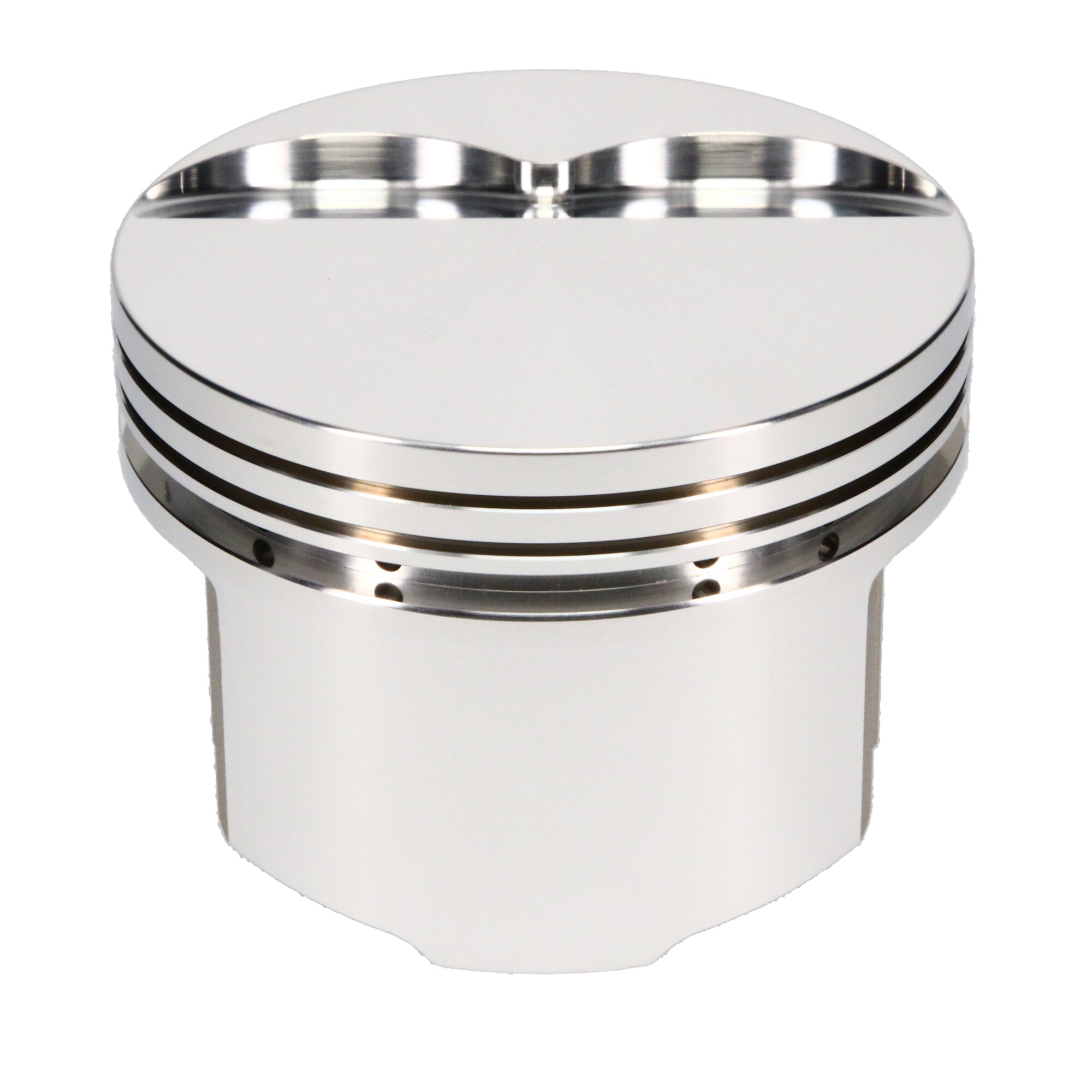

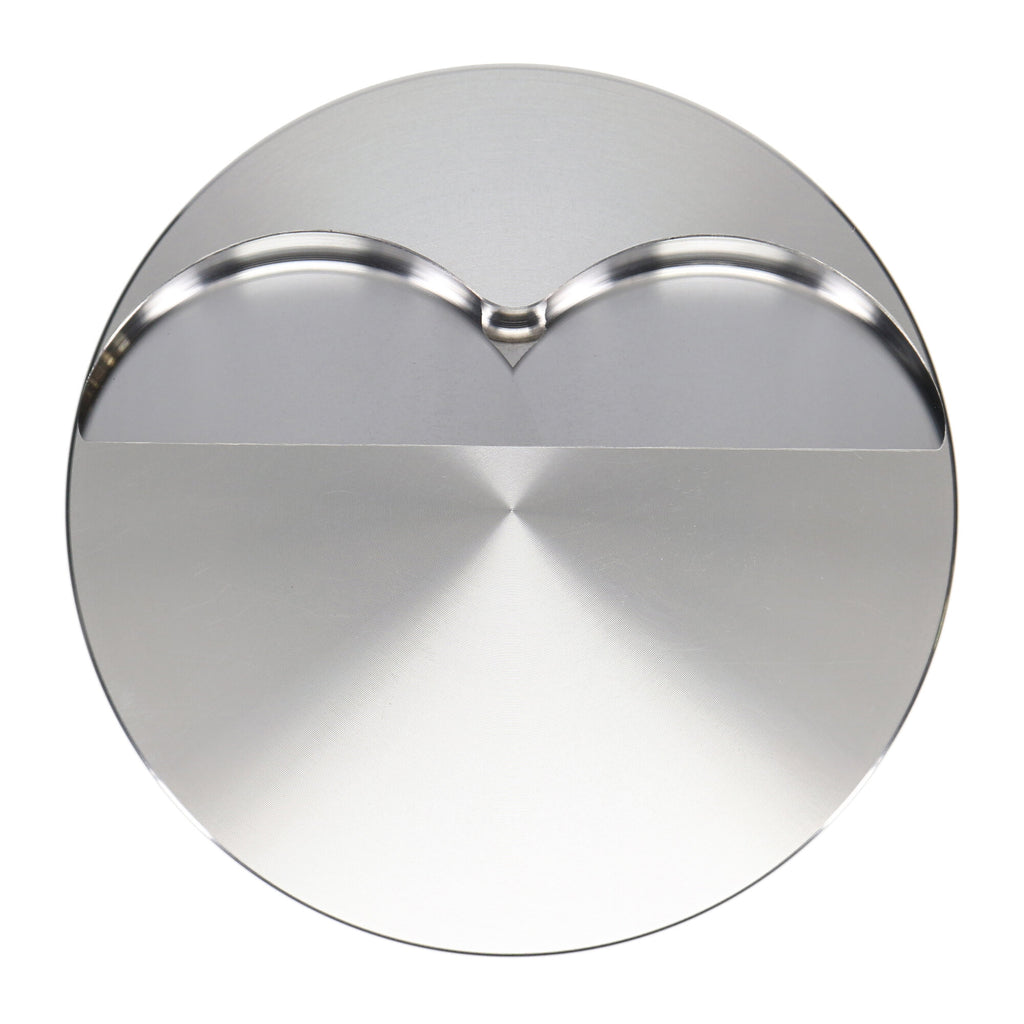

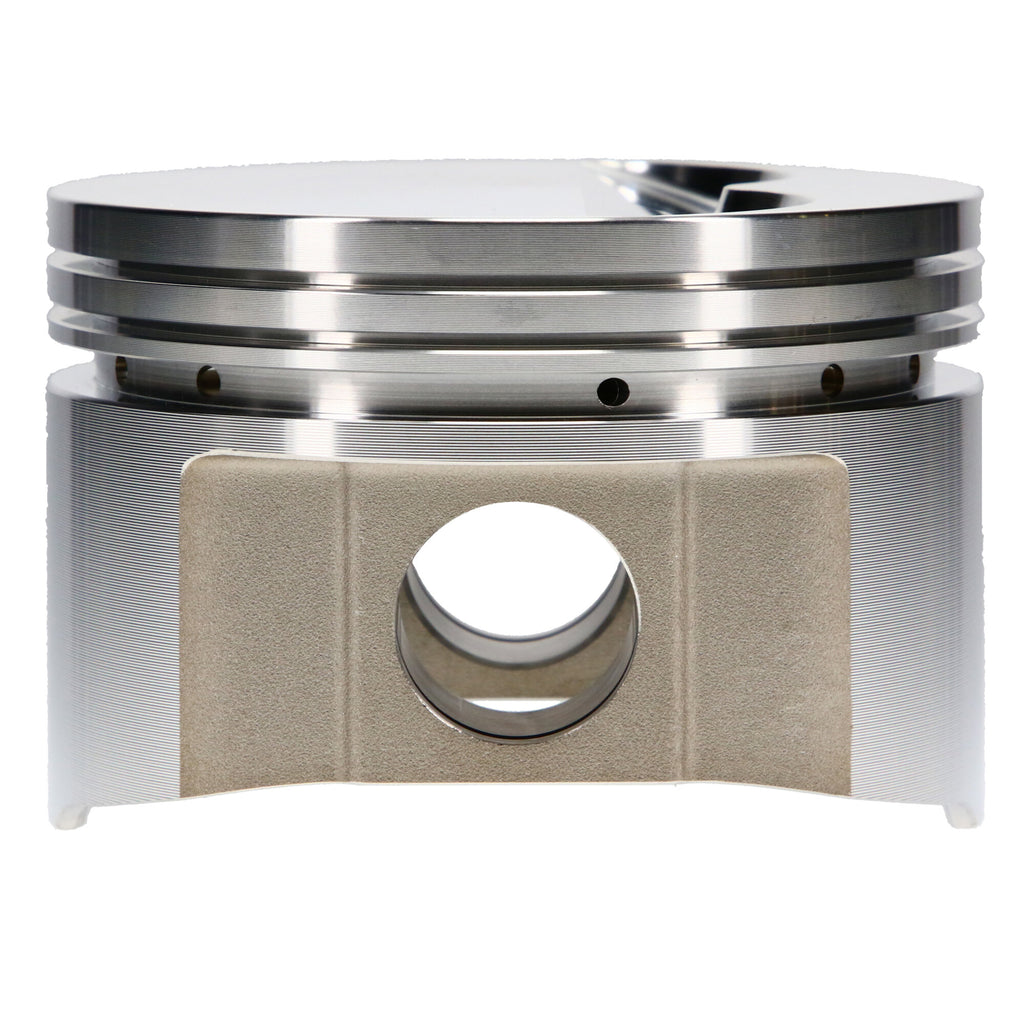

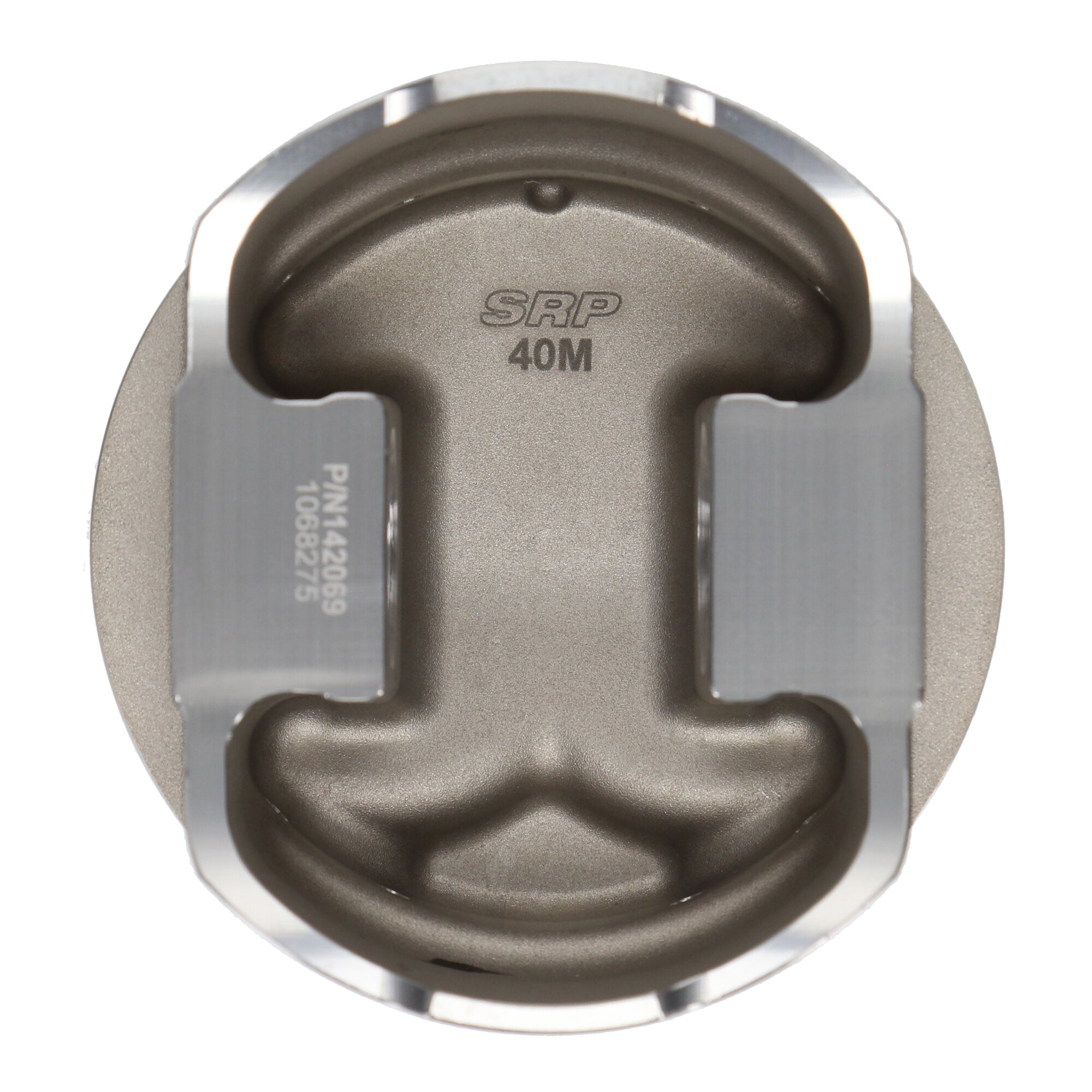

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Small Block 360 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chrysler, Small Block Chrysler, 4.040 in. Bore, 1.670 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.040 Bore, 1.670 CD, 0.984 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 360, 4.040 Bore, Flat, Set of 8 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Outside Diameter |
0.984 |
| Wrist Pin Outer Diameter |
0.984 |
| Piston Average Weight |
497 |
| Top Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Material |
5115 |
| Cylinder Head |
340 WEDGE |
| Make |
CHRYSLER |
| Piston Volume |
-5.00 |
| Oil Ring Thickness |
0.188 |
| Bore Diameter |
4.040 |
| Compression Height |
1.670 |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Industry |
Automotive |
| Piston Material |
4032 |
| Product Market |
Domestic |
| Title |
SRP - Chrysler, Small Block, 4.040 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Engine - Web |
Small Block |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Title - Web |
SRP Chrysler Small Block Piston Kit - 4.040 in. Bore - 1.670 in. CH, -5.00 CC |
| Add-On |
990-042-CS |
| Add-On |
984-2750-15-51S |
| Out of Stock Message |
Call for Availability |
| Add-On |
S100S8-4040-5 |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0640 |
| Piston Series |
SRP |
| Ringset Included |
No |
| Piston Pin Length |
2.750 |
| Engine |
Small Block |
| Piston Head Type |
Flat |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chrysler |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
