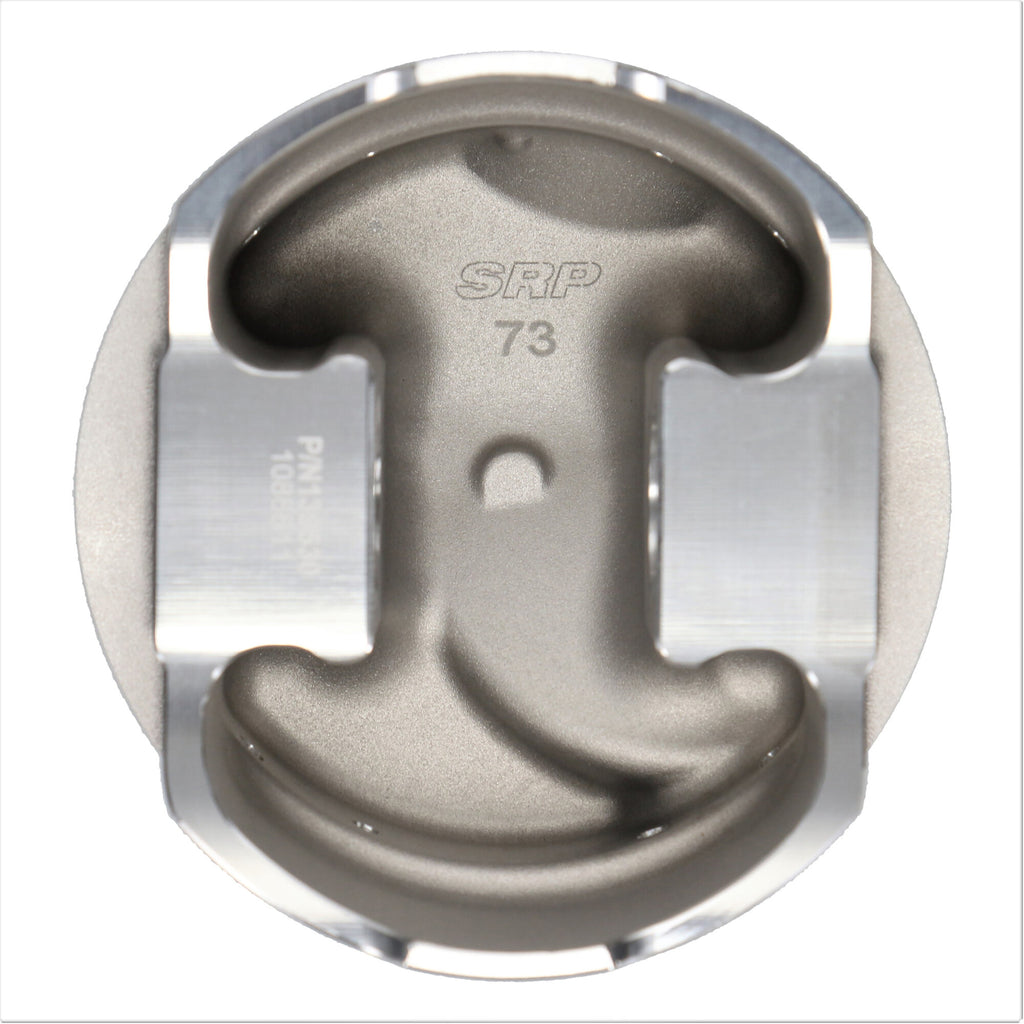

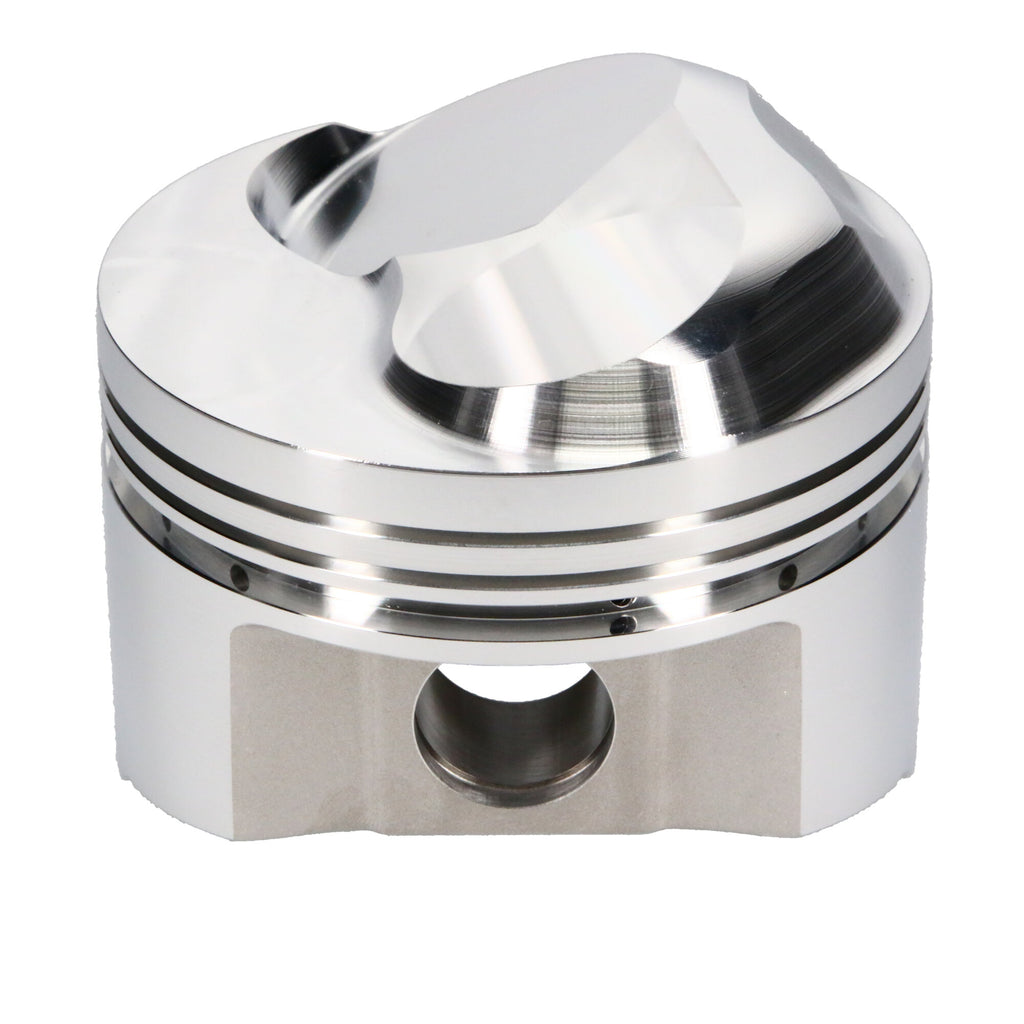

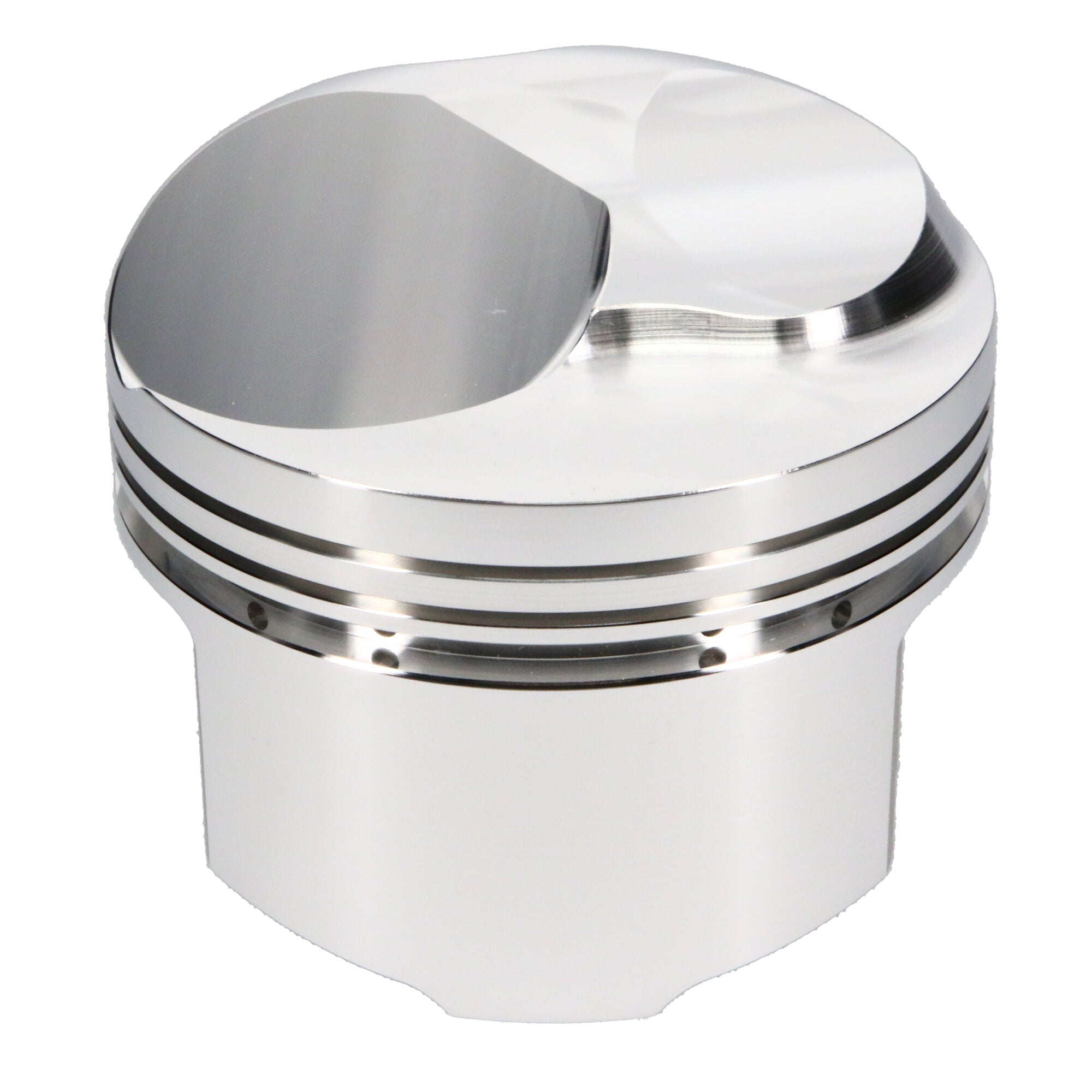

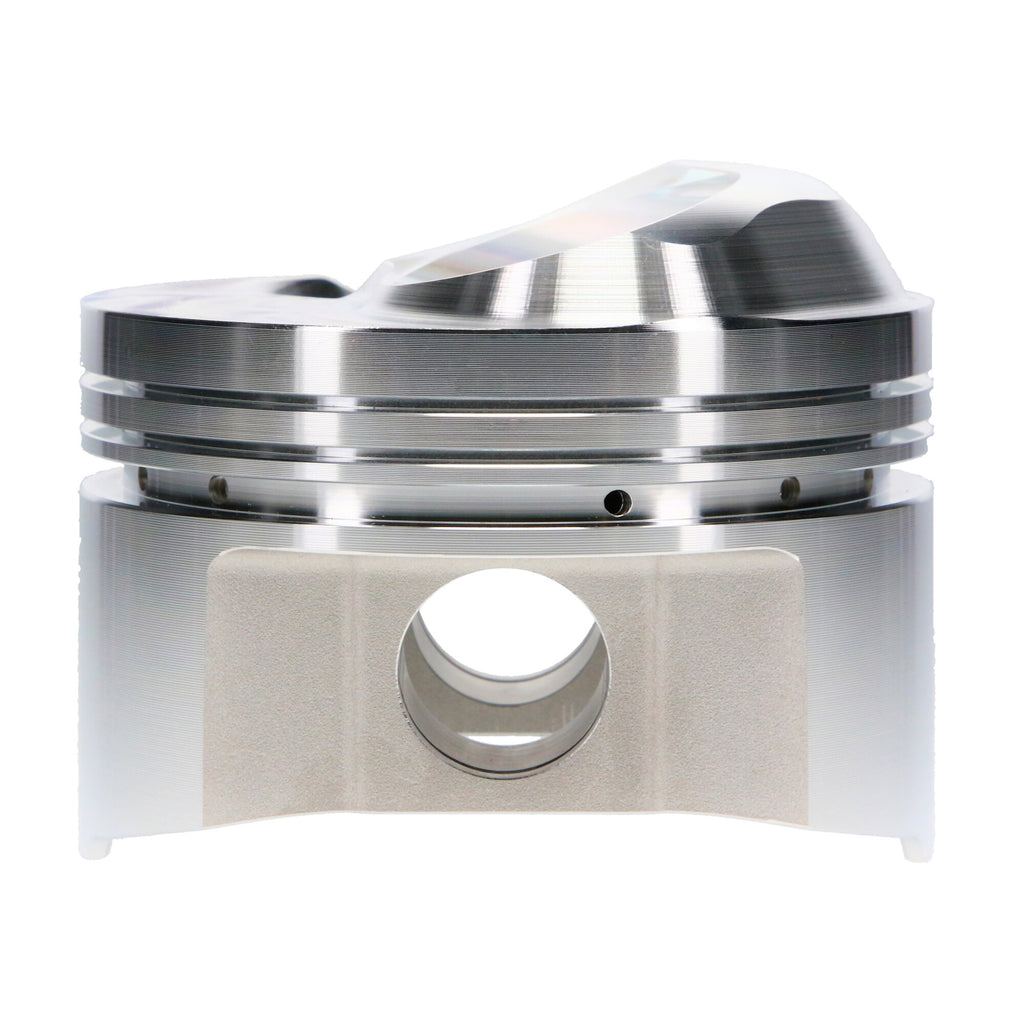

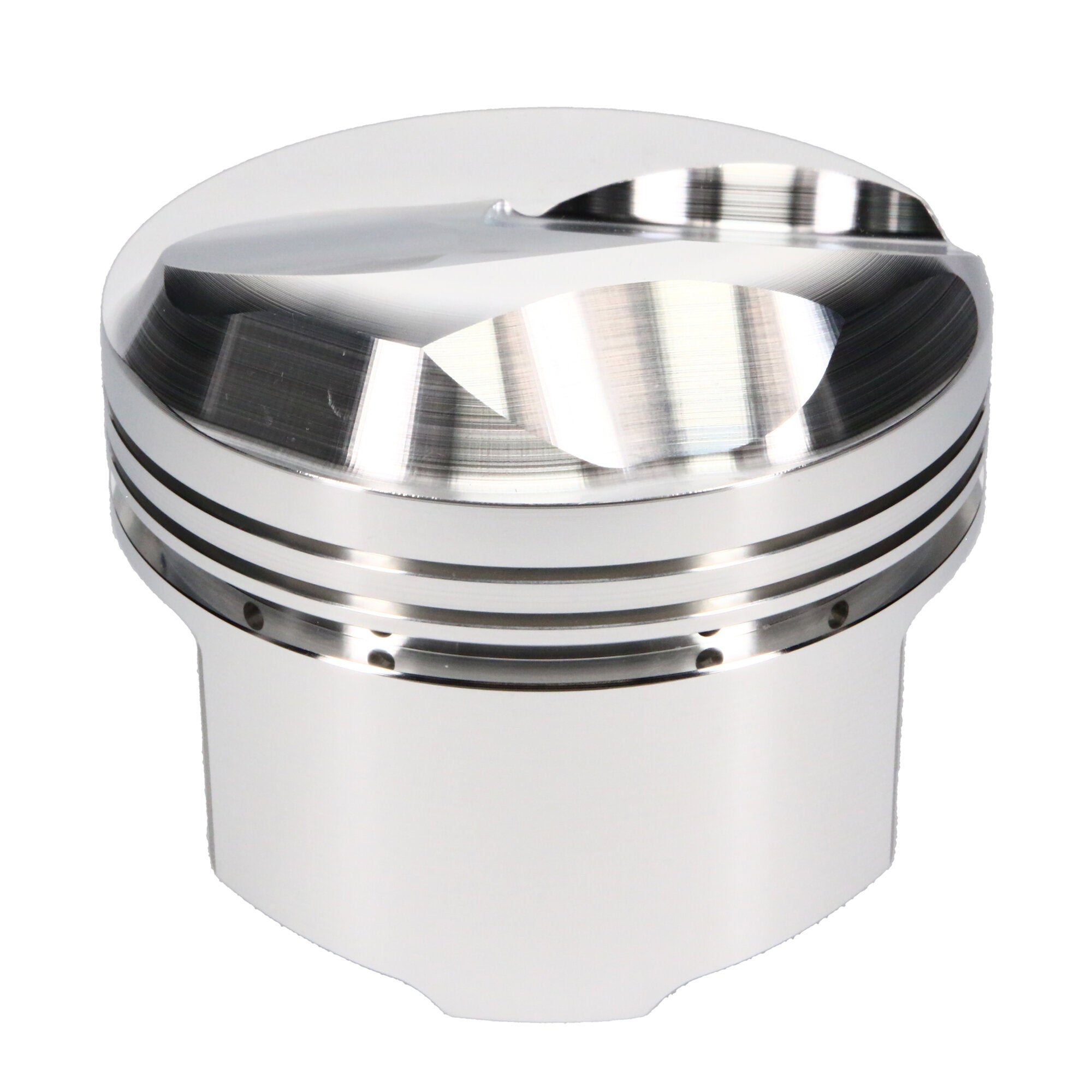

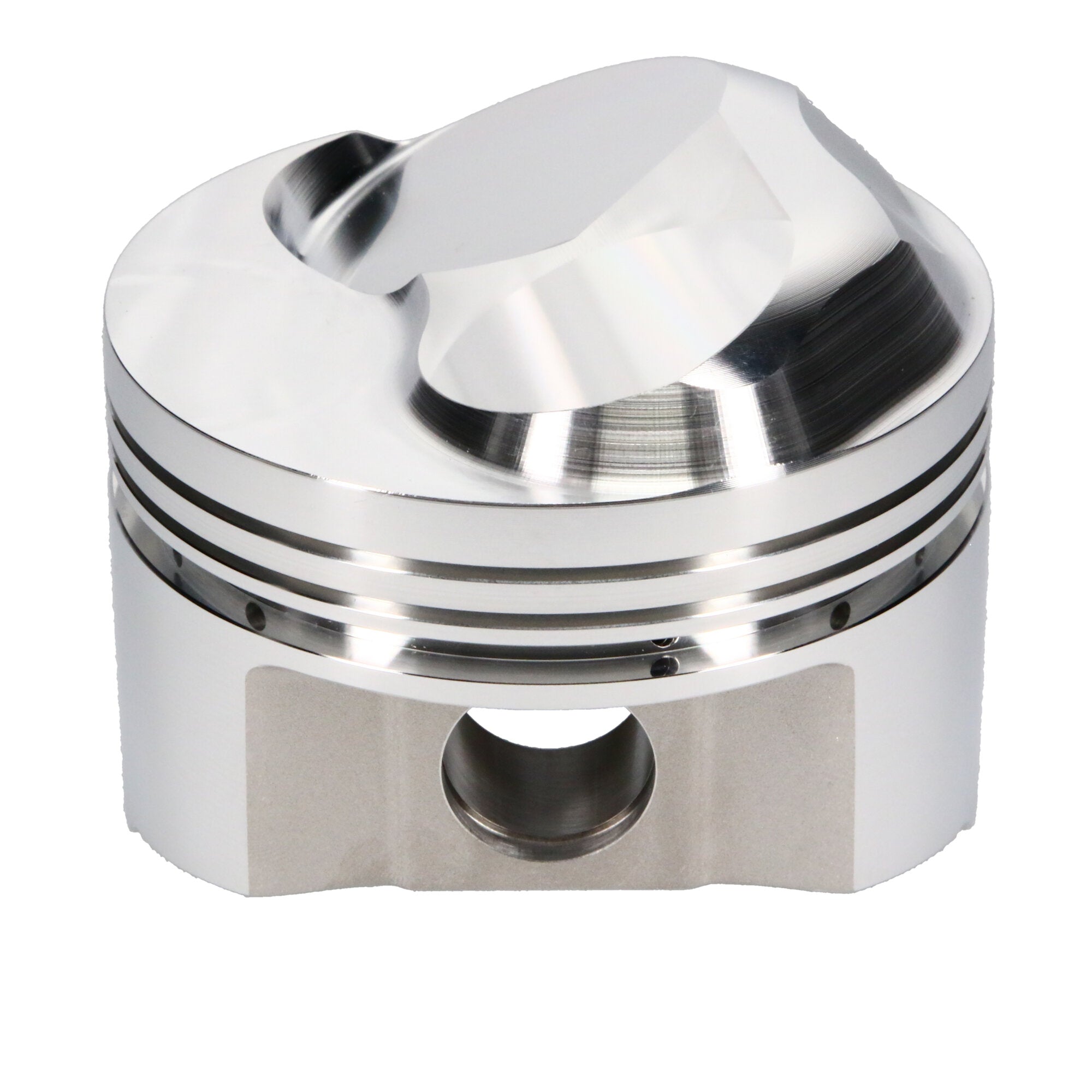

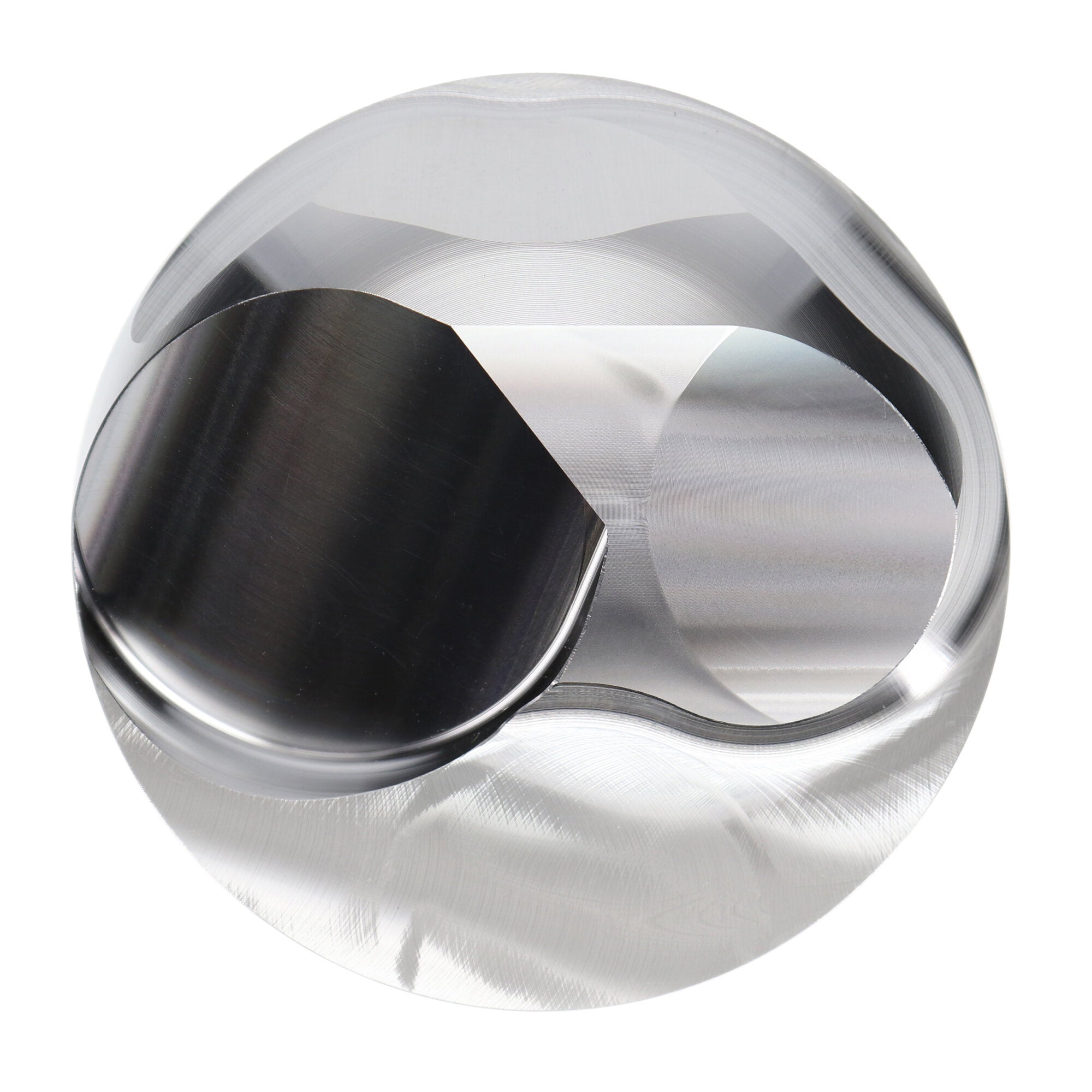

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.530 Bore, 1.245 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.245 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_TLE |
Chevrolet 454, 4.530 Bore, Dome, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.990 |
| Forging Type |
FSR |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Piston Series |
SRP |
| Ringset Included |
No |
| Title |
SRP - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Engine - Web |
Big Block |
| Add-On |
990-2930-15-51S |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.530 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Engine |
Big Block |
| Compression Height |
1.245 |
| Product Market |
Domestic |
| Piston Pin Length |
2.930 |
| Add-On |
S100S8-4530-5 |
| Piston Average Weight |
650 |
| Out of Stock Message |
Call for Availability |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
990-042-CS |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.245 in. CH, 41.00 CC |
| Piston Volume |
41.00 |
| Piston Material |
2618 |
| Cylinder Head |
OPEN CHAMBER |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
