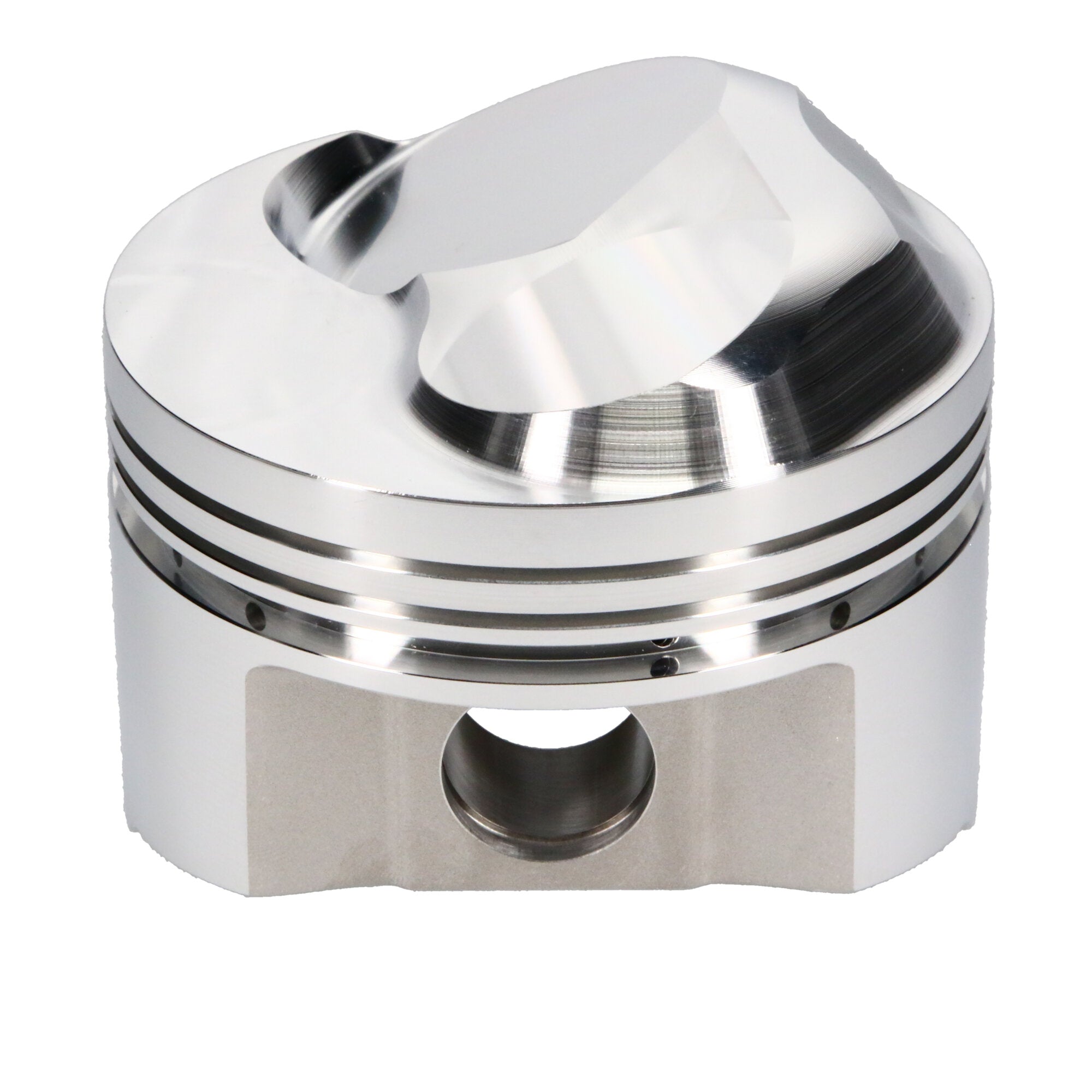

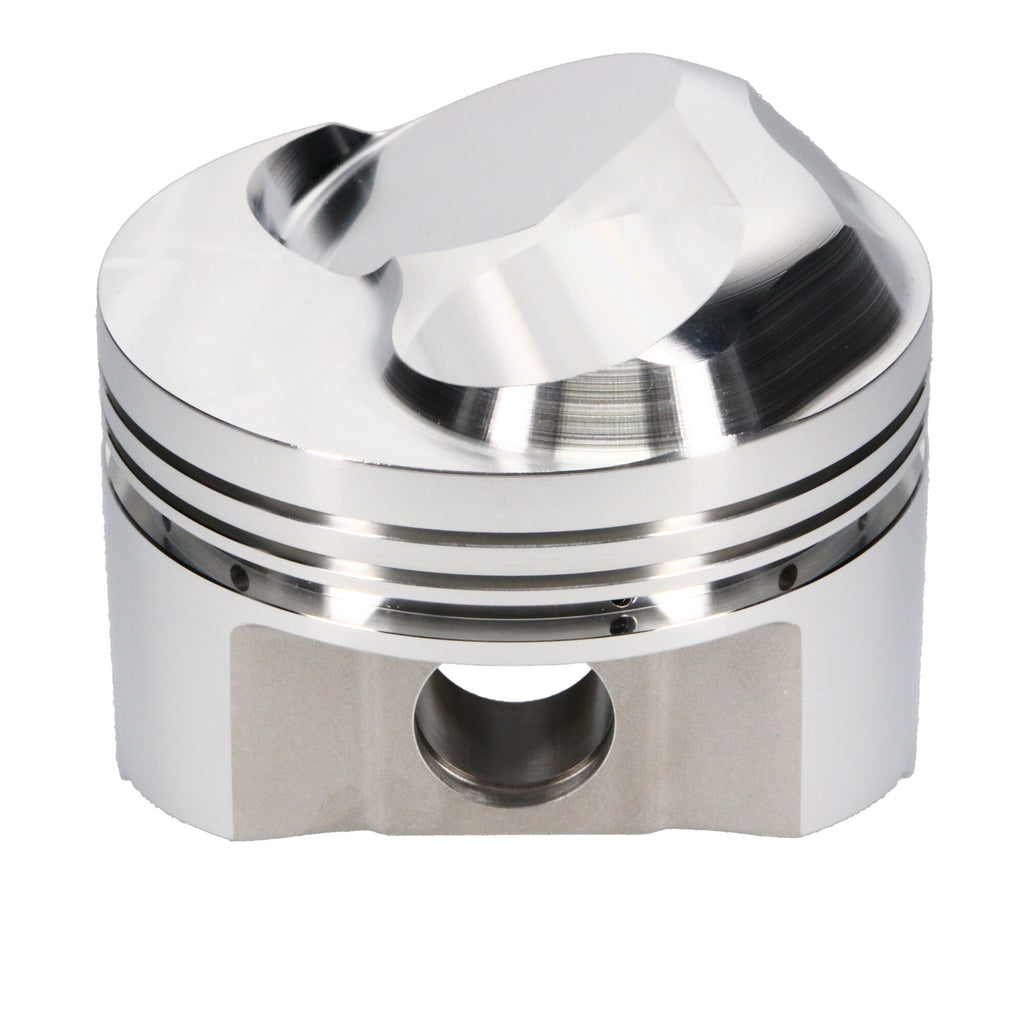

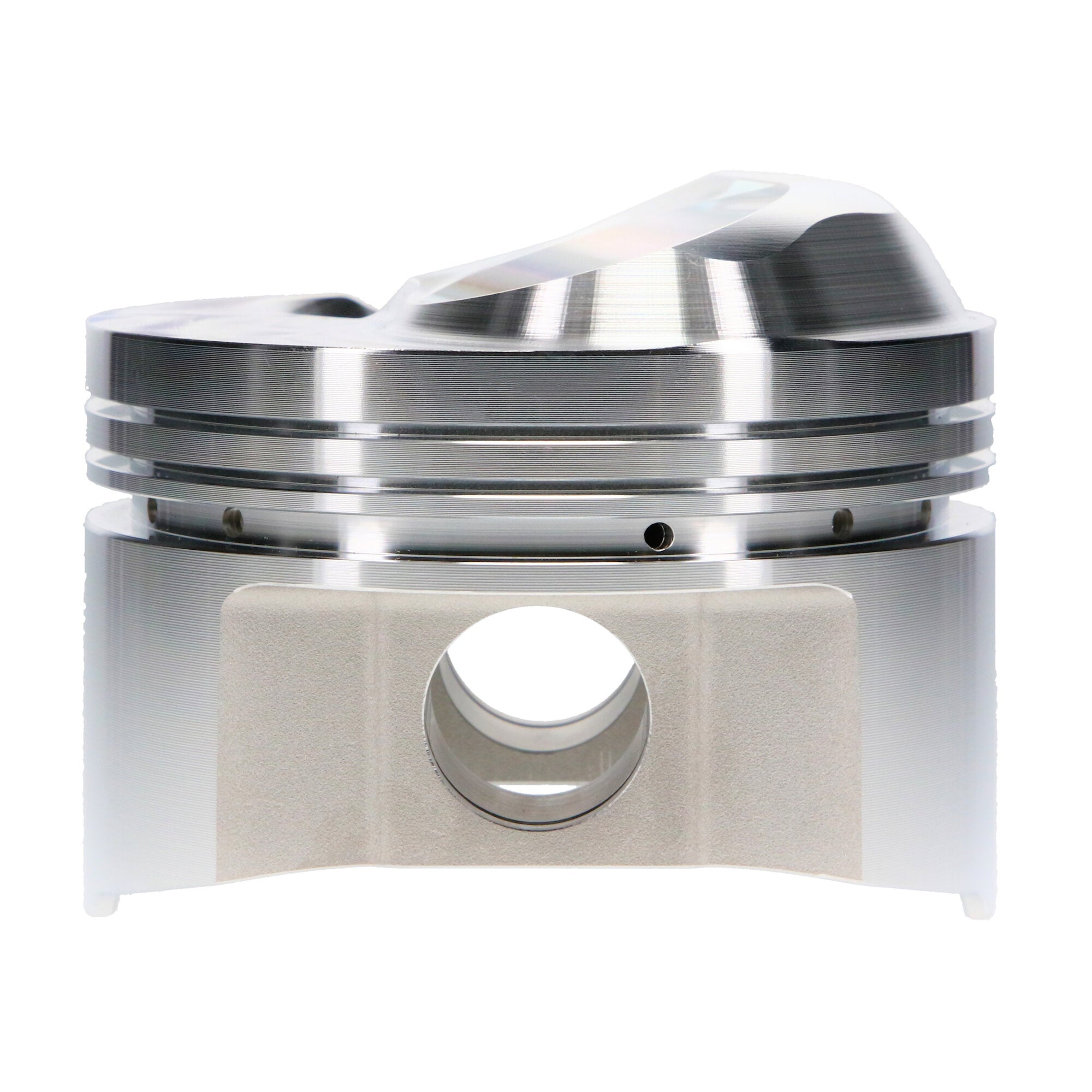

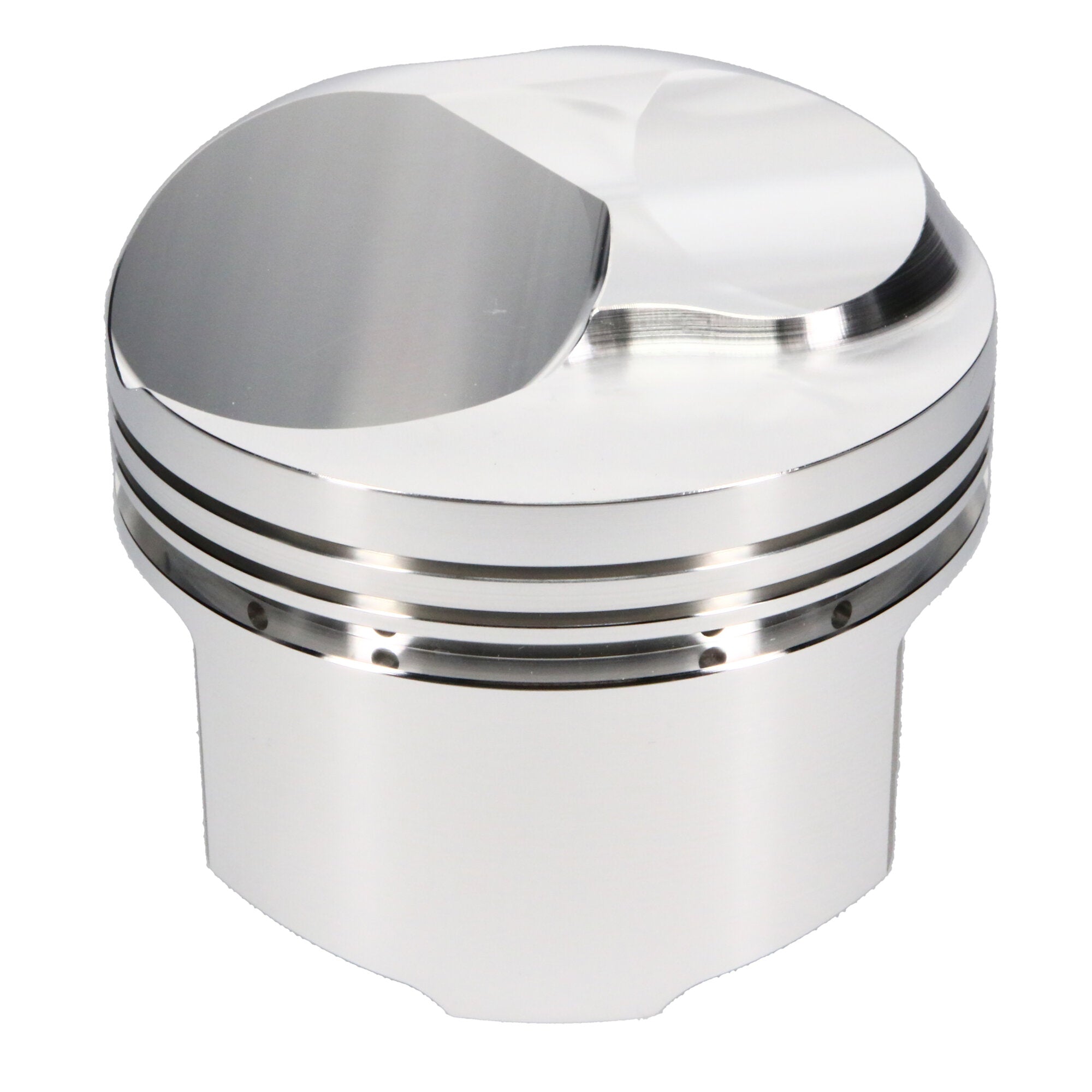

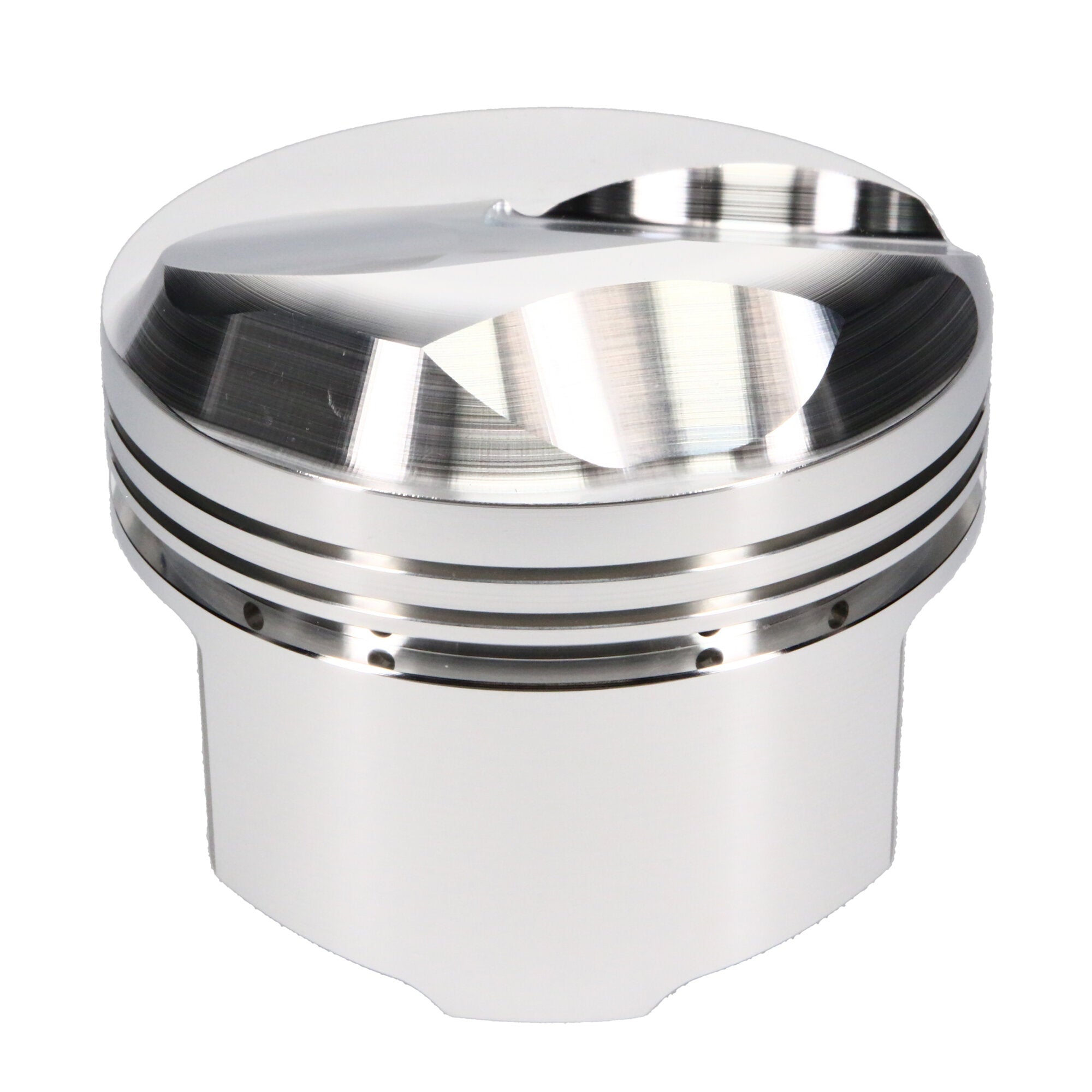

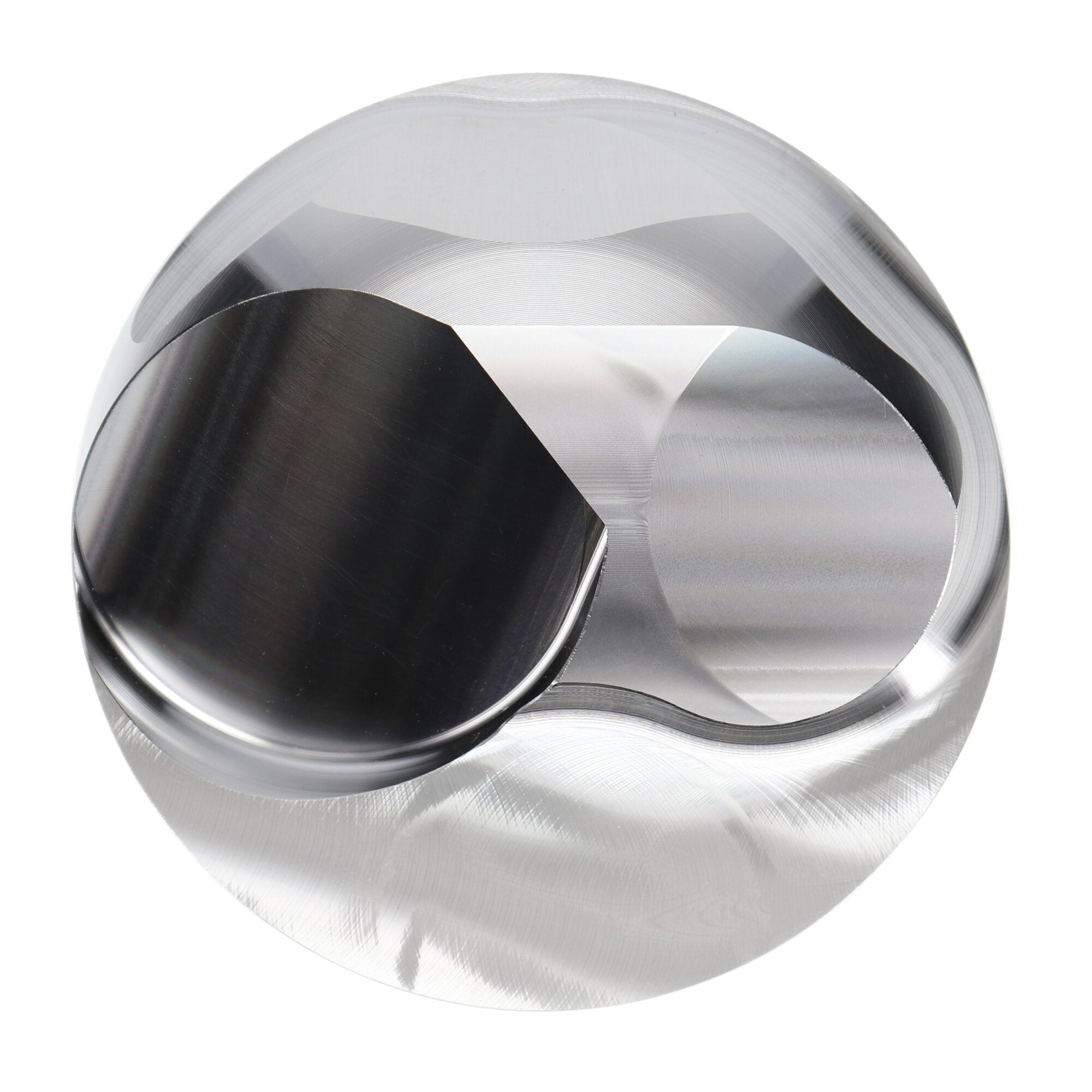

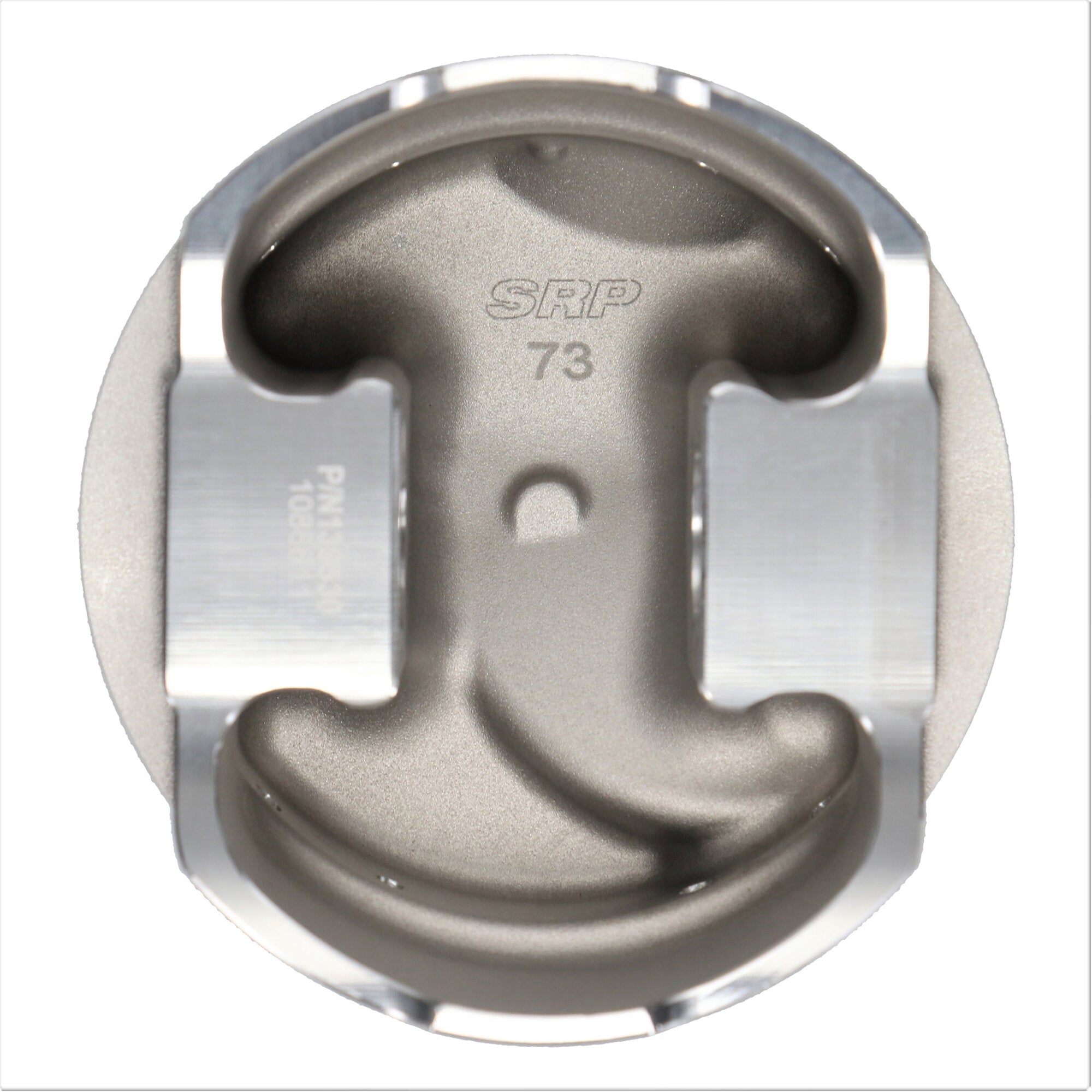

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.350 Bore, 1.245 CD, 0.990 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.350 in. Bore, 1.245 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.350 Bore, Dome, Set of 8 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
Big Block |
| Engine Type |
ICE |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.218 |
| Piston Series |
SRP |
| Make |
CHEVROLET |
| Piston Volume |
48.00 |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Make - Web |
Chevrolet |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Piston Average Weight |
625 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.350 in. Bore - 1.245 in. CH, 48.00 CC |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
S100S8-4350-5 |
| Second Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.245 |
| Add-On |
990-2930-15-51S |
| Piston Material |
2618 |
| Title |
SRP - Chevrolet, Big Block, 4.350 in. Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Product Market |
Domestic |
| Add-On |
990-042-CS |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Bore Diameter |
4.350 |
| Industry |
Automotive |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
