As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons.
Specifications:
| Description_ASM |
HONDA 96-04 XR 400, 99-08 TRX 400EX, 09-14 TRX 400X |
| Description_DES |

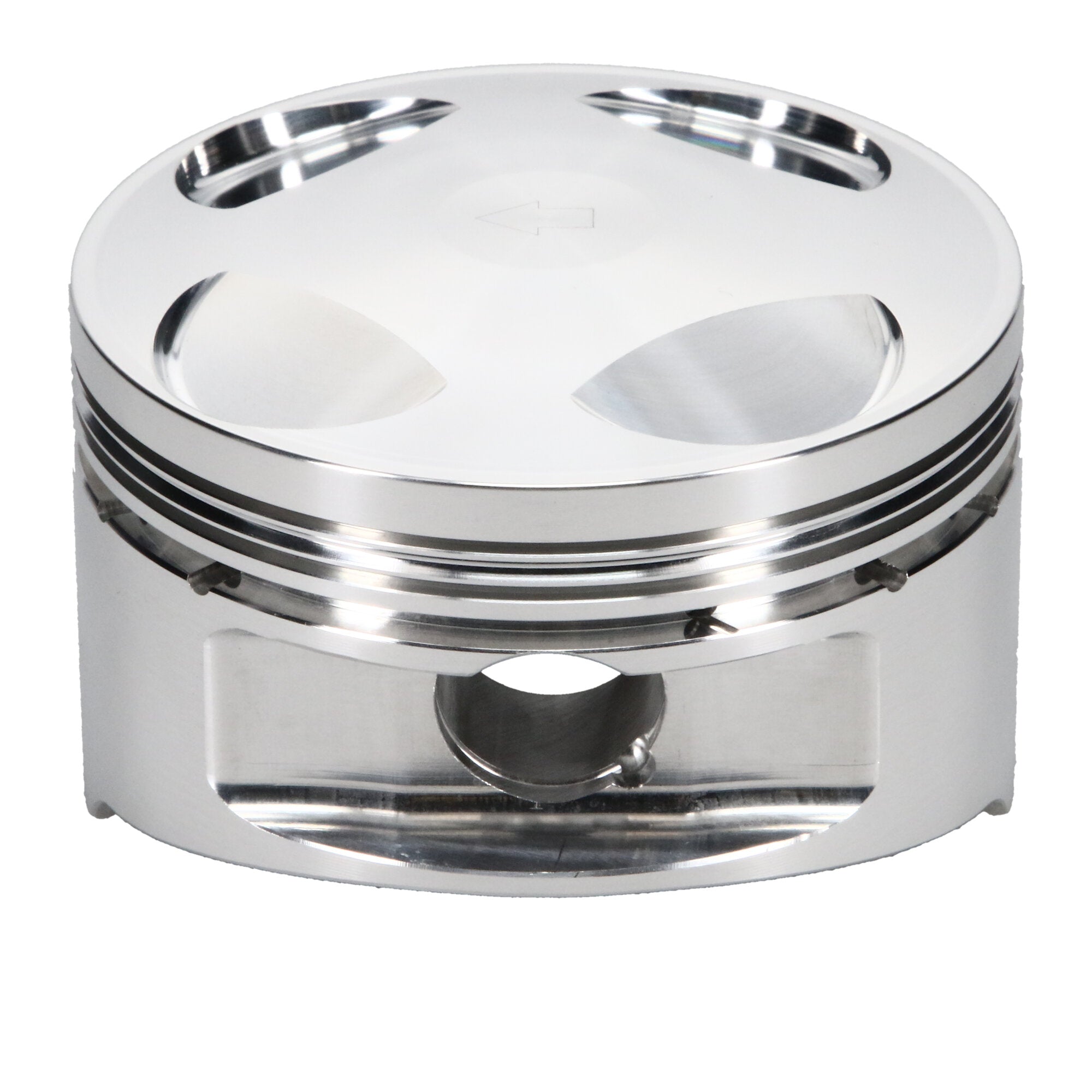

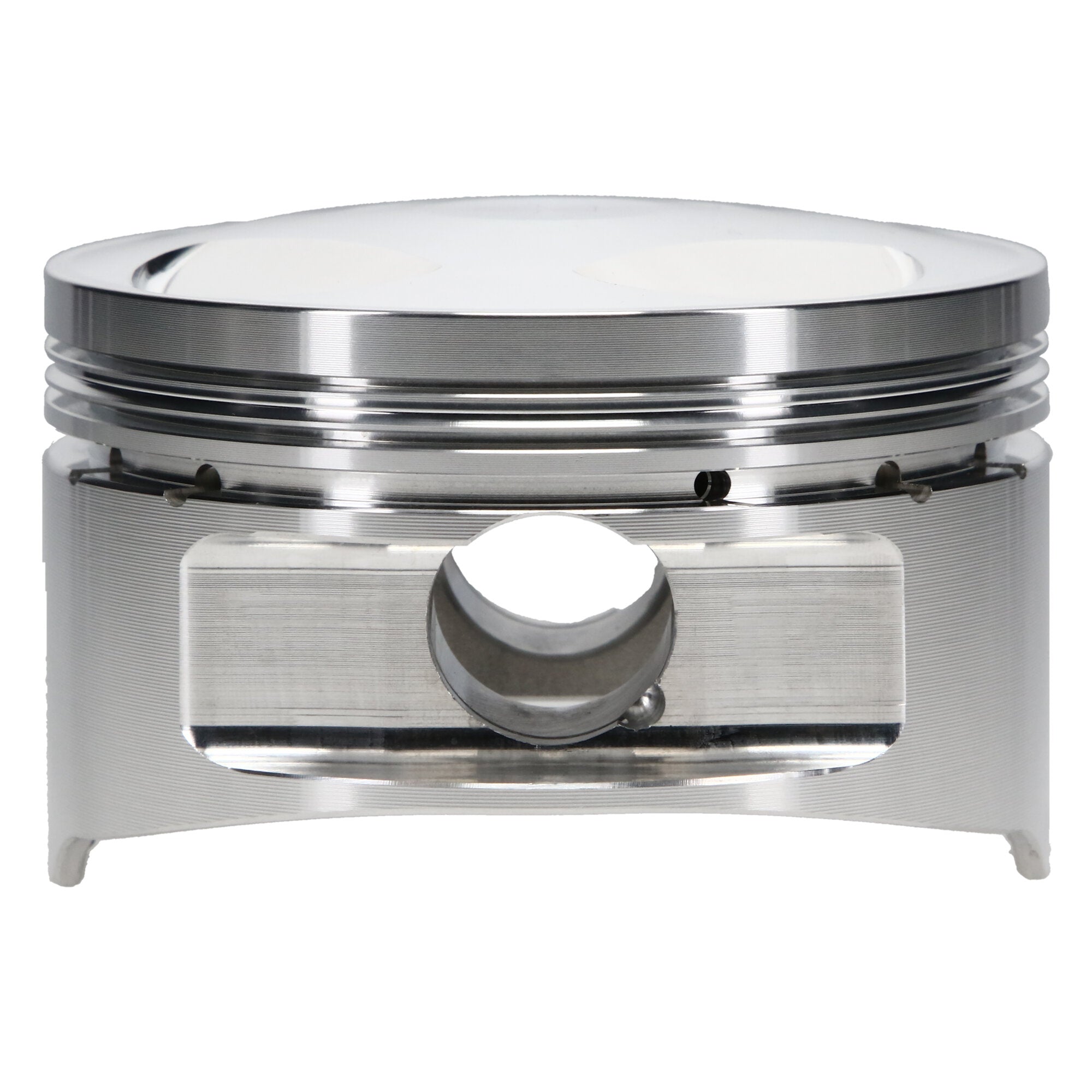

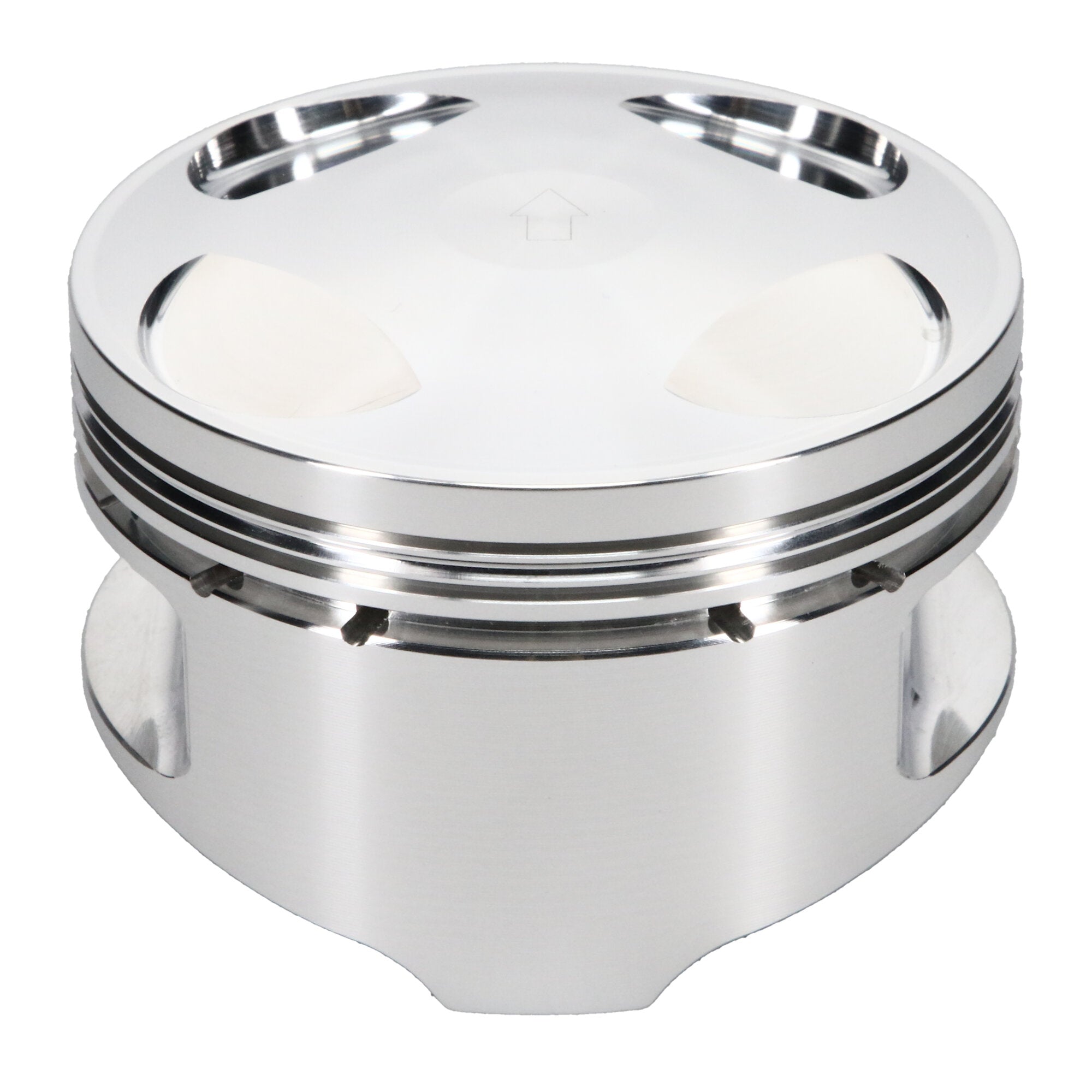

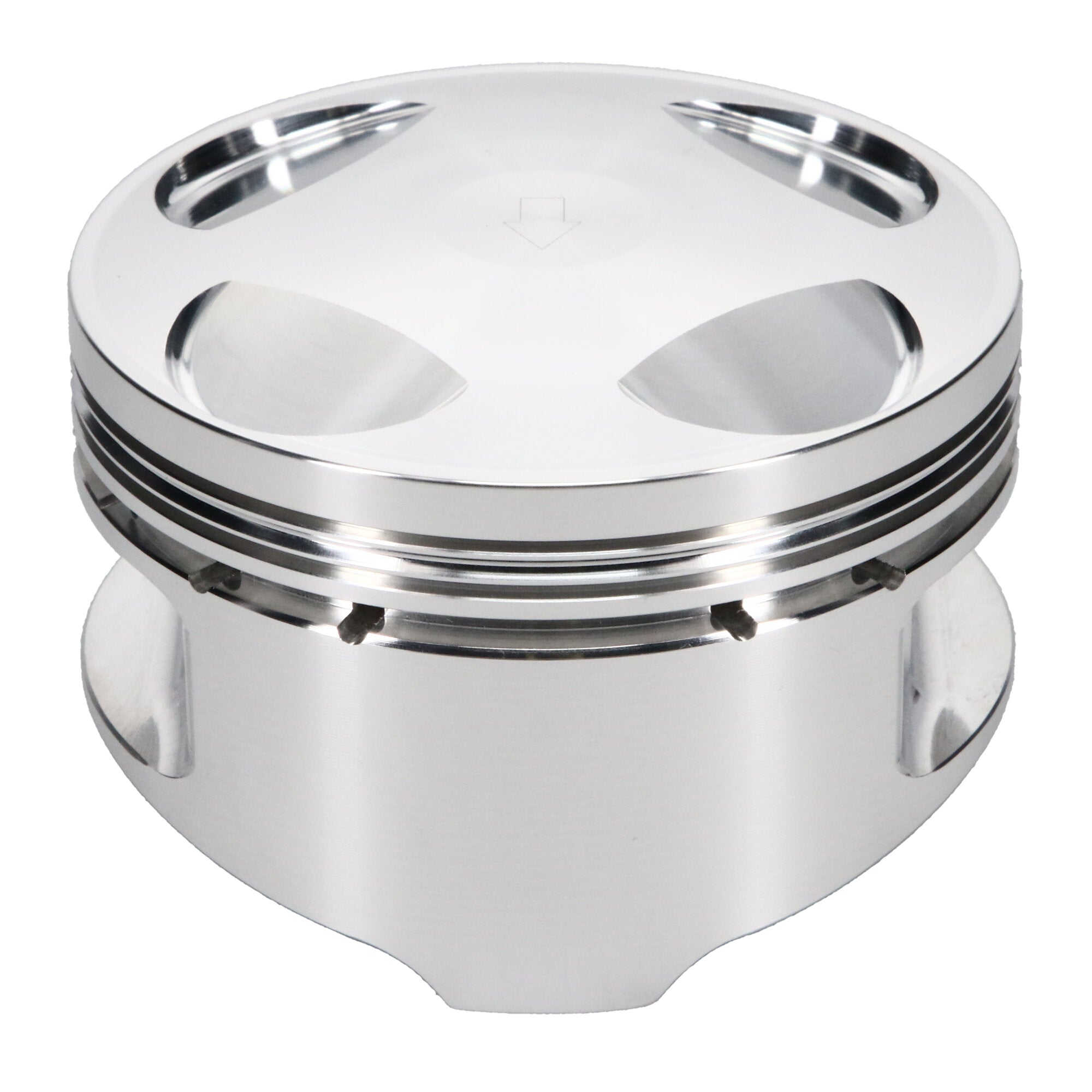

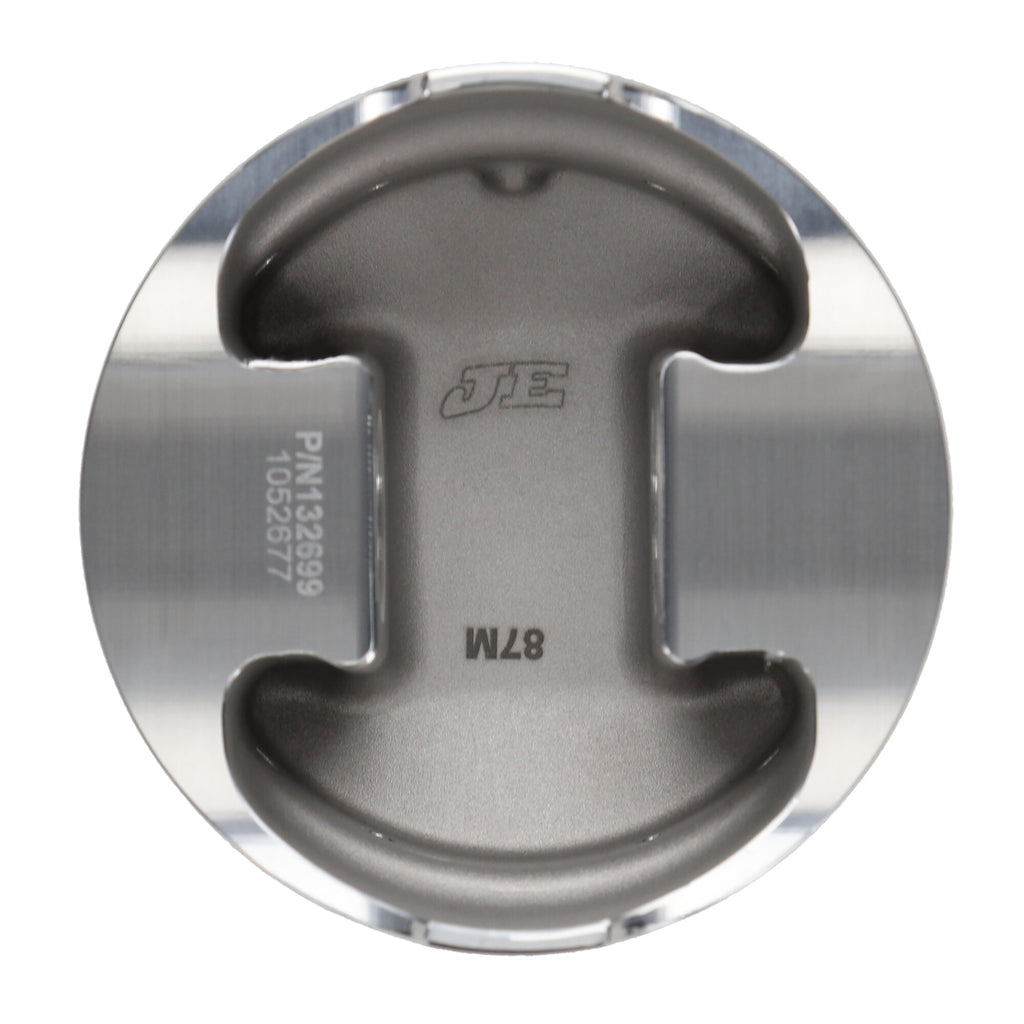

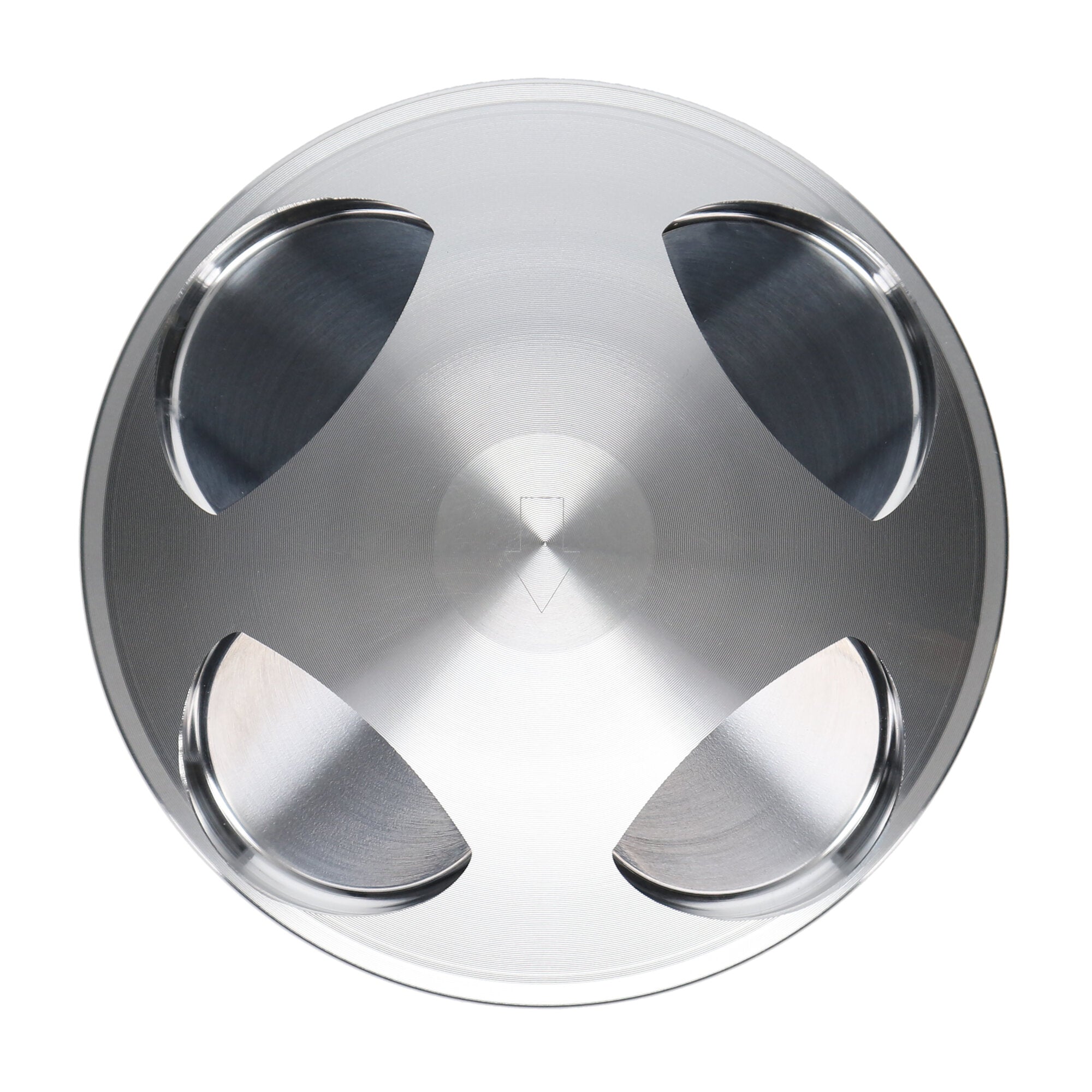

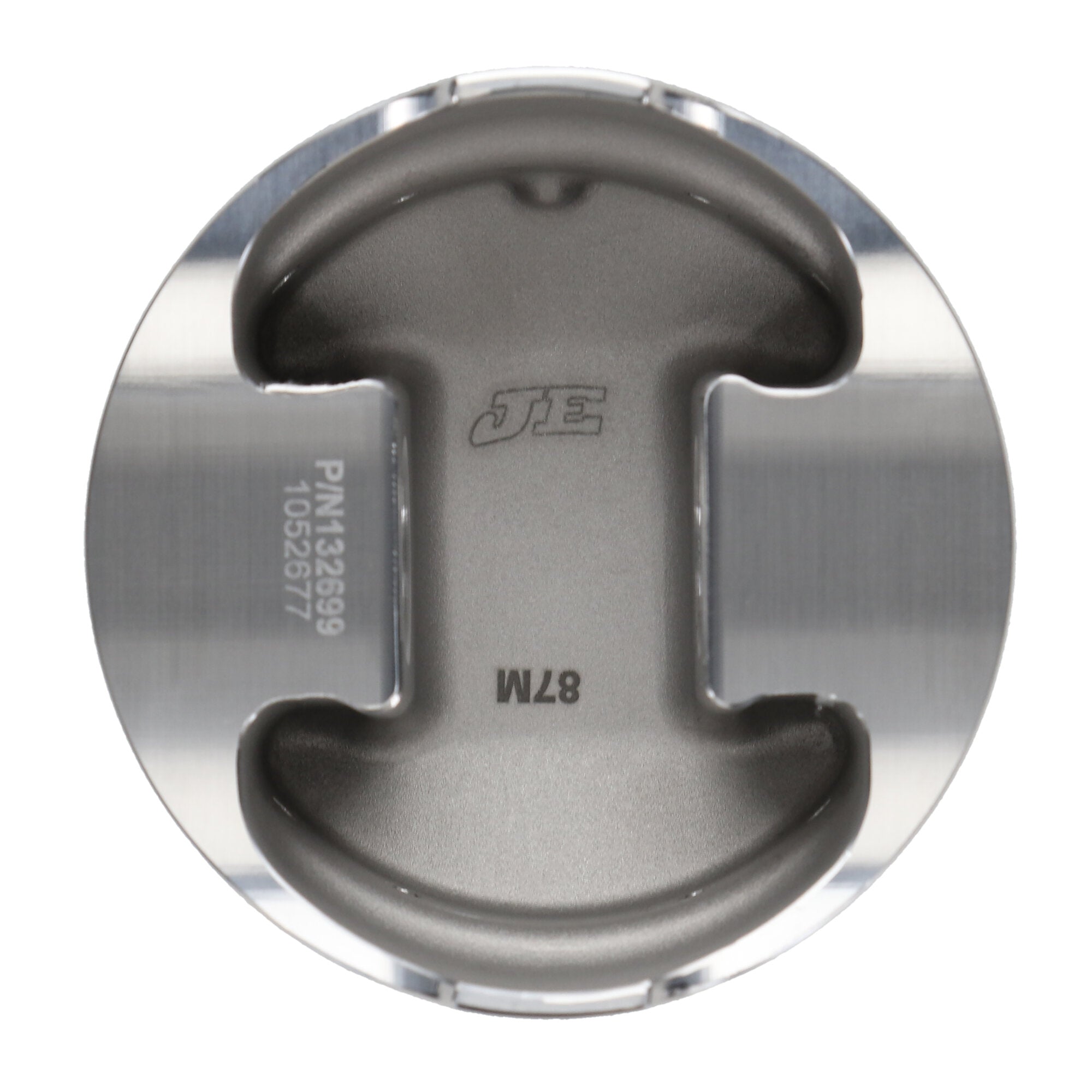

Piston Set, 2618, Dome, 3.425 Bore, 1.035 CD, 0.787 Pin, Set of 1. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Honda, XR 400 / TRX 400EX / TRX 400X, 10.80:1, 87.00 mm Bore, 1 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
JE, Honda, 87.00 mm Bore, 1 Cyl. Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Title |
JE, Honda, 87.00 mm Bore, 1 Cyl. Kit |
| Category Hierarchy |
Powersports>Pistons>Piston Kits>ATV |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Outer Diameter |
0.787 |
| Forging Type |
Round |
| Piston Average Weight |
294 |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
87.00 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Powersports |
| Product Market |
ATV |
| Product Market |
Off-Road |
| Piston Volume |
0.00 |
| Cylinder Head |
EX/XR 400 R |
| Wrist Pin Length |
2.350 |
| Wrist Pin Wall Thickness |
0.140 |
| Piston Material |
2618 |
| Ring Set Included |
Yes |
| Product Type |
Engine Piston Kit |
| Add-On |
787-2350-14-51C |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Add-On |
XC8700 |
| Add-On |
787-050-MW |
| Piston Series |
JE Pistons |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availability |
| Compression Ratio Actual |
10.50:1 |
| Title - Web |
JE, Honda, 87.00 mm Bore, 1 Cyl. Kit |
| Second Compression Ring Thickness |
0.0480 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
