As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons.
Specifications:
| Description_ASM |
HONDA 96-04 XR 400, 99-08 TRX 400EX, 09-14 TRX 400X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

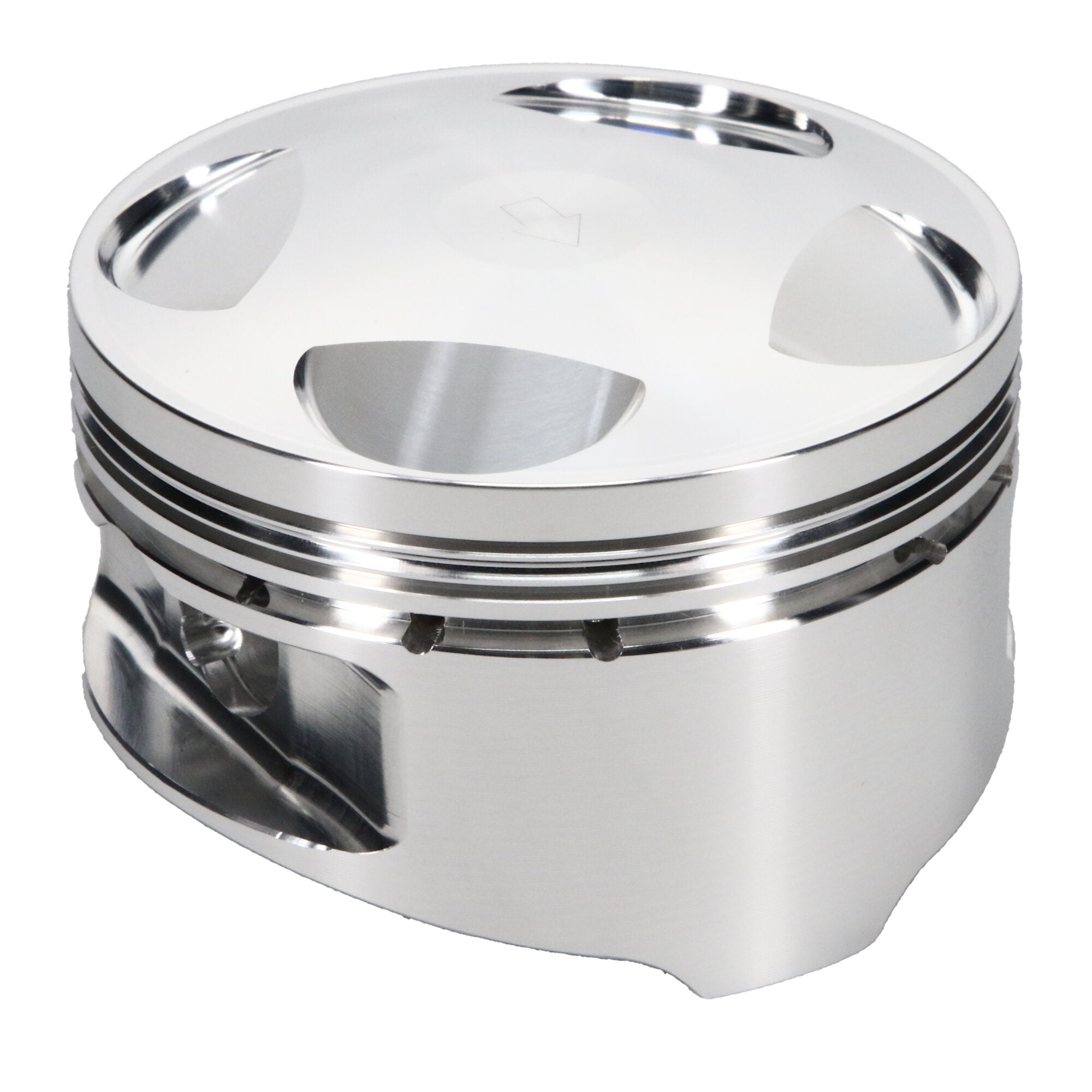

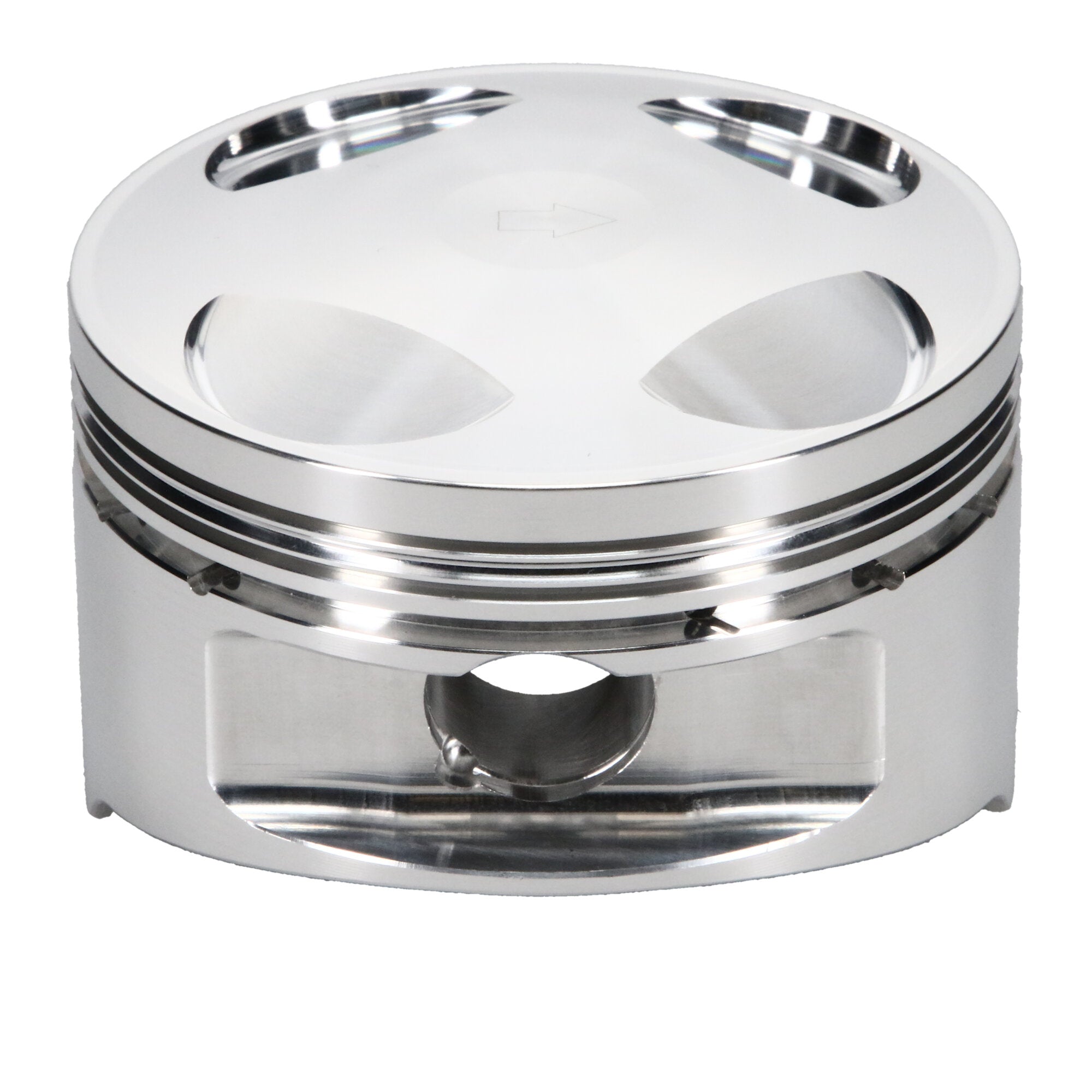

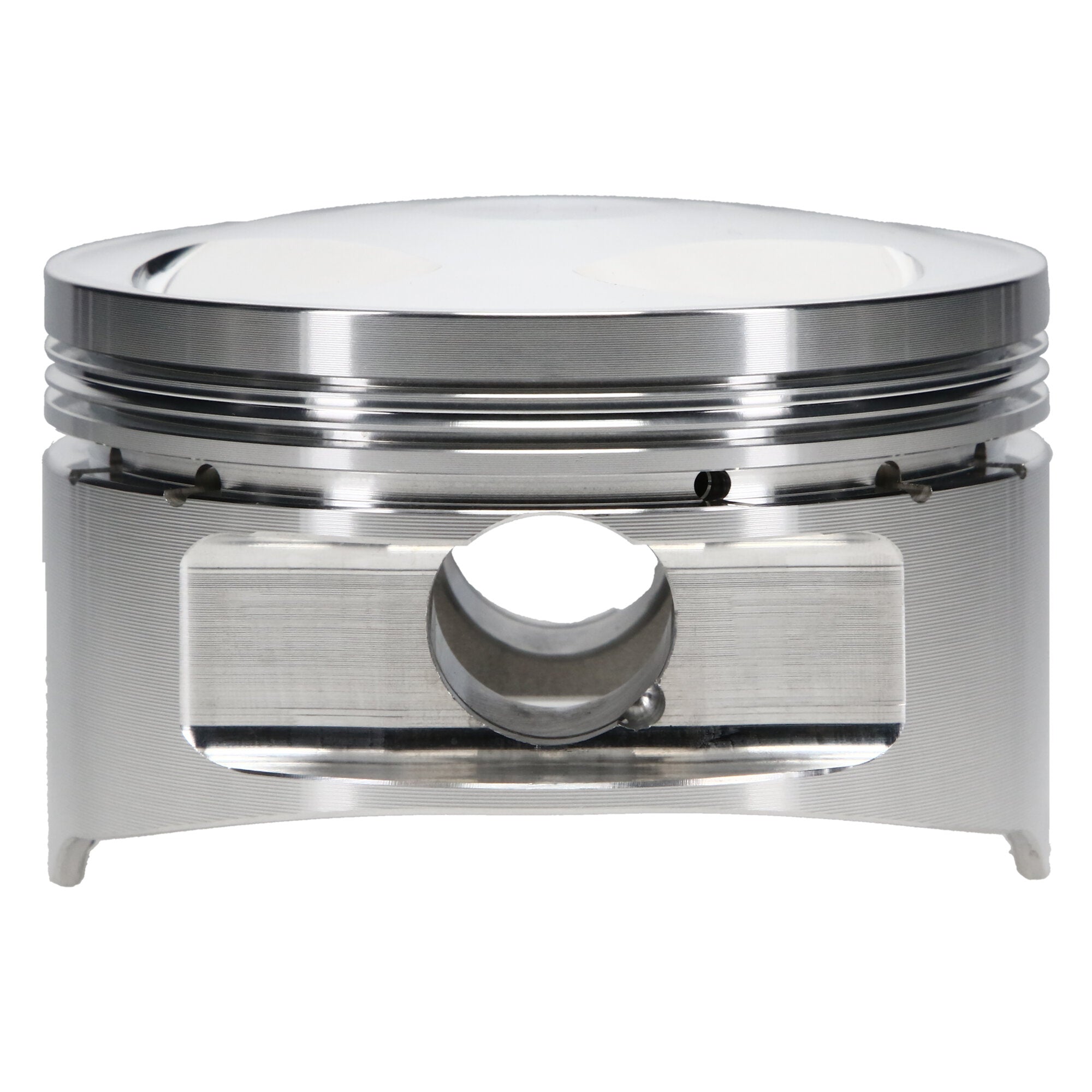

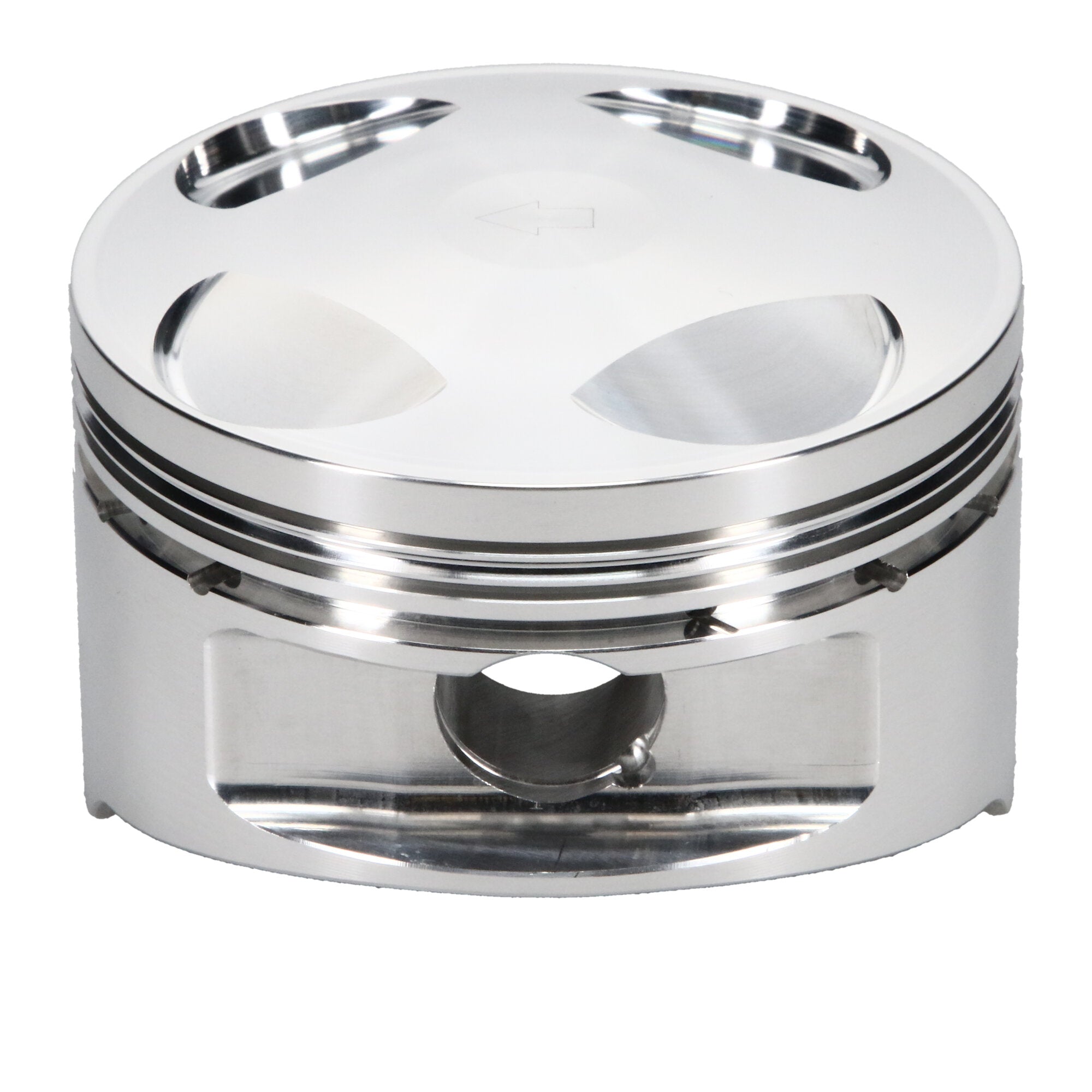

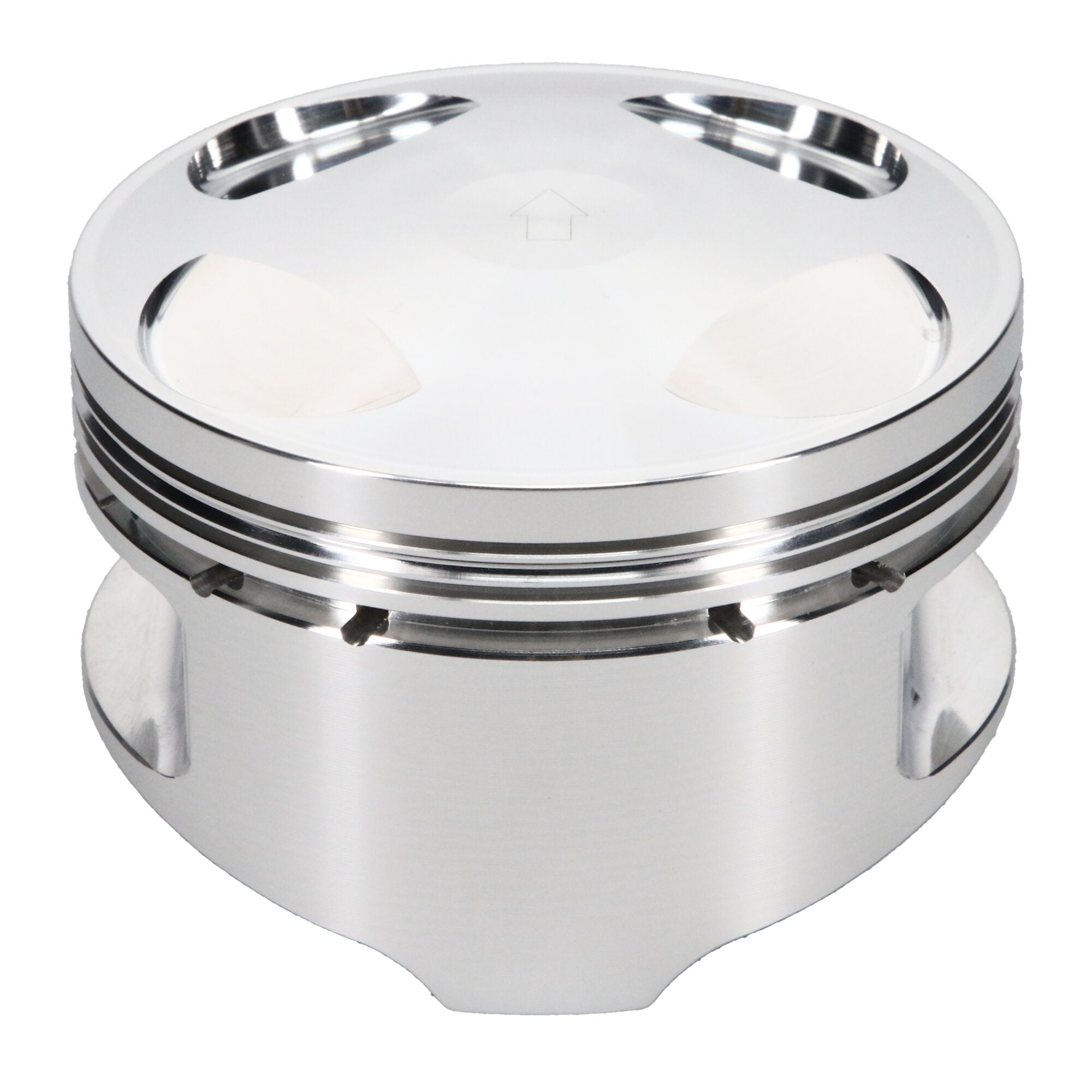

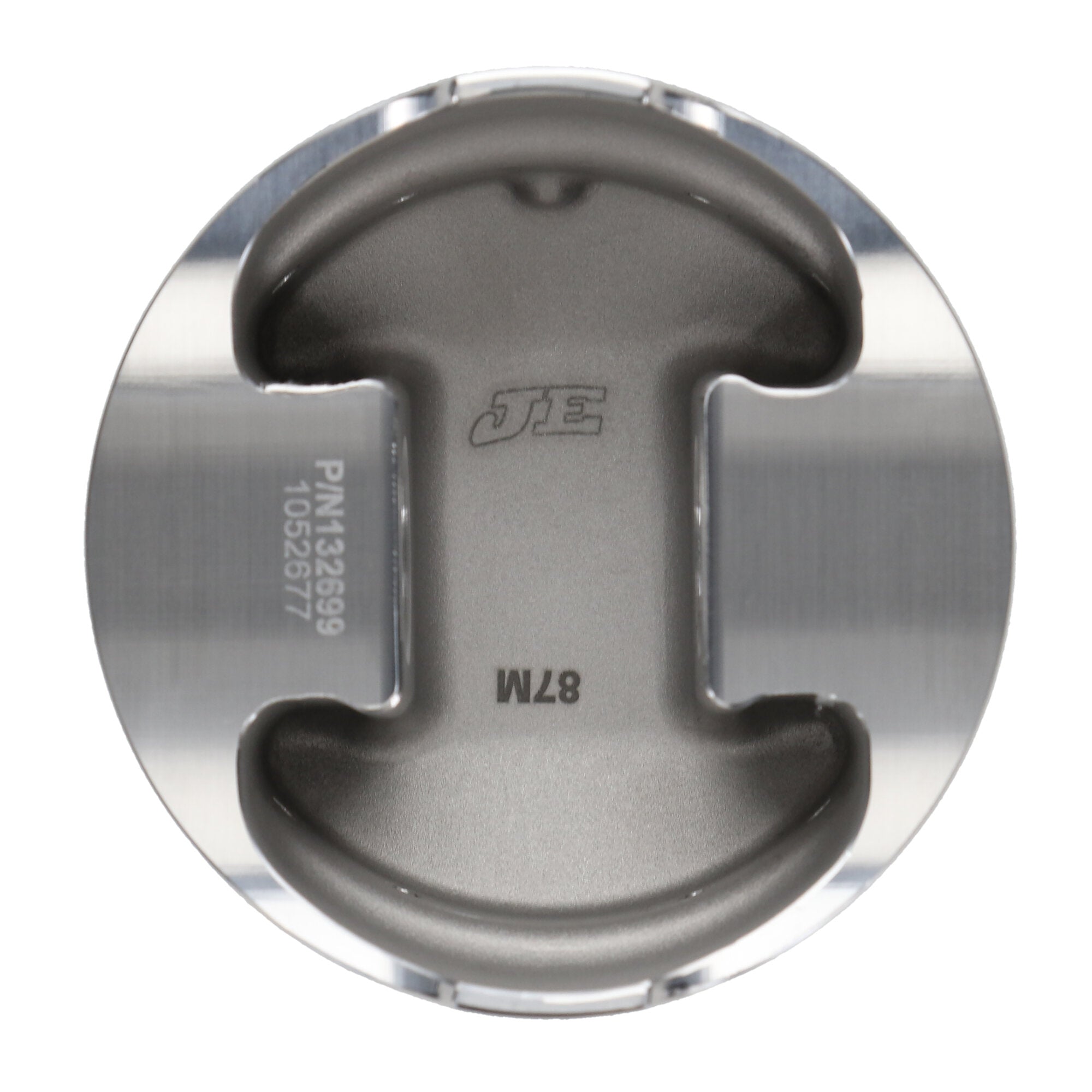

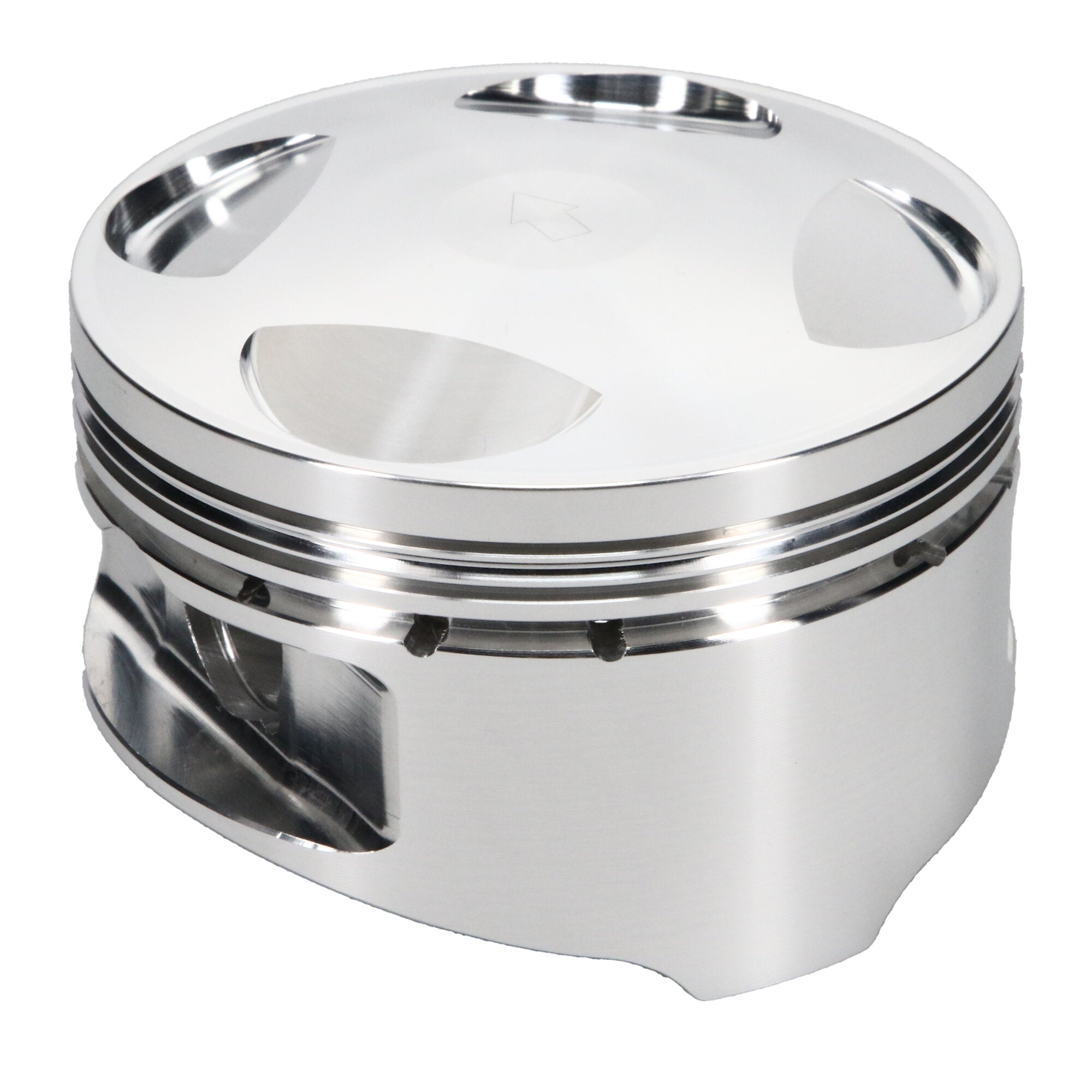

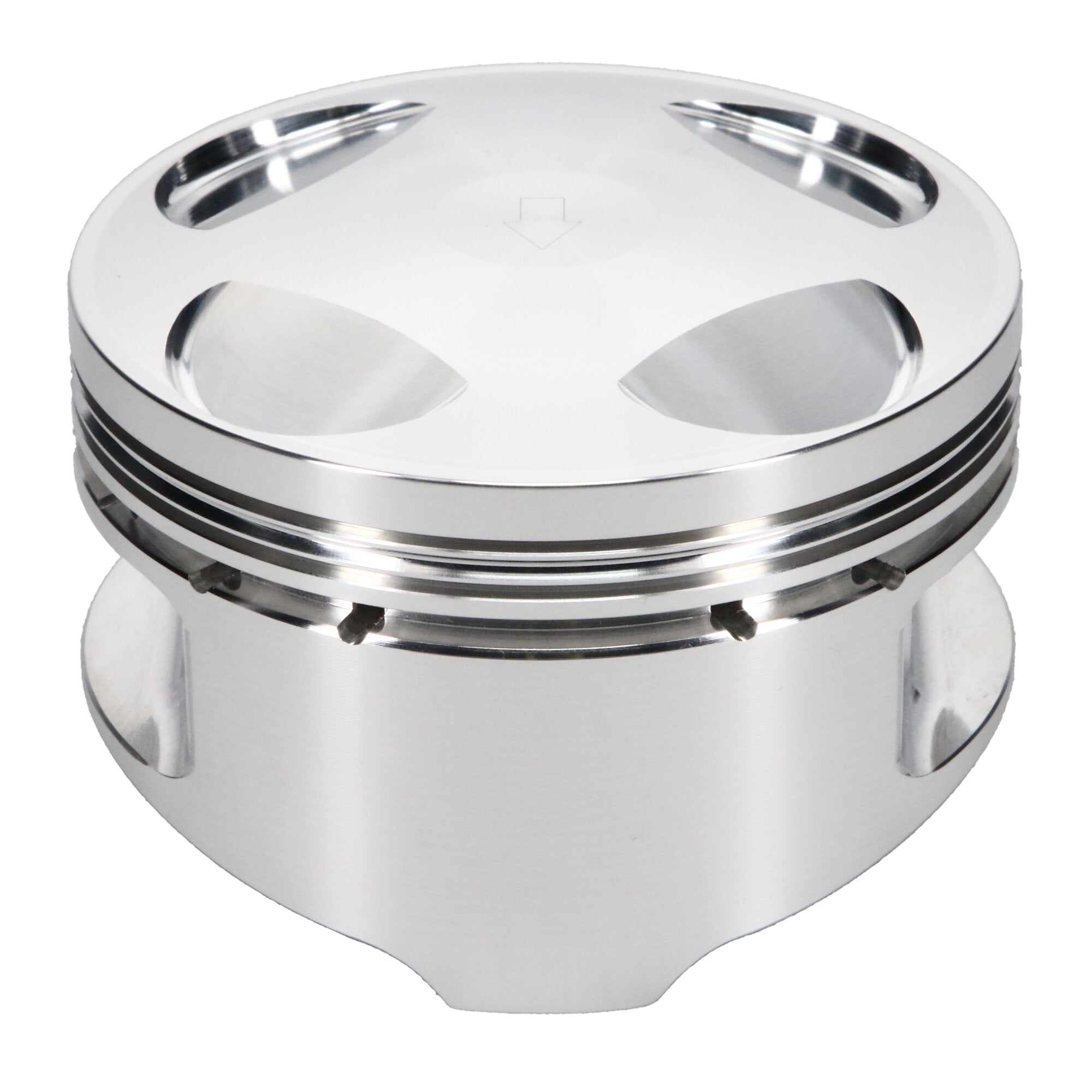

Piston Set, 2618, Dome, 3.385 Bore, 1.035 CD, 0.787 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Honda, XR 400 / TRX 400EX / TRX 400X, 10.60:1, 86.00 mm Bore, 1 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
JE, Honda, 86.00 mm Bore, 1 Cyl. Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons. |
| Product Market |
Off-Road |
| Product Market |
ATV |
| Wrist Pin Wall Thickness |
0.140 |
| Top Compression Ring Thickness |
0.0400 |
| Title |
JE, Honda, 86.00 mm Bore, 1 Cyl. Kit |
| Piston Average Weight |
294 |
| Wrist Pin Outer Diameter |
0.787 |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
86.00 |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Add-On |
787-2350-14-51C |
| Add-On |
XC8600 |
| Add-On |
787-050-MW |
| Cylinder Head |
EX/XR 400 R |
| Piston Volume |
0.00 |
| Industry |
Powersports |
| Wrist Pin Length |
2.350 |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Category Hierarchy |
Powersports>Pistons>Piston Kits>ATV |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |

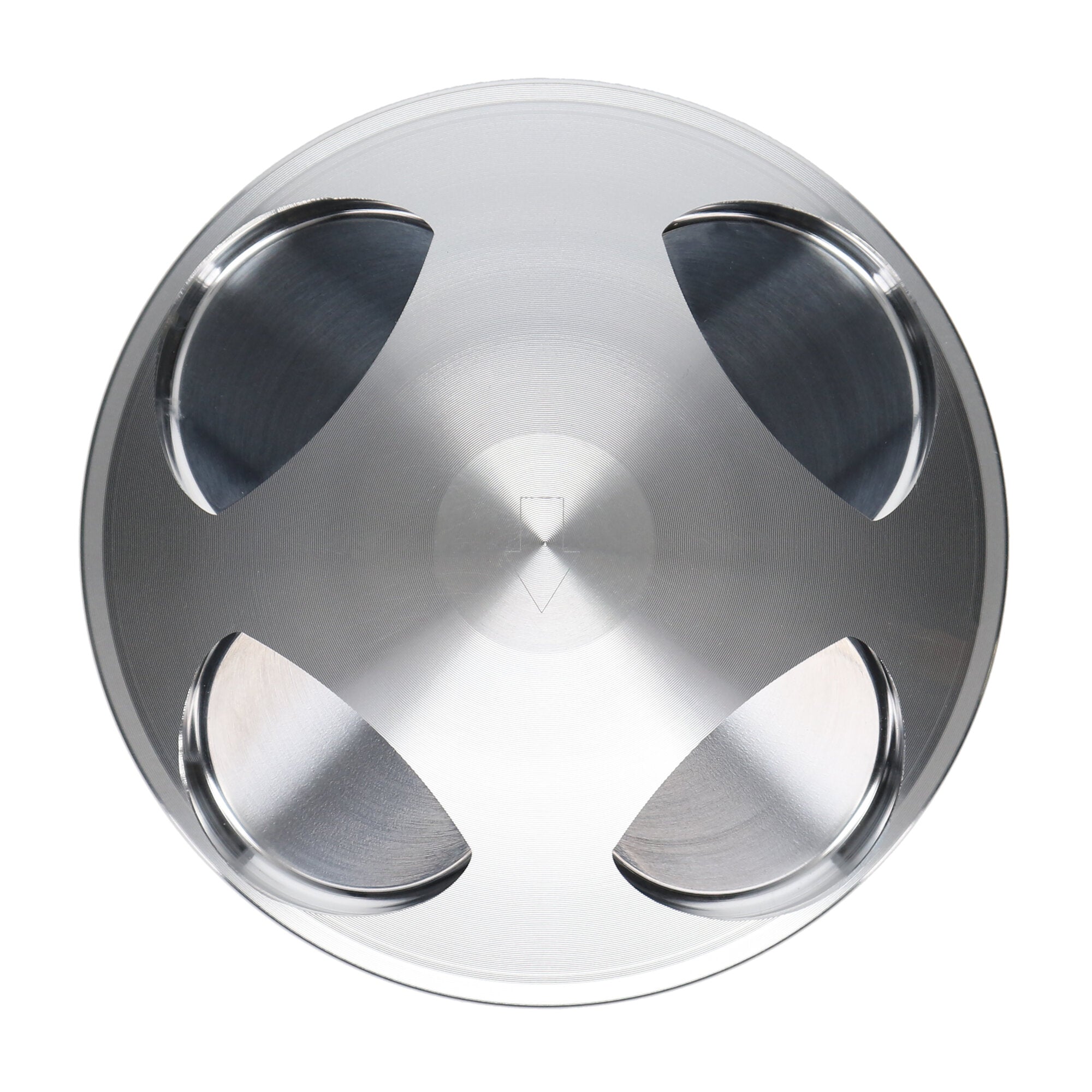

Dome |
| Prop 65 Yes/No |
Yes |
| Compression Ratio Actual |
10.50:1 |
| Oil Ring Thickness |
0.111 |
| Second Compression Ring Thickness |
0.0480 |
| Forging Type |
Round |
| Title - Web |
JE, Honda, 86.00 mm Bore, 1 Cyl. Kit |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
