As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

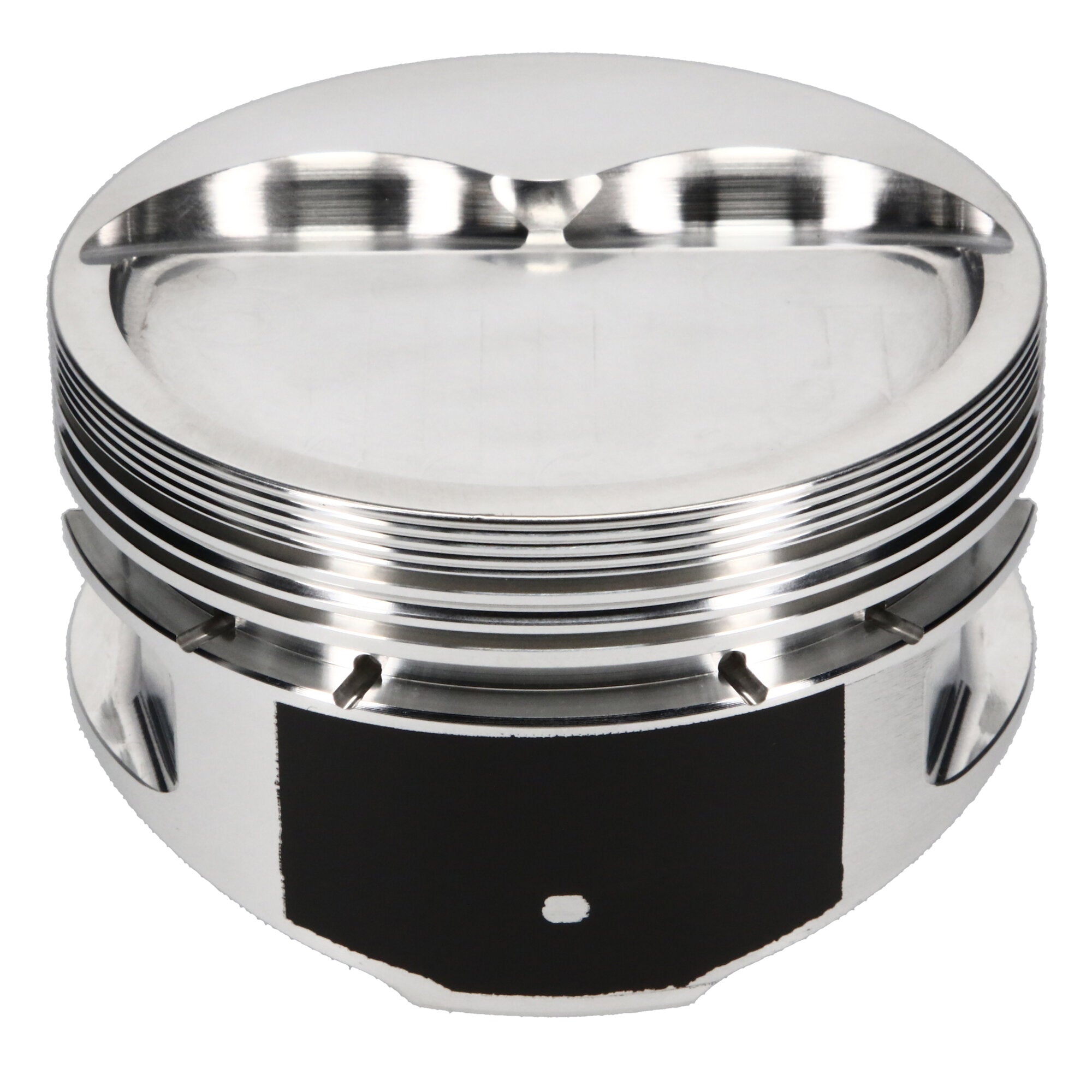

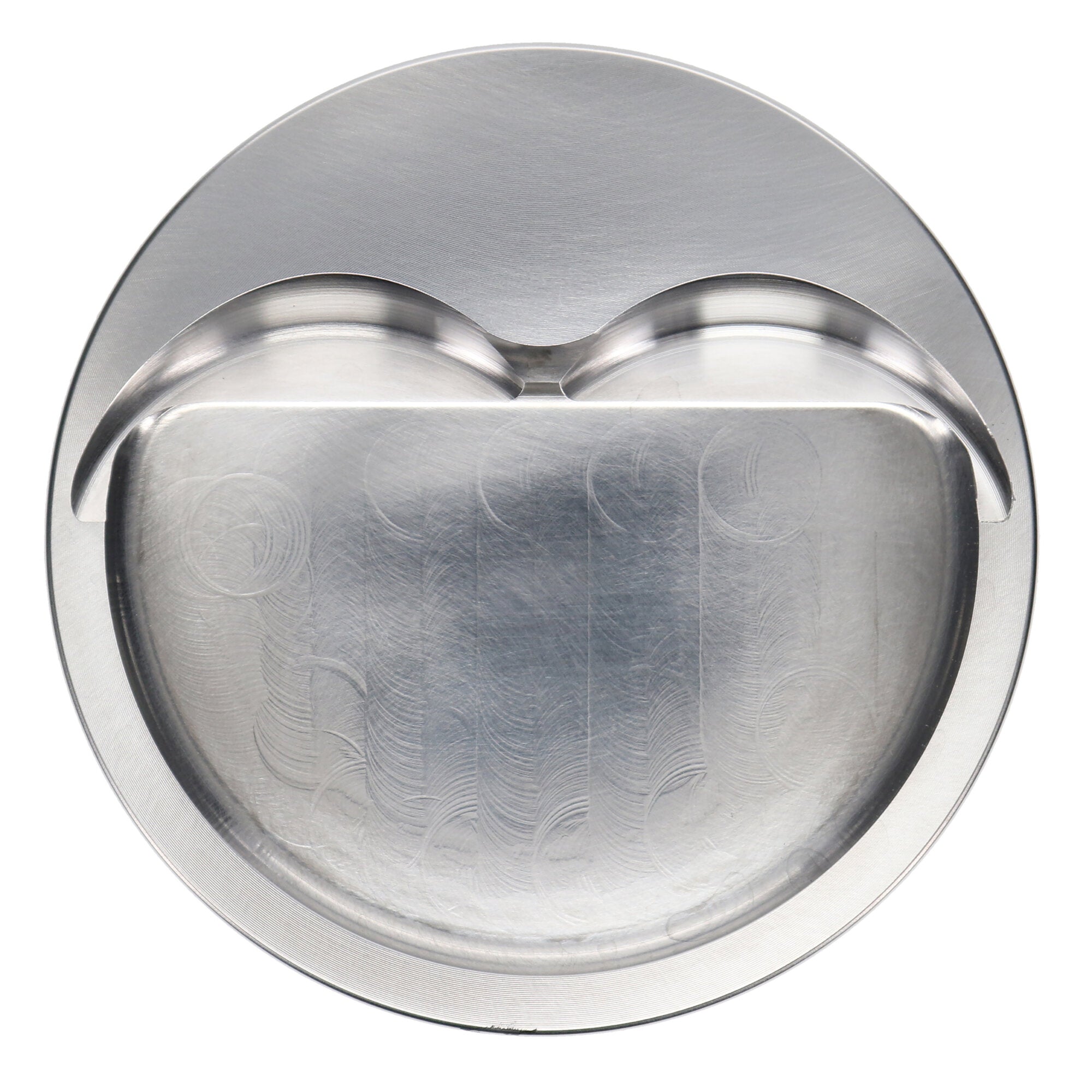

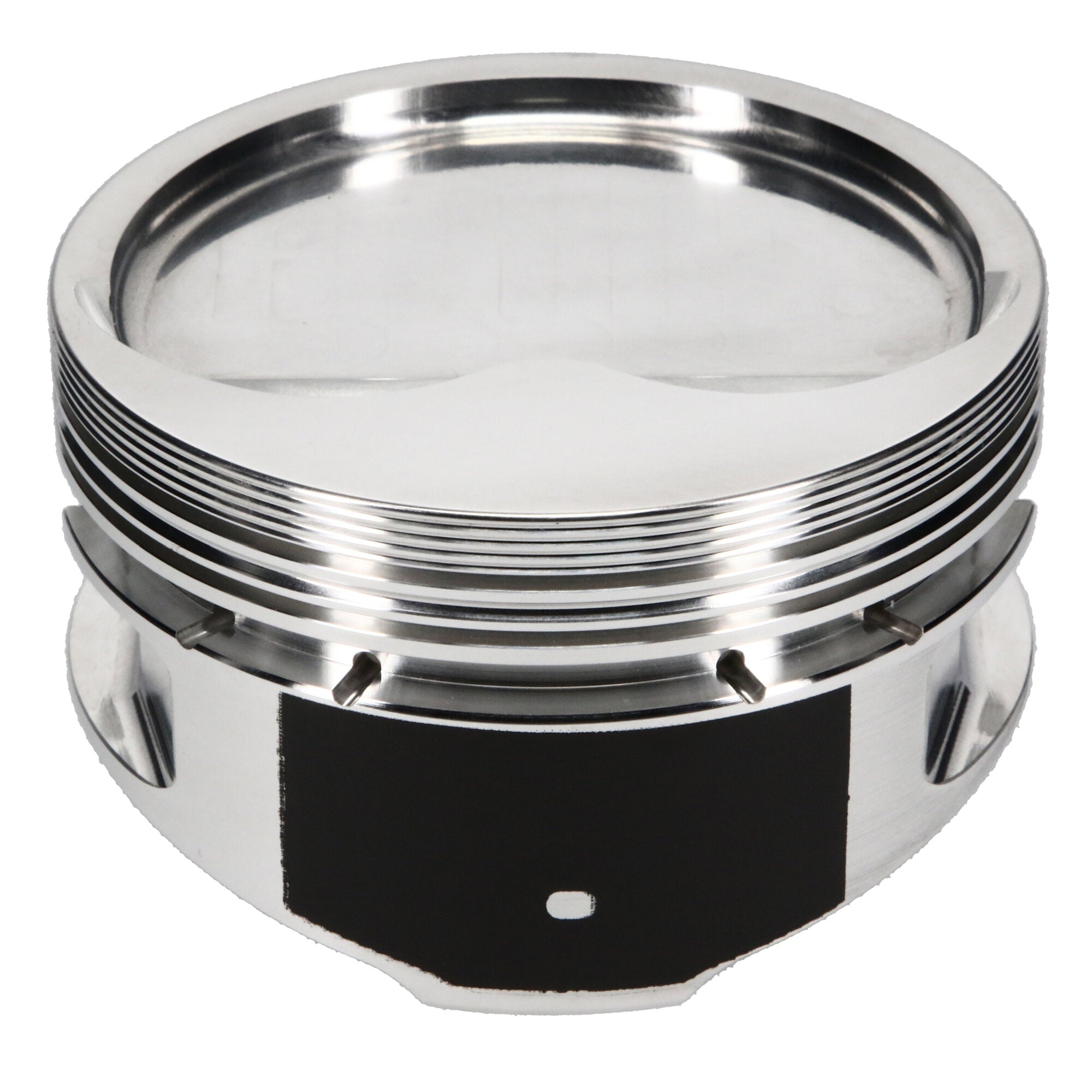

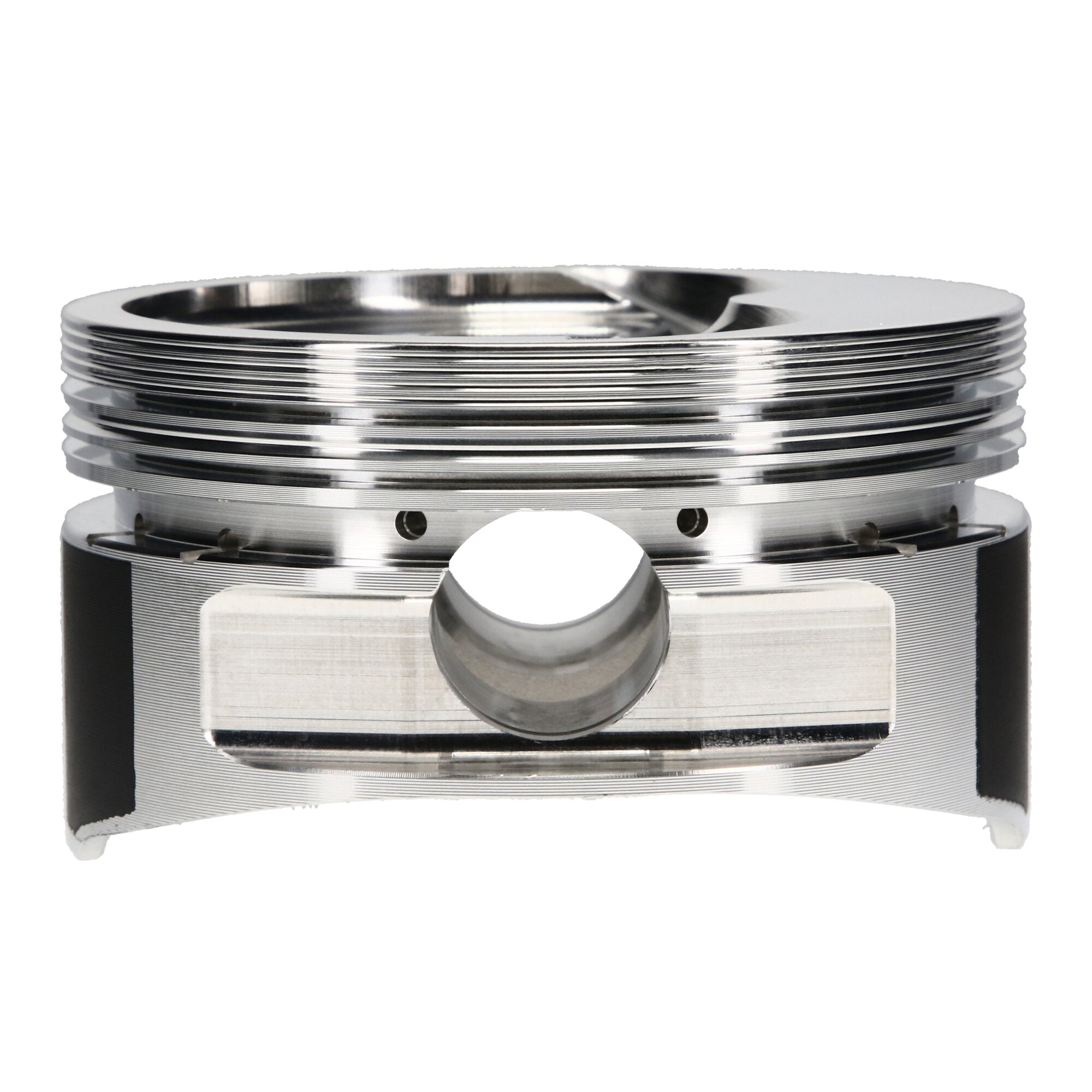

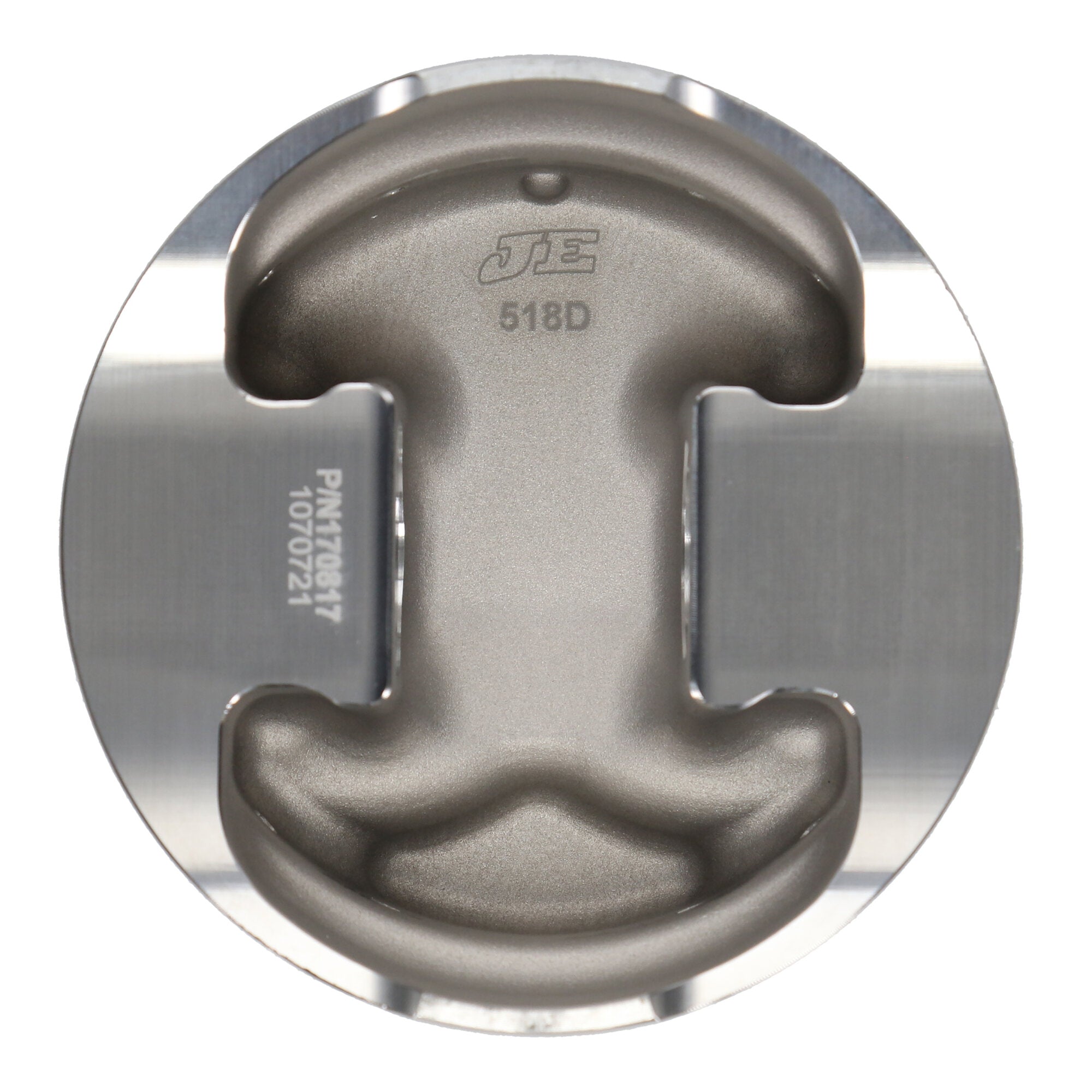

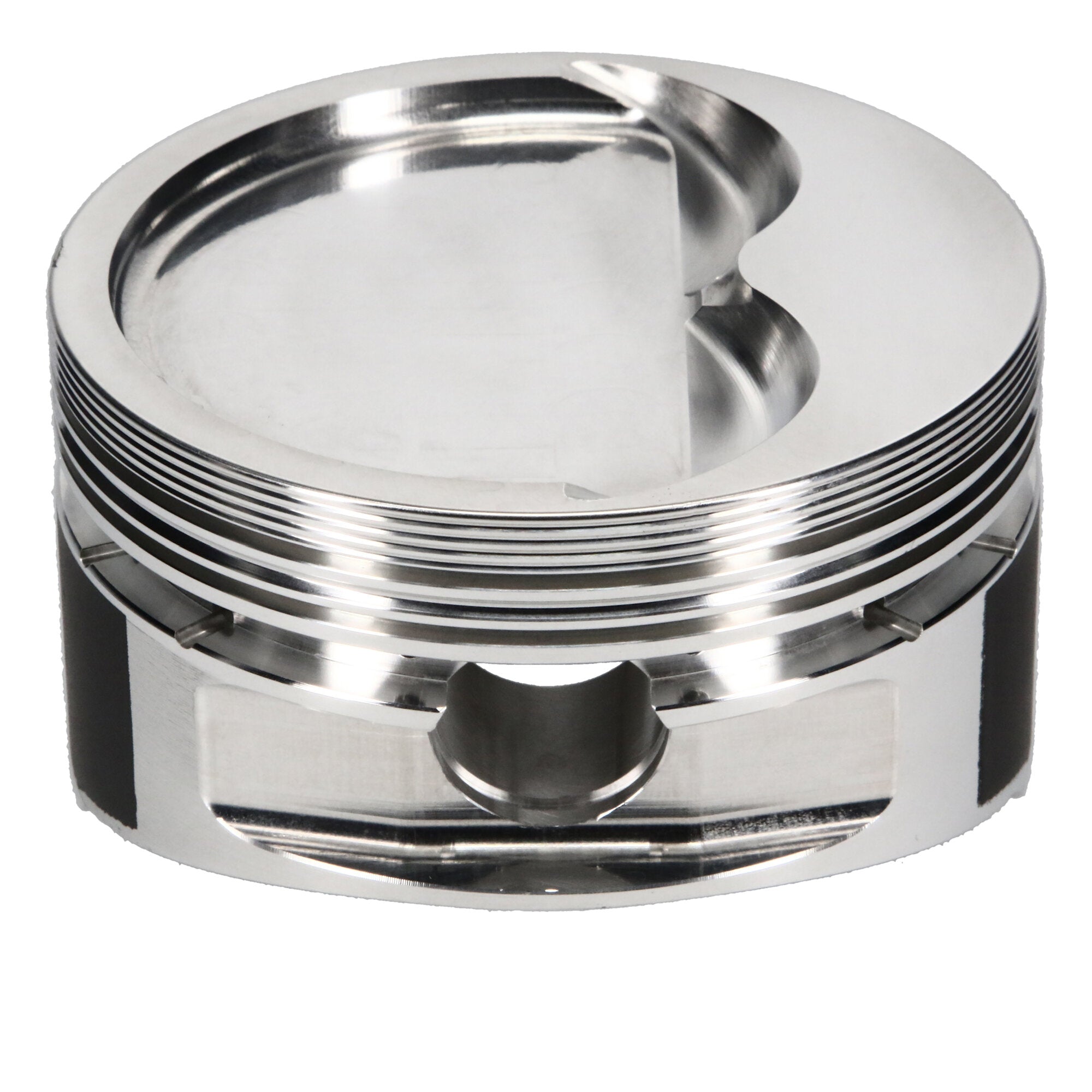

Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.550 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Dish, Set of 8 |
| Oil Ring Thickness |
0.188 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Forging Type |
Round |
| Piston Average Weight |
482 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Series |
JE Pistons |
| Compression Height |
1.550 |
| Top Compression Ring Thickness |
0.0640 |
| Make |
CHEVROLET |
| Bore Diameter |
4.030 |
| Piston Head Type |
Dish |
| Ringset Included |
No |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Add-On |
927-2750-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Add-On |
J10008-4030-5 |
| Industry |
Automotive |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-14.50 |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Piston Pin Length |
2.750 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.550 in. CH, -14.50 CC |
| Engine |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
