As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.550 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |

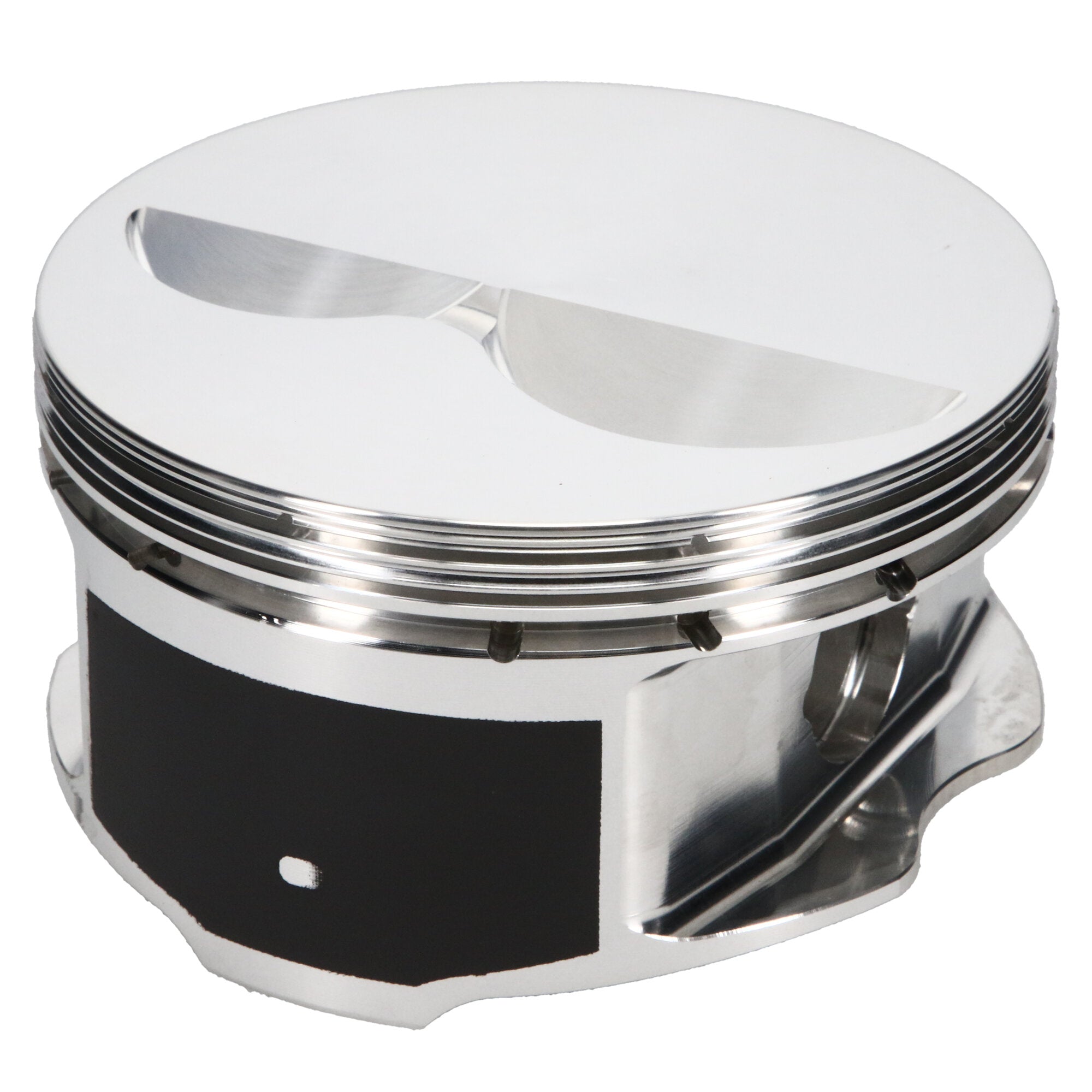

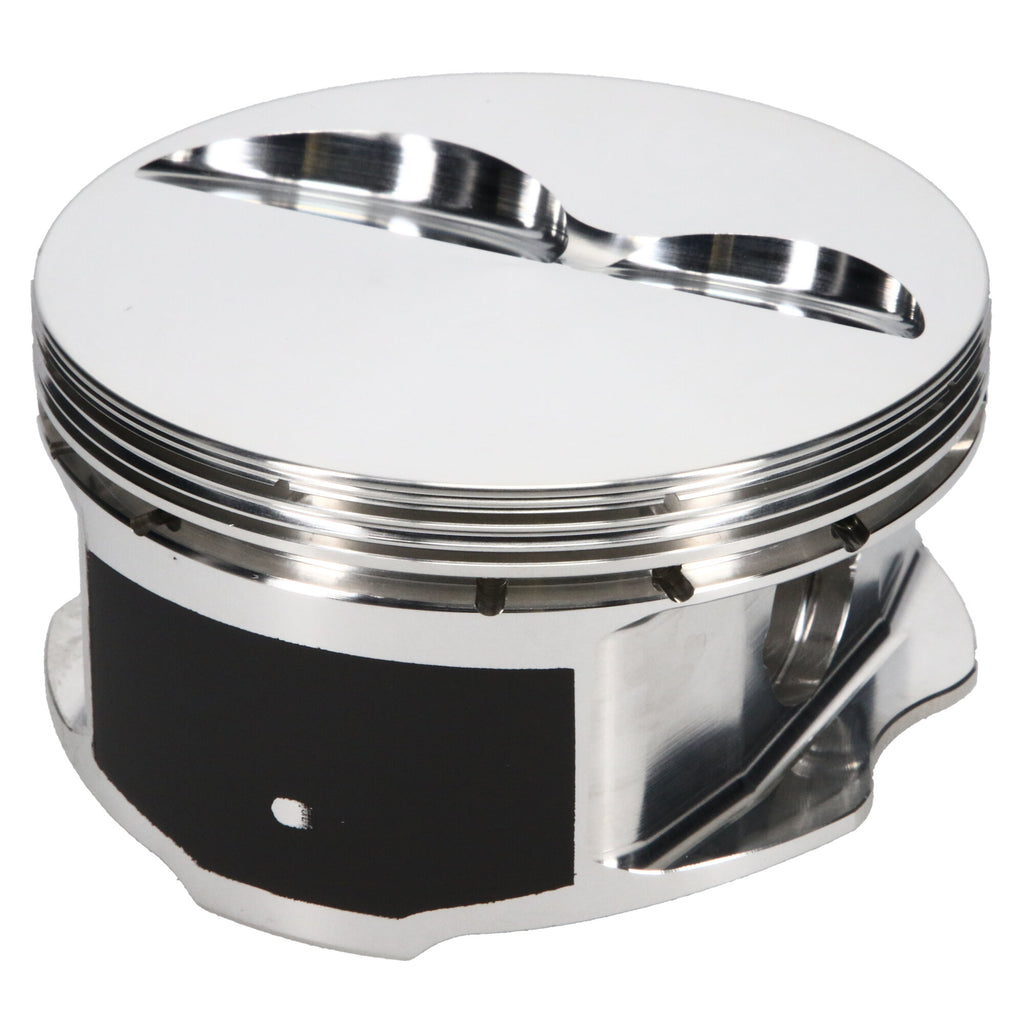

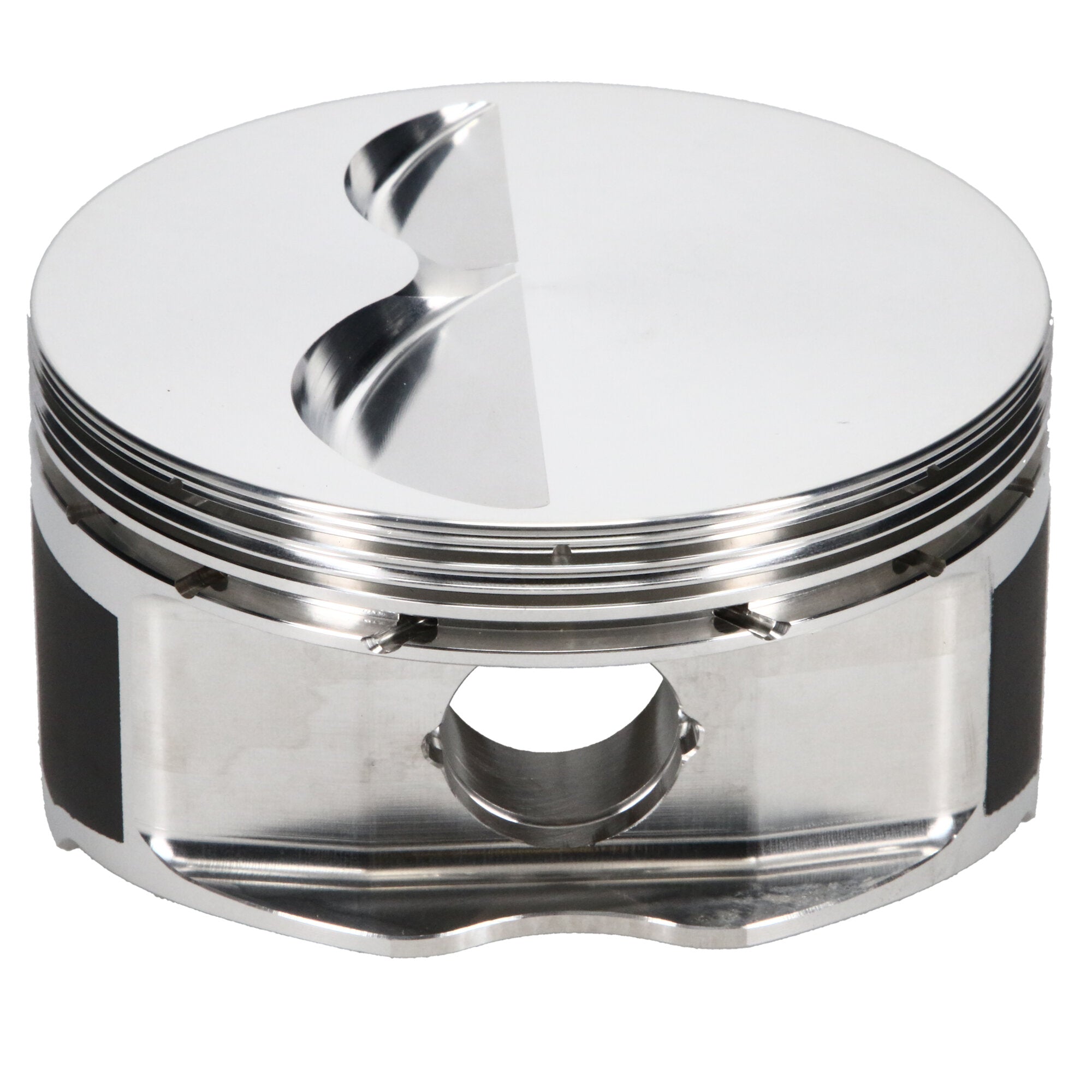

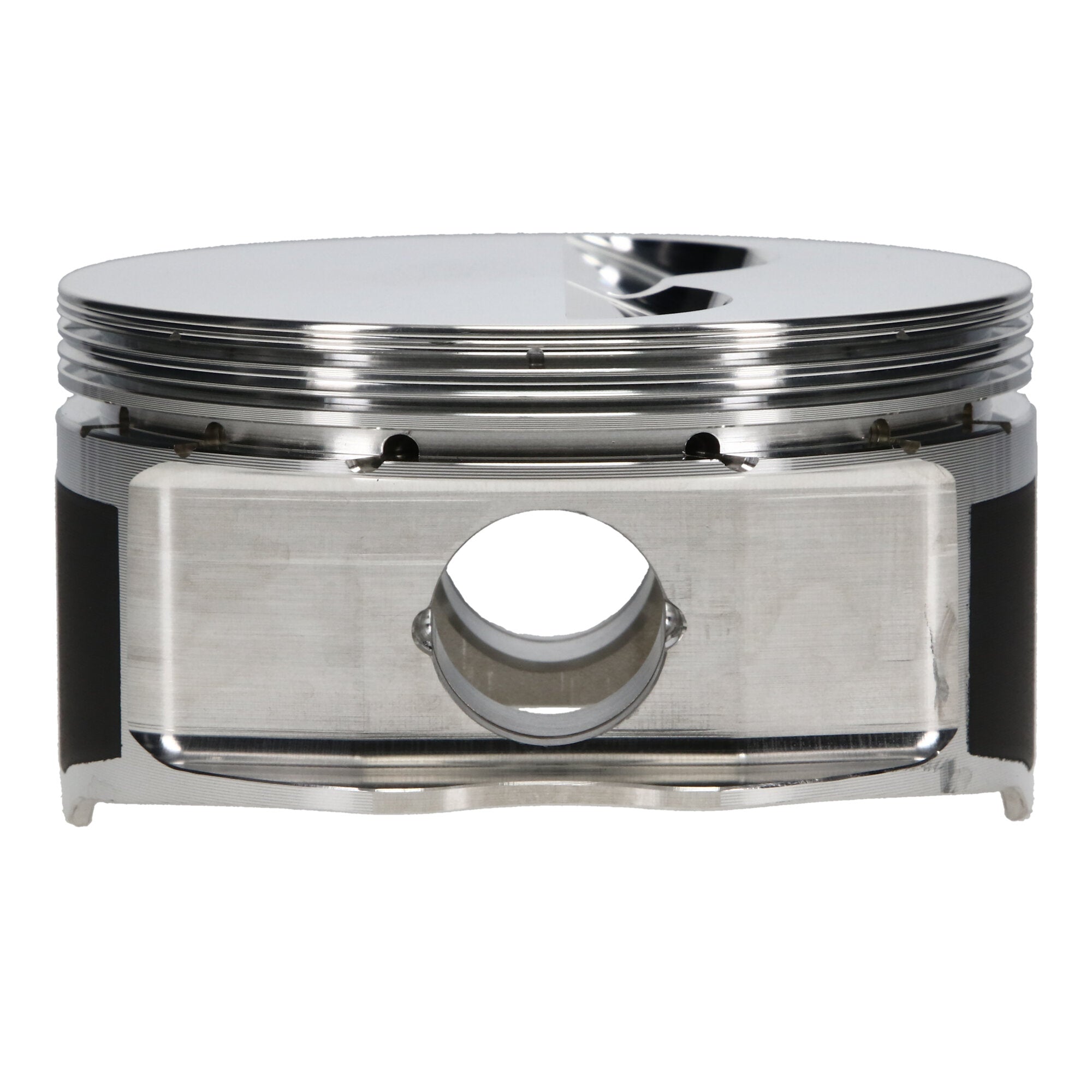

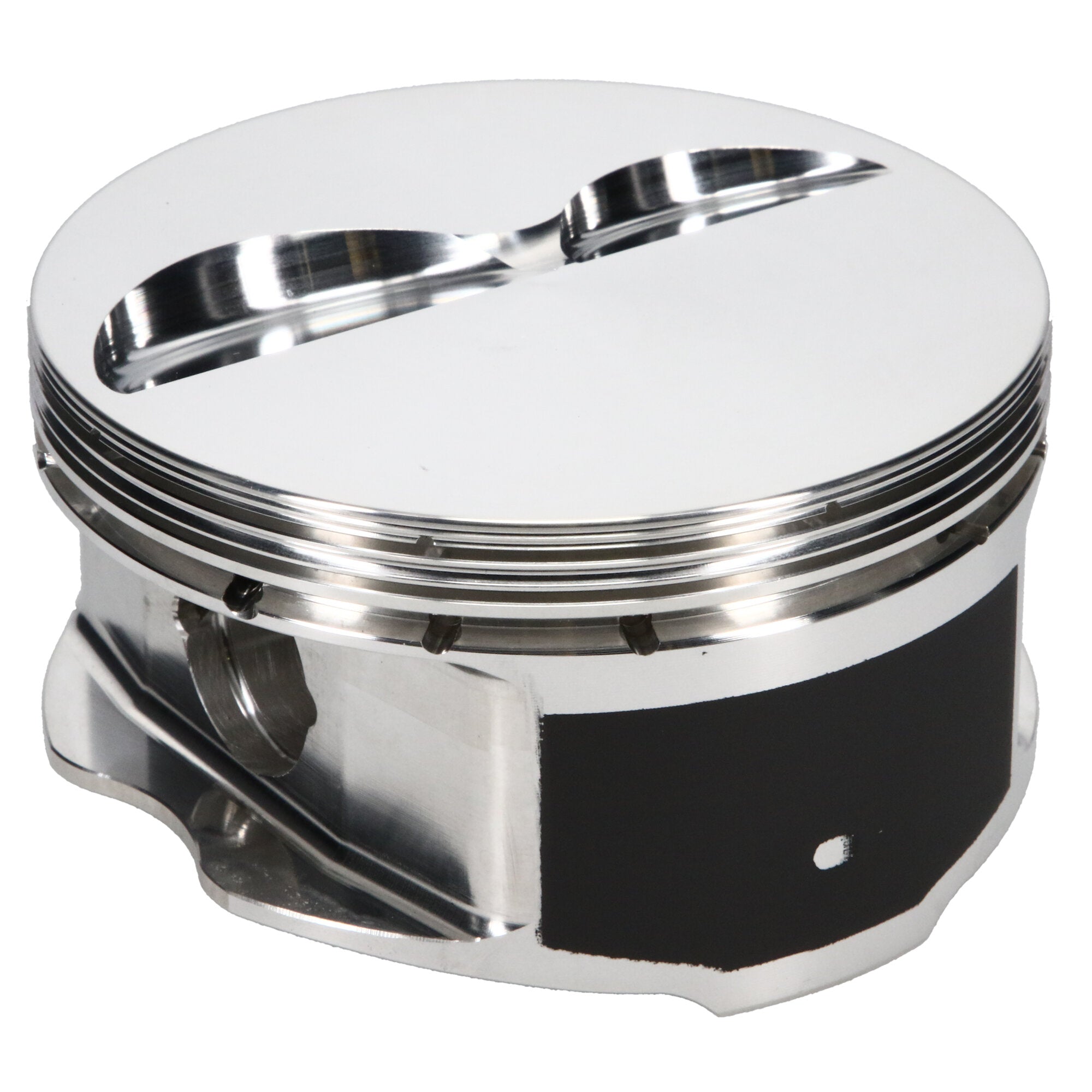

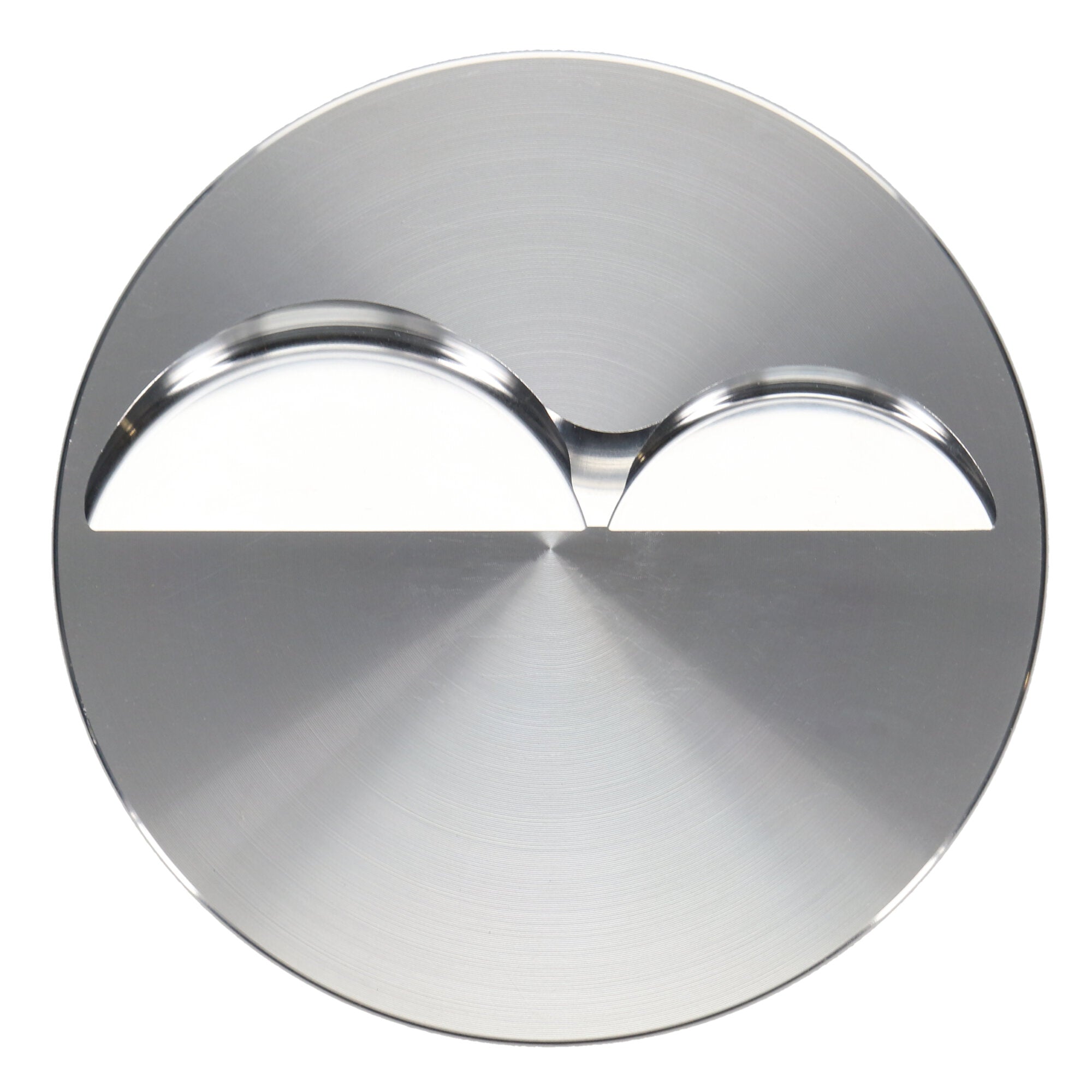

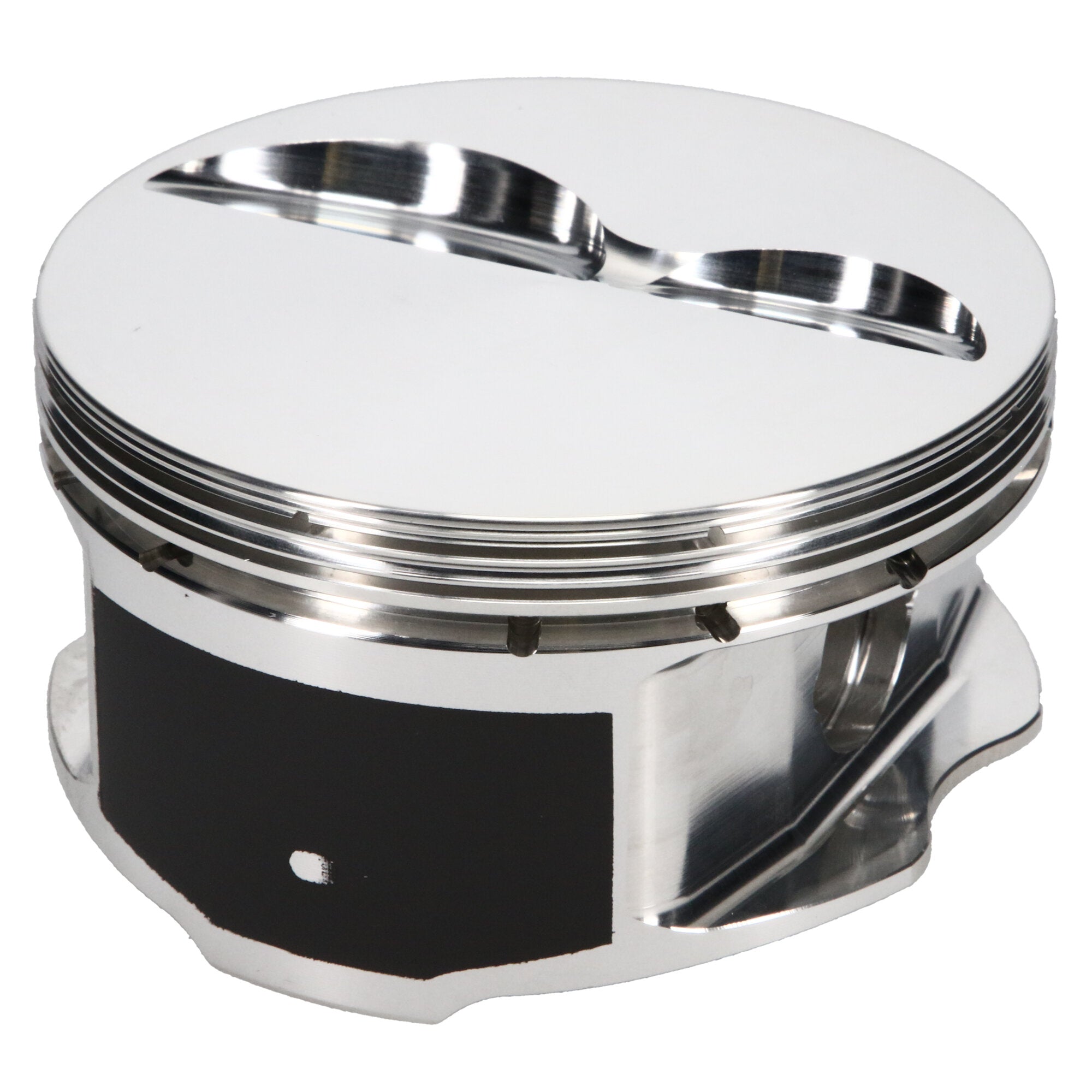

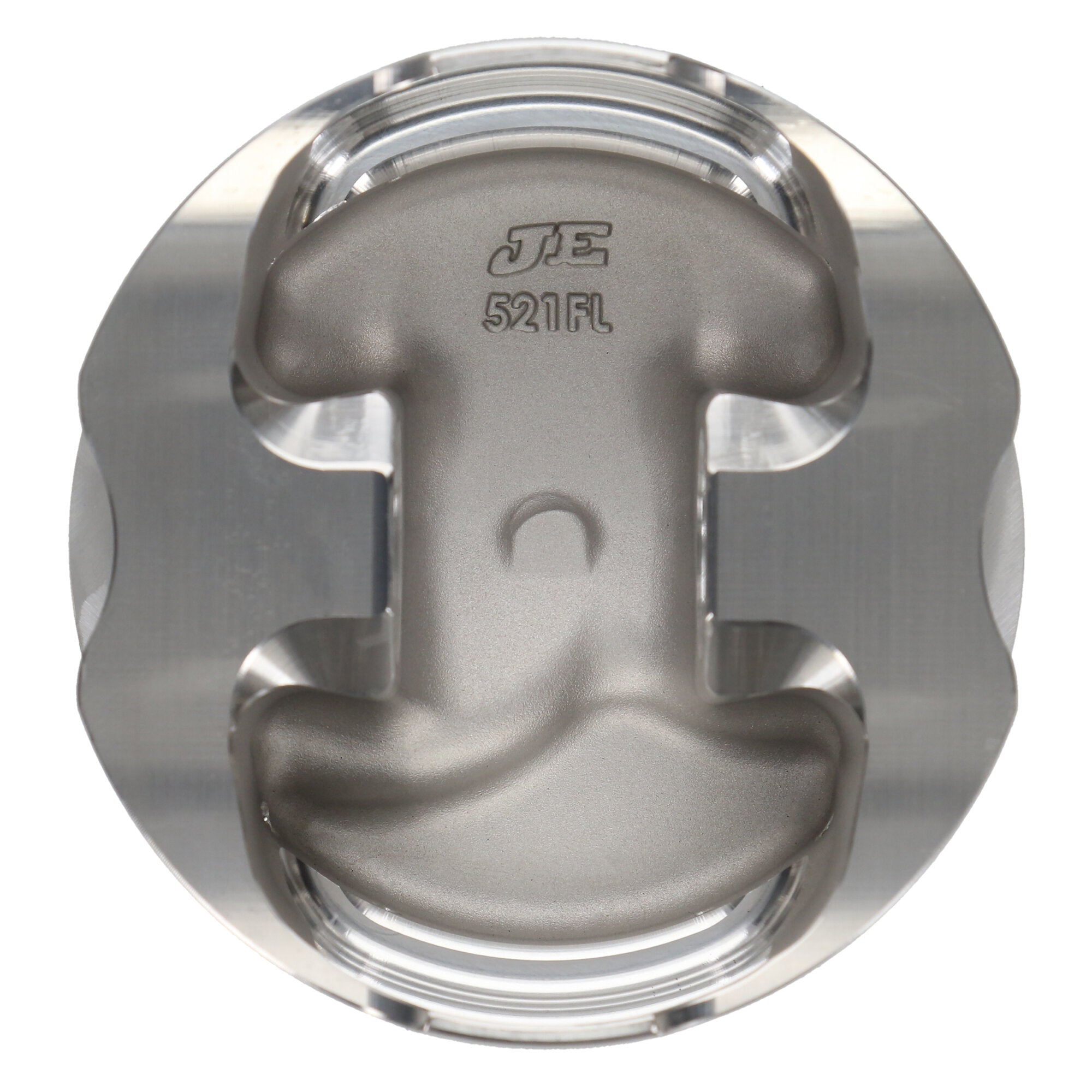

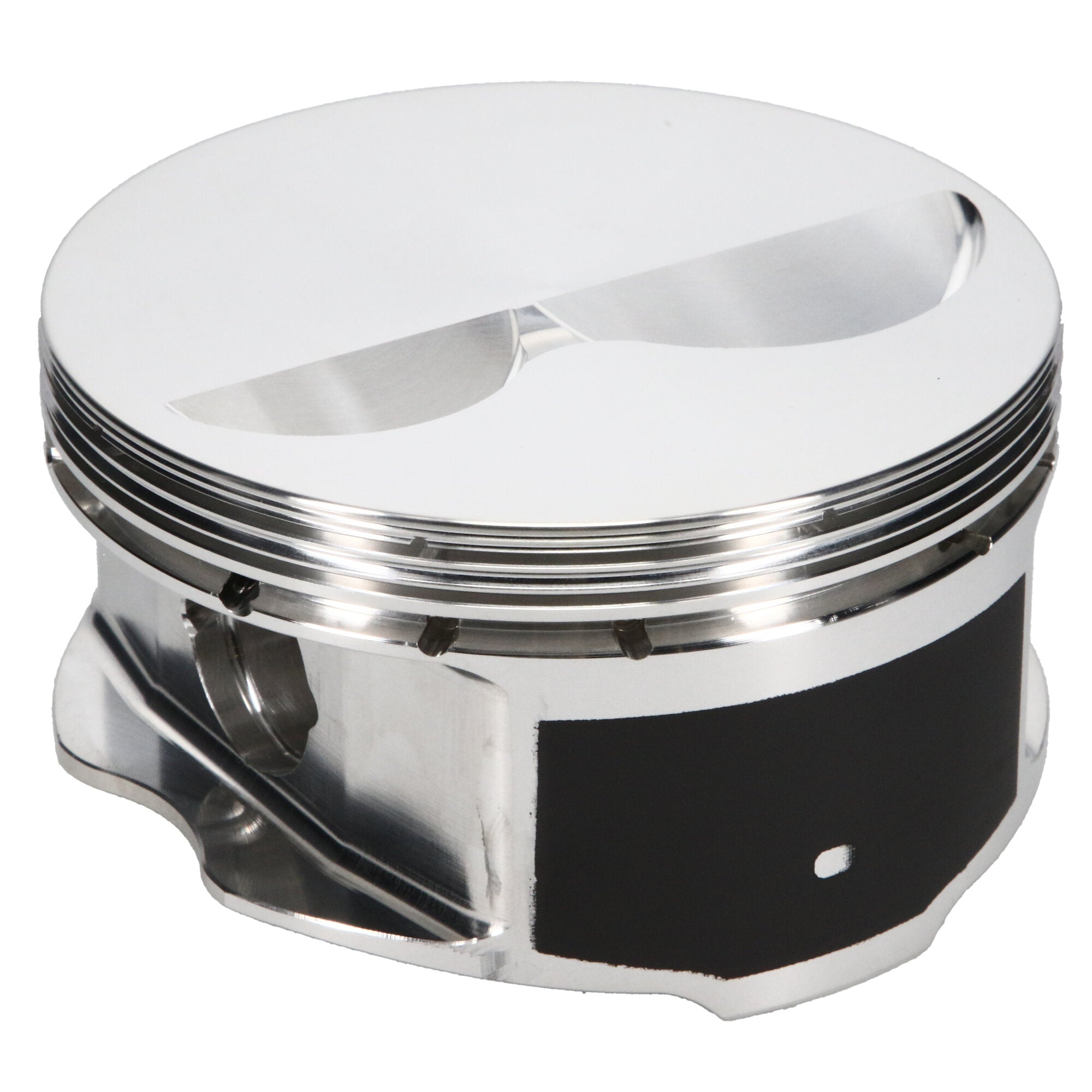

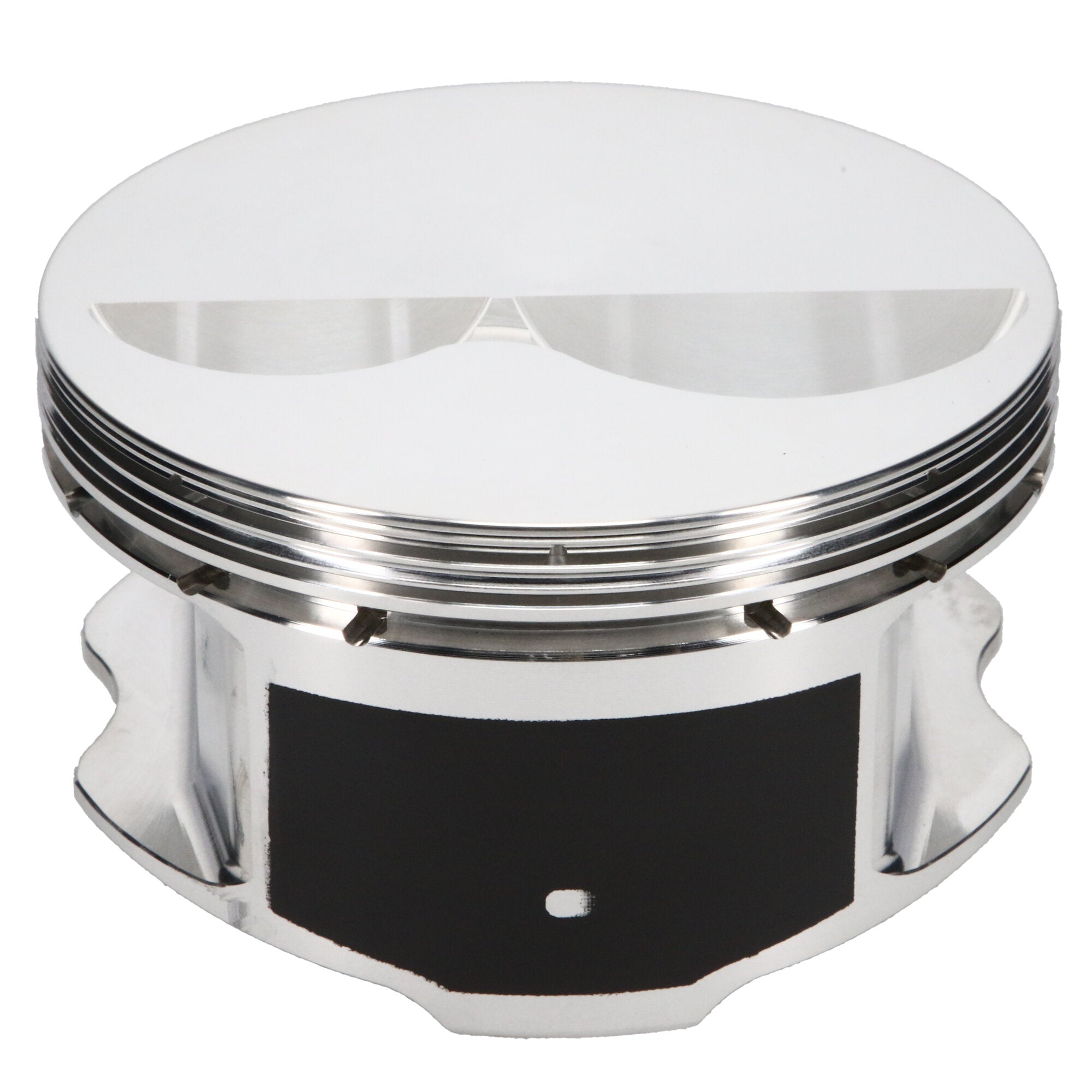

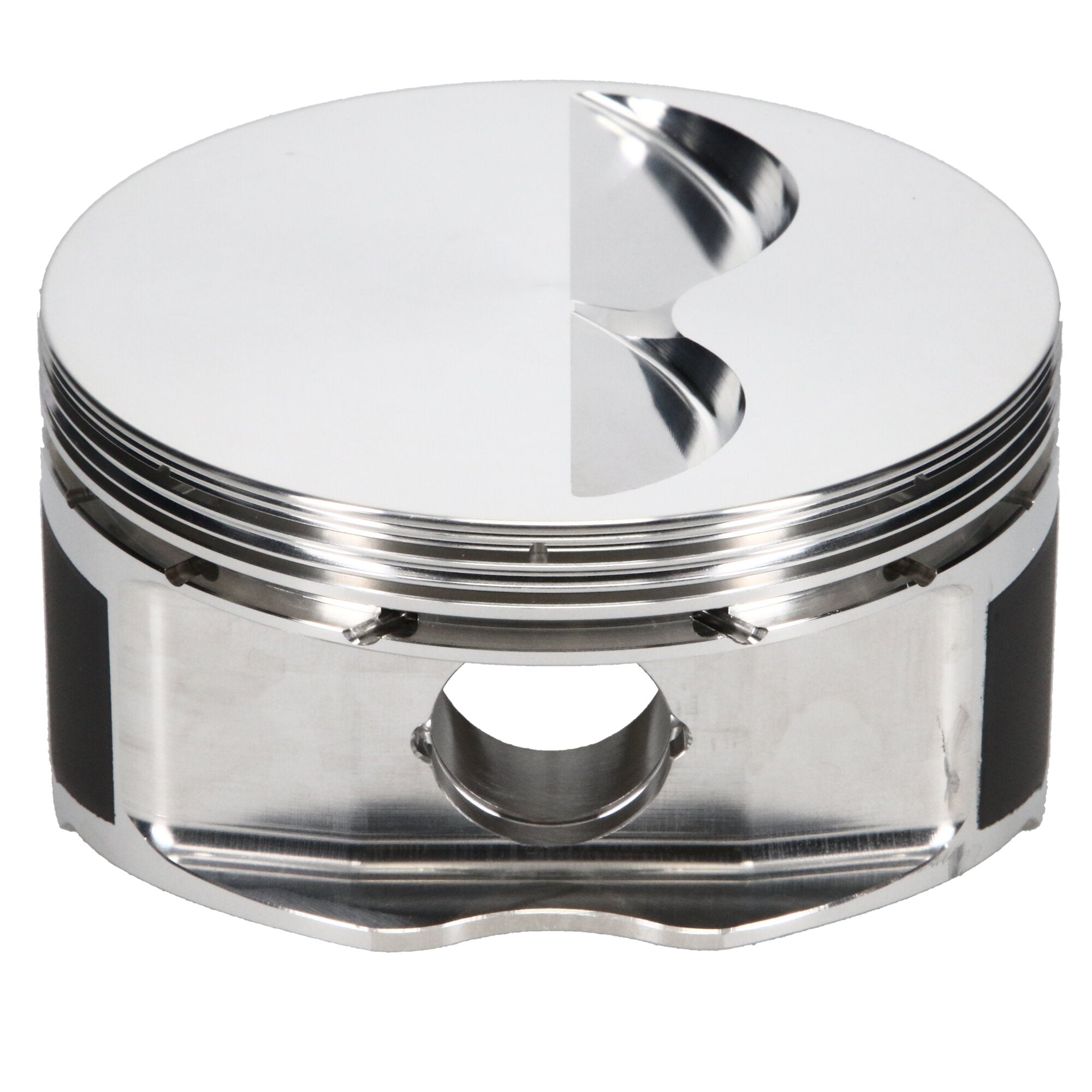

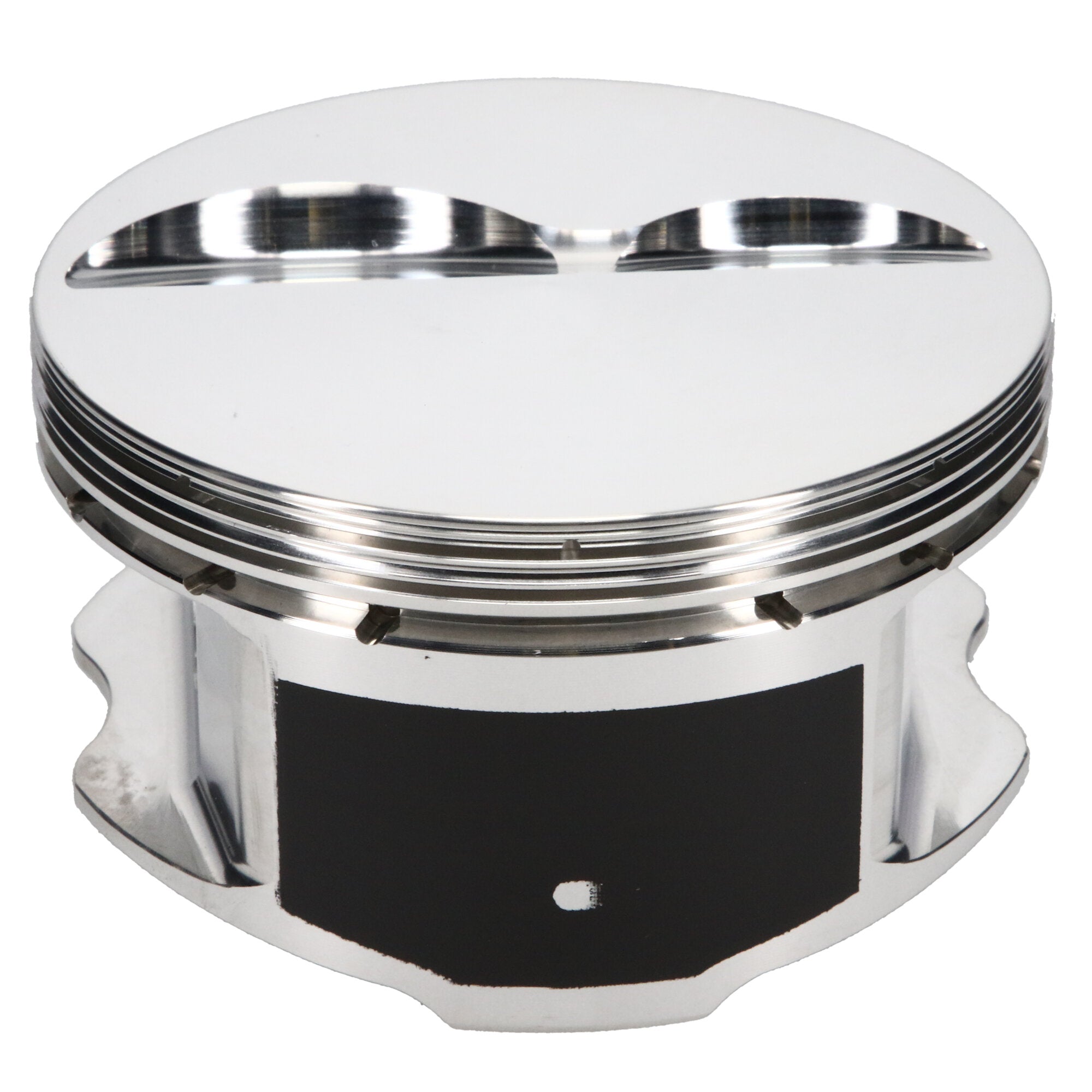

Piston Set, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Bore Diameter |
4.030 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Average Weight |
426 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.500 |
| Wrist Pin Wall Thickness |
0.130 |
| Product Type |
Engine Piston Kit |
| Add-On |
J10008-4030-5 |
| Add-On |
927-2500-13-51S |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Make |
CHEVROLET |
| Wrist Pin Outer Diameter |
0.927 |
| Compression Height |
1.550 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Volume |
-1.90 |
| Engine |
Small Block |
| Piston Pin Wall Thickness |
0.130 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Piston Material |
2618 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.500 |
| Ringset Included |
No |
| Piston Head Type |
Flat |
| Oil Ring Thickness |
0.188 |
| Piston Pin Material |
5115 |
| Second Compression Ring Thickness |
0.0640 |
| Engine Type |
ICE |
| Forging Type |
Round |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.550 in. CH, -1.90 CC |
| Piston Series |
JE Pistons |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
