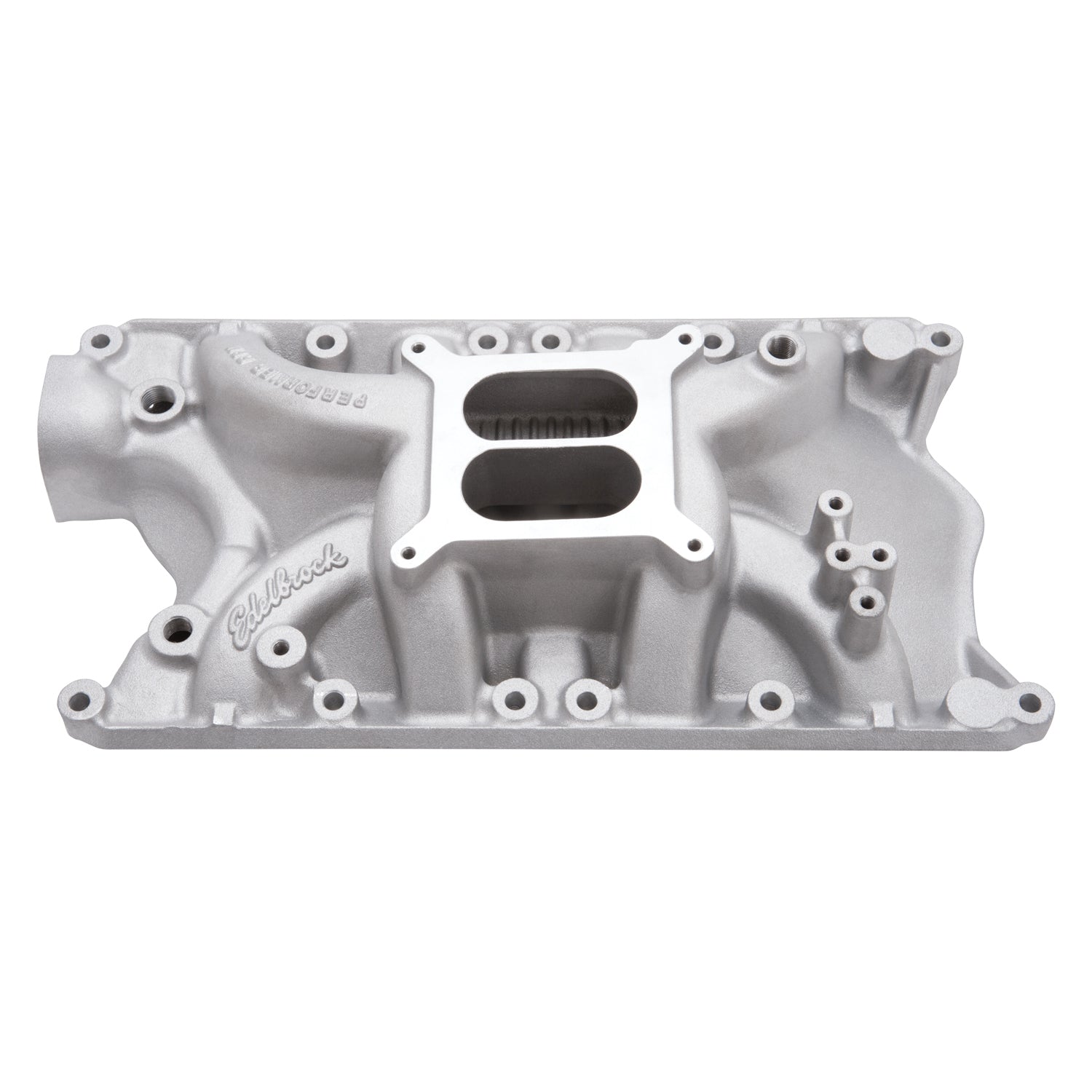

Edelbrock part #7181 Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:351 (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
RPM 351W 9.5 Deck Intake Manifold |
| Description_EXT |
Edelbrock Performer RPM Intake Manifold for 351 Ford Small Block Windsor engines |
| Description_TRA |
Recommended intake gasket: Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set |
| Description_TRA |
will fit early 16-bolt head with Ford 16-bolt intake gasket set. |
| Description_TRA |
Manifold height: A-4.30", B-5.30" |
| Description_TRA |
Carb pad height: 4.80" |
| Description_TRA |
Carb recommendations: Edelbrock Thunder AVS or Performer Series 650-800 cfm. For automatic transmissions use #1483 and #1491 or #1844. |
| Description_TRA |
Port exit dimensions: 1.12" x 1.86". |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_LAB |
Performer RPM Small Block Ford Intake Manifold |
| Description_MKT |
Edelbrock part #7181 Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. |
| Basic Operating RPM Range |
1500-6500 |
| Center Maximum Height |
4.800 |
| CNC Ported |
No |
| Finish |
Satin |
| EGR Port |
No |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Front Maximum Height |
4.300 |
| Flange Type |
4150 |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Dual |
| Rear Maximum Height |
5.300 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series |
Performer RPM |
| Vehicle Model |
Ford |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
