| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |

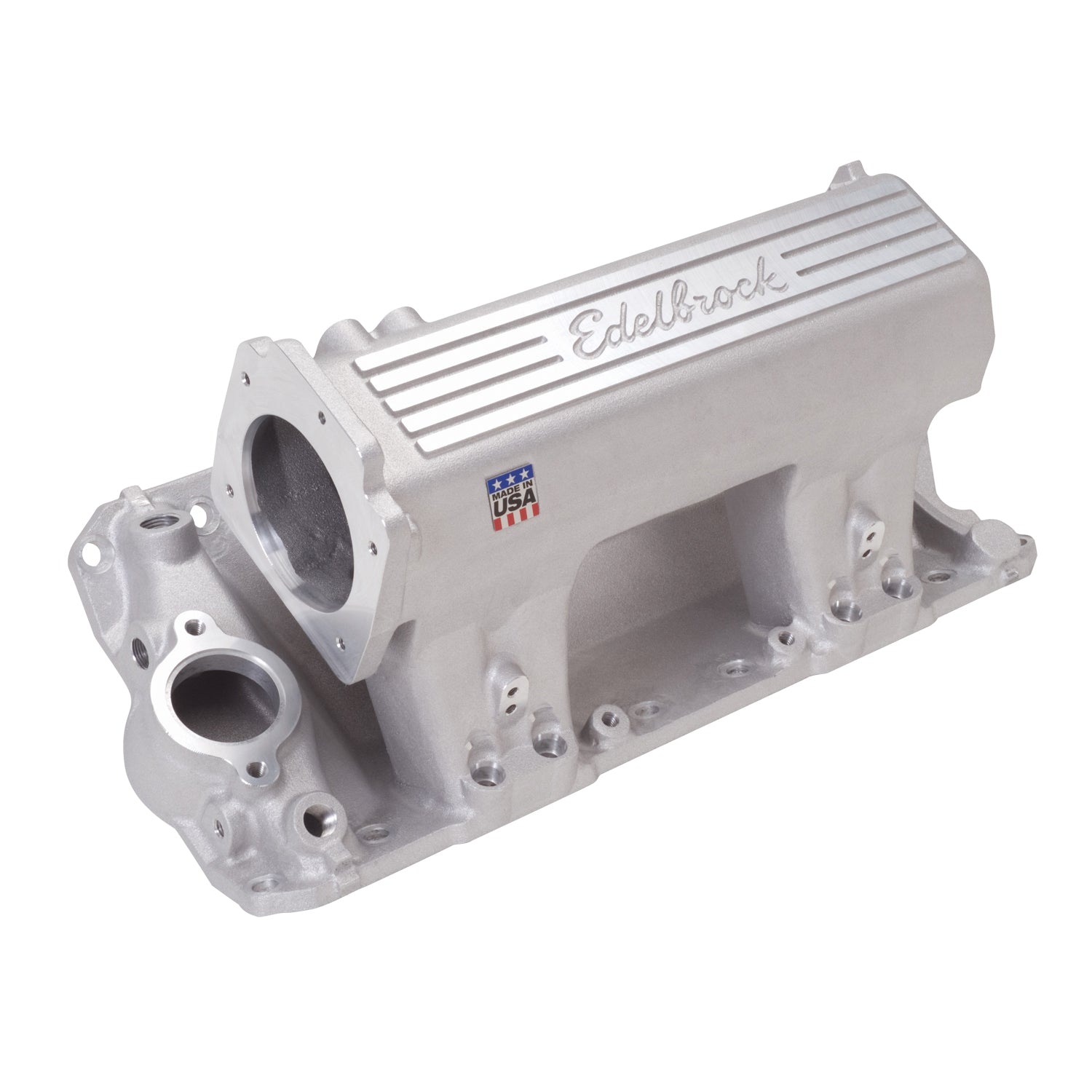

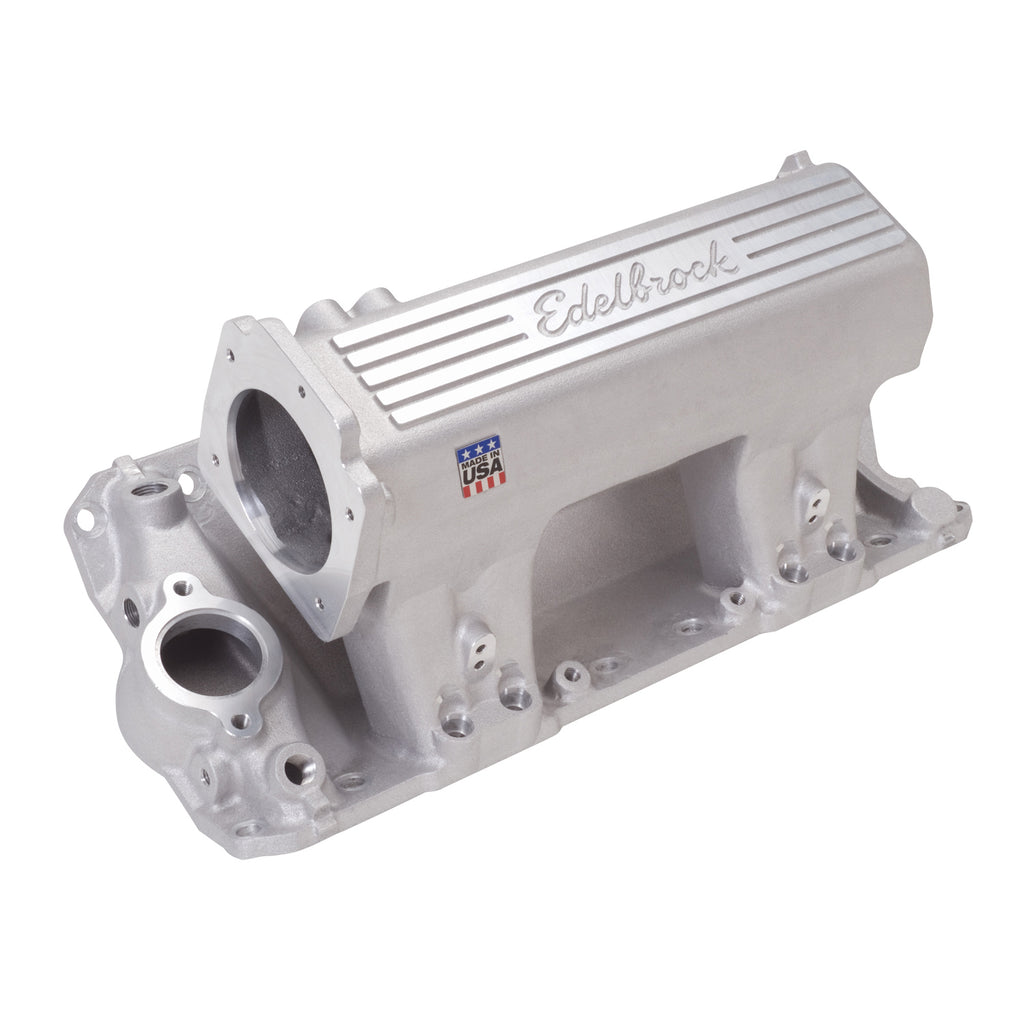

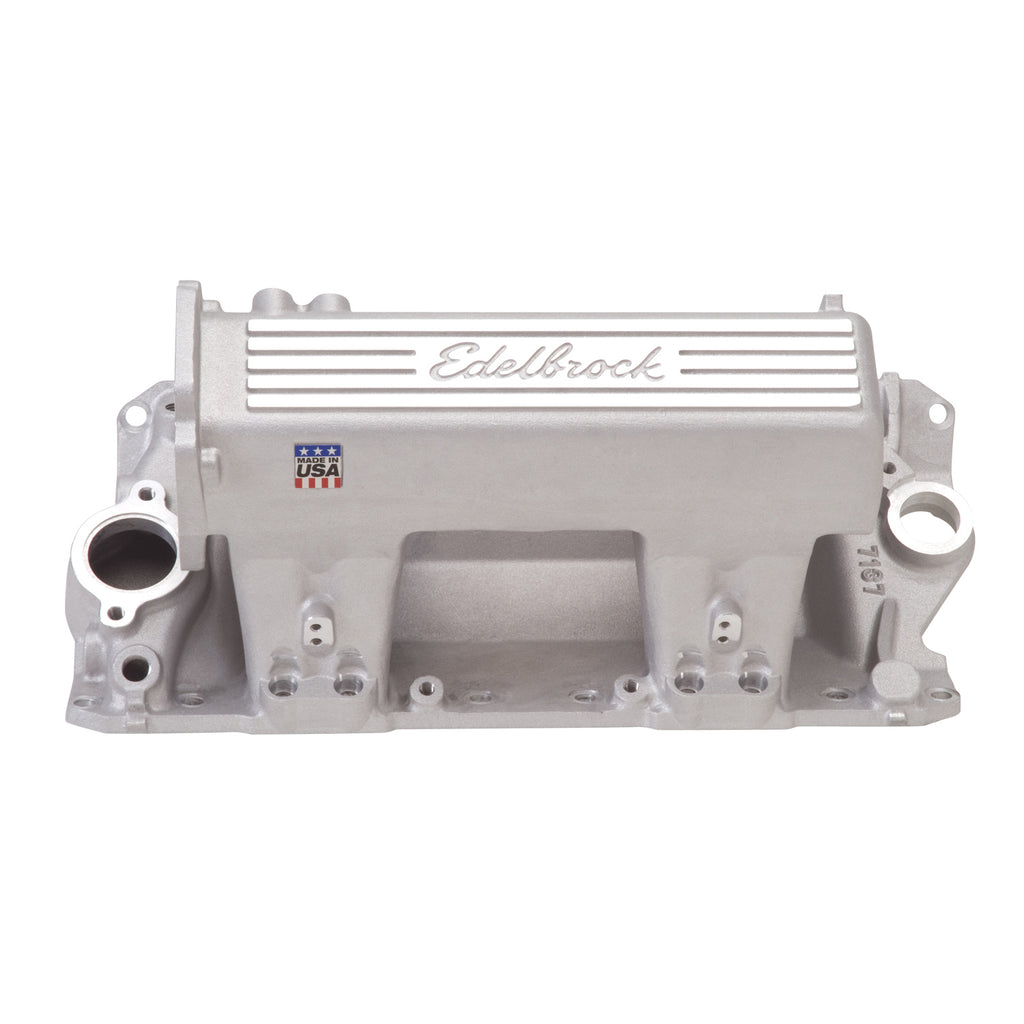

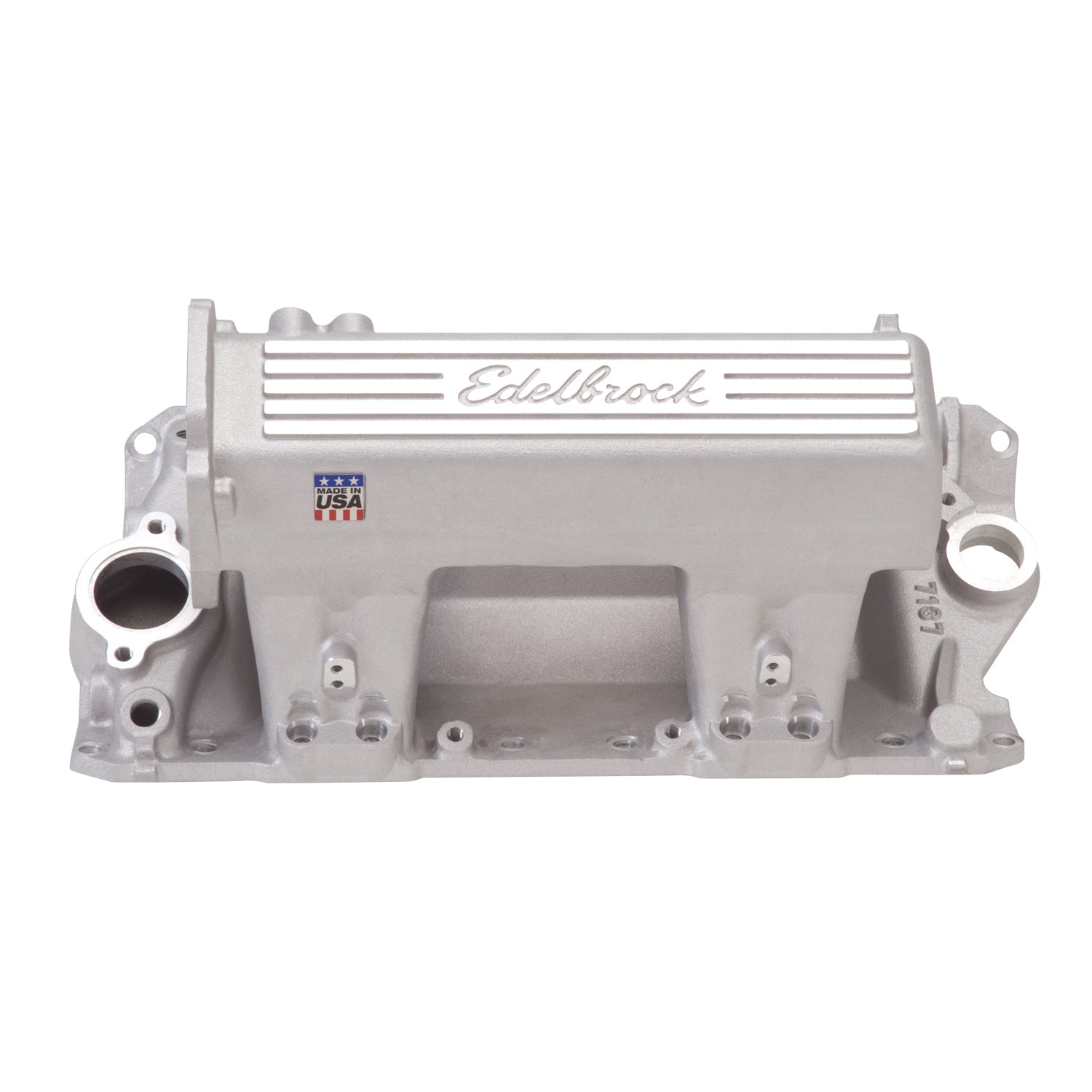

Edelbrock Pro-Flo XT EFI Intake Manifold For Chevrolet 302-400 Small-Block V8 |
| Description_INV |
Pro Flo SBC Intake Manifold STD Deck |
| Description_LAB |
Pro-Flo XT Small Block Chevy EFI Intake Manifold |
| Description_MKT |
Edelbrock part #7137 Pro-Flo XT intake manifold is designed for 1957-86 S/B Chevy. This manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). This Pro-Flo XT EFI intake accepts Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (Sold Separately). |
| Description_TRA |
Recommended gasket: Edelbrock #7201 |
| Description_TRA |
Manifold Dimensions: A-9.00", B-8.20", C-14.80" |
| Description_TRA |
Compatible with Edelbrock #3869 or #38693 90mm Pro-Flo XT Throttle body. |
| Description_TRA |
Machined for a Edelbrock #36019 LS1 style MAP sensor, which mounts directly on the manifold. |
| Description_TRA |
The Edelbrock #3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately. |
| Description_TRA |
The throttle body centerline is located 2.5" behind and 6.07" above the front edge of the front end seal surface. |
| Description_TRA |
Fits late model low profile water neck (such as TransDapt 9929 or GM 12342024 chrome thermostat housing) |
| Description_TRA |
No provisions for exhaust heated chokes or EGR. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
9.000 |
| Front Maximum Height |
9.000 |
| Vehicle Model |
Chevrolet |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rear Maximum Height |
8.200 |
| Grade Type |
Performance |
| EGR Port |
No |
| Series |
Pro-Flo XT |
| Flange Type |
Throttle Body XT |
| Basic Operating RPM Range |
1500-7000 |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Single |
| Finish |
Satin |
| CNC Ported |
No |
| Length |
7.0000 |
| Width |
14.0000 |
| Height |
23.0000 |
| Weight |
21.0000 |
