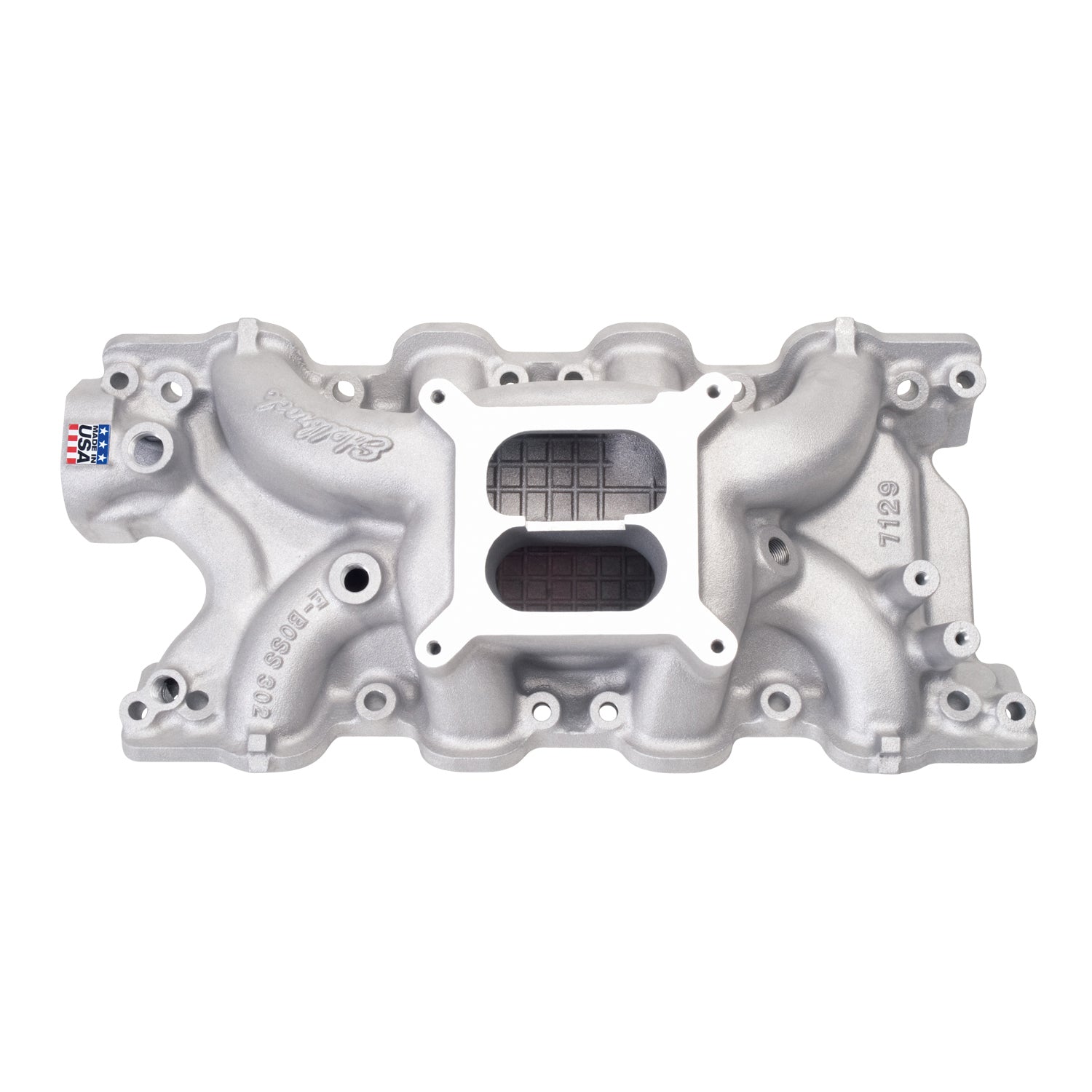

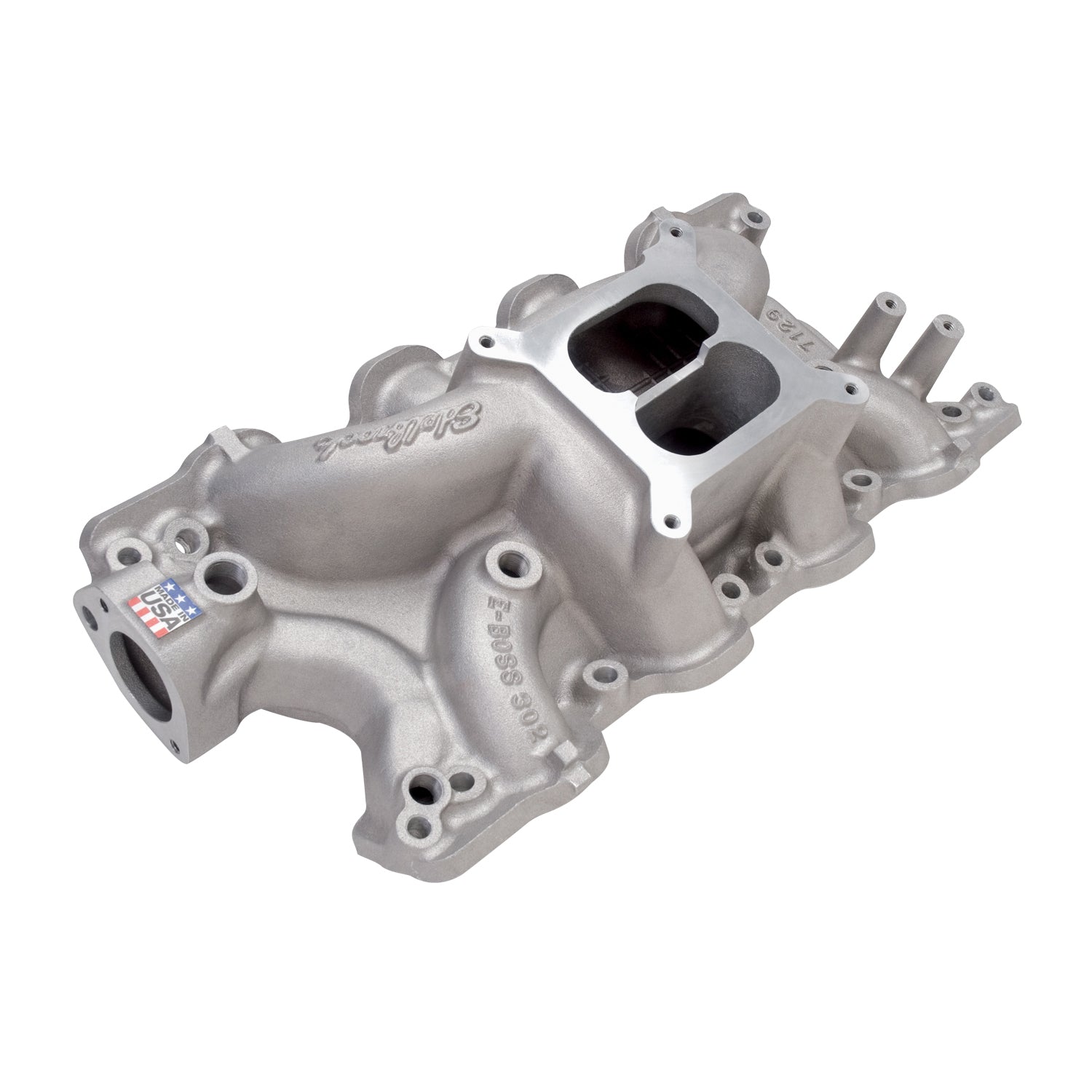

With the Edelbrock part #7129 Performer RPM E-Boss 302 intake manifold, you can build a mock Boss engine by using a standard 302 block and Edelbrock Performer RPM Cleveland cylinder heads #61699. For high-performance's street and competition, our dual-plane design makes outstanding power from 1500 to 6500 rpm. The Cleveland port layout and intake bolt hole pattern fit both 2V and 4V heads. Features include 8.2" deck height, Windsor end rails, water neck and distributor clearance plus front and rear water bosses. Match with an Edelbrock Performer or Thunder Series AVS carburetor. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Clevor Small-Block:302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Performer RPM 8.2 Clevor Ford Intake |
| Description_EXT |
Edelbrock Performer RPM E-Boss 302 Intake Manifold for 302 Ford Small Block with Cleveland Heads |
| Description_LAB |
Performer RPM Small Block Ford E-Boss 302 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7265 |
| Description_TRA |
Manifold height: A-4.42", B-5.70" |
| Description_TRA |
Carb pad height: 5.06" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA |
Port exit dimensions: 1.42" x 2.07" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_MKT |
With the Edelbrock part #7129 Performer RPM E-Boss 302 intake manifold, you can build a mock Boss engine by using a standard 302 block and Edelbrock Performer RPM Cleveland cylinder heads #61699. For high-performance's street and competition, our dual-plane design makes outstanding power from 1500 to 6500 rpm. The Cleveland port layout and intake bolt hole pattern fit both 2V and 4V heads. Features include 8.2" deck height, Windsor end rails, water neck and distributor clearance plus front and rear water bosses. Match with an Edelbrock Performer or Thunder Series AVS carburetor. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. |
| Basic Operating RPM Range |
1500-6500 |
| Front Maximum Height |
4.420 |
| Vehicle Model |
Ford |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
5.060 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port |
No |
| Material |
Aluminum |
| Flange Type |
4150 |
| Rear Maximum Height |
5.700 |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| Series |
Performer RPM |
| CNC Ported |
No |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
