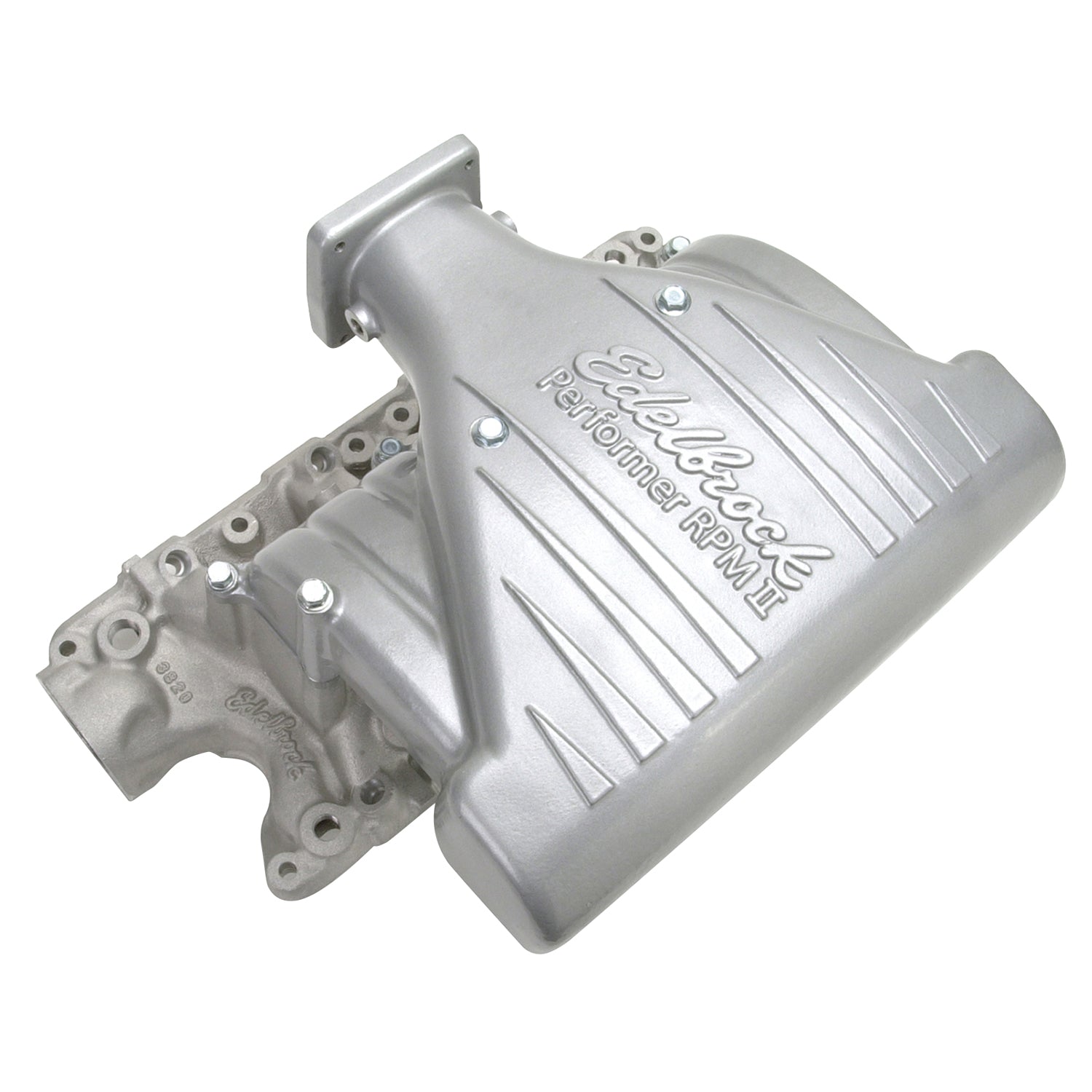

Edelbrock part #7123 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer 5.0 RPM II Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_INV |
Performer RPM 2 5.0L EFI Intake Manifold |
| Description_LAB |
Performer RPM II Intake Manifold #7123 For 5.0L Small-Block Ford, Satin Finish |
| Description_MKT |
Edelbrock part #7123 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 |
| Description_TRA |
Air valve location is 0.30" higher and 0.50" forward from stock |
| Description_TRA |

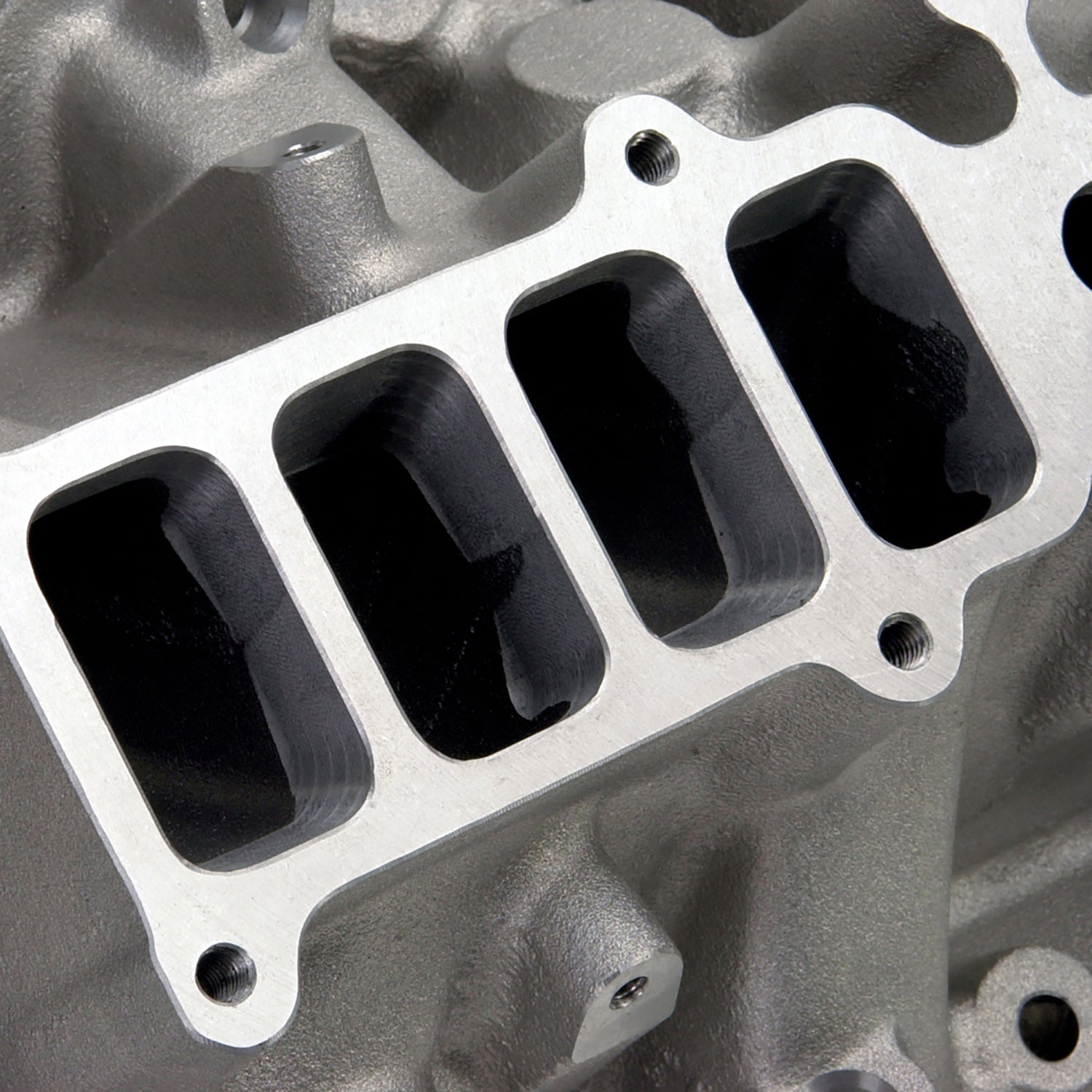

Port exit dimensions: 1.16" x 2.0" |
| Description_TRA |
Recommended cams: Ford SVO X-303 or Z-303. |
| Description_TRA |
Overall height: 11.13" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Center Maximum Height |
11.130 |
| Basic Operating RPM Range |
1500-6500 |
| Material |
Aluminum |
| CNC Ported |
No |
| Grade Type |
Performance |
| Rear Maximum Height |
11.130 |
| Finish |
Satin |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
11.130 |
| Flange Type |
Throttle Body |
| EGR Port |
No |
| Single Or Dual Plane Type |
Dual |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| Series |
Performer RPM |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
46.0000 |
