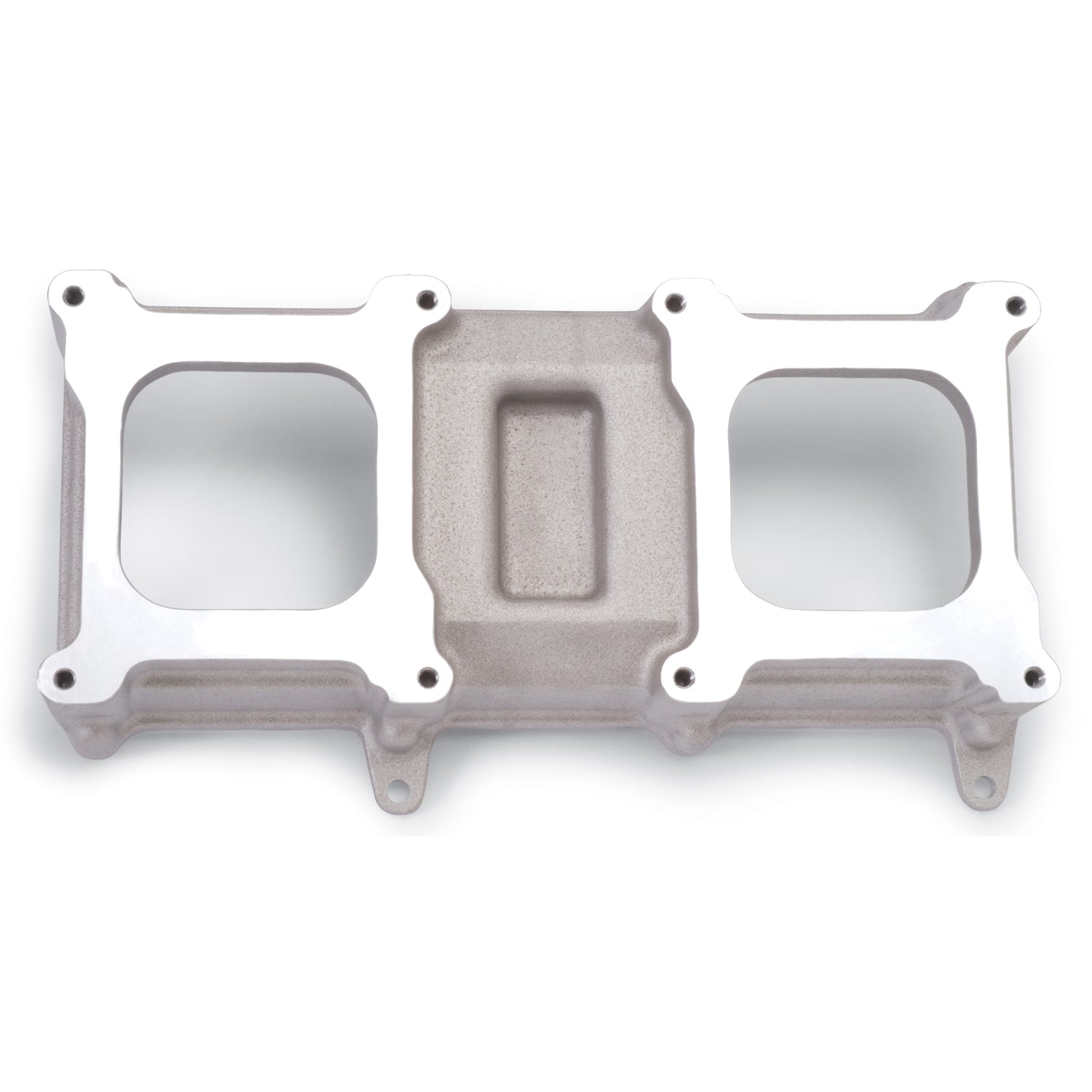

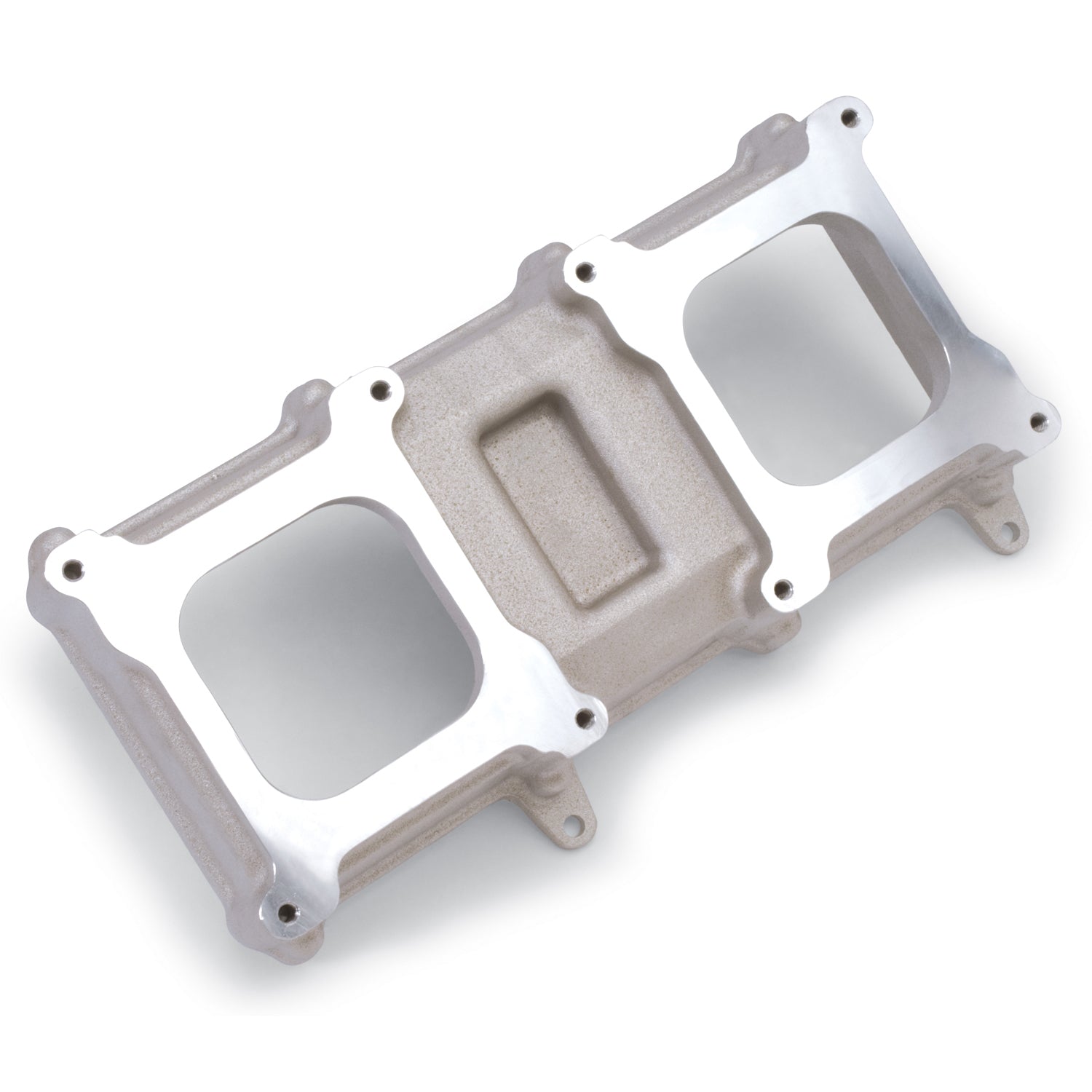

Edelbrock part #7073 Victor Ram Top is for use on Small Block Chevrolets with 4150 series carburetors (sideways mounting) and our Victor Ram base manifold #7075 only. The Edelbrock Victor Ram 23 degree top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
Description_DEF |
Engine Intake Manifold |
Description_EXT |
Edelbrock Victor Ram 23 Degree Intake Manifold Top For Chevrolet 262-400 Small-Block V8 |
Description_INV |
Victor Tunnel Ram Top Only SBC |
Description_MKT |
Edelbrock part #7073 Victor Ram Top is for use on Small Block Chevrolets with 4150 series carburetors (sideways mounting) and our Victor Ram base manifold #7075 only. The Edelbrock Victor Ram 23 degree top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
Description_LAB |
Victor Ram 23-Degree Intake Manifold Top for Small-Block Chevy |
Description_TRA |
Distance from carburetor center to carburetor center: 8.88" |
Description_TRA |
Manifold top with bottom height: 9.25" |
Description_TRA |
.Top ONLY |
Description_TRA |
H.E.I. ignition will not clear manifold |
Description_TRA |
Recommended intake gasket: Fel-Pro #1206 |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Vehicle Model |
Chevrolet |
CNC Ported |
No |
EGR Port |
No |
Grade Type |
Performance |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Rear Maximum Height |
0.010 |
Flange Type |
4150 Dual-Quad |
Gasket Or Seal Included |
No |
Single Or Dual Plane Type |
Single |
Basic Operating RPM Range |
6500-10000 |
Front Maximum Height |
0.010 |
Color |
Satin |
Series |
Victor |
Material |
Aluminum |
Center Maximum Height |
0.010 |
Length |
8.0000 |
Width |
15.0000 |
Height |
24.0000 |
Weight |
7.0000 |
