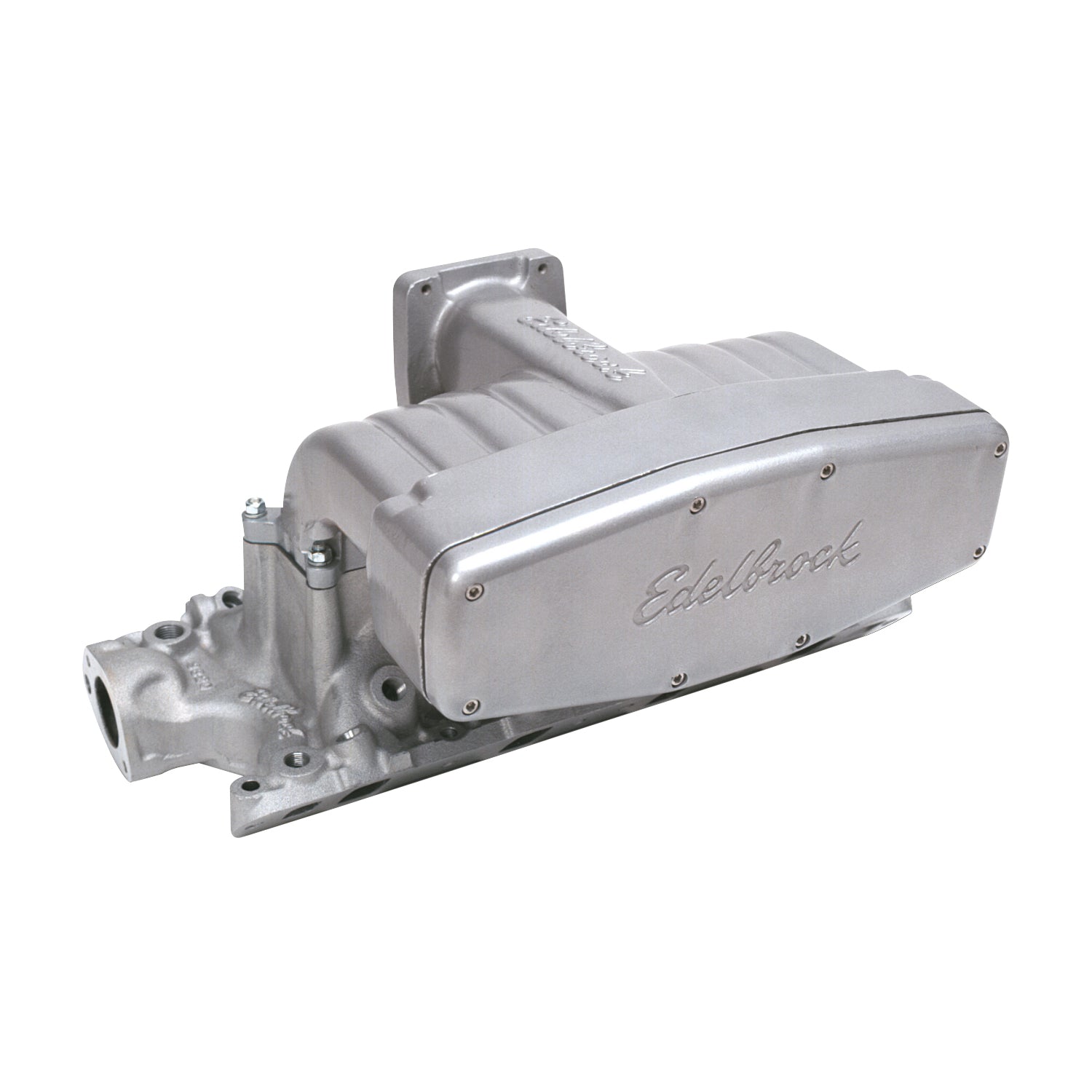

Edelbrock part #3821 Performer Ford 5.0L EFI intake manifold is designed for 1986-95 5.0L V8 Mustang engines. The Performer 5.0 EFI aluminum intake manifold represents the standard for hot 5.0L performance. The modular design incorporates modern air flow technology and CAD programming for maximum power gains up to 37 horsepower at 5500 rpm with no loss of low speed torque. Features of the Performer 5.0 EFI manifold include: broad power range from idle to 5500 rpm
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_LAB |
Performer 5.0 Intake Manifold Small-Block Ford |
| Description_EXT |
Edelbrock Performer 5.0 Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_INV |
Performer 5.0L Ford EFI Intake Manifold |
| Description_MKT |
Edelbrock part #3821 Performer Ford 5.0L EFI intake manifold is designed for 1986-95 5.0L V8 Mustang engines. The Performer 5.0 EFI aluminum intake manifold represents the standard for hot 5.0L performance. The modular design incorporates modern air flow technology and CAD programming for maximum power gains up to 37 horsepower at 5500 rpm with no loss of low speed torque. Features of the Performer 5.0 EFI manifold include: broad power range from idle to 5500 rpm |
| Description_MKT |
removable plenum cover that allows access to runners for modification |
| Description_MKT |
and base manifold is CNC port matched to upper manifold for maximum performance. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Combining the Performer 5.0 intake manifold with other Power Package parts gives you even more power across the entire rpm range. 1994-95 Mustangs engines require Throttle Body Adapter #3835. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 |
| Description_TRA |
Air valve location same as stock |
| Description_TRA |
Port exit dimensions: 1.02" x 1.85" |
| Description_TRA |
Overall height: 10.61" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Grade Type |
Performance |
| EGR Port |
Yes |
| CNC Ported |
No |
| Rear Maximum Height |
10.610 |
| Finish |
Satin |
| Flange Type |
Throttle Body |
| Material |
Aluminum |
| Series |
Performer |
| Basic Operating RPM Range |
Idle-5500 |
| Single Or Dual Plane Type |
Single |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height |
10.610 |
| Vehicle Model |
Ford |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
10.610 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
46.0000 |
