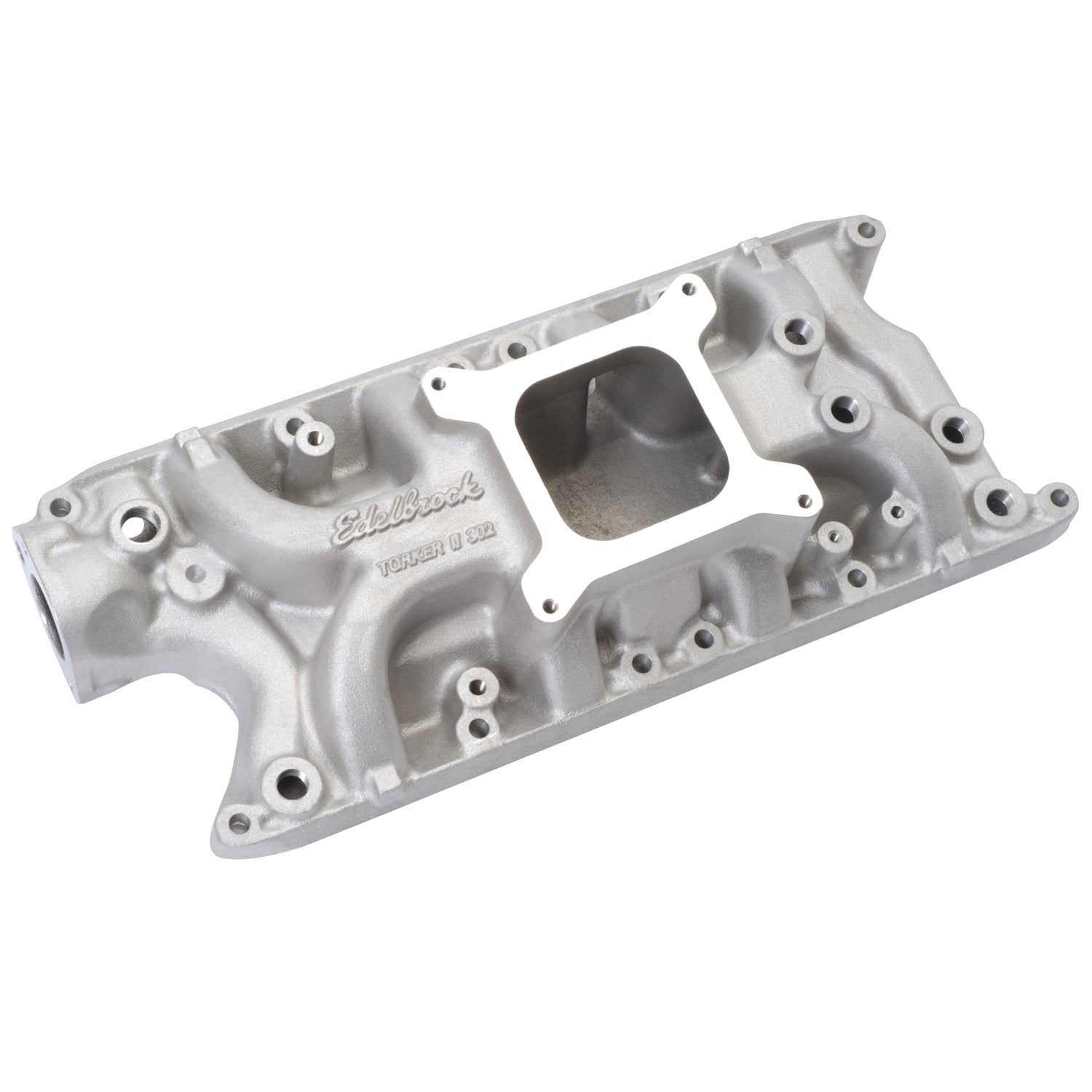

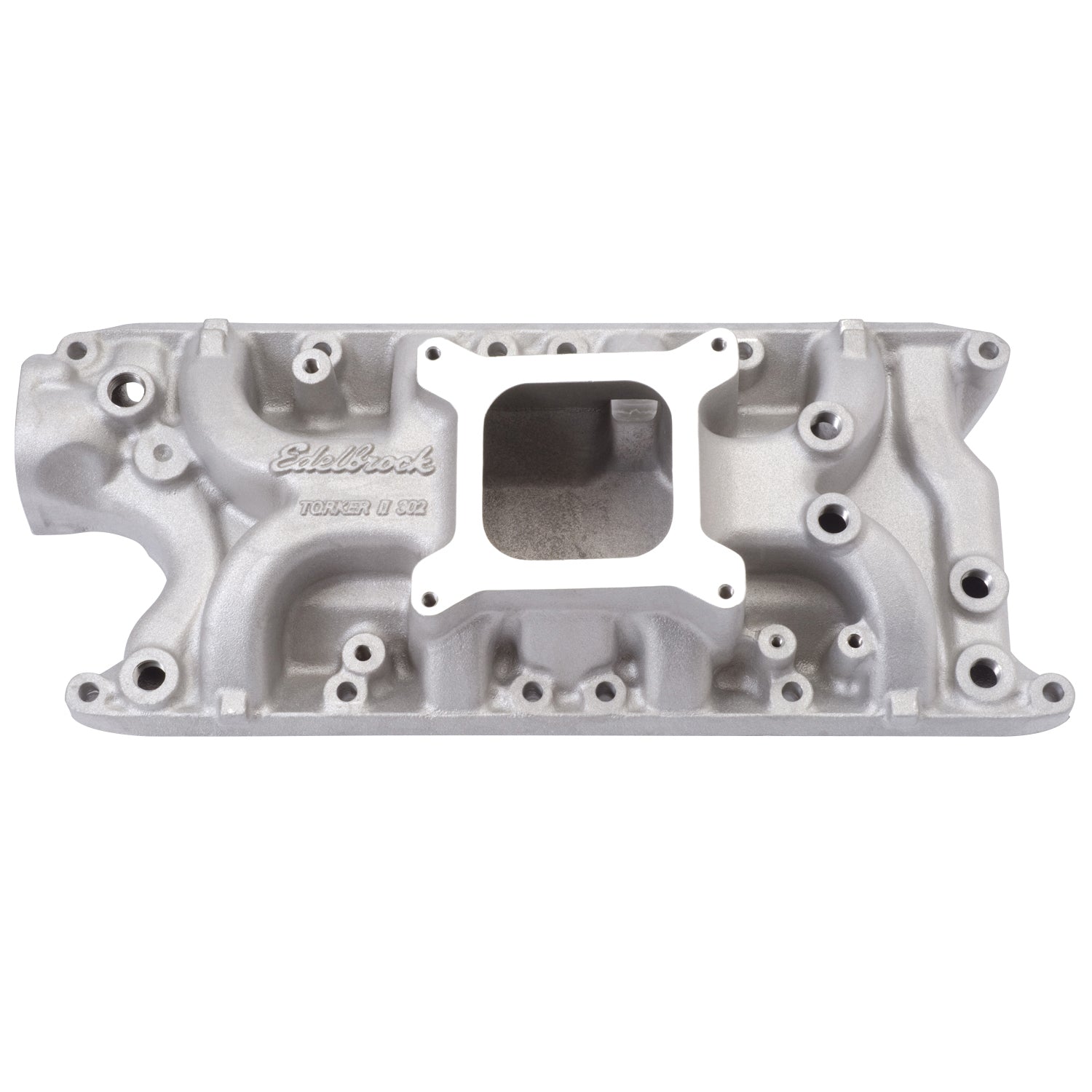

Edelbrock part #5021 Torker II 302 intake manifold is designed for street 289-302 c.i.d. Ford V8's. Will not fit Boss 302. Manifold not equipped with EGR. Will not fit 255 c.i.d. Ford V8 engines. Not for heavy vehicles. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Torker II 302 Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_INV |
Torker 2 SBF Intake Manifold |
| Description_LAB |
Torker II 302 Intake Manifold Small-Block Ford |
| Description_MKT |
Edelbrock part #5021 Torker II 302 intake manifold is designed for street 289-302 c.i.d. Ford V8's. Will not fit Boss 302. Manifold not equipped with EGR. Will not fit 255 c.i.d. Ford V8 engines. Not for heavy vehicles. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. |
| Description_TRA |
Will not fit 255 c.i.d. Ford V8 |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220. |
| Description_TRA |
Manifold height: A-4.00", B-5.18" |
| Description_TRA |
Carb pad height: 4.59" |
| Description_TRA |
Carb recommendations: Edelbrock AVs2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1490 or #1844. |
| Description_TRA |
Port exit dimensions: 1.03" x 1.93" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Basic Operating RPM Range |
2500-6500 |
| Center Maximum Height |
4.590 |
| Grade Type |
Performance |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Single |
| Series |
Torker/Torker II |
| Color |
Satin |
| CNC Ported |
No |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
4.000 |
| Flange Type |
4150 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| EGR Port |
No |
| Rear Maximum Height |
5.180 |
| Length |
5.0000 |
| Width |
11.0000 |
| Height |
23.0000 |
| Weight |
18.0000 |
