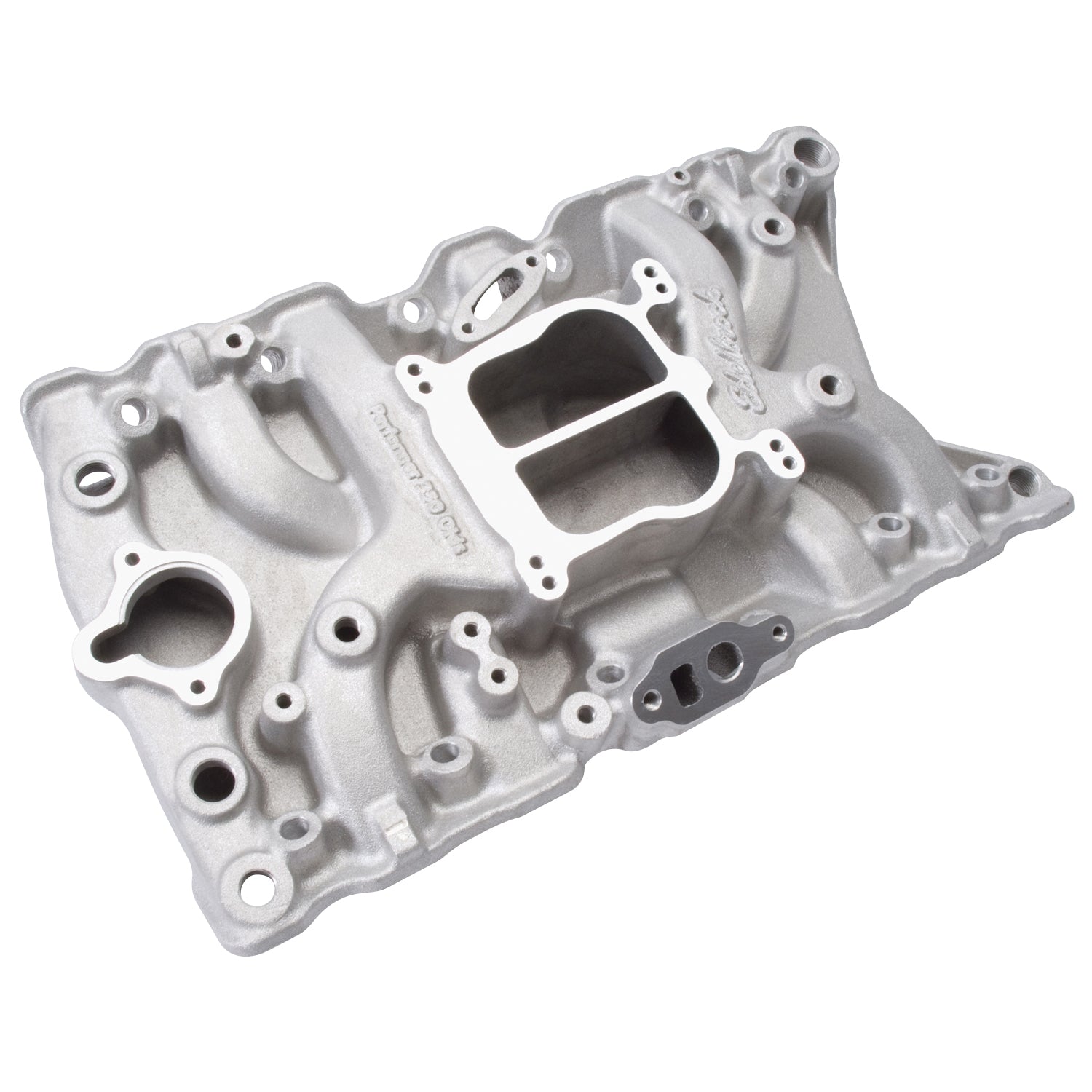

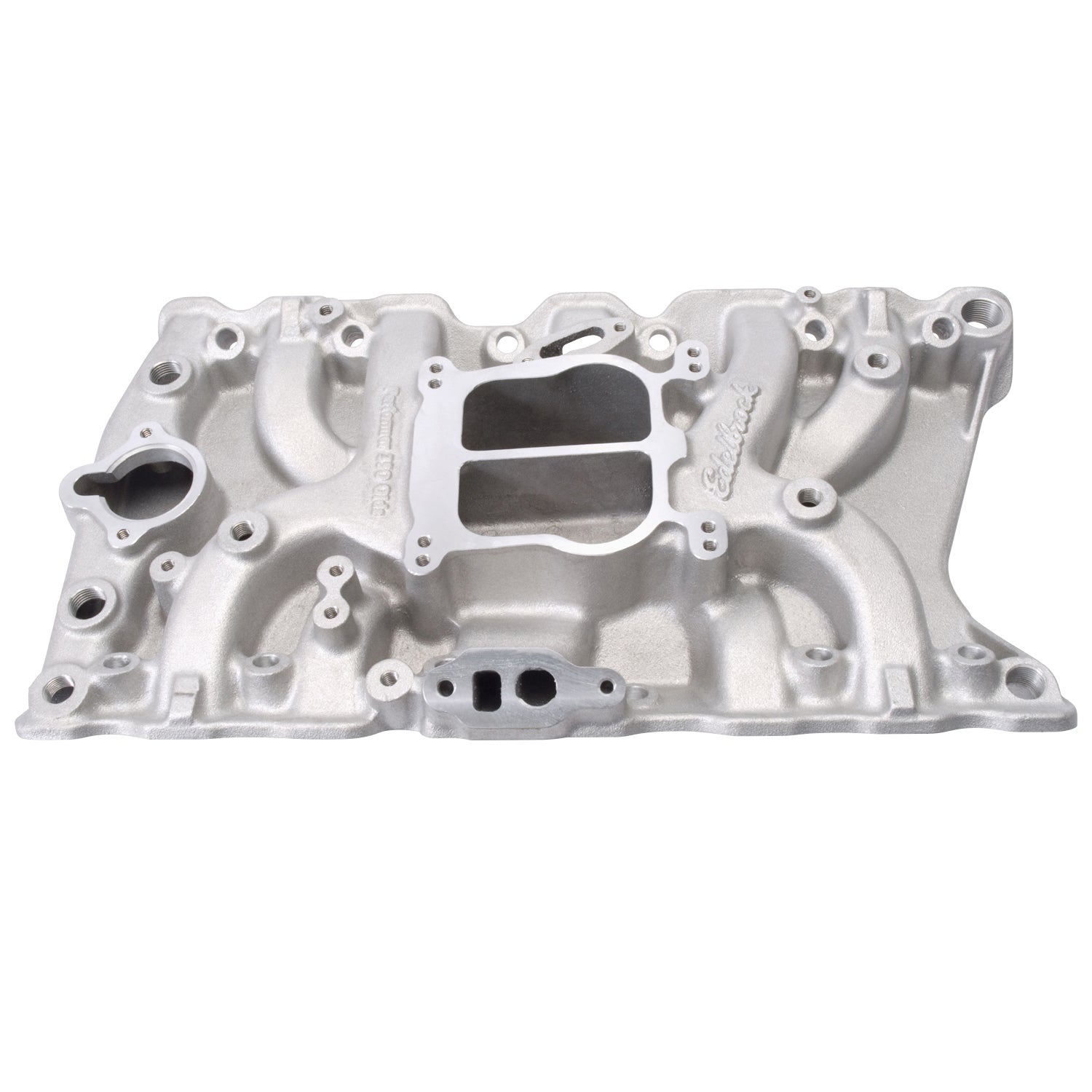

Edelbrock part #3711 Performer Oldsmobile 350 EGR intake manifold is designed for street 307-330-350-403 c.i.d. Oldsmobile V8's, 1964-85. Will fit 1980-1/2 to 1985 307 c.i.d. V8's with 5A heads (casting #3317). This intake manifold comes with a universal pad to fit most carburetors with electric chokes.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Oldsmobile:Small-Block:307 (5.0L)/330 (5.4L)/350 (5.7L)/403 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Performer Oldsmobile 307-403 Intake |
| Description_EXT |
Edelbrock Performer Olds 350 EGR Intake Manifold for Oldsmobile 307-403 Small-Block V8 |
| Description_MKT |
Edelbrock part #3711 Performer Oldsmobile 350 EGR intake manifold is designed for street 307-330-350-403 c.i.d. Oldsmobile V8's, 1964-85. Will fit 1980-1/2 to 1985 307 c.i.d. V8's with 5A heads (casting #3317). This intake manifold comes with a universal pad to fit most carburetors with electric chokes. |
| Description_LAB |
Performer Small-Block Oldsmobile 350 EGR Intake Manifold |
| Description_TRA |
Carb recommendations: OEM 4-Bbl |
| Description_TRA |
Edelbrock Performer Series, Thunder Series AVS, AVS2 and Carter AFB carburetors will not fit #3711. |
| Description_TRA |
Recommended intake gasket: Fel-Pro #MS96027 |
| Description_TRA |
For 403 Pontiac Trans Am, use OEM 4-bbl. only (for shaker hood clearance) |
| Description_TRA |
EGR block-off plate included |
| Description_TRA |
Use choke block-off plate #8951 (included) |
| Description_TRA |
Factory cruise control will not clear EGR valve without linkage alteration. |
| Description_TRA |
HEI will clear this manifold |
| Description_TRA |
Manifold height: A-2.50", B-3.90" |
| Description_TRA |
Carb pad height: 3.20" |
| Description_TRA |
Port exit dimensions: 1.18" x 1.86" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Front Maximum Height |
2.500 |
| Vehicle Model |
Oldsmobile |
| CNC Ported |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Satin |
| Rear Maximum Height |
3.900 |
| Flange Type |
4150 |
| Center Maximum Height |
3.200 |
| Grade Type |
Performance |
| EGR Port |
Yes |
| Single Or Dual Plane Type |
Dual |
| Series |
Performer |
| Gasket Or Seal Included |
No |
| Material |
Aluminum |
| Basic Operating RPM Range |
Idle-5500 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
