| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Performer TBI SBC Intake Manifold |
| Description_EXT |
Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8 |
| Description_MKT |

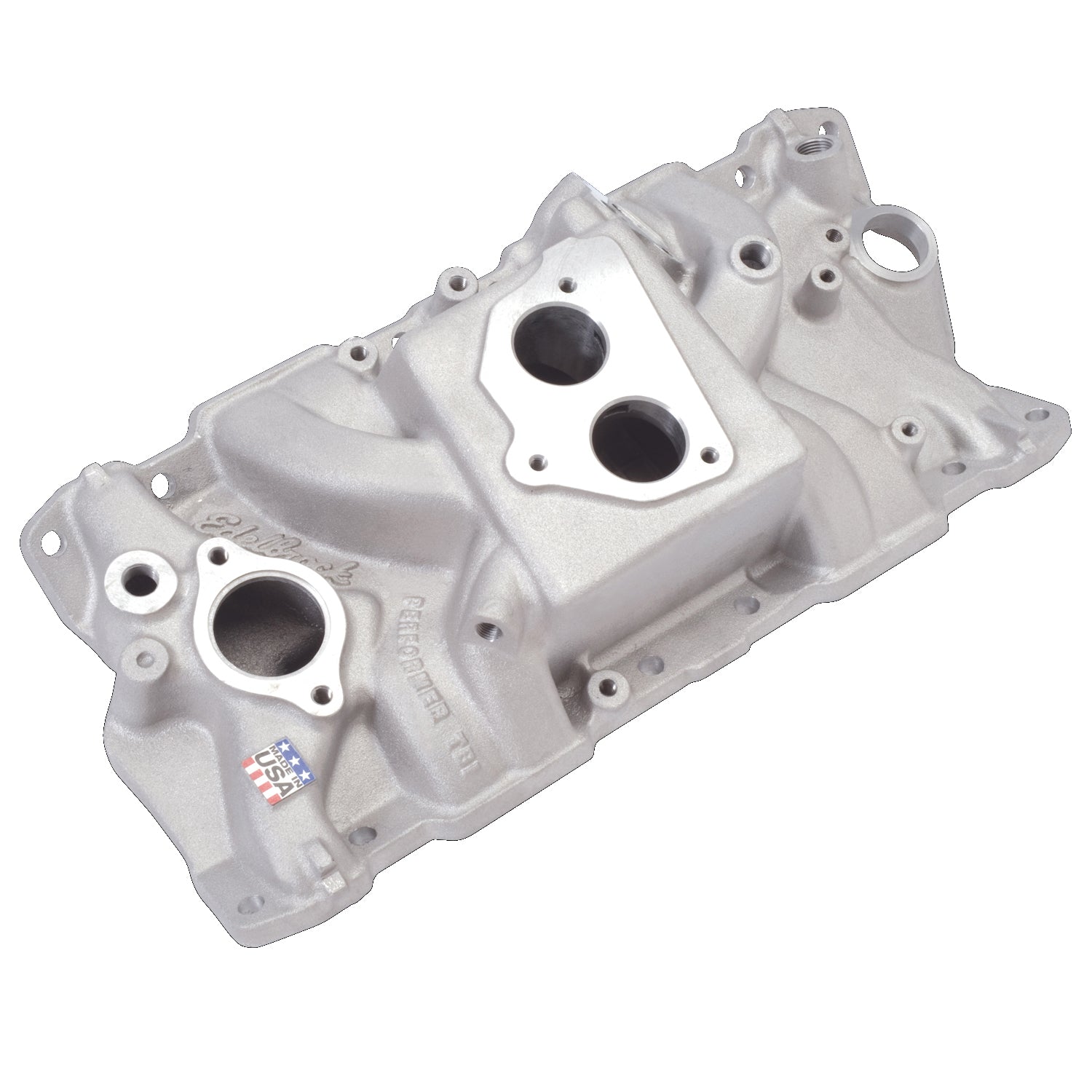

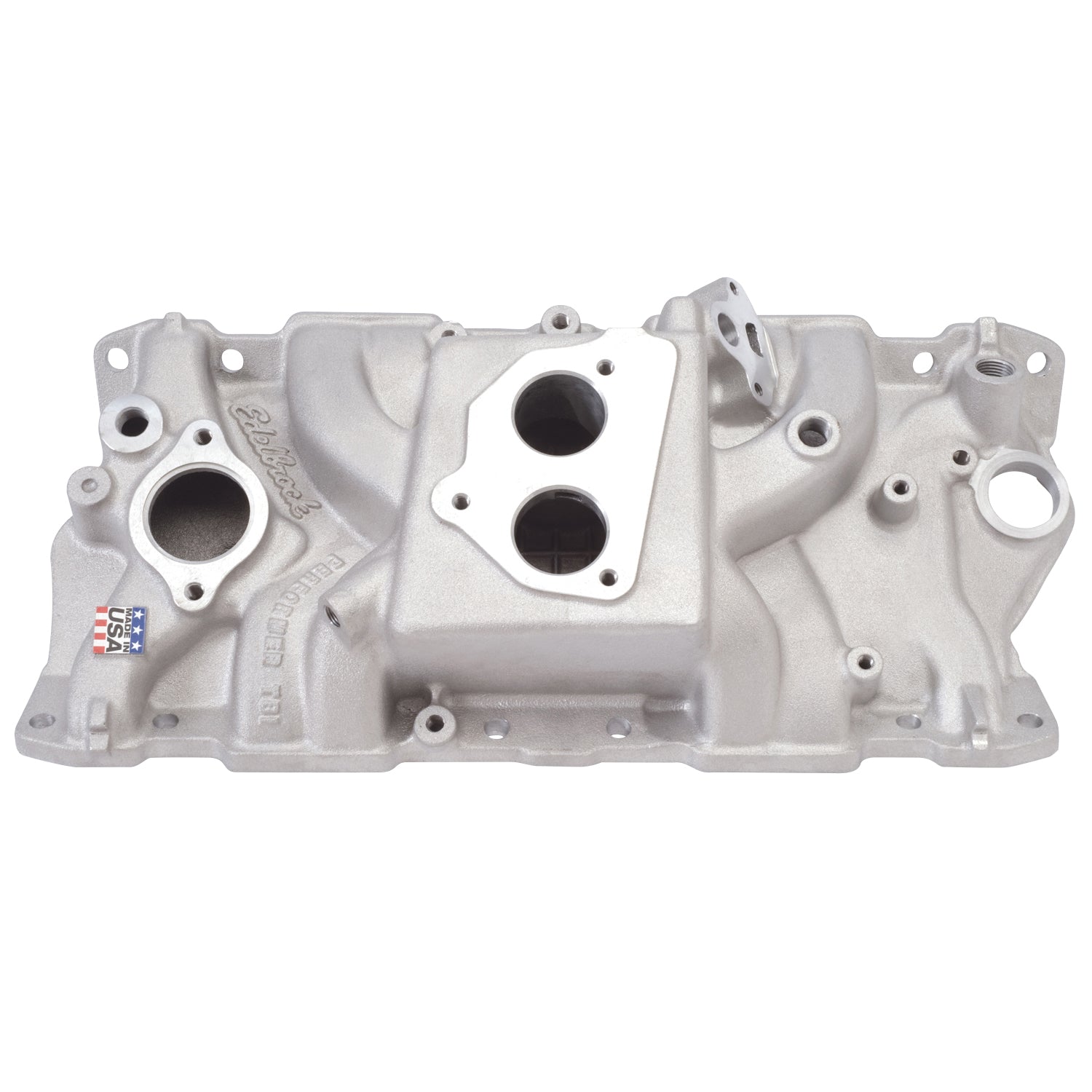

Edelbrock Part # 3704 Performer T.B.I. intake manifold is designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (T.B.I.) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Will not fit Caprice or Buick and Cadillac "B" bodies. |
| Description_LAB |
Performer T.B.I. Intake Manifold Small-Block Chevy |
| Description_TRA |
Use stock Throttle Body Injection unit. |
| Description_TRA |
Recommended intake gasket: GM #10159409. |
| Description_TRA |
Manifold height: A-3.70", B-5.10" |
| Description_TRA |
TBI pad height: 4.40", .250" taller than stock. |
| Description_TRA |
Port exit dimensions: 1.13" x 1.87". |
| Description_TRA |
Made in the USA |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Basic Operating RPM Range |
Idle-5500 |
| Front Maximum Height |
3.700 |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height |
4.400 |
| Vehicle Model |
Chevrolet |
| Finish |
Satin |
| Grade Type |
Performance |
| EGR Port |
Yes |
| Single Or Dual Plane Type |
Dual |
| Material |
Aluminum |
| Series |
Performer |
| Flange Type |
Factory T.B.I. |
| CNC Ported |
No |
| Rear Maximum Height |
5.100 |
| Length |
6.0000 |
| Width |
11.0000 |
| Height |
23.0000 |
| Weight |
19.0000 |
