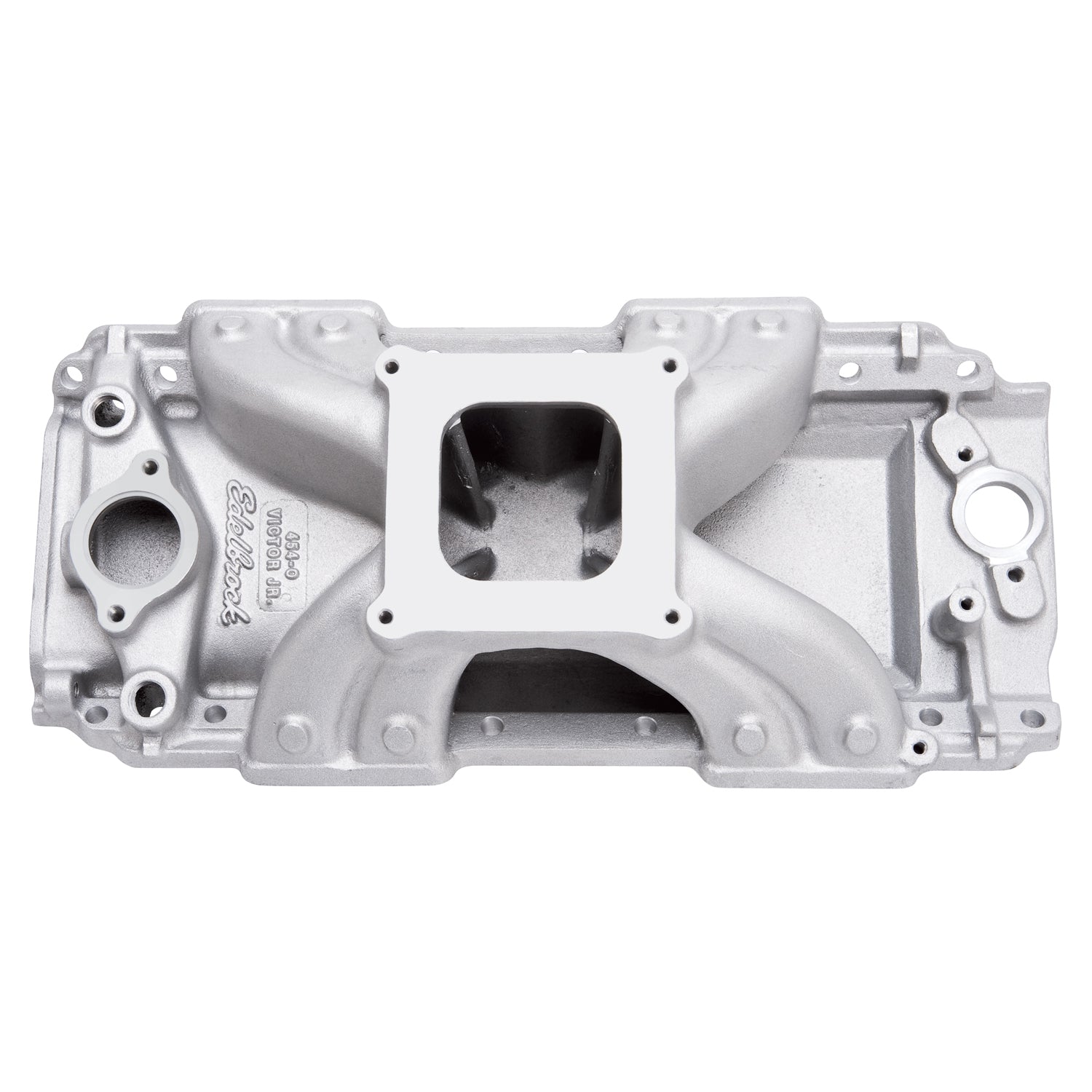

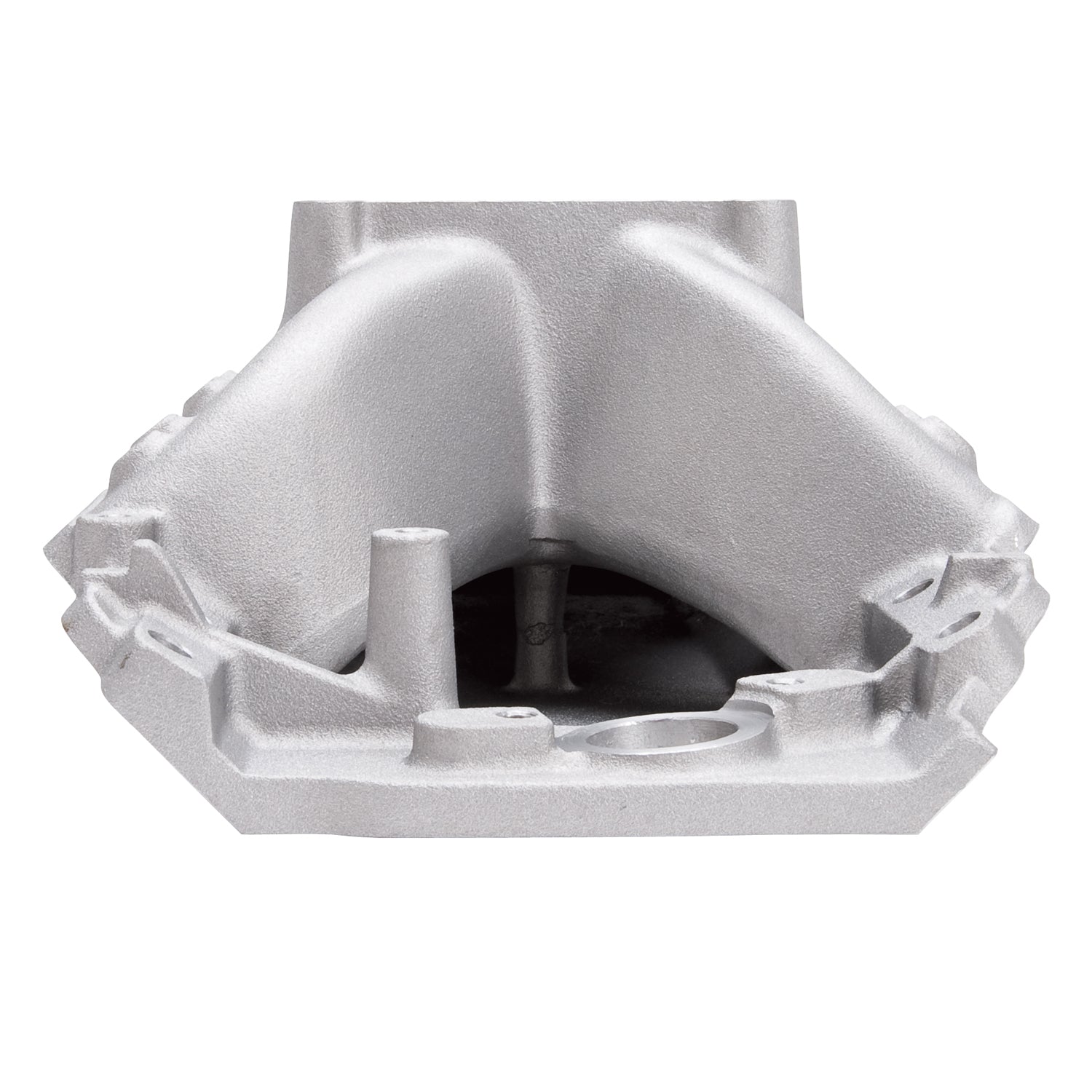

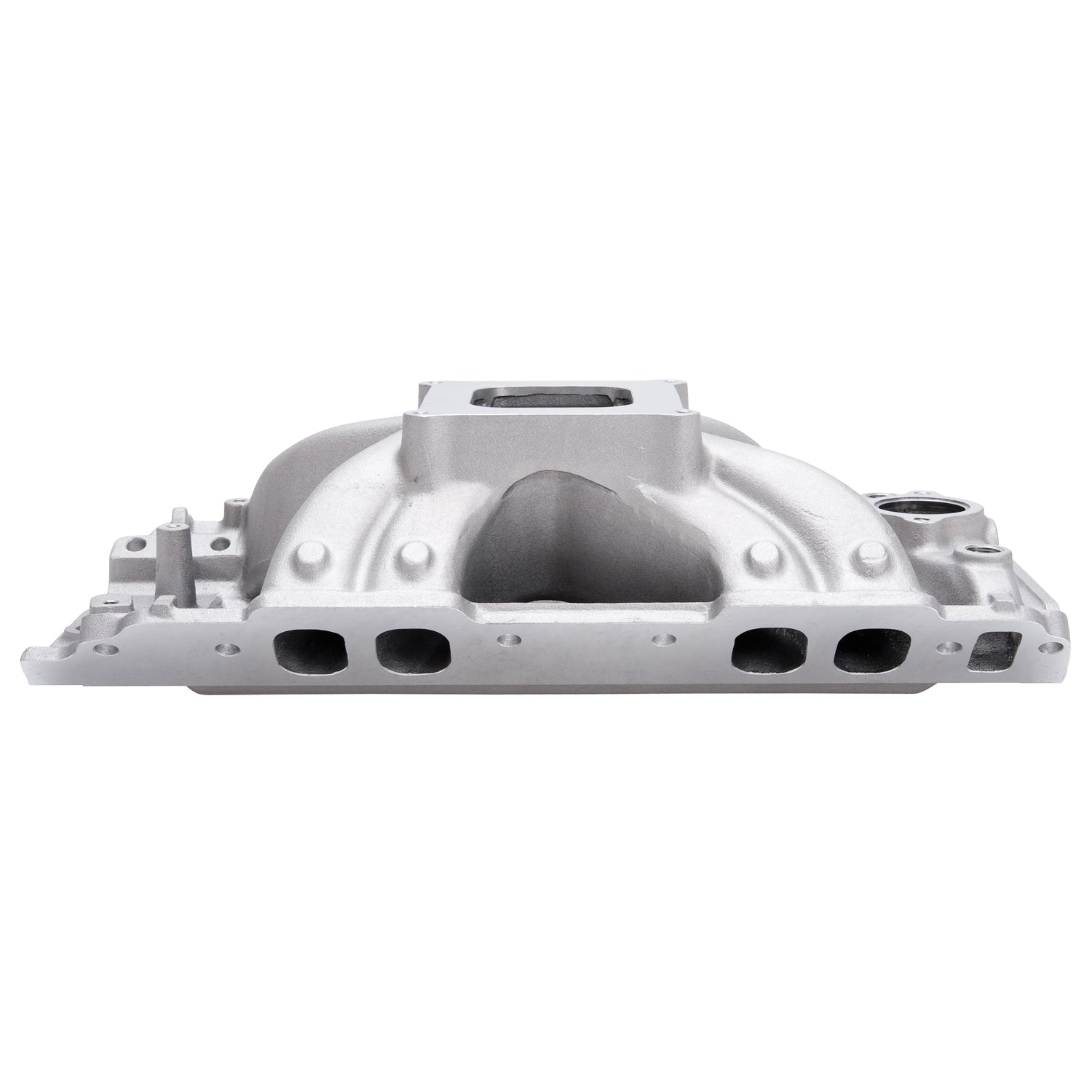

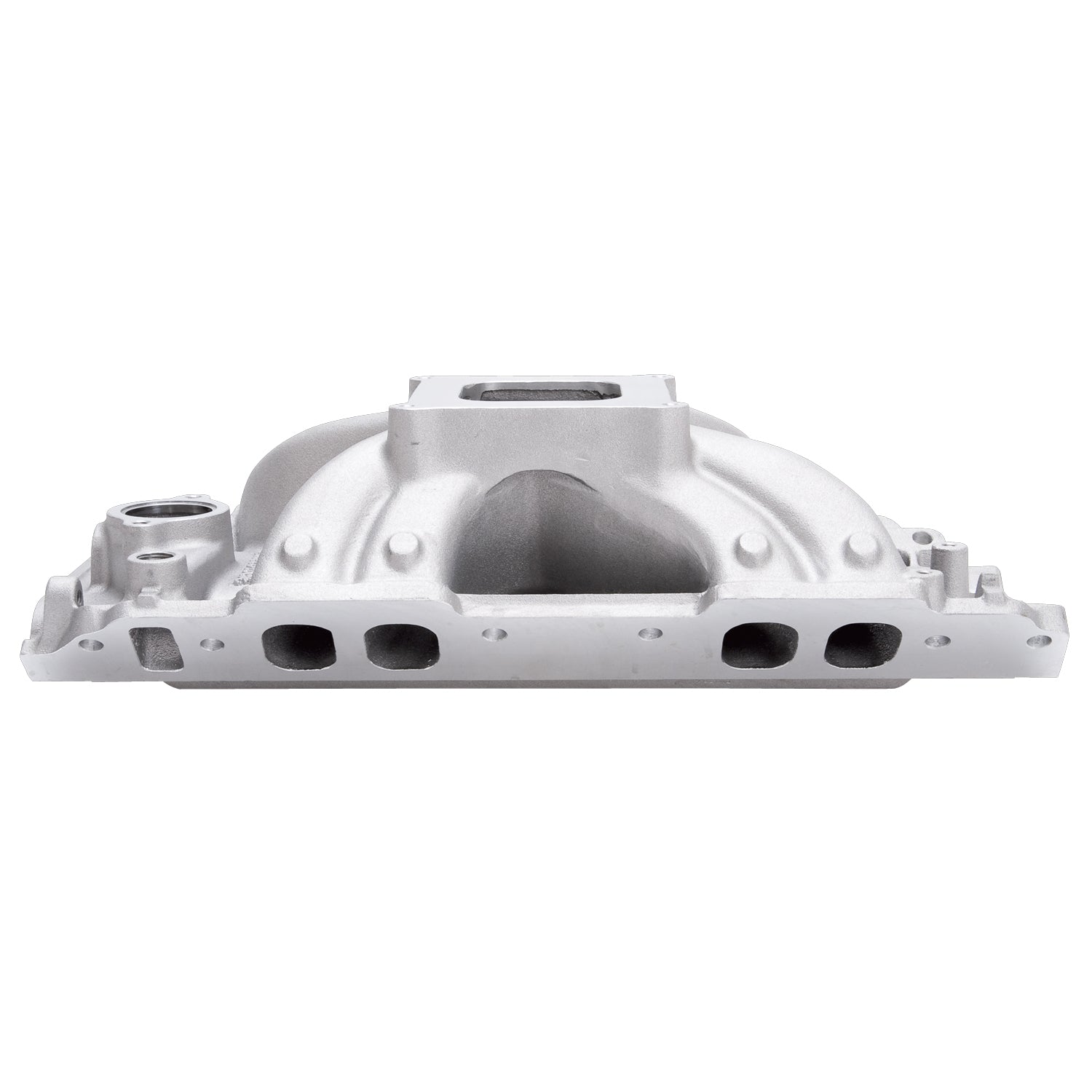

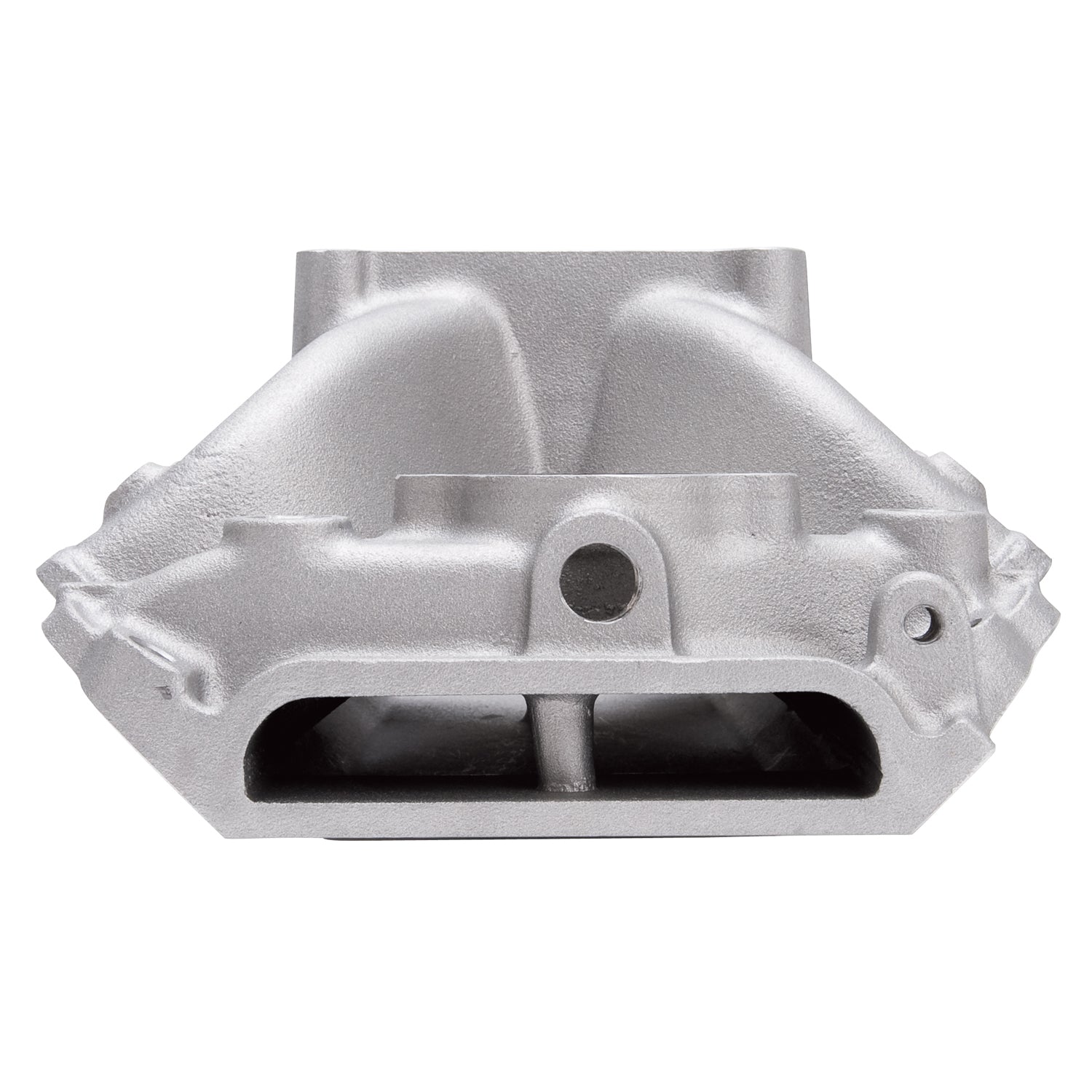

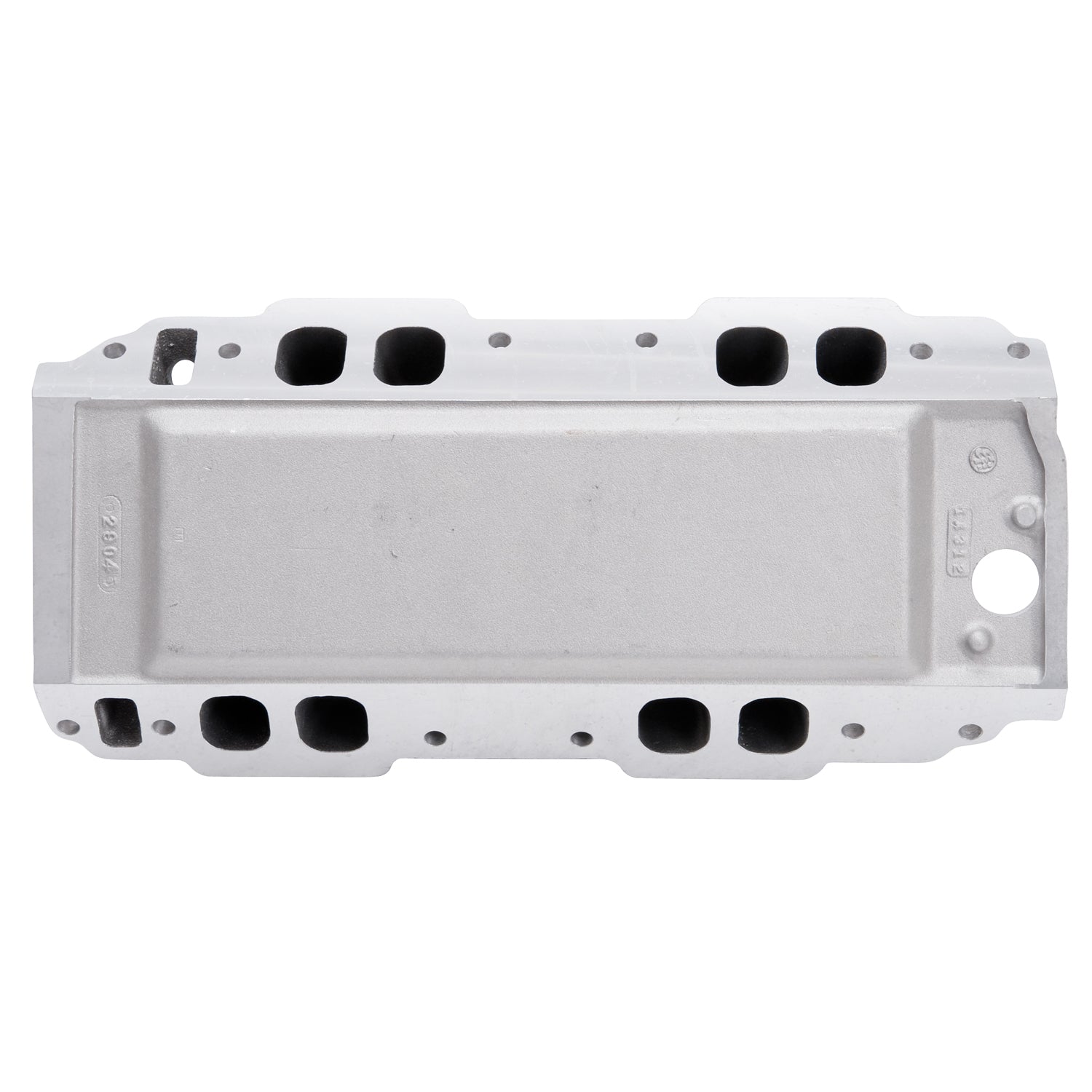

Edelbrock 2904 Victor Jr BBC Oval Port Intake Manifold

2 sold in last 8 days
Edelbrock
ds_BDVJ_2904
Engine Intake Manifold
$716.81
$716.81

customers are viewing this product
Edelbrock 2904 Victor Jr BBC Oval Port Intake Manifold

Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!

Specifications:

Description_ABR Intake Mnfld
Description_ASM Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Description_DEF Engine Intake Manifold
Description_EXT Edelbrock Victor Jr. 454-O Intake Manifold For Chevrolet 396-502 Big-Block V8
Description_INV Victor Jr BBC Oval Port Intake Manifold
Description_LAB Victor Jr. 454-O Intake Manifold Big-Block Chevy
Description_MKT Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!
Description_TRA Recommended intake gasket: Edelbrock #7203
Description_TRA Manifold height: A-5.90" & B-5.90"
Description_TRA Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Series Victor
Grade Type Performance
Single Or Dual Plane Type Single
Basic Operating RPM Range 3500-7500
Material Aluminum
Gasket Or Seal Included No
Vehicle Model Chevrolet
Center Maximum Height 5.960
CNC Ported No
EGR Port No
Rear Maximum Height 5.960
Flange Type 4150
Front Maximum Height 5.960
Finish Satin
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Length 8.0000
Width 15.0000
Height 24.0000
Weight 23.0000
