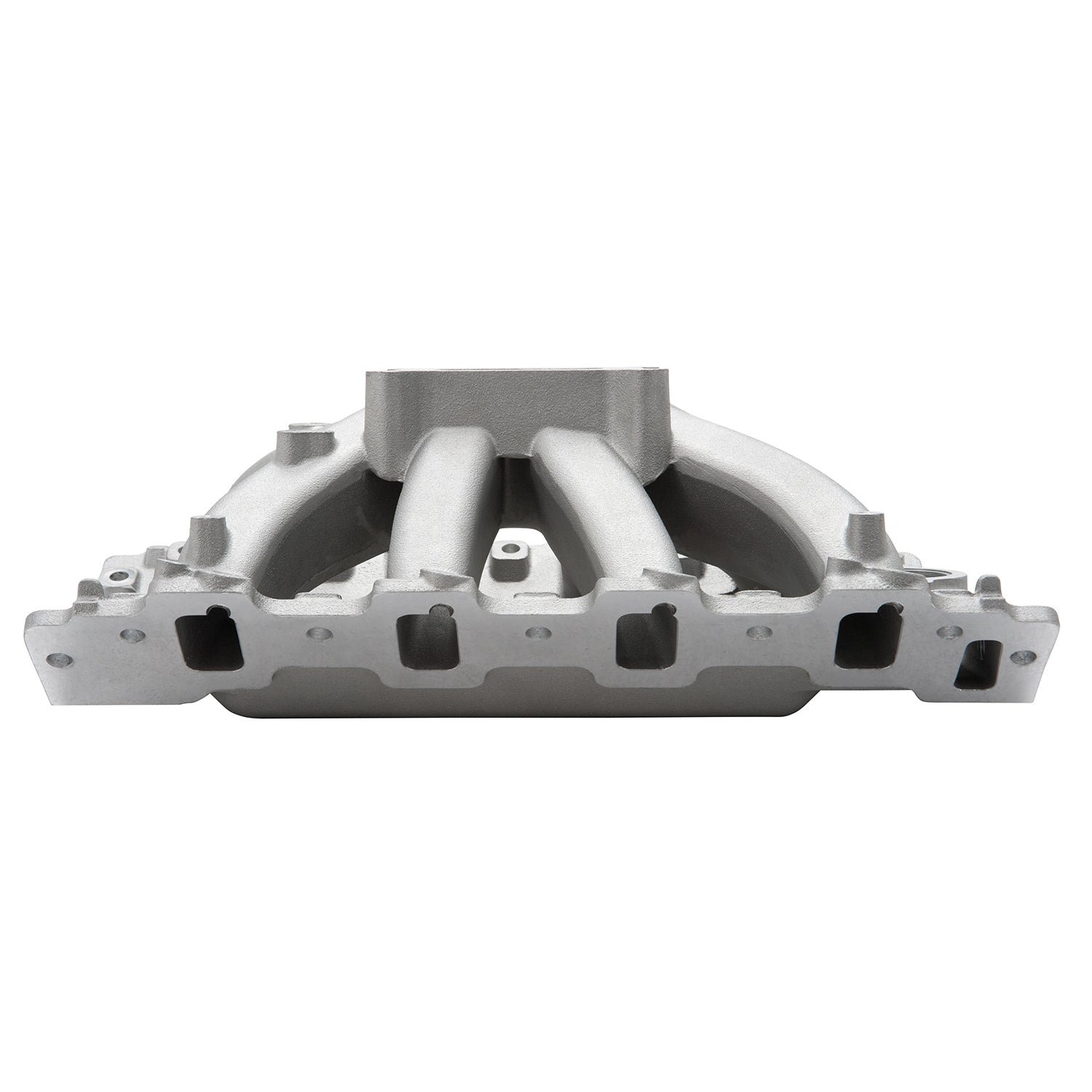

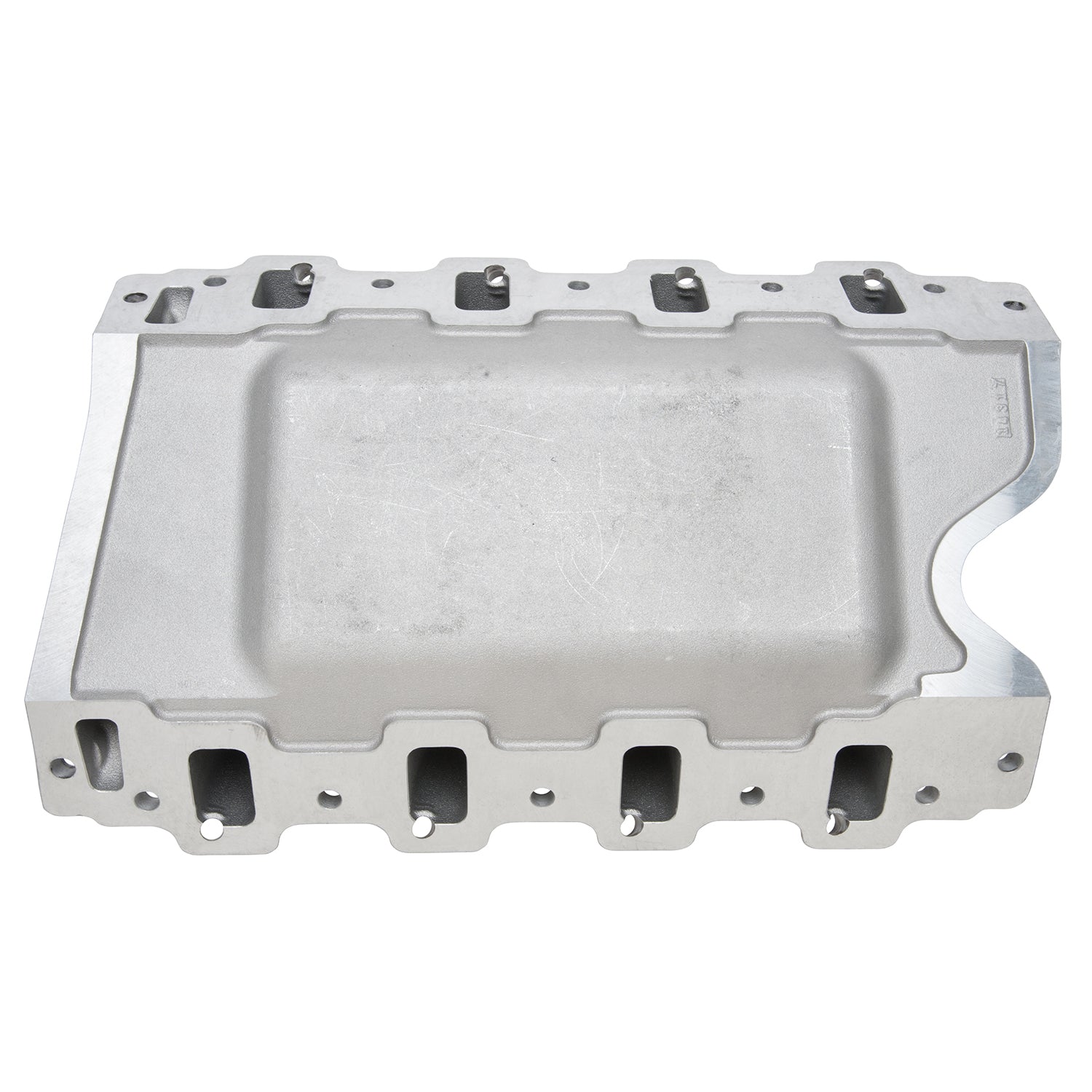

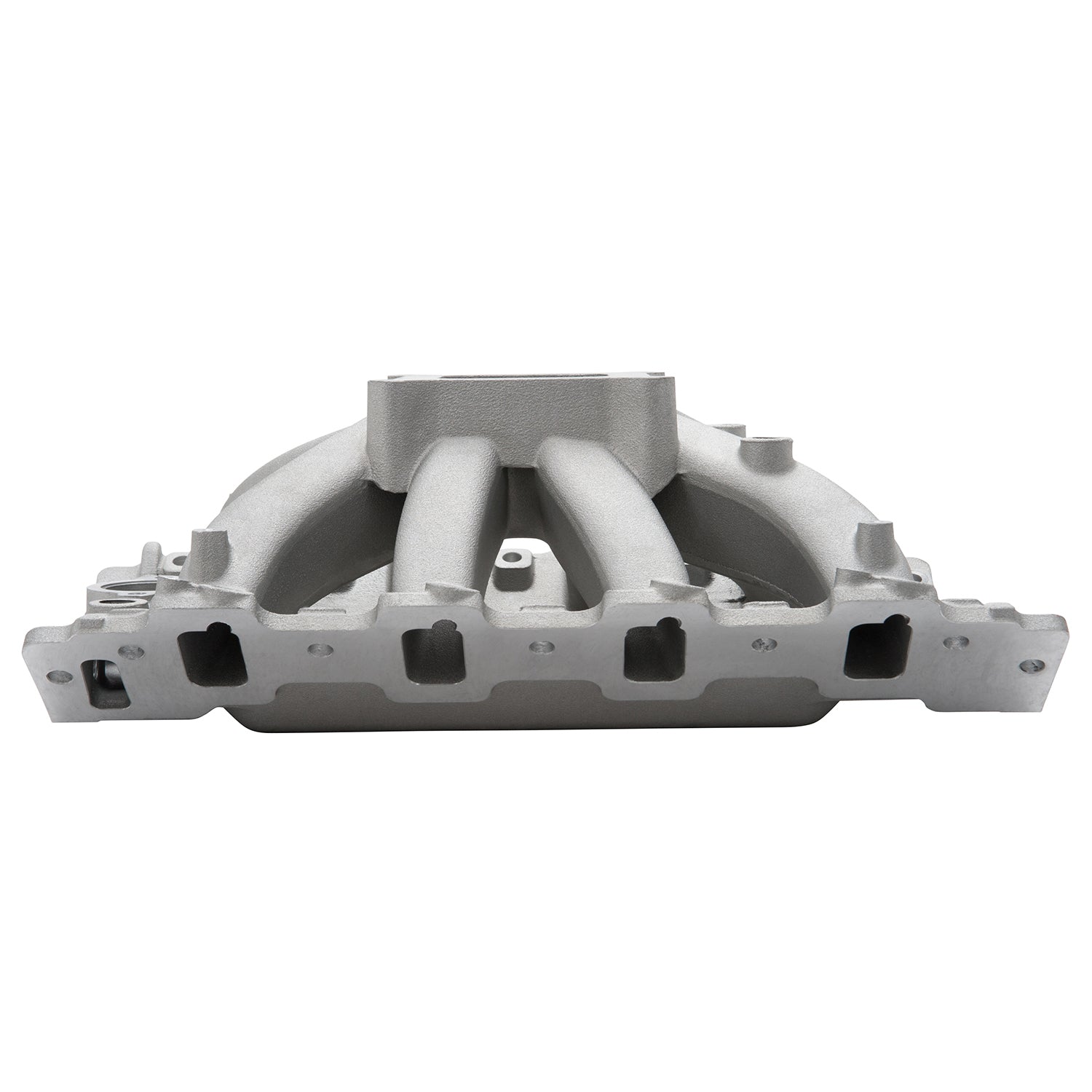

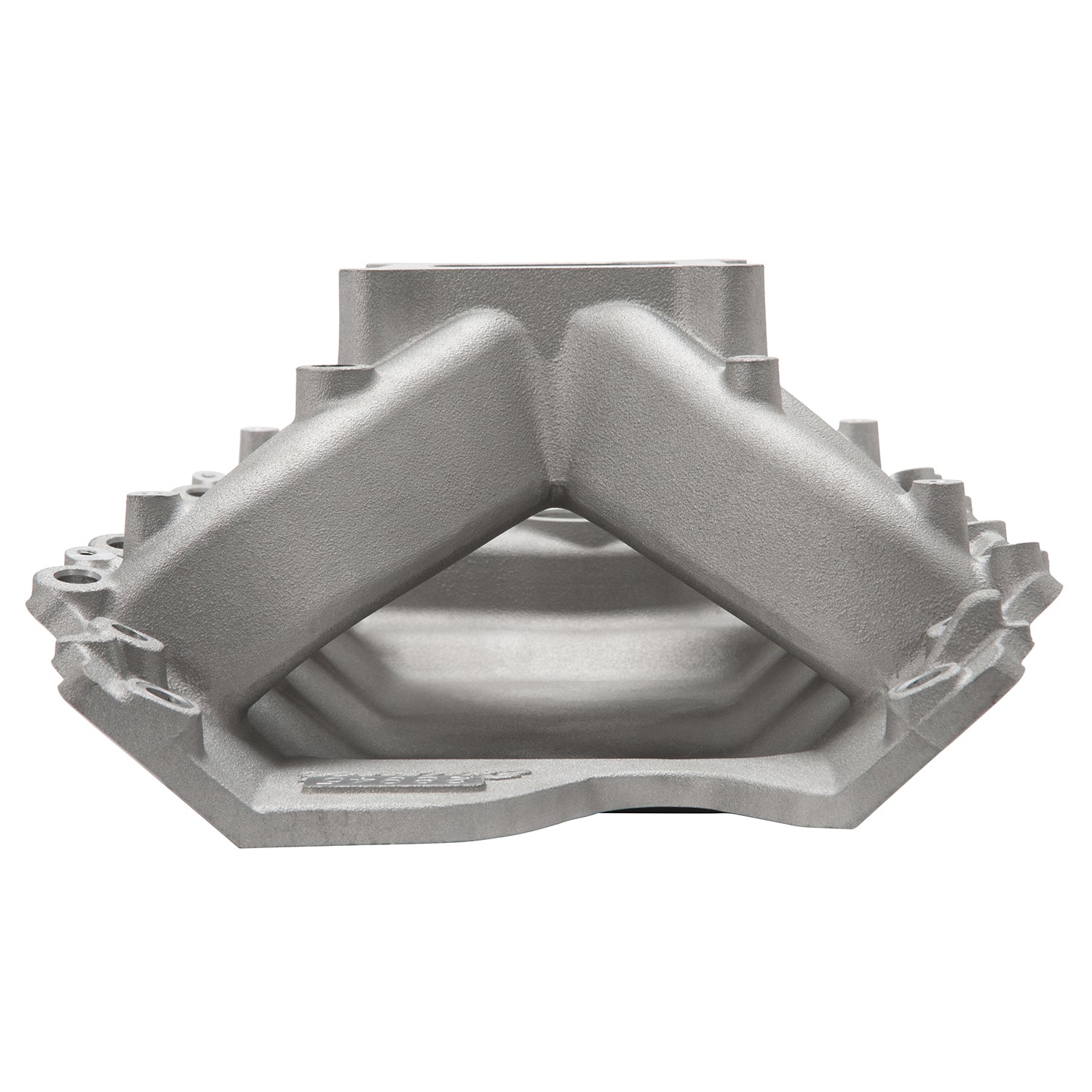

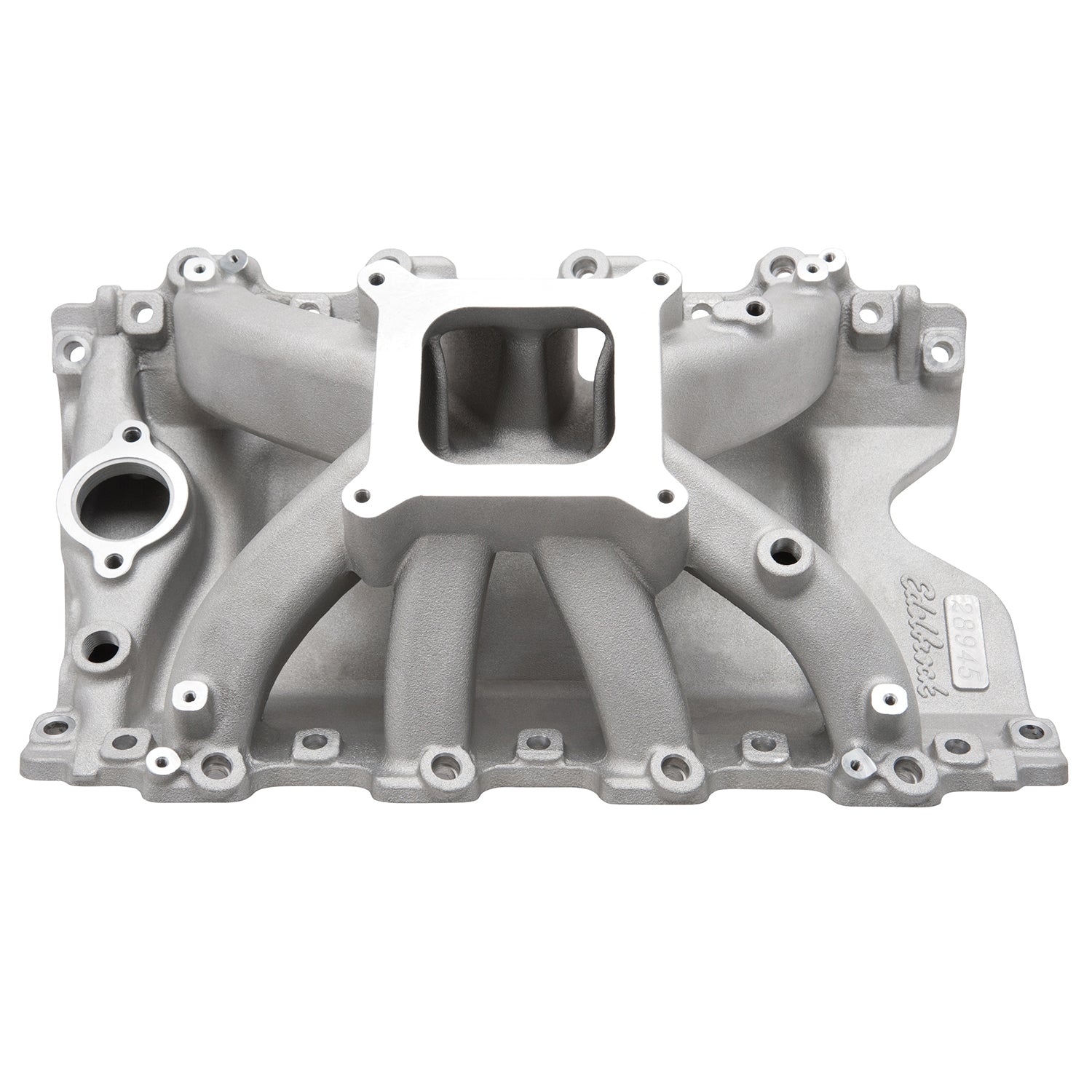

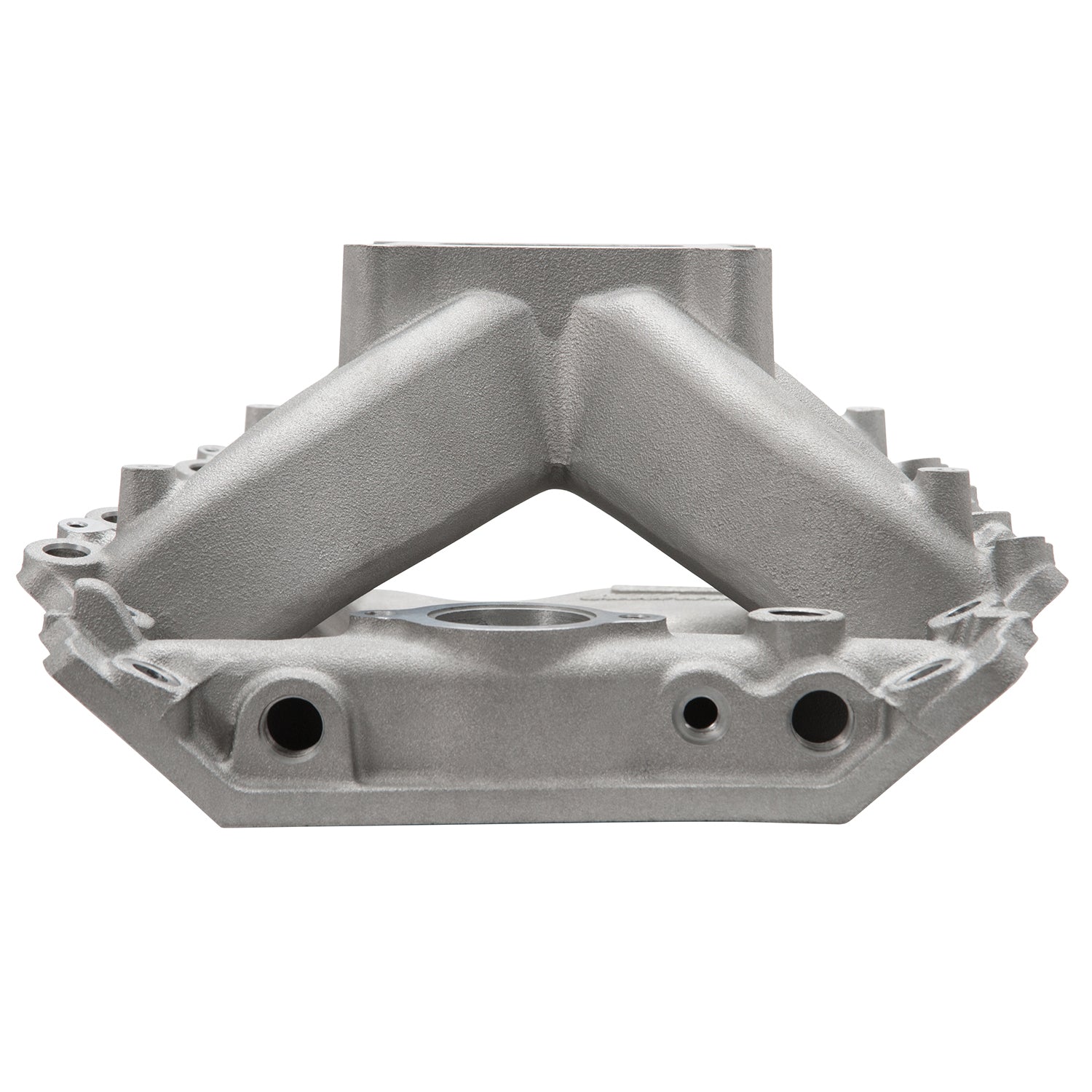

Edelbrock 28945 Victor Jr Holden Intake Manifold EFI

2 sold in last 8 days
Edelbrock
ds_BDVJ_28945
Engine Intake Manifold
$929.31
customers are viewing this product
Edelbrock 2904 Victor Jr BBC Oval Port Intake Manifold
Edelbrock 2904 Victor Jr BBC Oval Port Intake Manifold
$716.81
Weiand 8123WND Street Warrior Intake - Chevy Big Block V8
Weiand 8123WND Street Warrior Intake - Chevy Big Block V8
$568.79
Edelbrock 28945 Victor Jr Holden Intake Manifold EFI
Details

Edelbrock part #28945 Victor Jr. Holden EFI intake manifold is for use with competition 355+ c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.

Specifications:

Description_ABR Intake Mnfld
Description_ASM Holden:Small-Block VN EFI:253 (4.1L)/304 (4.9L)/308 (5.0L)/355 (5.7L)/383 (6.3L)
Description_DEF Engine Intake Manifold
Description_EXT Edelbrock Victor Jr Holden Intake Manifold EFI
Description_MKT Edelbrock part #28945 Victor Jr. Holden EFI intake manifold is for use with competition 355+ c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.
Description_LAB Victor Jr Holden EFI Intake Manifold
Description_INV Victor Jr Holden Intake Manifold EFI
Description_TRA Recommended intake gasket HA424
Description_TRA Manifold height: A-6.95", B-6.95".
Description_TRA Carb pad height: 6.95".
Description_TRA Port exit dimensions: 1.18" x 2.02".
Description_TRA Fuel rail kit: Edelbrock #3504 (Designed for standard injectors measure 2.50" from the o-ring center to o-ring enter. Ends are tapped for use with -6 AN fittings).
Description_TRA 4150 series Carb Flange
Description_TRA Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA Fuel rail kit: Edelbrock #3504 (Designed for standard injectors measure 2.50" from the o-ring center to o-ring enter. Ends are tapped for use with -6 AN fittings).
Basic Operating RPM Range 3500-7500
EGR Port No
Rear Maximum Height 6.950
Flange Type 4150
CNC Ported No
Finish Satin
Material Aluminum
Single Or Dual Plane Type Single
Series Victor
Center Maximum Height 6.950
Grade Type Performance
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Gasket Or Seal Included No
Vehicle Model Holden
Front Maximum Height 6.950
Length 8.0000
Width 14.0000
Height 21.0000
Weight 19.0000
