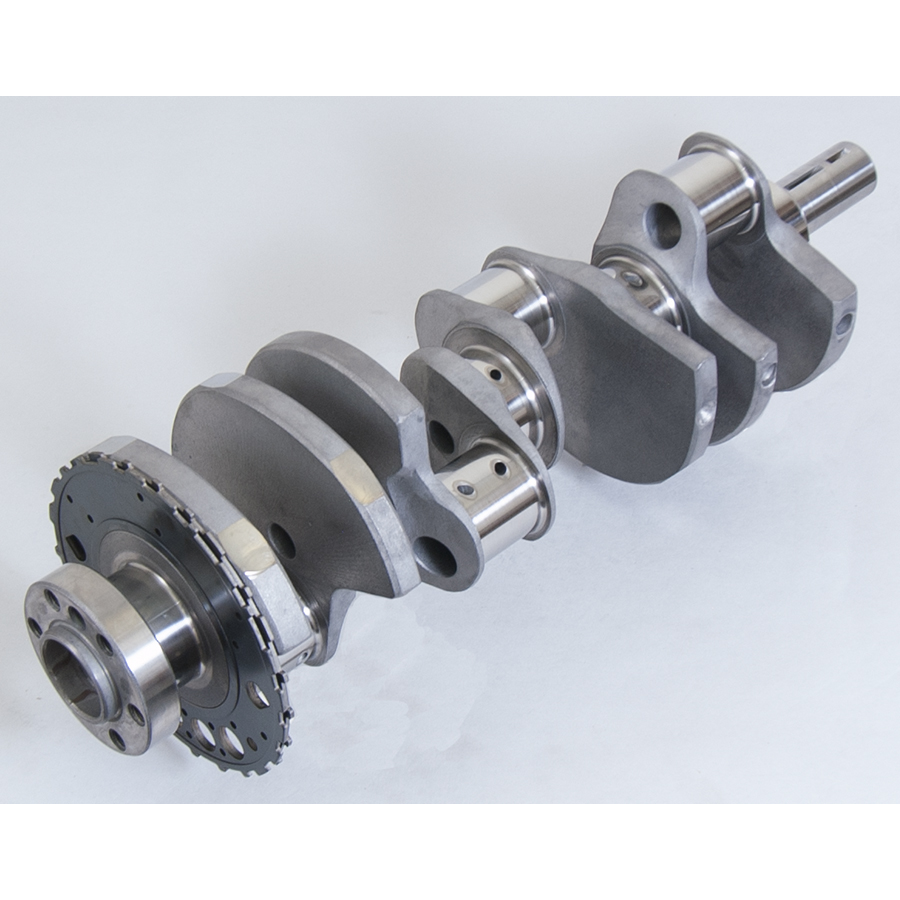

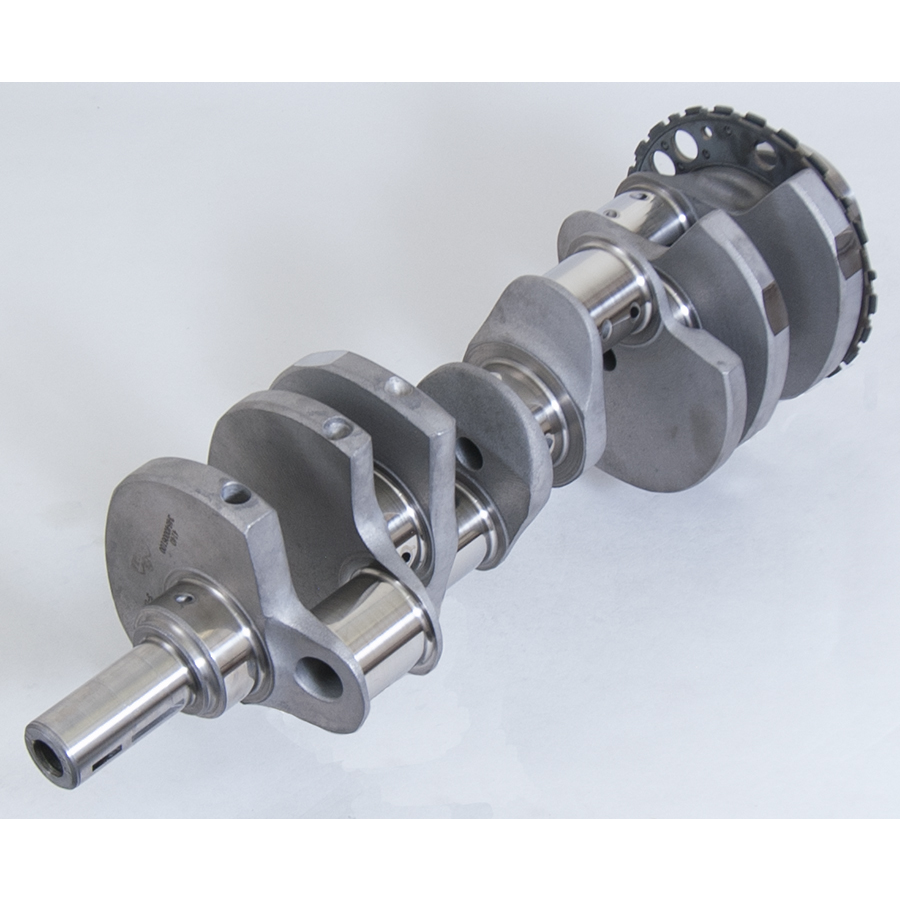

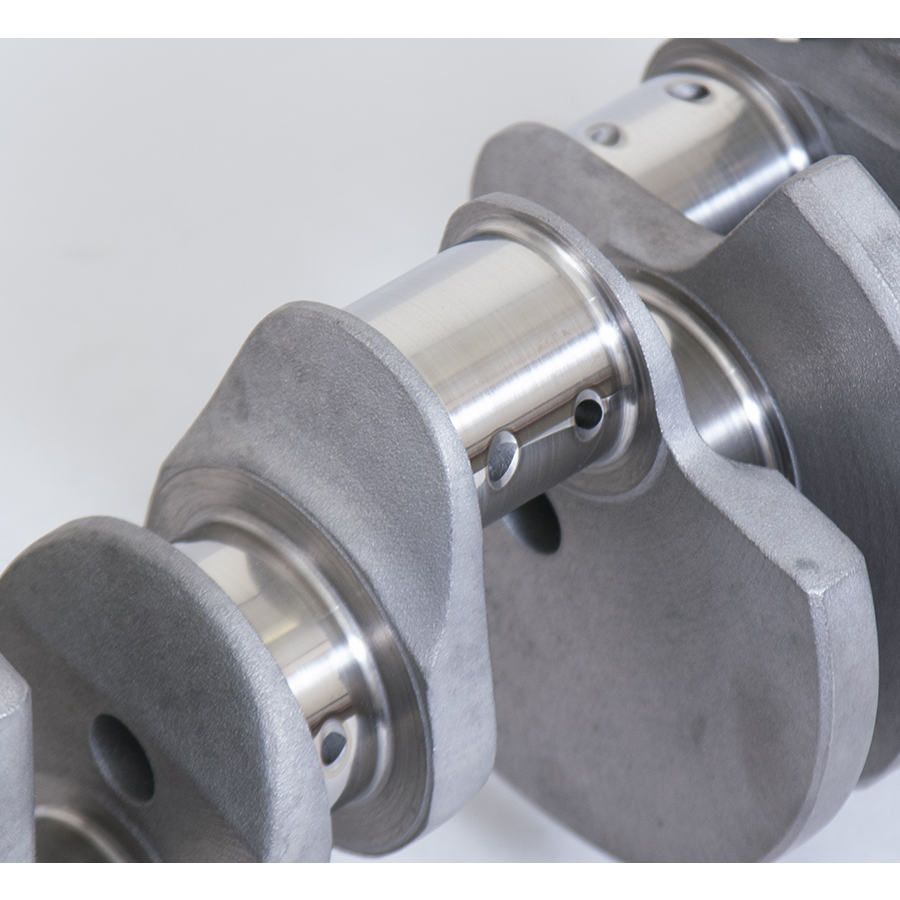

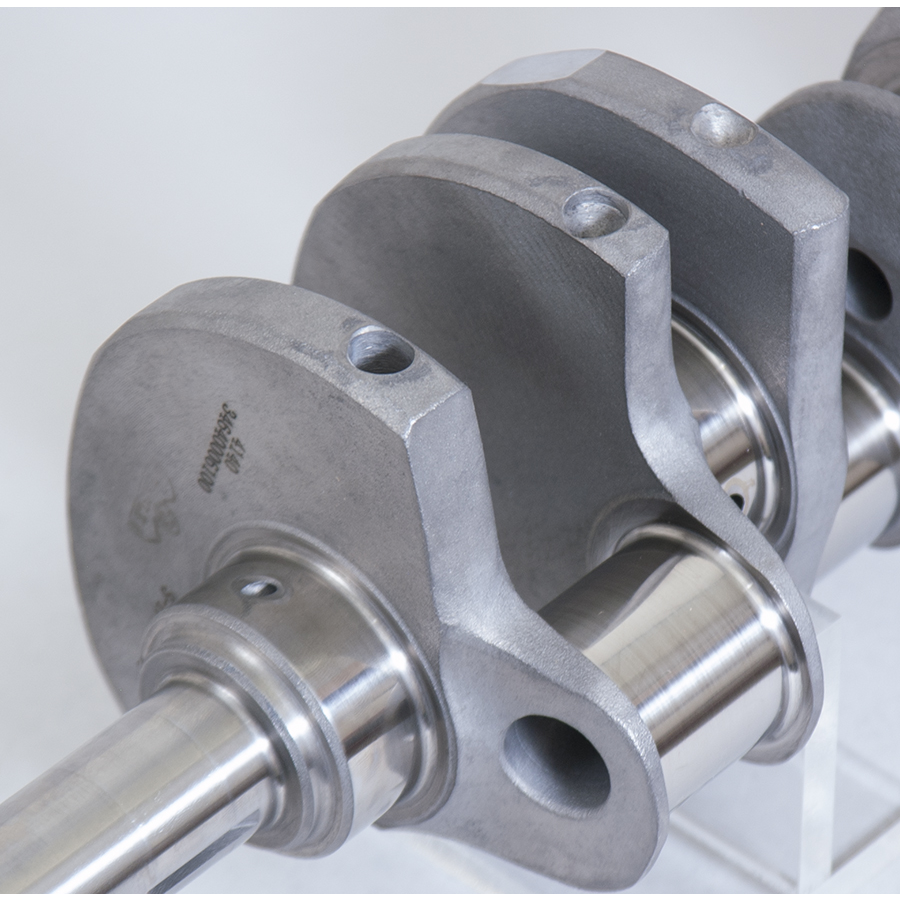

Eagle 534640006100 4140 FORGED CRANK LS1 24T 4.00 STROKE

2 sold in last 8 days
Eagle
ds_CFQW_534640006100
Engine Crankshaft
$1,151.61
customers are viewing this product
Eagle 545440026135 4140 CRANK CHEVY BB EXT BALANCE
Eagle 545440026135 4140 CRANK CHEVY BB EXT BALANCE
$1,151.61
Eagle 32JZ37015590 BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
Eagle 32JZ37015590 BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
$3,352.62
Eagle 534640006100 4140 FORGED CRANK LS1 24T 4.00 STROKE
Details

Eagle forged 4140 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for competition use. Includes 24 tooth reluctor.

Specifications:

Description_ASC 24 tooth reluctor.
Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DEF Engine Crankshaft
Description_DES 4140 FORGED CRANK LS1 24T 4.00 STROKE
Description_INV ESP 4140 Forged Crank
Description_EXT Forged 4140 Steel Crank - CHEVROLET LS, 4.000" STROKE, 24 TOOTH RELUCTOR.
Description_MKT Eagle forged 4140 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for competition use. Includes 24 tooth reluctor.
Description_SHO 4140 Forged Crank
Prop 65 - Short Label prop65_warning.jpg
Main Journal 2.559"
Rear Seal Diameter call
Crankshaft Stroke 4.000"
Balance Type Internal
Engine Stroke 4
Snout Diameter 1.48"
Prop 65 Yes/No Yes
Title ESP 4140 FORGED CRANK LS1 24T 4.00 STROKE
Prop 65 (C, R or CR) C
Rod Journal 2.1"
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Minimum Rod Length 6.125"
Material Forged 4140 steel
Pilot Bore Diameter call
Rod Journal Width 1.900"
Intended Balance internal
Flywheel Bolt Count 6
Flywheel Register Diameter call
Target Bobweight 1800g
Length 9.0000
Width 9.0000
Height 32.0000
Weight 62.0000
