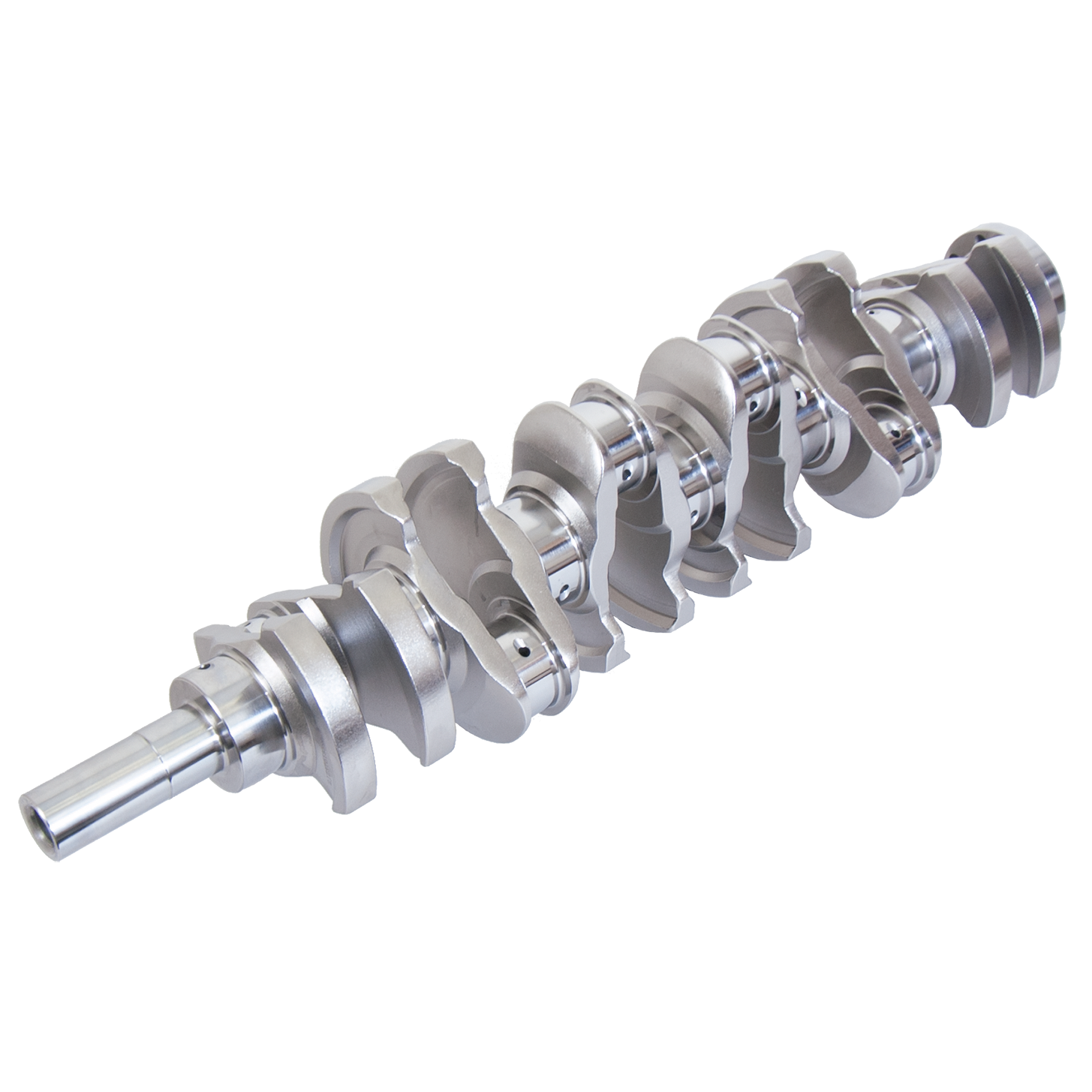

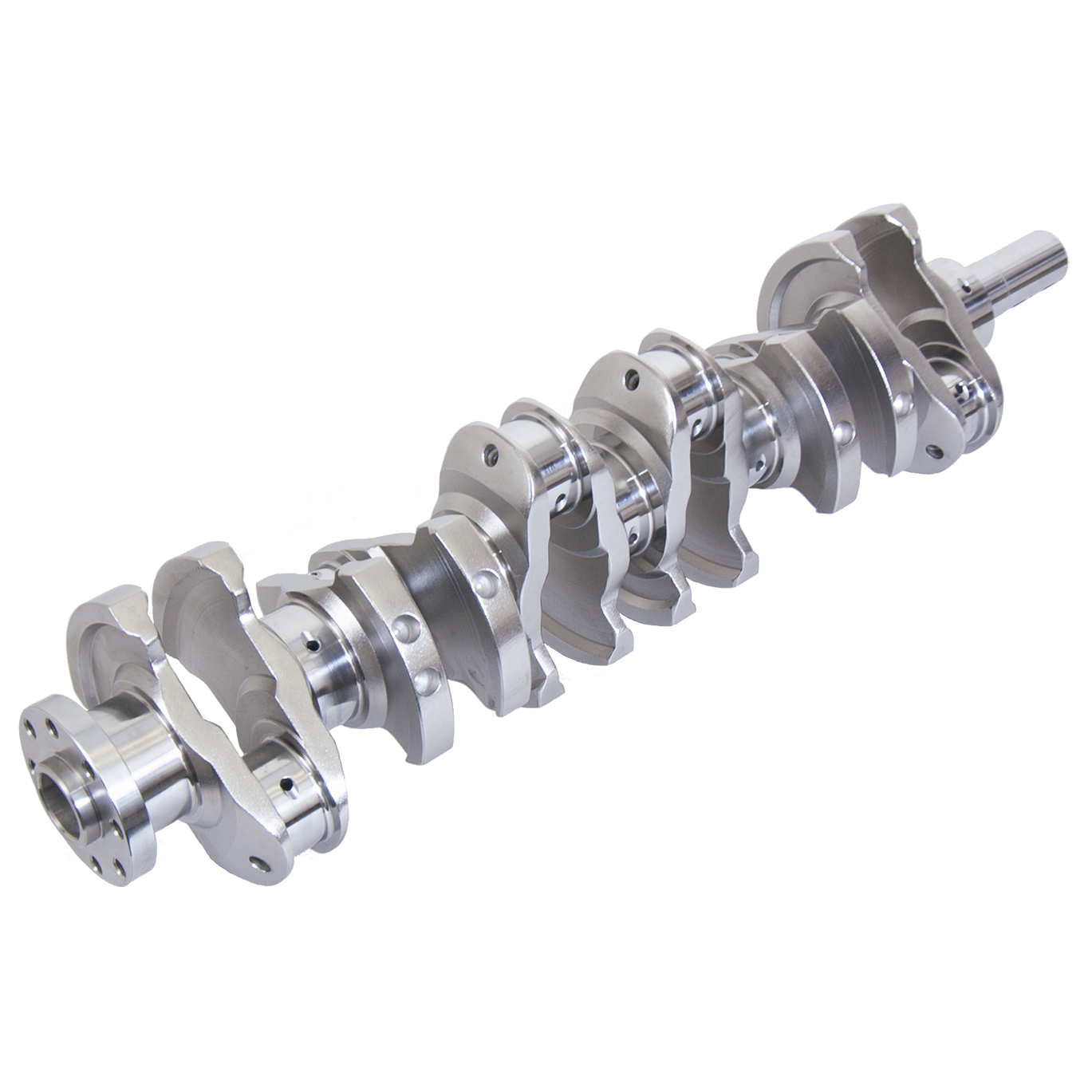

Eagle 32JZ37015590 BILLET 4340 STEEL Toyota 2JZ 94MM STROKE

2 sold in last 8 days
Eagle
ds_CFQW_32JZ37015590
Engine Crankshaft
$3,352.62
customers are viewing this product
Eagle 534640006100 4140 FORGED CRANK LS1 24T 4.00 STROKE
Eagle 534640006100 4140 FORGED CRANK LS1 24T 4.00 STROKE
$1,151.61
Eagle 103503480CM Cast Crank CHEVY 350 2 PC NO LGHTNG HOLE
Eagle 103503480CM Cast Crank CHEVY 350 2 PC NO LGHTNG HOLE
$519.54 $479.91
Eagle 32JZ37015590 BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
Details

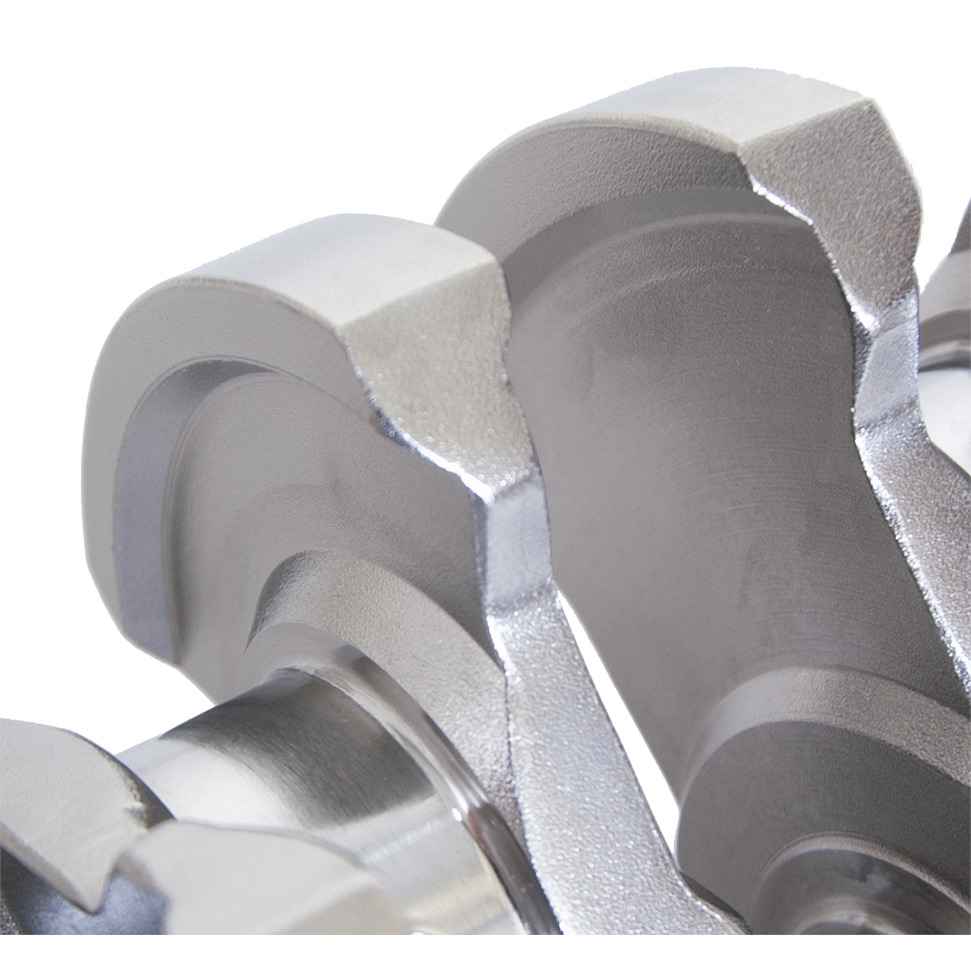

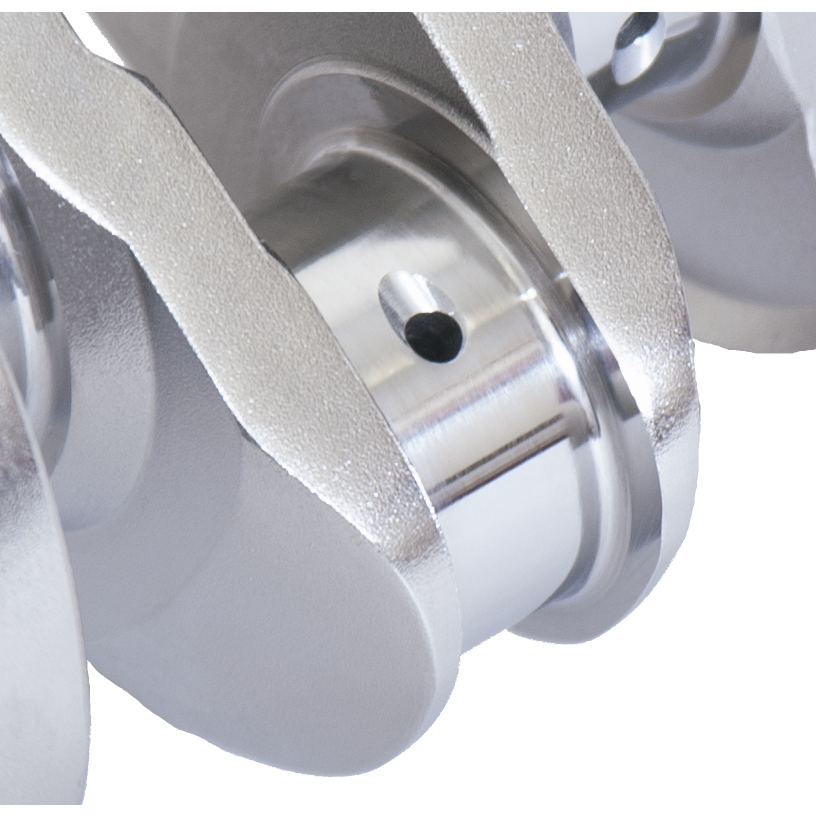

Eagle Billet 4340 steel crankshafts feature .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished.

Specifications:

Description_ASC Use with 5.590" rods and pistons with 1.181" pin height.
Description_ASC Use with 1.181" pin height pistons.
Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DEF Engine Crankshaft
Description_DES BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
Description_EXT Billet 4340 Steel Crank - TOYOTA 2JZ, 3.701" Stroke.
Description_INV ESP Billet 4340 Steel
Description_SHO Billet 4340 Steel
Description_MKT Eagle Billet 4340 steel crankshafts feature .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished.
Minimum Rod Length 5.590"
Crankshaft Stroke 3.700"
Flywheel Bolt Count 8
Material Billet 4340 Steel
Title ESP BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
Pilot Bore Diameter call
Rod Journal 2.047"
Engine Stroke 3.7
Flywheel Register Diameter call
Intended Balance internal
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Rod Journal Width 1.035"
Prop 65 Yes/No Yes
Balance Type Internal
Prop 65 - Short Label prop65_warning.jpg
Rear Seal Diameter call
Snout Diameter call
Main Journal 2.441"
Prop 65 (C, R or CR) C
Length 9.0000
Width 9.0000
Height 32.0000
Weight 40.0000
