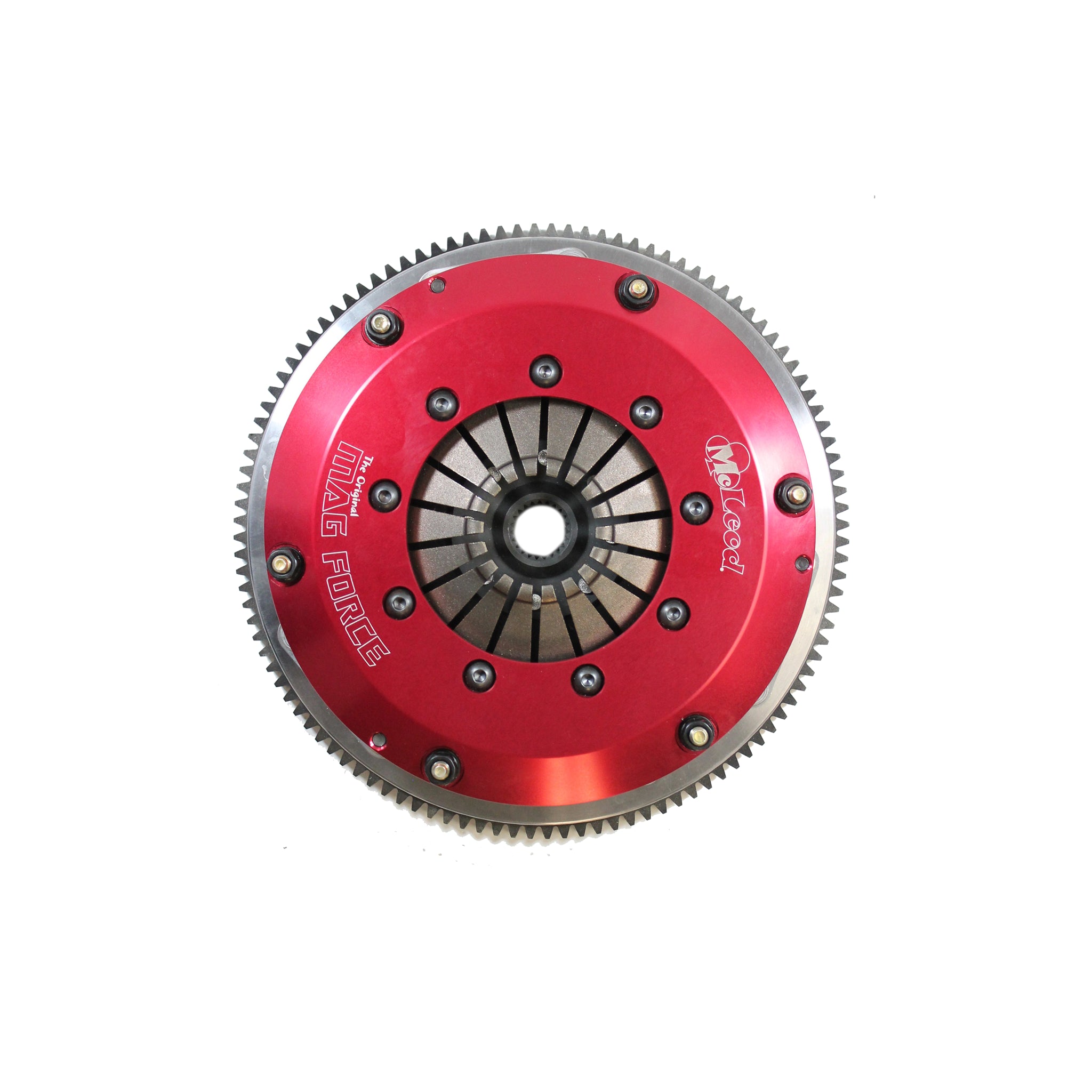

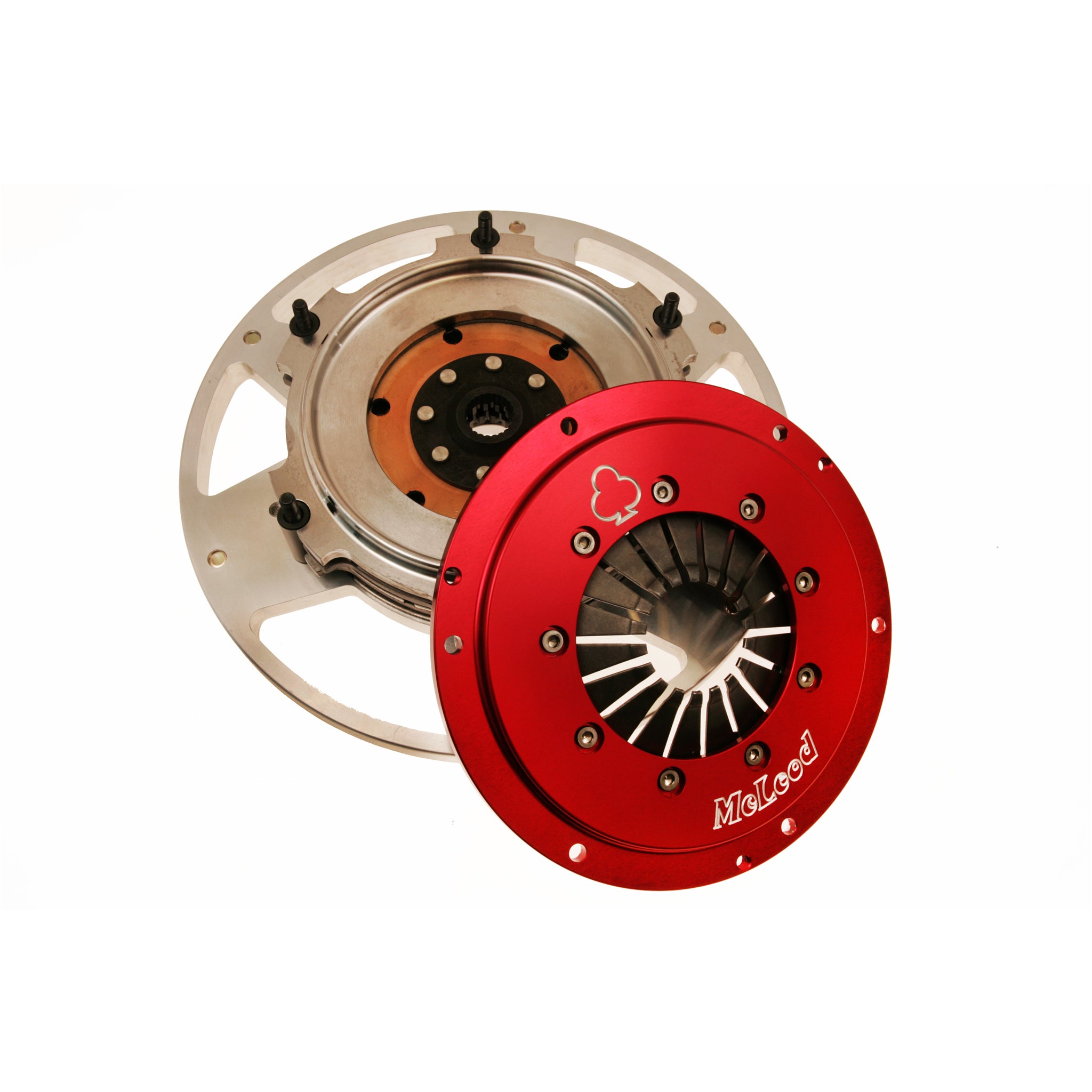

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Triple Disc: Pin Drive: Ford: 1958-76 BBF Fe: 1-1/8x26: 184T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Triple Disc: Pin Drive: Ford: 1958-76 BBF Fe: 1-1/8x26: 184T |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Alignment Tool Included |
Yes |
| Pilot Bushing Included |
No |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Disc Style |
Puck Style |
| Throwout Bearing Style |
Standard |
| Disc Material |
Sintered Iron |
| Clutch Usage |
Drifting |
| Ring Gear |
184 tooth |
| Throwout Bearing Included |
No |
| Engine Balance |
Internal Balance |
| Engine |
1958-1976 BBF FE |
| Hardware Included |
Yes |
| Make |
Ford |
| Number of Discs |
Triple |
| Pilot Bushing Material |
N/A |
| Flywheel Material |
Aluminum |
| Flywheel Included |
Yes |
| Spline |
1 1/8In. x 26 |
| Racing Application |
Road Race & Slalom Racing |
| Disc Diameter |
8In. |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
27.0000 |
