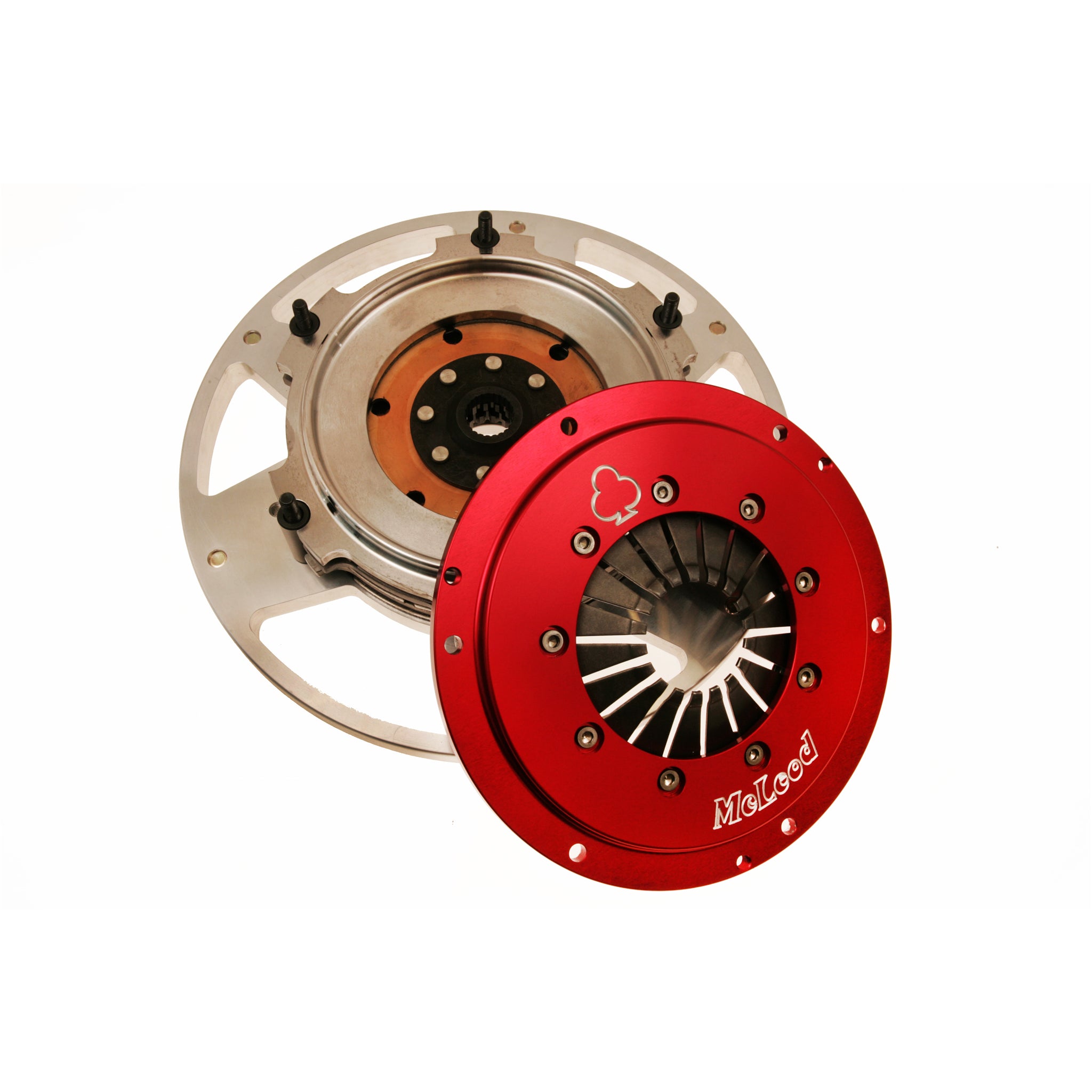

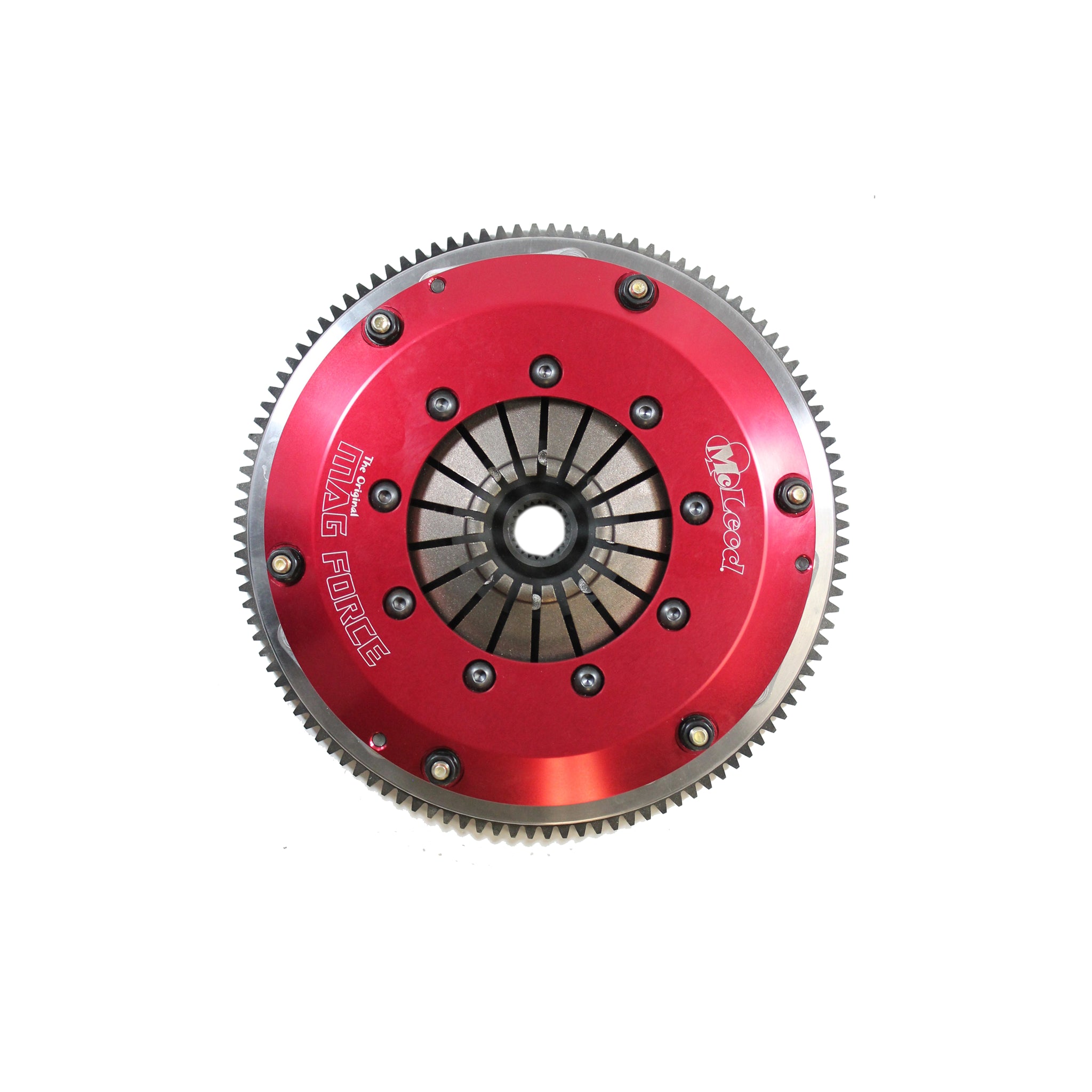

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Single Disc: Pin Drive: Chevrolet: 1997-13 LS-X 6 Bolt: 168T:1-1/8x10 |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_EXT |
Mag Force: Single Disc: Pin Drive: Chevrolet: 1997-13 LS-X 6 Bolt Crank: 168T: 1-1/8x10 |
| Description_INV |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Flywheel Material |
Aluminum |
| Throwout Bearing Included |
No |
| Pilot Bushing Material |
N/A |
| Disc Diameter |
8In. |
| Racing Application |
Road Race & Slalom Racing |
| Hardware Included |
Yes |
| Flywheel Included |
Yes |
| Engine Balance |
Internal Balance |
| Disc Material |
Sintered Iron |
| Disc Style |
Puck Style |
| Spline |
1 1/8In. x 10 |
| Make |
Chevrolet |
| Clutch Usage |
Drifting |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Ring Gear |
168 tooth |
| Alignment Tool Included |
Yes |
| Engine |
1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank |
| Pilot Bushing Included |
No |
| Throwout Bearing Style |
Standard |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
22.0000 |
