McLeod Racing 13535 1300 Series Hydraulic Bearing:Ford:Lenco CS,B&J: Bellhousing Mount:W-M/C:Each

2 sold in last 8 days
McLeod Racing
ds_BHGR_13535
Clutch Release Bearing
$747.21
customers are viewing this product
McLeod Racing 1365 1300 Series Hydraulic Bearing: GM:Legend LGT-700 5 Speed: Each
McLeod Racing 1365 1300 Series Hydraulic Bearing: GM:Legend LGT-700 5 Speed: Each
$738.17
McLeod Racing 13515 1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each
McLeod Racing 13515 1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each
$747.21
McLeod Racing 13535 1300 Series Hydraulic Bearing:Ford:Lenco CS,B&J: Bellhousing Mount:W-M/C:Each
Details

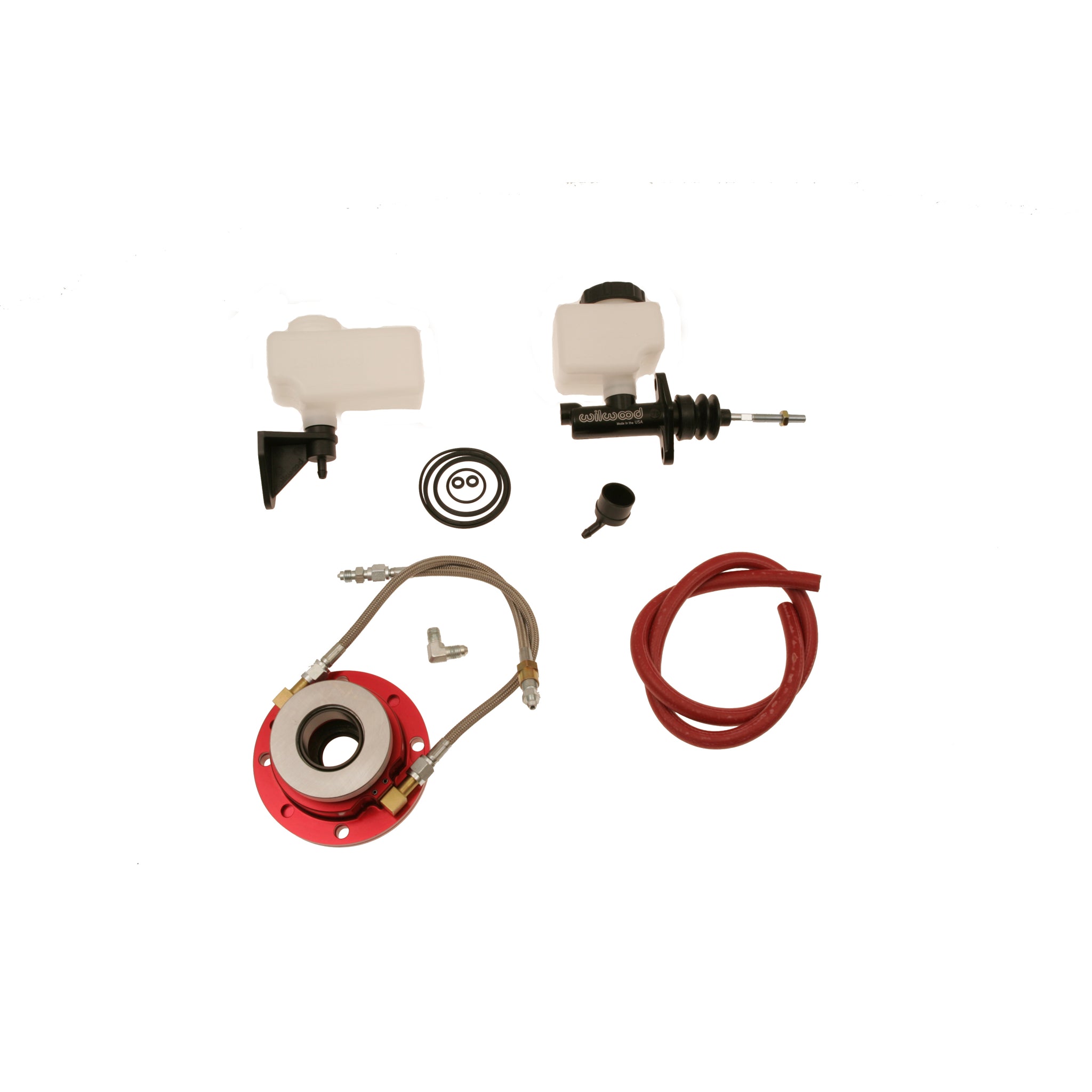

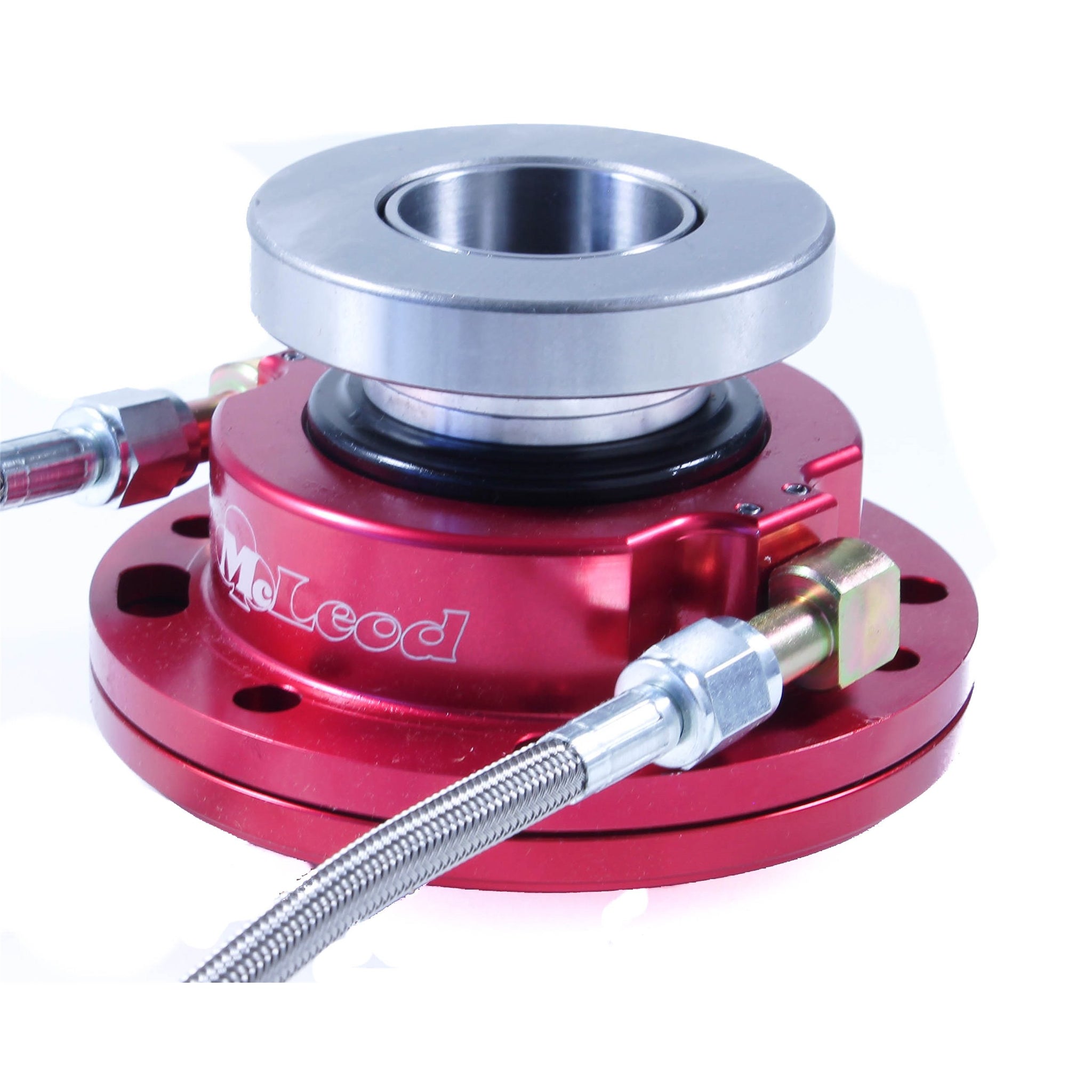

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Specifications:

Description_DEF Clutch Release Bearing
Description_EXT 1300 Series Hydraulic Bearing:Ford:Lenco CS,B&J: Bellhousing Mount:W-M/C:Each
Description_DES 1300 Series Hydraulic Bearing:Ford:Lenco CS,B&J: Bellhousing Mount:W-M/C:Each
Description_INV Hyd Bearing

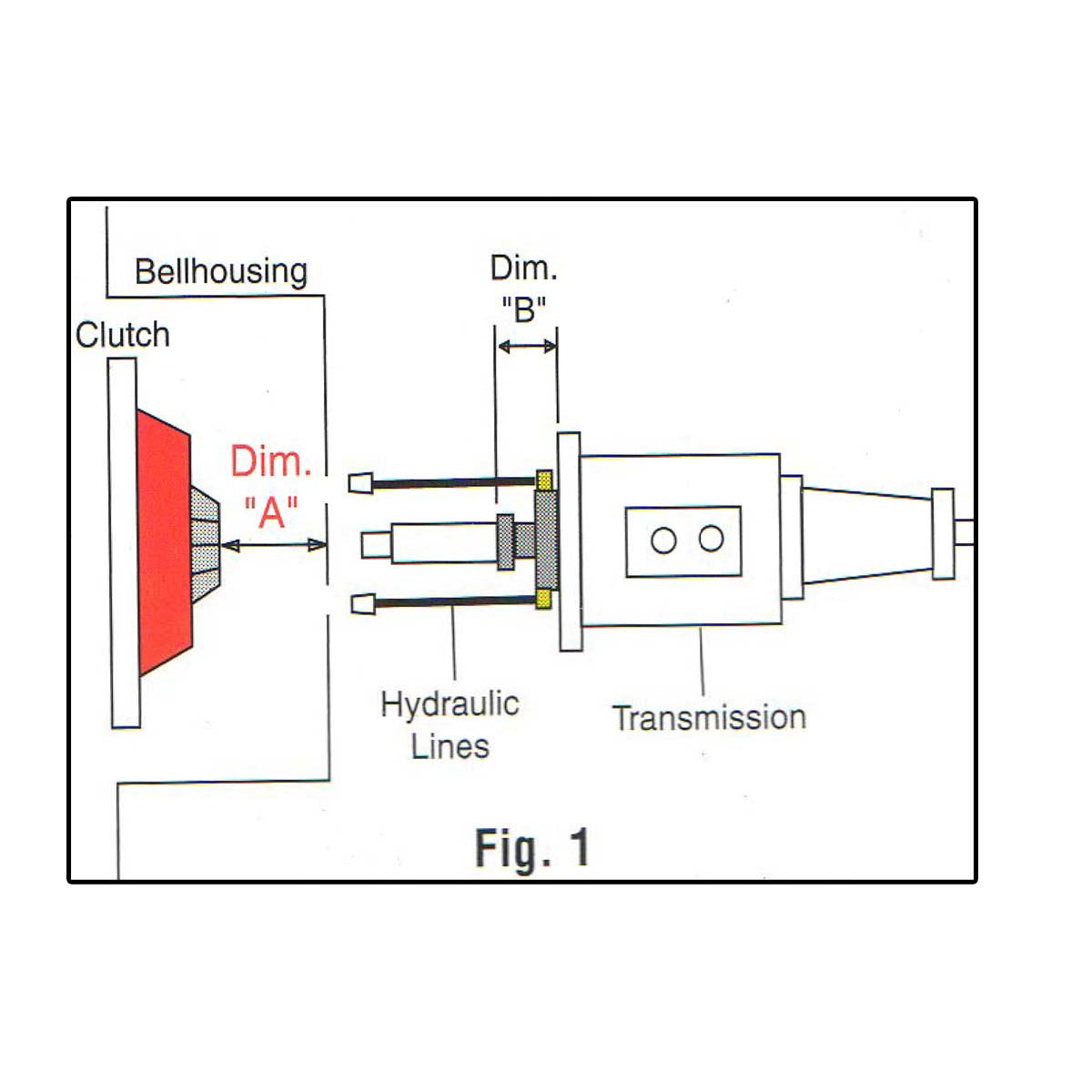

Description_FAB The 1300 Series Hydraulic Bearing. These units bolt in replacement of the factory bearing retianer when your "A" dimension is less than 3"
Description_SHO Hyd Bearing
Description_MKT Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
A Dimension 2.99In. or Less

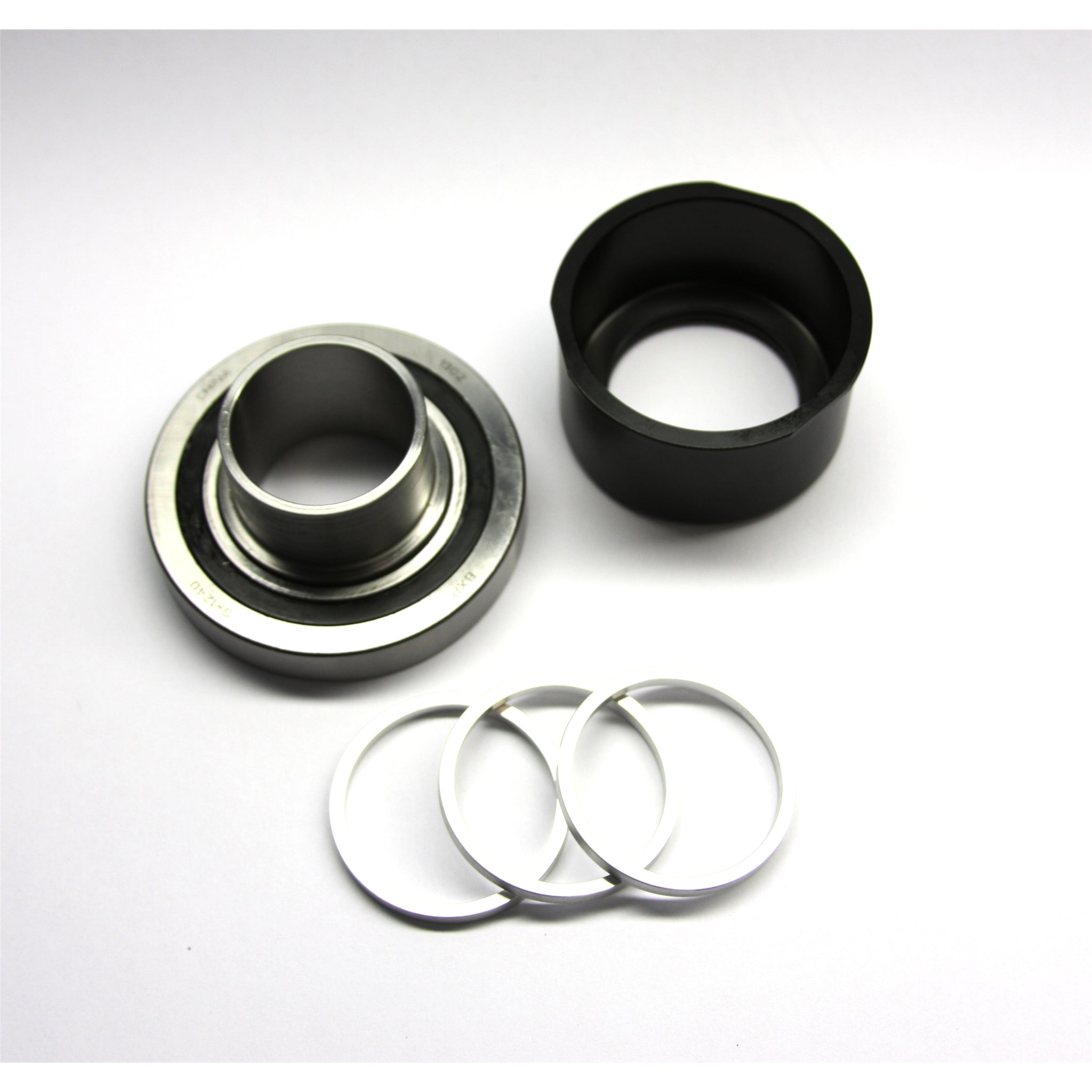

Height 1 Spacer 2.590In.
Height 2 Spacers 2.740
Height 3 Spacers 2.890In.
Bearing Face ID 1.59In.
Master Cylinder Universal
Output Port Thread 1/8In. NPT
Bearing Face OD 3.0In.
Stroke 1.2In.
Stock Collar I.D. 4.850In.

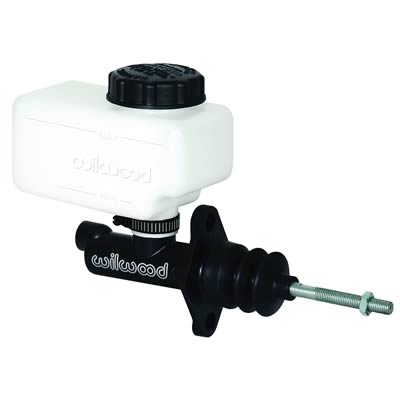

NOTE: This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
Bore Size 0.750In.
Length 3.0000
Width 6.0000
Height 13.0000
Weight 8.0000
