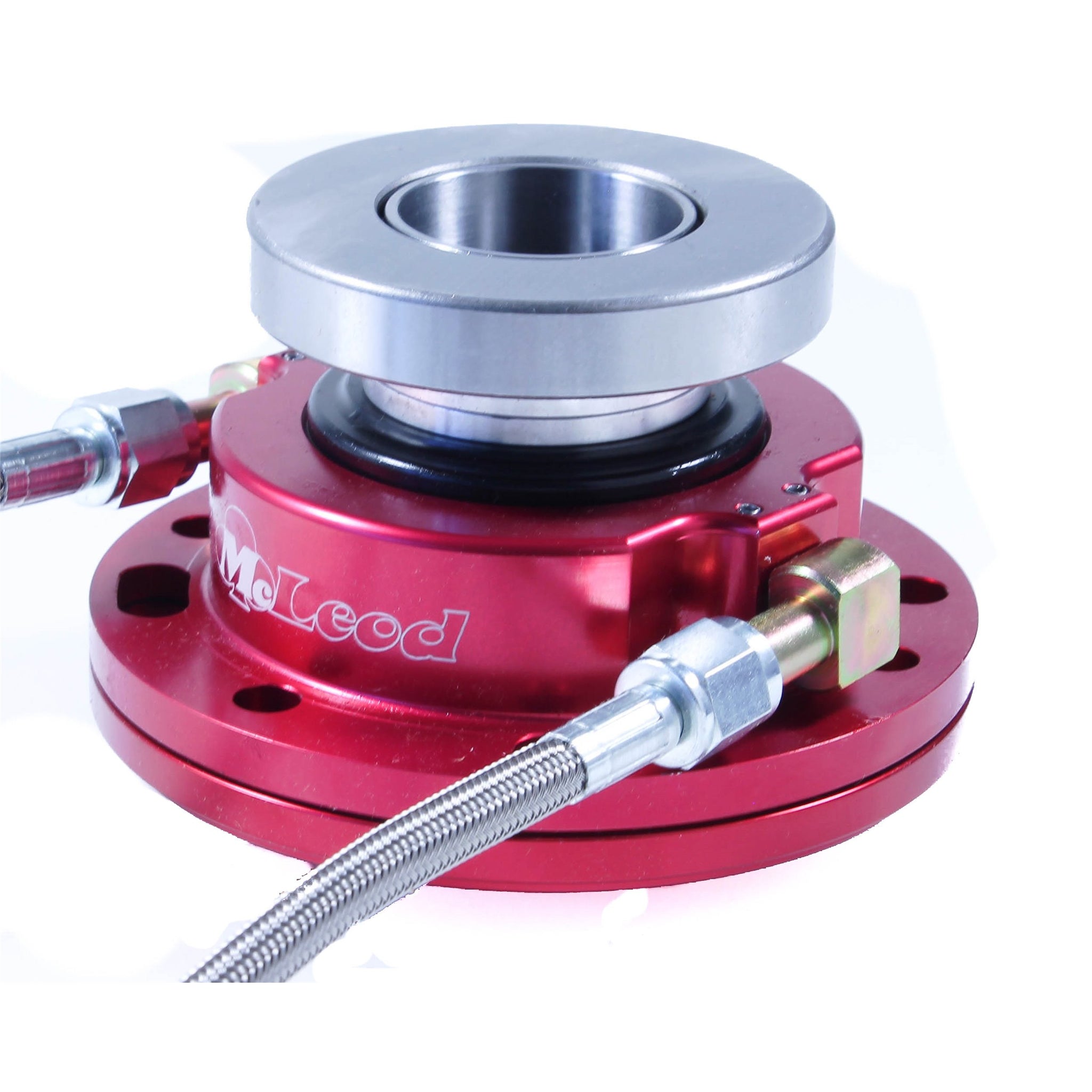

McLeod Racing 13515 1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each

2 sold in last 8 days

Brand: McLeod Racing

SKU: ds_BHGR_13515

Stock:

Product Code: Clutch Release Bearing

$747.21

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

McLeod Racing 13515 1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each

Details
Reviews

Details

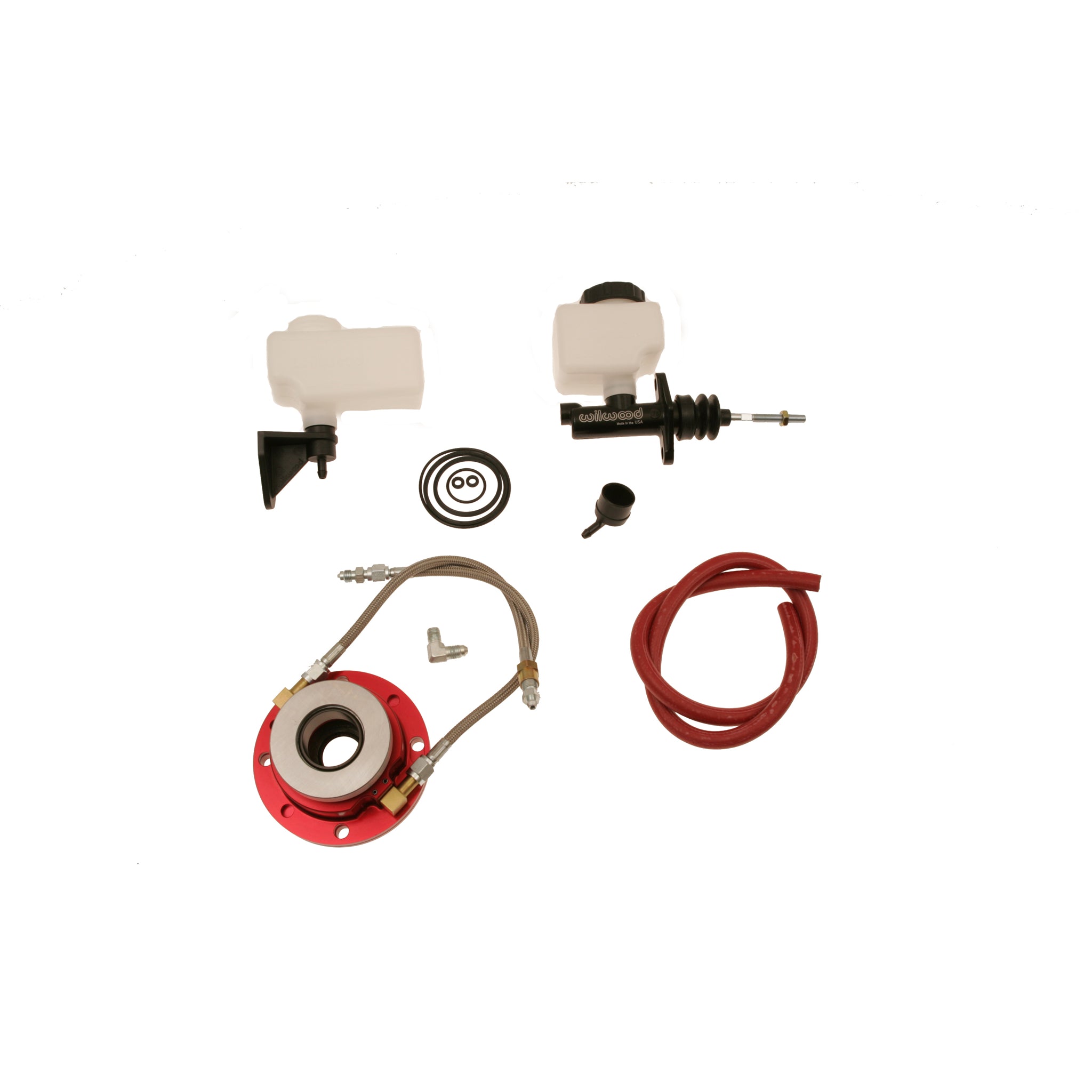

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Specifications:

Description_DEF	Clutch Release Bearing
Description_DES	1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each
Description_INV	Hyd Bearing
Description_EXT	1300 Series Hydraulic Bearing:GM:Lenco CS Series:Bellhousing Mount:W-M/C: Each

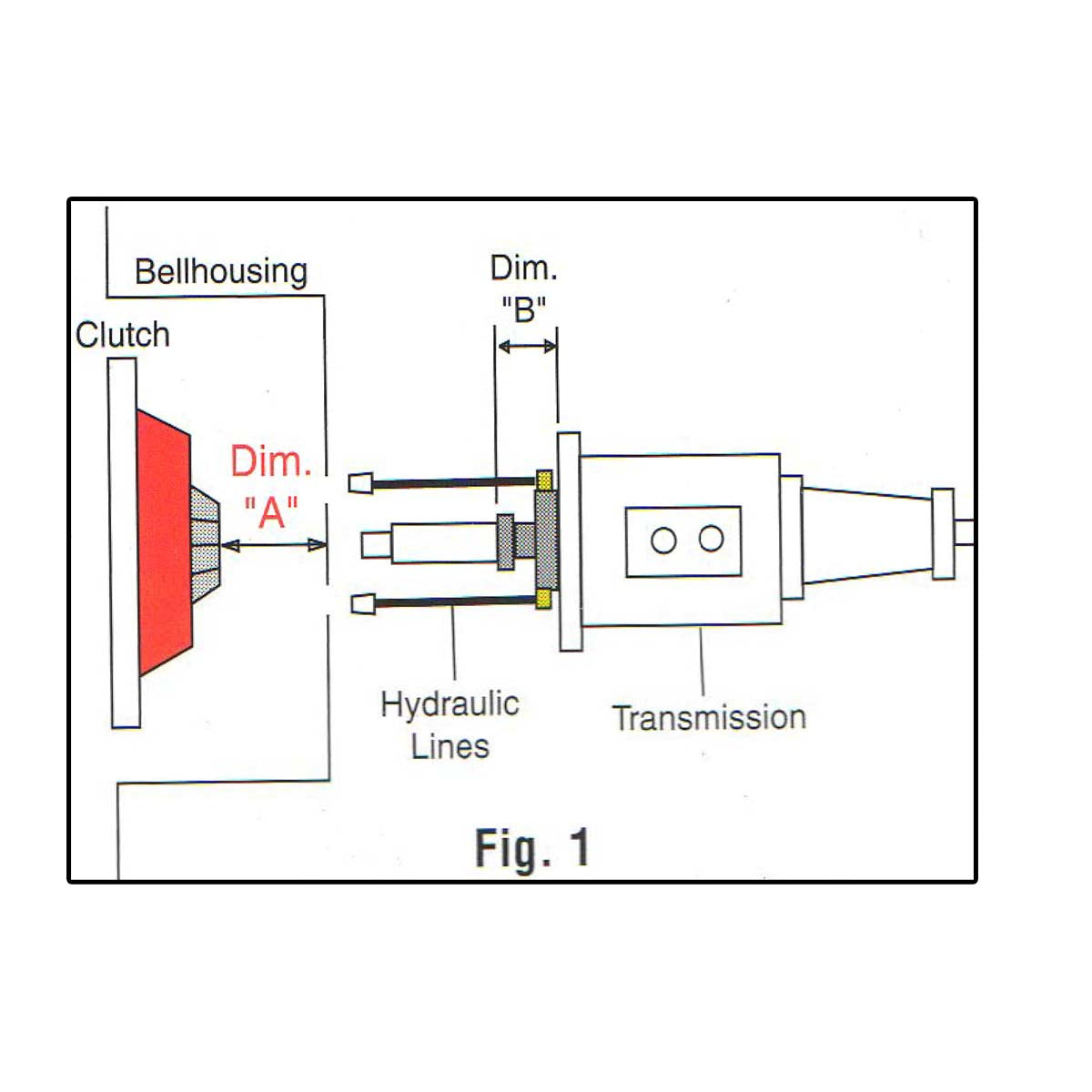

Description_FAB	The 1300 Series Hydraulic Bearing. These units bolt in replacement of the factory bearing retianer when your "A" dimension is less than 3"
Description_SHO	Hyd Bearing
Description_MKT	Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Stroke	1.2In.
Output Port Thread	1/8In. NPT
Stock Collar I.D.	4.850In.

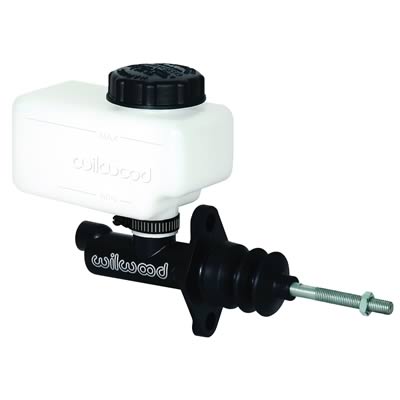

Master Cylinder	Universal
Bore Size	0.750In.
Bearing Face ID	1.59In.
NOTE:	This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
Bearing Face OD	3.0In.

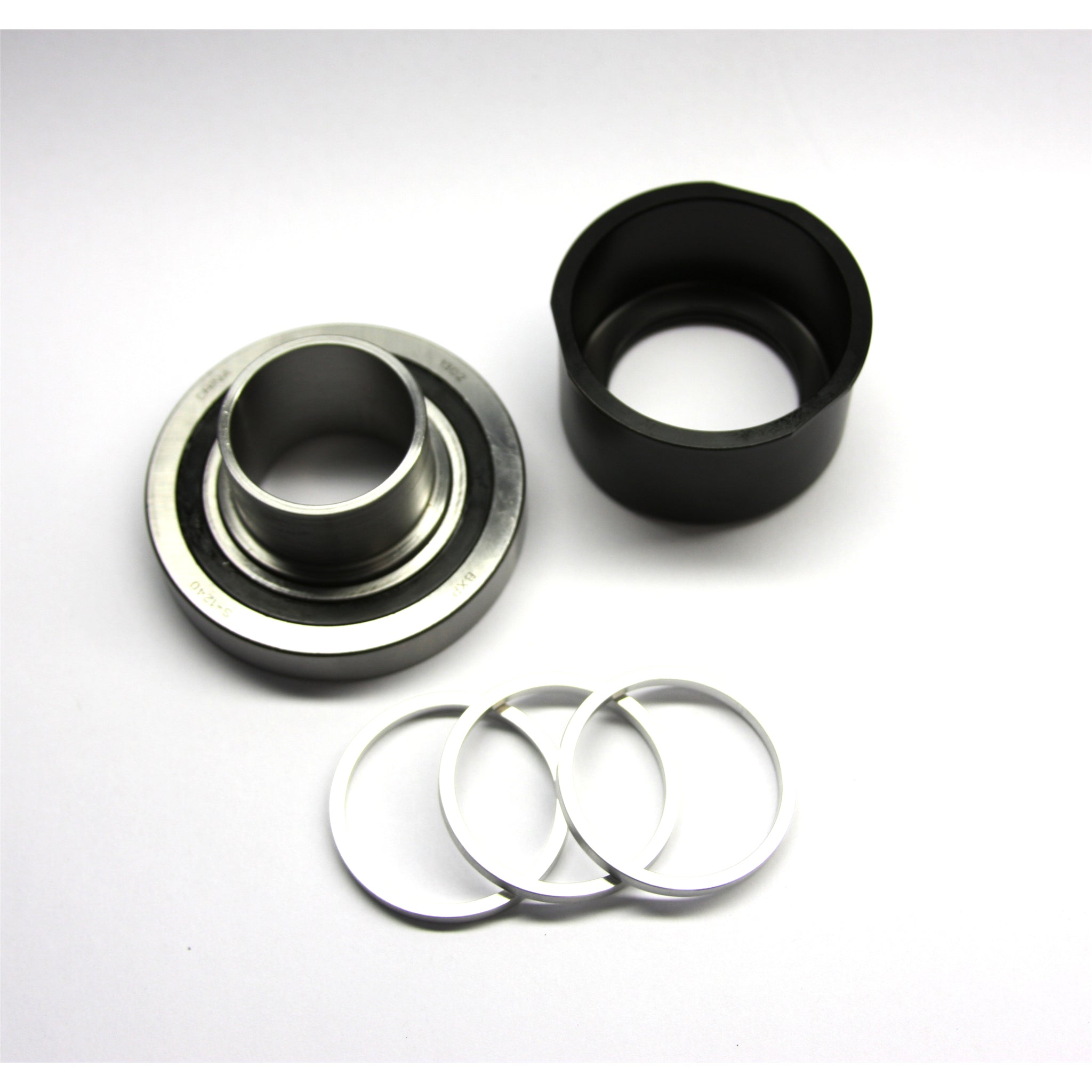

Height 3 Spacers	2.890In.
A Dimension	2.99In. or Less
Height 2 Spacers	2.740
Height 1 Spacer	2.590In.
Length	3.0000
Width	6.0000
Height	13.0000
Weight	8.0000
