This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! ** Square bore carburetors may require plate P/N 9006 to seal properly. Rotary A/C compressor will not clear on 1978 and later applications. The water cross over has 3/4 in. NPT x 1; 3/8 in. NPT x 2; 1/8 in. NPT x 1. The Manifold also has a 3/8 in. NPT Vacuum Port.
Specifications:
| Description_ASC |
Square bore carburetors may require
plate P/N 9006 to seal properly. Rotary
A/C compressor will not clear on 1978 and later applications.

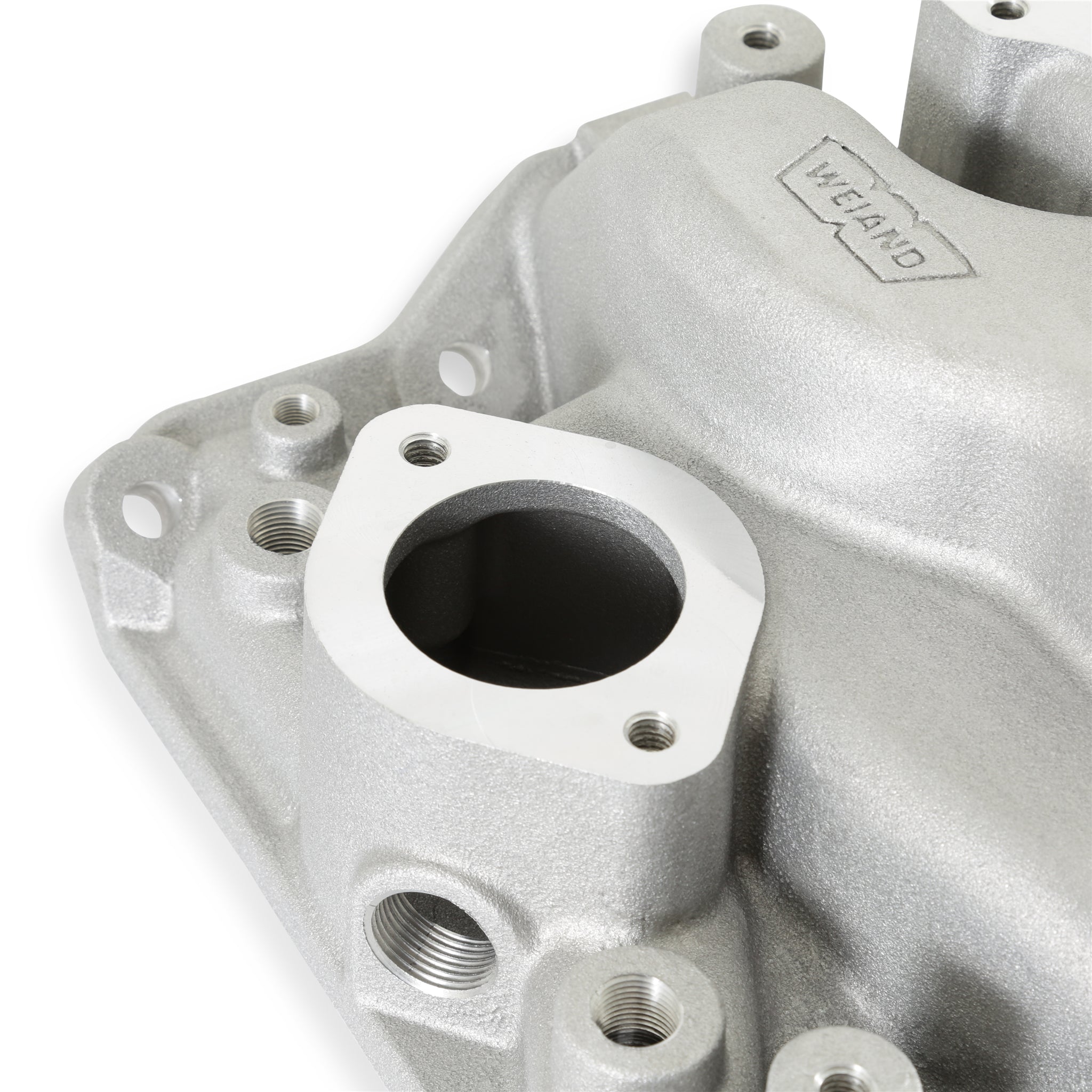

The water crossover has:
3/4" npt x 1
3/8" npt x 2
1/8" npt x 1

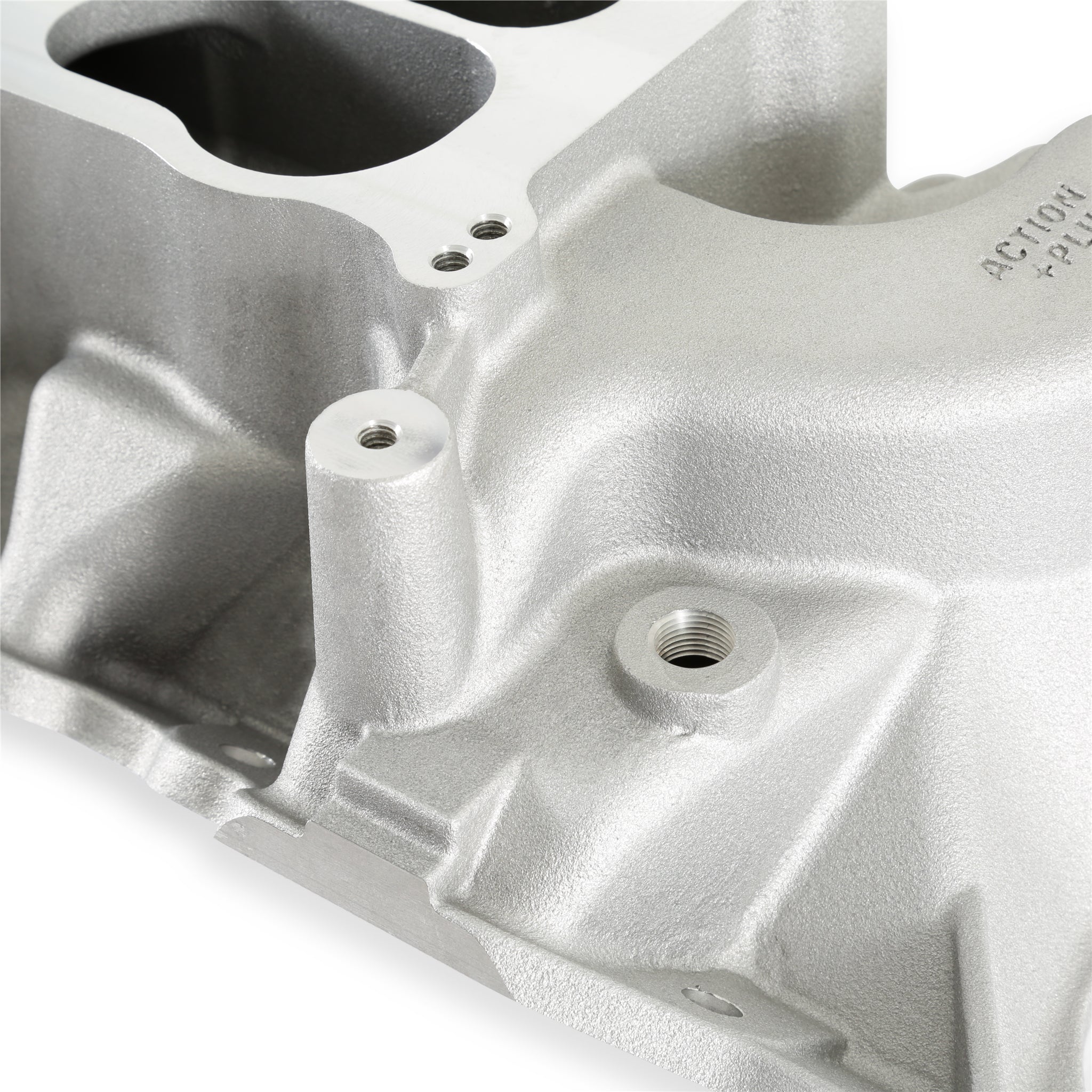

The manifold also has a 3/8" npt vacuum port. |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |

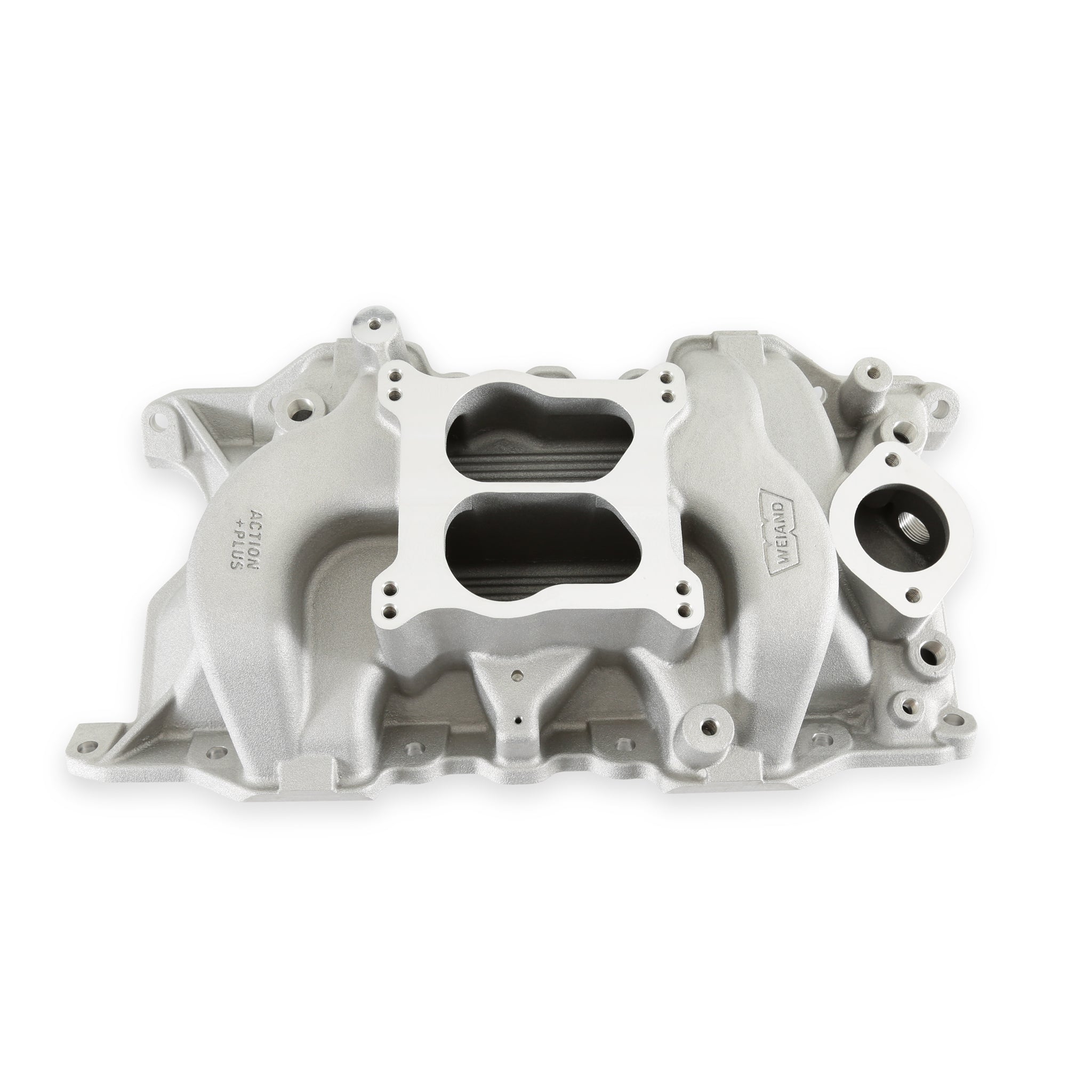

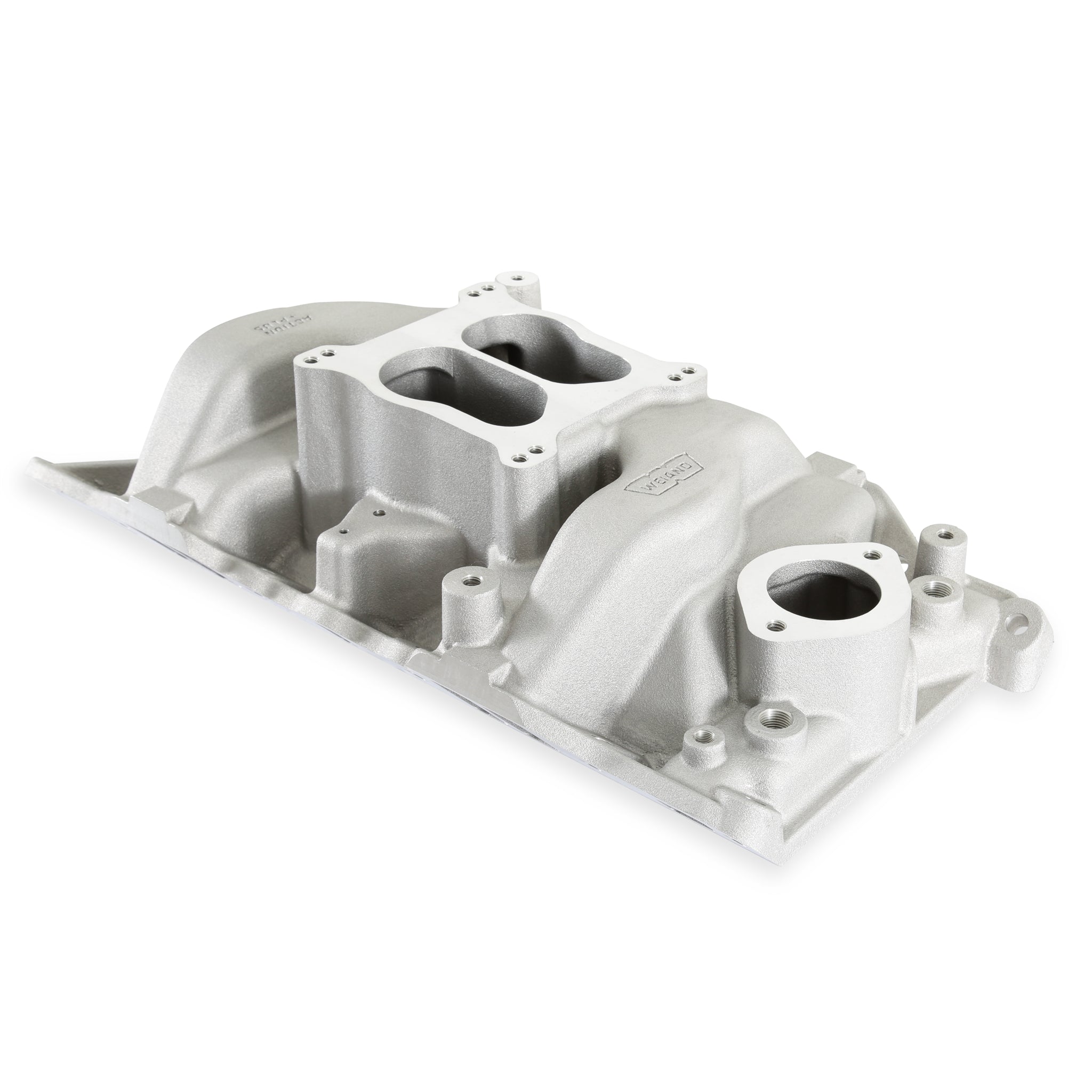

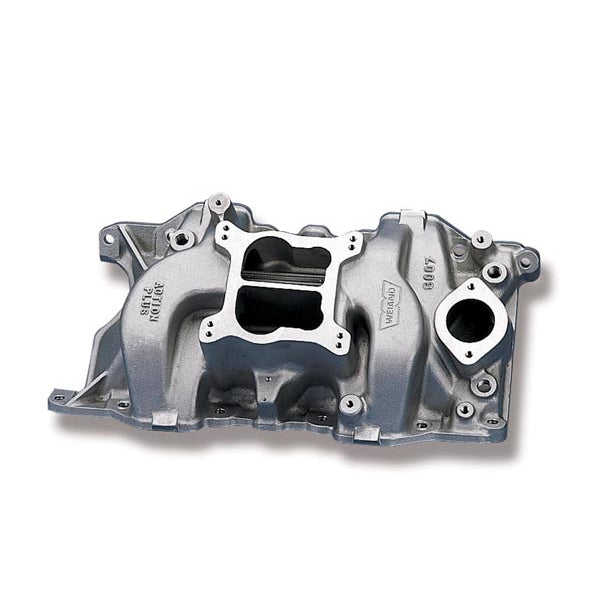

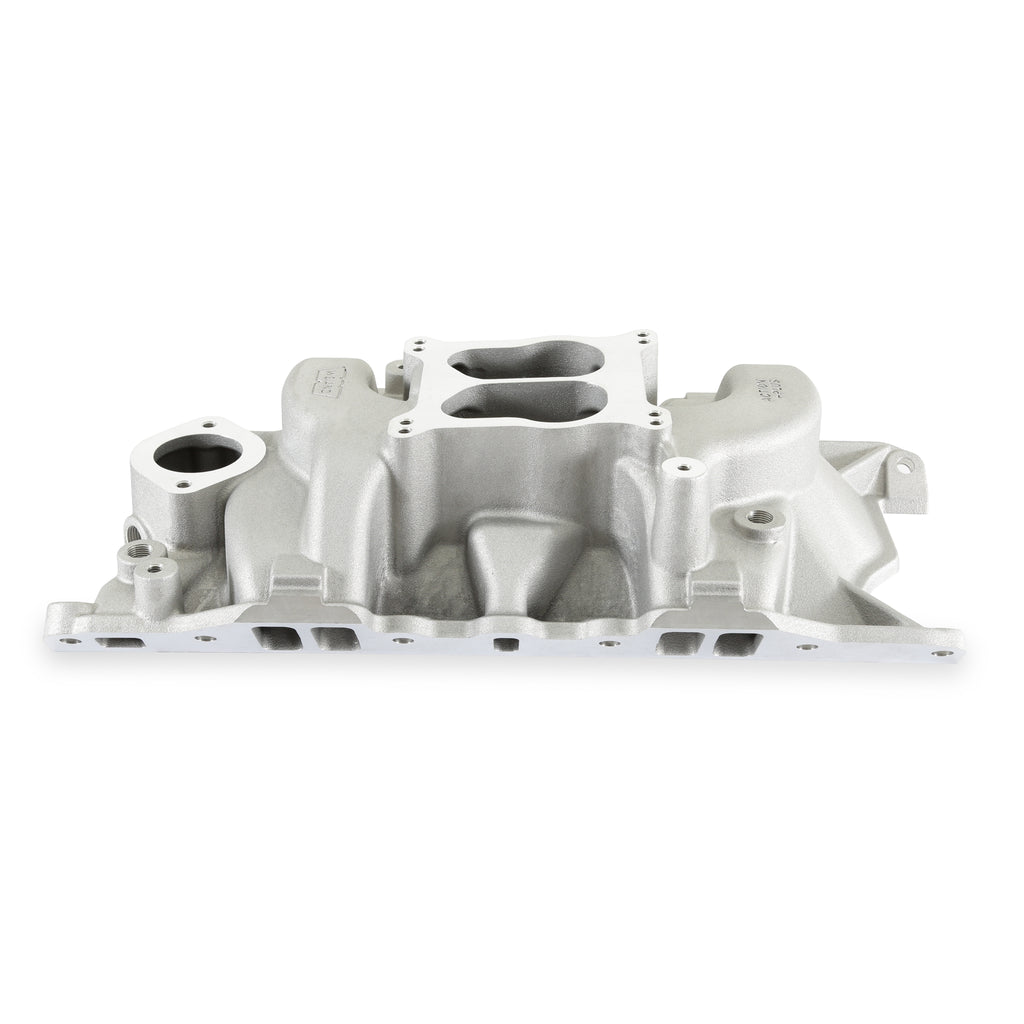

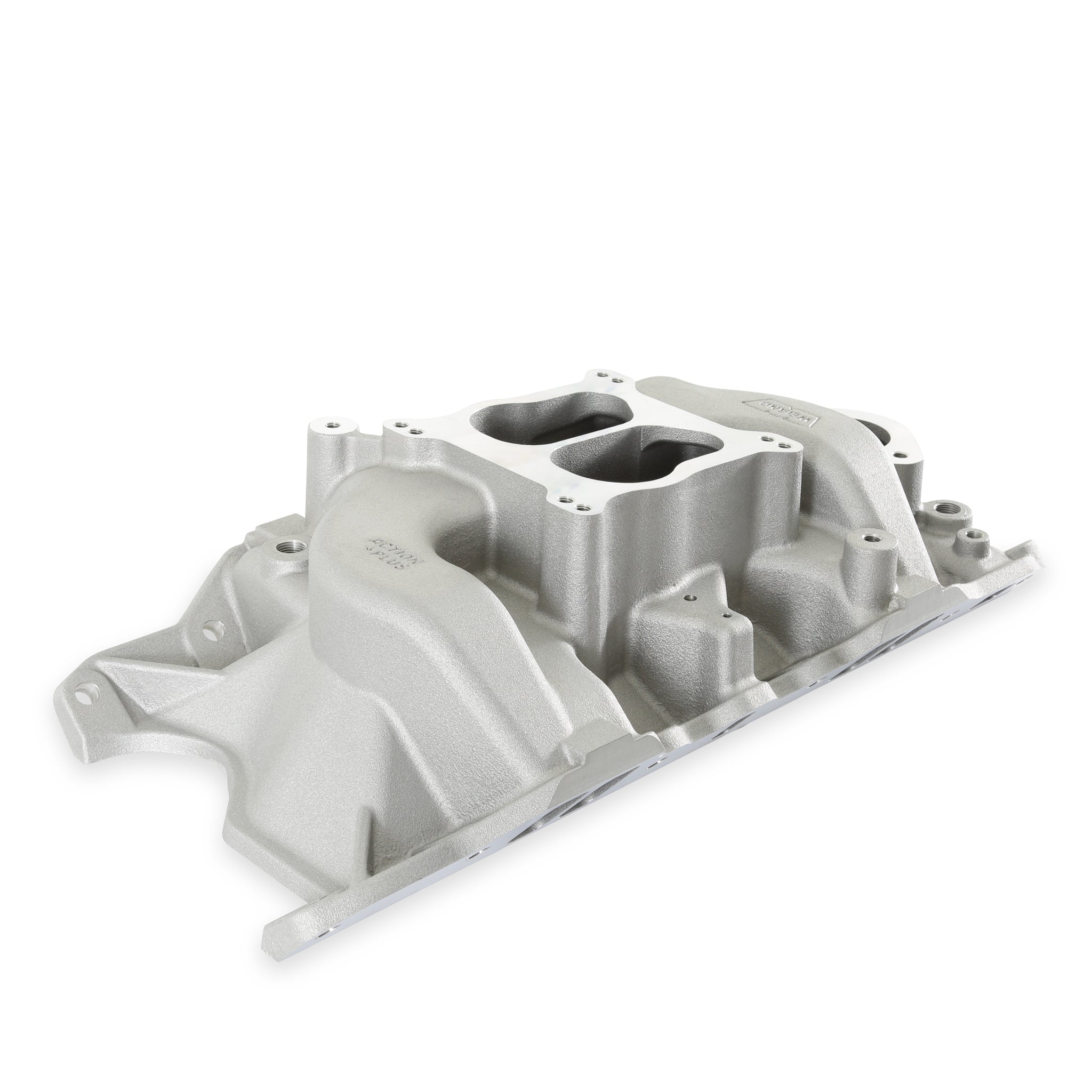

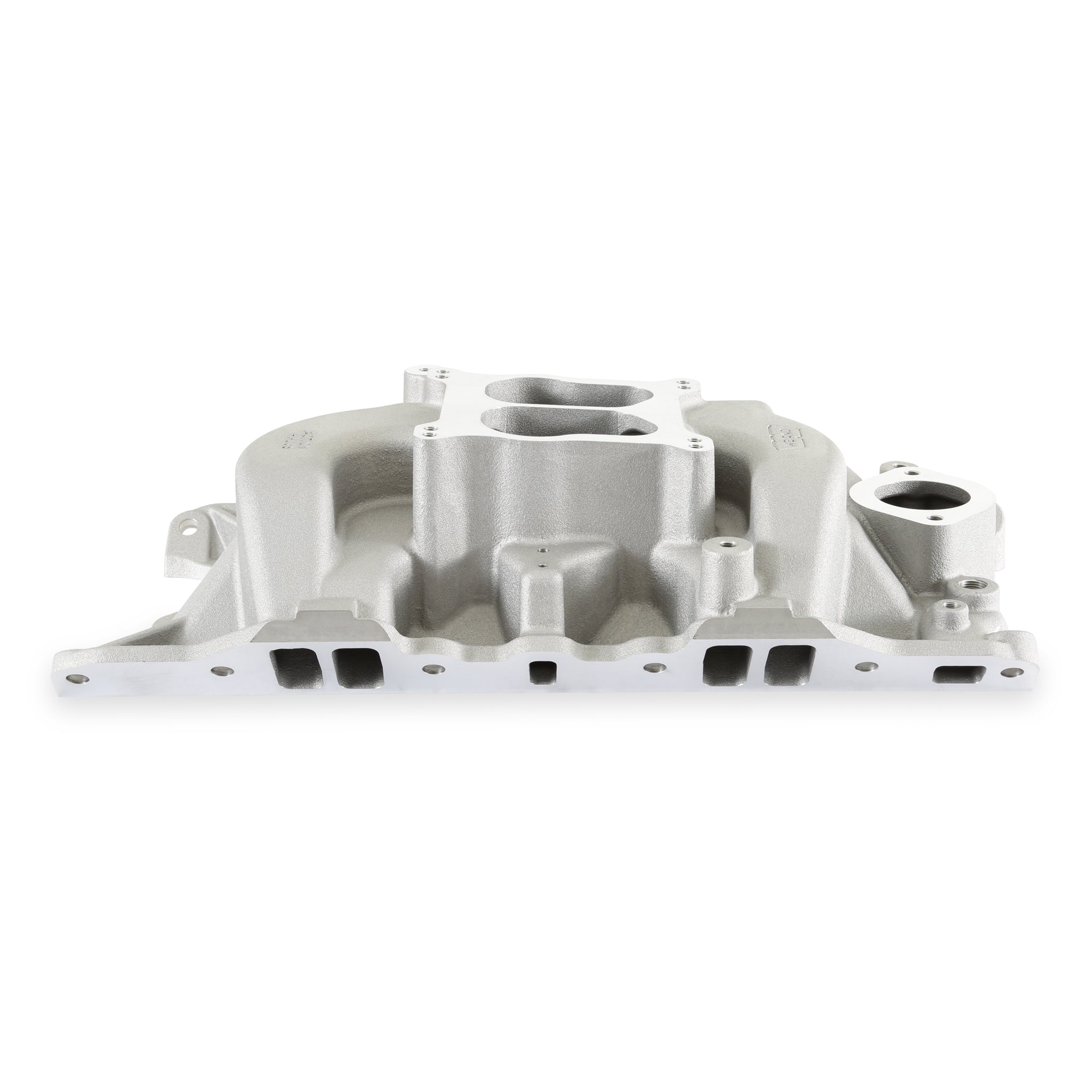

Weiand Action +Plus Intake - Chrysler Small Block V8 |
| Description_MKT |
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! ** Square bore carburetors may require plate P/N 9006 to seal properly. Rotary A/C compressor will not clear on 1978 and later applications. The water cross over has 3/4 in. NPT x 1; 3/8 in. NPT x 2; 1/8 in. NPT x 1. The Manifold also has a 3/8 in. NPT Vacuum Port. |
| Description_KEY |
mopar; nostalgia; hot; rod; 340; 360; small; block; intake; manifold; chrysler |
| Description_FAB |
Height Front 4.88 in.; Rear 5.94 in. |
| Description_FAB |
Port Size 1.96 in. Height x 1.00 in. Width |
| Description_FAB |
High Rise/Dual Plane Design For Maximum Torque |
| Description_FAB |
Permanent Mold Casting Process |
| Description_FAB |
Lighter/Smoother/Better Looking/Consistent Casting |
| Description_FAB |
Dyno Proven To Make 25hp Over Competition |
| Description_FAB |
Fully CNC Machined For A Perfect Fit |
| Description_FAB |

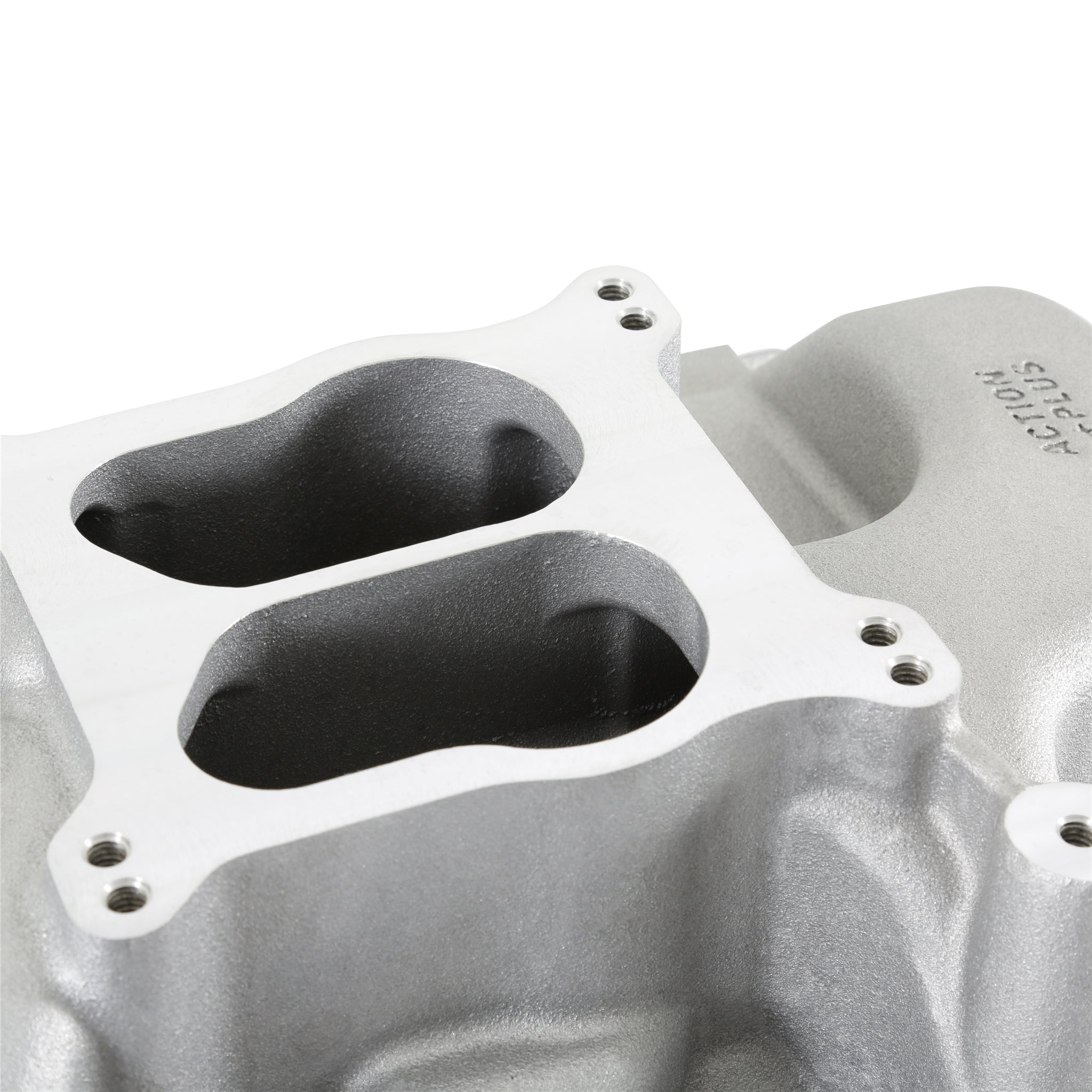

Square Bore Carburetor Flange |
| Description_FAB |
Exhaust Crossover For Improved Street Drivability |
| Description_INV |
CHRY S/B ACTION PLUS |
| Description_EXT |
Action +Plus Intake Manifold; Lower; Power Band Idle-6000 RPM; High Rise; Universal Mounting Flange; 4.88 in. Front H/5.94 in. Rear H; No EGR Provisions; Satin Finish; |
| Description_SHO |
Intake Manifold |
| Cylinder Head Type |
Standard |
| Finish |
Satin |
| RPM Range |
Idle-6000 |
| Usage |
Street/Strip |
| Barrels |
4 |
| Emission Code |
3 |
| Color |
Natural |
| Barrel |
Four |
| Construction |
Cast |
| Emission |
Without EGR |
| Fuel System Type |
Carb |
| Manifold Type |
High Rise |
| Position |
Lower |
| Rear Height |
5.940 in. |
| RPM Power Band |
Idle-6000 |
| Engine Make/Size |
Chrysler Small Block V8 |
| Front Height |
4.880 in. |
| Number of Carbs |
One |
| WARNING CA Proposition 65 |
No |
| Brand |
Weiand |
| Engine |
Chrysler Small Block V8 |
| Product Type |
Intake Manifold |
| Warranty |
Limited 90 Day |
| Length |
7.1000 |
| Width |
14.3000 |
| Height |
22.5000 |
| Weight |
21.7600 |
