The WEIAND X-CELerator (TM) SERIES: 360 degrees, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a
Specifications:
| Description_DEF |
Engine Intake Manifold |
| Description_DES |

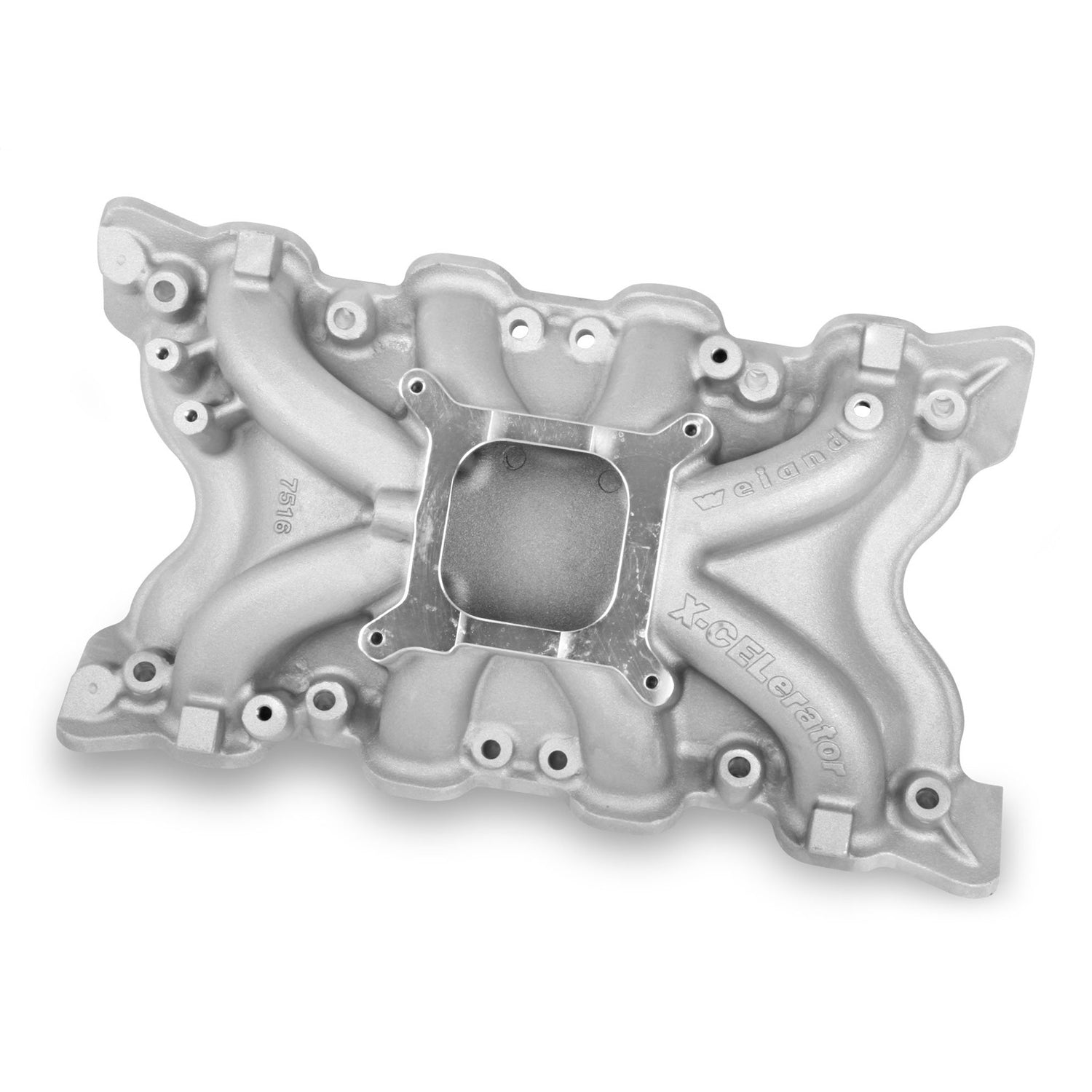

Weiand X-CELerator Intake - Ford Small Block V8 - 351C |
| Description_FAB |
Single Plane Design |
| Description_FAB |
Square Carburetor Mounting Flange |
| Description_FAB |
Power band: 1500-7000 RPM |
| Description_FAB |
Height: Front 4.28", Rear 5.36" |
| Description_FAB |
Port Size: 1.95" height 1.34" width |
| Description_FAB |
No EGR provision |
| Description_FAB |
New updated casting design |
| Description_EXT |
X-CELerator Intake Manifold; Upper; Power Band 1500-7000 RPM; Low Rise; w/2V Heads; Square Carb Mounting Flange; 4.28 in. Front H/5.36 in. Rear Height; Satin Finish; |
| Description_INV |
FORD 351C (2V) S/Q X-CEL |
| Description_MKT |
The WEIAND X-CELerator (TM) SERIES: 360 degrees, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a |
| Description_MKT |
higher compression ratio, 280 degrees or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, is |
| Description_MKT |
highly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4V |
| Description_MKT |
applications where increased torque and power is required in the mid and high rpm ranges. |
| Description_SHO |
Intake Manifold |
| Cylinder Head Type |
Standard |
| Emission Code |
3 |
| Engine |
Ford Cleveland |
| Rear Height |
5.360 in. |
| Emission |
Without EGR |
| Brand |
Weiand |
| Construction |
Cast |
| Finish |
Satin |
| Manifold Type |
Low Rise |
| Number of Carbs |
One |
| Position |
Upper |
| Usage |
Street/Strip |
| WARNING CA Proposition 65 |
No |
| Product Type |
Intake Manifold |
| Engine Make/Size |
Ford Small Block V8 |
| Front Height |
4.280 in. |
| Fuel System Type |
Carb |
| RPM Range |
1500-7000 |
| RPM Power Band |
1500-7000 |
| Warranty |
Limited 90 Day |
| Color |
Natural |
| Length |
7.2000 |
| Width |
14.4000 |
| Height |
22.5000 |
| Weight |
16.9500 |
