Engine Swap-In-A-Box Kit; Installs GM LS (Gen III/IV) Engine with FACTORY Heads in 1982-04 (2WD only) Chevy/GMC S10, S15, Blazer Vehicle Family; Standard-Duty, Mild Steel, 1-1/2 in MID-LENGTH Headers- BLACK-MAXX Black Ceramic Coated Headers
Specifications:
| Description_ASM |
1982-2003 Chevrolet S10 CID 294 4.8 Liter RWD, 1982-2003 Chevrolet S10 CID 325 CC 5328 5.3 Liter RWD, 1982-2003 Chevrolet S10 CID 364 CC 5967 6.0 Liter RWD, 1982-2003 Chevrolet S10 CID 376 CC 6162 6.2 Liter RWD, 1983-1994 Chevrolet S10 Blazer CID 294 4.8 Liter RWD, 1983-1994 Chevrolet S10 Blazer CID 325 CC 5328 5.3 Liter RWD, 1983-1994 Chevrolet S10 Blazer CID 364 CC 5967 6.0 Liter RWD, 1983-1994 Chevrolet S10 Blazer CID 376 CC 6162 6.2 Liter RWD, 1982-1990 GMC S15 CID 294 4.8 Liter RWD, 1982-1990 GMC S15 CID 325 CC 5328 5.3 Liter RWD, 1982-1990 GMC S15 CID 364 CC 5967 6.0 Liter RWD, 1982-1990 GMC S15 CID 376 CC 6162 6.2 Liter RWD, 1983-1991 GMC S15 Jimmy CID 294 4.8 Liter RWD, 1983-1991 GMC S15 Jimmy CID 325 CC 5328 5.3 Liter RWD, 1983-1991 GMC S15 Jimmy CID 364 CC 5967 6.0 Liter RWD, 1983-1991 GMC S15 Jimmy CID 376 CC 6162 6.2 Liter RWD, 1991-2003 GMC Sonoma CID 294 4.8 Liter RWD, 1991-2003 GMC Sonoma CID 325 CC 5328 5.3 Liter RWD, 1991-2003 GMC Sonoma CID 364 CC 5967 6.0 Liter RWD, 1991-2003 GMC Sonoma CID 376 CC 6162 6.2 Liter RWD, 1996-2000 Isuzu Hombre CID 294 4.8 Liter RWD, 1996-2000 Isuzu Hombre CID 325 CC 5328 5.3 Liter RWD, 1996-2000 Isuzu Hombre CID 364 CC 5967 6.0 Liter RWD, 1996-2000 Isuzu Hombre CID 376 CC 6162 6.2 Liter RWD |
| Description_DES |
S10 / LS SWAP IN A BOX KIT- BLACK MAXX HEADERS |
| Description_EXT |
Engine Swap-In-A-Box Kit; Installs GM LS (Gen III/IV) Engine with FACTORY Heads in 1982-04 (2WD only) Chevy/GMC S10, S15, Blazer Vehicle Family; Standard-Duty, Mild Steel, 1-1/2 in MID-LENGTH Headers- BLACK-MAXX Black Ceramic Coated Headers |
| Description_DEF |
Engine Retrofit Kit |
| Description_SHO |
ENGINE SWAP IN A BOX |
| Description_INV |
TRANS-DAPT LS ENGINE SWAP IN A BOX KIT |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
No |
| Baffled |
No |
| Bolts/Studs Included |
Yes |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Header Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| IMPORTANT! |
Some LS have dipstick in pan and will require drilling of dipstick port on block |
| Fluid Capacity |
5 Qt |

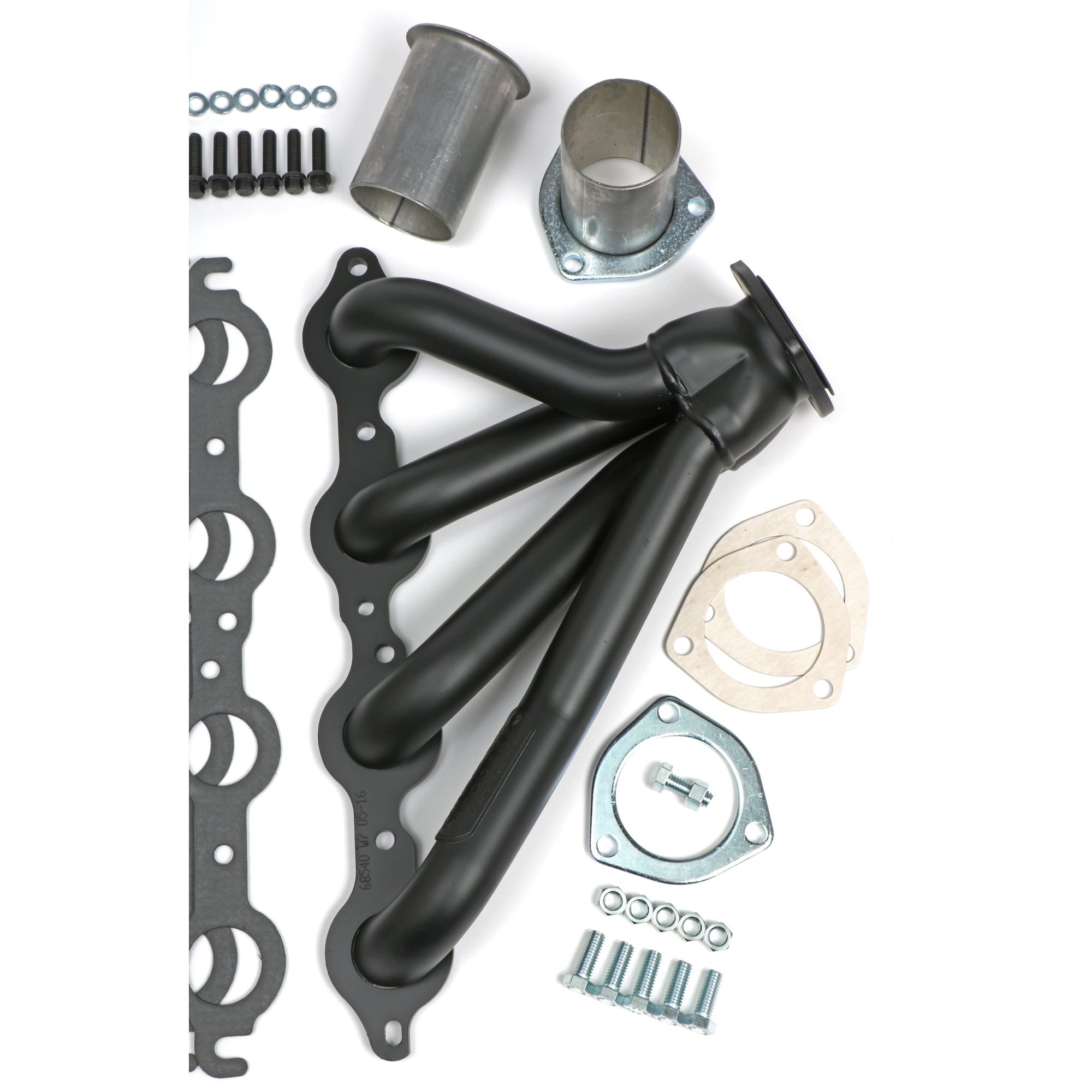

| Header Style |
Mid-Length Tube |
| Engine |
Chevy LS Series |
| Capacity |
5 Qts. |
| Gasket Or Seal Included |
Yes |
| Emissions Notes |
Not legal for sale or use in California, or on pollution controlled vehicles. |
| Collector Style |
3-Bolt Gasket Style Flange |
| Installation Notes |

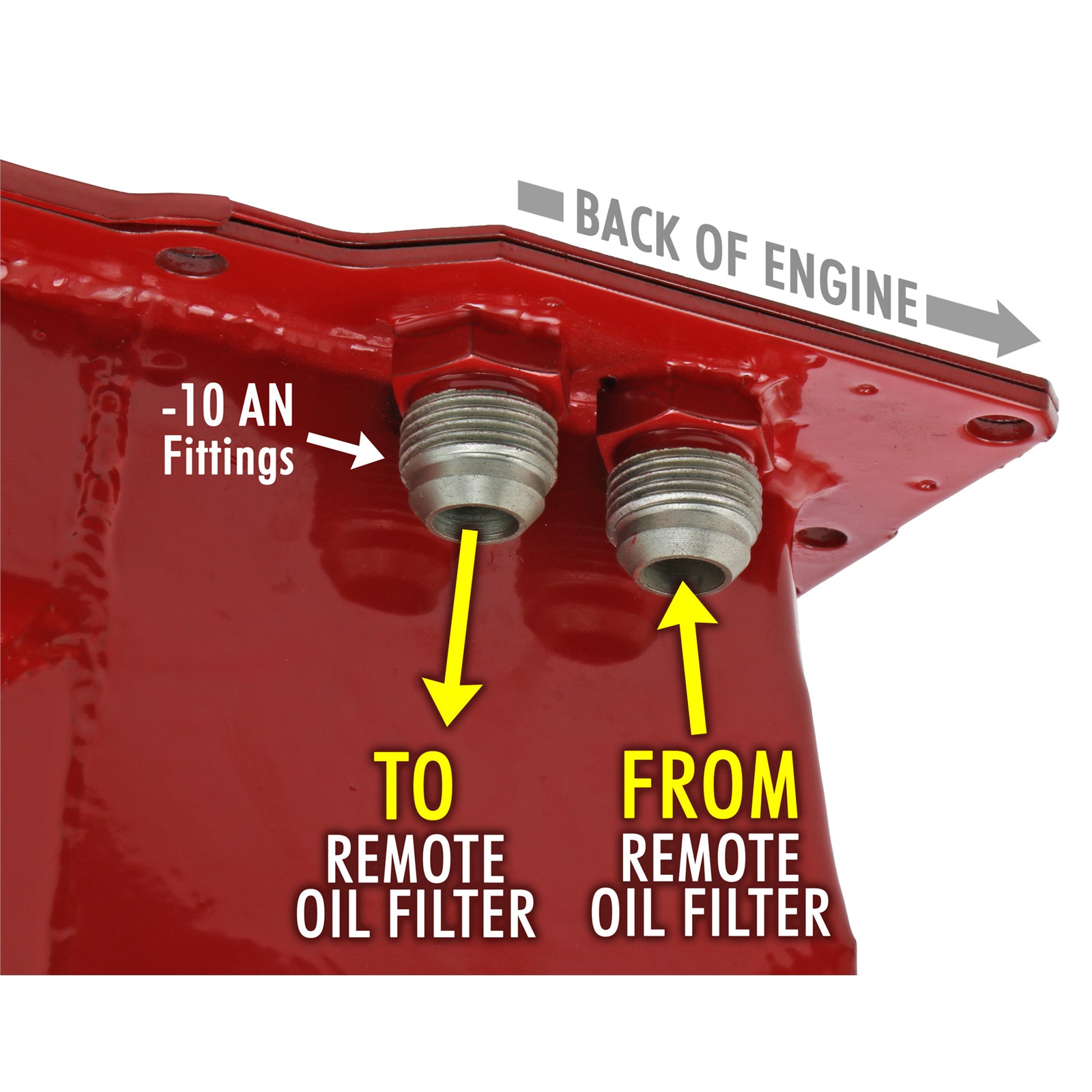

Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter. |
| Manual Transmission - Column |
No |
| Collector Attachment |
2-1/2 in. |
| Drivetrain |
2WD |
| Installation Hardware Included |
Yes |
| Cylinder Head |
Factory Style |
| Header Fasteners Included |
Yes |
| Finish Type |
BLACK MAXX- Black Ceramic-Metallic Coating |
| Header Material |
Mild Steel |
| Collector Size |
2-1/2 in. |
| Dipstick Port |
No |

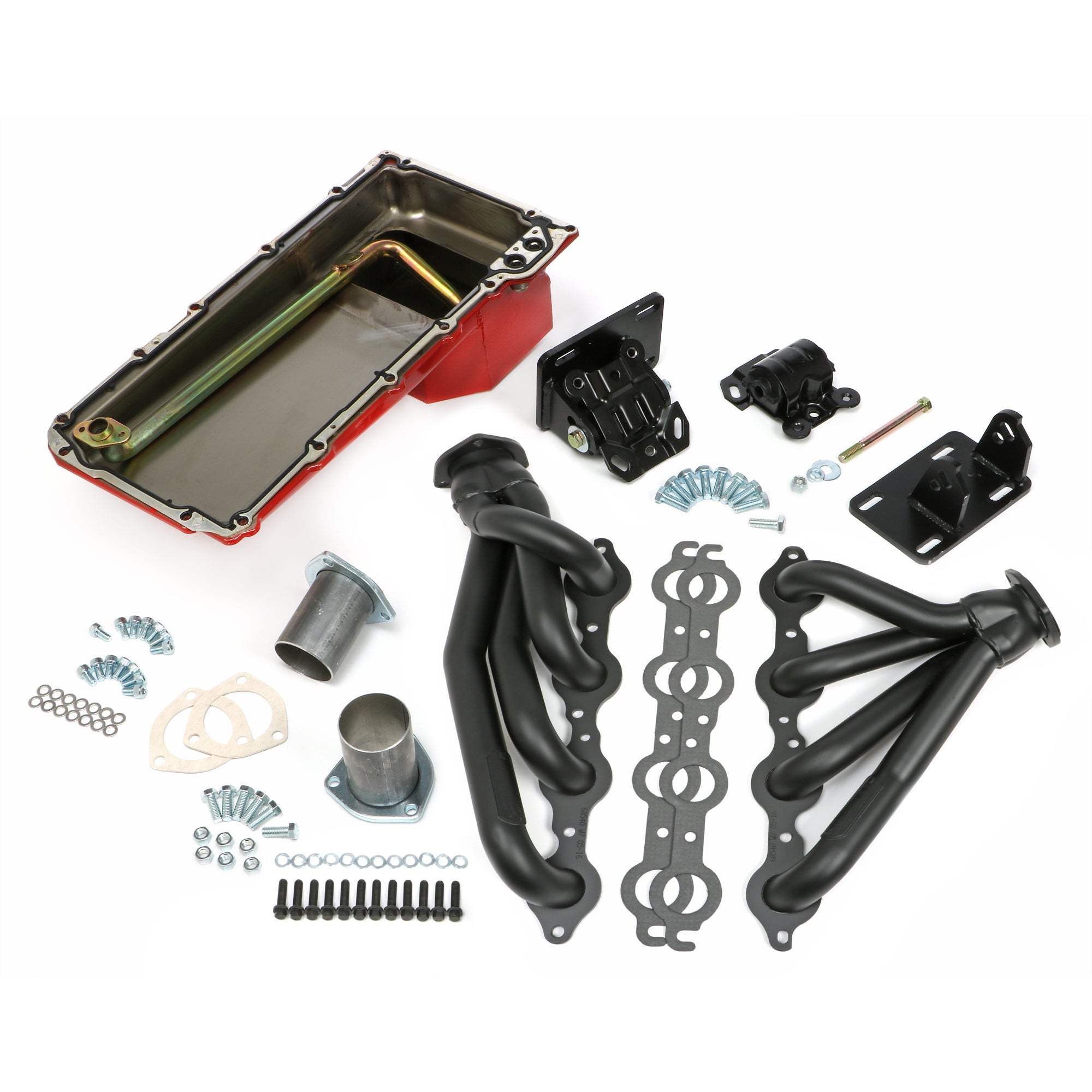

| Contents |
Headers; Engine Mounts; Oil Pan; related gaskets and Hardware |
| Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Drain Plug Included |
Yes |
| Head Style |
Factory Profile |
| Kicked Out |
No |
| Flange Thickness |
0.375 in. |
| Collector Bolts Included |
Yes |
| Crank Shaft Wiper Included |
No |
| Exhaust System Dia |
3 in. |
| Head Type |
Factory Heads |
| Pickup # |
2522 |
| Product Details |
Engine swap kit for installing an LS engine into 1982-2004 Chevy/GMC S10/S15 Trucks |
| Material |
Mild Steel |

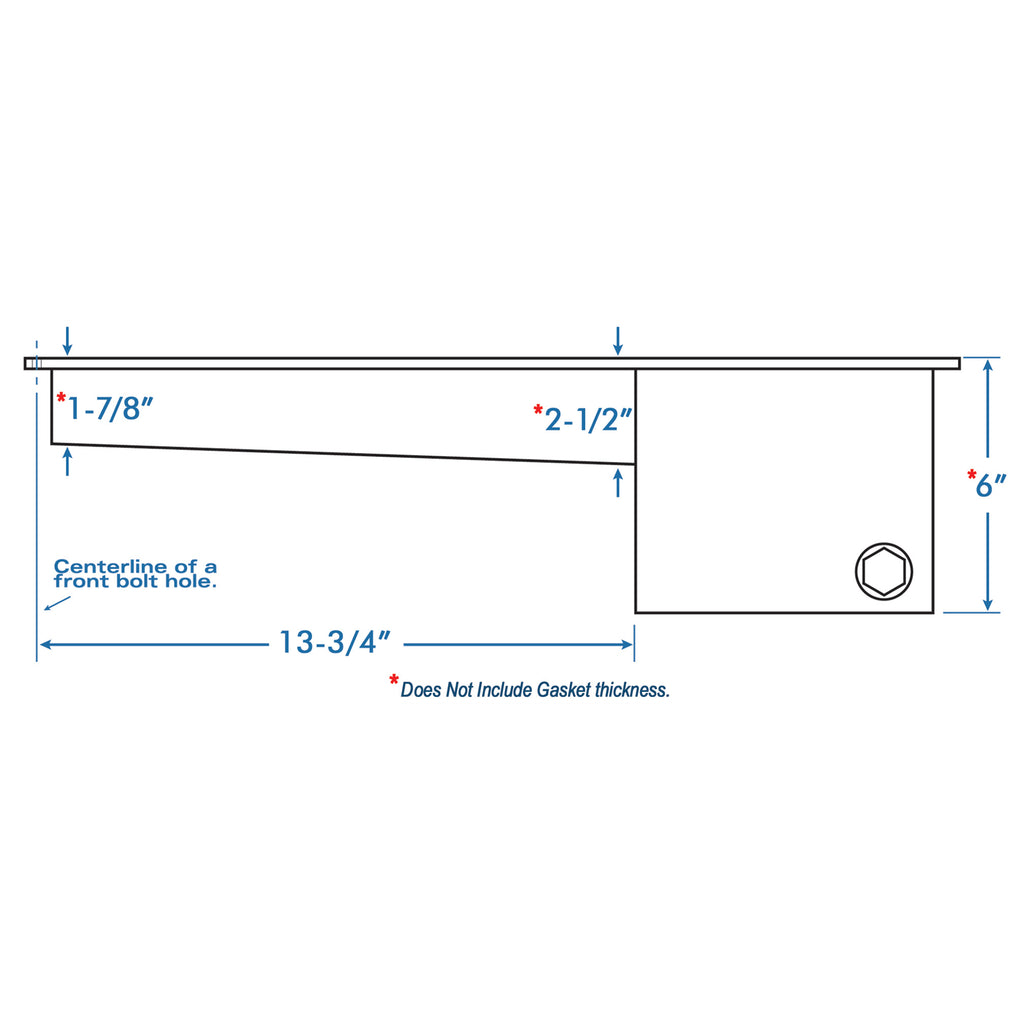

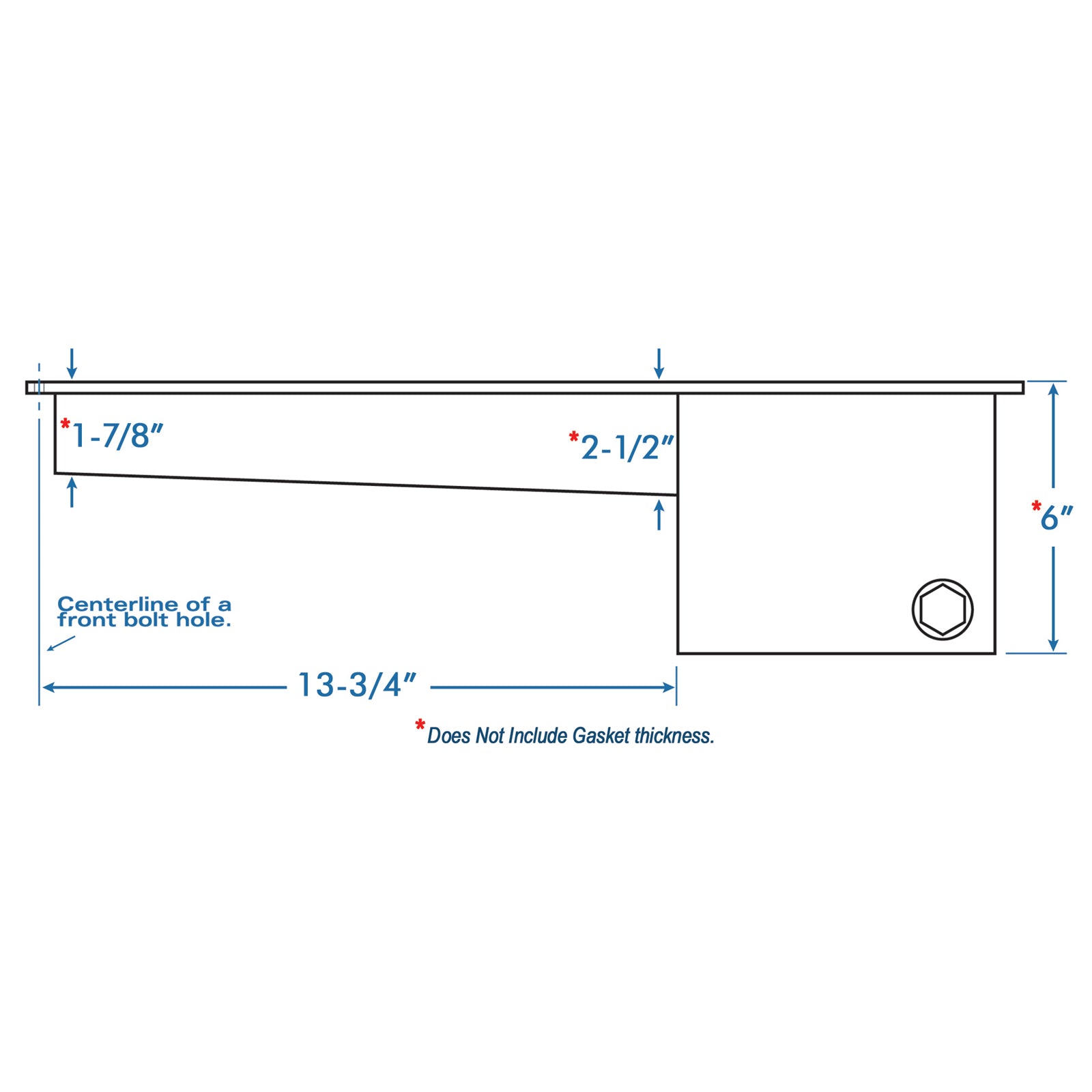

| Oil Pan Depth (in) |
6 in. |
| Primary Tube Diameter (in) |
1.50 in. |
| O2 Sensors Included |
No |
| O2 Provision |
No |
| Pickup Included |
Yes |
| Port Shape |
Round |
| Power Steering |
Yes |
| Oil Pan Bolts Included |
Yes |

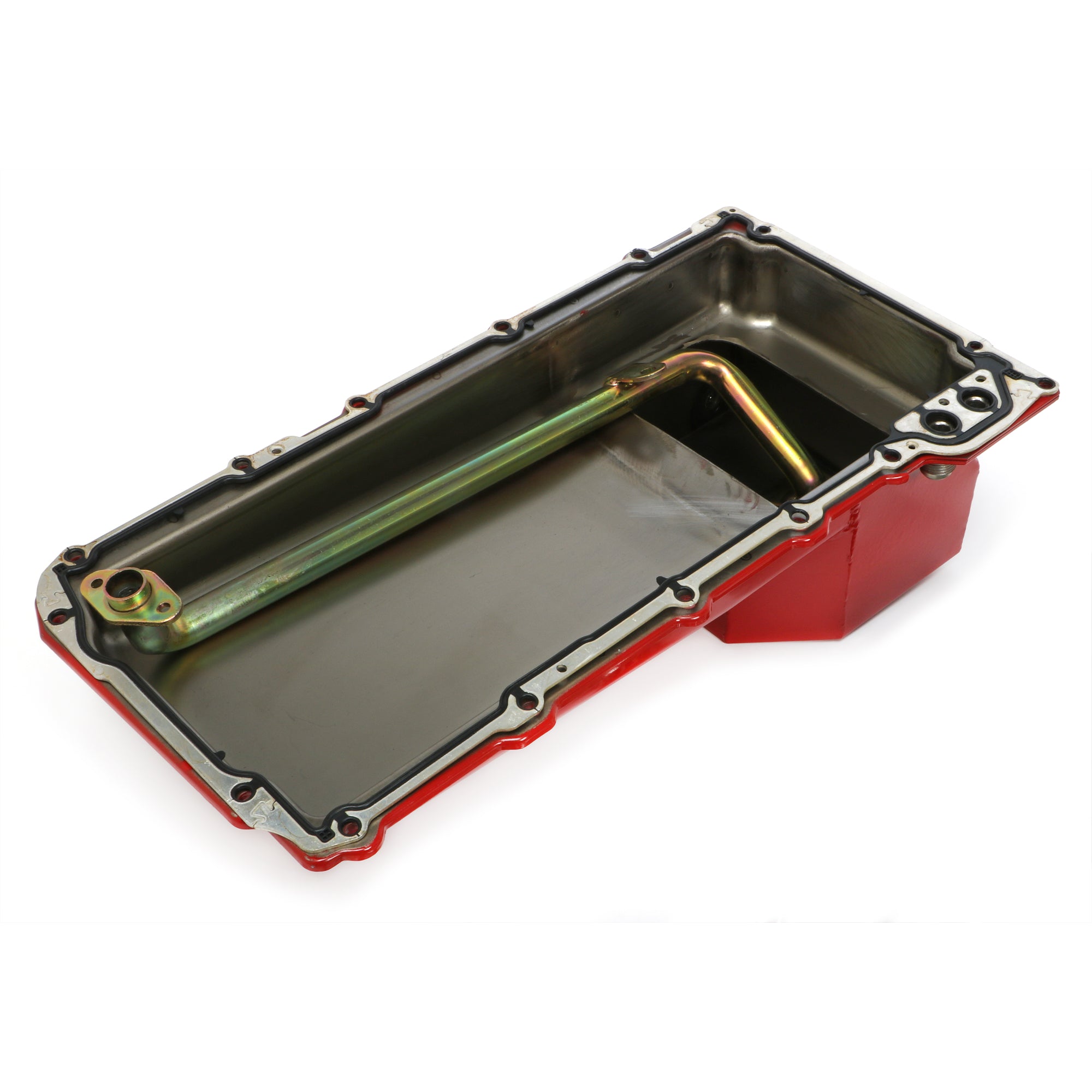

| Oil Pan Capacity |
5 Qt. Capacity |
| Oil Pan Material |
Steel |
| Package Contents |
Headers; Engine Mounts; Oil Pan; related gaskets and Hardware |
| Mounting Hardware Included |
Yes |
| Manual Transmission - Floor |
No |
| Oxygen Sensor Bung Included |
No |
| Pan Capacity |
5 Qts. |
| Primary Tube Gauge |
16g |

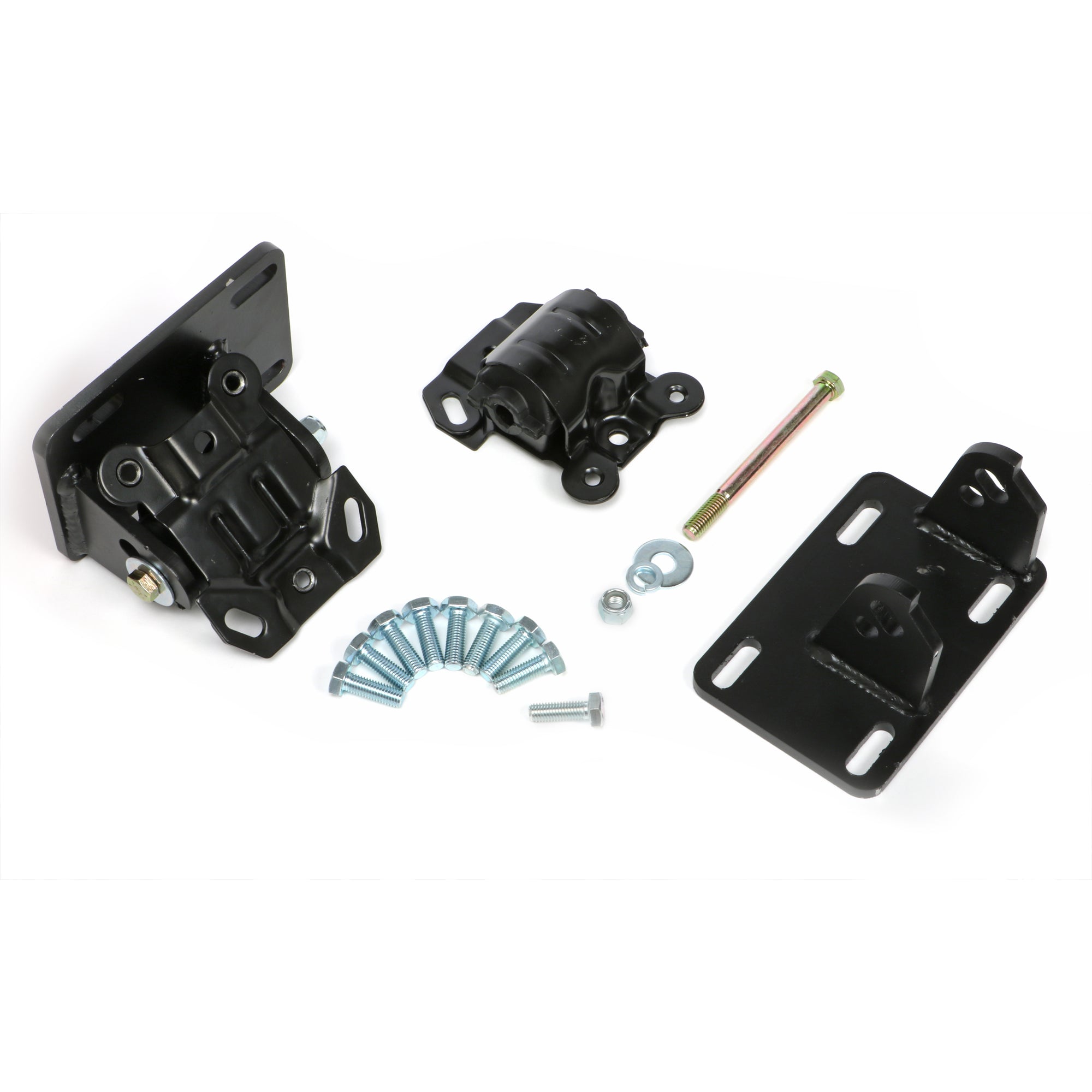

| Motor Mounts Included |
Yes |
| with EGR |
No |
| Wheel Drive Type |
2WD |
| Reducers Included |
Yes |
| with A.I.R. System |
No |
| Transmission Compatibility |
4L60E |
| Reducer Outlet Size |
2-1/2 in. |
| Transmission Mount Type |
Crossmember |
| Replacement Motor Mount Kit |
4516 |
| Tube Diameter |
1-1/2 in. |
| Vehicle Family |
Chevy/GMC S10/S15 Family; 1982-04 |
| Tube Size |
1-1/2 in. |
| Replacement Head Flange Gasket |
Yes |
| Tube Length |
Mid-Length Tubes |
| Transmission Type |
Manual Transmission |
| Product Type |
Complete SWAP-IN-A-BOX Kits |
| Y-Pipe Included |
No |
| Tube Design |
MID-LENGTH |
| Sump Style |
Wet Sump |
| Tuned |
No |
| Title |
TRANS-DAPT PERFORMANCE PRODUCTS ENGINE SWAP IN A BOX KIT; LS ENGINE INTO 82-04 2WD S10/S15; AUTO/MANUAL TRANSMISSION; BLACK MAXX BLACK CERAMIC COATED HEADERS |
| Tube Material Thickness |
16g |
| Sump Location |
Rear |
| Windage Tray Included |
No |
| Transmission Type |
Automatic Transmission |
| Length |
22.0000 |
| Width |
22.0000 |
| Height |
39.0000 |
| Weight |
51.0000 |
