Quick Time RM-6081 Bellhousing - Ford Modular
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping

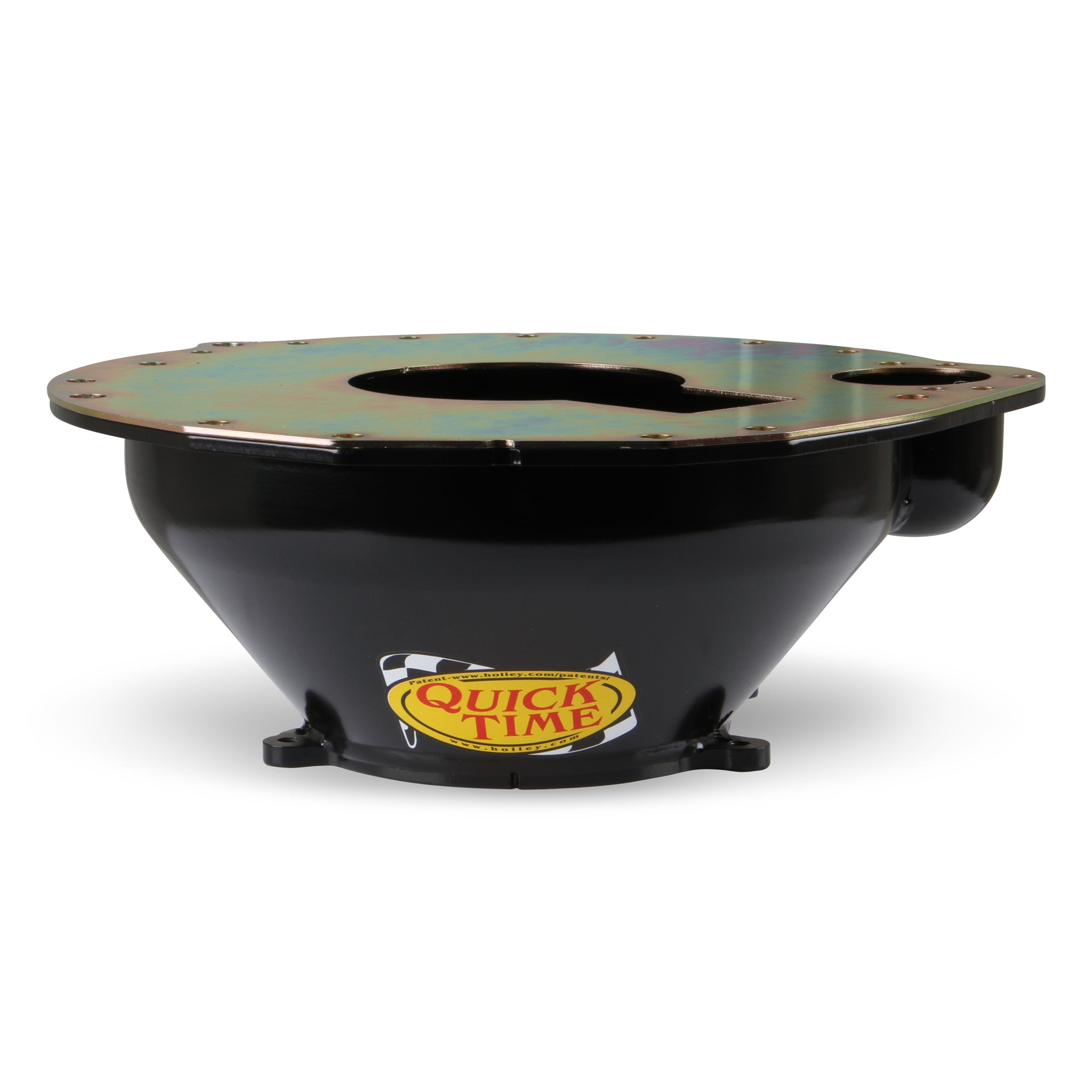

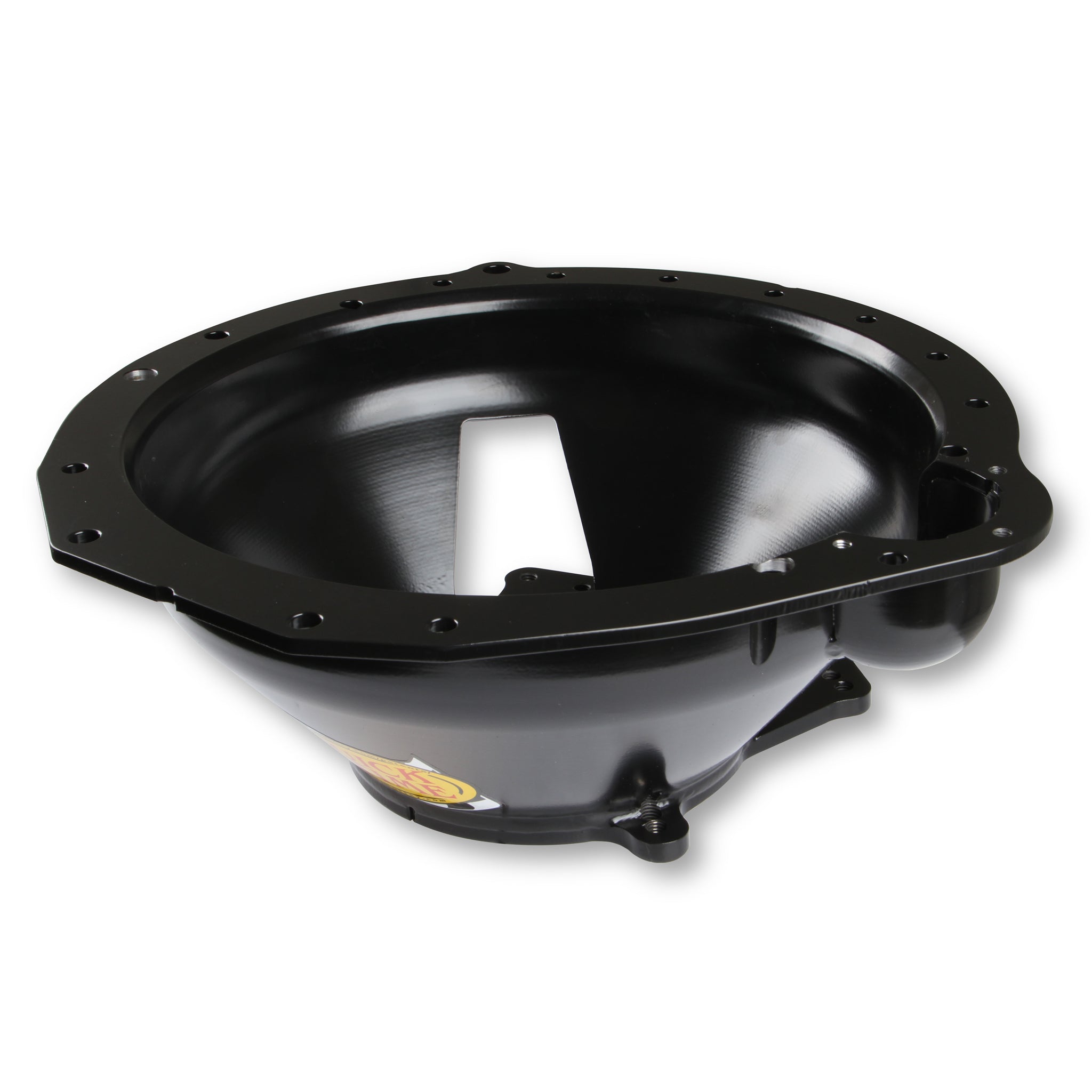

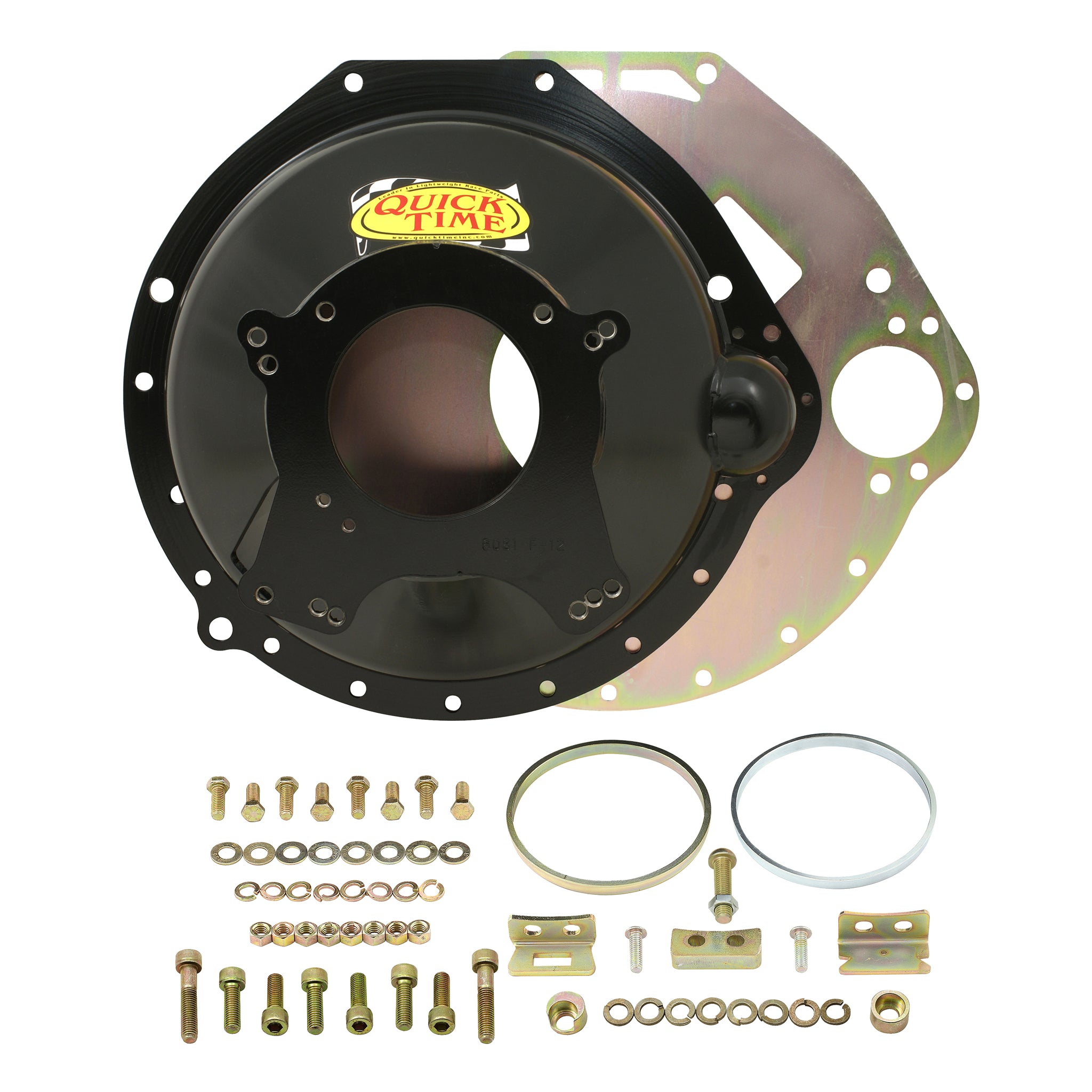

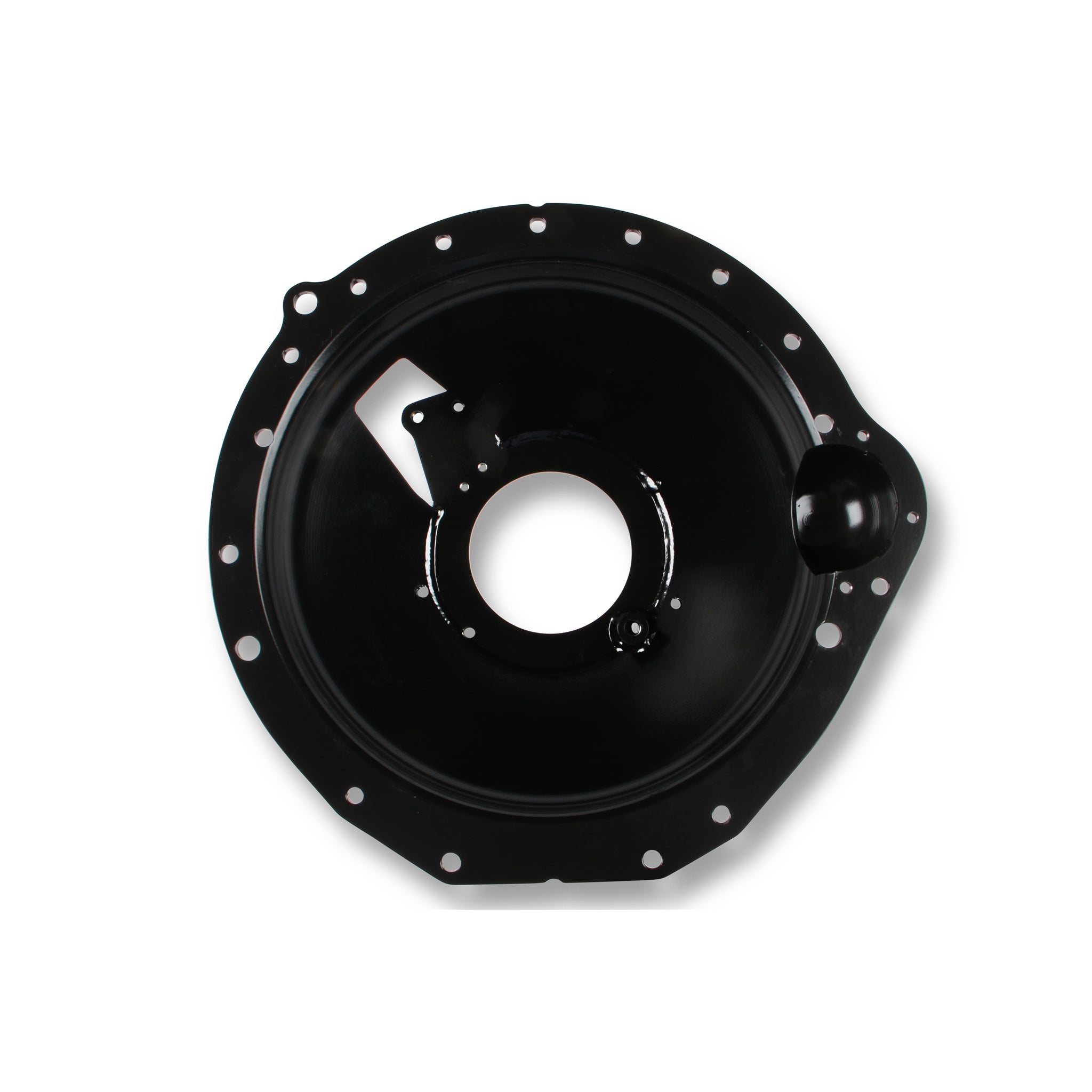

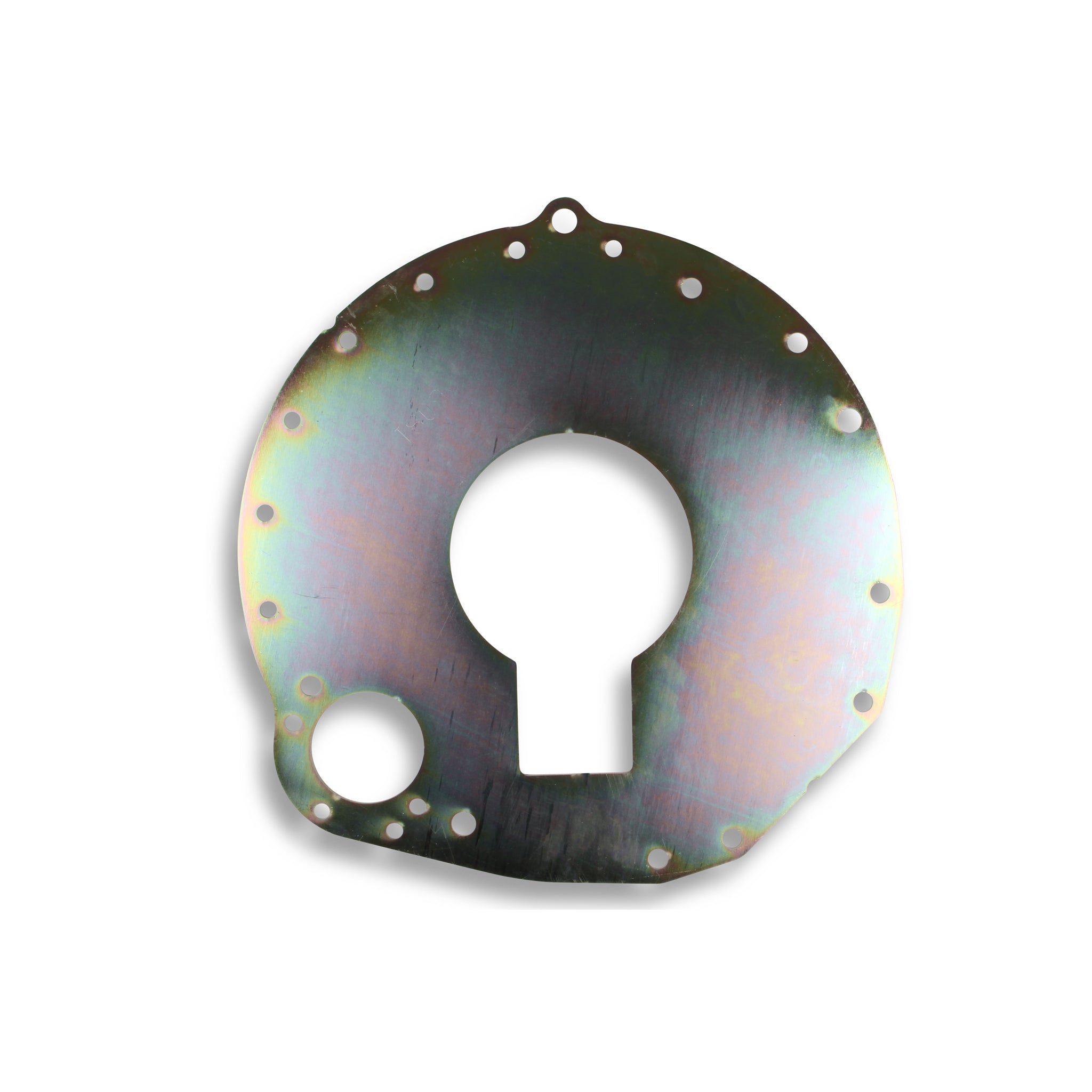

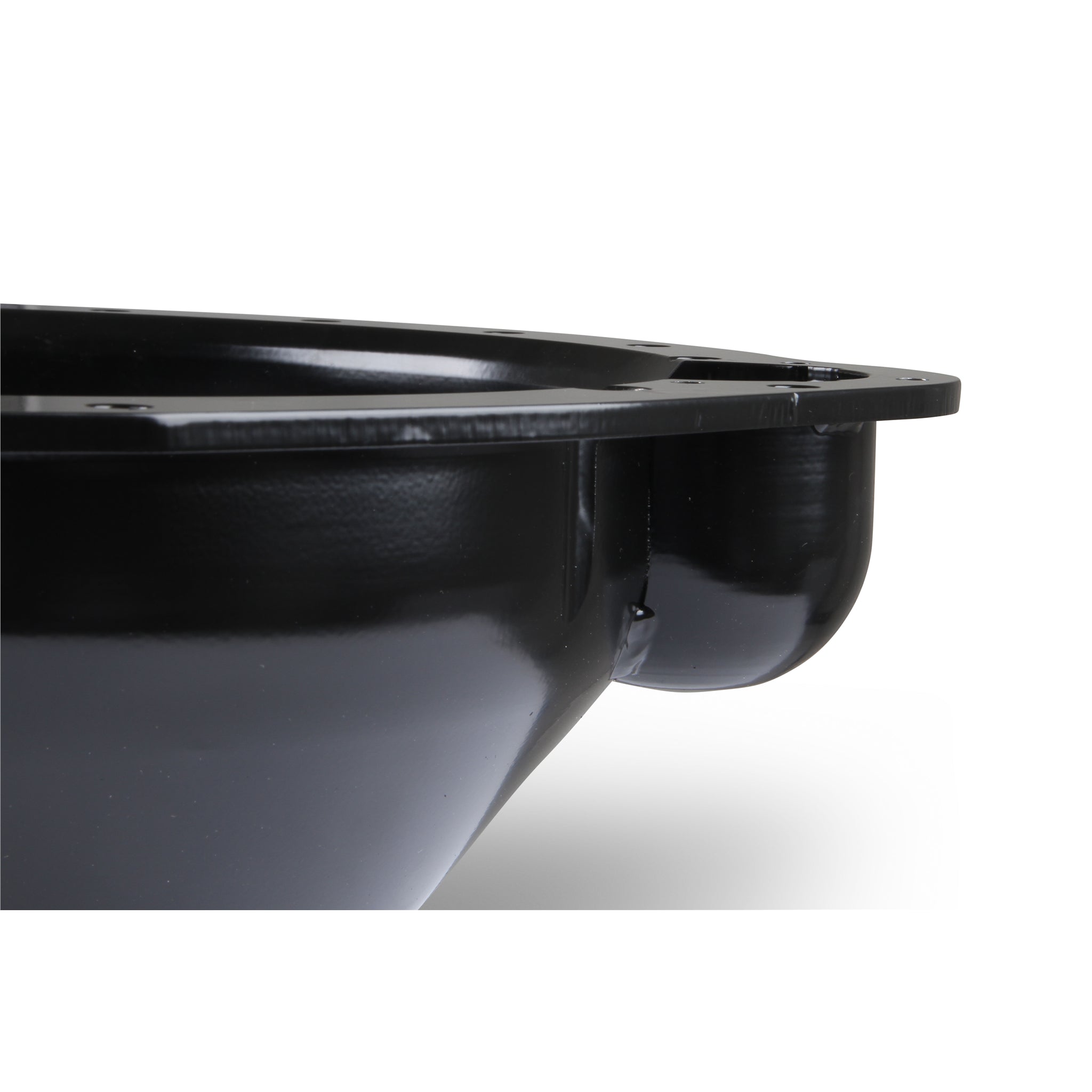

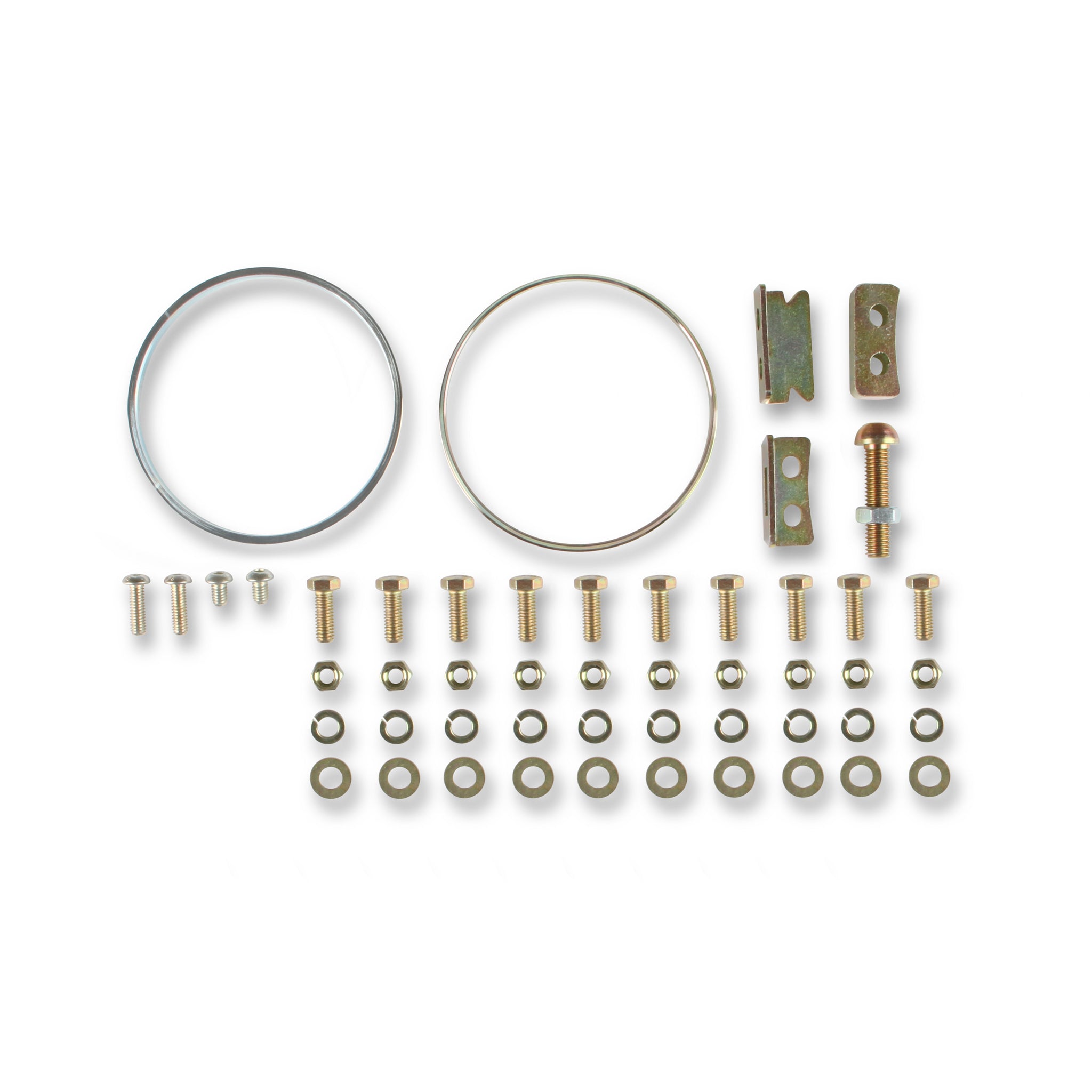

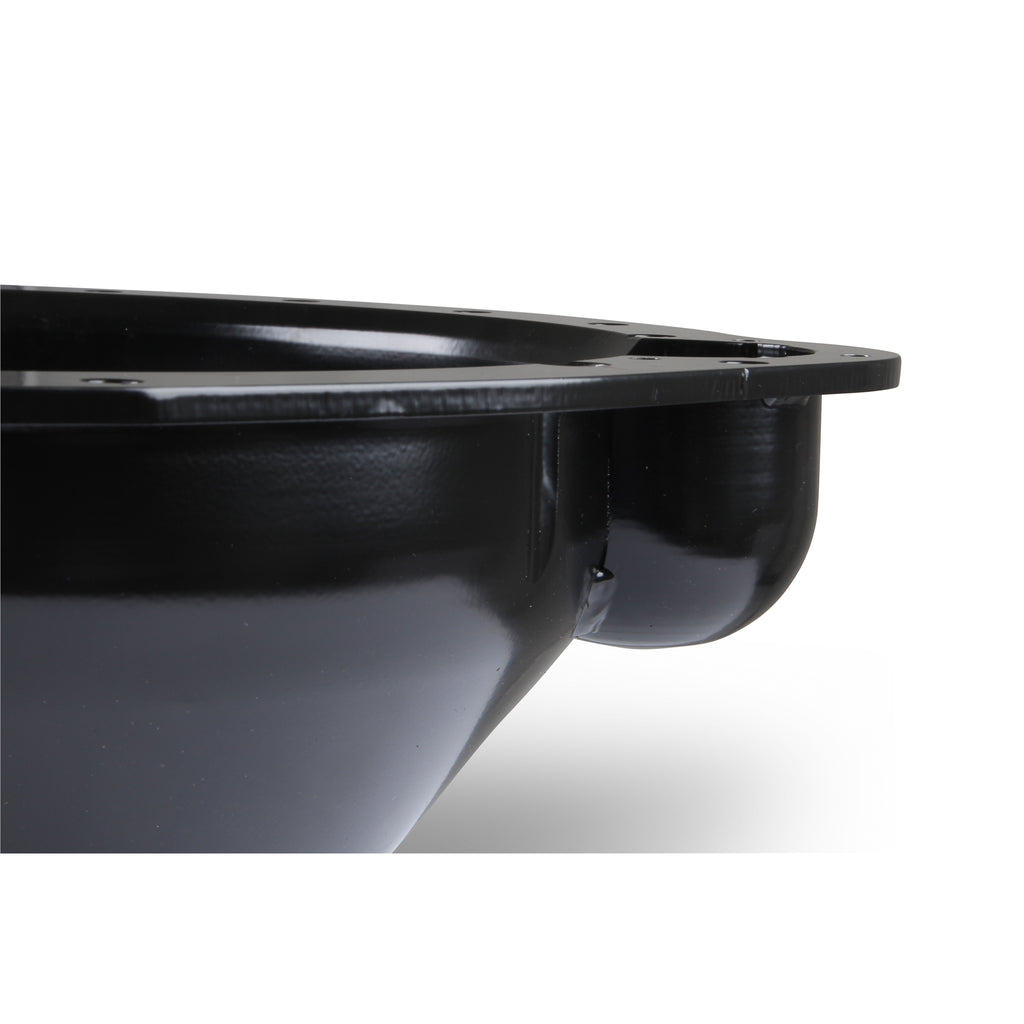

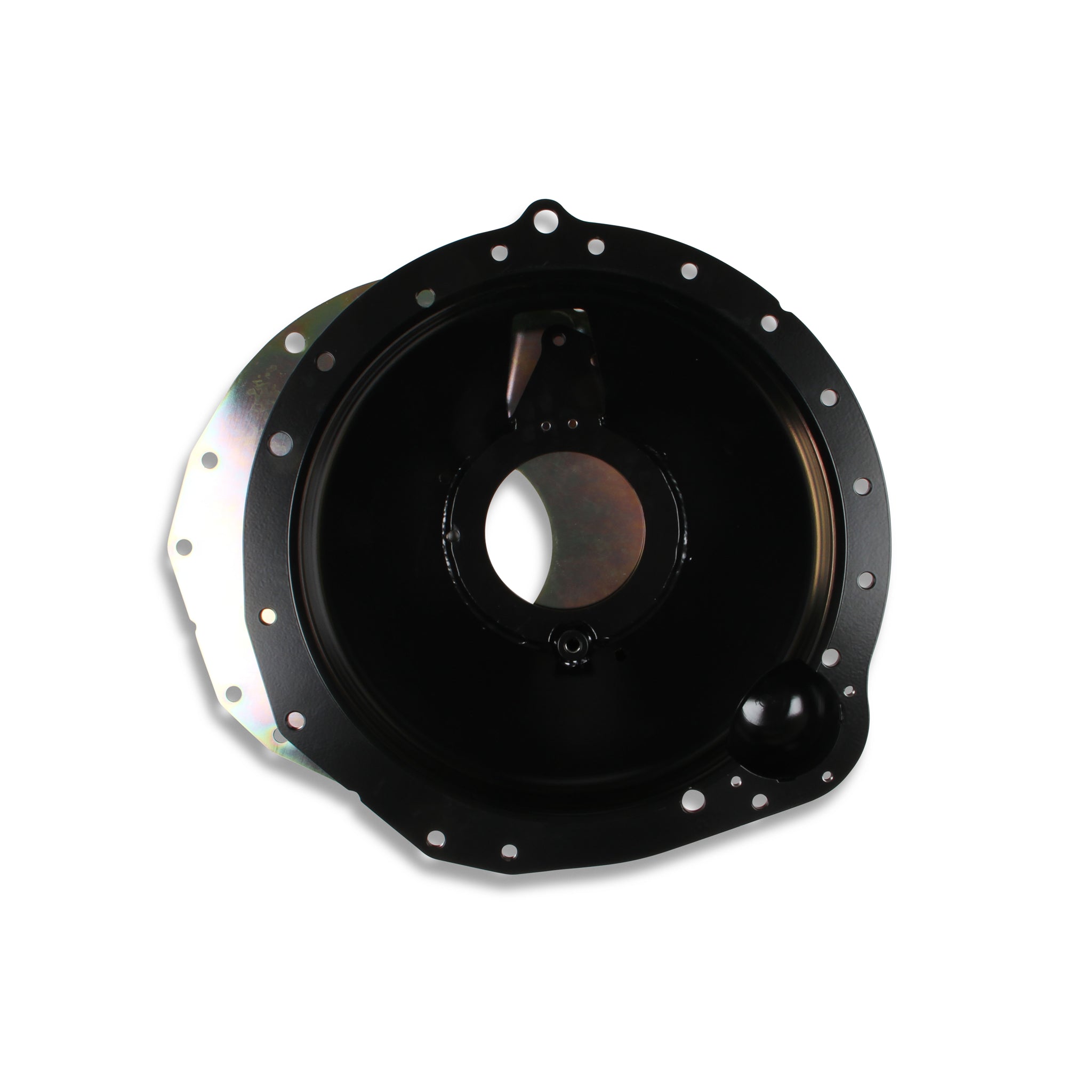

This S.F.I. 6.1 Bellhousing is designed for circle track, strip or street application. This bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Tremec transmission. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. This 6.925 in deep bellhousing will clear a 157 or 164 tooth flywheel and 11 in clutch assembly. Transmission bore is universal at 4.685 - 4.910 in. Kit complete with pivot ball, block plate and Grade 8 hardware.
