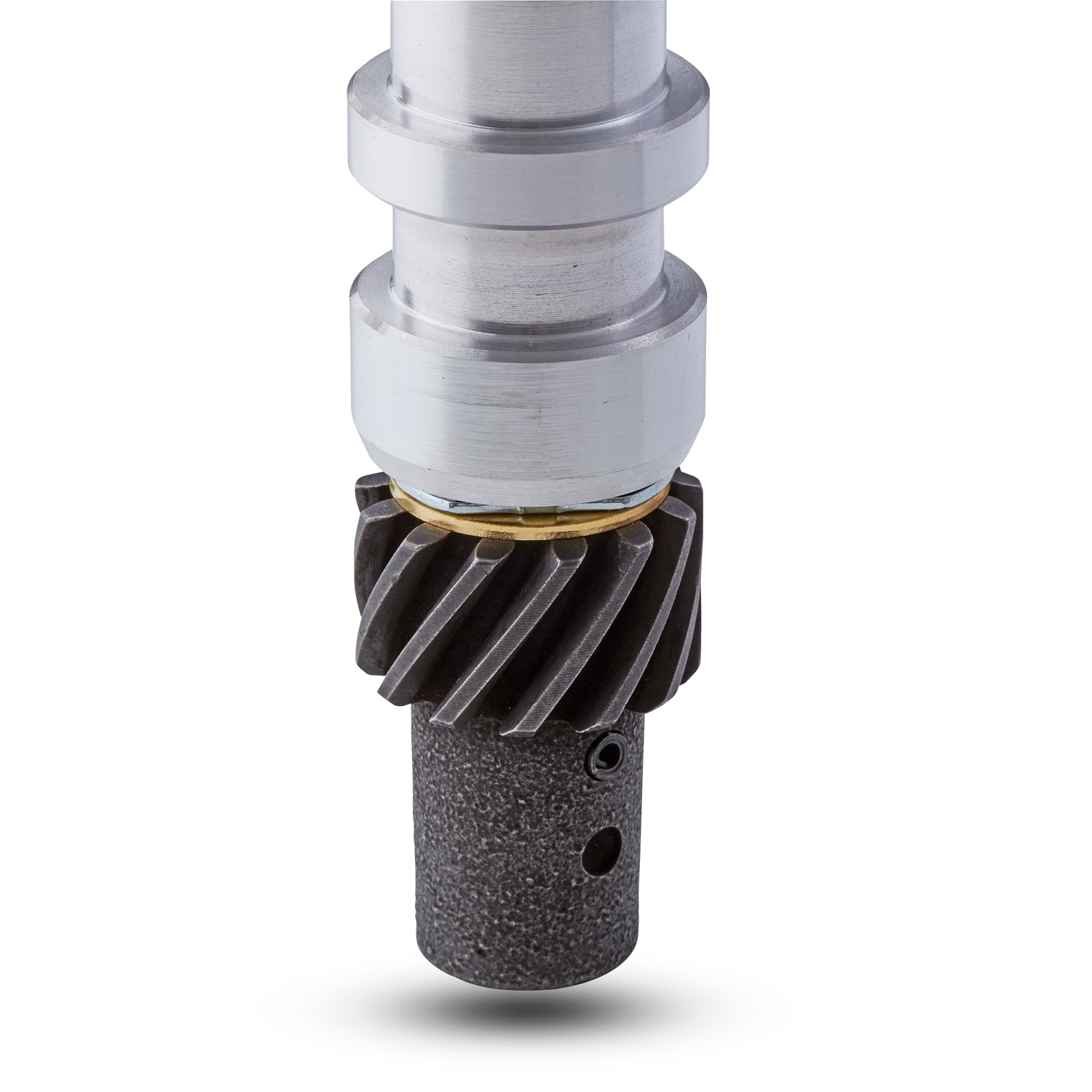

These premium distributors include Chevrolet Performance Parts melonized gears (USA), which are "required on all GM Performance Parts crate engines, or serious damage will occur." Sintered steel weights for lighter weight while withstanding 270 newtons min. for maximum durability (USA), Validated harness and capacitor for reliable energy flow, Adjustable vacuum advance for fine tuning the rate and amount of advance that will result in increased power and eliminate harmful detonation, Weight springs made with stress-relieved music wire to assure blueprinted advance curve (USA), High-performance module: engineered with low saturation for maximum spark intensity, Low-friction cam with super-smooth, gradual, tight tolerance TIR (Total Indicated Runout) deviation from datum line (USA), Bronze sintered bushings precisely installed and line- honed for perfect positioning, Durable, centerless ground coated shaft for reliable energy transfer and long-term, trouble-free performance. FINAL ASSEMBLY, AND INDIVIDUAL INSPECTION IN WARREN, MICHIGAN.
Specifications:
| Description_ABR |
Distributor |
| Description_ASC |
HEI Distributor; Chevy Small and Big Block V8 ; Melonized Steel Gear; Yellow Cap |
| Description_DEF |
Distributor |
| Description_DES |
HEI Distributor; Chevy Small and Big Block V8 ; Melonized Steel Gear; Yellow Cap |
| Description_LAB |
HEI Distributor; Chevy Small and Big Block V8 ; Melonized Steel Gear; Yellow Cap |
| Description_INV |
HEI Distributor with Coil;V8; Yellow Cap |
| Description_EXT |
HEI Distributor; Fits Chevy V8 Crate Engines; Built-In Coil with Magnetic Trigger; Comes With A Yellow Cap and Features A Vacuum and Mechanical Advance; Comes With A Steel Gear; Made From Cast Aluminum With Natural Finish |
| Description_MKT |
These premium distributors include Chevrolet Performance Parts melonized gears (USA), which are "required on all GM Performance Parts crate engines, or serious damage will occur." Sintered steel weights for lighter weight while withstanding 270 newtons min. for maximum durability (USA), Validated harness and capacitor for reliable energy flow, Adjustable vacuum advance for fine tuning the rate and amount of advance that will result in increased power and eliminate harmful detonation, Weight springs made with stress-relieved music wire to assure blueprinted advance curve (USA), High-performance module: engineered with low saturation for maximum spark intensity, Low-friction cam with super-smooth, gradual, tight tolerance TIR (Total Indicated Runout) deviation from datum line (USA), Bronze sintered bushings precisely installed and line- honed for perfect positioning, Durable, centerless ground coated shaft for reliable energy transfer and long-term, trouble-free performance. FINAL ASSEMBLY, AND INDIVIDUAL INSPECTION IN WARREN, MICHIGAN. |
| Description_SHO |
HEI Dist. And Coil |
| Rotation |
Standard |
| Make |
Chevrolet |
| Category |
HEI Dist. And Coil |
| Vacuum Advance |
Adjustable |
| Cap Color |
Yellow |
| Emblem |
Chevrolet Performance Logo |
| Voltage |
50,000 Volts |
| Ignition Coil Included |
Yes |
| Mechanical Advance |
22 Degrees |
| Applications |
Chevy V8 Engines |
| Housing Finish |
Natural |
| Feature/Benefit |
These premium distributors include Genuine GM Performance Parts melonized gears (USA), which are inchrequired on all GM Performance Parts crate engines, or serious damage will occur. inch Sintered steel weights for lighter weight while withstanding 270 newtons min. |
| Number of Cylinders |
8 |
| Length |
8.0000 |
| Width |
11.0000 |
| Height |
16.0000 |
| Weight |
8.0000 |
