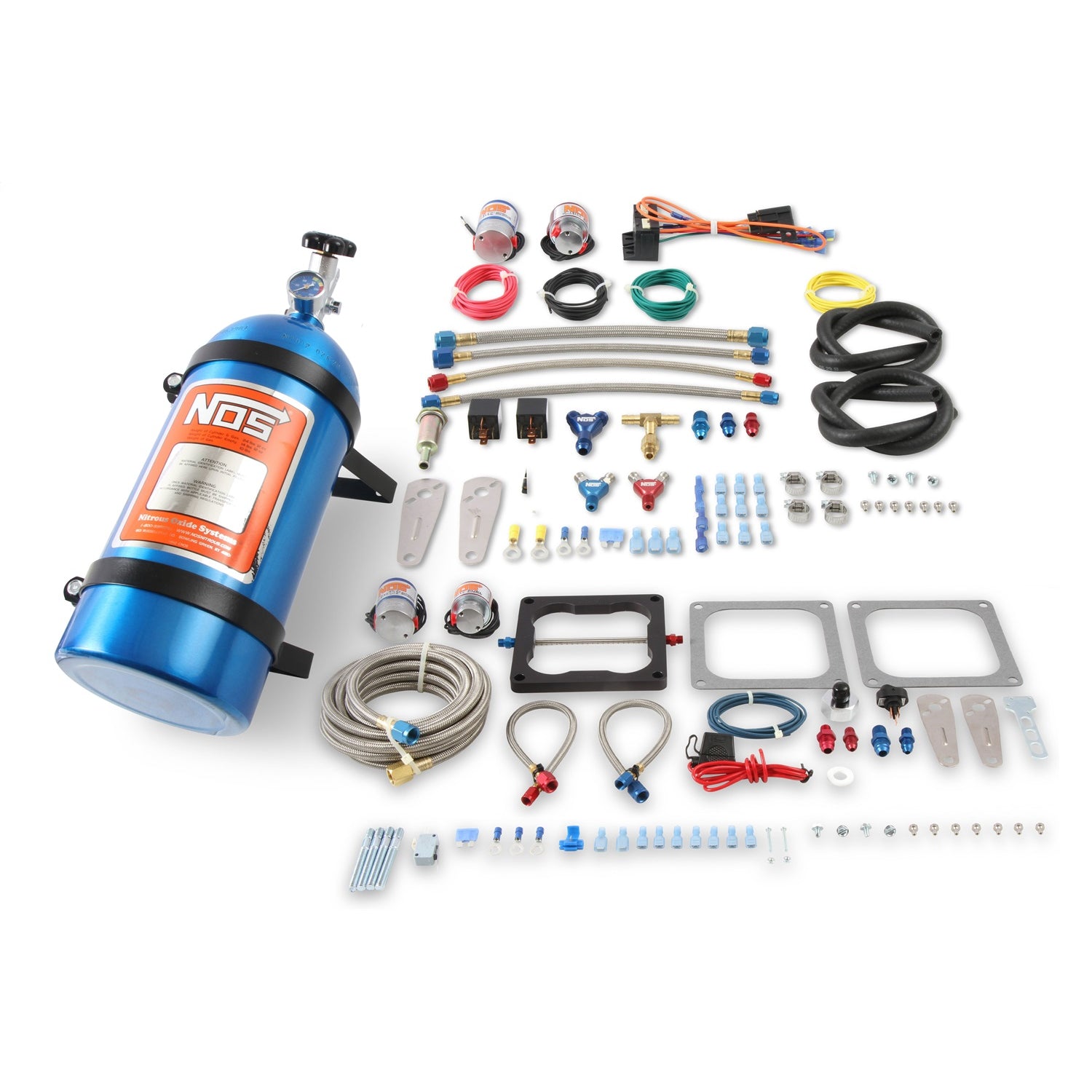

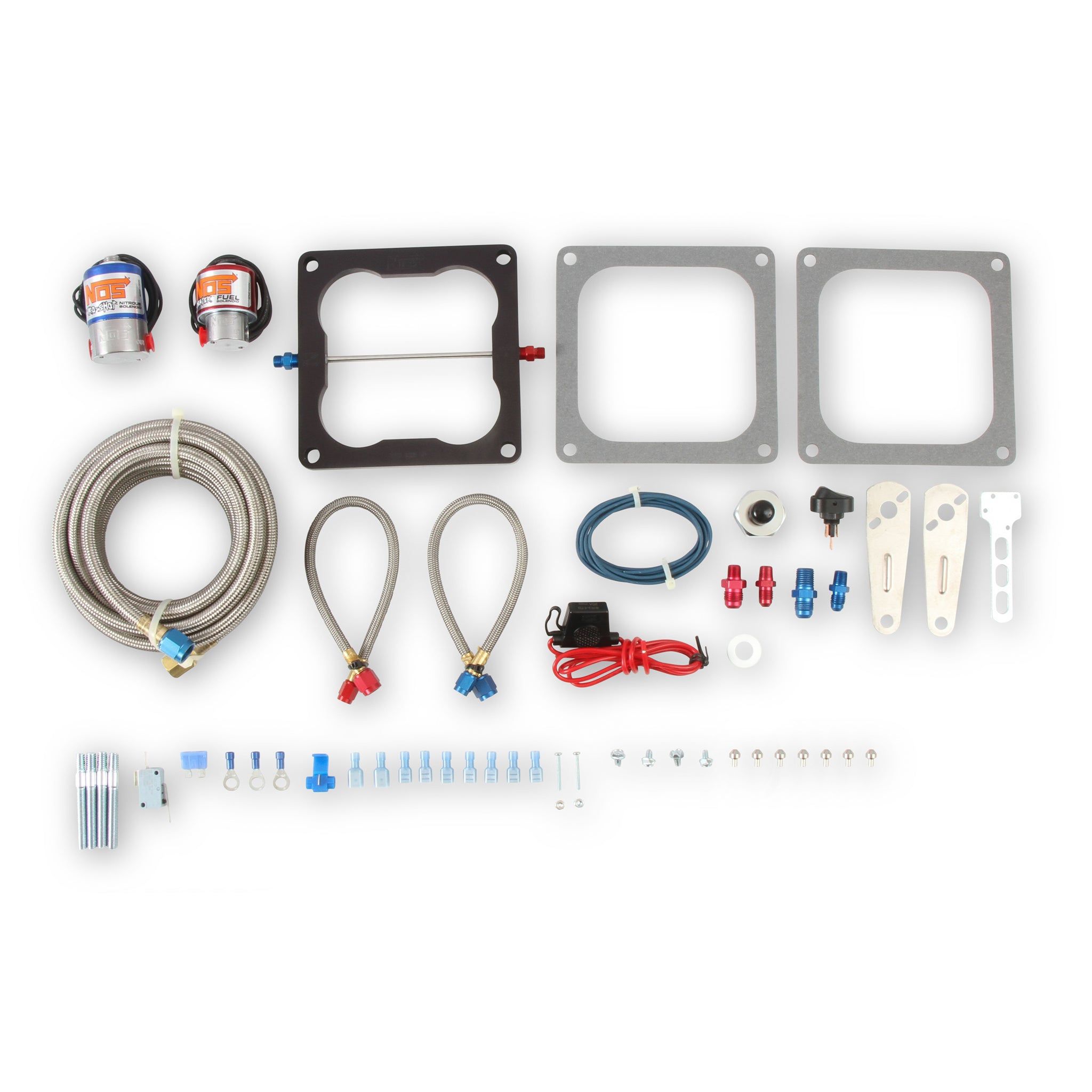

NOS 02402NOS Dual Stage Big Shot Nitrous System

Name: NOS 02402NOS Dual Stage Big Shot Nitrous System
Brand: NOS
Price: 2530.42 CAD
Availability: OutOfStock

by NOS • SKU: ds_BHHV_02402NOS

2 sold in last 8 days

$2,530.42

Inventory:

Guaranteed Fitment

Always the correct part

Added Value

Performance matched parts

In-House Experts

We know our products

Nationwide Delivery

Economy shipping

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

Not all race cars can benefit from getting an instant boost of up to 300 horsepower, as is the case with the NOS Big Shot Single Stage systems. This is because the vehicle's tires and chassis may not be able to cope with the additional horsepower, resulting in a severe loss of traction. To provide for a more gradual application of power, NOS offers highly effective Big Shot Dual Stage systems. These systems incorporate two sets of nitrous and fuel solenoids so that power can be added in two events. The first stage allows the vehicle to leave the line with a moderate performance boost, say 200 horsepower. Then, when the tires are "hooked up", you can push the button for an additional 400 takeyour- breath-away ponies. This first stage is activated by a throttle switch while the second stage is activated by pushing a button, or optional Precision Delay Timer (15838NOS). Activation of the second stage automatically deactivates the first stage.

Specifications:

Description_ASC	To supply the proper amount of fuel to the carburetor and the Big Shot System, a fuel pump must be used that is designed to operate between 4.5 and 7 psi, with a flow rate of 0.1 gallons per horsepower at 6 psi. For example, an engine that produces 350 horsepower when the Big Shot System is activated will require a fuel pump that flows at least 35 gallons per hour at 6 psi.

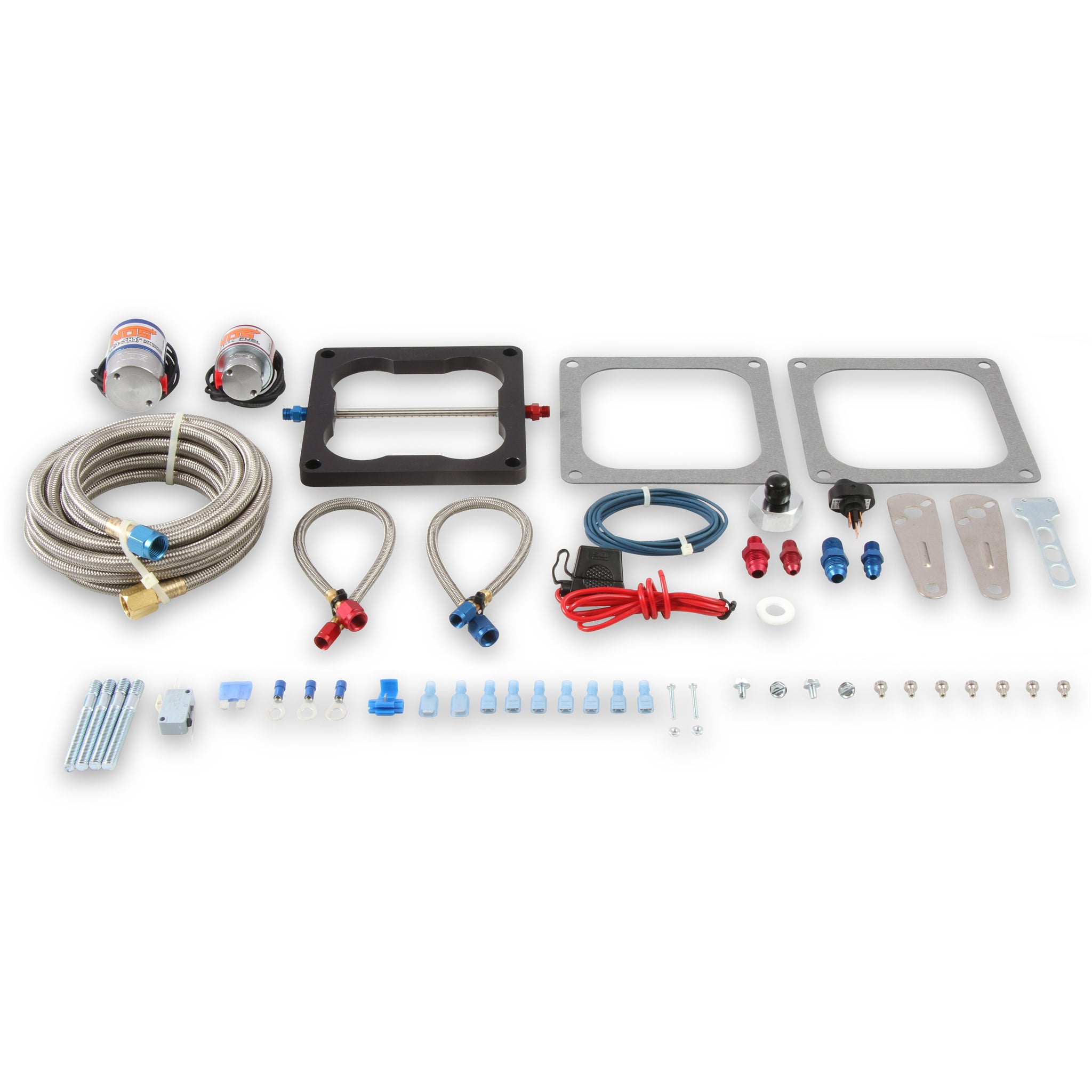

Description_DEF	Nitrous Oxide Injection System Kit
Description_DES	NOS Dual Stage Big Shot Nitrous System
Description_EXT	Dual Stage Big Shot Nitrous System; Dominator; 300 HP Max; w/10 lb. Bottle;
Description_FAB	More Gradual Power Application
Description_FAB	2 Sets Nitrous/Fuel Solenoids
Description_FAB	Includes 2 Cheater Solenoids
Description_FAB	Includes SuperProShot Nitrous Solution
Description_SHO	Nitrous Oxide System
Description_MKT	Not all race cars can benefit from getting an instant boost of up to 300 horsepower, as is the case with the NOS Big Shot Single Stage systems. This is because the vehicle's tires and chassis may not be able to cope with the additional horsepower, resulting in a severe loss of traction. To provide for a more gradual application of power, NOS offers highly effective Big Shot Dual Stage systems. These systems incorporate two sets of nitrous and fuel solenoids so that power can be added in two events. The first stage allows the vehicle to leave the line with a moderate performance boost, say 200 horsepower. Then, when the tires are "hooked up", you can push the button for an additional 400 takeyour- breath-away ponies. This first stage is activated by a throttle switch while the second stage is activated by pushing a button, or optional Precision Delay Timer (15838NOS). Activation of the second stage automatically deactivates the first stage.

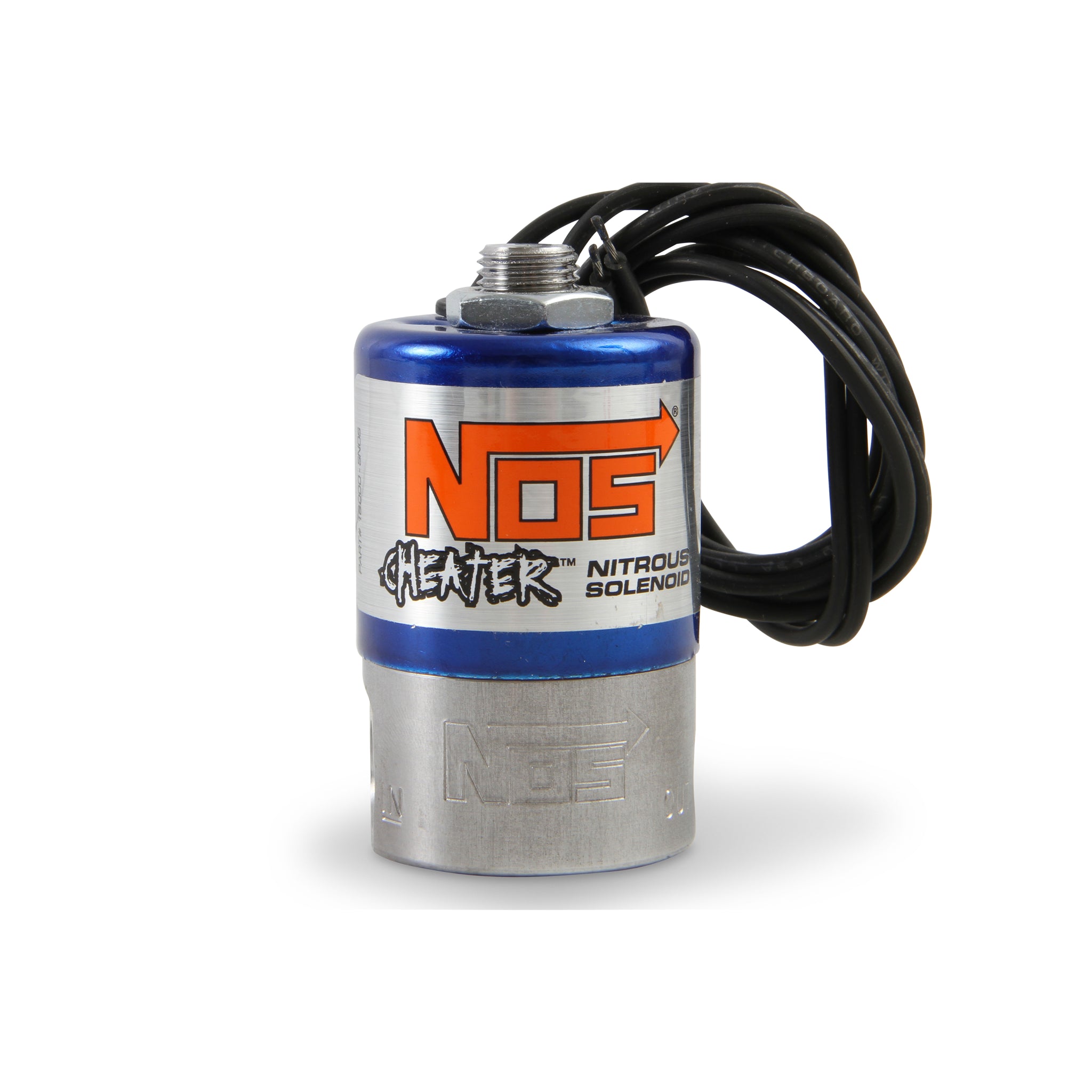

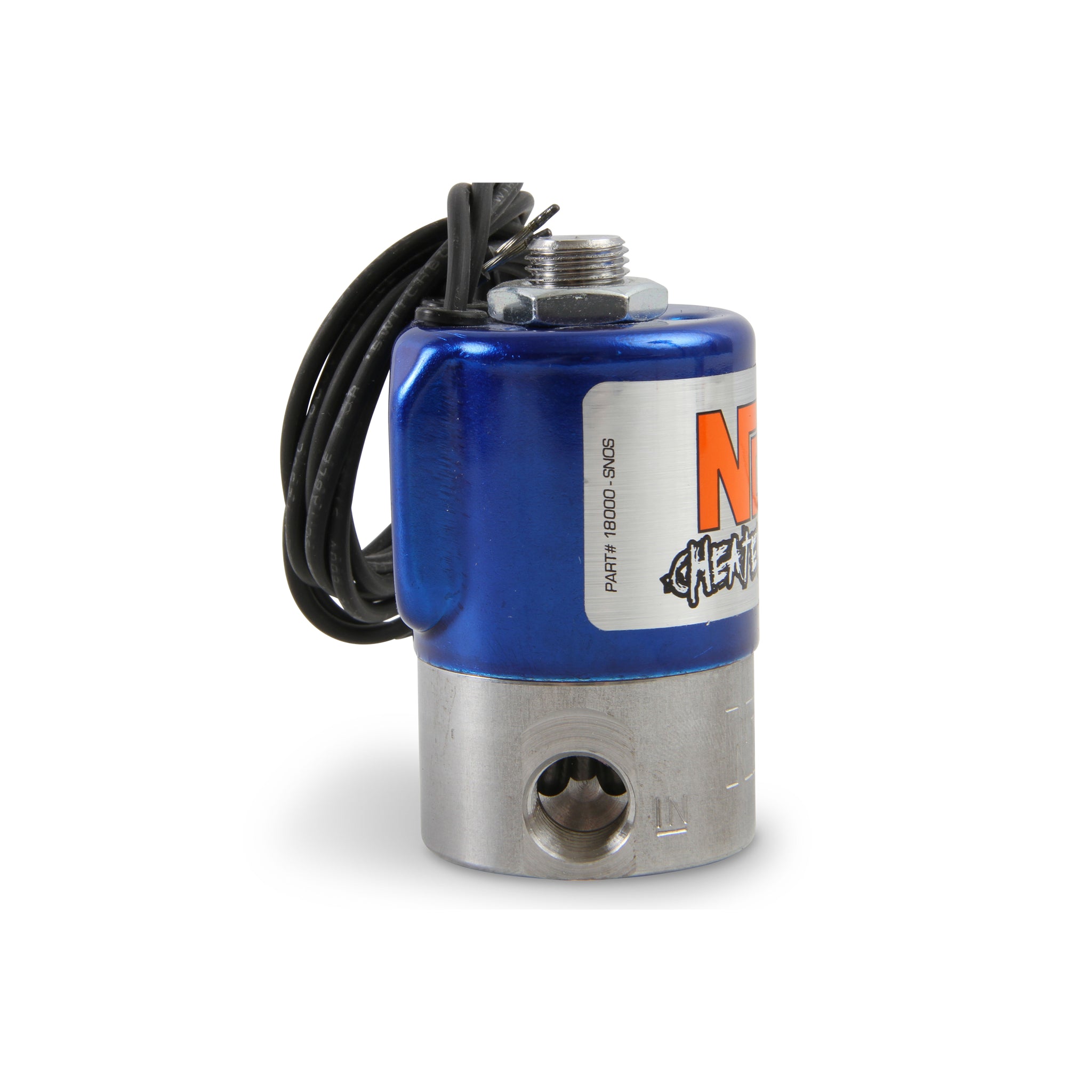

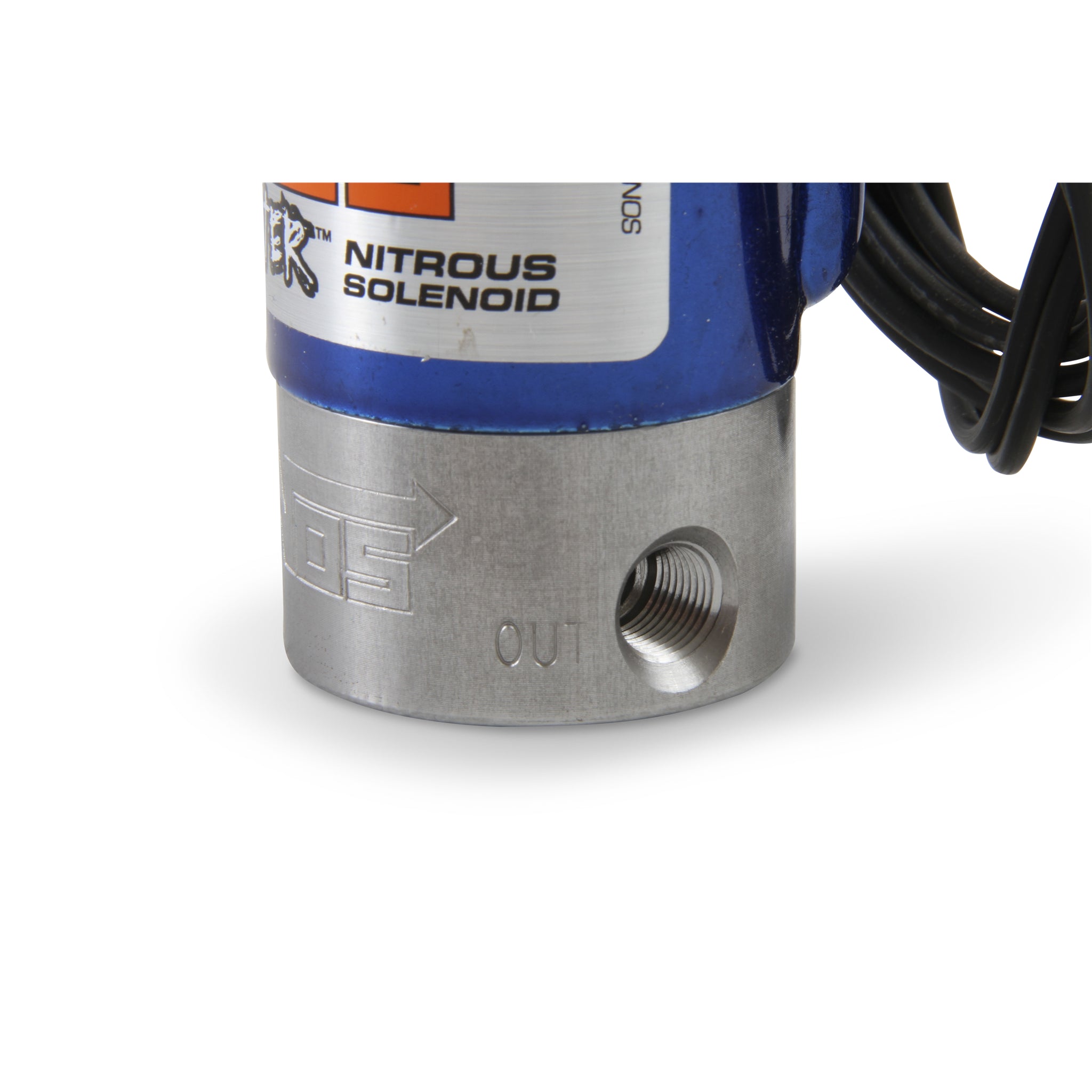

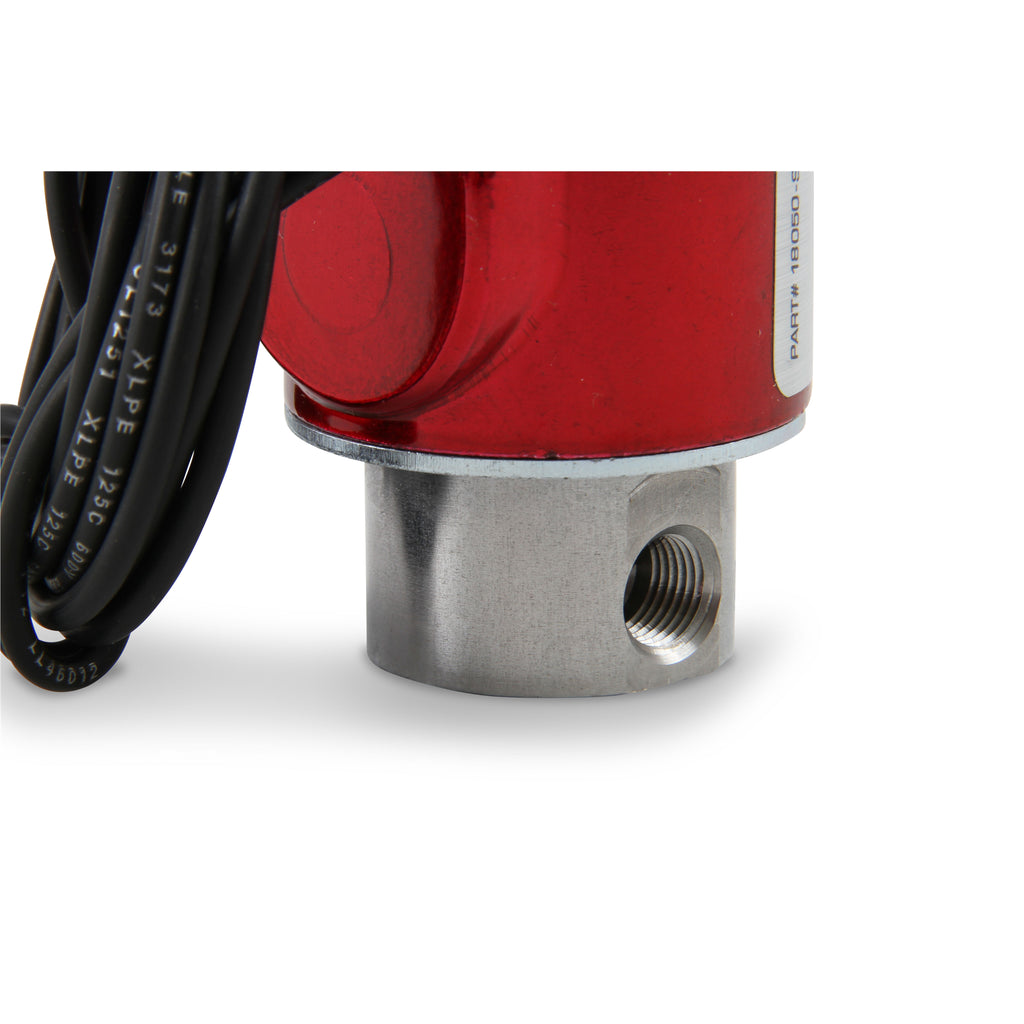

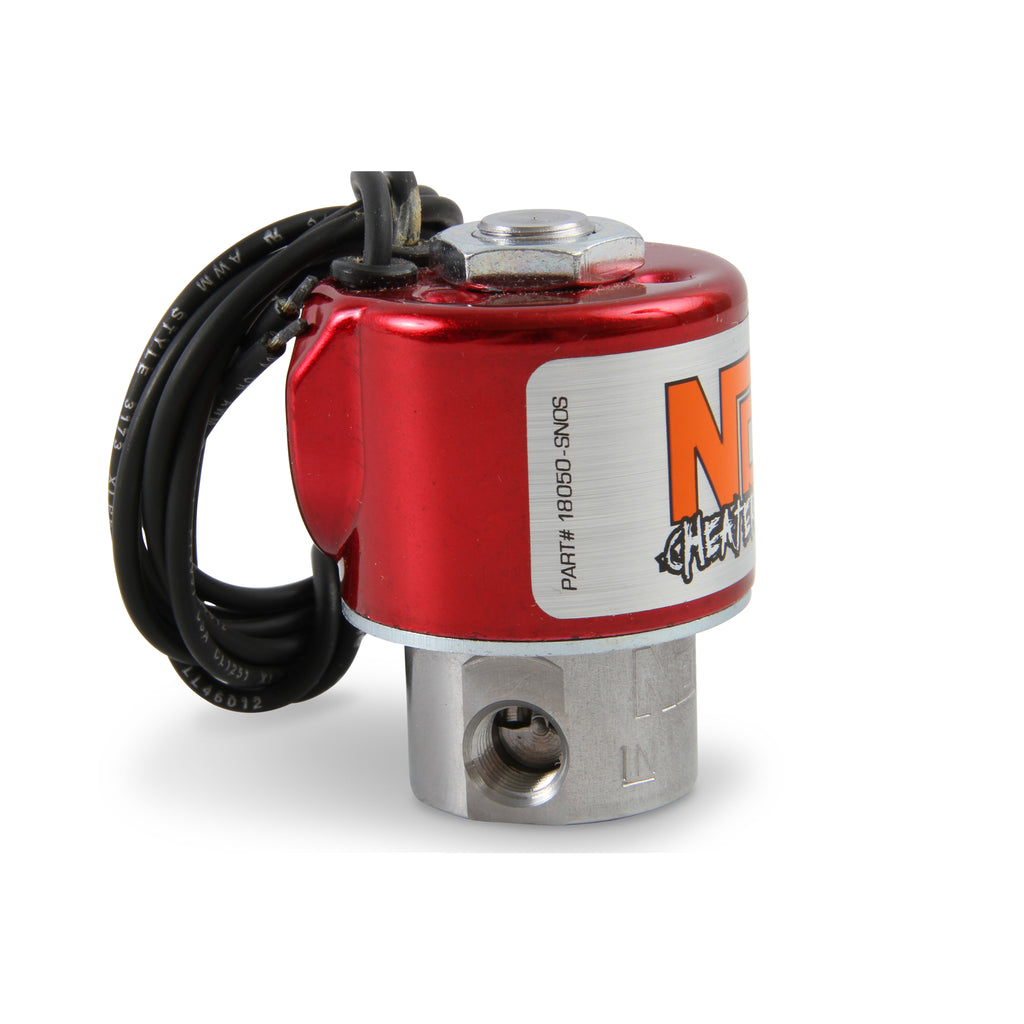

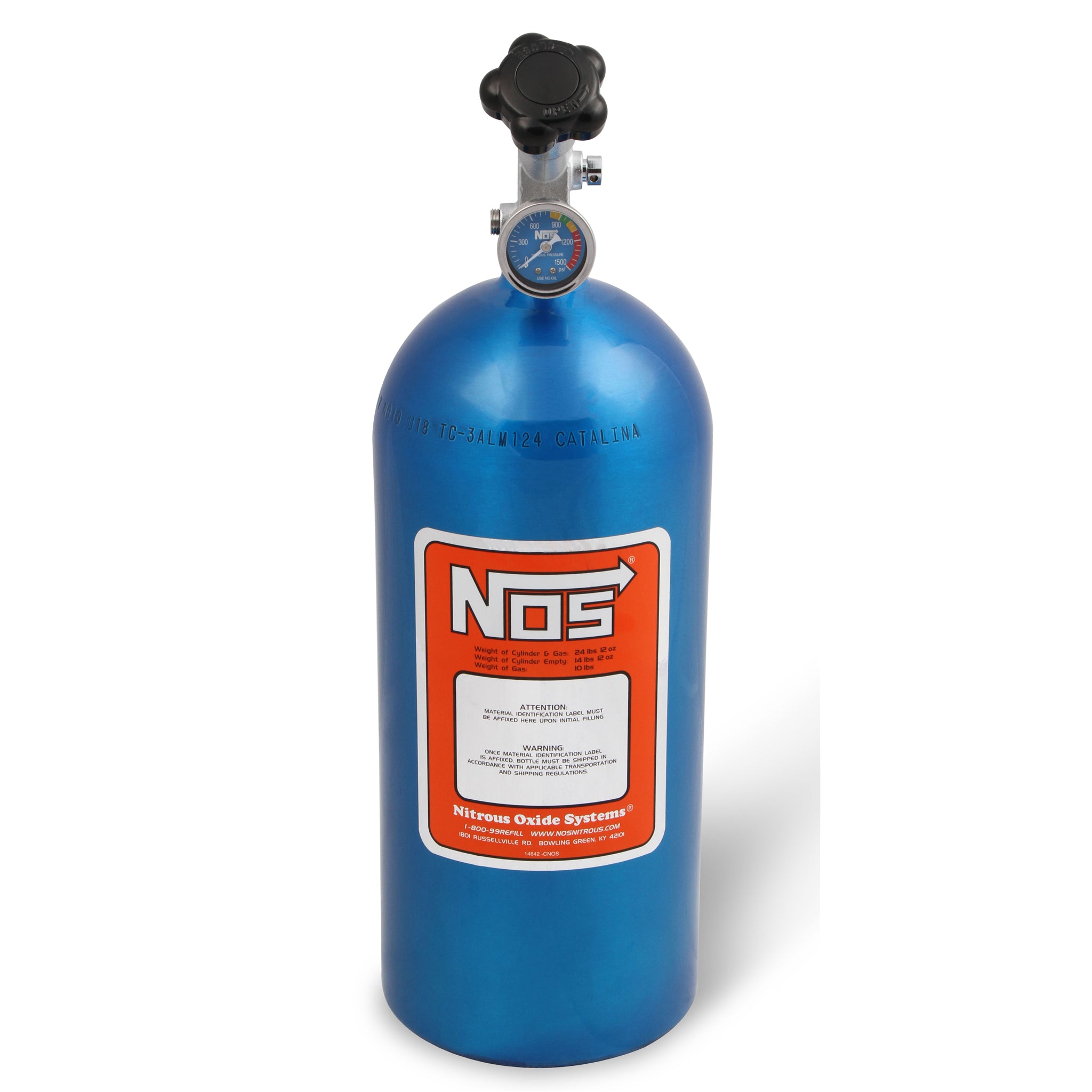

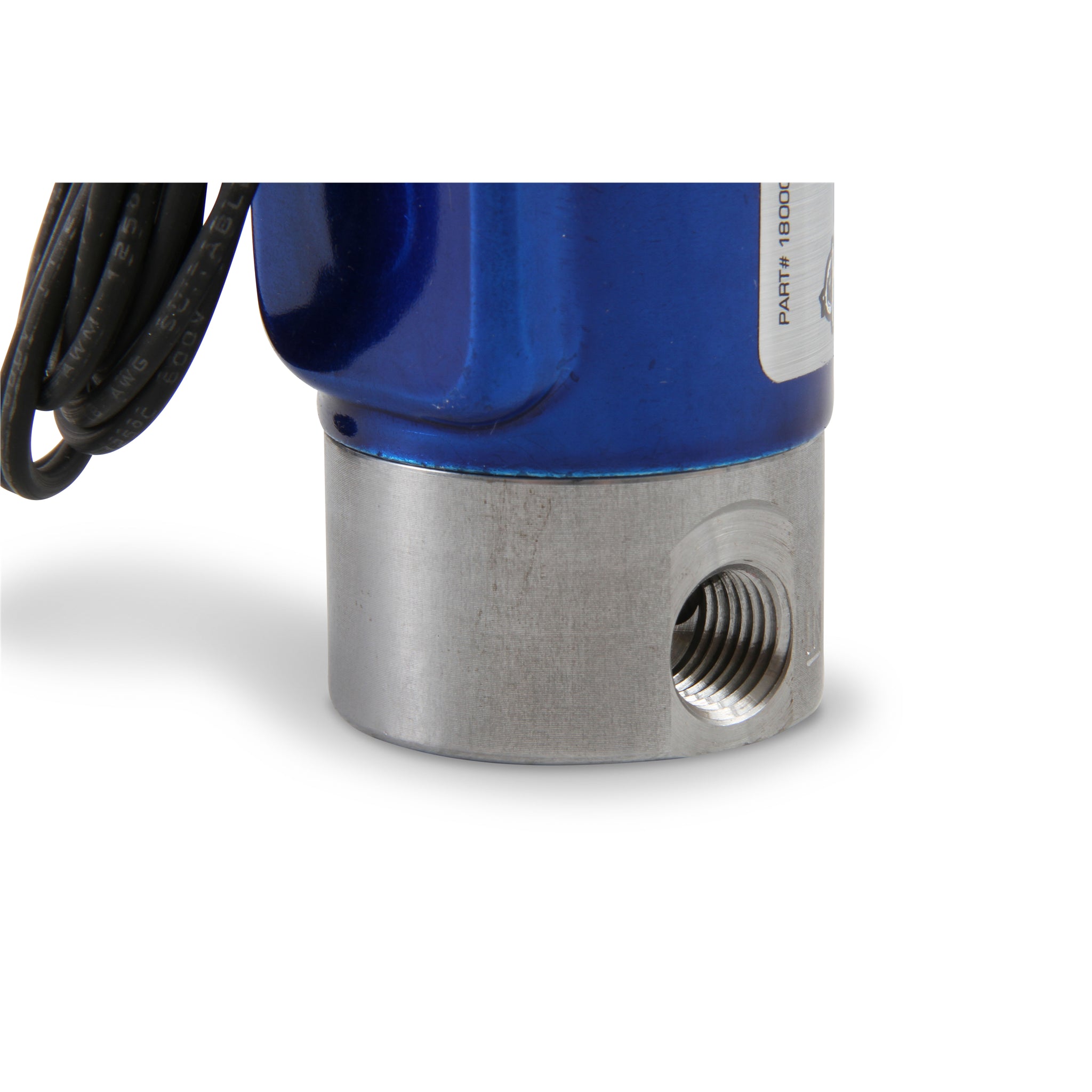

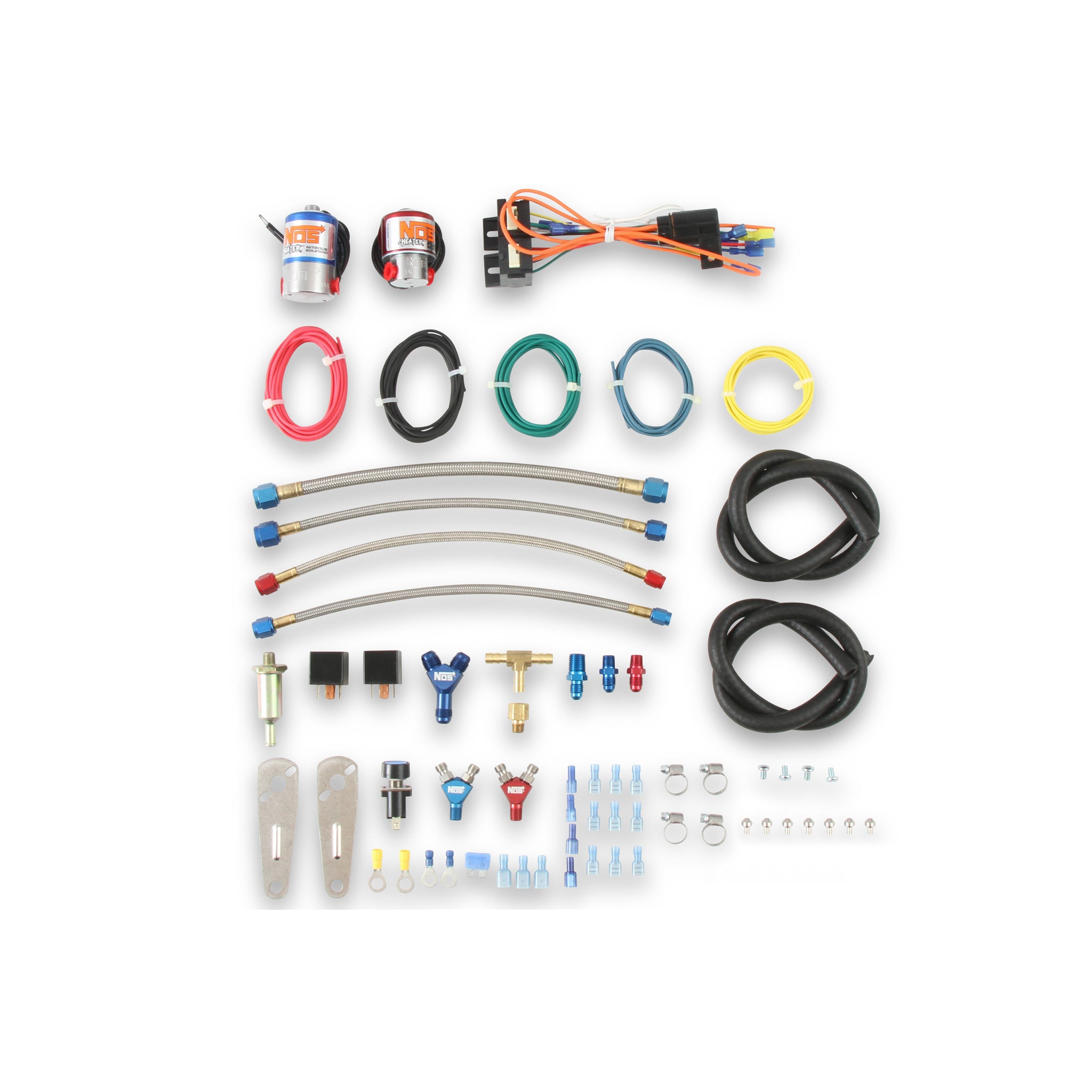

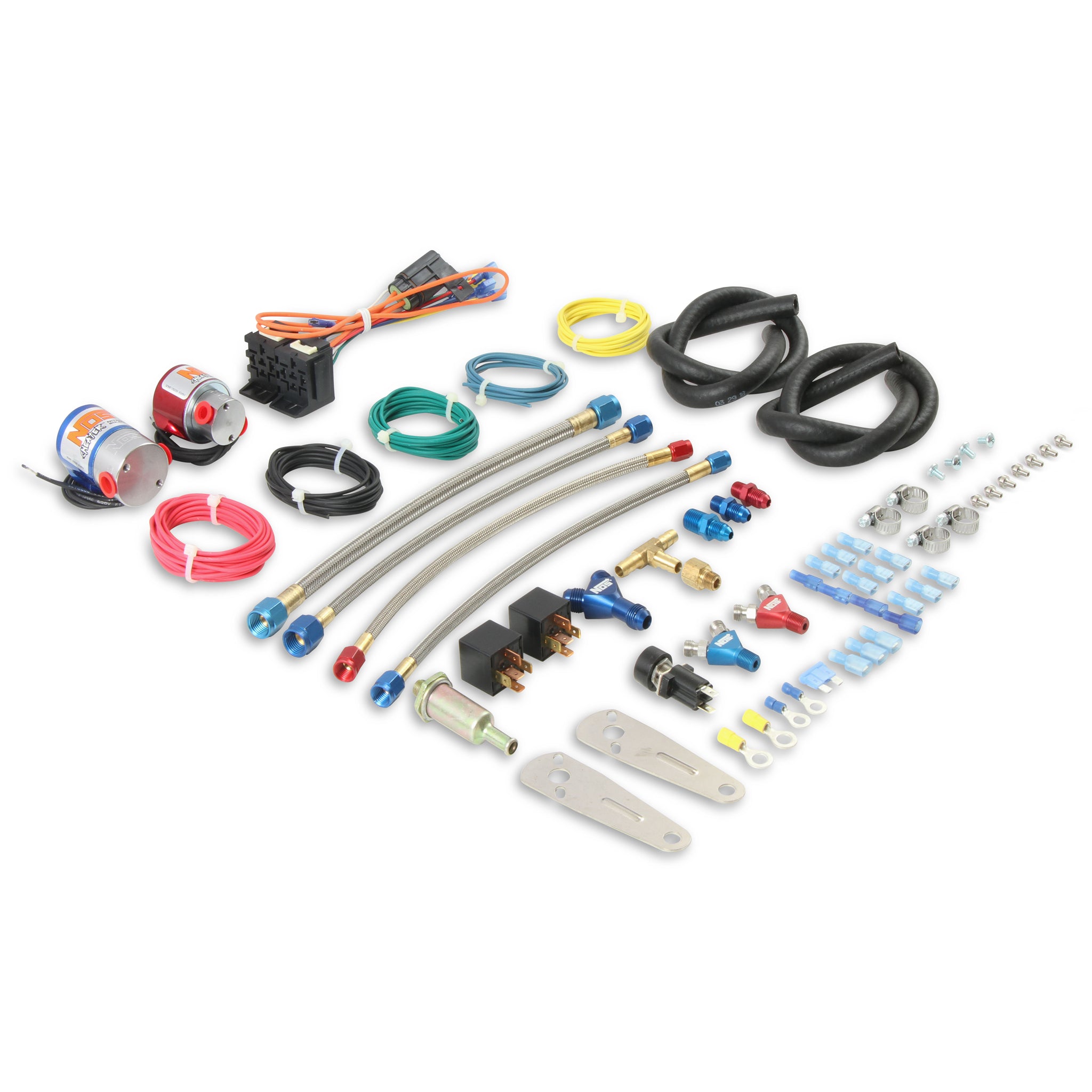

Description_MKT	Two Cheater (TM) solenoids control the first stage while a Super Pro Shot nitrous solenoid and a high-output Cheater fuel solenoid control the second stage. A 10 lb. nitrous bottle is standard. Optionally available are a wide variety of NOS electronic controllers. These can be employed, for example, to activate the second stage, while a NOS Progressive Nitrous Controller can be used to actually dictate the amount of nitrous (in percentages of total power potential) and the timing. Actual performance gains will vary depending on the engine's condition, configuration and jetting of nitrous system. Optional power jets are available for a variety of horsepower settings.
Description_INV	2 STAGE BIG SHOT 100-300

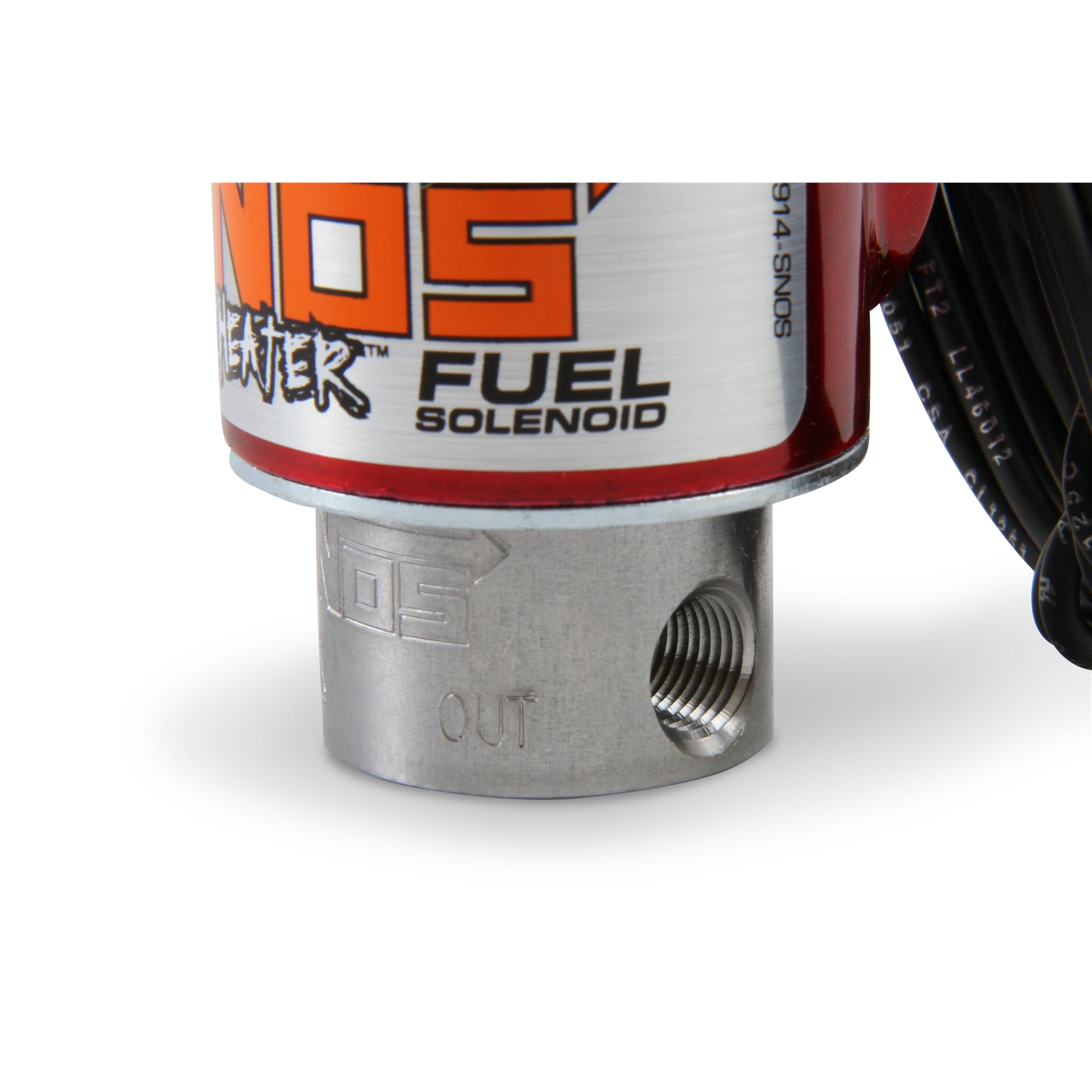

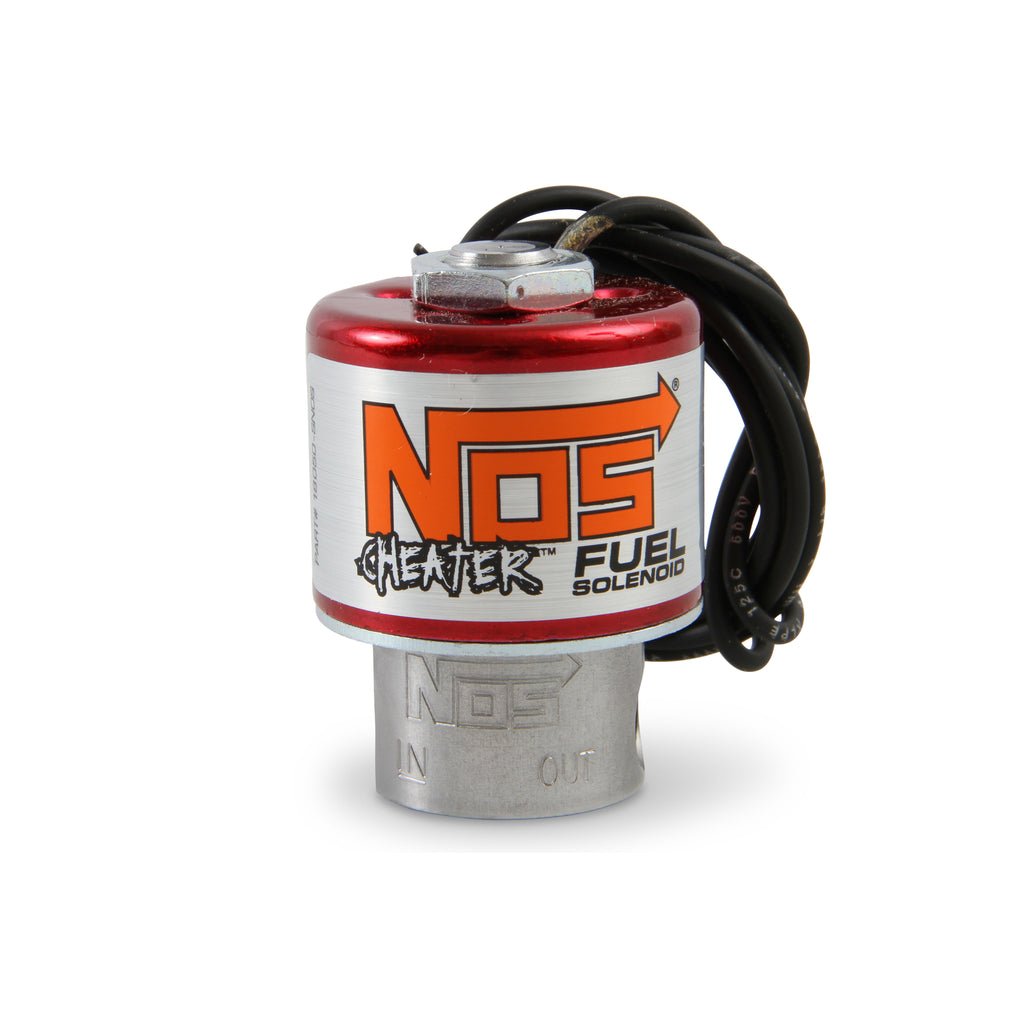

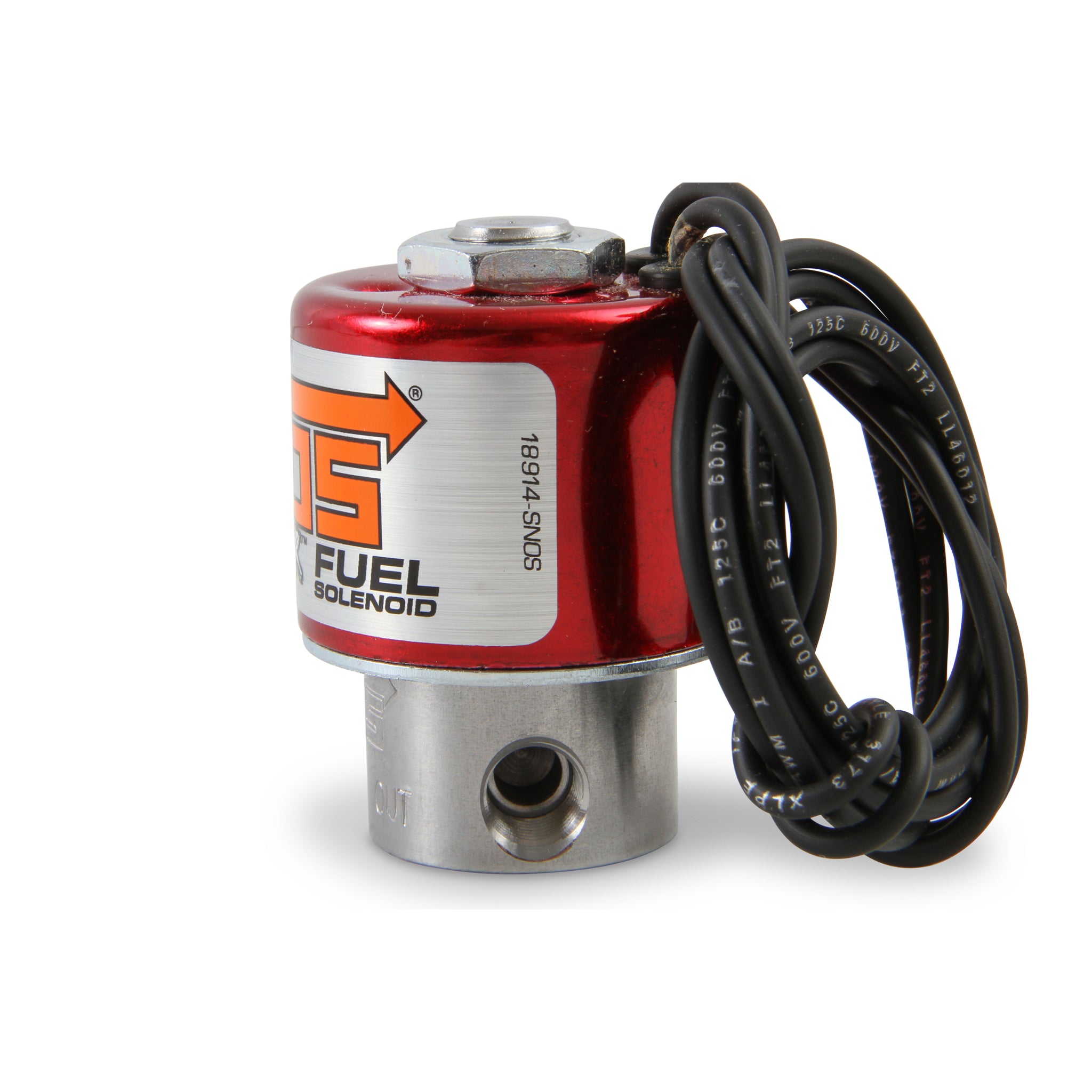

Fuel Solenoid	Cheater
Type	Holley DOMINATOR Flange
Bottle Included	Yes
Stage Quantity	2
Product Type	NOS System
Warning	California Proposition 65
Included Jetting Horsepower	185; 190; 210; 225; 250; 275
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

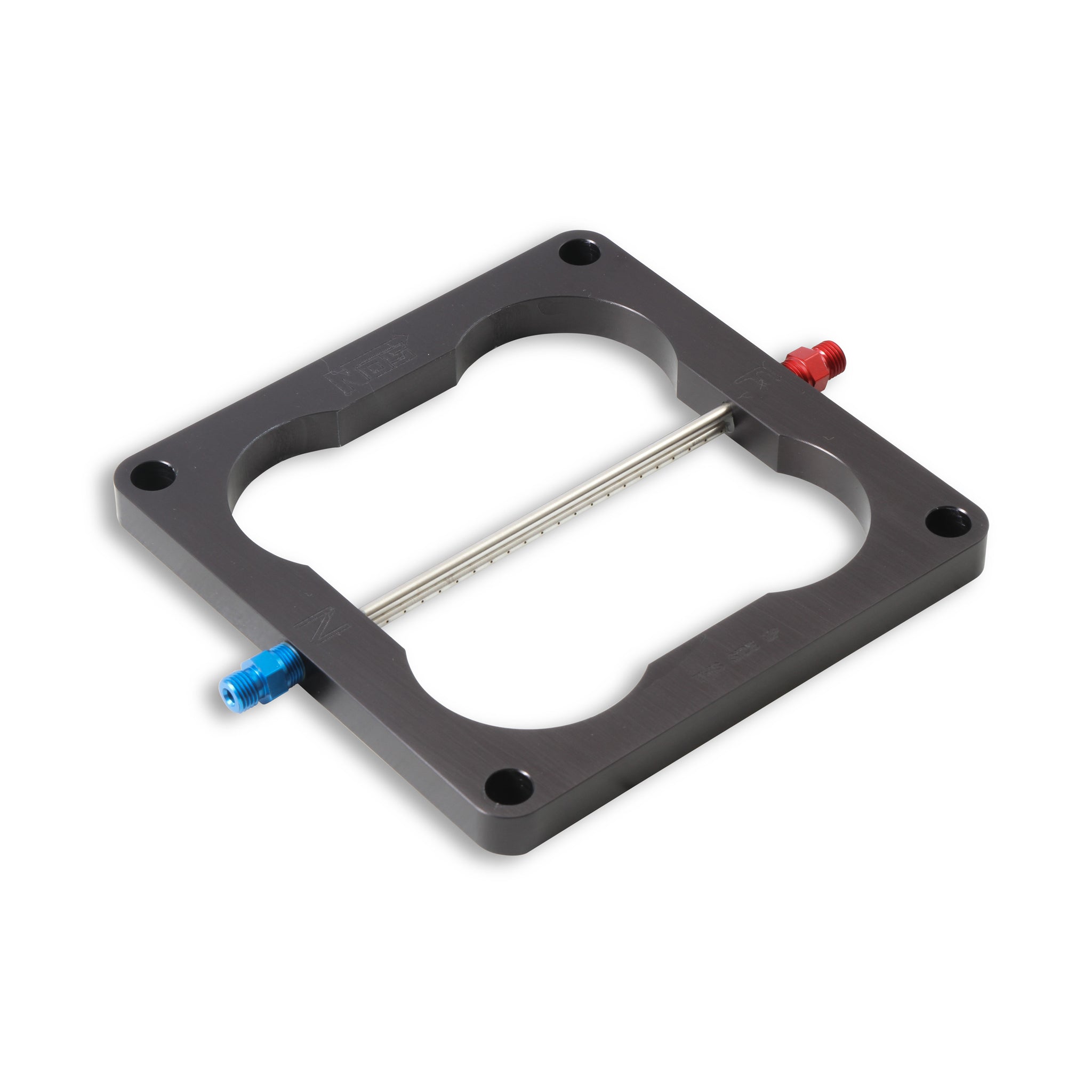

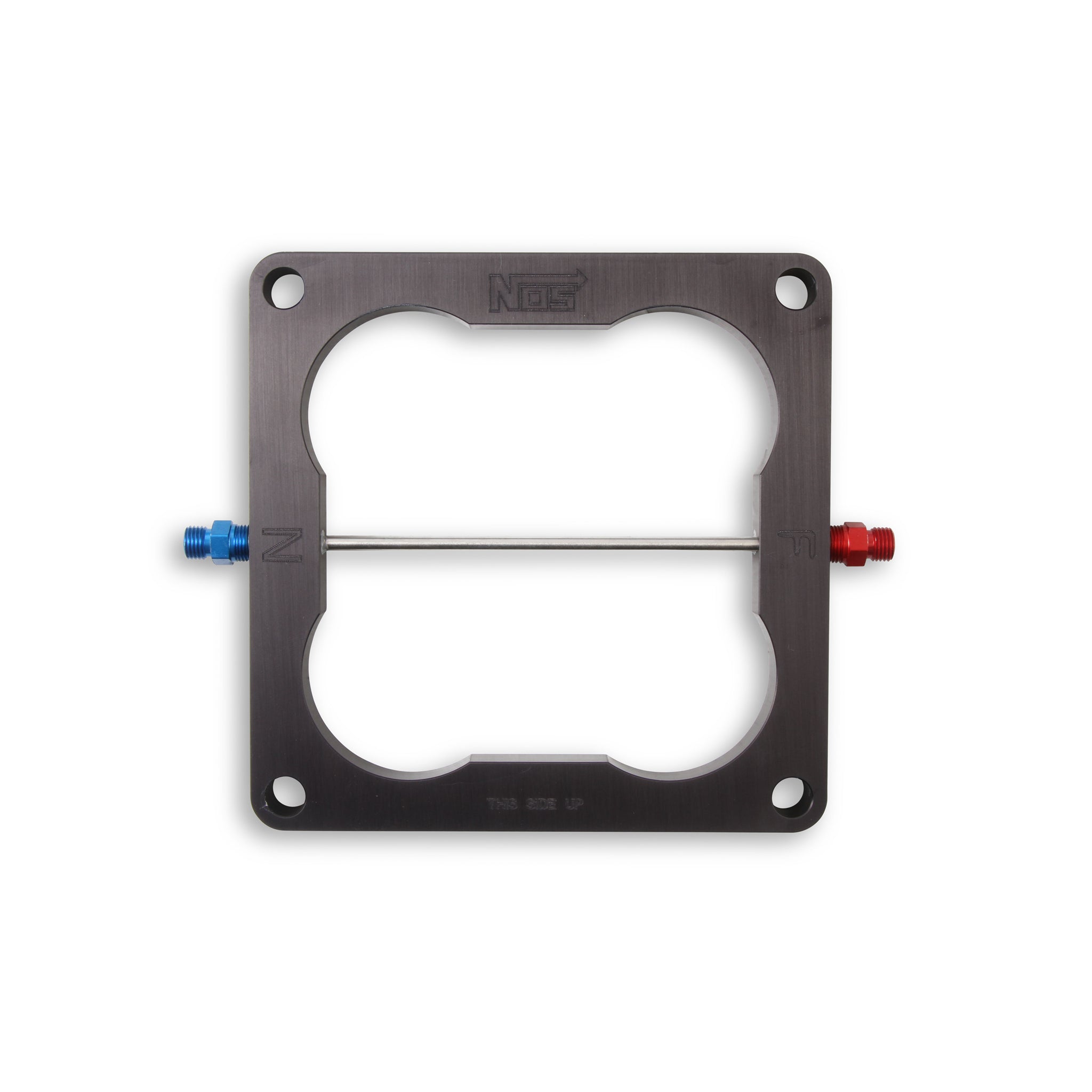

Plate Flange	4500 Dominator
WARNING CA Proposition 65	Yes
Jet Type	Flare
Maximum Horsepower	300
Bottle Size	10 lb.
Number of Solenoids	4
Usage	Strip/Competition
System Type	Wet

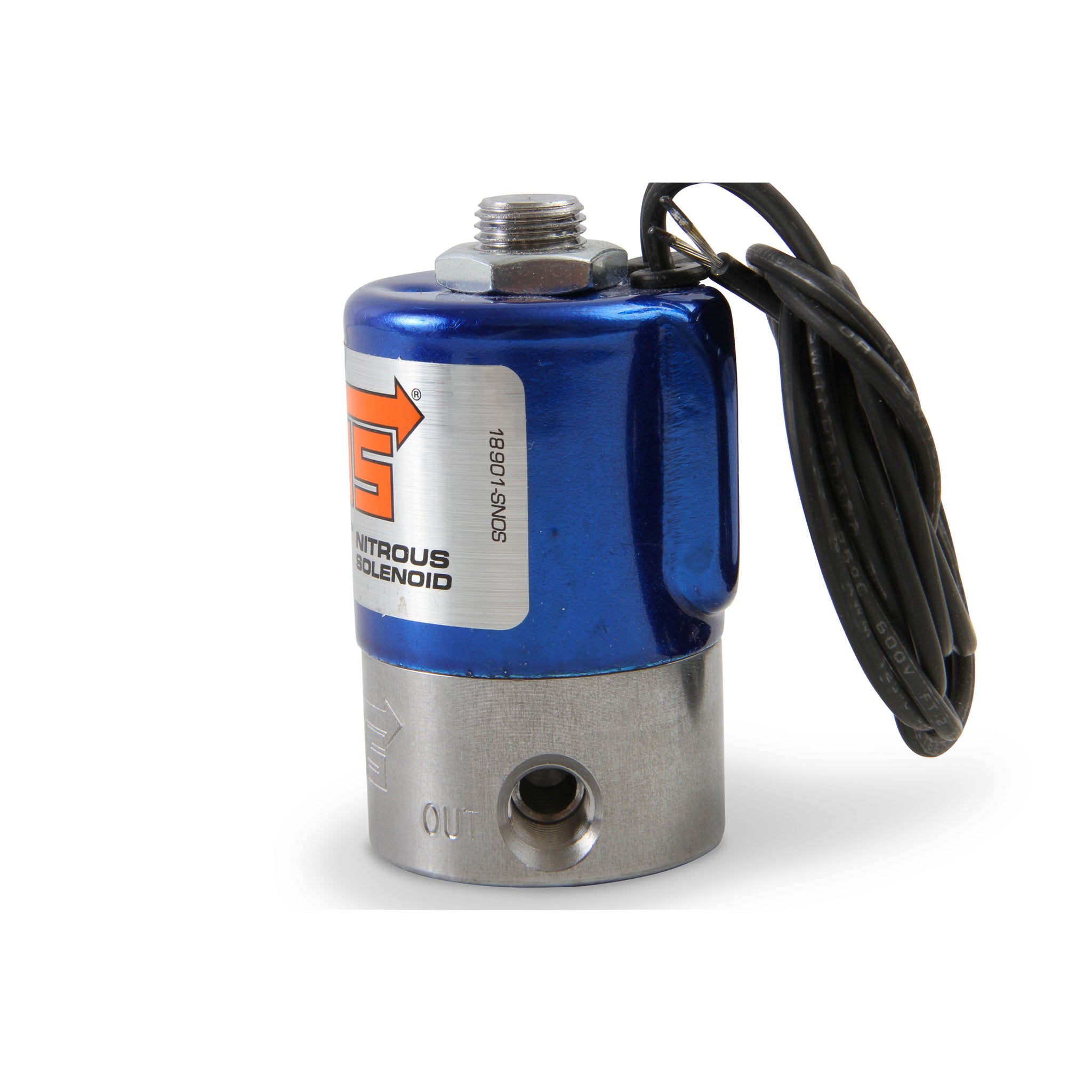

Nitrous Solenoid	Cheater and Super ProShot
Solenoid Quantity	4
Bottle Color	NOS Blue
Brand	NOS
Emission Code	4
Jet Style	Flare
Max Horsepower	300
Number of Stages	2
System Style	Wet
Length	12.0000
Width	11.0000
Height	30.0000
Weight	33.0000
