| Description_DEF |
Intercooler Kit |
| Description_DES |
Top-Mount Intercooler Kit, fits Subaru WRX 2022+, Silver Intercooler, Red Pipe |
| Description_MKT |

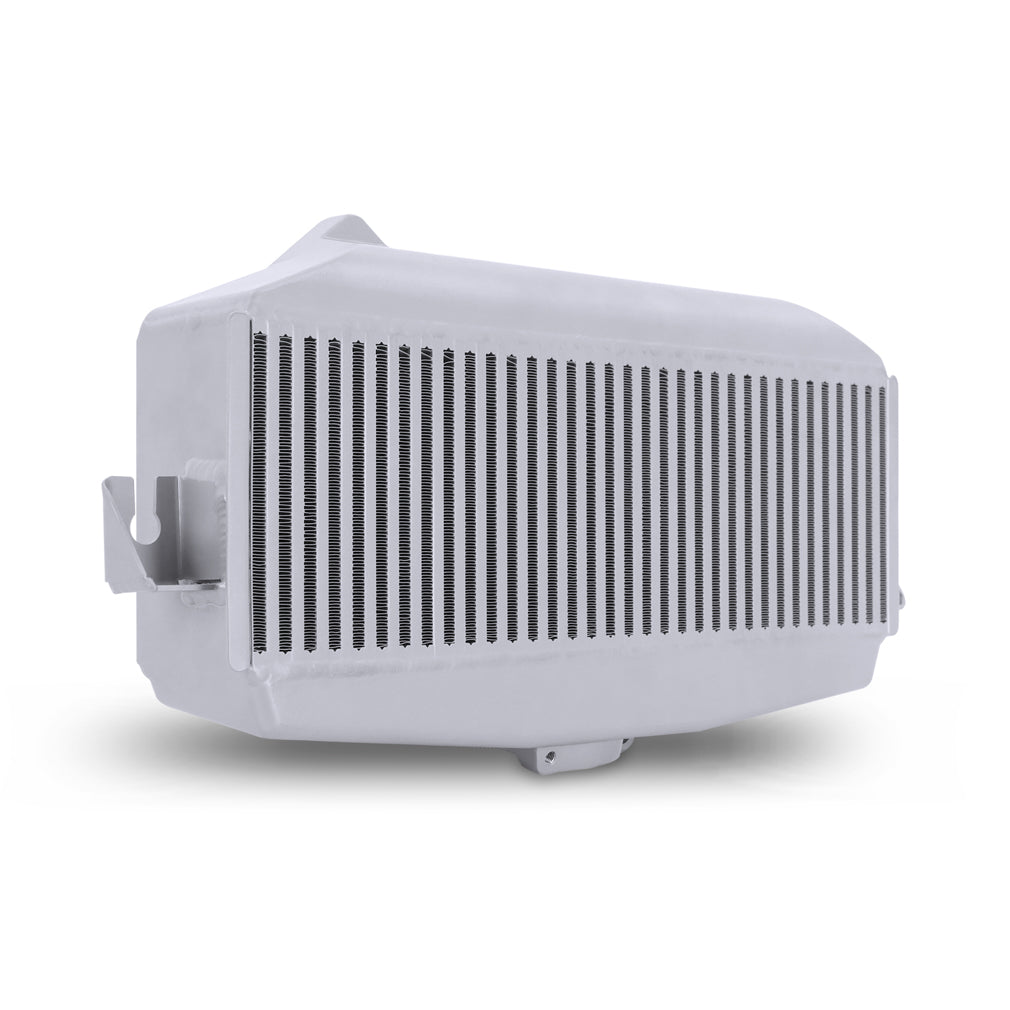

The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, we're happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler kit. This kit includes everything you need to let your FA24 breathe all the cool boost it could ever want.----Starting at the turbo, we've upgraded the stock plastic charge pipe with mandrel-bent and CNC-machined aluminum. Smooth bends and transitions improve flow by 20 percent over stock. The integrated turbo quick disconnect reduces failure points, so you never have to worry about a hard-to-access coupler popping off during a pull, and the all-aluminum construction resists high boost pressures better than the stock plastic pipe.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop.----This kit includes everything needed for installation, including new shroud hardware. It's available with a black or silver intercooler and black or red pipes to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back. |
| Description_EXT |
Performance Top-Mount Intercooler Kit, fits Subaru WRX 2022+, Silver Intercooler, Red Pipe |
| Description_SHO |
Intercooler Kit |
| TechSpec Overall Length (in) |
24.51 |
| SellingPoint11 |
Cast aluminum end tanks reduce failure points for high boost applications |
| SellingPoint12 |
Complete system upgrade allows your FA24 to breathe freely |
| TechSpec Note |
N/A |
| TechSpec Overall Height (in) |
12.96 |
| SellingPoint06 |

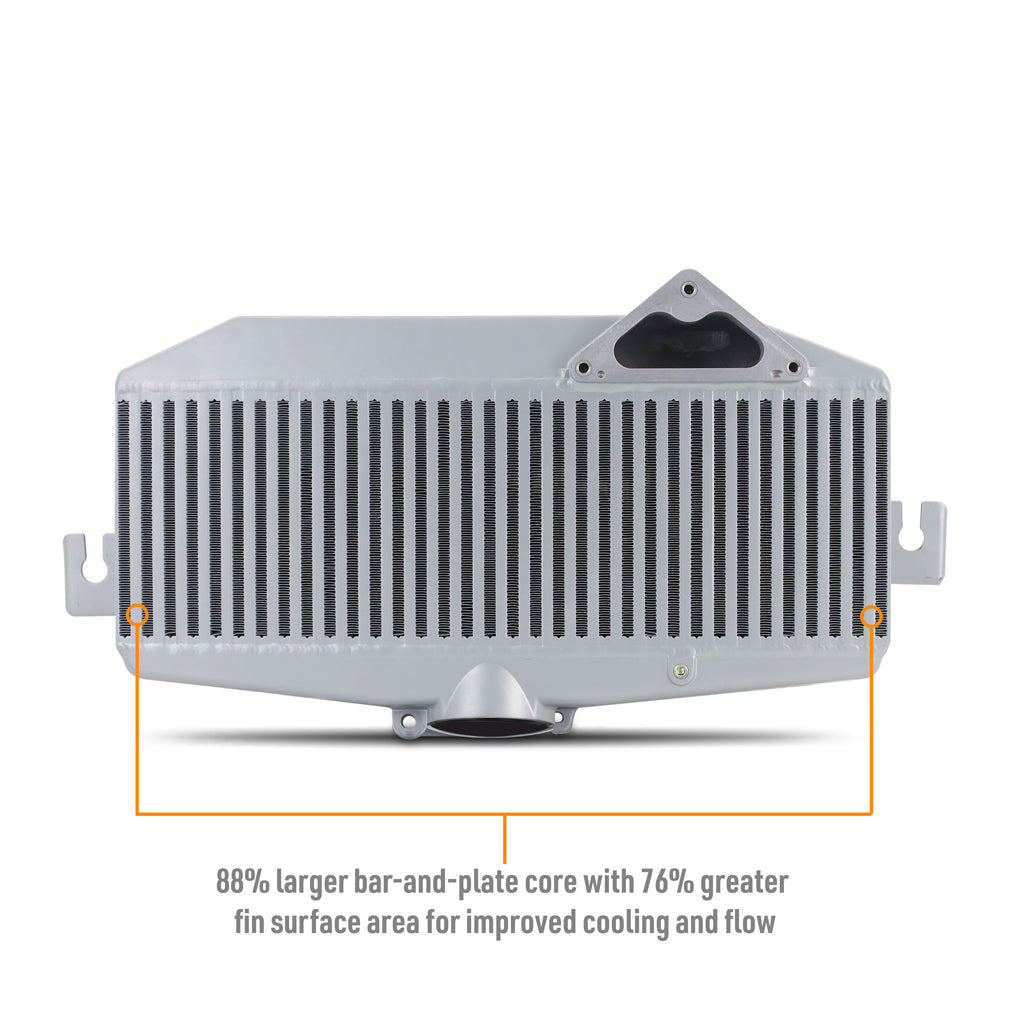

88 percent increase in core volume for improved cooling efficiency |
| TechSpec Core Length (in) |
20.5 |
| TechSpec Core Type |
Bar-And-Plate |
| SellingPoint09 |

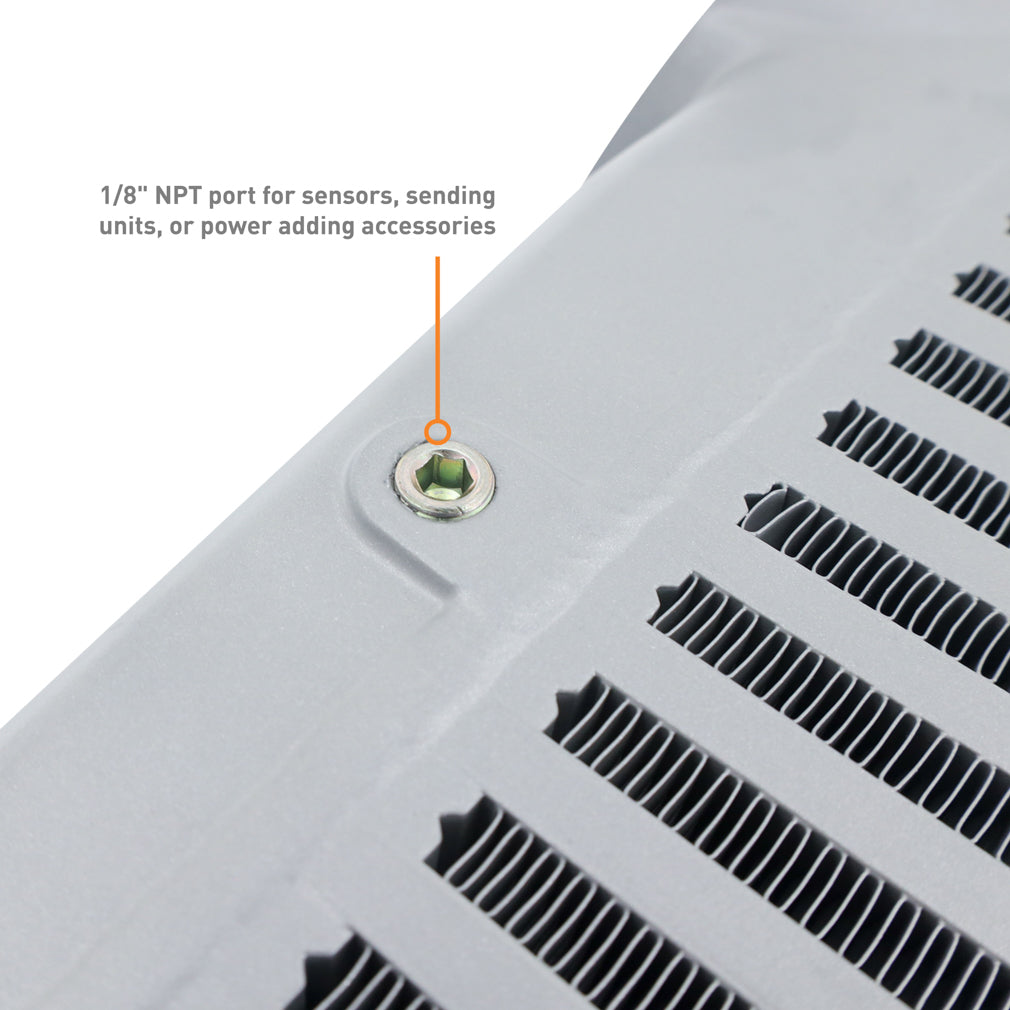

Cold-side tank include 1/8-NPT port for boost or temp sensors |
| SellingPoint03 |
35.7 percent less pressure drop than stock means more boost makes it into the engine |
| SellingPoint07 |
76 percent increase in fin surface area for superior heat transfer |
| SellingPoint08 |

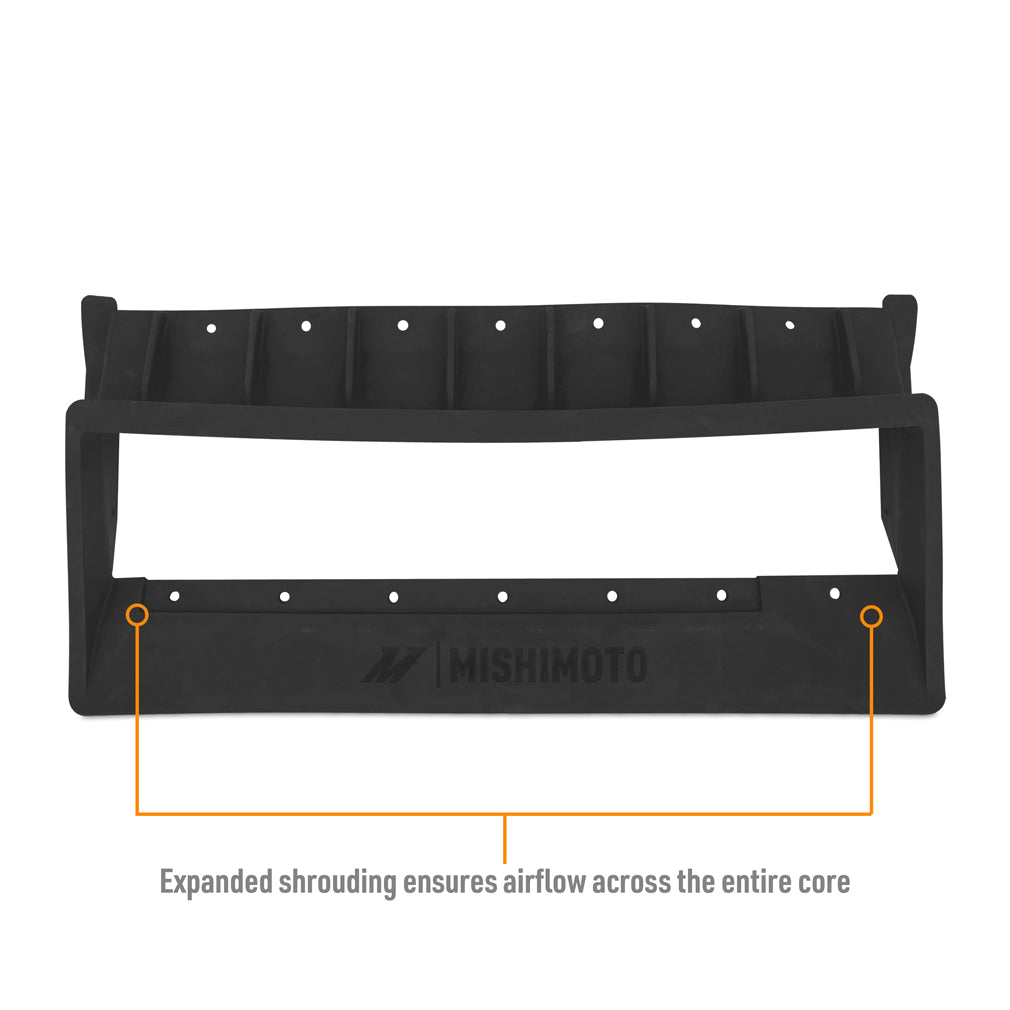

Includes expanded shrouding for maximum airflow and coverage |
| OptionLabel |
Silver Intercooler Red Pipe |
| TechSpec Core Height (in) |
7 |
| TechSpec Weight (lbs) |
N/A |
| SellingPoint02 |

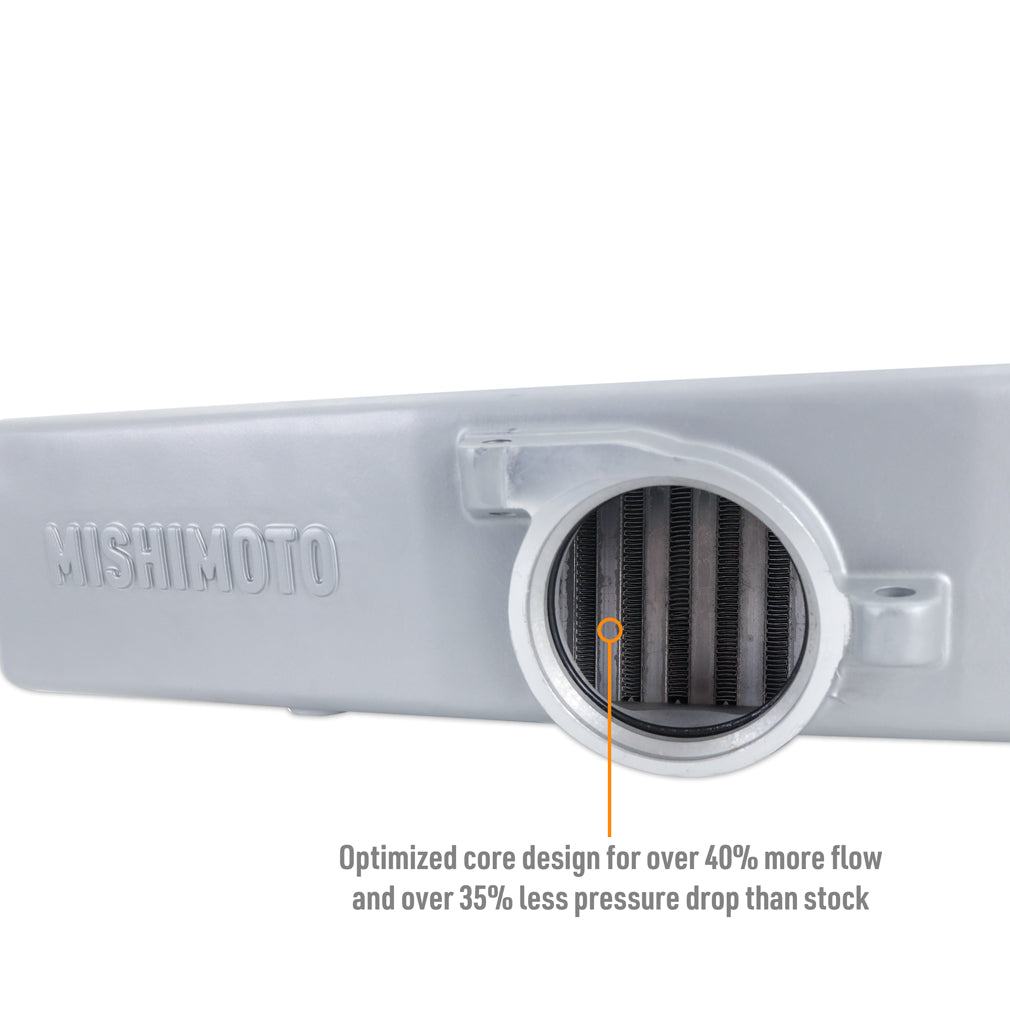

Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency |
| TechSpec Pipe Length |
N/A |
| TechSpec Chassis Codes |
VB |
| SellingPoint01 |
Direct fit for 2022+ Subaru WRX |
| TechSpec Engine Codes |
FA24DIT |
| TechSpec Installation Notes |
Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped. |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Maximum Recommended Horsepower |
600 |
| SellingPoint15 |
Mishimoto Lifetime Warranty |
| SellingPoint05 |

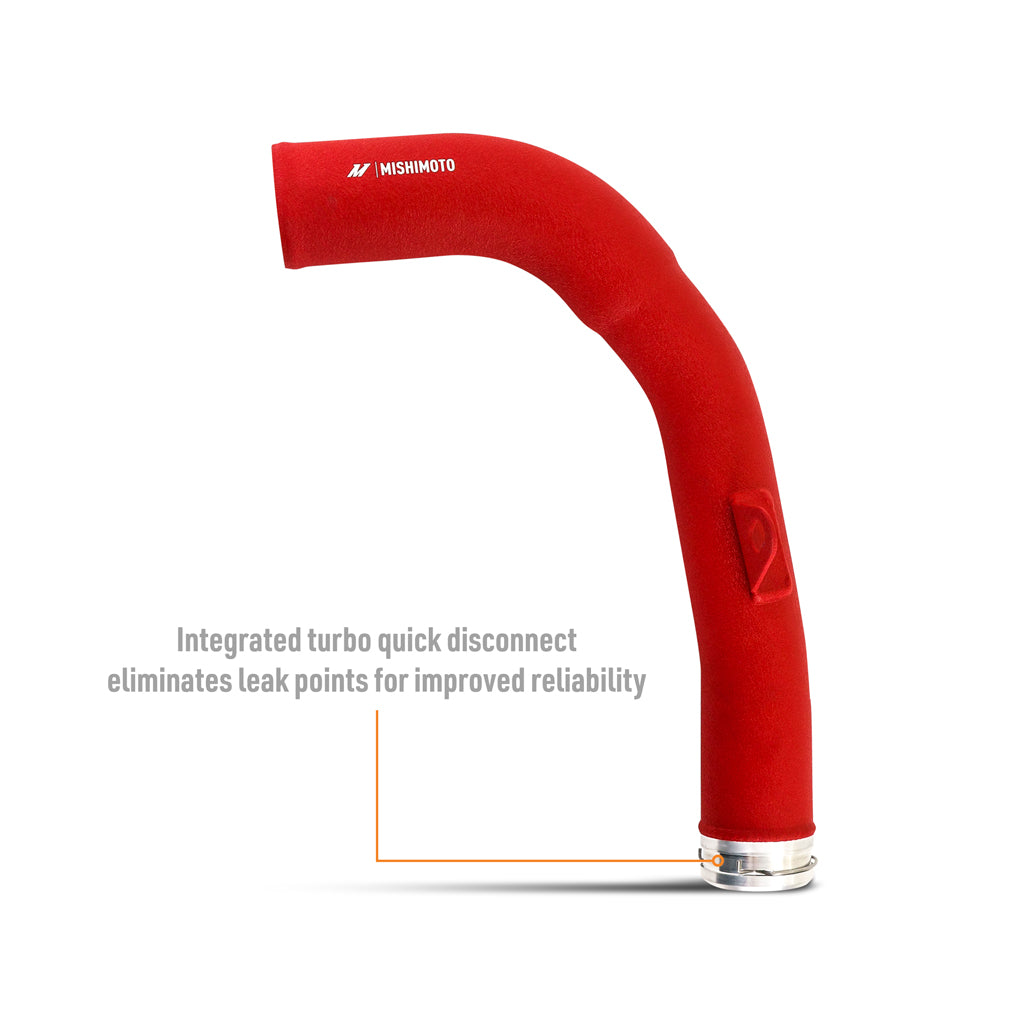

Integrated turbo quick disconnect eliminates leak points for improved reliability |
| SellingPoint13 |

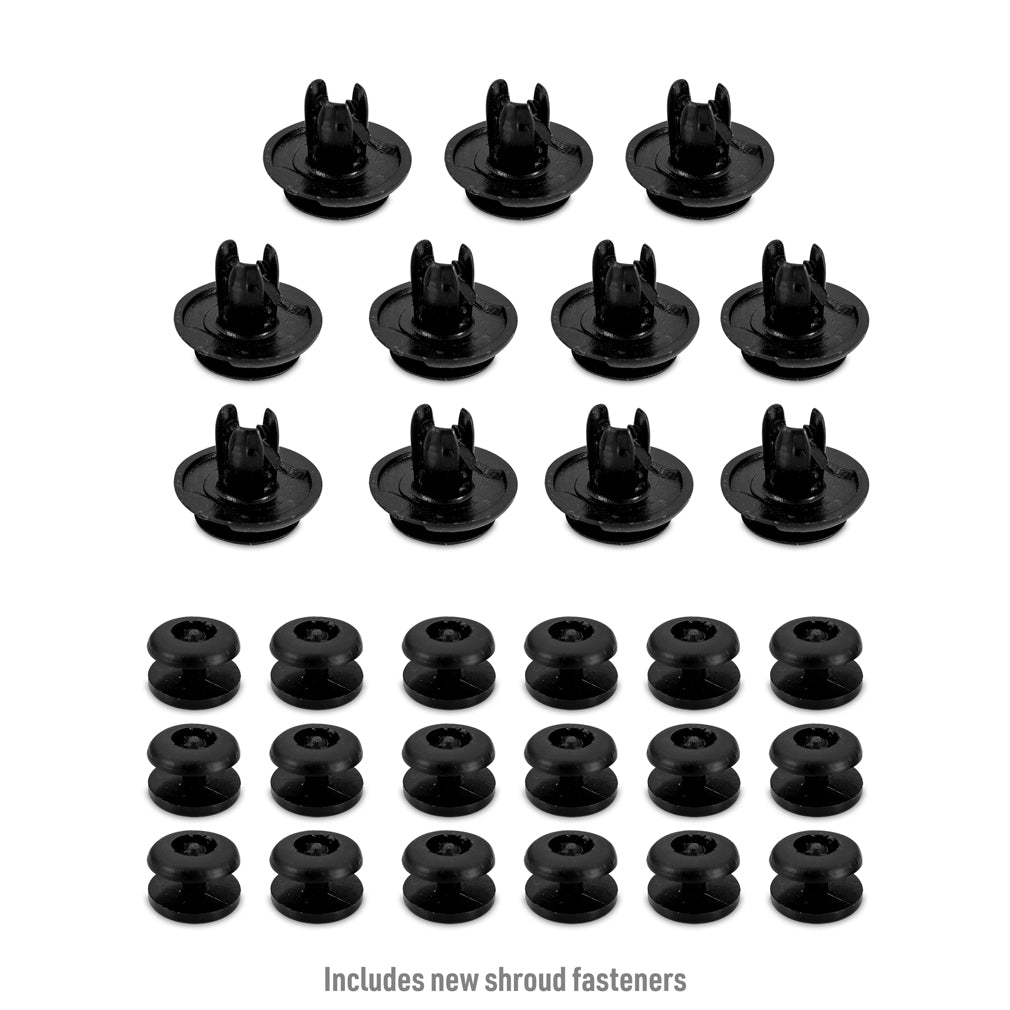

Includes everything needed for installation, including shroud hardware |
| TechSpec Core Thickness (in) |
4 |
| Install Difficulty |
1 |
| TechSpec Inlet (in) |
N/A |
| SellingPoint04 |
Lowers outlet temps to less than 10 degrees over ambient for safe performance |
| TechSpec Pipe Shape |
N/A |
| TechSpec Outlet (in) |
N/A |
| SellingPoint14 |
Available in your choice of black or silver intercooler and black or red pipes |
| TechSpec Centerline Radius |
N/A |
| TechSpec Applications |
Subaru WRX H4 2.4L Turbo 2022+ |
| SellingPoint10 |

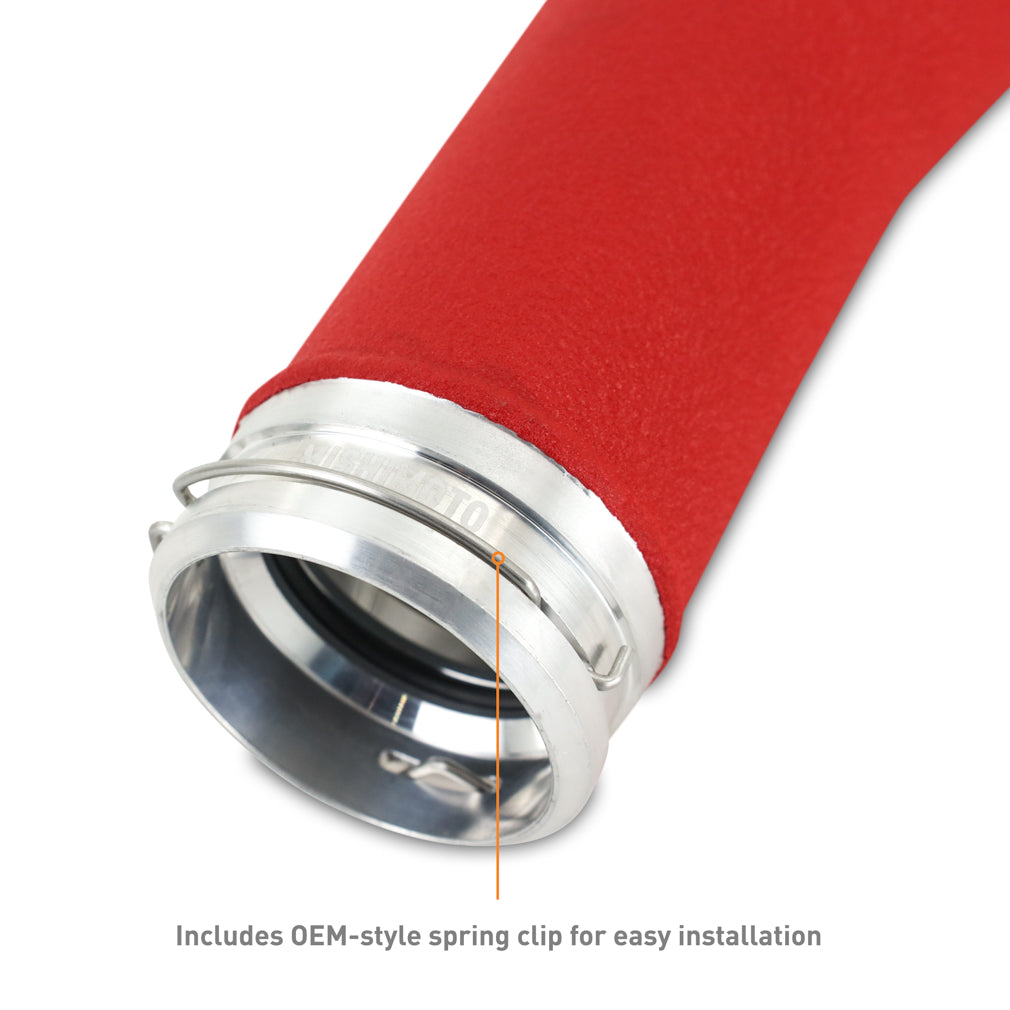

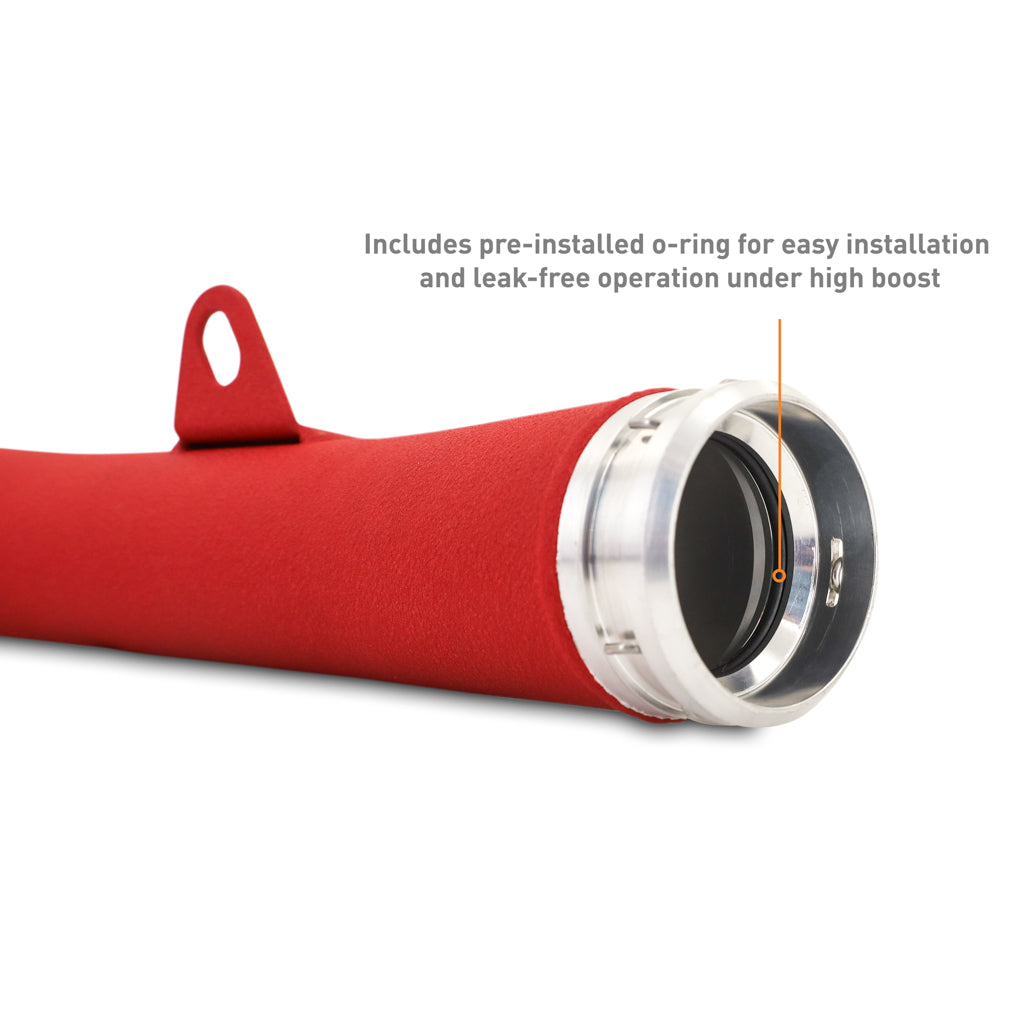

Mandrel-bent, full aluminum charge pipe for improved flow and durability |
| TechSpec Includes |

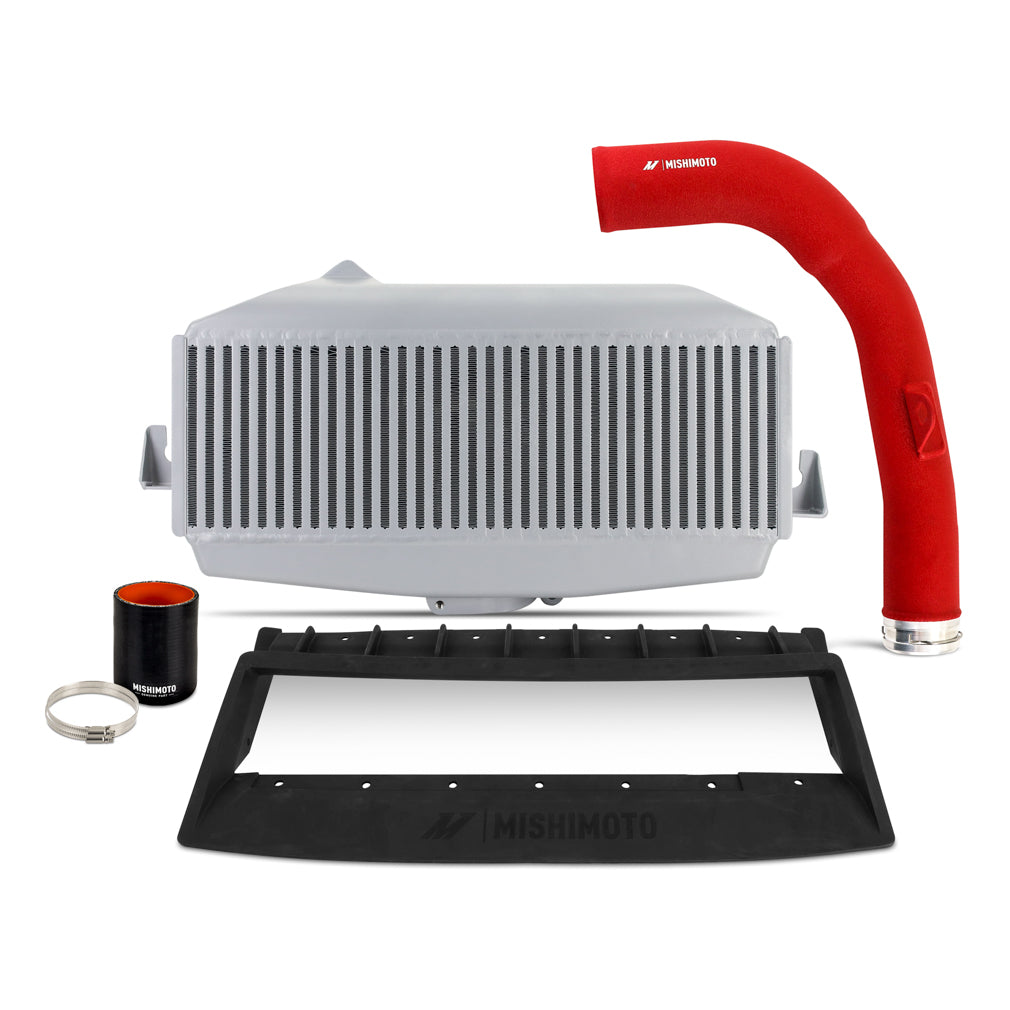

(1) Mishimoto Performance Intercooler--(1) Mishimoto Charge Pipe--(1) Mishimoto Intercooler Shroud--(36) Shroud Plastic Rivets--(11) Shroud Mount Panel Clips--(1) Silicone Coupler--(2) Stainless-Steel Worm Gear Clamps--Mishimoto Lifetime Warranty |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
100 |
| TechSpec Overall Width (in) |
4.38 |
| Length |
10.0000 |
| Width |
20.7500 |
| Height |
26.2500 |
| Weight |
33.0000 |
