| Description_DEF |
Intercooler Kit |
| Description_EXT |

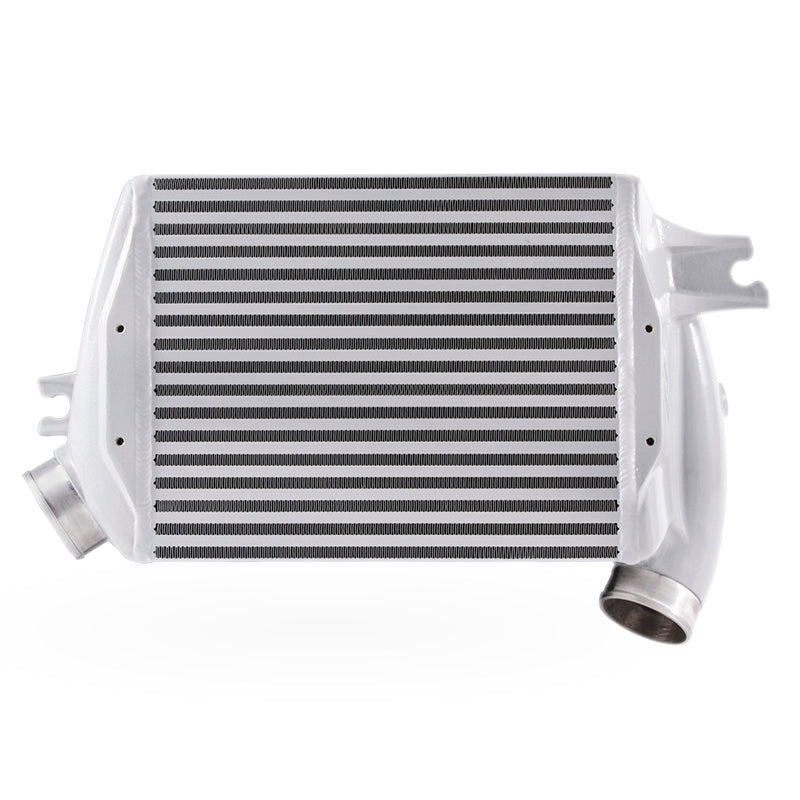

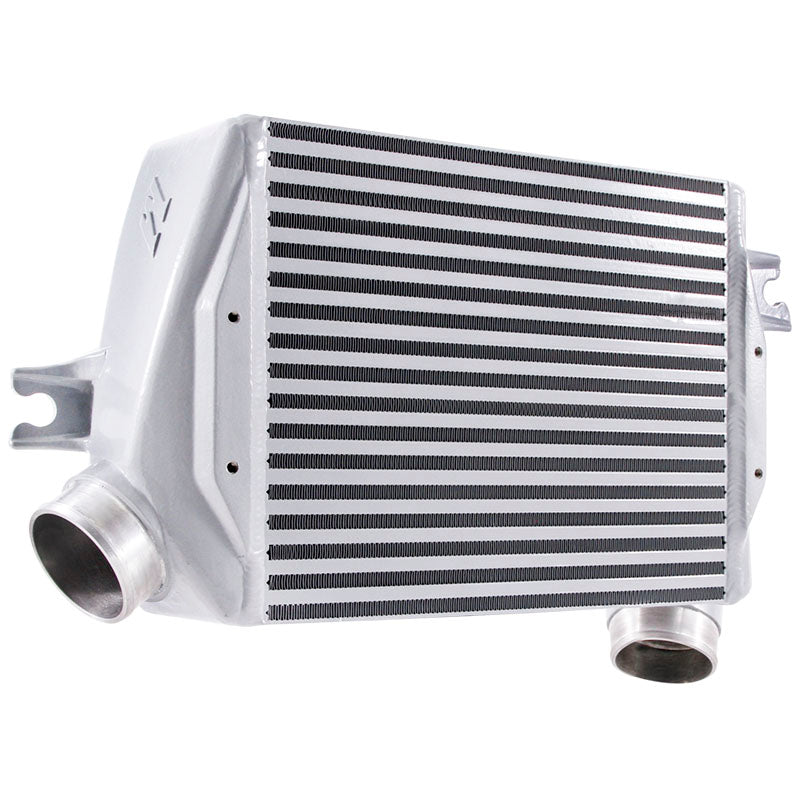

Street Performance Top-Mount Intercooler, fits Subaru WRX 2015-2021 |
| Description_DES |
Subaru WRX Street Performance Top-Mount Intercooler Kit, 2015-2021 |
| Description_MKT |
These days It's almost more uncommon to find a 2015-2021 Subaru WRX owner that isn?t looking to push more boost through their FA20DIT and give their morning commute a little more zest. With more boost comes the stock intercooler unit quickly gets in over its head. Mishimoto has the perfect intercooling solution with the Mishimoto 2015-2021 Subaru WRX Street Performance Top-Mount Intercooler. The Mishimoto'street Performance Intercooler takes the place of the stock unit and is specifically designed for use on the stock tune up to stage 2 maps and tunes. Our intercooler features fully cast aluminum end tanks TIG-welded to a robust bar-and-plate core designed for maximum cooling and minimal pressure drop. The new design boasts a 76-percent increase in core volume and 81-percent bump in external fin surface area equating to a 34?F drop in outlet temperatures over the stock unit. The 12-percent increase in flow is another reason why this intercooler the perfect addition to your tuned WRX This intercooler available in black, silver or gold with the optional add on of the Mishimoto ducting for increased airflow. Like all of our products, the Mishimoto 2015-2021 Subaru WRX Street Performance Top-Mount Intercooler includes the Mishimoto Lifetime Warranty for a worry free installation. |
| Description_INV |
Mishimoto MMTMIC-WRX-15XSL |
| Description_FAB |
Direct fit for the 2015-2021 Subaru WRX using stock tune up to stage 2 |
| Description_FAB |
Drops intercooler outlet temperature by 34 F and 12-percent increase in flow over stock unit |
| Description_FAB |
76-percent increase in core volume and 81-percent increase in external fin surface area over stock unit |
| Description_FAB |
Available in black, silver, or gold |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_SHO |
Intercooler Kit |
| TechSpec Installation Notes |
22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM). |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| TechSpec Core Thickness (in) |
3.9 |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Pipe Length |
N/A |
| SellingPoint02 |
Designed for optimal performance on vehicles using up to stage 2 tuning |
| SellingPoint08 |
Bar-and-plate core designed for maximum cooling and minimal pressure drop |
| SellingPoint09 |
Compatible with stock engine cover and charge pipe |
| SellingPoint15 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Note |
N/A |
| TechSpec Pipe Shape |
N/A |
| OptionLabel |
Silver |
| SellingPoint03 |
Drops intercooler outlet temperature by 34F over stock unit |
| SellingPoint07 |
100-percent aluminum construction with fully cast end tanks |
| SellingPoint10 |
Includes pre-drilled and tapped NPT sensor port |
| TechSpec Core Height (in) |
3.94 |
| TechSpec Core Length (in) |
11.7 |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| TechSpec Weight (lbs) |
N/A |
| Install Difficulty |
2 |
| SellingPoint01 |
Direct fit for the 2015-2021 Subaru WRX |
| SellingPoint04 |
12-percent increase in flow |
| SellingPoint05 |
76-percent increase in core volume over stock |
| SellingPoint06 |
81-percent increase in external fin surface area |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| TechSpec Applications |
2015-2021 Subaru WRX--2014-2018 Subaru Forester XT |
| TechSpec Chassis Codes |
VA |
| TechSpec Engine Codes |
FA20DIT |
| TechSpec Includes |
(1) Mishimoto Intercooler--(2) Stock Engine Cover Adapters--(1) Silicone Throttle Body Adapter--(2) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
2.5 |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
N/A |
| TechSpec Outlet (in) |
2.5 |
| TechSpec Pipe Diameter |
N/A |
| Length |
8.0000 |
| Width |
17.0000 |
| Height |
27.0000 |
| Weight |
22.0000 |
