| Description_DEF |
Intercooler Kit |
| Description_DES |
Subaru WRX Performance Top Mount Intercooler and Charge-Pipe Kit, 2015-2021 |
| Description_EXT |
Race Top-Mount Intercooler Kit, fits Subaru WRX 2015-2021 |
| Description_INV |
Mishimoto MMTMIC-WRX-15RSL |
| Description_FAB |
Direct fit for the 2015-2021 Subaru WRX |
| Description_FAB |
Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune |
| Description_FAB |
Proven +15 whp and +8 wtq bolt-on power increase on a stage 2 tune |
| Description_FAB |
100% aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core |
| Description_FAB |
TIG-welded to a highly efficient bar-and-plate core |
| Description_FAB |
Intercooler core designed for maximum cooling efficiency and minimal pressure drop |
| Description_FAB |
Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core |
| Description_FAB |
Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability |
| Description_FAB |
Includes new BPV hoses, hot side coupler, and silicone throttle body hose |
| Description_FAB |
Comes with all necessary hardware, clamps, and brackets for an easy installation |
| Description_FAB |
Pre-marked area for NPT sensor |
| Description_FAB |
Cooler available in durable powder-coated Sleek Silver or Stealth Black finish |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_MKT |
Are you looking for a way to reduce high intake temperatures on your stock or modified 2015-2021 Subaru WRX? The solution is the Mishimoto direct-fit 2015-2021 Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015-2021 Subaru WRX. The stock 2015-2021 Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015-2021 Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto 2015-2021 Subaru WRX intercooler has a 4? thick core and a total volume of 625 cubic inches, making it one of the largest top-mount intercoolers you can buy. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. |
| Description_MKT |
This WRX intercooler endured rigorous testing, showing a 35?F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable servi |
| Description_SHO |
Intercooler Kit |
| SellingPoint01 |
Direct fit for the 2015-2021 Subaru WRX |
| TechSpec Weight (lbs) |
24.5 |
| Install Difficulty |
3 |
| SellingPoint14 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Includes |

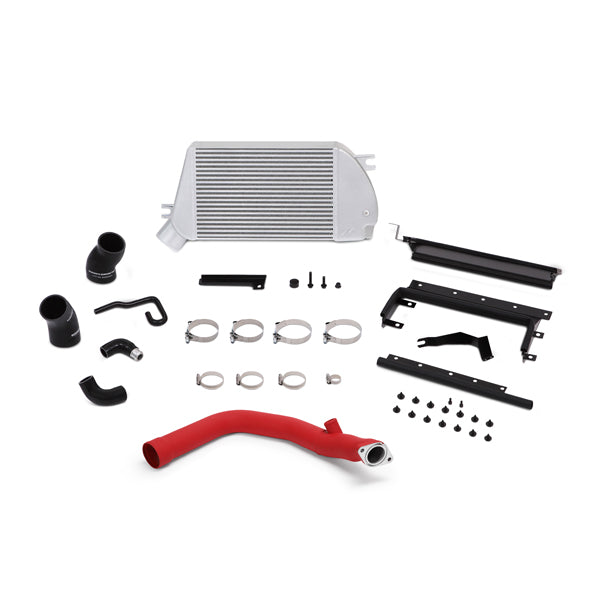

(1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Pipe Diameter |
N/A |
| OptionLabel |
Silver Intercooler, Red Pipe |
| SellingPoint02 |
Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune |
| SellingPoint05 |
TIG-welded to a highly efficient bar-and-plate core |
| SellingPoint07 |
Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core |
| SellingPoint12 |
Cooler available in durable powder-coated Sleek Silver or Stealth Black finish |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
35 |
| TechSpec Overall Length (in) |
24 |
| SellingPoint06 |
Intercooler core designed for maximum cooling efficiency and minimal pressure drop |
| SellingPoint08 |
Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability |
| SellingPoint11 |
Pre-marked area for NPT sensor |
| SellingPoint15 |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
4 |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Engine Codes |
FA20DIT |
| TechSpec Installation Notes |
22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM). |
| TechSpec Note |
This kit is rated for 300-450 whp with maximum limits of approximately 500 whp, or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe, but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size. |
| TechSpec Outlet (in) |
3 |
| TechSpec Overall Height (in) |
10 |
| TechSpec Overall Width (in) |
5 |
| TechSpec Pipe Length |
N/A |
| CARB EO Number |
D-759 |
| SellingPoint03 |
Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune |
| SellingPoint04 |
100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core |
| SellingPoint09 |
Includes new BPV hoses, hot side coupler, and silicone throttle body hose |
| SellingPoint10 |
Comes with all necessary hardware, clamps, and brackets for an easy installation |
| SellingPoint13 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
2015-2021 WRX--2014-2018 Forester XT |
| TechSpec Chassis Codes |
VA |
| TechSpec Inlet (in) |
2.5 |
| TechSpec Maximum Recommended Horsepower |
450 |
| TechSpec Pipe Shape |
N/A |
| Length |
7.0000 |
| Width |
17.2500 |
| Height |
37.1000 |
| Weight |
22.0000 |
