| Description_DEF |
Engine Oil Cooler |
| Description_DES |
Mazda Miata Oil Cooler Kit, 2016-2018, Black, Thermostatic |
| Description_EXT |
Oil Cooler Kit, fits Mazda Miata 2016-2018 |
| Description_INV |
Mishimoto MMOC-MIA-16TBK |
| Description_FAB |
Direct-fit for the 2016-2018 Mazda MX5 Miata |
| Description_FAB |
Reduces oil temperatures by up to 57 F (29.5 C) |
| Description_FAB |
Minimal pressure drop |
| Description_FAB |
Application-specific mounting brackets mount the oil cooler in the front bumper area |
| Description_FAB |
19-row stacked-plate oil cooler for optimal fluid temperature reduction |
| Description_MKT |
With the release of the new 2016 Mazda Miata, the Mishimoto engineers are excited to help increase cooling efficiency. We all know that these fresh-off-the-production-line Miatas will find their way to track, so Mishimoto developed a direct-fit Miata oil cooler kit to keep oil temperatures in check. Mishimoto's Miata oil cooler makes sure that your oil stays at optimal temperatures, while your Miata is making leading laps around the track. Unfortunately, the new 2016 Miata was not equipped with a stock oil cooler, making the addition of an oil cooler an important modification. This Miata oil cooler kit features a Mishimoto 19-row stacked-plate oil cooler, which is placed directly in front of the radiator by application-specific mounting brackets for maximum air-flow. Application-specific braided stainless steel lines transfer oil from the cooler to the engine and feature -10AN fittings for an easy installation. Mishimoto engineers saw consistent temperature decreases of up to 57 F (29.5 C) using our non-thermostatic sandwich plate. The cooler is available in a Sleek Silver or Stealth Black powdercoat finish with the choice of either the Mishimoto Thermostatic Oil Sandwich Plate or the Mishimoto Non-thermostatic Oil Sandwich Plate. As with the rest of the Mishimoto 2016 Miata parts, this oil cooler kit comes with the Mishimoto Lifetime Warranty! |
| Description_SHO |
Engine Oil Cooler |
| Install Difficulty |
3 |
| OptionLabel |
Black Cooler, Thermostatic |
| SellingPoint01 |
Direct-fit for the 2016-2018 Mazda MX-5 Miata |
| SellingPoint02 |
19-row stacked-plate oil cooler drops temperatures up to 57F (29.5C) |
| SellingPoint03 |
Minimal pressure drop |
| SellingPoint04 |
Application-specific mounting brackets mount the oil cooler in the front bumper |
| SellingPoint05 |
Mounting brackets made from aluminum for a lightweight design |
| SellingPoint06 |
Pre-made stainless steel braided oil lines with durable -AN fittings |
| SellingPoint07 |
Billet aluminum thermostatic oil sandwich plate |
| SellingPoint08 |
Thermostatic and Non-thermostatic options available |
| SellingPoint09 |
Cooler available in either Sleek Silver or Stealth Black |
| SellingPoint10 |
Increases oil capacity by .75 qt |
| SellingPoint11 |
Mishimoto Lifetime Warranty |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2016-2018 Mazda Miata |
| TechSpec Caution |
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes |
ND |
| TechSpec Core Construction |
N/A |
| TechSpec Core Height (in) |
5.43 |
| TechSpec Core Length (in) |
11 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |

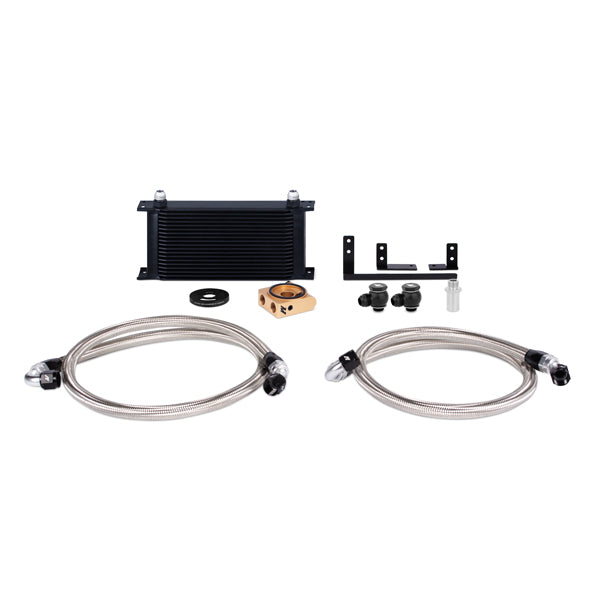

Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware--19-Row Oil Cooler--3-ft, 9-in Stainless-Steel Braided Hose with Straight and 45 / 120 Degree -10AN Fittings--4-ft, 7-in Stainless-Steel Braided Hose with 45 Degree and 45 / 120 Degree -10AN Fittings--Oil Sandwich Plate--M20 Extended Length Stainless-Steel Sandwich Plate Adapter--10mm 6061 Aluminum Sandwich Plate Spacer--O-rings--Banjo Fitting w/ Bolt M20 x -10AN, Black--Mounting Hardware Set |
| TechSpec Inlet |
N/A |
| TechSpec Installation Notes |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Note |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Outlet |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| TechSpec Rows |
19 |
| Length |
18.0000 |
| Width |
8.5000 |
| Height |
15.0000 |
| Weight |
11.0000 |
