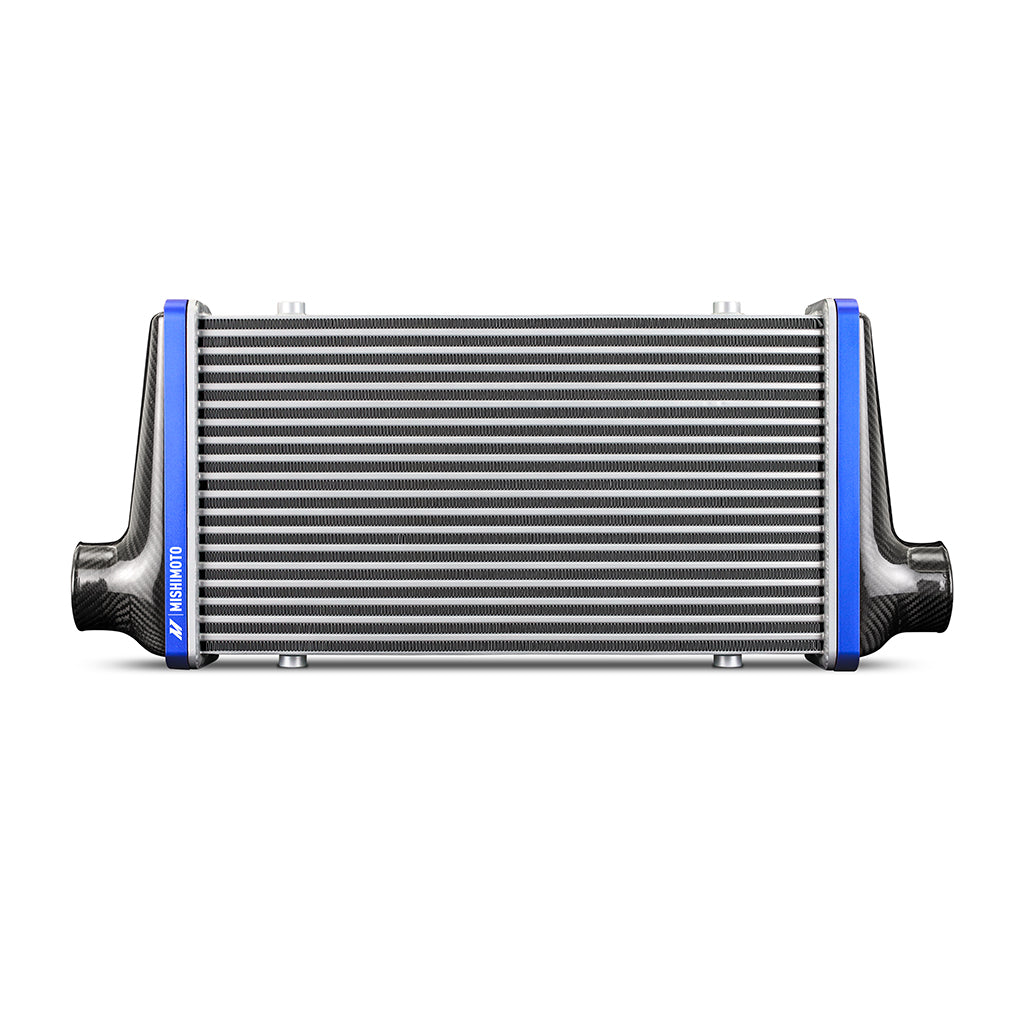

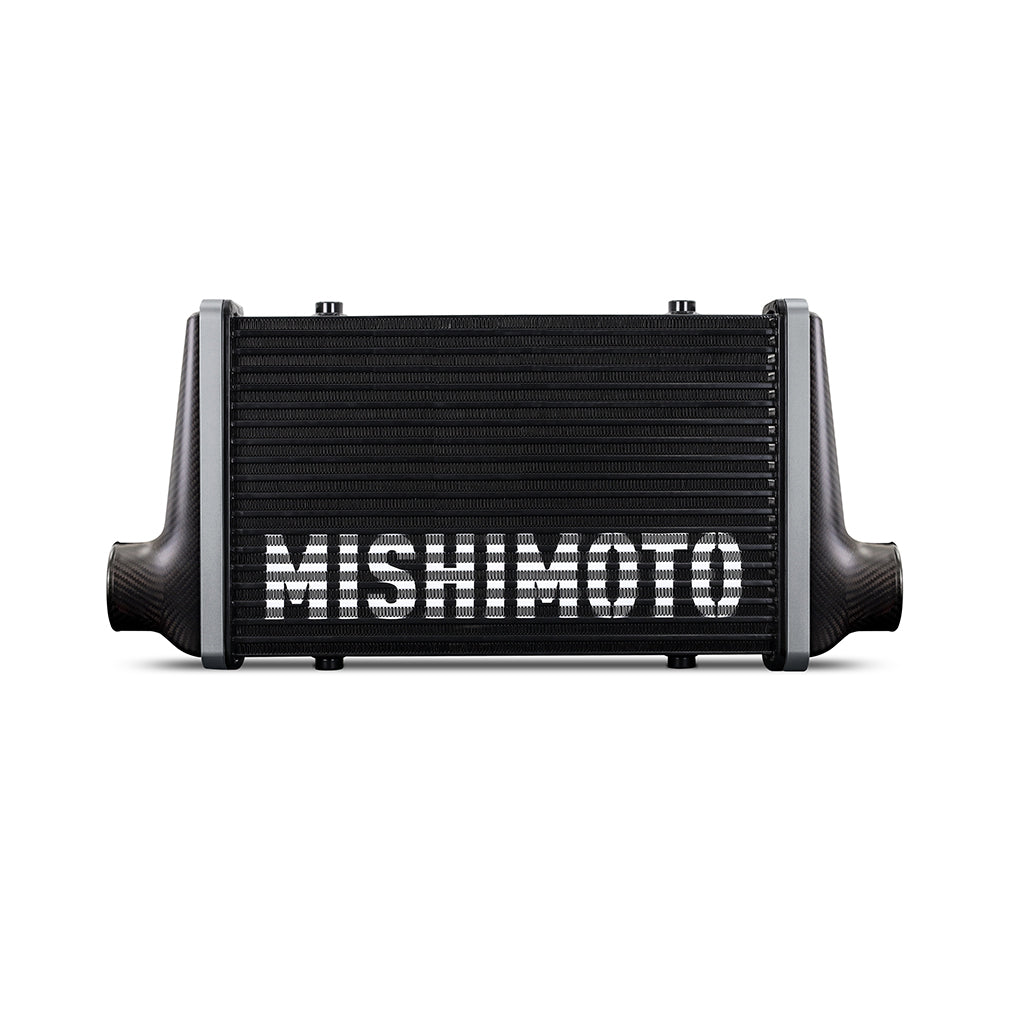

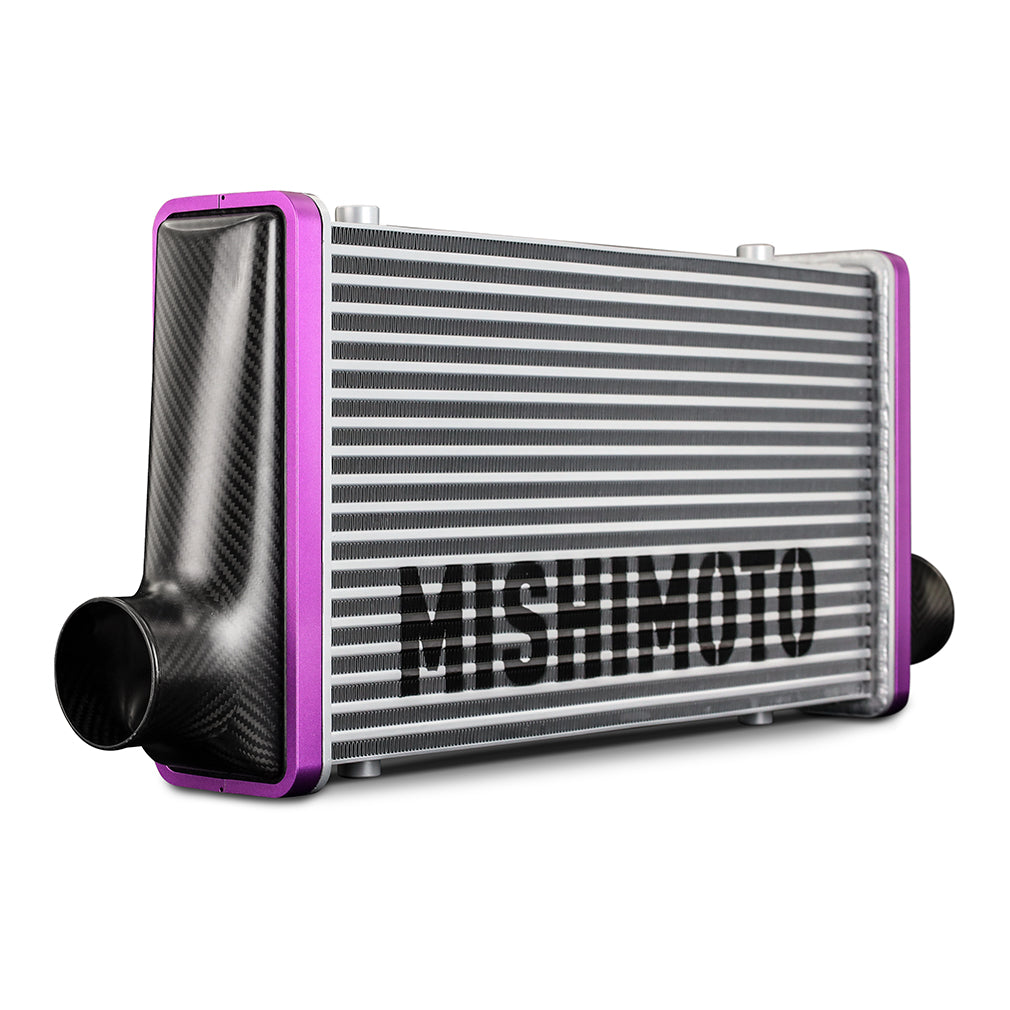

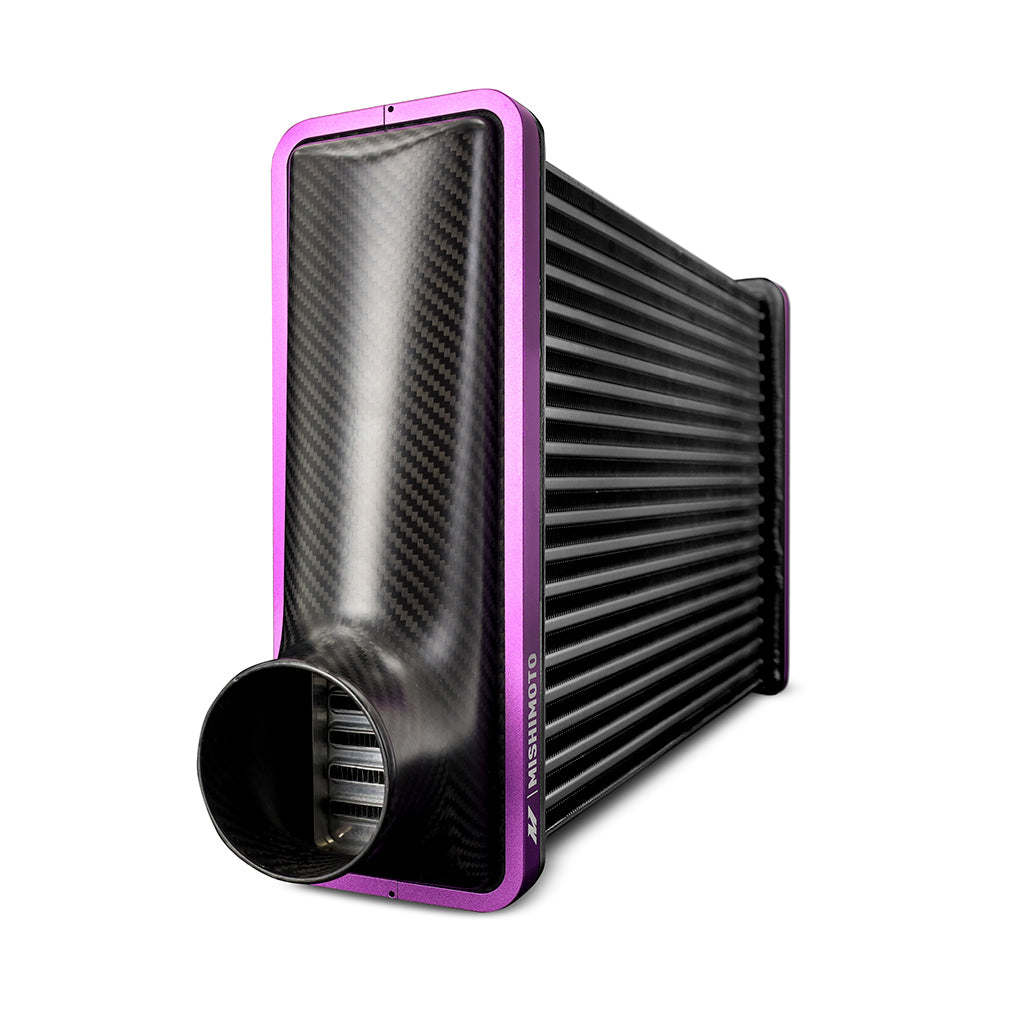

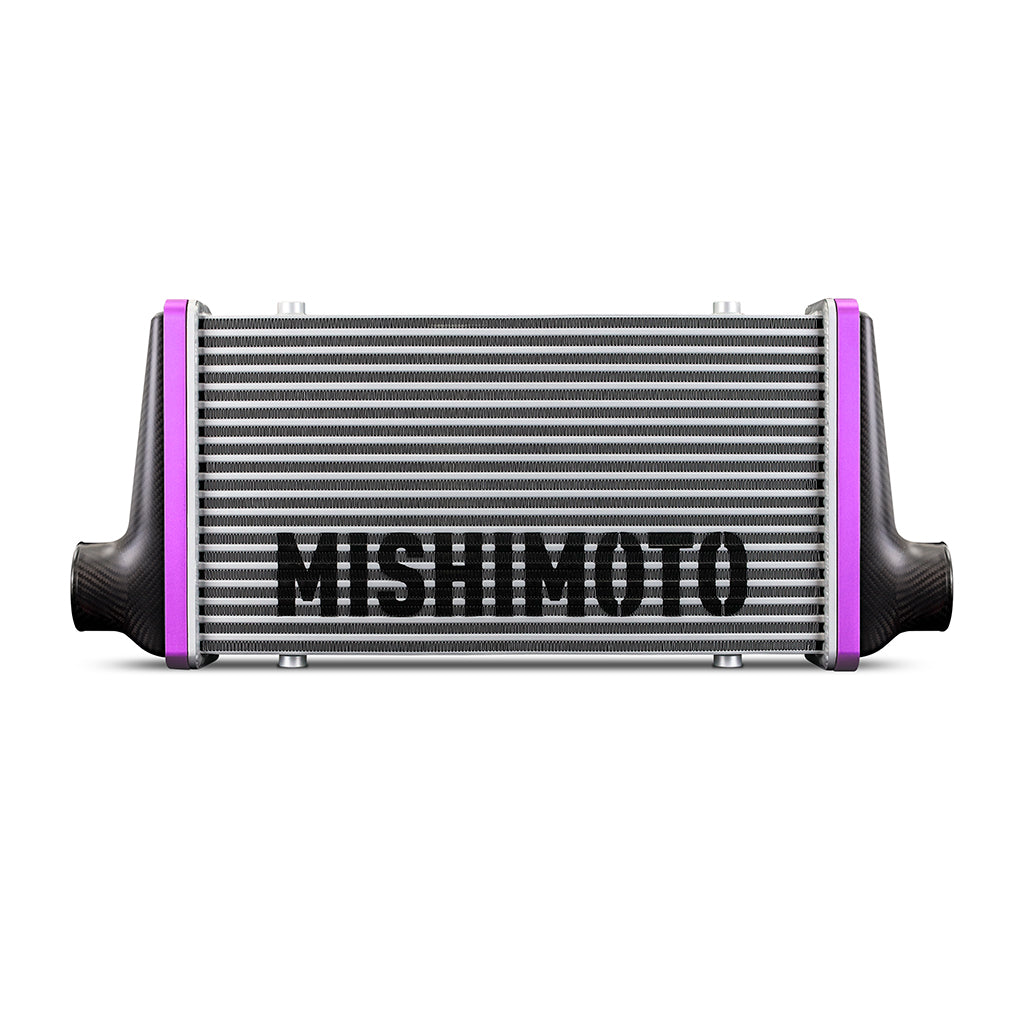

Mishimoto MMINT-UCF-M5B-S-BK MMINT-UCF, Matte Tanks, 525mm Black Core, Straight, Black Anodized V-Band

2 sold in last 8 days

Brand: Mishimoto

SKU: ds_FLDS_MMINT-UCF-M5B-S-BK

Stock:

Product Code: Intercooler Kit

$3,303.54

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Mishimoto MMINT-UCF-M5B-S-BK MMINT-UCF, Matte Tanks, 525mm Black Core, Straight, Black Anodized V-Band

Details
Reviews

Details

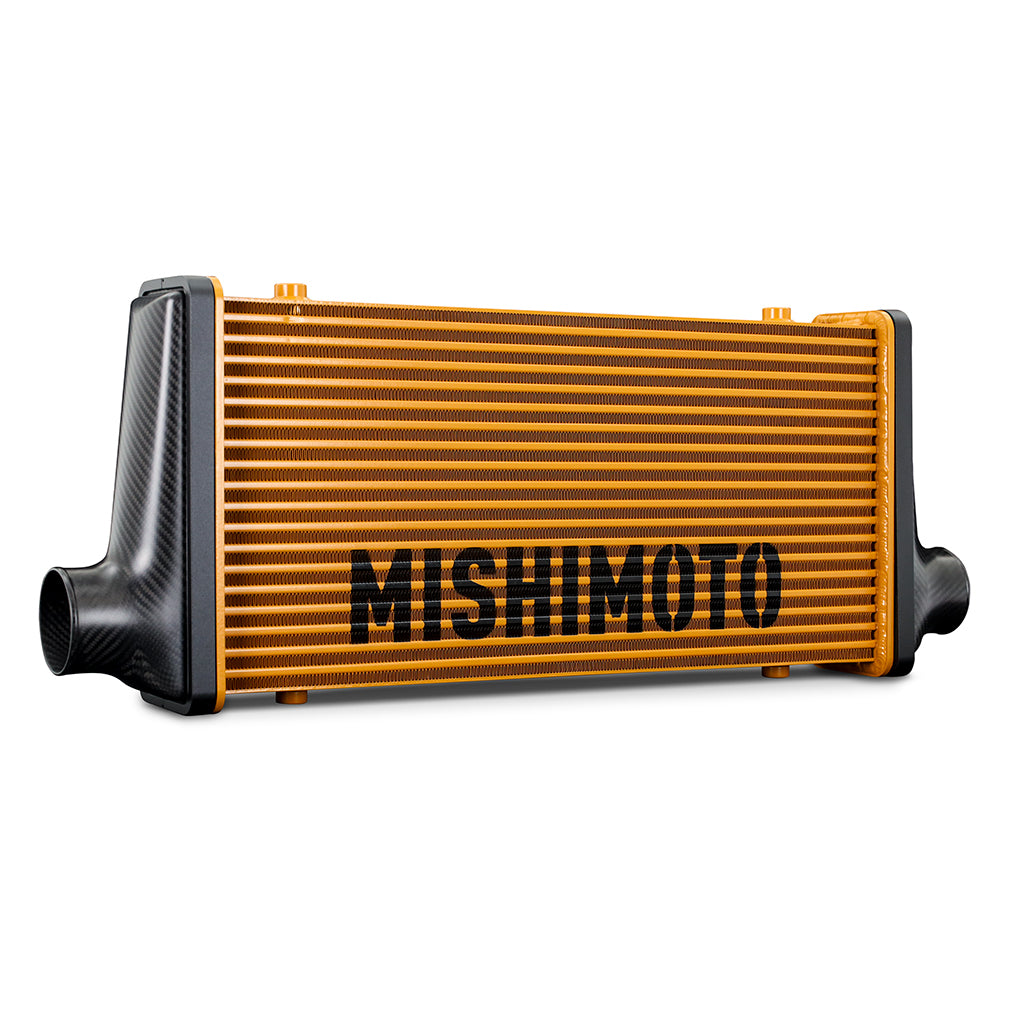

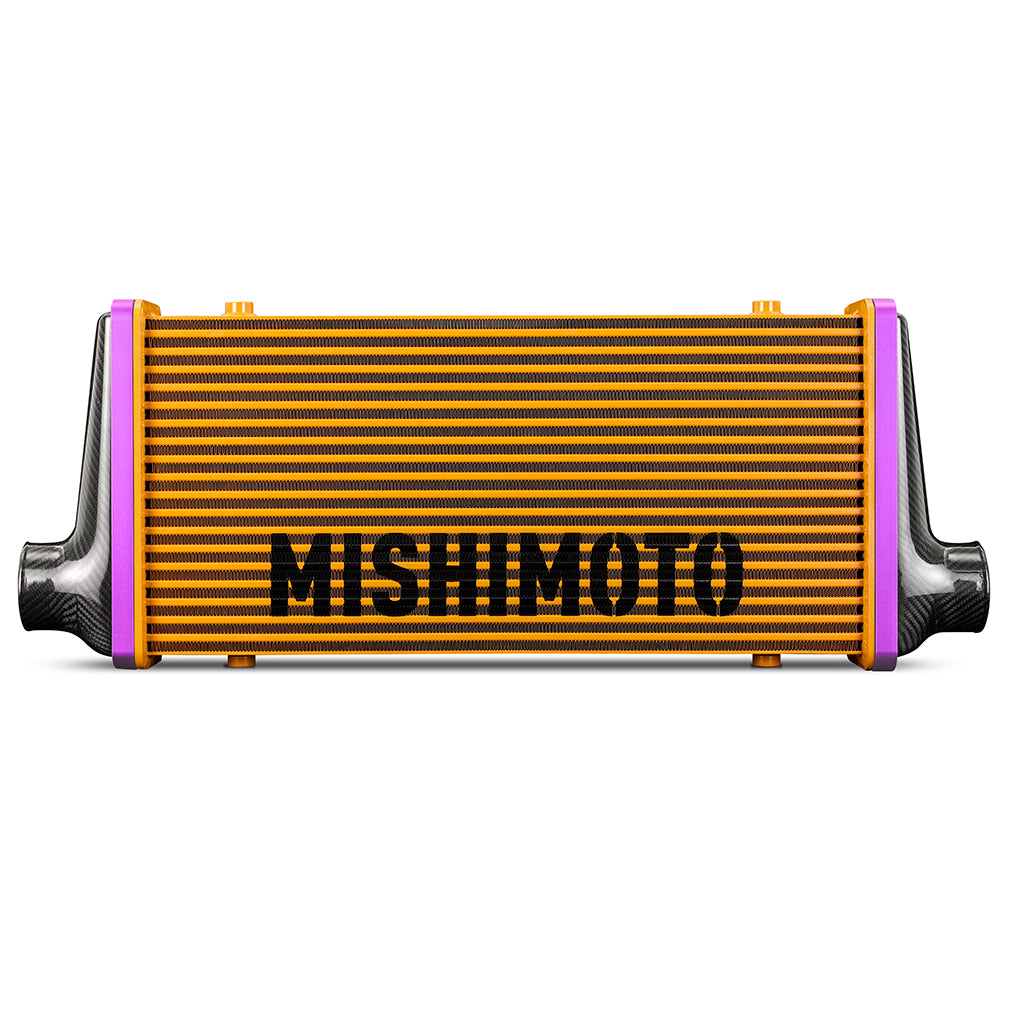

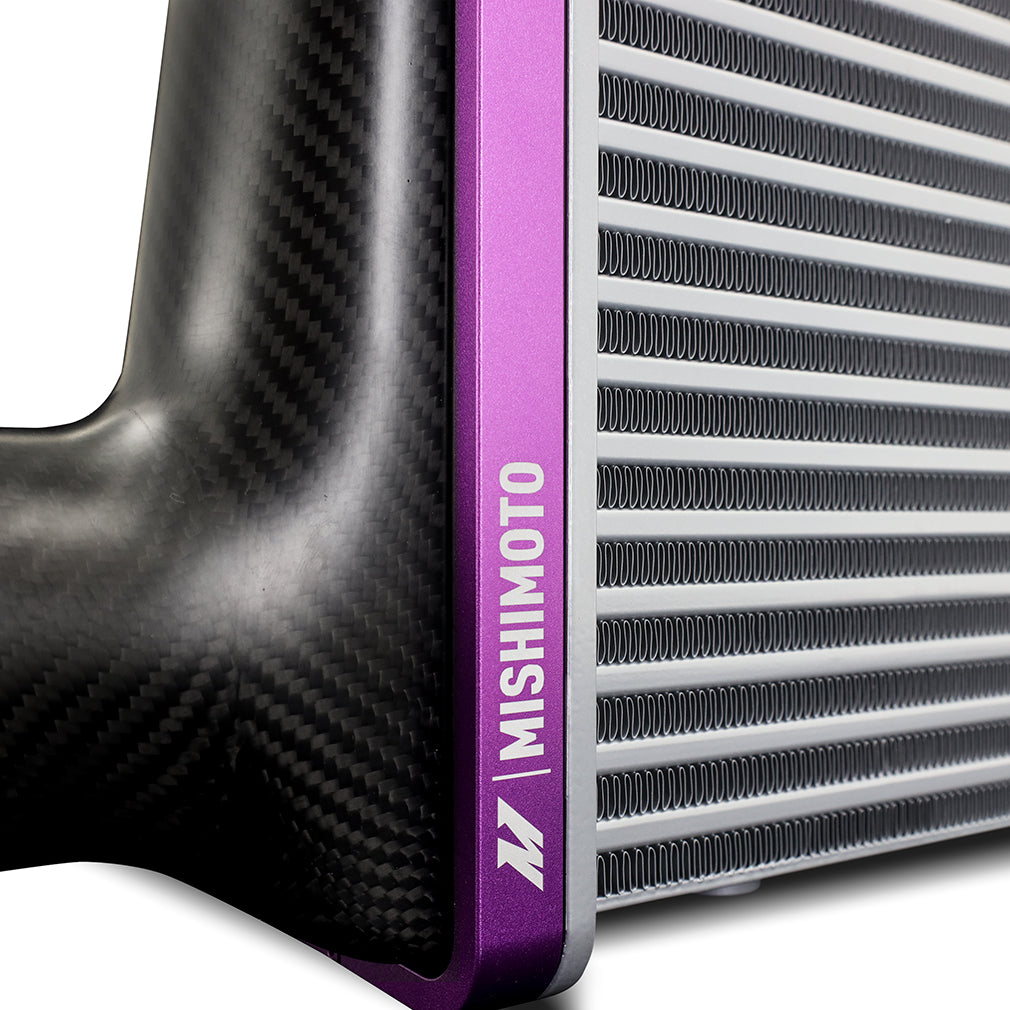

Building a performance vehicle is a quest for balance between opposing needs. Form vs function. Power vs weight. Strength vs lightness. Most of the time, one of those needs is more important to the build, so the other is sacrificed. But here at Mishimoto, we're done sacrificing. Thanks to our exclusive carbon fiber intercooler, you can have it all: aesthetics, performance, strength, and lightness all rolled into one innovative package. The end tanks are formed from solid 3K twill-woven carbon fiber. Carbon fiber gives our end tanks more strength than aluminum with 70% less weight. Three sizes of custom-engineered cores between the carbon fiber end tanks, combined with 3-inch inlets optimized for flow, ensure our intercooler is up to the task for builds producing up to 950 horsepower and 32 PSI of boost. The one-of-a-kind V-band core clamps hold the end tanks tight to the core under boost without the use of adhesives that can fail after repeated heat cycles. To ensure the end tanks can hold up to the rigors of road or track, they've been independently laboratory tested to SAE J400 standards for gravel impacts. With the Mishimoto carbon fiber intercooler, you don't have to sacrifice performance or strength for lightness. Carbon fiber isn't just strong, it's one of the most stunning raw materials available. Nothing beats the look of precisely woven carbon fiber

Specifications:

Description_DEF	Intercooler Kit
Description_DES	MMINT-UCF, Matte Tanks, 525mm Black Core, Straight, Black Anodized V-Band
Description_EXT	Universal Carbon Fiber Intercooler, Matte Tanks, 525mm Black Core, Straight-Through, Black Anodized V-Band
Description_INV	Mishimoto MMINT-UCF-M5B-S-BK

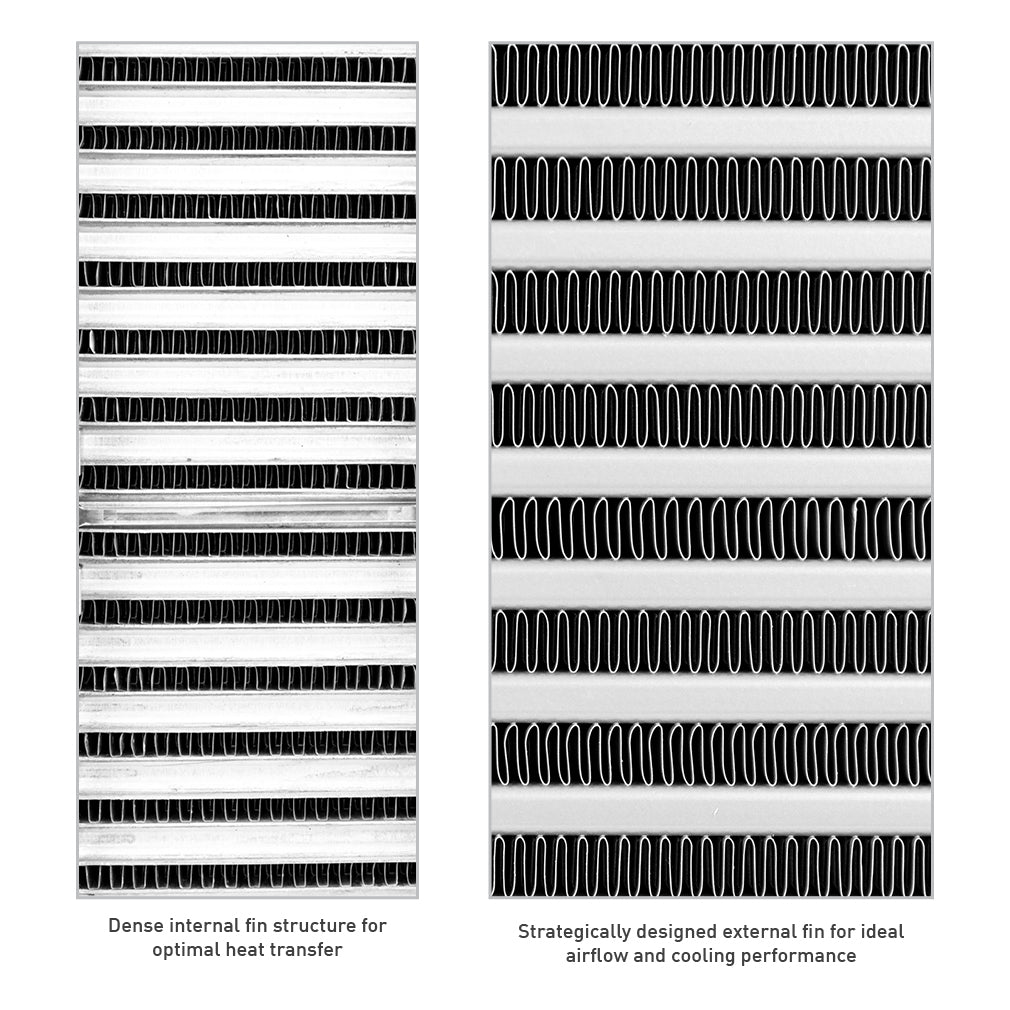

Description_FAB	Genuine carbon fiber end tanks with tube-and-fin core
Description_FAB	Over 280 possible configurations fit any vehicle, build, or style

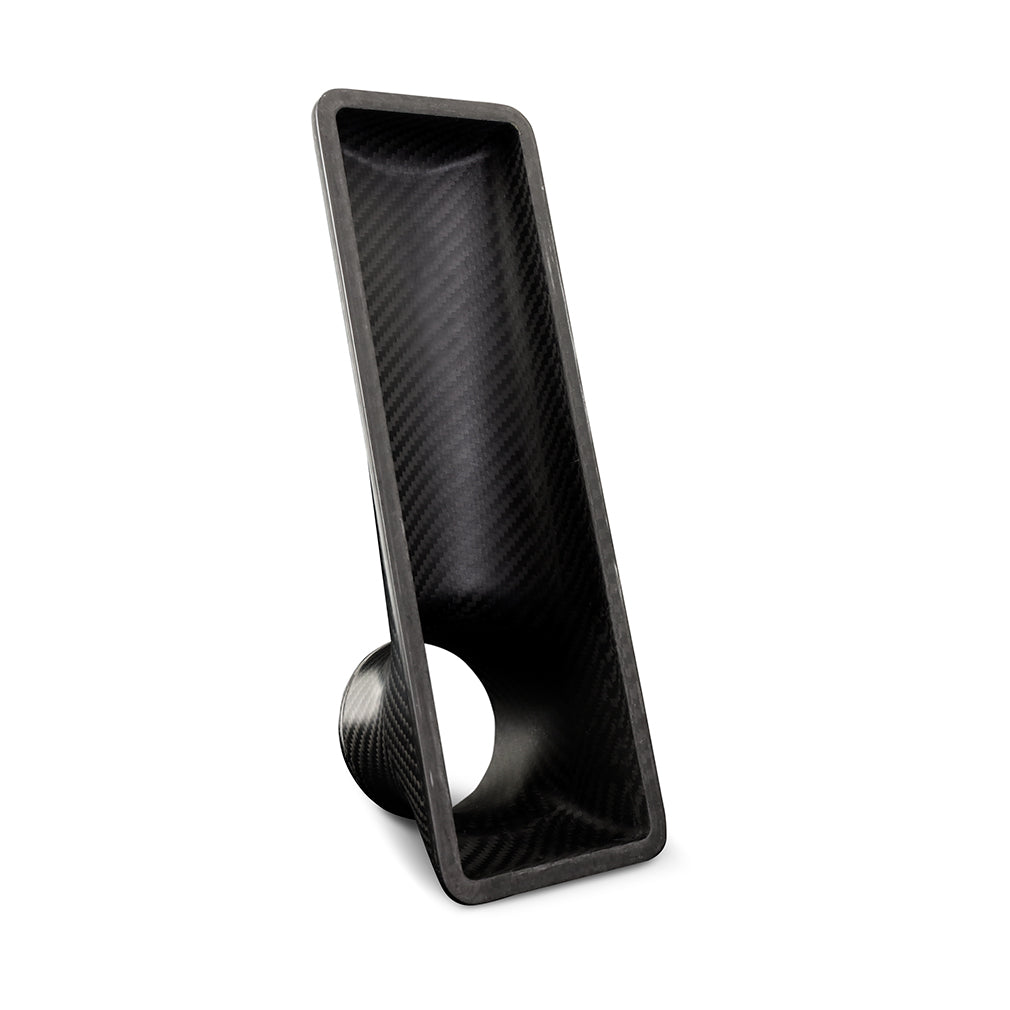

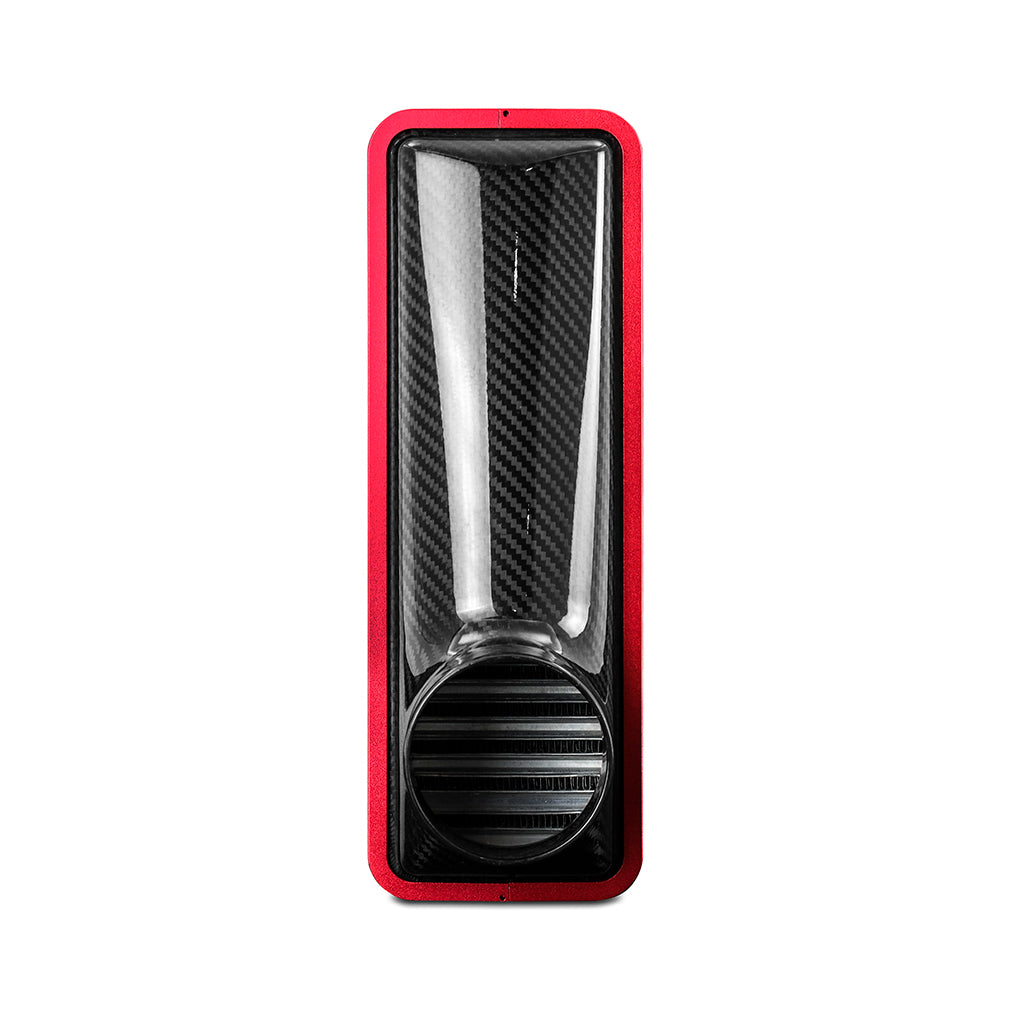

Description_FAB	3K twill-woven prepreg carbon fiber end tanks for maximum strength and lightness
Description_FAB	Designed, engineered, and assembled in our Wilmington, DE facility
Description_FAB	Exclusive aircraft-grade anodized aluminum end tank clamps withstand high boost pressures

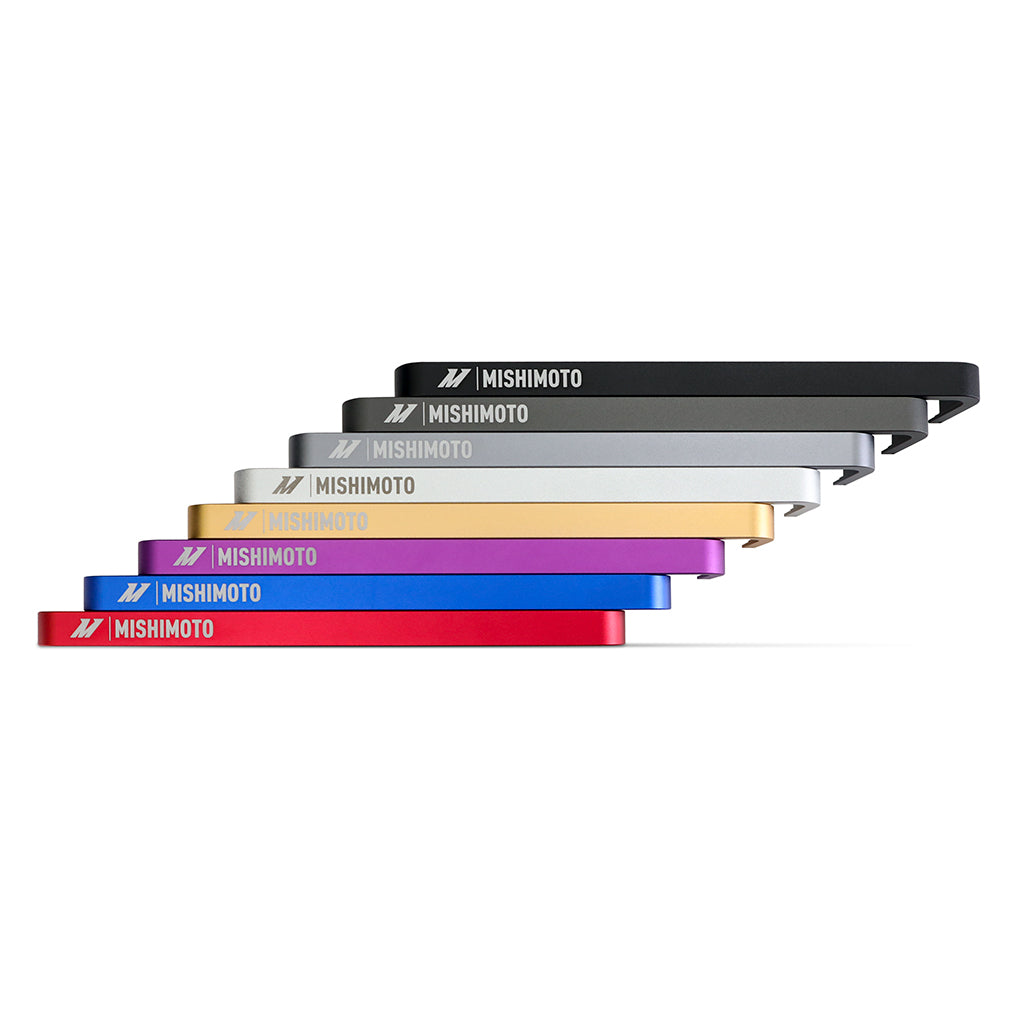

Description_FAB	8 end tank clamp colors and 3 core colors to suit any color scheme
Description_FAB	Supports builds up to 950 horsepower
Description_FAB	Viton end tank O-ring provides superior fuel, oil, and coolant resistance
Description_FAB	3-inch inlet and outlet for optimal flow on high-horsepower builds

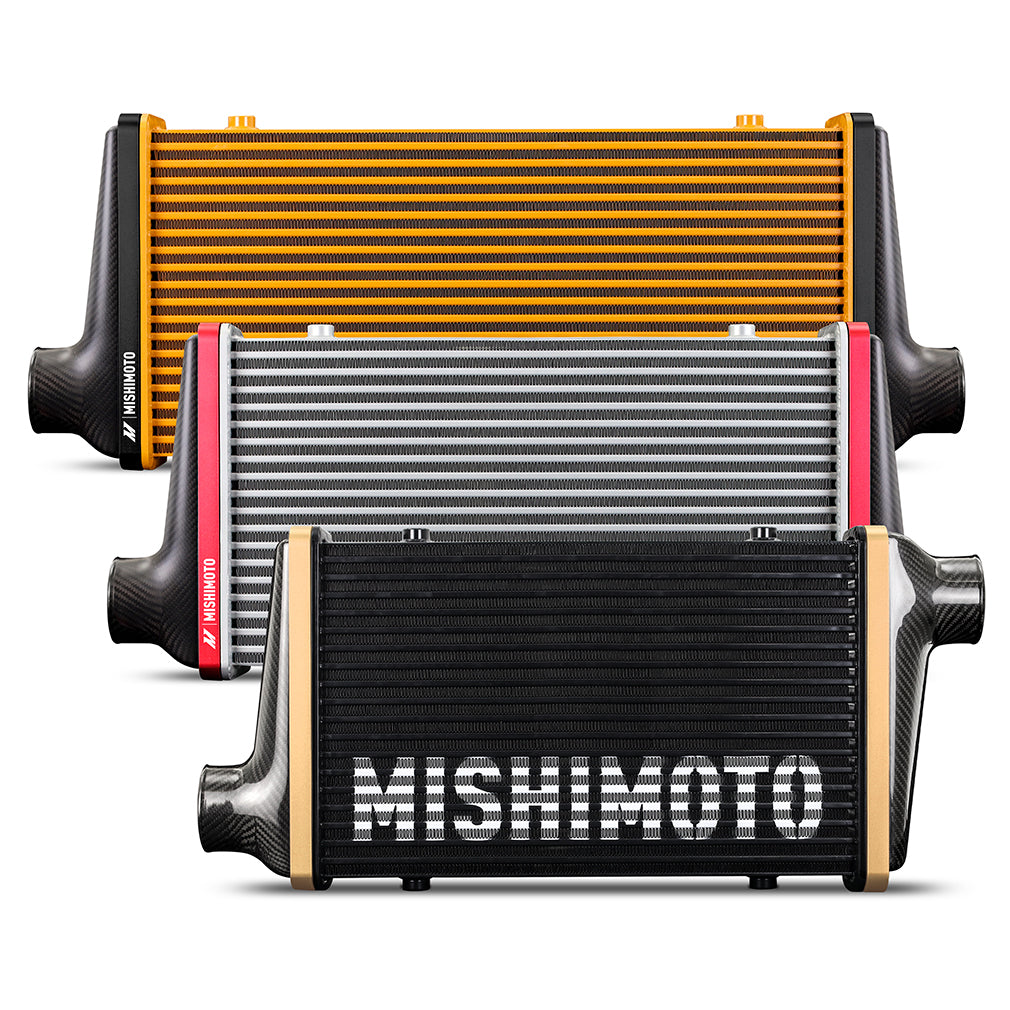

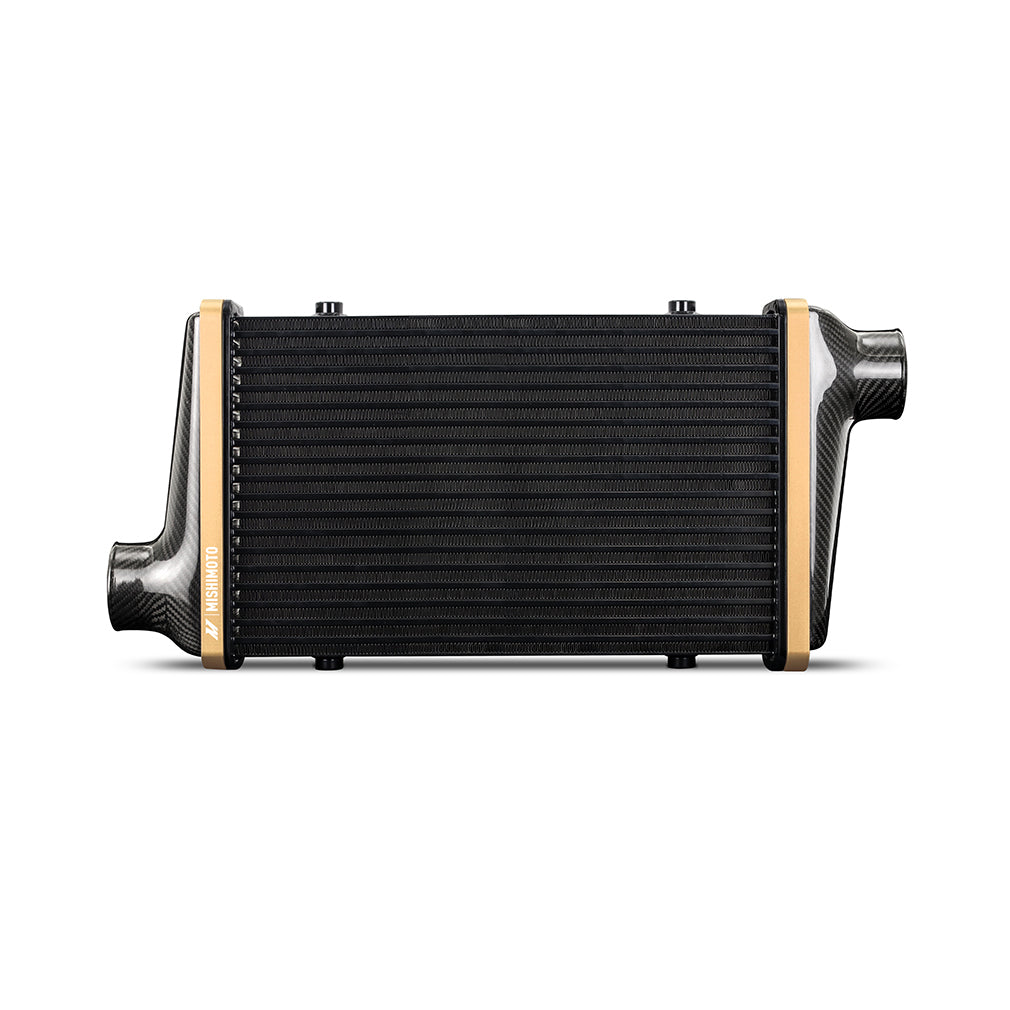

Description_FAB	Three available core lengths with both straight-through and offset inlet configurations
Description_FAB	Included vibration dampening isolators prevent damage from engine or body movement
Description_FAB	Core features four M8x1.25 threaded bosses on top and bottom for mounting versatility
Description_FAB	Compatible with our universal 3-in couplers, intercooler pipes, and 50mm blow off valve
Description_FAB	Patent Pending
Description_FAB	Mishimoto Lifetime Warranty
Description_MKT	Building a performance vehicle is a quest for balance between opposing needs. Form vs function. Power vs weight. Strength vs lightness. Most of the time, one of those needs is more important to the build, so the other is sacrificed. But here at Mishimoto, we're done sacrificing. Thanks to our exclusive carbon fiber intercooler, you can have it all: aesthetics, performance, strength, and lightness all rolled into one innovative package. The end tanks are formed from solid 3K twill-woven carbon fiber. Carbon fiber gives our end tanks more strength than aluminum with 70% less weight. Three sizes of custom-engineered cores between the carbon fiber end tanks, combined with 3-inch inlets optimized for flow, ensure our intercooler is up to the task for builds producing up to 950 horsepower and 32 PSI of boost. The one-of-a-kind V-band core clamps hold the end tanks tight to the core under boost without the use of adhesives that can fail after repeated heat cycles. To ensure the end tanks can hold up to the rigors of road or track, they've been independently laboratory tested to SAE J400 standards for gravel impacts. With the Mishimoto carbon fiber intercooler, you don't have to sacrifice performance or strength for lightness. Carbon fiber isn't just strong, it's one of the most stunning raw materials available. Nothing beats the look of precisely woven carbon fiber

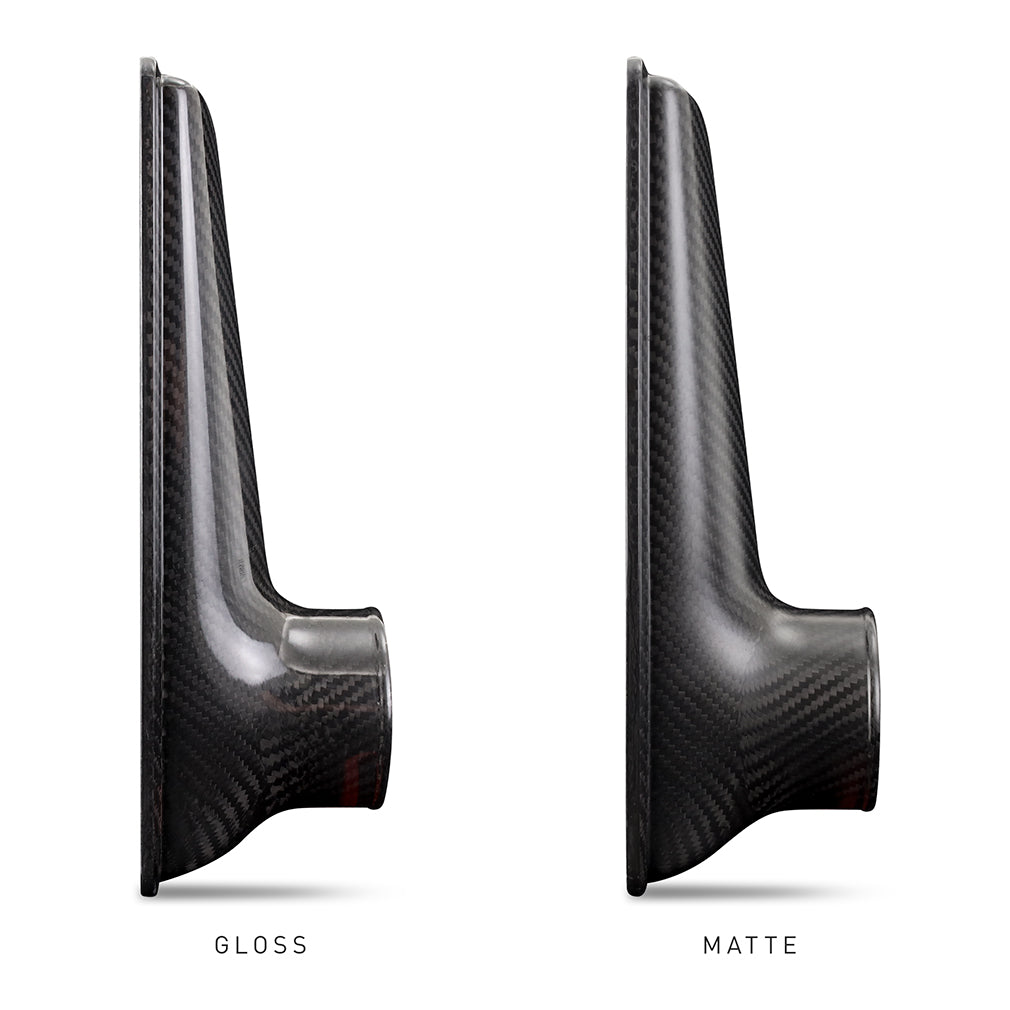

Description_MKT	except precisely woven carbon fiber in your choice of matte or gloss finish, paired with eight different anodized V-band clamp colors, and three core colors. Over 280 combinations of colors and configurations mean the Mishimoto carbon fiber intercooler will fit any build and look good doing it. Universal M8 mounting bosses on either side of the core make mounting easy. Each Mishimoto Carbon Fiber Intercooler is hand built to order in our Wilmington, DE facility and, like all our products, they're backed by our Mishimoto Lifetime Warranty for a lifetime of uncompromising performance.
Description_SHO	Intercooler Kit
Install Difficulty	N/A
OptionLabel	Matte Tanks, 525mm Black Core, Straight, Black Anodized V-Band
SellingPoint01	Genuine carbon fiber end tanks with tube-and-fin core
SellingPoint02	Over 280 possible configurations fit any vehicle, build, or style
SellingPoint03	3K twill-woven prepreg carbon fiber end tanks for maximum strength and lightness
SellingPoint04	Designed, engineered, and assembled in our Wilmington, DE facility
SellingPoint05	Exclusive aircraft-grade anodized aluminum end tank clamps withstand high boost pressures

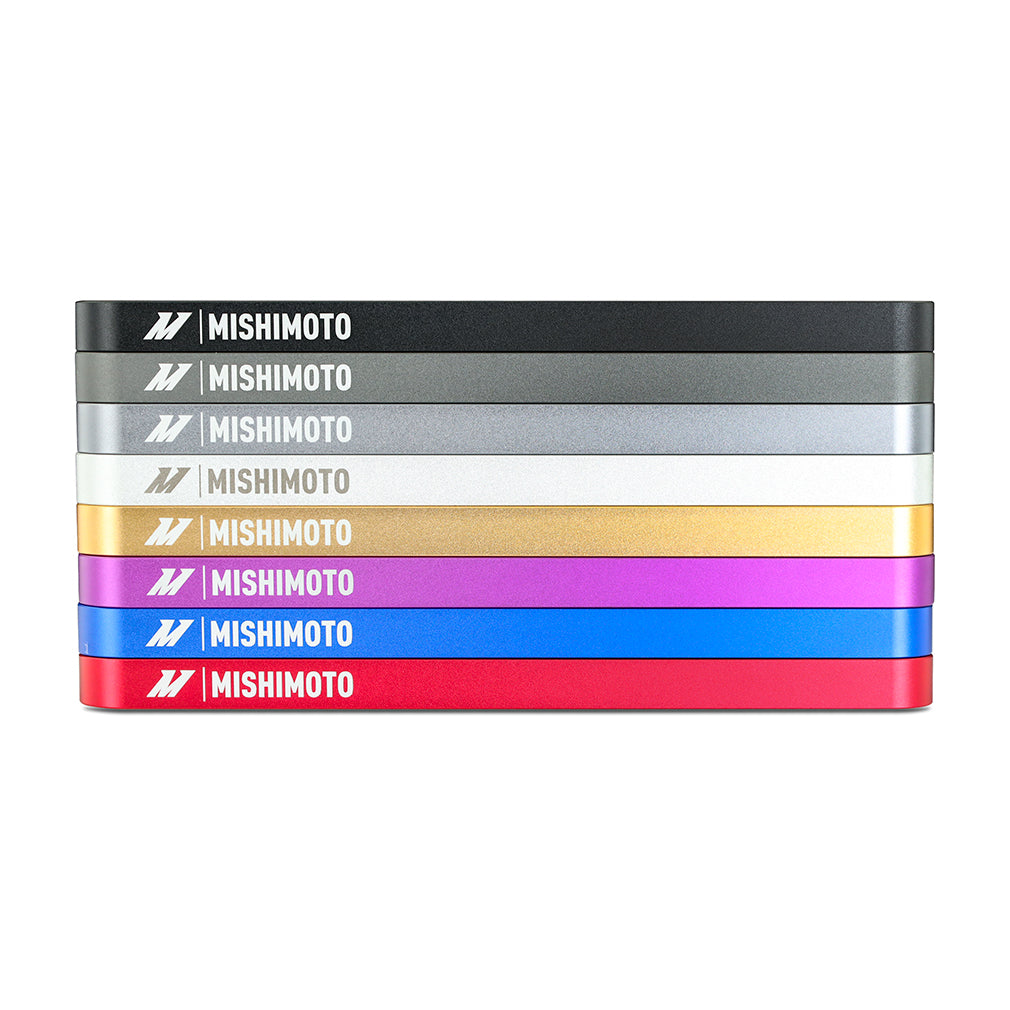

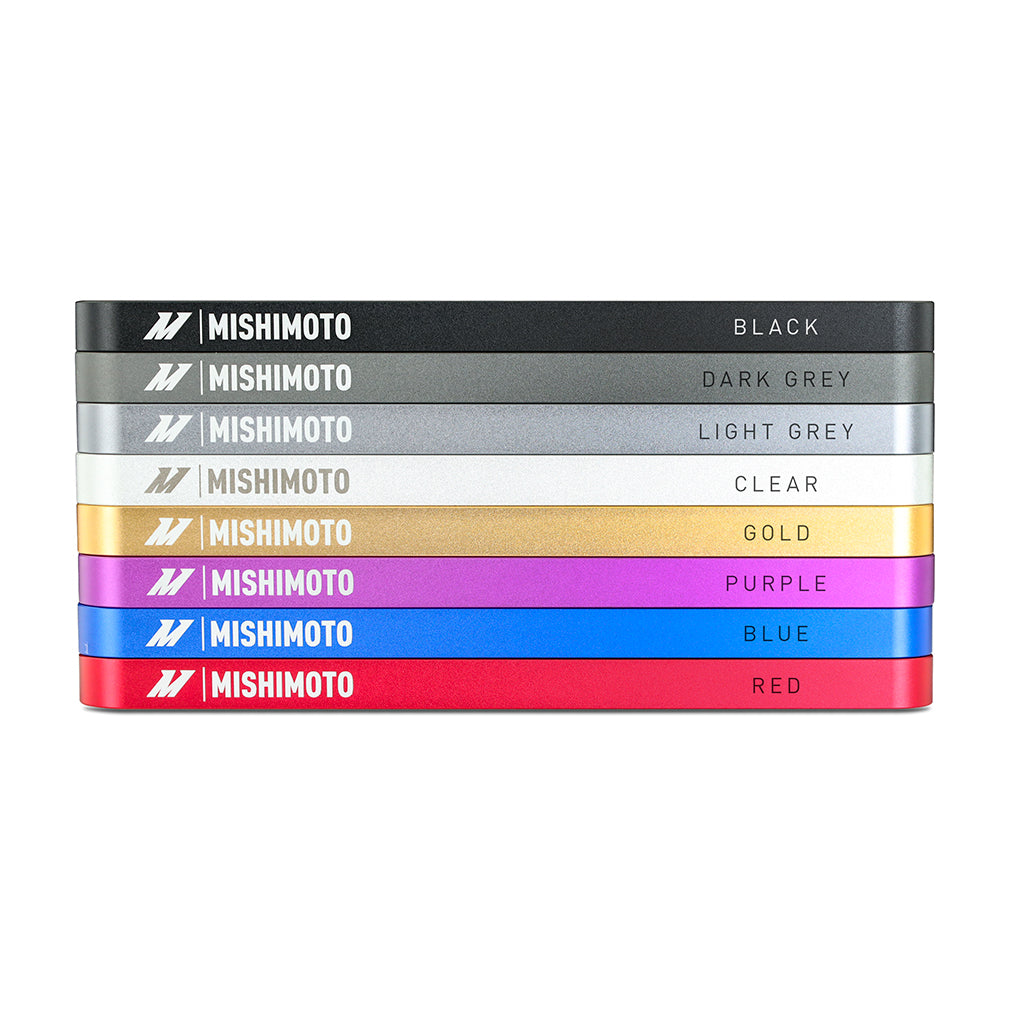

SellingPoint06	8 end tank clamp colors and 3 core colors to suit any color scheme
SellingPoint07	Supports builds up to 950 horsepower
SellingPoint08	Viton end tank O-ring provides superior fuel, oil, and coolant resistance
SellingPoint09	3-inch inlet and outlet for optimal flow on high-horsepower builds
SellingPoint10	Three available core lengths with both straight-through and offset inlet configurations
SellingPoint11	Included vibration dampening isolators prevent damage from engine or body movement
SellingPoint12	Core features four M8x1.25 threaded bosses on top and bottom for mounting versatility
SellingPoint13	Compatible with our universal 3-in couplers, intercooler pipes, and 50mm blow off valve
SellingPoint14	Patent Pending
SellingPoint15	Mishimoto Lifetime Warranty
TechSpec Centerline Radius	N/A
TechSpec Core Height (in)	12.28
TechSpec Core Length (in)	17.71--20.67--23.62
TechSpec Core Thickness (in)	4.25

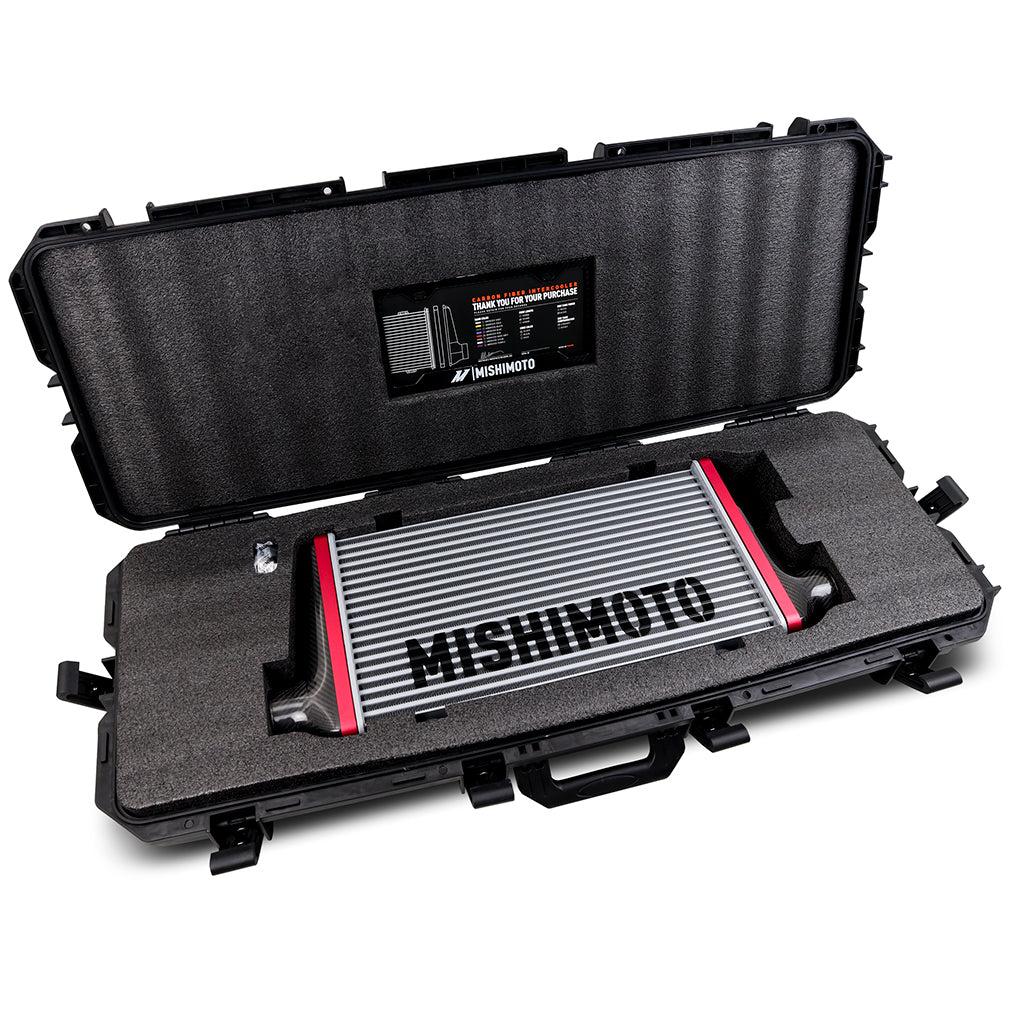

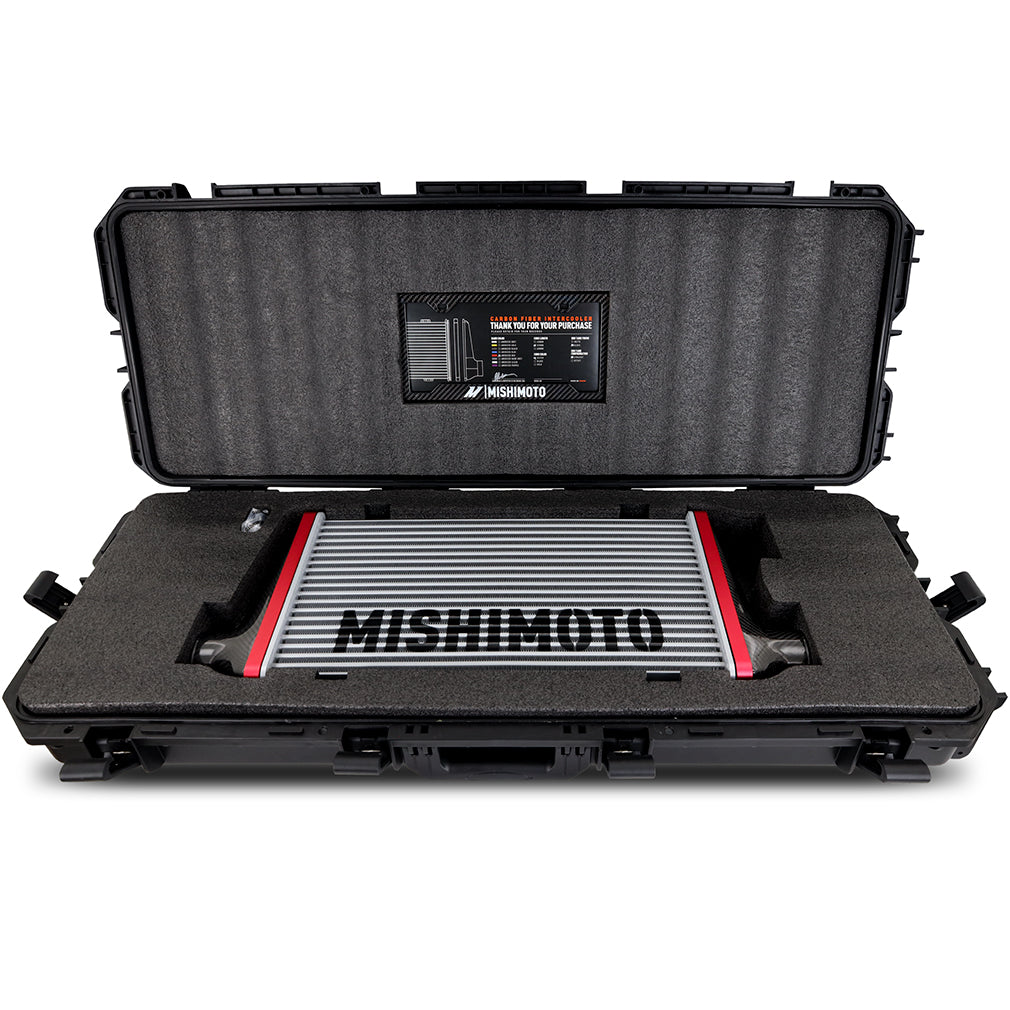

TechSpec Includes	(1) Mishimoto Custom-Built Carbon Fiber Intercooler--(1) M8 Mounting Kit with Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in)	3
TechSpec Installation Notes	N/A
TechSpec Note	Product is custom built to order and is not returnable.--Lifetime Warranty does not cover incorrectly ordered products; please verify all options before ordering.--Each intercooler is made to order, please allow up to 48 hours after ordering for shipping notification.----Maximum Recommended Horsepower:--17-in Core: 700 HP--20-in Core: 800 HP--23-in Core: 950 HP
TechSpec Outlet (in)	3
TechSpec Pipe Diameter	N/A
TechSpec Pipe Length	N/A
TechSpec Pipe Shape	N/A
TechSpec Weight (lbs)	N/A
Length	8.0000
Width	18.0000
Height	46.0000
Weight	39.9000
