| Description_ASM |
2018+ Kia Singer GT |
| Description_DEF |
Intercooler Kit |
| Description_DES |
Kia Stinger GT 3.3T Performance Intercooler Kit, 2018+, Silver |
| Description_EXT |
Performance Intercooler Kit, fits Kia Stinger GT 3.3T 2018+ |
| Description_INV |
Mishimoto MMINT-STNGR-18SL |
| Description_FAB |
Direct fit for the 2018+ Kia Stinger GT 3.3T |
| Description_FAB |

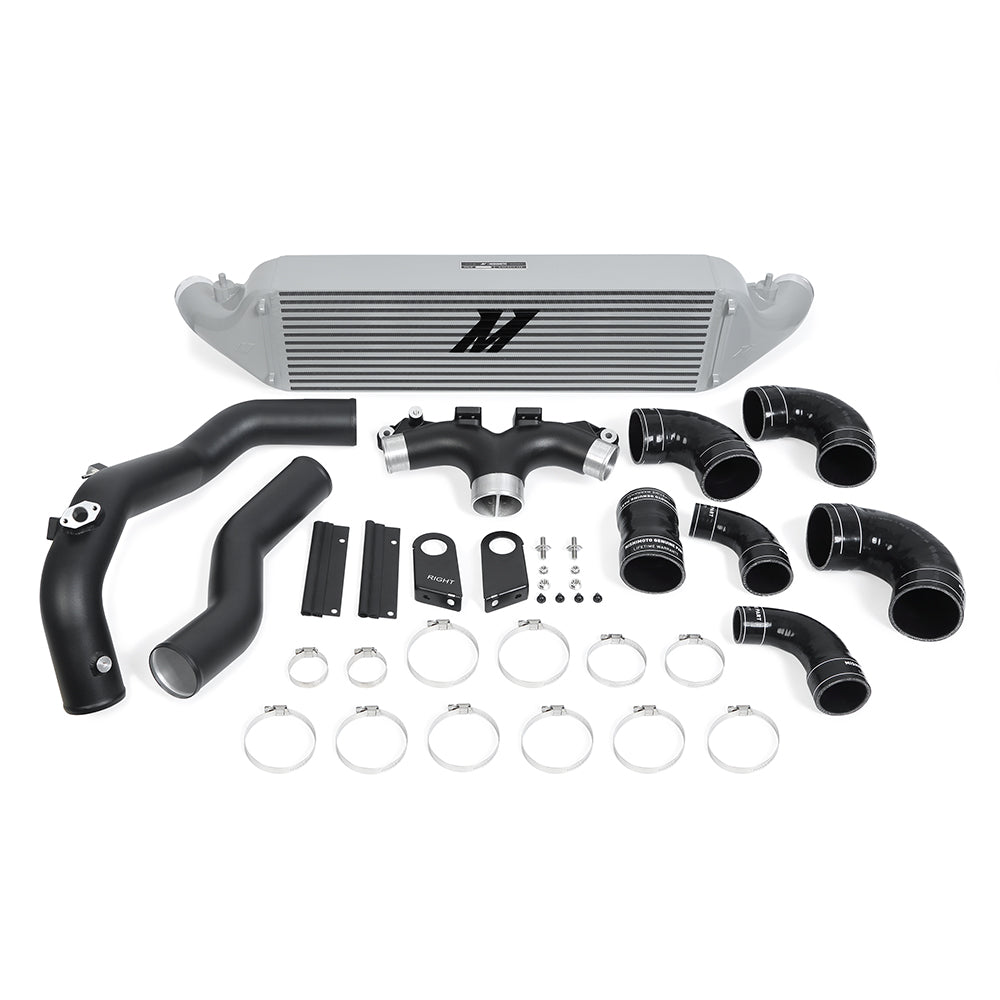

Includes performance intercooler, piping, cast aluminum merge manifold, and couplers for optimal flow and performance |
| Description_FAB |
Drops intercooler outlet temperature by 29 degreesF on stock tune and 41 degreesF on stage 1 tune |
| Description_FAB |
Max power gains of 8 whp and 8 wtq on stock tune with an additional 6 whp and 8 wtq on top of stage 1 tuning |
| Description_FAB |
94% increase in intercooler core volume |
| Description_FAB |
74% increase in external fin surface area |
| Description_FAB |

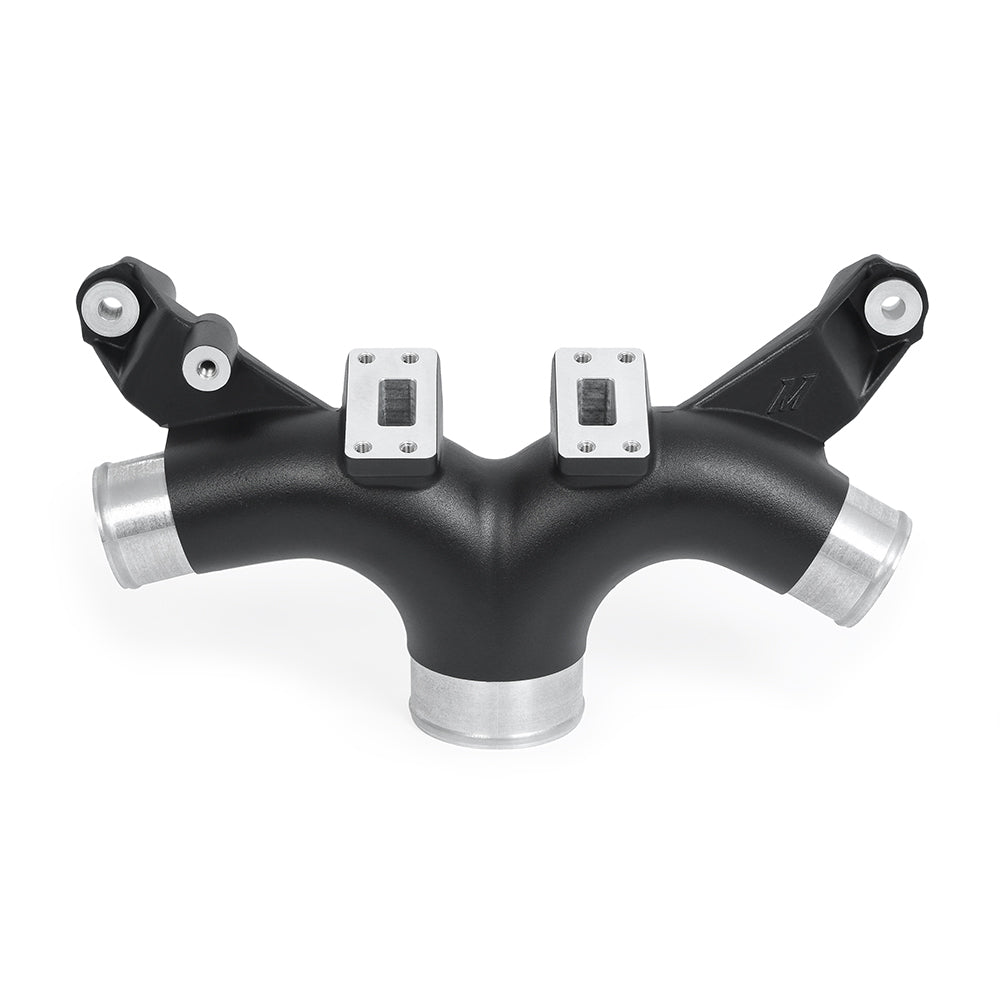

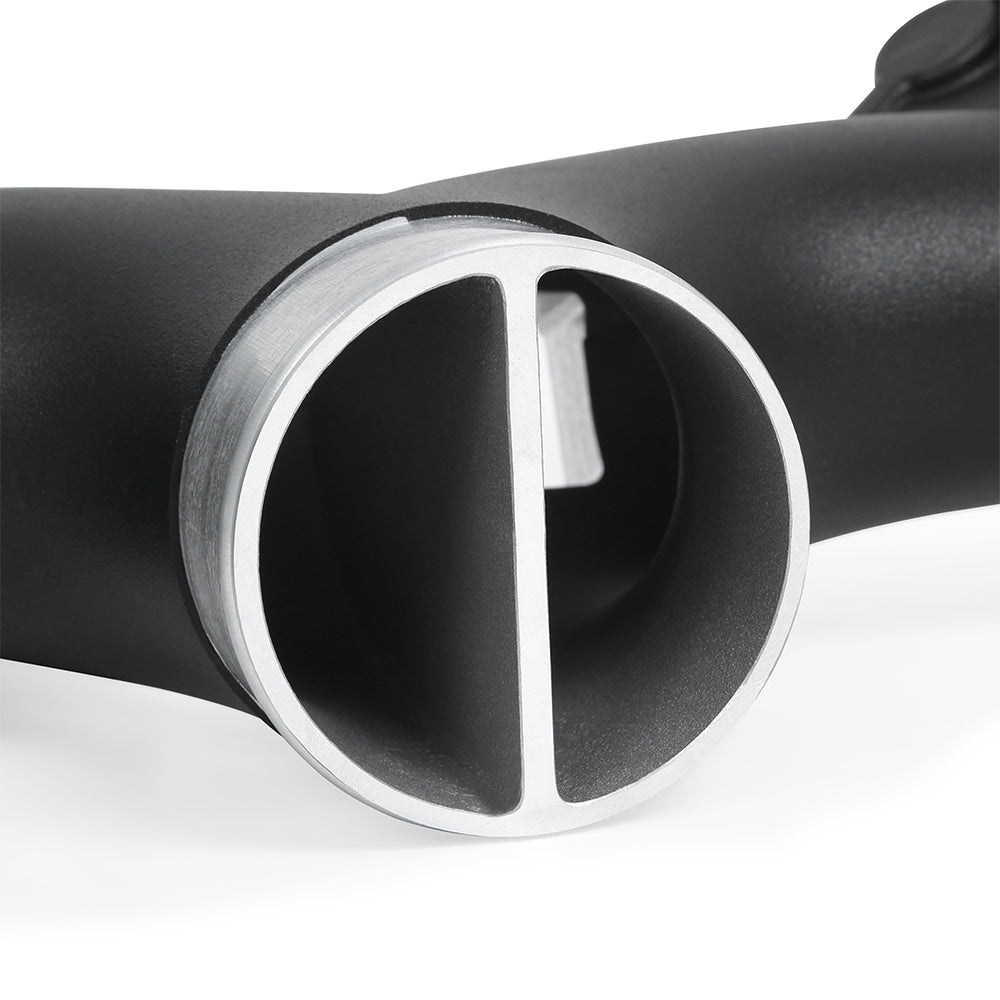

51% increase in flow through piping merger manifold |
| Description_FAB |

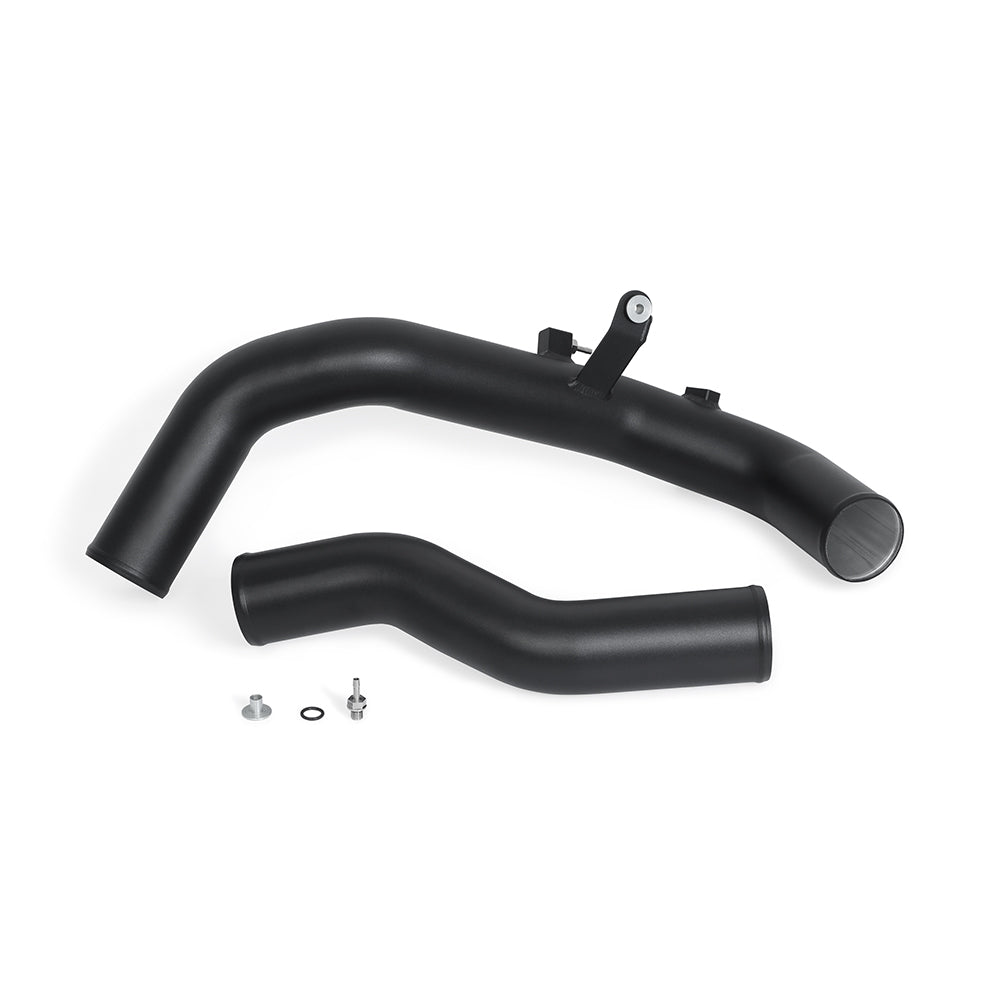

3" intercooler piping for increased flow |
| Description_FAB |
Methanol injection bung incorporated on the cold-side intercooler pipe |
| Description_FAB |
Compatible with stock recirculation valves |
| Description_FAB |
Fits with most aftermarket intake kits |
| Description_FAB |
Intercooler available in Silver or Black with wrinkle black piping |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_SHO |
Intercooler Kit |
| Description_MKT |

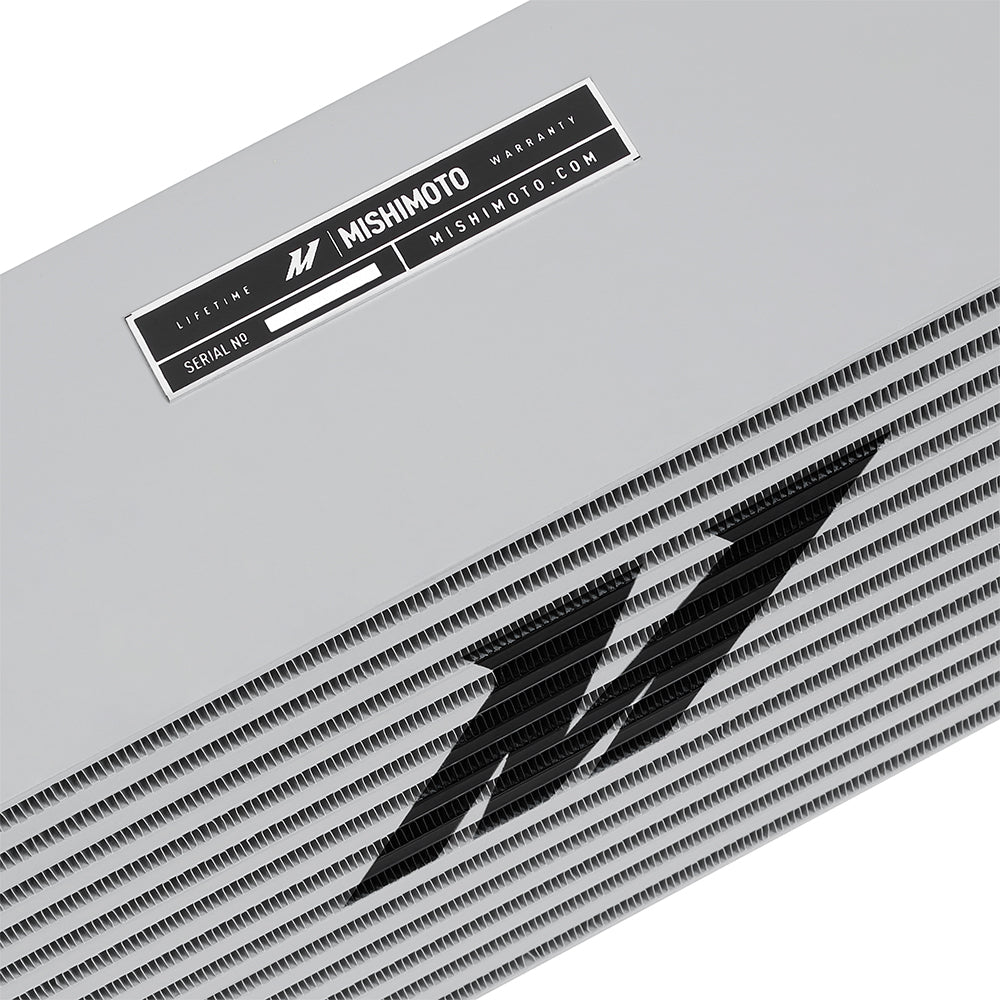

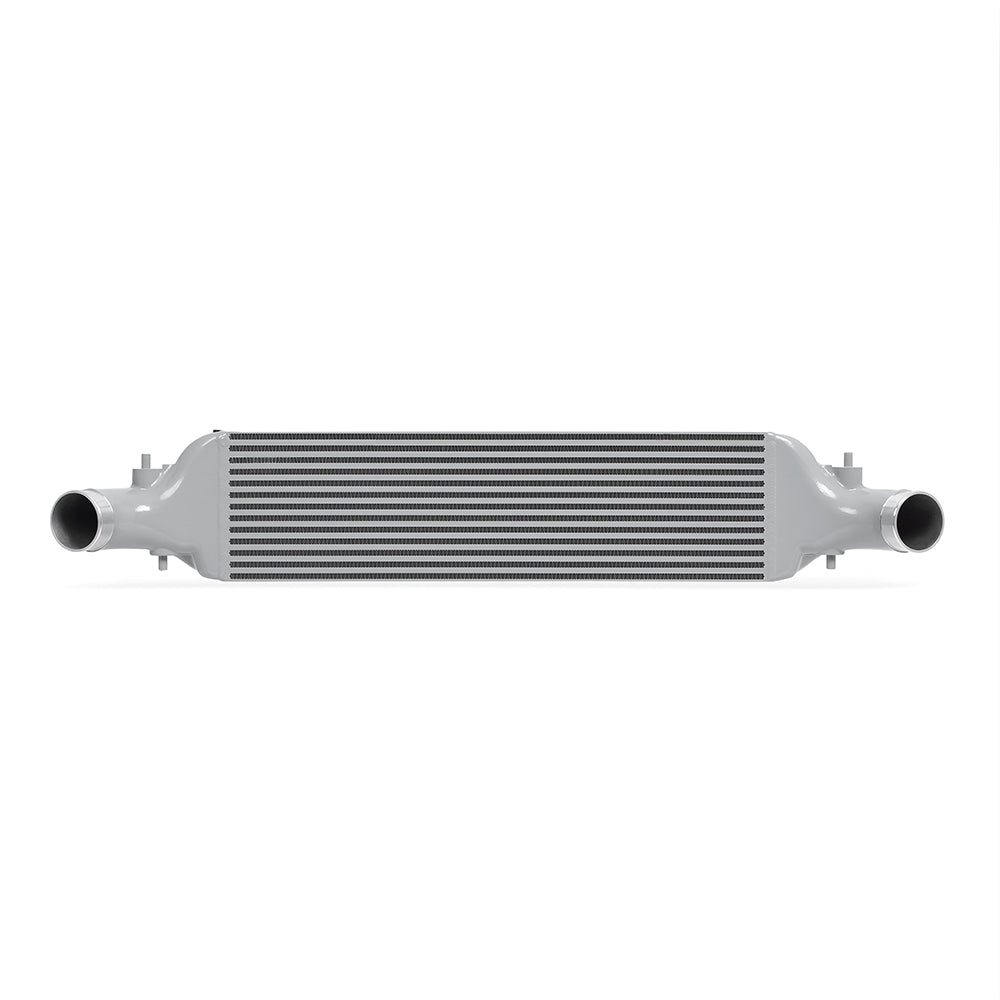

Give your 2018+ Kia Stinger GT extra cooling power with the Mishimoto Performance Intercooler Kit. The Stinger made quite the splash upon its release and shook up the mid-sized sports sedan segment. While the Lambda II GDI 3.3T provides one of the best platforms out there today, the intercooling system has the potential to hold the Stinger back. We've replaced the entire intercooling system, from turbo to throttle body to provide optimized airflow. The Mishimoto Performance Intercooler replaces the tube and fin core coupled to plastic end tanks with a robust bar and plate core, TIG-welded to cast aluminum end tanks for vastly improved heat dissipation and flow. We also expanded our core for a 94-percent increase in core volume and a 74-percent increase in external fin surface area.We kept the aluminum construction of the stock pipes, but increased the inner diameter to 3in for increased flow through the system with minimal pressure drop. We also made sure to overhaul the piping merger manifold, increasing the inlets to 2in and outlet to 3in for a 51-percent boost in flow straight out of the turbos, while retaining compatibility with the stock recirculation valves. Our piping kit is finished in a sleek micro-wrinkle black powder coat to retain the OEM+ look under the hood and is linked together with our 5-layer silicone couplers.Our intercooler kit isn't just about a new look but will perform. Once on the dyno, the combination of the larger piping diameters, and increased intercooler size equated to a 29 degreesF drop in outlet temperatures with a gain of 8whp and 8wtq on stock tuning. We also made sure to turn up the boost with our testing and installed a stage 1 map tune on our Stinger and recorded a 41 degreesF drop in outlet temperature with a 6whp and 8wtq gain on top of the tune. |
| TechSpec Includes |

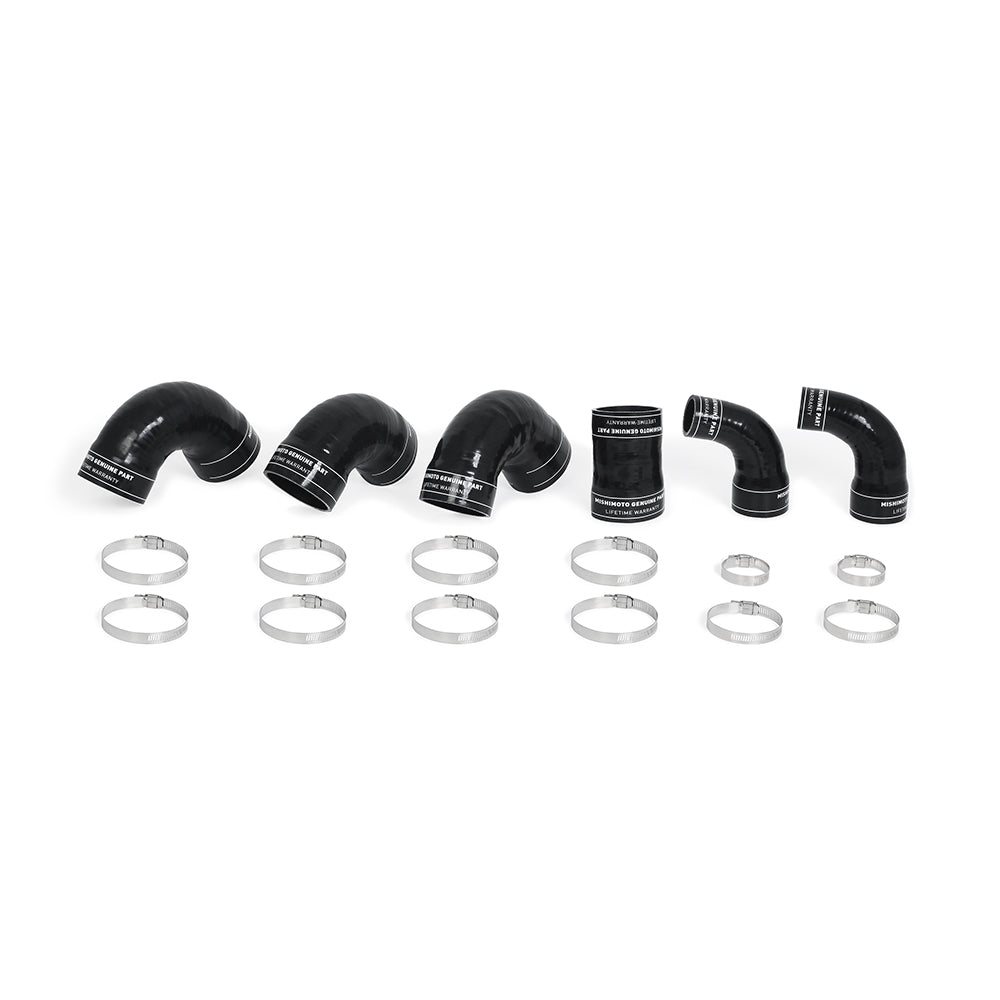

(1) Performance Intercooler--(1) Hot-Side Piping Merger Manifold--(1) Hot-Side Intercooler Pipe--(1) Cold-Side Intercooler Pipe--(6) Silicone Couplers--(2) Application-Specific Mounting Brackets--(2) Air Diverters--(4) Mounting Grommets--(8) Heavy-Duty Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty |
| SellingPoint04 |
Max power gains of 8 whp and 8 wtq on stock tune with an additional 6 whp and 8 wtq on top of stage 1 tuning |
| TechSpec Outlet (in) |
3 |
| SellingPoint11 |
N/A |
| CARB EO Number |
#D-759-15 |
| SellingPoint13 |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec Note |
Installation of this kit requires permanent modification to the front air guide shrouding, part number 29135-J5000. |
| TechSpec Weight (lbs) |
31 |
| SellingPoint06 |
74-percent increase in external fin surface area |
| SellingPoint08 |
3-in intercooler piping for increased flow |
| SellingPoint09 |
Additional bung incorporated on the cold-side intercooler pipe that can be drilled and tapped for methanol injection or sensors |
| SellingPoint12 |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Installation Notes |
N/A |
| TechSpec Overall Height (in) |
7.9 |
| TechSpec Overall Width (in) |
8.1 |
| TechSpec Pipe Shape |
N/A |
| Install Difficulty |
3 |
| OptionLabel |
Silver |
| SellingPoint01 |
Direct fit for the 2018+ Kia Stinger GT 3.3T |
| SellingPoint02 |
Includes performance intercooler, piping, cast aluminum merge manifold, and couplers for optimal flow and performance |
| SellingPoint03 |
Drops intercooler outlet temperature by 29F on stock tune and 41F on stage 1 tune |
| SellingPoint05 |
94-percent increase in intercooler core volume |
| SellingPoint07 |
51-percent increase in flow through piping merger manifold |
| SellingPoint10 |
Compatible with stock recirculation valves |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2018+ Kia Singer GT--2018+ Genesis G70 3.3T |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
CK |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Engine Codes |
Lambda II GDI |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
N/A |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Inlet (in) |
3 |
| TechSpec Overall Length (in) |
38.7 |
| TechSpec Pipe Diameter |
N/A |
| Length |
12.0000 |
| Width |
31.0000 |
| Height |
48.0000 |
| Weight |
129.0000 |
