| Description_DEF |
Intercooler Kit |
| Description_DES |
Ford F-150 3.5L EcoBoost Performance Intercooler Kit, 2017-2021 |
| Description_FAB |
Direct fit for 2017-2021 Ford F-150 3.5L EcoBoost |
| Description_FAB |
Increased intercooler pipe volume allows for better flow and power potential |
| Description_FAB |
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation |
| Description_FAB |
10?F (5.5?C) reduction in intake air temp |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_EXT |
Performance Intercooler Kit, fits Ford F-150 3.5L EcoBoost 2017-2021 |
| Description_INV |
Mishimoto MMINT-F35T-17KPBK |
| Description_MKT |
Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our pipes allows your 2017-2021 3.5L EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty. |
| Description_SHO |
Intercooler Kit |
| TechSpec Pipe Shape |
N/A |
| TechSpec Core Height (in) |
9.4 |
| SellingPoint15 |
N/A |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Note |
N/A |
| SellingPoint08 |
77-percent increase in intercooler internal core volume |
| SellingPoint09 |
163-percent increase in external fin surface area |
| TechSpec Core Length (in) |
19.6 |
| TechSpec Core Type |
Bar-and-Plate |
| OptionLabel |
Black Intercooler, Polished Pipes |
| SellingPoint06 |
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract |
| SellingPoint10 |
All-aluminum, TIG-welded construction |
| TechSpec Applications |
2017+ Ford F-150 3.5L V6 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost |
| TechSpec Overall Height (in) |
9.5 |
| TechSpec Overall Width (in) |
7 |
| Install Difficulty |
N/A |
| SellingPoint01 |
Direct fit for 2017+ Ford F-150 3.5L EcoBoost |
| SellingPoint02 |
Increased intercooler pipe volume allows for better flow and power potential |
| SellingPoint03 |
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation |
| SellingPoint04 |
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors |
| SellingPoint12 |
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish |
| SellingPoint13 |
Mishimoto Lifetime Warranty |
| SellingPoint14 |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Thickness (in) |
4.7 |
| TechSpec Inlet (in) |
2.5 |
| TechSpec Installation Notes |
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
| TechSpec Overall Length (in) |
29 |
| TechSpec Pipe Length |
N/A |
| TechSpec Weight (lbs) |
N/A |
| SellingPoint05 |
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil |
| SellingPoint07 |
10F (5.5C) reduction in intake air temp |
| SellingPoint11 |
Fits with stock intercooler fans without modification |
| TechSpec Centerline Radius |
N/A |
| TechSpec Engine Codes |
3.5L V6 EcoBoost |
| TechSpec Includes |

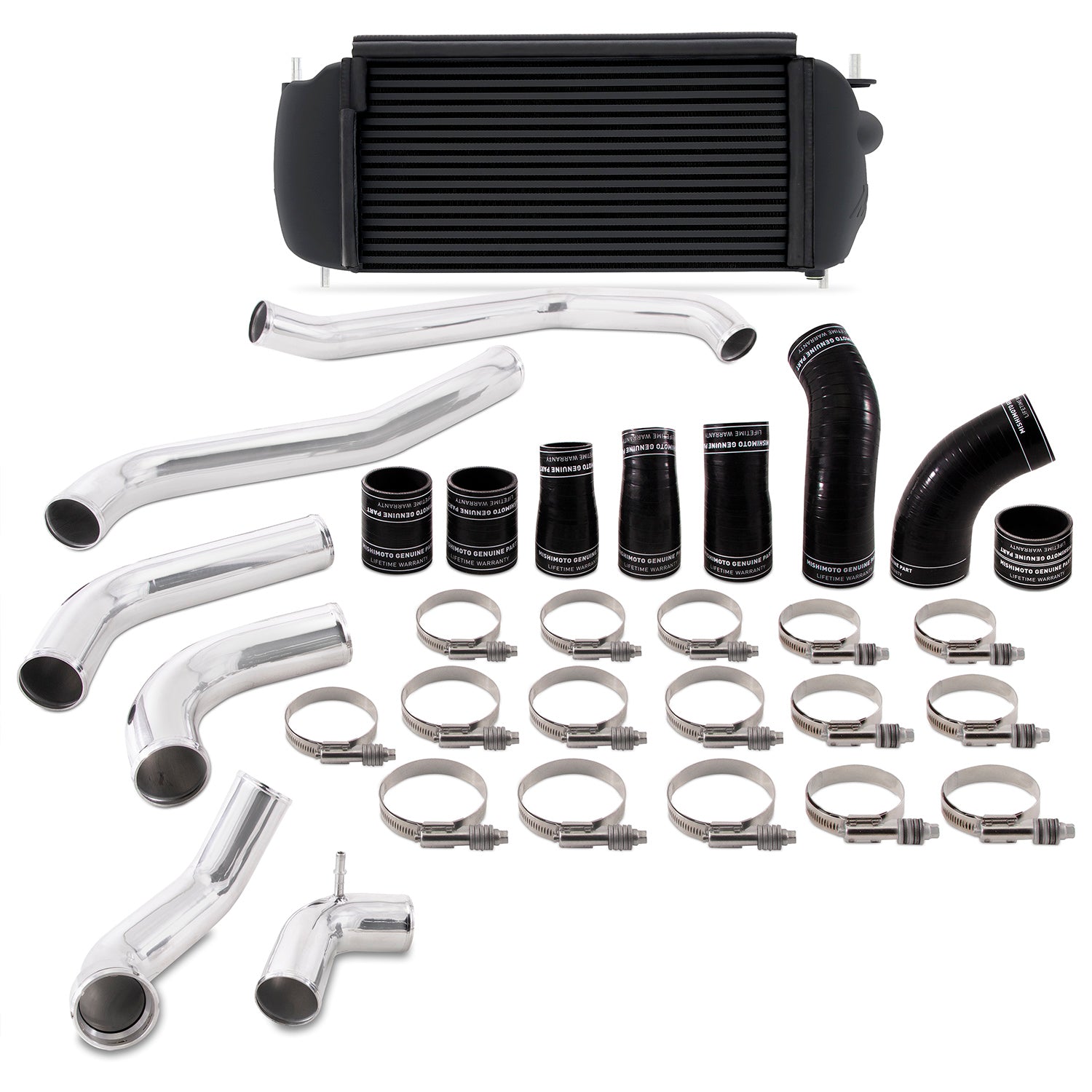

(1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
50 |
| TechSpec Outlet (in) |
3 |
| TechSpec Pipe Diameter |
N/A |
| Length |
38.0000 |
| Width |
20.0000 |
| Height |
49.0000 |
| Weight |
68.0000 |
