| Description_DEF |
Intercooler Kit |
| Description_EXT |

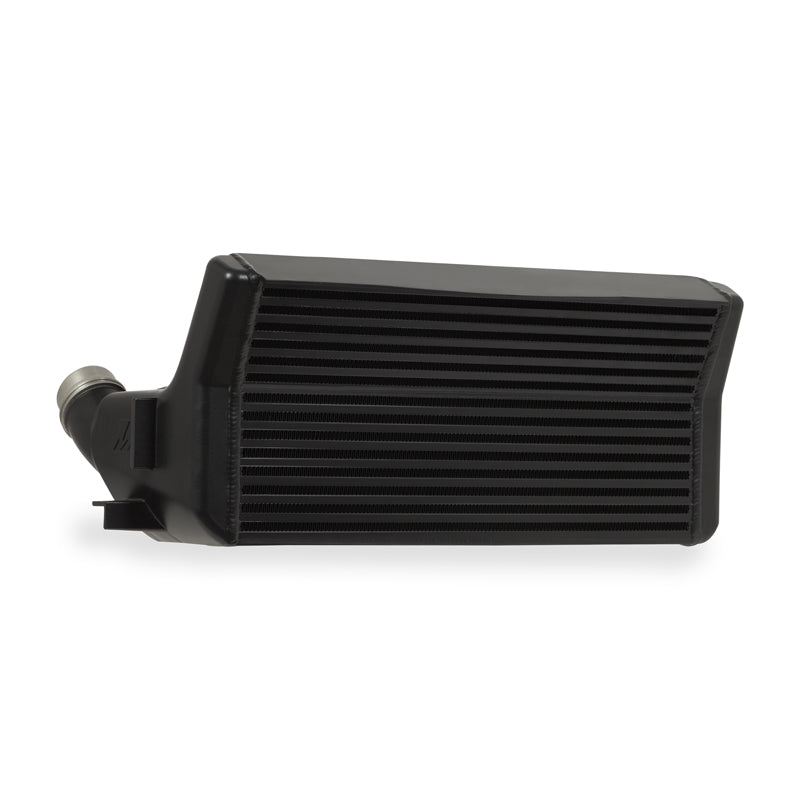

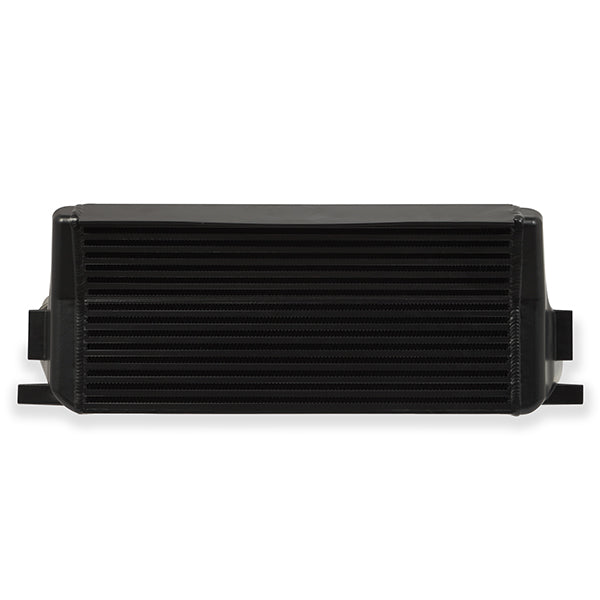

Performance Intercooler, fits BMW F22/F30 2012-2016 |
| Description_DES |
BMW F22/30 Chassis Performance Intercooler, 2012-2016 |
| Description_INV |
Mishimoto MMINT-F30-12BK |
| Description_FAB |
Direct fit for the 2012-2016 BMW F22/F30 Chassis |
| Description_FAB |
Max power gains of 10 whp and 8 wtq on stock tuning |
| Description_FAB |
Drops intercooler outlet temperature by 45 F on stock tuning |
| Description_FAB |
6in thick, angled step-core design optimized for maximum flow without fully obstructing other heat e |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_SHO |
Intercooler Kit |
| Description_MKT |
Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune. Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 6? thick step-core design, adds a 115? angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction optimizing this intercooler for heat dissipation with minimal pressure drop. Coupled together, our features were able to drop intercooler outlet temperatures by 45?F, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in Silver or Black and also includes the Mishimoto Lifetime Warranty. |
| TechSpec Inlet (in) |
2 |
| TechSpec Weight (lbs) |
28 |
| SellingPoint04 |
Max power gains of 10 whp and 8 wtq on stock tuning |
| TechSpec Chassis Codes |
F22--F23--F30--F31--F32--F33--F34--F87 |
| TechSpec Outlet (in) |
2 |
| SellingPoint05 |
Drops intercooler outlet temperature by 45F on stock tuning |
| SellingPoint13 |
N/A |
| Install Difficulty |
3 |
| SellingPoint01 |
Direct fit for the 2012-2016 BMW F22/F30 Chassis |
| SellingPoint02 |
Patent Pending |
| SellingPoint11 |
Patent numberD931,337 |
| SellingPoint12 |
Mishimoto Lifetime Warranty |
| SellingPoint14 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Core Thickness (in) |
6 |
| TechSpec Engine Codes |
N20--N26--N47--N55 |
| TechSpec Includes |
(1) Performance Intercooler--Mishimoto Lifetime Warranty |
| TechSpec Installation Notes |
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
N/A |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| OptionLabel |
Black |
| SellingPoint03 |

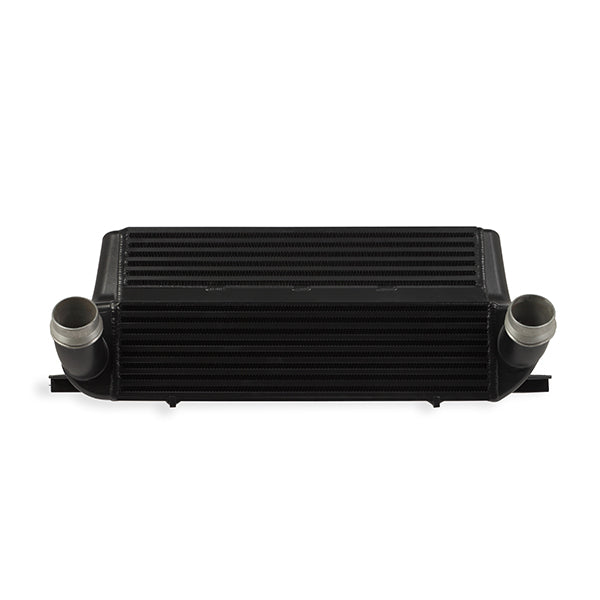

6-in thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers |
| SellingPoint06 |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| SellingPoint07 |
Intercooler core volume increased my 96-percent |
| SellingPoint08 |
External fin surface area increased by 130-percent |
| SellingPoint09 |

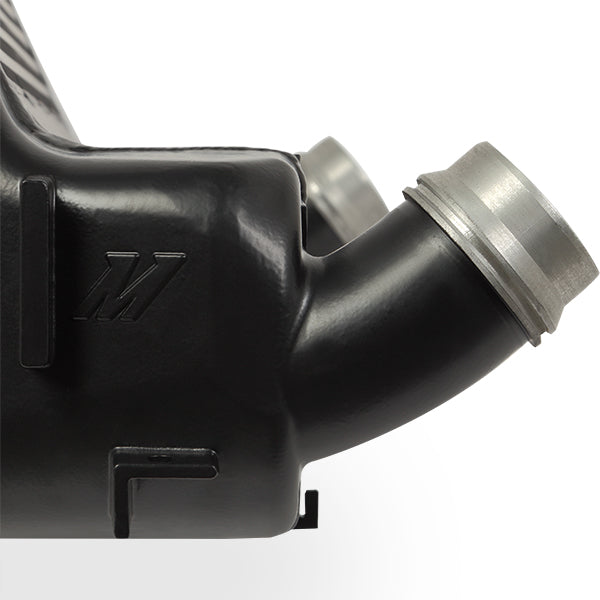

Retains factory quick-disconnect fittings for compatibility with stock piping |
| SellingPoint10 |

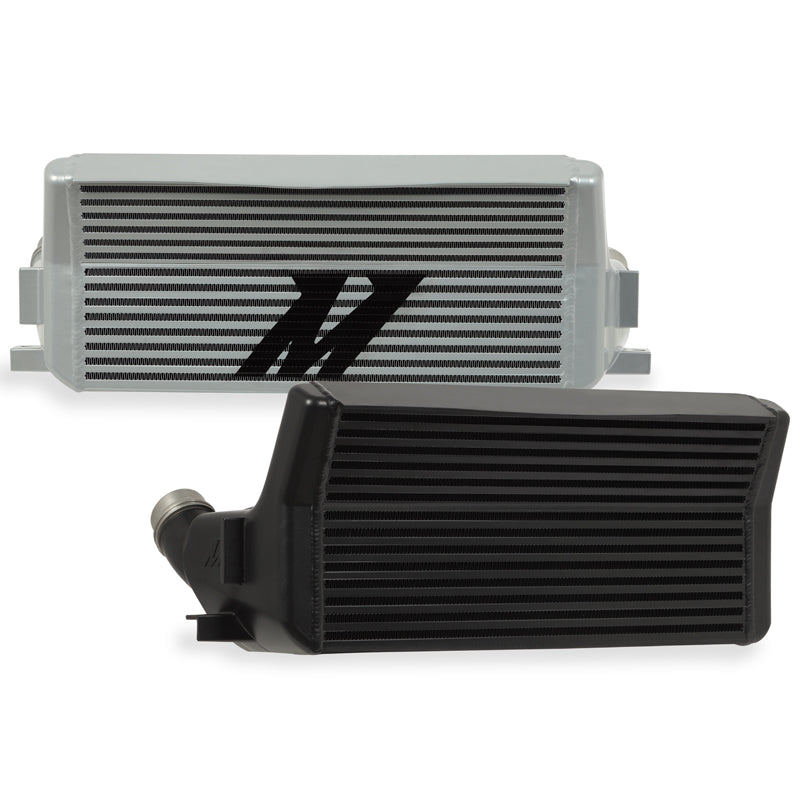

Available in silver or black |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2014-2016 BMW 228i/228i xDrive--2014-2016 BMW M235i/M235i xDrive--2013-2016 BMW 320i/320i xDrive--2012-2016 BMW 328i/328i xDrive--2012-2016 BMW 328d/328d xDrive--2012-2016 BMW 335i/335i xDrive--2014-2016 BMW 428i/428i xDrive--2014-2016 BMW 435i/435i xDrive--2016+ BMW M2 |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Note |
M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions. |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| Length |
13.0000 |
| Width |
18.0000 |
| Height |
35.0000 |
| Weight |
34.0000 |
