Description_DEF |
Engine Oil Catch Can Kit |
Description_DES |
Chevrolet Camaro SS Auto Baffled Oil Catch Can, 2010-2015 |
Description_FAB |
Direct fit for the 2010-2015 Chevrolet Camaro SS, automatic transmission |
Description_FAB |
Patent pending billet 6061 aluminum can sealed with Viton O-rings |
Description_FAB |
Helps reduce carbon buildup on intake valves |
Description_FAB |
Installs in under 30 minutes |
Description_FAB |
Mishimoto Lifetime Warranty |
Description_INV |
Mishimoto MMBCC-CSS-10APBE |
Description_EXT |
Baffled Oil Catch Can, PCV Side, fits Chevrolet Camaro SS (Automatic) 2010-2015 |
Description_MKT |
The L99 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro?s intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS L99 direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake.The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course, this kit is backed by Mishimoto's Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what We've seen in the bottom of our catch cans, you won?t want that draining back into your oil either. |
Description_SHO |
Oil Catch Can Kit |
SellingPoint13 |
Mishimoto Lifetime Warranty |
SellingPoint14 |
Patent numberUS D884,760 S |
Prop 65 (C, R or CR) |
CR |
Prop 65 Yes/No |
Yes |
SellingPoint05 |
Works in conjunction with the stock air/oil separator to deliver maximum protection for your engine |
SellingPoint06 |
Catch can has a 2 oz. capacity for longer servicing intervals |
TechSpec Applications |
N/A |
TechSpec Chassis Codes |
N/A |
TechSpec Includes |
N/A |
TechSpec Installation Notes |
N/A |
Install Difficulty |
2 |
Installation Difficulty |
2 |
Prop 65 - Short Label |
prop65_warning.jpg |
SellingPoint01 |
Direct fit for the 2010-2015 Chevrolet Camaro SS, manual transmission |
SellingPoint02 |
Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter |
SellingPoint03 |
Installs in under 30 minutes |
SellingPoint04 |

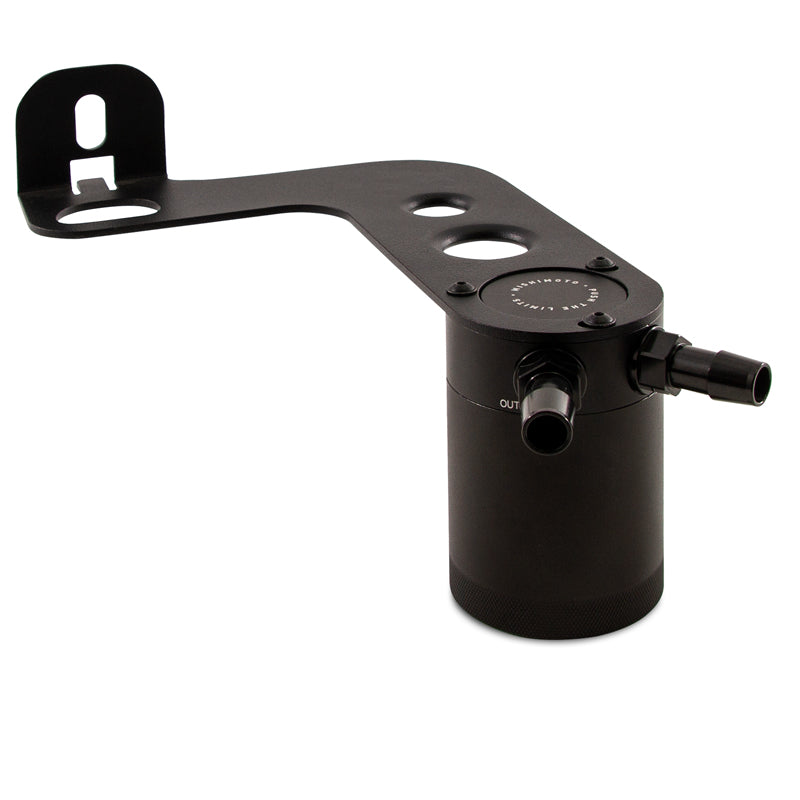

Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits |
SellingPoint10 |

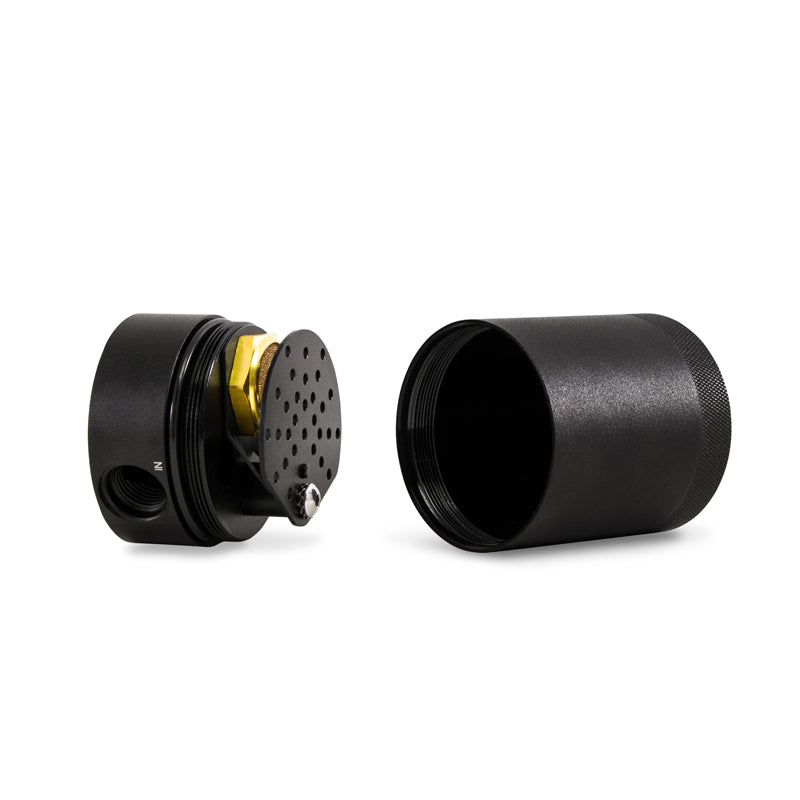

Billet 6061 aluminum sealed can is fully serviceable |
SellingPoint11 |

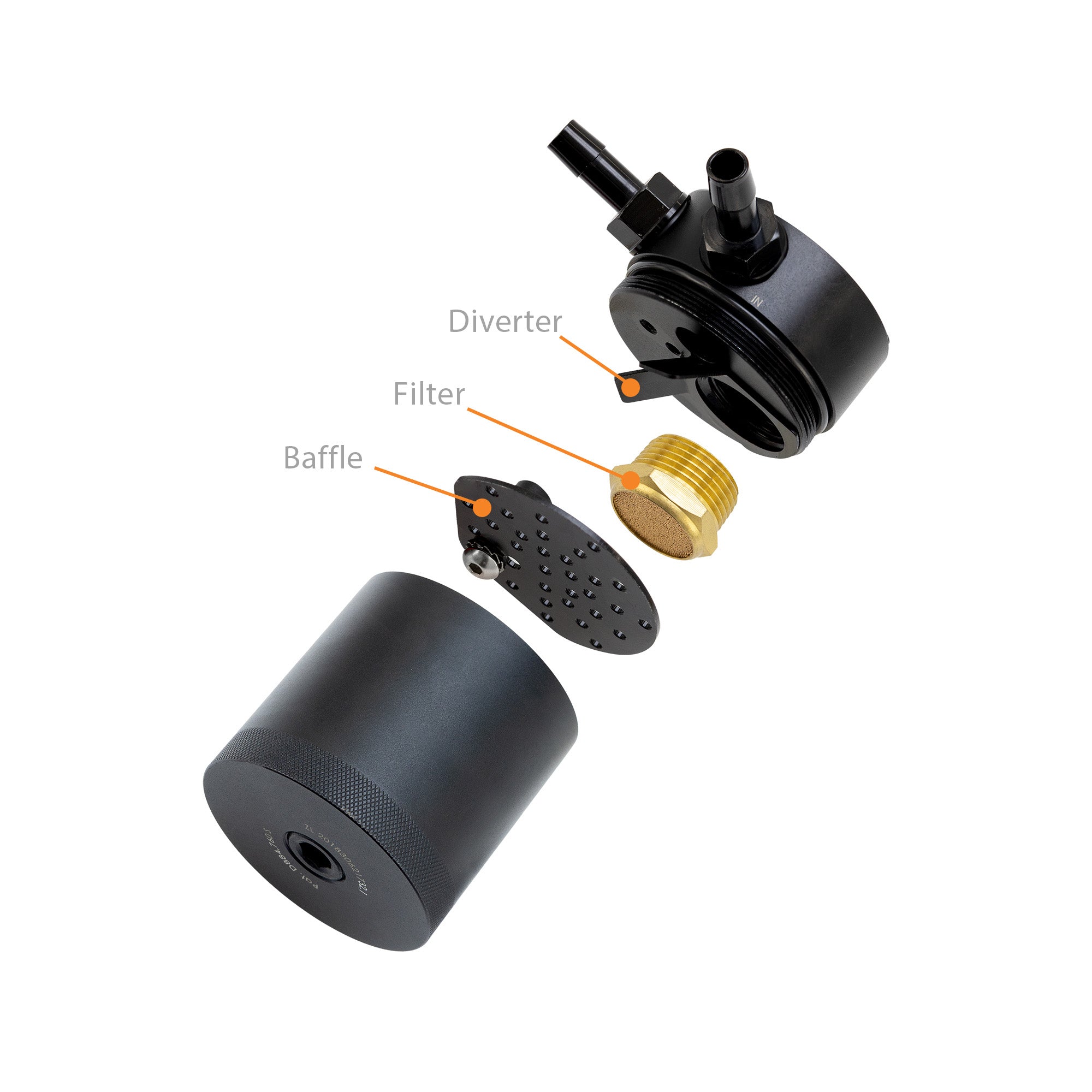

Internal air diverter increases air turbulence to improve oil separation |
SellingPoint12 |
Hoses available in black, blue, or red |
TechSpec Catch Can Diameter (in) |
N/A |
TechSpec Engine Codes |
N/A |
TechSpec Inlet |
N/A |
TechSpec Material |
N/A |
Color |
Black |
Finish |
Powdercoated |
Material |
6061 Aluminum |
SellingPoint07 |
Silicone hoses include pre-attached, stock-style quick-disconnect fittings for a true plug-and-play install |
SellingPoint08 |
Defends intake system and essential components from oil blow-by |
SellingPoint09 |
Helps maintain proper octane levels to reduce potential detonation |
SellingPoint15 |
N/A |
TechSpec Drain Plug Thread Size |
N/A |
TechSpec Height (in) |
N/A |
TechSpec Note |
N/A |
TechSpec Outlet |
N/A |
Title |
Mishimoto Chevrolet Camaro SS Auto Baffled Oil Catch Can, 2010-2015 |
Length |
8.0000 |
Width |
10.0000 |
Height |
14.0000 |
Weight |
5.0000 |
