| Description_DEF |
Radiator Kit |
| Description_DES |
Ultimate Bundle, for Ford 6.0L Powerstroke Mono Beam (4WD) 2005-2007 |
| Description_EXT |
Ultimate Bundle, for Ford 6.0L Powerstroke Mono Beam 2005-2007 |
| Description_INV |
Mishimoto MMB-F2D-008 |
| Description_FAB |
Direct fit for 2005-2007 Ford trucks equipped with the 6.0L Powerstroke and mono beam front suspension (4WD) |
| Description_FAB |
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments |
| Description_FAB |
Complete cooling system upgrade for your engine and transmission |
| Description_FAB |

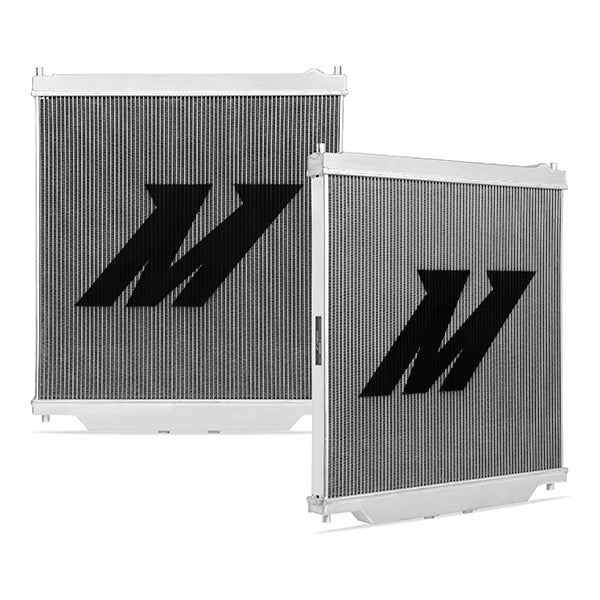

Radiator features full aluminum construction with durable, TIG-welded end tanks |
| Description_FAB |
Two-row, 1.88" thick brazed aluminum core, provides increased fluid capacity and superior heat dissipation |
| Description_FAB |
Silicone radiator hose kit constructed from high-grade, 4-ply silicone with heat-resistant embedded fibers for superior heat and pressure tolerance |
| Description_FAB |
Coolant filter kit removes solid particles from engine coolant, extending the life of your oil cooler, water pump, EGR cooler and other critical components |
| Description_FAB |
Low-temperature thermostat allows coolant to flow through the engine earlier, reducing the risk of overheating in hot environments |
| Description_FAB |
Full aluminum TIG-welded degas bottle is an ideal upgrade to the failure prone factory plastic unit |
| Description_FAB |
37-row stacked plate transmission cooler provides a 21% increase in core volume, resulting in a proven 10 degreesF (5.6 degreesC) drop in transmission fluid temperature |
| Description_FAB |
Turbo blanket is a direct fit for the 6.0L stock turbocharger and protects vital cooling components from excessive heat |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_SHO |
Cooling Bundle |
| Description_MKT |

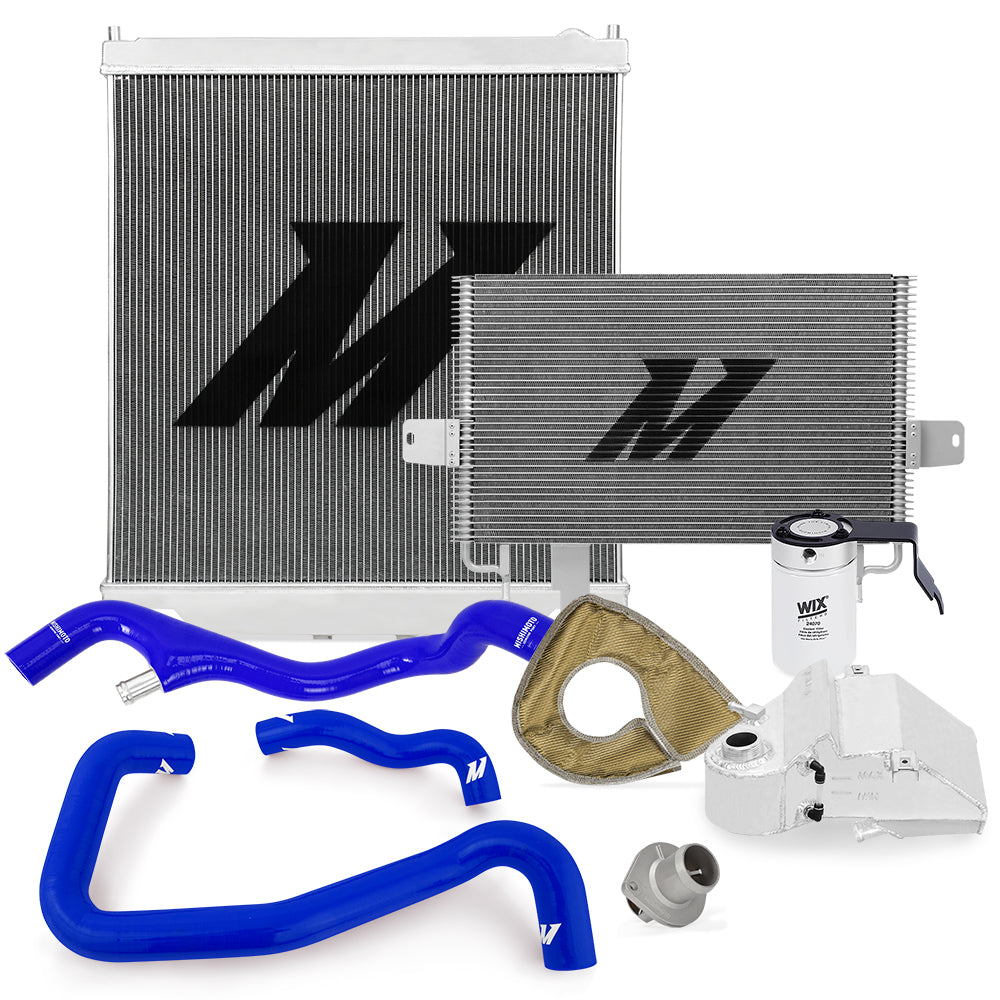

Restore your cooling system with the Mishimoto Ultimate Bundle. The Mishimoto 6.0L Powerstroke Mono Beam (4WD) Ultimate Bundle includes high-quality upgraded coolant components to replace items we've found to be the most failure-prone. For the 6.0L, we've bundled together our aluminum radiator, silicone radiator hose kit, silicone lower expansion hose kit, coolant filter kit, low-temperature thermostat w/housing, aluminum degas bottle, transmission cooler, and titanium turbo blanket. As the stand-out component, our aluminum radiator features a full aluminum construction with durable TIG-welded end tanks. This radiator is a two-row unit with a 1.88-in thick brazed aluminum core. To supplement this radiator upgrade, we've included our incredibly robust silicone radiator hose kit and lower expansion hose kit for the 6.0L. Mishimoto silicone hoses are constructed from high-grade 4-ply silicone with heat-resistant embedded fibers for superior heat and pressure tolerance. For maintaining low fluid temperatures, we've included our low-temperature thermostat. The Mishimoto thermostat has a lower activation temperature (185F) compared to the factory thermostat (192F). Within this bundle we've also included several items to protect your Powerstroke. Our coolant filter kit filters solid particles from engine coolant which extends the life of your oil cooler water pump, EGR cooler and other critical engine components. This kit includes our full-aluminum TIG-welded degas bottle, an ideal upgrade to the brittle factory plastic unit. The Mishimoto Titanium Turbo Blanket protects vital engine bay components from excessive heat. Rounding out this kit, the included direct-fit transmission cooler provides a proven 10F (5.6C) drop in transmission fluid temperature. Time to re-habilitate your 6.0L Powerstroke cooling system with the Mishimoto Ultimate Bundle. As with all our Powerstroke products, this bundle includes the signature Mishimoto Lifetime Warranty. |
| SellingPoint06 |
Two-row, 1.88-in thick brazed aluminum core, provides increased fluid capacity and superior heat dissipation |
| SellingPoint10 |
Full aluminum TIG-welded degas bottle is an ideal upgrade to the failure prone factory plastic unit |
| TechSpec Drain Plug Thread Size |
N/A |
| SellingPoint03 |
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments |
| SellingPoint08 |
Coolant filter kit removes solid particles from engine coolant, extending the life of your oil cooler, water pump, EGR cooler and other critical components |
| TechSpec Core Height (in) |
N/A |
| TechSpec Overall Width (ins) |
N/A |
| TechSpec Overall Height (in) |
N/A |
| Install Difficulty |
4 |
| SellingPoint09 |
Low-temperature thermostat allows coolant to flow through the engine earlier, reducing the risk of overheating in hot environments |
| TechSpec Applications |
Fits Powerstroke trucks equipped with mono beam front suspension only.----Ford Excursion V8 (6.0L Powerstroke) 2005--Ford F-250 V8 (6.0L Powerstroke) 2005-2007--Ford F-350 V8 (6.0L Powerstroke) 2005-2007--Ford F-450 V8 (6.0L Powerstroke) 2005-2007--Ford F-550 V8 (6.0L Powerstroke) 2007-2007 |
| TechSpec Chassis Codes |
F-250--F-350--F-450--F-550 |
| TechSpec Core Length (in) |
N/A |
| TechSpec Includes |
Aluminum Radiator-- Silicone Coolant Hose Kit-- Lower Overflow Hose Kit-- Coolant Filter Kit-- Low-Temperature Thermostat And Housing-- Aluminum Degas Bottle-- Transmission Cooler-- Titanium Turbo Blanket--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
N/A |
| TechSpec Material |
N/A |
| SellingPoint01 |
Direct fit for 2005-2007 Ford trucks equipped with the 6.0L Powerstroke and mono beam front suspension (4WD) |
| SellingPoint02 |
Ultimate bundle includes Mishimoto's aluminum radiator, silicone radiator hose kit, silicone lower expansion tank hose, coolant filter kit, low-temperature thermostat and housing, aluminum degas bottle, transmission cooler, and titanium turbo blanket |
| SellingPoint04 |
Complete cooling system upgrade for your engine and transmission |
| SellingPoint05 |
Radiator features full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint07 |
Silicone radiator hose kit constructed from high-grade, 4-ply silicone with heat-resistant embedded fibers for superior heat and pressure tolerance |
| SellingPoint11 |
37-row stacked plate transmission cooler provides a 21-percent increase in core volume, resulting in a proven 10F (5.6C) drop in transmission fluid temperature |
| SellingPoint12 |
Turbo blanket is a direct fit for the 6.0L stock turbocharger and protects vital cooling components from excessive heat |
| SellingPoint13 |
Mishimoto Lifetime Warranty |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec DPI |
N/A |
| TechSpec Engine Codes |
6.0L Powerstroke |
| TechSpec Fluid Capacity (gal) |
N/A |
| TechSpec Note |
This bundle requires relocation of the power steering cooler on late-model vehicles with high-mount coolers. Please reference individual pages for additional product details and specifications:--Aluminum Radiator, fits Ford 6.0L Powerstroke 2003-2007----Silicone Coolant Hose Kit, fits Ford 6.0L Powerstroke Mono Beam Chassis 2005-2007----Lower Overflow Hose, fits Ford 6.0L Powerstroke 2005-2007----Coolant Filter Kit, fits Ford 6.0L Powerstroke 2003-2007----Low-Temperature Thermostat and Housing, fits Ford 6.0L Powerstroke 2003-2007----Aluminum Degas Bottle, fits Ford 6.0L Powerstroke 2003-2007--Transmission Cooler, fits Ford 6.0L Powerstroke 2003-2007--Titanium Turbo Blanket, fits 2003-2007 Ford 6.0L Powerstroke |
| TechSpec Outlet (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Rows |
N/A |
| Length |
37.0000 |
| Width |
7.0000 |
| Height |
32.0000 |
| Weight |
60.0000 |
