| Description_DEF |
Radiator Kit |
| Description_DES |
Ford 6.4L Powerstroke Heavy-Duty Protection Bundle, 2008--2010 |
| Description_MKT |

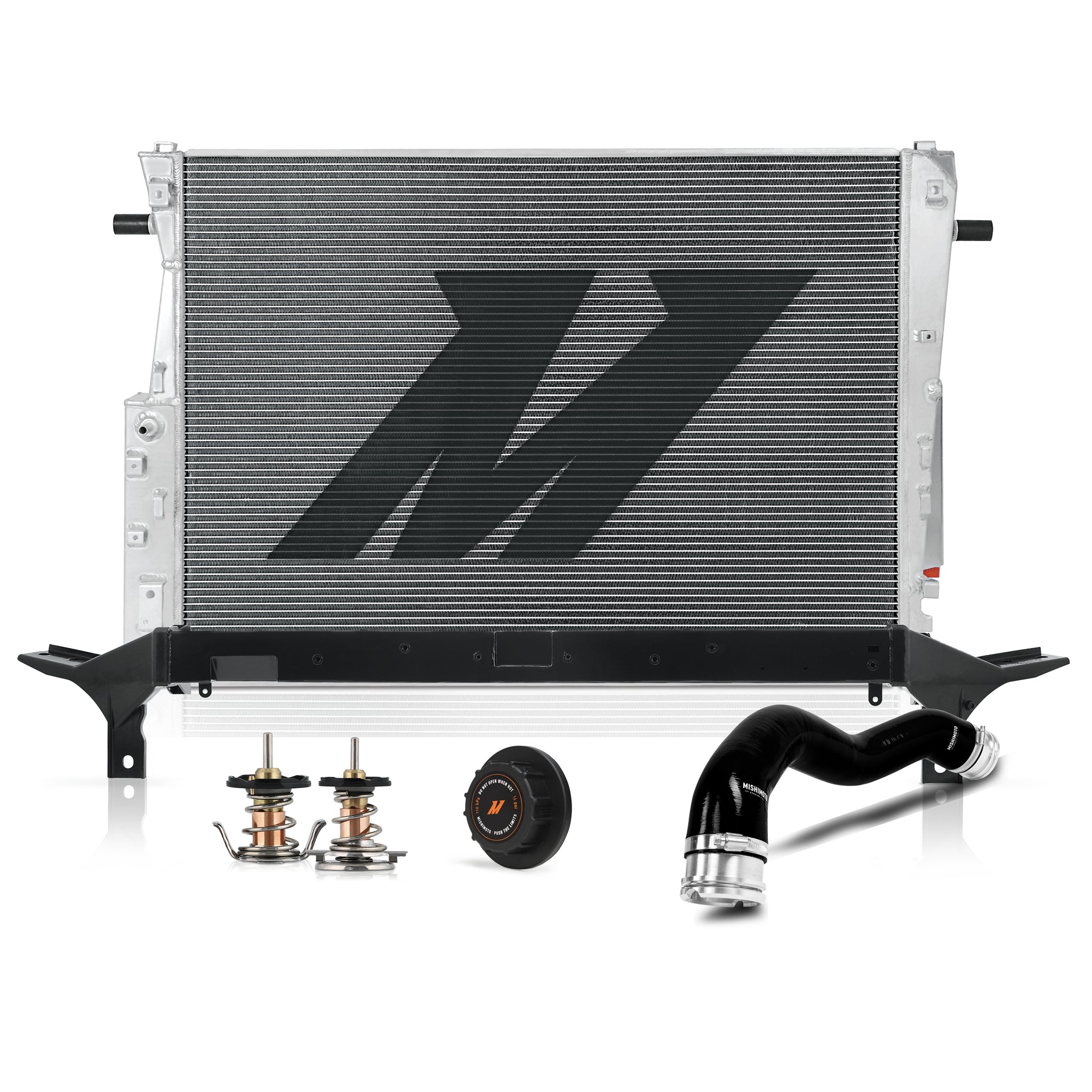

If you're looking to revamp the cooling system on your 2008-2010 Ford 6.4L Powerstroke, and then some, look no further. The Mishimoto 6.4L Powerstroke Heavy-duty Protection Bundle includes everything you need to make sure your cooling system is as tough as the rest of your Ford. In addition to our fully-aluminum performance radiator and sturdy steel upper support bar, this bundle includes our high-temp thermostat, low-temp thermostat, reservoir tank cap, and silicone coolant hoses. Everything in this bundle is engineered and tested to be direct fit with your 6.4L Powerstroke, while providing greater durability and performance. Say goodbye to leaking stock radiators and hoses, faulty thermostats and rad caps, and weak upper support bars - with this bundle, you'll never have to worry about another drop of coolant on your driveway or shop floor. As with all of our products, these components are back by our Mishimoto Lifetime Warranty, for performance backed by peace of mind. |
| Description_INV |
Mishimoto MMB-F2D-002 |
| Description_FAB |
Direct fit for 2008--2010 Ford 6.4L Powerstroke |
| Description_FAB |
Upper support bar provides improved rigidity to minimize front end flex |
| Description_FAB |
Aluminum radiator incorporates internally strutted tubes in the top and bottom 8 rows for increased |
| Description_FAB |
Coolant hoses are constructed from five layers of heat-resistant fibers and silicone |
| Description_FAB |
Mishimoto's Lifetime Warranty |
| Description_EXT |
Heavy-Duty Protection Bundle, for Ford 6.4L Powerstroke 2008-2010 |
| Description_SHO |
Radiator Kit |
| TechSpec Core Height (in) |
N/A |
| TechSpec Includes |
Radiator:--Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts----Upper Support Bar:-- Mishimoto Support Bar--(2) Mounting Brackets--(2) Rubber Hood Stops-- Hardware Pack----Thermostats:--(2) Mishimoto High-temp Thermostats--(2) Mishimoto Low-temp Thermostats--(2) Factory-Style O-Rings----Coolant Hoses:--(3) Silicone Hoses--(4) CNC Aluminum Couplers (pre-attached)--(4) Stainless Steel Spring Clips (pre-attached)-- Aluminum Tube Joiner (pre-attached)--(5) 50-70mm Worm Gear Clamps (pre-attached)-- 50-70mm Worm Gear Clamp--(8) Rubber O-Rings (pre-installed)----Reservoir Cap:-- Mishimoto Overflow Reservoir Cap----Mishimoto Lifetime Warranty |
| SellingPoint05 |
High and Low-temp thermostats allow you to tailor the cooling system for cold or hot environments |
| TechSpec Overall Length (in) |
N/A |
| Install Difficulty |
4 |
| SellingPoint01 |
Direct fit for 2008-2010 Ford 6.4L Powerstroke |
| SellingPoint14 |
N/A |
| SellingPoint02 |
Upper support bar provides improved rigidity to minimize front end flex |
| SellingPoint08 |
Mishimoto's Lifetime Warranty |
| SellingPoint09 |
N/A |
| TechSpec Core Thickness (in) |
2.76 |
| TechSpec DPI |
N/A |
| TechSpec Fluid Capacity (gal) |
8.36 |
| TechSpec Overall Width (ins) |
N/A |
| SellingPoint03 |
Aluminum radiator incorporates internally strutted tubes for increased strength against high pressure and temperature |
| SellingPoint07 |
Patent numberD717,702 |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
For written installation instructions, please see the tech specs section of the individual product pages |
| SellingPoint04 |
Coolant hoses are constructed from five layers of heat-resistant fibers and silicone and come pre-assembled with CNC-machined couplers |
| SellingPoint06 |
1.1 bar (16 psi) overflow reservoir cap raises the boiling point of engine coolant to provide a safer and more efficient cooling system |
| SellingPoint10 |
N/A |
| SellingPoint13 |
N/A |
| TechSpec Applications |
2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke |
| TechSpec Chassis Codes |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Inlet (in) |
N/A |
| TechSpec Outlet (in) |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Rows |
2 |
| Length |
46.5000 |
| Width |
38.5000 |
| Height |
143.0000 |
| Weight |
82.0000 |
