| Description_DEF |
Radiator Kit |
| Description_DES |
Ford 6.4L Powerstroke Essential Protection Bundle, 2008--2010 |
| Description_EXT |
Essential Protection Bundle, for Ford 6.4L Powerstroke 2008-2010 |
| Description_SHO |
Radiator Kit |
| Description_INV |
Mishimoto MMB-F2D-001 |
| Description_MKT |

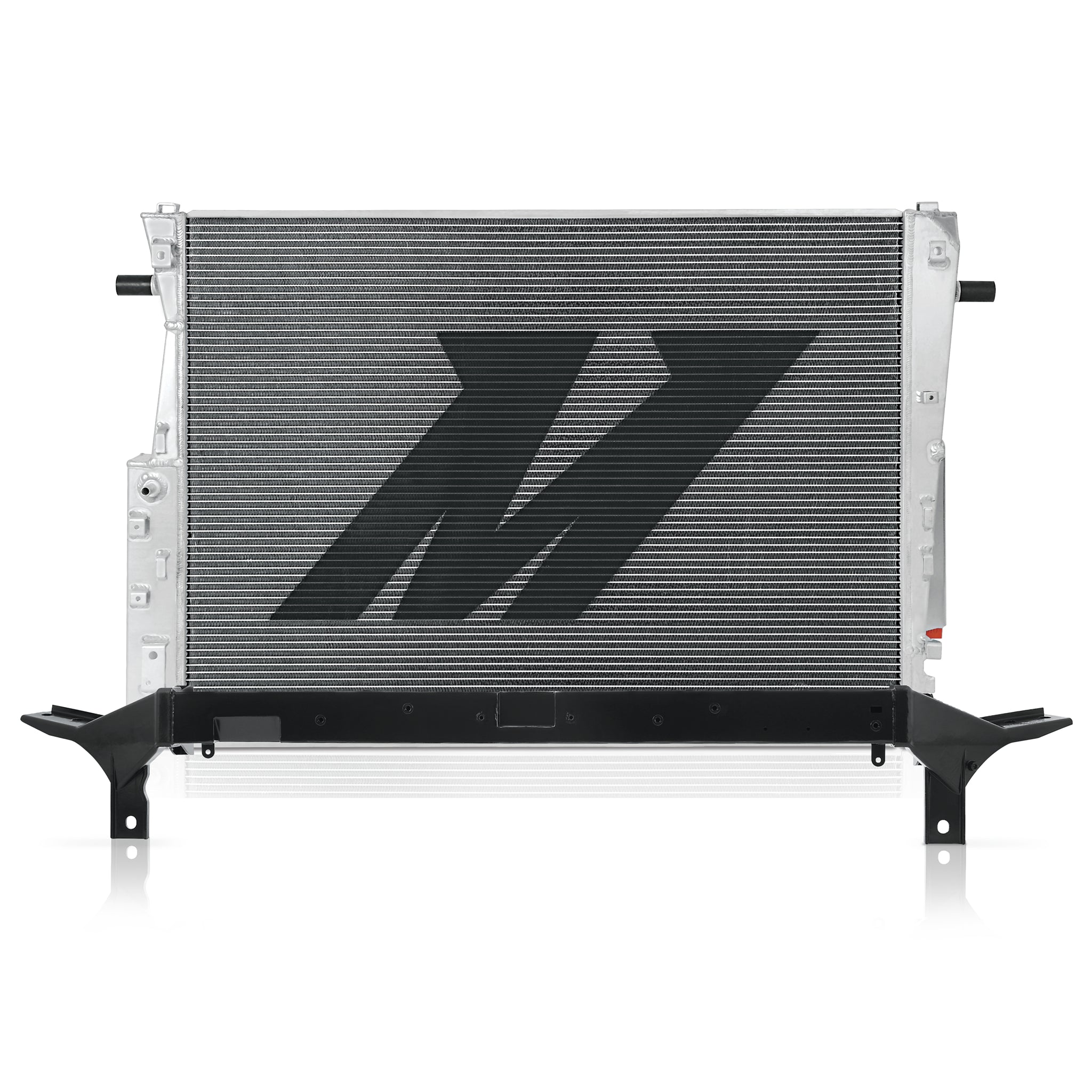

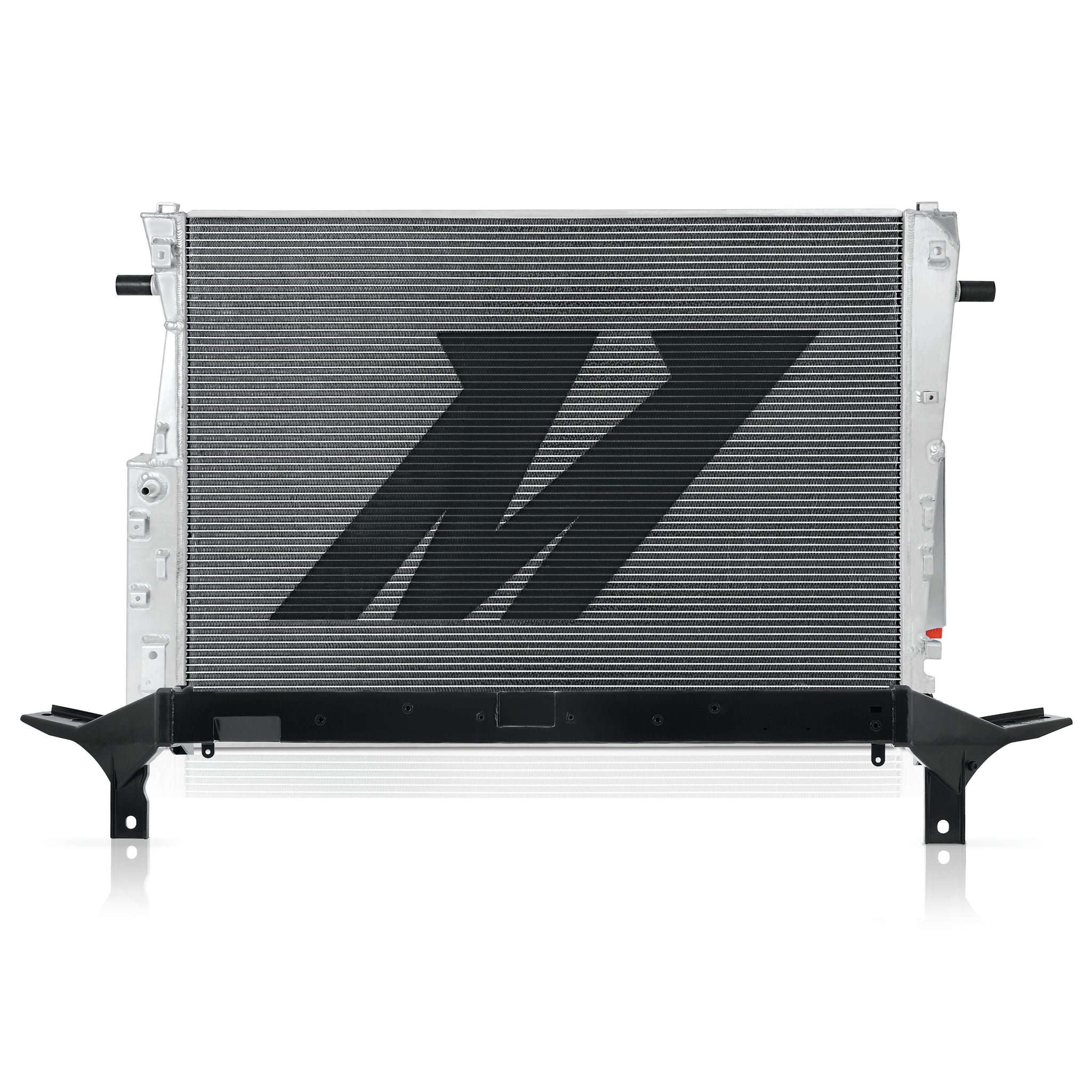

Tired of constantly filling your 6.4 Powerstroke radiator with coolant because you have a leak? The engineers at Mishimoto have been hard at work designing an all-aluminum 6.4 radiator and upper support bar bundle to put an end to puddles of coolant under your truck. The Mishimoto 6.4 Powerstroke radiator is constructed from high-quality, aircraft-grade aluminum with a 100-percent brazed aluminum core. The core is then TIG-welded to aluminum end tanks for superior durability and longevity. Couple that radiator with our upper support bar, and you have a recipe for a dry shop floor. Engineered right here in Delaware, our upper support bar is constructed of heavy-duty steel and firmly secures to your truck with cast-steel anchor points. All of that steel minimizes front end flex, improving the truck?s rigidity, and saving your radiator. Of course, both the 6.4L upper support bar and radiator are backed by the Mishimoto Lifetime Warranty |
| Description_MKT |
so you'll never have to worry about leaks again! |
| Description_FAB |
Direct fit for 2008--2010 Ford 6.4L Powerstroke |
| Description_FAB |
Upper support bar provides improved rigidity to minimize front end flex |
| Description_FAB |
Aluminum radiator incorporates co-molded aluminum/rubber mounting pegs |
| Description_FAB |
Internally strutted radiator tubes in the top and bottom 8 rows for increased strength |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Install Difficulty |
3 |
| SellingPoint01 |
Direct fit for 2008-2010 Ford 6.4L Powerstroke |
| SellingPoint02 |
Upper support bar provides improved rigidity to minimize front end flex |
| SellingPoint03 |
Less twisting in radiator support = less stress on cooling components |
| SellingPoint04 |
Aluminum radiator incorporates co-molded aluminum/rubber mounting pegs to reduce the truck's torque transfer to the radiator |
| SellingPoint05 |
Internally strutted radiator tubes for increased strength against high pressure and temperature |
| SellingPoint06 |
Patent numberD717,702 |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
2.76 |
| TechSpec DPI |
N/A |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
8.36 |
| TechSpec Includes |
Radiator:--Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts----Upper Support Bar:-- - Mishimoto Support Bar--(2) - Mounting Brackets--(2) - Rubber Hood Stops-- - Hardware Pack----Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
N/A |
| TechSpec Material |
Aluminum |
| TechSpec Note |
For written installation instructions, please see the tech specs section of the individual product pages for the radiator and upper support bar |
| TechSpec Outlet (in) |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Width (ins) |
N/A |
| TechSpec Rows |
2 |
| Length |
41.0000 |
| Width |
22.0000 |
| Height |
112.0000 |
| Weight |
72.0000 |
