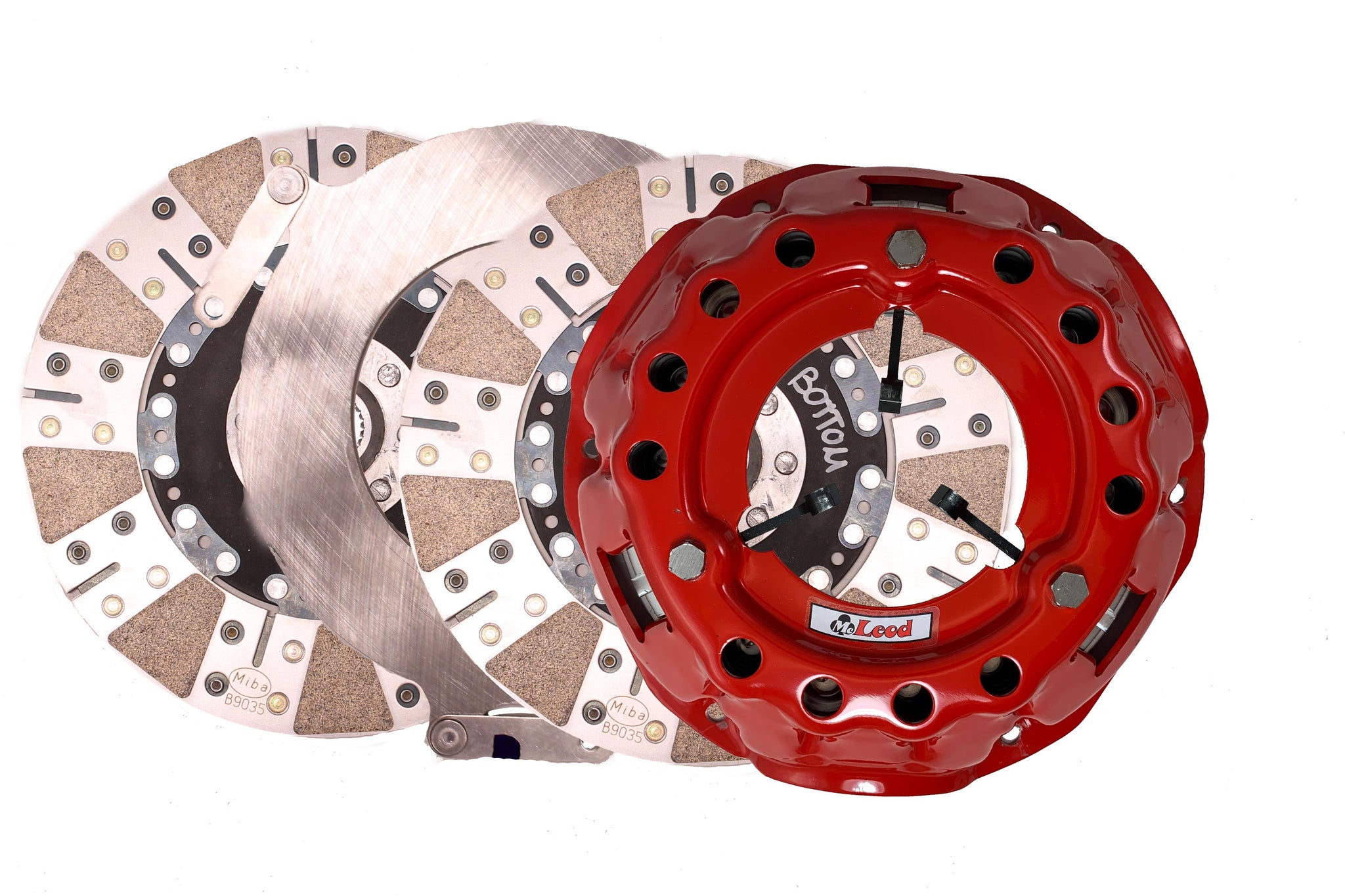

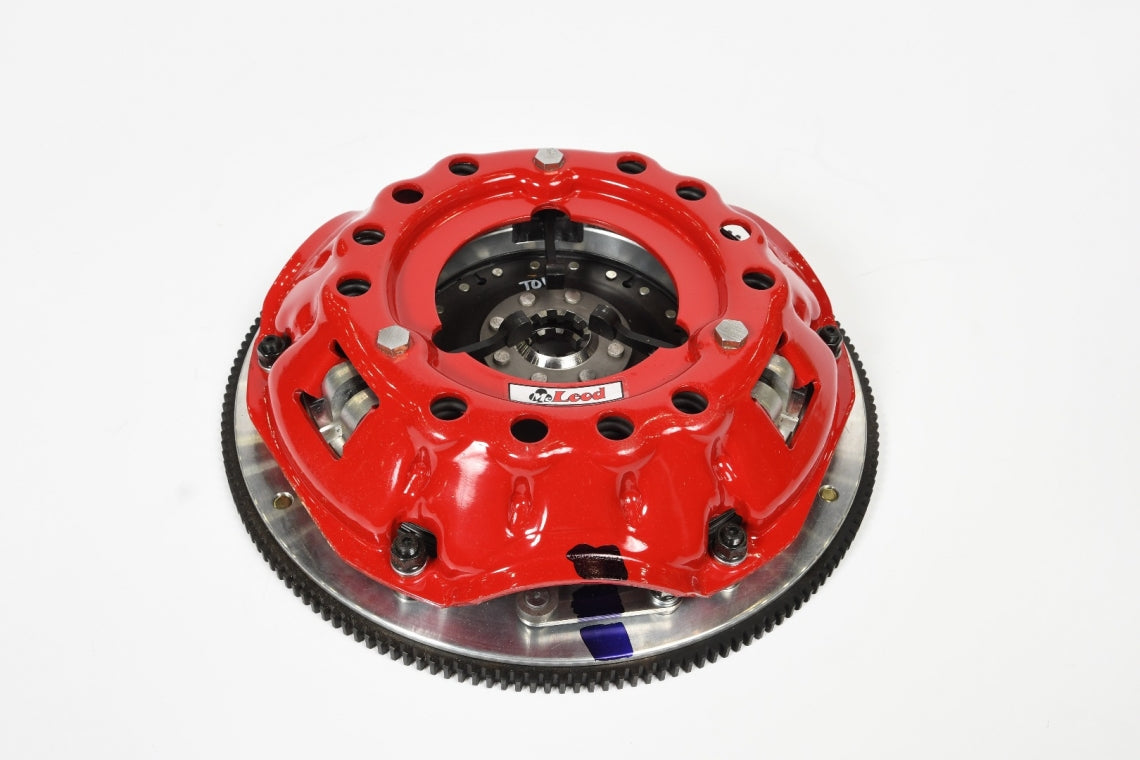

The SFT 2000 Inherits The Mcleod Standard For Twin Disc Technology. Equipped With Two Ceramic Discs, The Unit Has A 10.5" Pressure Plate, Compliant With Factory Hydraulics, And Will Fit In The Factory Bellhousing. The Semi-Metallic Discs Are Great For Smooth Engagement And High Horsepower Street Driving, Yet Give You The Material You Need When Fighting For That Win Light At The Track.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
SFT 2000 Ford MODular:1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank: 0 Balance: Steel Fly:B&B/L:1-1/8 X 26 Spl Bronze Facing: 164T:Each |
| Description_DES |
SFT 2000: Ford MODular: Steel Fly:B&B/L:1-1/8 X 26 Spl Bronze Facing: 164T:Ea |
| Description_INV |
Clutch Kit |
| Description_FAB |
The SFT is what you use when your bringing serious heat to the party! Good for up to 2000 HP the SFT will be there when you need it most! |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The SFT 2000 Inherits The Mcleod Standard For Twin Disc Technology. Equipped With Two Ceramic Discs, The Unit Has A 10.5" Pressure Plate, Compliant With Factory Hydraulics, And Will Fit In The Factory Bellhousing. The Semi-Metallic Discs Are Great For Smooth Engagement And High Horsepower Street Driving, Yet Give You The Material You Need When Fighting For That Win Light At The Track. |
| Make |
Ford |
| Disc Diameter |
10.5In. |
| Inputshaft Spline |
1-1/8 x 26 |
| NOTE: |
Input Shaft Spline is for aftermarket transmission with 1-1/8 x 26 Spline. Call McLeod Racing for more info at 714 630-2764 |
| Pressure Plate Style |
Borg & Beck Long |
| Engine |
Modular 4.6L/5.0L/5.4L 8 Bolt Crank |
| Flywheel Material |
Aluminum with Steel Heat shield |
| Horsepower Rating |
2000 HP |
| Ring Gear |
164T |
| Hub Style |
Solid |
| Engine Balance |
Internal |
| Disc Material |
Ceramic |
| Throw Out Bearing Style |
Standard |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
52.0000 |
