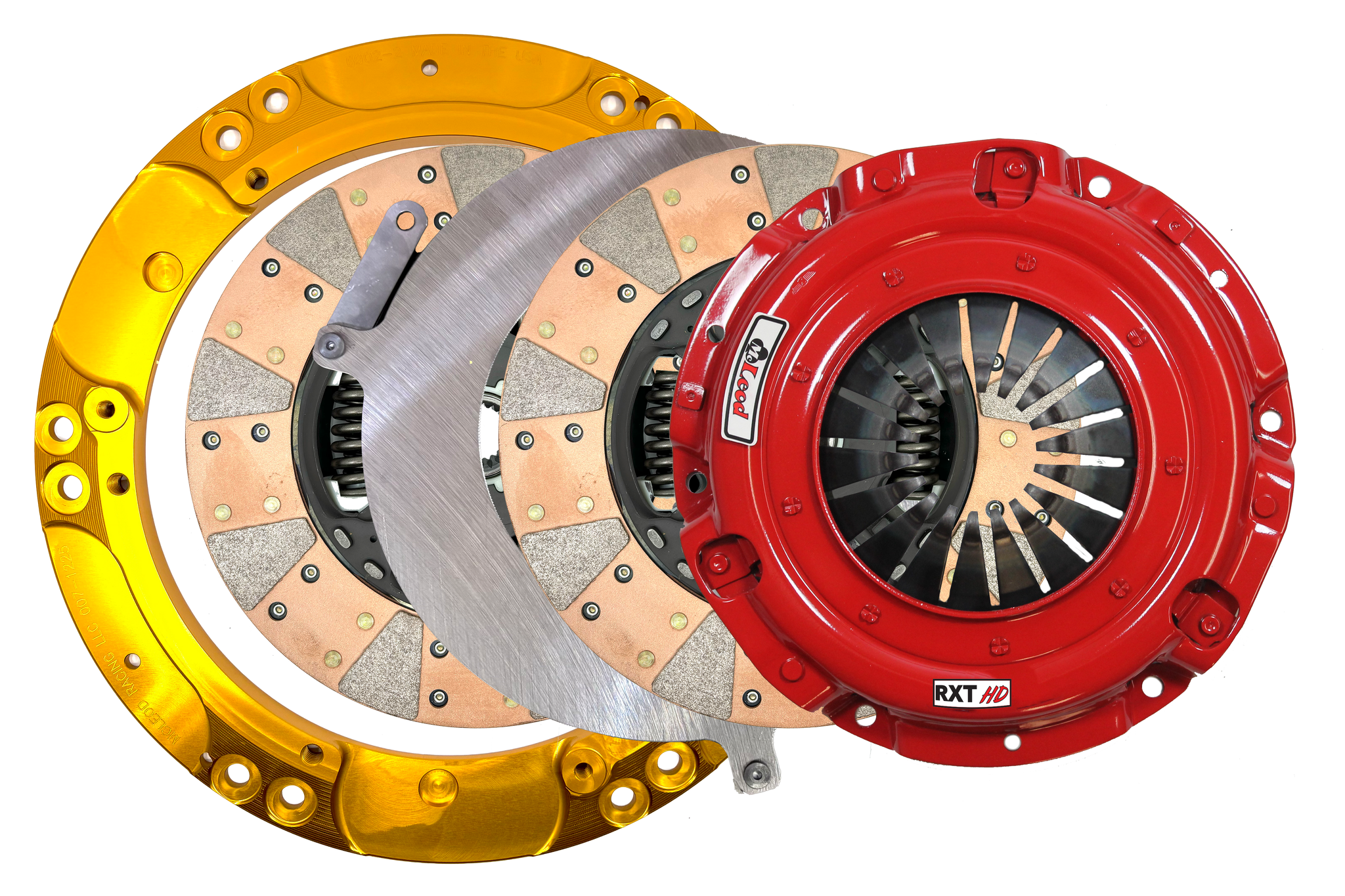

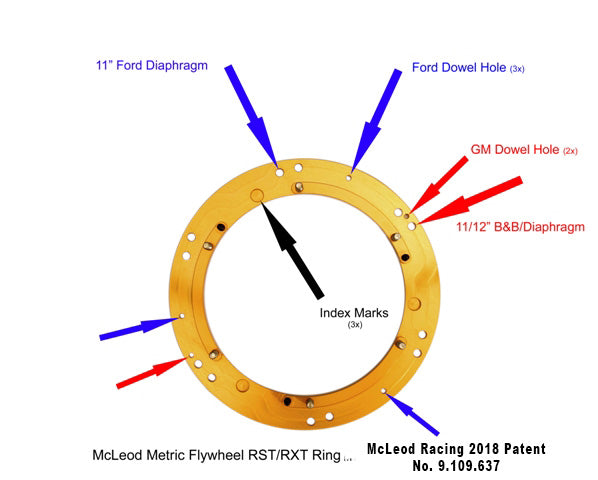

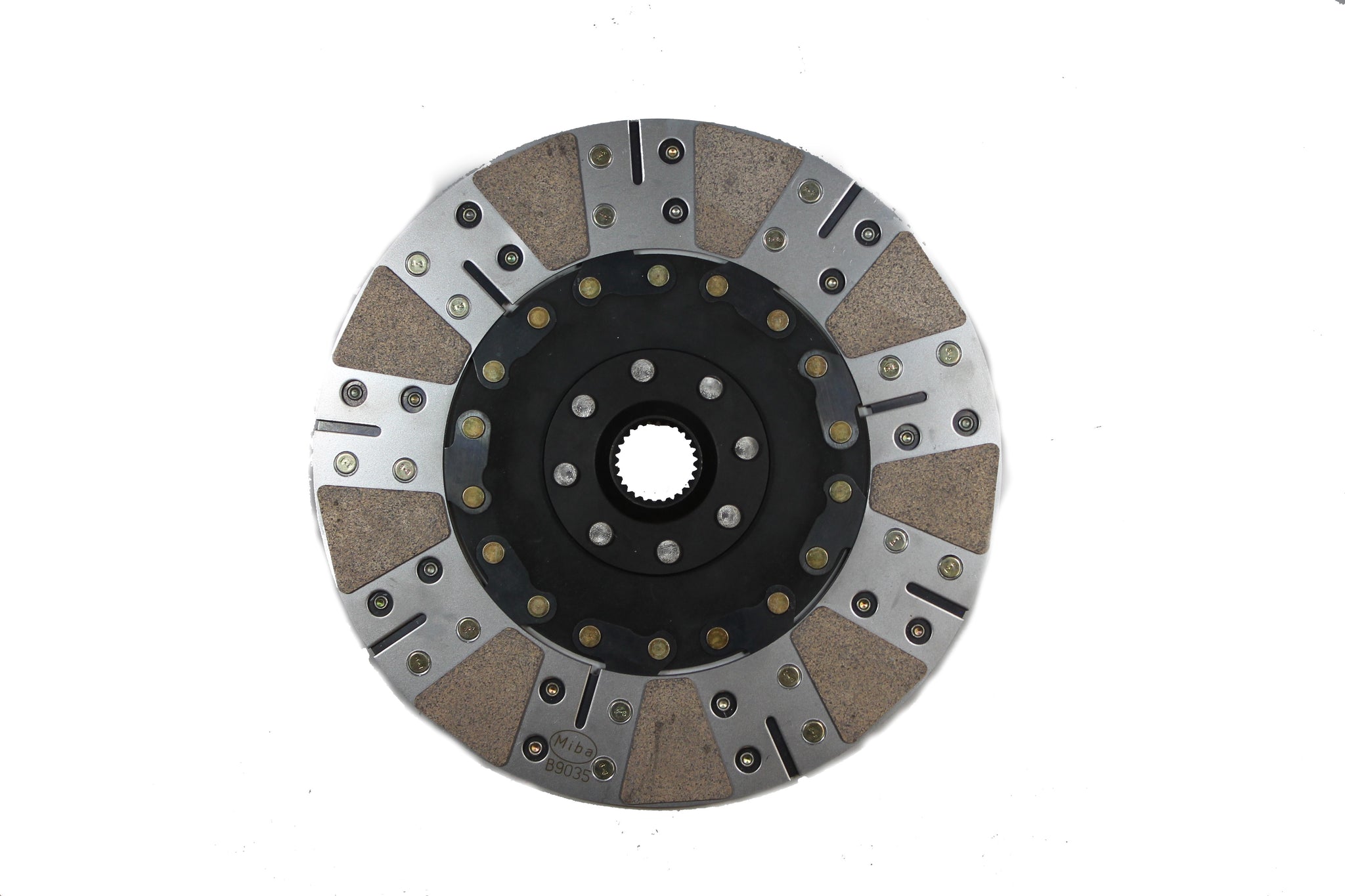

Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT 1200 is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASC |
NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact. |
| Description_ASM |
Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 15 6.2 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Ford: Mustang 11 - 17 5 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Chevrolet: Camaro 14 - 15 7 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Ford: Mustang 01 - 10 4.6 L Engine, Pontiac: GTO 05 - 06 6 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT1200:9.687" Dia. Disc:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/8x26 |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT 1200 is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_EXT |
RXT1200:9.687" Dia. Disc:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/8x26 |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Spline |
1 1/8In. x 26 |
| NOTE: |
Will only fit LS1/LS6 Flat style Flywheels. Will not fit LS2/LS3/LS7 recessed flywheels. |
| NOTE: 3 |
Will not fit on 2012-Up Modular Ford Flywheels with 9 bolt Pressure Plate Pattern. |
| Application 1 |
1999-2017 Ford Mustang; 4.6L/5.0L/5.4L |
| Pilot Bushing Material |
N/A |
| Make |
Chevrolet,Ford, Pontiac |
| Flywheel Included |
No |
| Application 5 |
2004-2006 Pontiac GTO; 5.7L/6.0L |
| Application 2 |
1998-2015 Chevrolet Camaro; 5.7L/6.2L/7.0L |
| Horsepower Rating |
1200 |
| Application 3 |
1997-2013 Chevrolet Corvette; 5.7L/6.0L/6.2L/7.0L |
| Hardware Included |
Yes |
| Application 4 |
1998-2002 Pontiac Firebird; 5.7L |
| NOTE: 2 |
Will only fit 6.250In. diameter crank relief on 1996-2017 Modular Ford flywheels. |
| Throwout Bearing Style |
Standard |
| Alignment Tool Included |
Yes |
| Disc Style |
Full Face/Multi Pad |
| Clutch Usage |
Street/Track |
| Throwout Bearing Included |
No |
| NOTE: 4 |
Will only fit Ford Applications with aftermarket transmissions with 1-1/8 x 26 spline. |
| Disc Material |
Ceramic |
| Pilot Bushing Included |
No |
| Pressure Plate Style |
Diaphragm |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
23.0000 |
