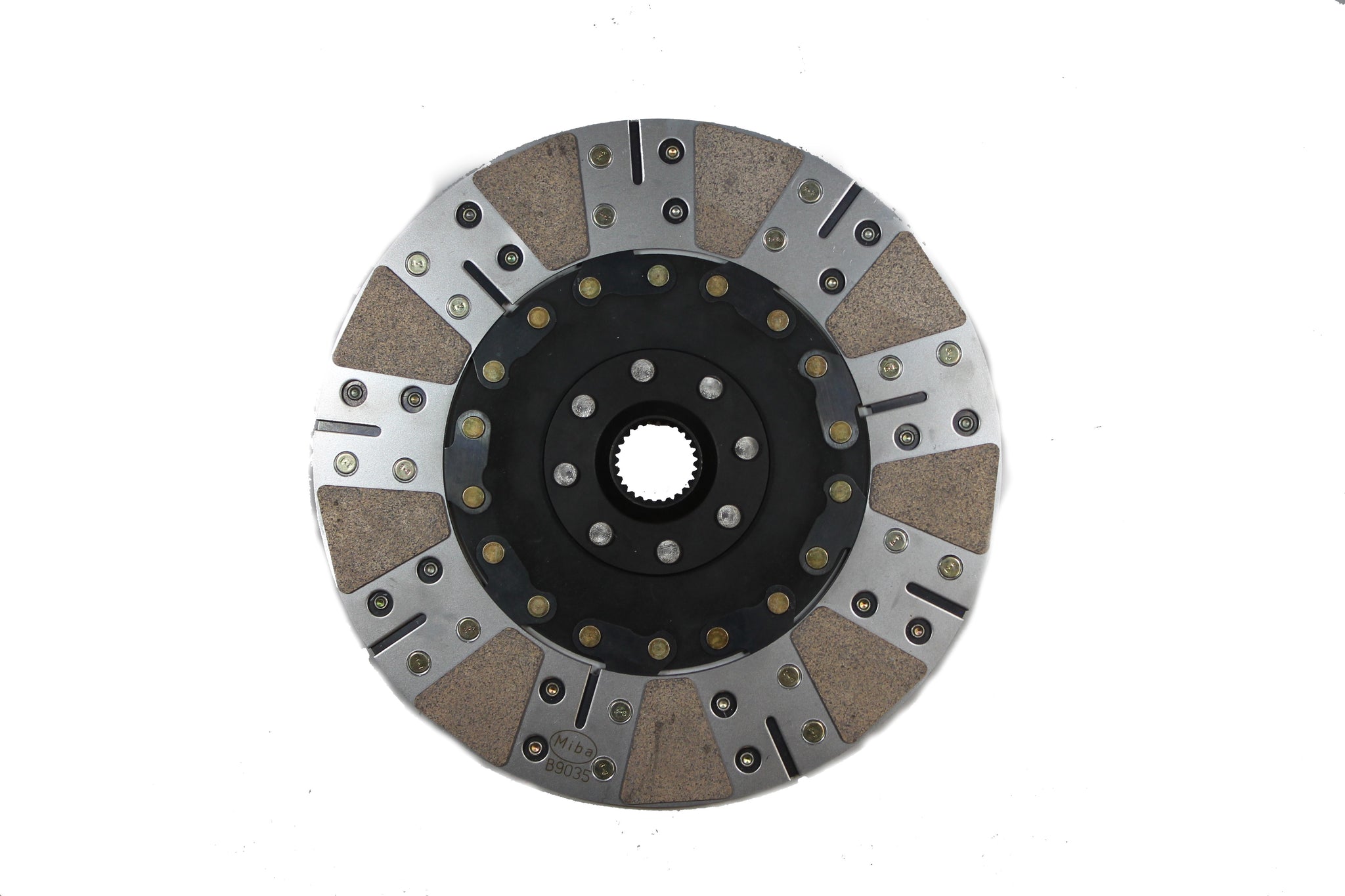

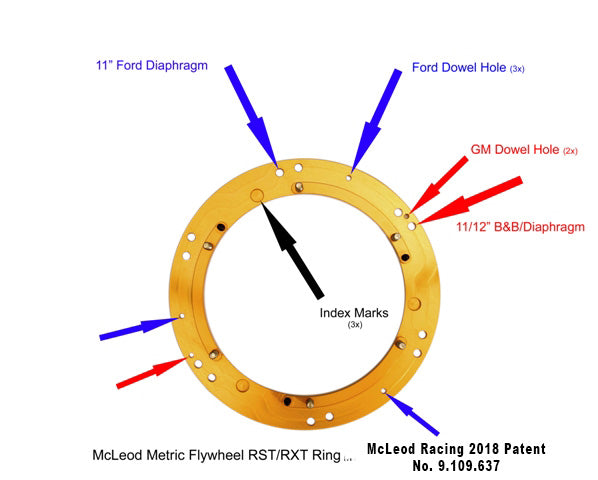

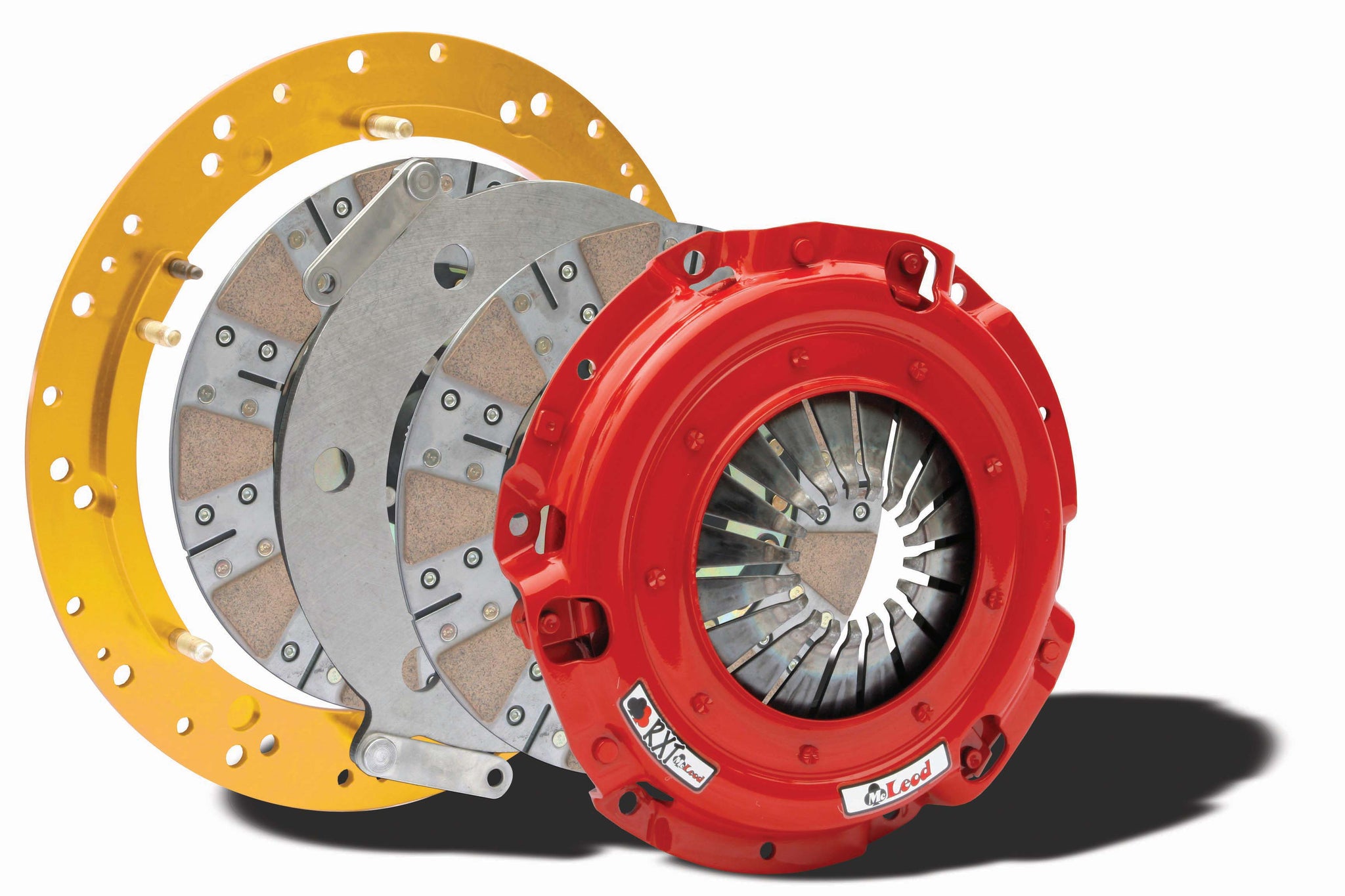

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars
Specifications:
| Description_ASC |
NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact. |
| Description_ASM |
Chevrolet: C2500 99 - 00 5.7 L Engine, Chevrolet: C3500 99 - 00 5.7 L Engine, Chevrolet: Colorado 09 - 12 5.3 L Engine, Chevrolet: K2500 99 - 00 5.7 L Engine, Chevrolet: K3500 99 - 00 5.7 L Engine, Chevrolet: Silverado 1500 99 - 06 4.8 L Engine, Chevrolet: Silverado 1500 99 - 06 5.3 L Engine, Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine, Chevrolet: Silverado 2500 99 - 00 5.3 L Engine, Chevrolet: Silverado 2500 99 - 04 6 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine, Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Silverado 3500 01 - 06 6 L Engine, Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, GMC: C2500 99 - 00 5.7 L Engine, GMC: C3500 99 - 00 5.7 L Engine, GMC: K2500 99 - 00 5.7 L Engine, GMC: K3500 99 - 00 5.7 L Engine, GMC: Sierra 1500 05 - 05 6 L Engine, GMC: Sierra 2500 99 - 04 6 L Engine, GMC: Sierra 2500 HD 01 - 06 6 L Engine, GMC: Sierra 2500 HD Classic 07 - 07 6 L Engine, GMC: Sierra 3500 01 - 06 6 L Engine, GMC: Sierra 3500 Classic 07 - 07 6 L Engine |
| Description_DES |
RXT:9.687" Dia. Disc:Chevy:1997-13 LS-X:W/ Use of Flat Flywheel:1-1/8x10 |
| Description_DEF |
Transmission Clutch Kit |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_EXT |
RXT:9.687" Dia. Disc:Chevy:1997-13 LS-X:W/ Use of Flat Flywheel:1-1/8x10 |
| Description_INV |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars |
| Description_SHO |
Clutch Kit |
| Engine Balance |
Neutral |
| Flywheel Material |
N/A |
| Engine |
1997-2004 GM LS1/LS6 |
| Disc Diameter |
9.687In. |
| Flywheel Included |
No |
| Hardware Included |
No |
| Pilot Bushing Included |
No |
| Ring Gear |
N/A |
| Pressure Plate Style |
Diaphragm |
| Disc Style |
Full Face |

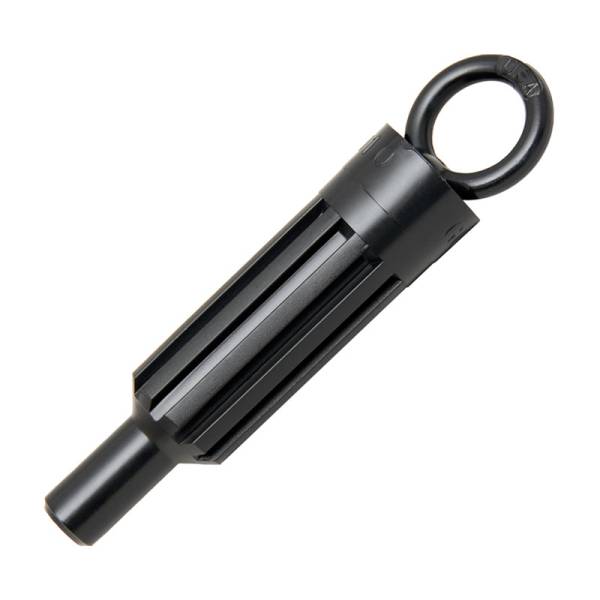

| Alignment Tool Included |
Yes |
| Spline |
1-1/8 x 10 |
| Number of Discs |
Double |
| Disc Material |
Organic |
| Additional Counter Weight Kit Required |
No |
| Make |
Chevrolet |
| Pilot Bushing Material |
N/A |
| Torque Rating |
1000 Ft. Lbs. |
| Clutch Patterns |
11In./12In. Borg & Beck with Dowel Pins and 10mm Bolts |
| Clutch Usage |
Street |
| Hub Style |
Solid |
| Throwout Bearing Included |
No |
| Throwout Bearing Style |
Standard |
| Length |
5.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
26.0000 |
