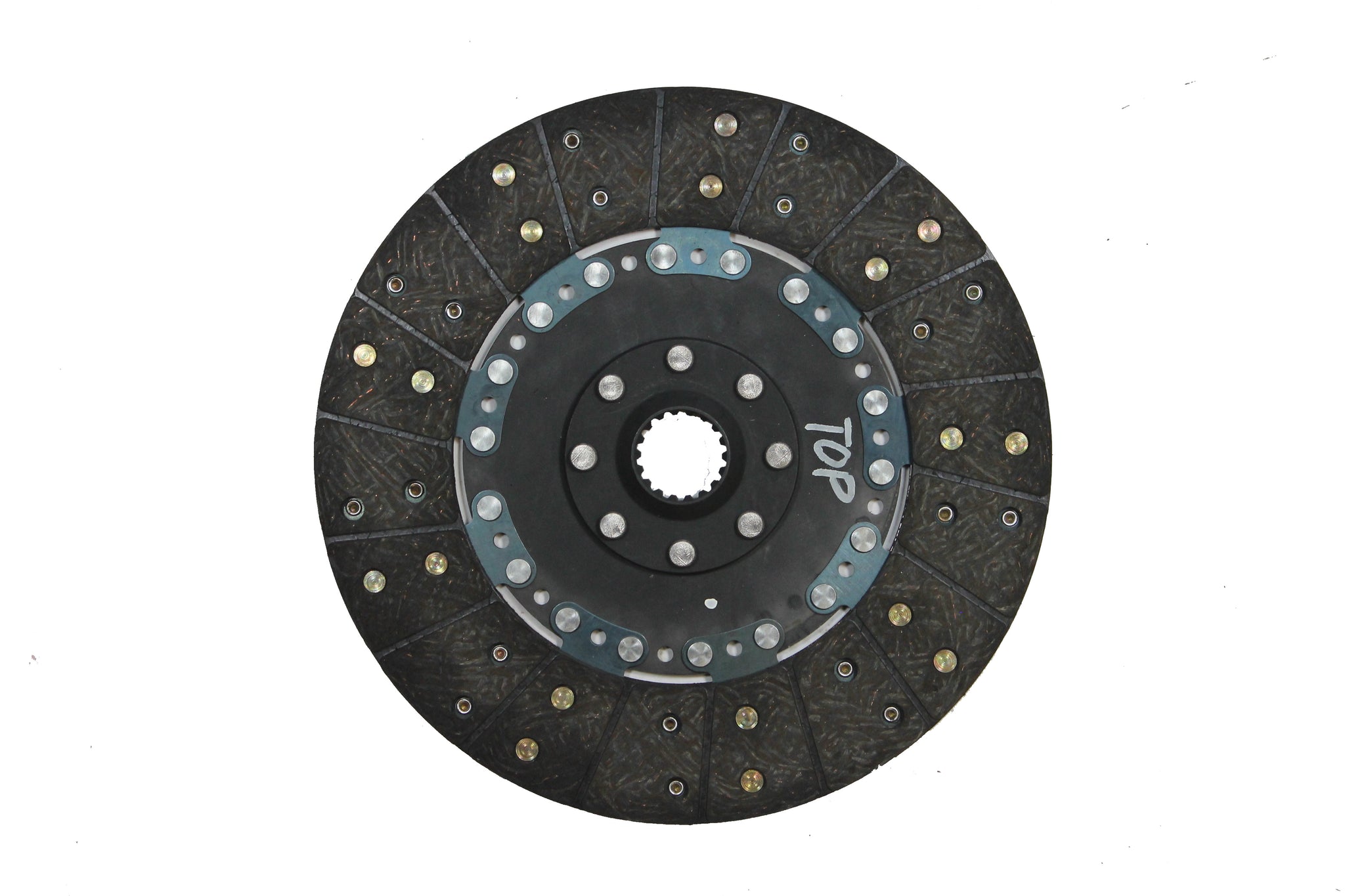

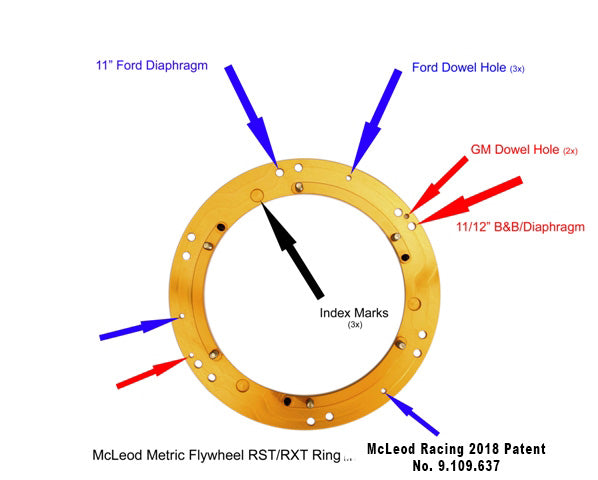

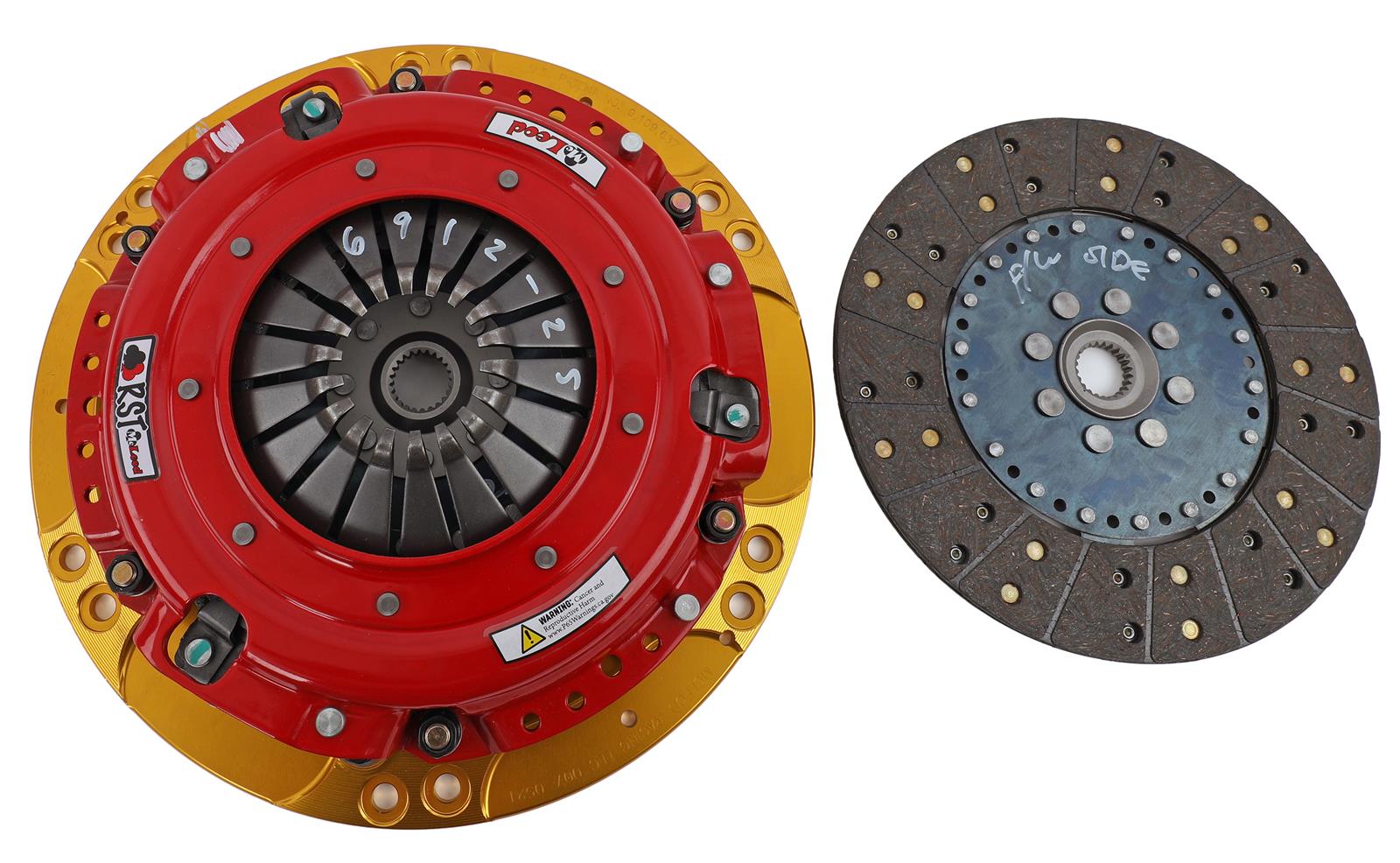

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASC |
NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact. |
| Description_ASM |
Ford: Mustang 11 - 17 5 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RST:9.687" Dia. Disc:2011-17 Ford Mustang 5.0L:1x23 Metric |
| Description_INV |
Clutch Kit |
| Description_EXT |
RST:9.687" Dia. Disc:2011-17 Ford Mustang 5.0L:1x23 Metric |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_MKT |
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_SHO |
Clutch Kit |
| Horsepower Rating |
800 |
| Make |
Ford |
| Hub Style |
Solid |
| Disc Diameter |
9-11/16In. |
| Throwout Bearing Style |
Standard |
| Stock Disc Size |
11In. |
| Number of Discs |
Double |
| Pilot Bushing Material |
N/A |
| Pilot Bushing Included |
No |
| Hardware Included |
Yes |
| Throwout Bearing Included |
No |
| Flywheel Included |
No |
| Engine |
2011-2017 5.0L Coyote 8 Bolt Crank |
| Flywheel Fitment |
Fits 164 Tooth Flywheel |
| Alignment Tool Included |
Yes |
| Disc Material |
Organic |
| Spline |
1In. x 23 |
| Disc Style |
Solid Hub |
| NOTE 2: |
This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764. |
| Clutch Patterns |
11In. Mustang with Dowel Pin Holes 2000 and up |
| Pressure Plate Style |
Diaphragm |
| Clutch Usage |
Street |
| NOTE: |
This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764. |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
23.0000 |
